rear view mirror PONTIAC VIBE 2005 Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-7
Safety Belts
.............................................. 1-8
Child Restraints
.......................................1-26
Airbag System
.........................................1-46
Restraint System Check
............................1-62
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows
.................................................2-13
Theft-Deterrent Systems
............................2-15
Starting and Operating Your Vehicle
...........2-17
Mirrors
....................................................2-34
OnStar
®System
......................................2-35
Storage Areas
.........................................2-37
Sunroof
..................................................2-40
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-20
Warning Lights, Gages, and Indicators
........3-25
Audio System(s)
.......................................3-42Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
........ 4-2
Towing
...................................................4-37
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-48
Bulb Replacement
....................................5-49
Windshield Wiper Blade Replacement
.........5-56
Tires
......................................................5-57
Appearance Care
.....................................5-87
Vehicle Identication
.................................5-95
Electrical System
......................................5-95
Capacities and Specications
...................5-100
Normal Maintenance Replacement Parts
......5-102
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index.................................................................1
2005 Pontiac Vibe Owner ManualM

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Programmable Automatic Door Locks................2-9
Rear Door Security Locks..............................2-10
Liftgate/Liftglass............................................2-11
Windows........................................................2-13
Manual Windows..........................................2-14
Power Windows............................................2-14
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-15
Content Theft-Deterrent.................................2-15
Starting and Operating Your Vehicle................2-17
New Vehicle Break-In....................................2-17
Ignition Positions..........................................2-18
Starting Your Engine.....................................2-19
Engine Coolant Heater..................................2-21
Automatic Transaxle Operation.......................2-22
Overdrive Off...............................................2-24
Manual Transaxle Operation...........................2-25
Parking Brake..............................................2-28Shifting Into Park (P) (Automatic Transaxle)........2-28
Shifting Out of Park (P) (Automatic Transaxle).....2-30
Parking Your Vehicle (Manual Transaxle).........2-31
Parking Over Things That Burn.......................2-32
Engine Exhaust............................................2-32
Running Your Engine While You Are Parked.......2-33
Mirrors...........................................................2-34
Manual Rearview Mirror.................................2-34
Manual Rearview Mirror with OnStar
®..............2-34
Outside Remote Control Mirrors......................2-34
Outside Convex Mirror...................................2-35
OnStar
®System.............................................2-35
Storage Areas................................................2-37
Glove Box...................................................2-37
Cupholder(s)................................................2-37
Coinholder(s)................................................2-37
Instrument Panel Storage Area.......................2-37
Center Console Storage Area.........................2-37
Floor Mats...................................................2-38
Rear Storage Area........................................2-38
Rear Cargo Accessory Track System................2-39
Cargo Cover................................................2-39
Cargo Tie Downs..........................................2-40
Sunroof.........................................................2-40
Section 2 Features and Controls
2-1

Mirrors
Manual Rearview Mirror
While sitting in a comfortable driving position, adjust the
mirror so you can see clearly behind your vehicle. Grip the
mirror in the center to move it up or down and side to side.
The control at the bottom of the mirror is the day/night
feature that allows adjustment to the mirror so that the
glare of headlamps from behind is reduced. Pull the
control for night driving to reduce glare; push it to return
to the day position.
The mirror may have map lights beneath the mirror.
Push the lens to turn each light on or off.
Manual Rearview Mirror with OnStar®
The vehicle may have an inside rearview mirror with
OnStar®. See your GM dealer for more information
on the system and how to subscribe to OnStar®.
SeeOnStar®System on page 2-35for information
on the services OnStar®provides.
While sitting in a comfortable position, adjust the
mirror so you can see clearly behind your vehicle.
Grip the mirror in the center to move it up or down and
side to side. The control at the bottom of the mirror
is the day/night feature that allows adjustment to
the mirror so that the glare of headlamps from behind is
reduced. Move the control from left to right for day or
night conditions.
Outside Remote Control Mirrors
The vehicle has outside power adjustable mirrors.
The controls are located
to the left of the
steering wheel on the
instrument panel.
To adjust either mirror, push the button labeled L (left)
or R (right). Use the arrows on the control pad to adjust
the direction of the mirror.
Once both mirrors have been adjusted, move the
selector switch back to the center. This prevents the
mirrors from being moved once they have been adjusted.
2-34

Reading Lamps
If you have a sunroof, you will have a reading lamp
near the sunroof switch. Press the button to turn
the lamp on and press it again to turn it off.If you do not have a sunroof, your vehicle’s inside
rearview mirror may be equipped with reading lamps.
If your vehicle is equipped with reading lamps, there are
two buttons located on the bottom of the mirror. Press
the buttons to turn the lamps on and press them again to
turn the lamps off.
To prevent the battery from draining on vehicles with
power door locks, the lamps will automatically turn
off when the key is in the ACC or LOCK positions or if
the key is removed for 20 minutes or more. The lights
will come on when any of the doors are opened
or if the key is turned to the ON position.
3-17

Driving at Night
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to be
impaired — by alcohol or drugs, with night vision
problems, or by fatigue.Here are some tips on night driving.
Drive defensively.
Do not drink and drive.
Adjust your inside rearview mirror to reduce the
glare from headlamps behind you.
Since you cannot see as well, you may need to
slow down and keep more space between you
and other vehicles.
Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.
In remote areas, watch for animals.
If you are tired, pull off the road in a safe place
and rest.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as much
light to see the same thing at night as a 20-year-old.
What you do in the daytime can also affect your
night vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes
will have less trouble adjusting to night. But if you
are driving, do not wear sunglasses at night. They may
cut down on glare from headlamps, but they also
make a lot of things invisible.
4-17

Highway Hypnosis
Is there actually such a condition as highway hypnosis?
Or is it just plain falling asleep at the wheel? Call it
highway hypnosis, lack of awareness, or whatever.
There is something about an easy stretch of road with
the same scenery, along with the hum of the tires on the
road, the drone of the engine, and the rush of the
wind against the vehicle that can make you sleepy.
Do not let it happen to you! If it does, your vehicle can
leave the road in less than a second, and you could
crash and be injured.
What can you do about highway hypnosis?
First, be aware that it can happen.
Then here are some tips:
Make sure your vehicle is well ventilated, with a
comfortably cool interior.
Keep your eyes moving. Scan the road ahead and
to the sides. Check your rearview mirrors and your
instruments frequently.
If you get sleepy, pull off the road into a rest,
service, or parking area and take a nap, get some
exercise, or both. For safety, treat drowsiness
on the highway as an emergency.
Hill and Mountain Roads
Driving on steep hills or mountains is different from
driving in at or rolling terrain.
4-24

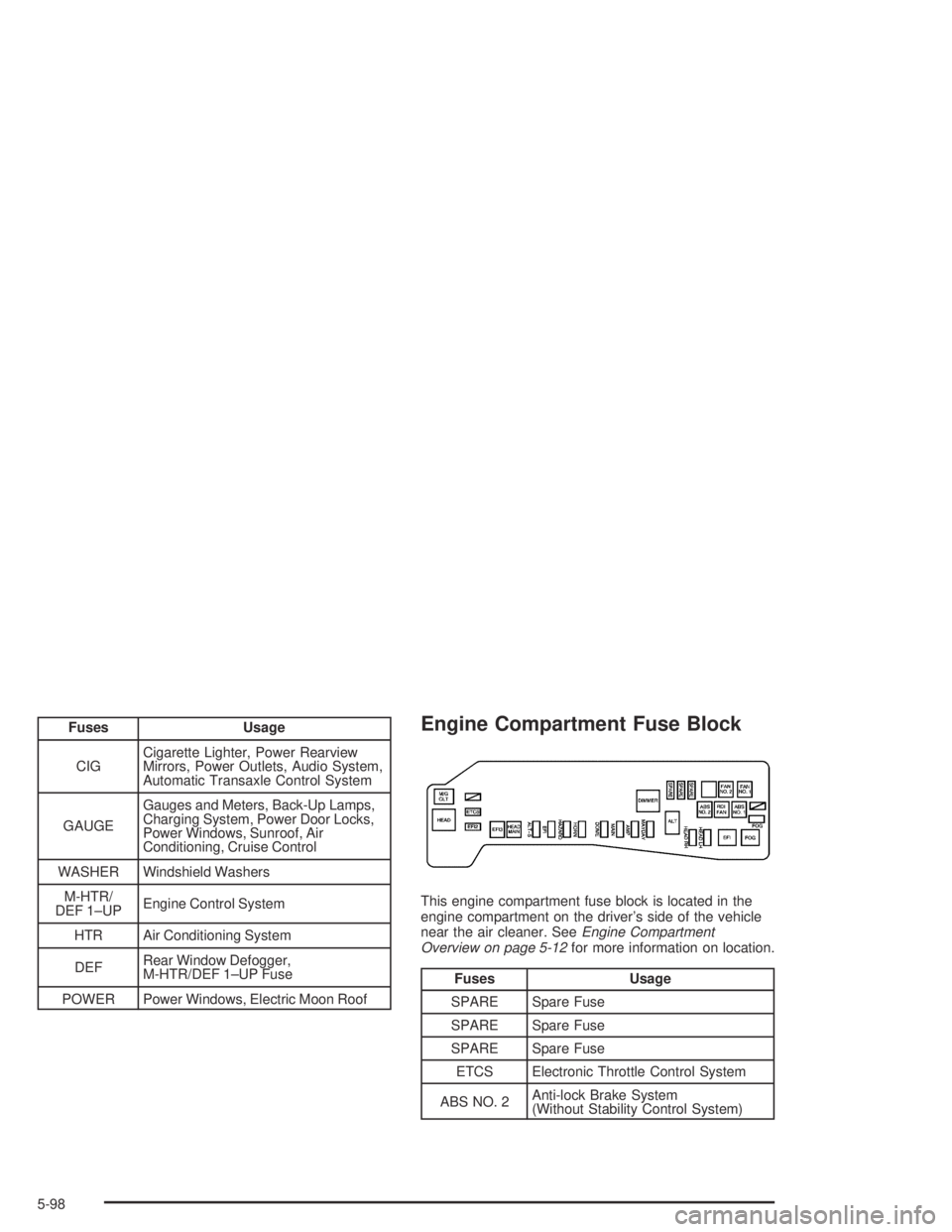

Fuses Usage
CIGCigarette Lighter, Power Rearview
Mirrors, Power Outlets, Audio System,
Automatic Transaxle Control System
GAUGEGauges and Meters, Back-Up Lamps,
Charging System, Power Door Locks,
Power Windows, Sunroof, Air
Conditioning, Cruise Control
WASHER Windshield Washers
M-HTR/
DEF 1–UPEngine Control System
HTR Air Conditioning System
DEFRear Window Defogger,
M-HTR/DEF 1–UP Fuse
POWER Power Windows, Electric Moon RoofEngine Compartment Fuse Block
This engine compartment fuse block is located in the
engine compartment on the driver’s side of the vehicle
near the air cleaner. SeeEngine Compartment
Overview on page 5-12for more information on location.
Fuses Usage
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
ETCS Electronic Throttle Control System
ABS NO. 2Anti-lock Brake System
(Without Stability Control System)
5-98

Malfunction Indicator Light................................3-35
Manual Seats................................................... 1-2
Manual Transaxle
Fluid..........................................................5-26
Operation...................................................2-25
Manual Windows............................................2-14
Mirrors
Manual Rearview Mirror................................2-34
Manual Rearview Mirror with OnStar
®.............2-34
Outside Convex Mirror.................................2-35
Outside Remote Control Mirrors.....................2-34
MyGMLink.com................................................ 7-3
N
Navigation/Radio System..................................3-64
New Vehicle Break-In......................................2-17
Normal Maintenance Replacement Parts...........5-102
O
Odometer......................................................3-27
Odometers, Trip..............................................3-27
Off-Road Recovery..........................................4-14Oil
Engine.......................................................5-16
Pressure Light.............................................3-38
Older Children, Restraints................................1-26
Online Owner Center........................................ 7-3
OnStar
®System.............................................2-35
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-22
Outside
Convex Mirror.............................................2-35
Remote Controls Mirrors...............................2-34
Overdrive Off.................................................2-24
Overdrive Off Light..........................................3-40
Owners, Canadian............................................... ii
P
Panic Brake Assist..........................................4-11
Park (P)
Shifting Into................................................2-28
Shifting Out of............................................2-30
Parking
Brake........................................................2-28
Over Things That Burn.................................2-32
9

Parking Your Vehicle.......................................2-31
Part A - Scheduled Maintenance Services............ 6-4
Part B - Owner Checks and Services................6-13
Part C - Periodic Maintenance Inspections..........6-17
Part D - Recommended Fluids and
Lubricants..................................................6-19
Part E - Maintenance Record...........................6-21
Passenger Airbag Status Indicator.....................3-30
Passenger Compartment Air Filter.....................3-23
Passenger Sensing System..............................1-56
Passing.........................................................4-14
Power
Accessory Outlets........................................3-18
Door Locks.................................................. 2-8
Electrical System.........................................5-96
Outlet 115 Volt Alternating Current.................3-18
Steering Fluid.............................................5-37
Windows....................................................2-14
Pretensioners, Safety Belt................................1-24
Programmable Automatic Door Locks.................. 2-9
Q
Questions and Answers About Safety Belts.........1-13
R
Radiator Pressure Cap....................................5-30
Radios..........................................................3-42
Care of Your CD Player...............................3-65
Care of Your CDs........................................3-64
Navigation/Radio System..............................3-64
Radio with CD............................................3-43
Radio with Six-Disc CD................................3-53
Setting the Time..........................................3-42
Understanding Reception..............................3-64
Reading Lamps..............................................3-17
Rear Cargo Accessory Track System.................2-39
Rear Door Security Locks................................2-10
Rear Seat Operation......................................... 1-7
Rear Seat Passengers, Safety Belts..................1-21
Rear Storage Area..........................................2-38
Rearview Mirror with OnStar
®...........................2-34
Rearview Mirrors.............................................2-34
Reclining Seatbacks.......................................... 1-3
Recovery Hook...............................................4-31
Recreational Vehicle Towing.............................4-37
Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
10
