PONTIAC VIBE 2006 Owners Manual

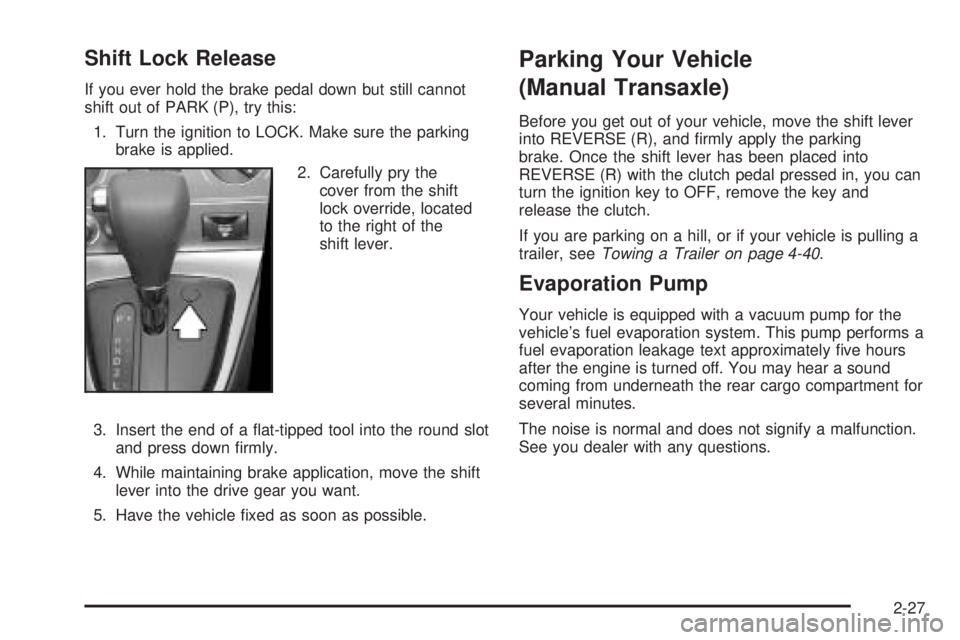

Shift Lock Release
If you ever hold the brake pedal down but still cannot
shift out of PARK (P), try this:
1. Turn the ignition to LOCK. Make sure the parking
brake is applied.
2. Carefully pry the
cover from the shift
lock override, located
to the right of the
shift lever.
3. Insert the end of a at-tipped tool into the round slot
and press down rmly.
4. While maintaining brake application, move the shift
lever into the drive gear you want.
5. Have the vehicle xed as soon as possible.
Parking Your Vehicle
(Manual Transaxle)
Before you get out of your vehicle, move the shift lever
into REVERSE (R), and rmly apply the parking
brake. Once the shift lever has been placed into
REVERSE (R) with the clutch pedal pressed in, you can
turn the ignition key to OFF, remove the key and
release the clutch.
If you are parking on a hill, or if your vehicle is pulling a
trailer, seeTowing a Trailer on page 4-40.
Evaporation Pump
Your vehicle is equipped with a vacuum pump for the
vehicle’s fuel evaporation system. This pump performs a
fuel evaporation leakage text approximately ve hours
after the engine is turned off. You may hear a sound
coming from underneath the rear cargo compartment for
several minutes.
The noise is normal and does not signify a malfunction.
See you dealer with any questions.
2-27

Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Do not
park over papers, leaves, dry grass, or other
things that can burn.
Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you cannot
see or smell. It can cause unconsciousness
and death.
You might have exhaust coming in if:
Your exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a collision.
Your vehicle was damaged when driving
over high points on the road or over
road debris.
Repairs were not done correctly.
Your vehicle or exhaust system had been
modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows down to
blow out any CO; and
Have your vehicle xed immediately.
2-28

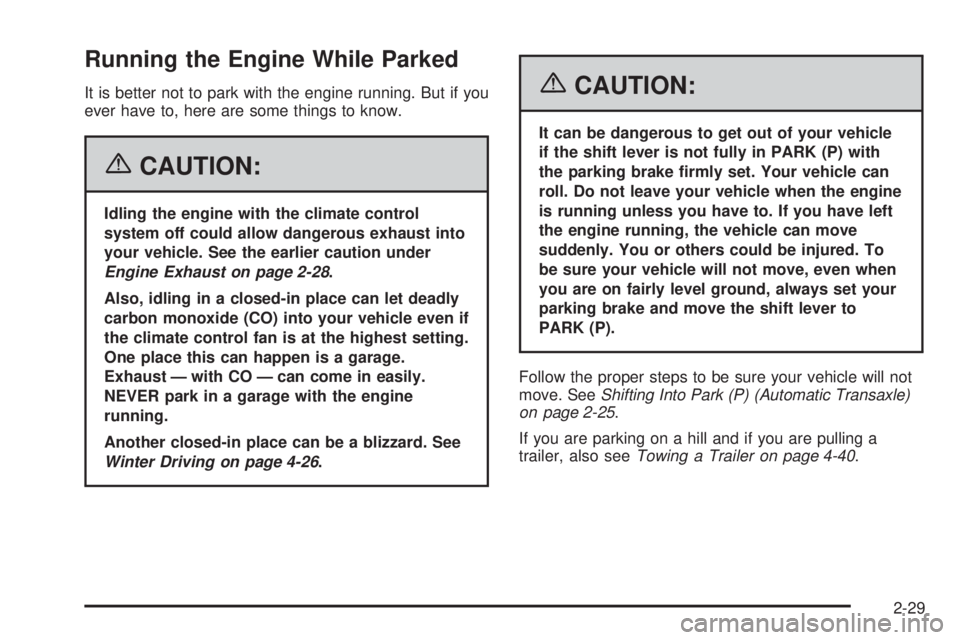

Running the Engine While Parked
It is better not to park with the engine running. But if you
ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier caution under
Engine Exhaust on page 2-28.
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the climate control fan is at the highest setting.
One place this can happen is a garage.
Exhaust — with CO — can come in easily.
NEVER park in a garage with the engine
running.
Another closed-in place can be a blizzard. See
Winter Driving on page 4-26.
{CAUTION:
It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake rmly set. Your vehicle can
roll. Do not leave your vehicle when the engine
is running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured. To
be sure your vehicle will not move, even when
you are on fairly level ground, always set your
parking brake and move the shift lever to
PARK (P).
Follow the proper steps to be sure your vehicle will not
move. SeeShifting Into Park (P) (Automatic Transaxle)
on page 2-25.
If you are parking on a hill and if you are pulling a
trailer, also seeTowing a Trailer on page 4-40.
2-29

Mirrors
Manual Rearview Mirror
While sitting in a comfortable driving position, adjust the
mirror so you can see clearly behind your vehicle.
Grip the mirror in the center to move it up or down and
side to side.
The control at the bottom of the mirror is the day/night
feature that allows adjustment to the mirror so that
the glare of headlamps from behind is reduced. Pull the
control for night driving to reduce glare; push it to
return to the day position.
The mirror may have map lights beneath the mirror.
Push the switch to turn each light on or off.
Manual Rearview Mirror
with OnStar
®
The vehicle may have an inside rearview mirror with
OnStar®. See your GM dealer for more information on
the system and how to subscribe to OnStar®. See
OnStar®System on page 2-32for information on the
services OnStar®provides.
While sitting in a comfortable position, adjust the mirror
so you can see clearly behind your vehicle. Grip the
mirror in the center to move it up or down and side to
side. The control at the bottom of the mirror is the
day/night feature that allows adjustment to the mirror so
that the glare of headlamps from behind is reduced.
Move the control from left to right for day or night
conditions.
2-30

Outside Remote Control Mirrors
Your vehicle has outside power adjustable mirrors.
The controls are located
to the left of the
steering wheel on the
instrument panel.
To adjust either mirror, push the button labeled L (left)
or R (right). Use the arrows on the control pad to adjust
the direction of the mirror. Once both mirrors have
been adjusted, move the selector switch back to the
center. This prevents the mirrors from being moved once
they have been adjusted.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so more can be seen from the
driver’s seat.
2-31

OnStar®System
OnStar®uses global positioning system (GPS) satellite
technology, wireless communications, and live
advisors to provide you with a wide range of safety,
security, information, and convenience services. If your
airbags deploy, the system is designed to make an
automatic call to OnStar
®Emergency where we
can request emergency services be sent to your
location. If you lock your keys in the car, call OnStar
®at
1-888-4-ONSTAR and they can send a signal to
unlock your doors. If you need roadside assistance,
press the OnStar
®button and they will get you the help
you need.A complete OnStar
®User’s Guide and the Terms and
Conditions of the OnStar®Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com or
www.onstar.ca. Contact OnStar
®at 1-888-4-ONSTAR
(1-888-466-7827), or press the OnStar®button to speak
to an OnStar®advisor 24 hours a day, 7 days a week.
Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com or
www.onstar.ca.
OnStar®Services
For new vehicles equipped with OnStar®, the Safe and
Sound Plan is included for one year from the date of
purchase. You can extend this plan beyond the
rst year, or upgrade to the Directions and Connections
®
Plan to meet your needs. For more information, press
the OnStar®button to speak to an advisor.
2-32

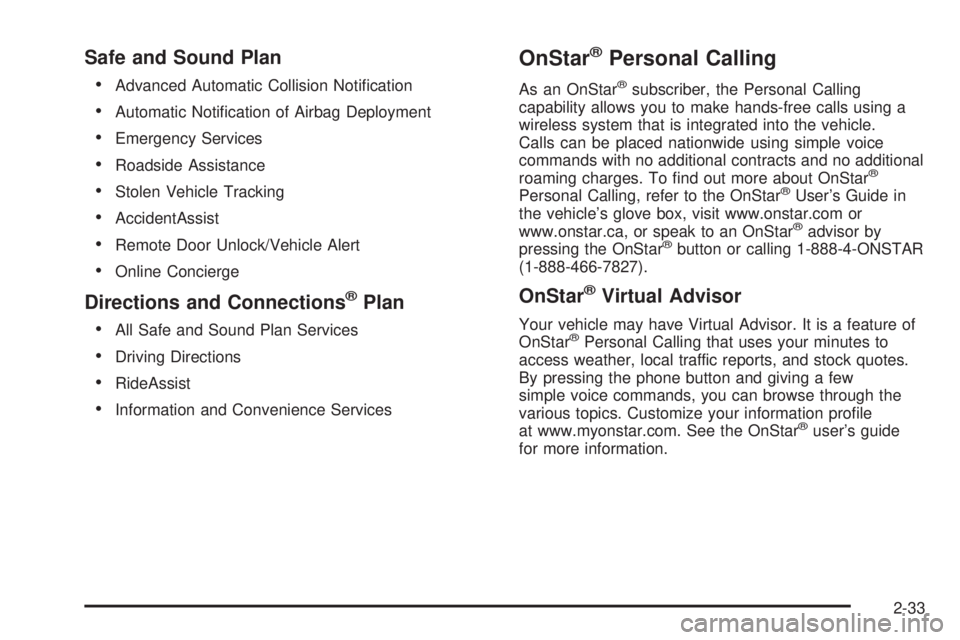

Safe and Sound Plan

Advanced Automatic Collision Notication
Automatic Notication of Airbag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Tracking
AccidentAssist
Remote Door Unlock/Vehicle Alert
Online Concierge
Directions and Connections®Plan

All Safe and Sound Plan Services
Driving Directions
RideAssist
Information and Convenience Services
OnStar®Personal Calling
As an OnStar®subscriber, the Personal Calling
capability allows you to make hands-free calls using a
wireless system that is integrated into the vehicle.
Calls can be placed nationwide using simple voice
commands with no additional contracts and no additional
roaming charges. To nd out more about OnStar
®
Personal Calling, refer to the OnStar®User’s Guide in
the vehicle’s glove box, visit www.onstar.com or
www.onstar.ca, or speak to an OnStar
®advisor by
pressing the OnStar®button or calling 1-888-4-ONSTAR
(1-888-466-7827).
OnStar®Virtual Advisor
Your vehicle may have Virtual Advisor. It is a feature of
OnStar®Personal Calling that uses your minutes to
access weather, local traffic reports, and stock quotes.
By pressing the phone button and giving a few
simple voice commands, you can browse through the
various topics. Customize your information prole
at www.myonstar.com. See the OnStar
®user’s guide
for more information.
2-33

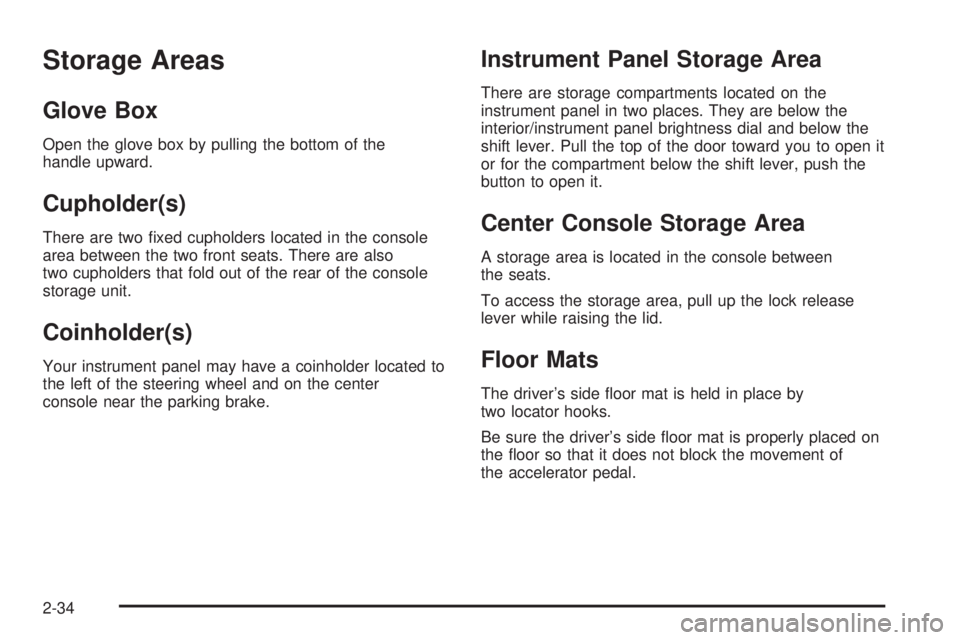

Storage Areas
Glove Box
Open the glove box by pulling the bottom of the
handle upward.
Cupholder(s)
There are two xed cupholders located in the console
area between the two front seats. There are also
two cupholders that fold out of the rear of the console
storage unit.
Coinholder(s)
Your instrument panel may have a coinholder located to
the left of the steering wheel and on the center
console near the parking brake.
Instrument Panel Storage Area
There are storage compartments located on the
instrument panel in two places. They are below the
interior/instrument panel brightness dial and below the
shift lever. Pull the top of the door toward you to open it
or for the compartment below the shift lever, push the
button to open it.
Center Console Storage Area
A storage area is located in the console between
the seats.
To access the storage area, pull up the lock release
lever while raising the lid.
Floor Mats
The driver’s side oor mat is held in place by
two locator hooks.
Be sure the driver’s side oor mat is properly placed on
the oor so that it does not block the movement of
the accelerator pedal.
2-34

How to Remove and Replace the
Floor Mat
To remove the oor mat,
pull up on the rear of the
mat to disconnect it
from the locator hooks.
To reinstall the oor mat, line up the openings in the
oor mat over the locator hooks and push down
into place.
Rear Storage Area
A storage area is located under the rear cargo area
oor panel.
Turn the knobs on the oor
panel to unlock the
storage area access cover.
Be sure to lock the access cover to close it securely.
2-35

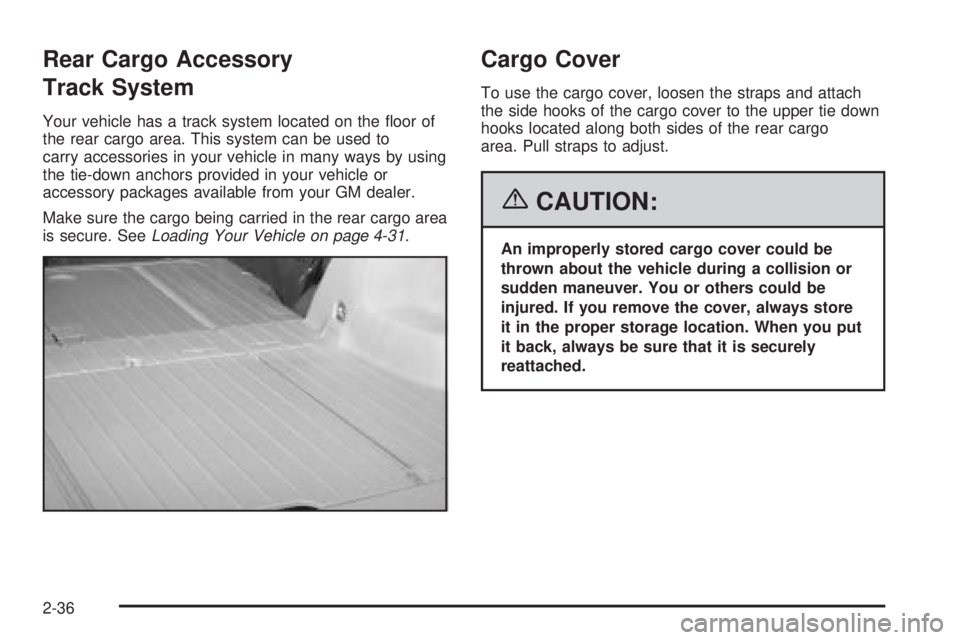

Rear Cargo Accessory
Track System
Your vehicle has a track system located on the oor of
the rear cargo area. This system can be used to
carry accessories in your vehicle in many ways by using
the tie-down anchors provided in your vehicle or
accessory packages available from your GM dealer.
Make sure the cargo being carried in the rear cargo area
is secure. SeeLoading Your Vehicle on page 4-31.
Cargo Cover
To use the cargo cover, loosen the straps and attach
the side hooks of the cargo cover to the upper tie down
hooks located along both sides of the rear cargo
area. Pull straps to adjust.
{CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store
it in the proper storage location. When you put
it back, always be sure that it is securely
reattached.
2-36
