PONTIAC VIBE 2006 Owners Manual

Cargo Tie Downs
The tire tie-down straps are designed to secure a at
tire. You can also use the straps and hooks to
secure your luggage.
There are eight tie-down hooks located in the rear of
the vehicle. The straps are located under the cargo area
oor panel. To use the straps, hook the ends to the
lower tie-down hooks in a criss-cross pattern across the
cargo. Pull on the straps at the buckle to tighten the
straps as needed.
Sunroof
If the vehicle has a sunroof, it can be opened or put in a
tilt position. To tilt the sunroof, slide the sunshade
rearward, then press the switch marked UP. Press the
other end of the switch to lower the sunroof. The ignition
must be in the ON position for the switch to work.
To open or close the sunroof, press the switch marked
SLIDE rearward or forward. The sunroof will close
partially and stop. Once the sunroof stops, release the
switch and press the button again to fully close it.
The sunroof can be opened to any position. The
sunshade will open when the sunroof is opened. The
sunshade must be closed manually.
2-37

✍NOTES
2-38

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-8
Windshield Washer.........................................3-9
Rear Window Wiper/Washer...........................3-10
Cruise Control..............................................3-10
Exterior Lamps.............................................3-13
Headlamps on Reminder................................3-14
Daytime Running Lamps (DRL).......................3-14
Automatic Headlamp System..........................3-14
Fog Lamps..................................................3-15
Instrument Panel Brightness...........................3-15
Interior Lamps Control...................................3-15
Entry Lighting...............................................3-16
Reading Lamps............................................3-16
Accessory Power Outlet(s).............................3-16
Power Outlet 115 Volt Alternating Current........3-17
Ashtray(s) and Cigarette Lighter......................3-18Climate Controls............................................3-18
Climate Control System.................................3-18
Outlet Adjustment.........................................3-21
Passenger Compartment Air Filter...................3-22
Warning Lights, Gages, and Indicators............3-24
Instrument Panel Cluster................................3-25
Speedometer and Odometer...........................3-26
Trip Odometers............................................3-26
Tachometer.................................................3-27
Safety Belt Reminder Light.............................3-27
Airbag Readiness Light..................................3-28
Passenger Airbag Status Indicator...................3-29
Charging System Light..................................3-31
Brake System Warning Light..........................3-32
Anti-Lock Brake System Warning Light.............3-33
Low Tire Pressure Warning Light....................3-33
Traction Control System (TCS)
Warning Light...........................................3-34
StabiliTrak
®Indicator Light..............................3-34
Engine Coolant Temperature Gage..................3-35
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Lights On Reminder......................................3-39
Taillamp Indicator Light..................................3-39
Cruise Control Light......................................3-39
Section 3 Instrument Panel
3-1

Overdrive Off Light........................................3-40
Highbeam On Light.......................................3-40
Low Washer Fluid Warning Light.....................3-40
Door Ajar Light.............................................3-40
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-41
Audio System(s).............................................3-42
Setting the Time...........................................3-43
Radio with CD (Base Level)...........................3-43Radio with CD (MP3)....................................3-54
Radio with Six-Disc CD.................................3-66
Radio Reception...........................................3-77
Care of Your CDs.........................................3-78
Care of the CD Player...................................3-78
Fixed Mast Antenna......................................3-78
XM™ Satellite Radio Antenna System.............3-78
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
3-4

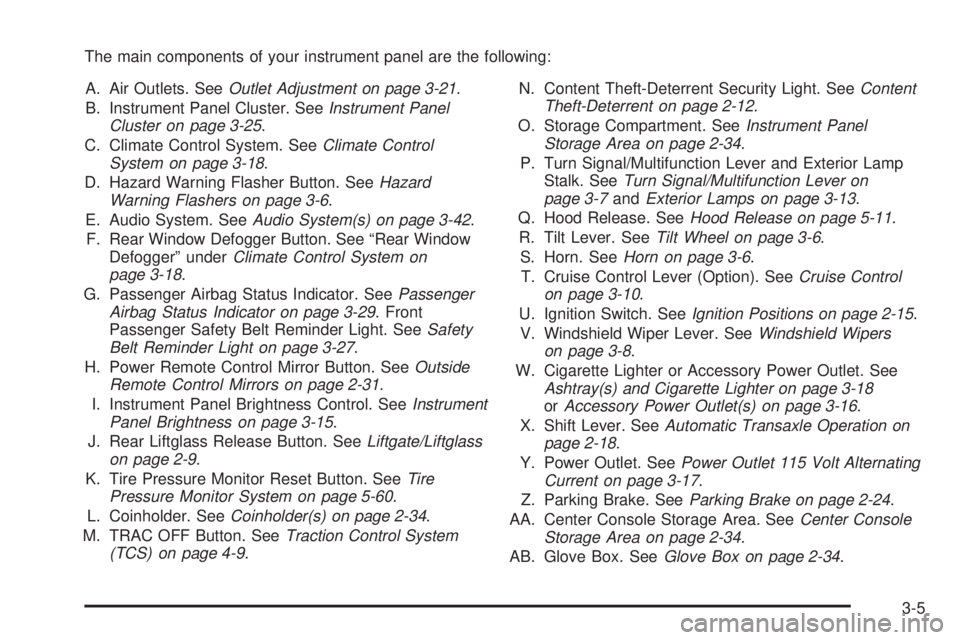

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-21.
B. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-25.
C. Climate Control System. SeeClimate Control
System on page 3-18.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
E. Audio System. SeeAudio System(s) on page 3-42.
F. Rear Window Defogger Button. See “Rear Window
Defogger” underClimate Control System on
page 3-18.
G. Passenger Airbag Status Indicator. SeePassenger
Airbag Status Indicator on page 3-29. Front
Passenger Safety Belt Reminder Light. SeeSafety
Belt Reminder Light on page 3-27.
H. Power Remote Control Mirror Button. SeeOutside
Remote Control Mirrors on page 2-31.
I. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-15.
J. Rear Liftglass Release Button. SeeLiftgate/Liftglass
on page 2-9.
K. Tire Pressure Monitor Reset Button. SeeTire
Pressure Monitor System on page 5-60.
L. Coinholder. SeeCoinholder(s) on page 2-34.
M. TRAC OFF Button. SeeTraction Control System
(TCS) on page 4-9.N. Content Theft-Deterrent Security Light. SeeContent
Theft-Deterrent on page 2-12.
O. Storage Compartment. SeeInstrument Panel
Storage Area on page 2-34.
P. Turn Signal/Multifunction Lever and Exterior Lamp
Stalk. SeeTurn Signal/Multifunction Lever on
page 3-7andExterior Lamps on page 3-13.
Q. Hood Release. SeeHood Release on page 5-11.
R. Tilt Lever. SeeTilt Wheel on page 3-6.
S. Horn. SeeHorn on page 3-6.
T. Cruise Control Lever (Option). SeeCruise Control
on page 3-10.
U. Ignition Switch. SeeIgnition Positions on page 2-15.
V. Windshield Wiper Lever. SeeWindshield Wipers
on page 3-8.
W. Cigarette Lighter or Accessory Power Outlet. See
Ashtray(s) and Cigarette Lighter on page 3-18
orAccessory Power Outlet(s) on page 3-16.
X. Shift Lever. SeeAutomatic Transaxle Operation on
page 2-18.
Y. Power Outlet. SeePower Outlet 115 Volt Alternating
Current on page 3-17.
Z. Parking Brake. SeeParking Brake on page 2-24.
AA. Center Console Storage Area. SeeCenter Console
Storage Area on page 2-34.
AB. Glove Box. SeeGlove Box on page 2-34.
3-5

Hazard Warning Flashers
Your hazard warning ashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will ash on and off.
The hazard warning
asher button is located in
the center of the
instrument panel.
Your hazard warning ashers work no matter what
position your key is in, and even if the key is not in the
ignition switch.
Press the button to make the front and rear turn signal
lamps ash on and off. Press the button again to
turn the ashers off.
When the hazard warning ashers are on, your turn
signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
Press near or on the horn symbols on your steering
wheel pad to sound the horn.
Tilt Wheel
A tilt steering column allows you to adjust the steering
column before you drive. You can also raise it to
the highest level to give your legs more room when you
exit and enter the vehicle.
The tilt lever is located
underneath, on the left
side of the steering
wheel column.
To tilt the column, move the lever downward. Adjust the
steering wheel to a comfortable position, then move
the lever upward to lock the column in place.
3-6

Turn Signal/Multifunction Lever
The turn signal/multifunction lever is located on the left
side of the steering column.
This lever operates the following:
Exterior Lamps. SeeExterior Lamps on page 3-13.
Turn and Lane-Change Signals. SeeTurn and
Lane-Change Signals on page 3-7.
Headlamp High/Low-Beam Changer. SeeHeadlamp
High/Low-Beam Changer on page 3-8.
Flash-to-Pass. SeeFlash-to-Pass on page 3-8.
Fog Lamps. SeeFog Lamps on page 3-15.
Turn and Lane-Change Signals
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is nished, the lever will return
automatically.
To signal a lane change, raise or lower the lever until
the arrow starts to ash. Hold it there until you complete
your lane change. The lever will return by itself when
you release it.
An arrow on the instrument
panel cluster will ash in
the direction of the
turn or lane change.
If you signal a turn or a lane change and notice the
arrow ashing rapidly, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, have it replaced to help avoid an
accident. If the arrows don’t go on at all when you
signal a turn, check for burned-out bulbs and then check
the fuse. SeeFuses and Circuit Breakers on page 5-91.
3-7

Headlamp High/Low-Beam Changer
The headlamps must be on for this feature to work.
For high beams, push the turn signal lever away
from you.
When the high beams are
on, this light on the
instrument panel cluster
also will be on.
It will go off when you switch to the low beams. To
switch back to low beams, pull the lever toward you.
Flash-to-Pass
With the lever in the low-beam position, pull the lever
toward you to momentarily switch to high beams
(to signal that you are going to pass). If you have the
headlamps on when you release the lever, they will
return to the low beams.
Windshield Wipers
The lever on the right side of the steering column
controls the windshield wipers and washer.
The available positions are the following:
MIST:For a single wiping cycle, move the lever to
MIST. Hold it there until the wipers start, then let go. The
wipers will stop after one wipe.
OFF:The wipers are off.
3-8
