Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear
doors on your vehicle from the inside.
The security locks are
located on the inside of
the rear door trim.To use these locks, do the following:
1. Slide the lever down.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use.
To open a rear door with the security lock, do the
following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults and
older children who ride in the rear won’t be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
2-9

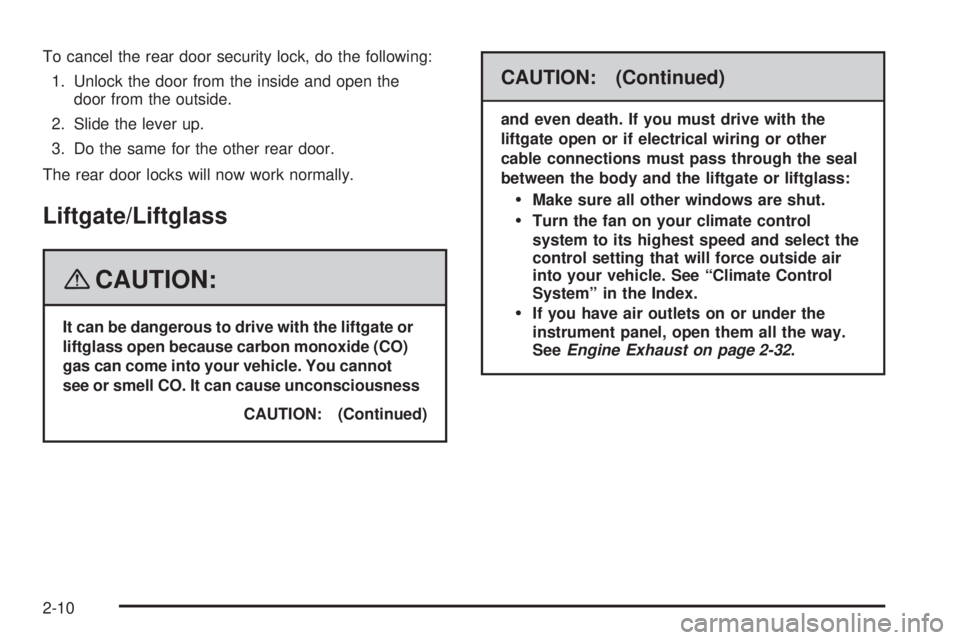

To cancel the rear door security lock, do the following:
1. Unlock the door from the inside and open the
door from the outside.
2. Slide the lever up.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Liftgate/Liftglass
{CAUTION:
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You cannot
see or smell CO. It can cause unconsciousness
CAUTION: (Continued)
CAUTION: (Continued)
and even death. If you must drive with the
liftgate open or if electrical wiring or other
cable connections must pass through the seal
between the body and the liftgate or liftglass:
Make sure all other windows are shut.
Turn the fan on your climate control
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See “Climate Control
System” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-32.
2-10

Liftgate/Liftglass Release
To unlock and open the liftgate using the key, insert the
key into the keyhole and turn counterclockwise. Raise
the liftgate by hand.
When closing the liftgate, use the handle to pull it down.To lock the liftgate, turn the key clockwise to the rst
position.
To open the liftglass using the key, insert the key into
the keyhole and turn clockwise to the second position.
Use the handle in the center of the liftglass to help
in lifting the glass.
Your vehicle may have a
liftglass release button
which is located on the
instrument panel to the
left of the steering wheel.
Press this button to release
the liftglass.
SeeRemote Keyless Entry (RKE) System Operation on
page 2-4for more information.
2-11

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm
or hot weather.
Manual Windows
Use the window crank to open and close each window.
2-12

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome from extreme heat in
warm or hot weather and suffer permanent
injuries or even death from heat stroke.
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured
or killed if caught in the path of a closing
window. Do not leave keys in a vehicle with
children.
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.If your vehicle has this
feature, the switches
controlling the driver’s and
passenger’s windows are
located on the driver’s door.
The power window switch on each passenger door
controls that window only. These switches work while
the ignition is turned to ON.
Press the front of a switch to lower a window and lift the
front of the switch to raise a window.
AUTO (Express-Down):Press this switch all the way
down and release it to lower the driver’s window quickly.
o(Lock-Out):Press the window lock-out button,
located near the driver’s power door lock switches,
to disable the passenger’s power window switches.
Press the button again to enable the window switches.
Only the driver’s window will operate with the lock-out
button pressed.
2-13

Sun Visors
To block out glare, swing down the sun visors. You can
also swing them to the side.
The visors can be slid along the rod for extended
coverage for the side windows unless your vehicle
has roof-mounted side impact airbags.
Visor Vanity Mirror
Swing down the sun visor to expose the vanity mirror.
The vanity mirror may have a cover. Lift the cover
to expose the mirror.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make
it impossible to steal.
Immobilizer
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-14

Immobilizer Operation
(Canada Only)
Your vehicle has a passive theft-deterrent system.
The system is automatically armed when the key
is removed from the ignition.
You do not have to manually arm or disarm the system.
The security light will come on if there is a problem
with arming or disarming the theft-deterrent system.
Your vehicle will have one of the following security lights,
located on the instrument panel to the left of the steering
wheel.
The security light will ash when the system is armed.When the key is inserted in the ignition the transponder in
the key head transmits an electronic code to the vehicle
and automatically cancels the system. Only the correct
key will start the vehicle.
If the engine does not start, there may be a problem
with your theft-deterrent system. Turn the ignition off
and try again.
If the engine still does not start, and the key appears
to be undamaged, try another ignition key. At this time,
you may also want to check the fuse. SeeFuses
and Circuit Breakers on page 5-91.
If the engine still does not start with the other key,
your vehicle needs service. If your vehicle does start,
the rst key may be faulty. See your dealer/retailer who
can service the theft-deterrent system and have a new
key made.
If any of the following conditions occur, contact your
dealer/retailer.
The security light stays on.
The security light does not start ashing when the
key is removed from the ignition.
The security light ashes inconsistently.
See your dealer/retailer to have a new key with a
transponder made. Bring the key and key number
with you.
In an emergency, contact Roadside Assistance
Program. SeeRoadside Assistance Program on
page 7-6.
2-15

Do not leave the key or device that disarms
or deactivates the theft deterrent system in
the vehicle.
Content Theft-Deterrent
Your vehicle may have a theft-deterrent system
designed to activate an alarm if someone attempts to
damage or break into your vehicle. The alarm will sound
and the headlamps and turn signal lamps will ash for
about one minute. The interior lights will also come on
when the interior lamps control is in the door position.
Your vehicle will have one of the following security
lights, located on the instrument panel to the left of
the steering wheel.
Arming the System
To arm the system:
1. Remove the key from the ignition.
The security light will ash when the key is removed
from the ignition. SeeImmobilizer Operation (Canada
Only) on page 2-15for additional information.
2. Have all passengers get out of the vehicle.
3. Close and lock all doors including the liftgate/liftglass
with the key or Remote Keyless Entry (RKE)
transmitter.
The security light will come on when all doors and
liftgate are closed and locked.
The system will be automatically set after
30 seconds. When the system is set, the
security light will ash.
4. After the security light starts ashing, you may
leave the vehicle.
Do not leave anyone in the vehicle when you set
the system, because unlocking the vehicle from the
inside will activate the system.
2-16

Testing the Alarm
To test the alarm:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The doors and liftgate should be locked
with the key or RKE transmitter. Be sure to wait
until the security light starts ashing.
3. Unlock the driver’s door from the inside.
The system should activate the alarm.
4. Stop the alarm as described in the disarming
procedure following.
5. Repeat this operation for the other doors.
Also check that the system is activated when
the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it
checked by your dealer/retailer.
How the System Alarm is Activated
The system will activate the alarm:
If the driver’s or front passenger’s door is unlocked
without using the key or RKE transmitter.
If any door or the liftgate/liftglass is forcibly opened
without the key or RKE transmitter.
If the battery terminal is disconnected and then
reconnected.
If the ignition is hot-wired.
If the side window glass is broken or damaged.
The security light will come on when the system
is activated.
If the driver’s or front passenger’s doors are unlocked
without using the key or RKE transmitter, the other doors
and the liftgate will be automatically locked again.
After one minute the alarm will automatically stop and
the security light will start ashing again.
2-17

Reactivating the System
Once the system is set, it will automatically reset the
alarm after the alarm stops. The alarm will activate again
under the same conditions as described earlier.
Disarming the System
To disarm the alarm:
Turn the ignition key from LOCK/OFF to ON/RUN.
Unlock any of the doors with the key or with the
RKE transmitter.
If the liftgate or liftglass is opened with the key,
the system will still be activated.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the vehicle.
Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines:
Do not drive at any one constant speed, fast
or slow, for the rst 500 miles (805 km).
Do not make full-throttle starts. Avoid
downshifting to brake or slow the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
the new brake linings are not yet broken in.
Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during break-in.
SeeTowing a Trailer on page 4-27for
the trailer towing capabilities of your
vehicle and more information.
Following break-in, engine speed and load can be
gradually increased.
2-18
