The second function is the
‘motorsport-derived gearshift
strategy’. Using this, Porsche
Doppel
kupplung (PDK) is geared
up for the shortest possible
shif t times and optimum shif t
points for maximum acceleration
– ideal for the racetrack.
A key component of the Sport
Chrono Package Turbo with
dynamic engine mount system is
the stopwatch mounted on the
dashboard. Porsche Communica -
tion Management (PCM, page 86)
has a special performance display
to view, store and evaluate lap
times or other driving times. It
shows the total driving time, lap
distance, lap number and the
lap times recorded so far. You can
view the current fastest lap and
the remaining range until empt y.
Travelled distances can be
recorded and benchmark times
defined. The personal memory function of
the Sport Chrono Package Turbo
can also be used to store person
-
alised set tings for a range of
systems, including the orientation
lighting or air conditioning.
Operation of the dynamic
engine mount system.
Stiffness and softness as required.
That ’s the principle behind the
dynamic engine mount system
now being of fered for the first
time as part of the Sport Chrono
Package Turbo. Essentially, it ’s an
electronically controlled system
for controlling the stif fness of the
engine mounts.
The engine is bolted to the body
using t wo mounts and follows
New ton’s law of inertia, namely
that a body will continue to move
in a uniform straight line unless it is made to change its direction
by a force acting upon it.
Put more simply: when you are
driving into a bend, the vehicle will
follow your steering but, at first,
the mass of the engine won’t. This
means that the rear of the vehicle
is pushed out wards because of
the inert forces from the engine’s
mass acting on it.
The dynamic engine mount
system minimises this effect.
The steering angle longitudinal
and lateral acceleration values
are constantly recorded by
sensors and the stif fness of the
t wo engine mounts is changed
automatically according to the
driving st yle. This is achieved
using a magnetisable (magneto -
rheological) fluid and an electri -
cally generated magnetic field.
The magnetisable particles align
with each other and the fluid’s viscosit y changes. This alters the
stif fness and absorption of the
engine mounts: sof ter for greater
comfort and less vibration when
driving normally, harder for a
more direct driving feel when
driving more sportily.
The dynamic engine mount
system also reduces the vertical
oscillations of the engine when
accelerating under full load. The
result: greater and more uniform
force on the rear axle, increased
traction and bet ter acceleration.
All this means t wo things: percep -
tibly more stable handling under
load change conditions and in fast
corners and a step closer to the
ultimate sport y drive – combined
with enhanced levels of comfort.
Performance | Chassis
· 60 ·· 61 ·
Page 32 of 59
Responsibility
· 62 ·· 63 ·
Page 33 of 59
Headlights.
The Bi-Xenon headlight system is
fit ted as standard. The brightness
of the lights is approximately
t wice as great as that of conven-
tional halogen lights. Light output
is improved and the road illu -
minated more uniformly on both dipped and main beam, helping
to minimise driver fatigue.
Also included is dynamic range
control to prevent hazardous
dazzling of oncoming vehicles
due to undulations in the road
or the loading of the car. A head -
light cleaning function is also
incorporated.
Dynamic cornering lights
(standard on 911 Turbo S models,
optional for 911 Turbo models)
of fer particularly ef fective
illumination of the road ahead,
especially through bends. Sen -
sors continuously monitor the
speed, lateral acceleration and
steering lock and, from these
variables, calculate the course
of the bend. This determines
the angle of illumination for the
dipped beam lights, up to a
maximum of 15 degrees. On
t wisting roads, this means the
course of the road and obstacles
can be seen earlier by the driver.
Lighting concept.
The lighting concept also benefits
from the latest technology, in the
form of high -performance LEDs
for the horizontal front indicators
and also for the separate day time
running lights, the taillights and
the third brake light in the rear
wing.
In addition to the distinctive look
that makes the car very recog -
nisable, the lighting also provides
high illuminating power. The brake
lights also respond very quickly,
meaning that following traf fic is
alerted sooner. Plus the lighting
saves energy, is environmentally
sound and has a longer service
life in comparison to conventional
bulbs.When the vehicle is opened or
closed using the key remote, the
‘Welcome Home’ lighting function
automatically switches on the
LED day time running lights.
Two additional lights inside each
door ensure you see and are seen
bet ter when get ting into and out
of the car.
One effective way of relaxing:
breathe steadily.
Safety.
Quickening pulses whilst
simultaneously creating
calm. Yet another apparent
contradiction typical
of the performance of the
911 Turbo concept.
Dynamic cornering lights
Responsibility | Safet y
· 64 ·· 65 ·
Page 34 of 59
Brakes.
On a 911 Turbo, there is one thing
above all else that both the accel-
erator and brake pedals deliver
when you press them – and that ’s
excitement.
The standard braking system of
the 911 Turbo models features
six-piston fixed calipers at the
front and four-piston fixed calipers
at the rear. The red-painted calipers have a
monobloc (one-piece) aluminium
construction of fering greater
stabilit y, bet ter ‘bite’ characteris -
tics under heav y braking and a
further reduction in unsprung
weight. The brakes are quick to
apply and release, whilst the
pedal travel is short and the bite
point precise and consistent.
The front and rear discs have a
generous diameter of 350 mm.
All four discs are cross- drilled for
bet ter performance in the wet.
The distinctive drill-hole pat tern
enables a faster response by
allowing rapid dispersal of the
water vapour generated under
braking.
The discs are also internally
vented for bet ter heat dispersal.
The result: excellent stabilit y in
all conditions. Cooling air is
directed onto the brakes to further
improve performance. A powerful
9-inch tandem brake booster unit
enables easier pedal inputs.
Braking distances are further
reduced with the aid of t wo
functions in the standard Porsche
Stabilit y Management (PSM):
electronic brake prefill and brake
assist (page 57). The new 911 Turbo S models
come equipped with the Porsche
Ceramic Composite Brake (PCCB,
see following pages) as standard.
Standard front brake (911 Turbo)
Responsibility
| Safet y
· 66 ·· 67 ·
Page 35 of 59

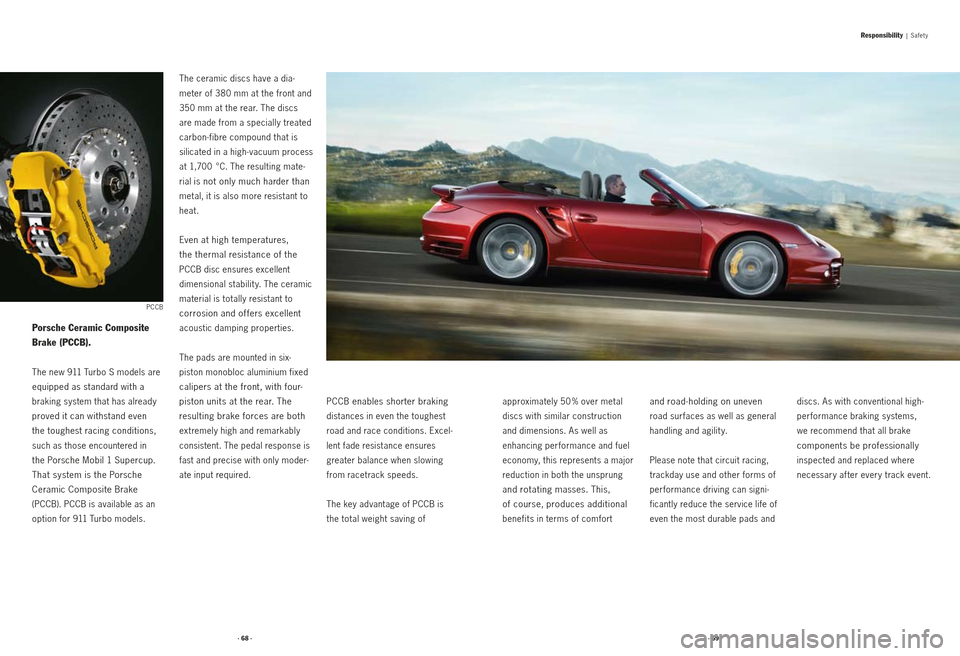

Porsche Ceramic Composite
Brake (PCCB).
The new 911 Turbo S models are
equipped as standard with a
braking system that has already
proved it can withstand even
the toughest racing conditions,
such as those encountered in
the Porsche Mobil 1 Supercup.
That system is the Porsche
Ceramic Composite Brake
(PCCB). PCCB is available as an
option for 911 Turbo models. The ceramic discs have a dia
-
meter of 380 mm at the front and
350 mm at the rear. The discs
are made from a specially treated
carbon -fibre compound that is
silicated in a high -vacuum process
at 1,700 °C. The resulting mate -
rial
is not only much harder than
metal, it is also more resistant to
heat.
Even at high temperatures,
the thermal resistance of the
PCCB disc ensures excellent
dimensional stabilit y. The ceramic
material is totally resistant to
corrosion and offers excellent
acoustic damping properties.
The pads are mounted in six-
piston monobloc aluminium fixed
calipers at the front, with four-
piston units at the rear. The
resulting brake forces are both
extremely high and remarkably
consistent. The pedal response is
fast and precise with only moder -
ate input required.
PCCB enables shorter braking
distances in even the toughest
road and race conditions. Excel -
lent fade resistance ensures
greater balance when slowing
from racetrack speeds.
The key advantage of PCCB is
the total weight saving of approximately 50
% over metal
discs with similar construction
and dimensions. As well as
enhancing performance and fuel
economy, this represents a major
reduction in both the unsprung
and rotating masses. This,
of course, produces additional
benefits in terms of comfort
and road-holding on uneven
road surfaces as well as general
handling and agilit y.
Please note that circuit racing,
trackday use and other forms of
performance driving can signi -
ficantly reduce the service life of
even the most durable pads and discs. As with conventional high-
performance braking systems,
we recommend that all brake
components be professionally
inspected and replaced where
necessary after every track event.
PCCB
Responsibility | Safet y
· 68 ·· 69 ·
Page 36 of 59
5
5
2
3
4
1
11
1
Driver and passenger airbags.
The t wo full-size airbags can be
inflated in t wo stages, depending
on the severit y of the impact. In a low-speed crash, the airbags
are only partially inflated, thereby
minimising discomfort to the
occupants.
Bodyshell structure.
The reinforced bodyshell contains
a highly resilient passenger cell
offering exceptional crash protec
-
tion. At the front of the car, the
cell is protected by a patented
system of longitudinal and trans -
verse members (1). In the event of
an accident, it disperses the force
of the impact and minimises
deformation of the passenger cell.
Additional features include an
ultra-rigid bulkhead cross-member
(2) made from super high-strength steel. This element is designed to
absorb impact forces from the longitudinal members and thus
protect the front foot wells.
The reinforced doors (3) also
contribute to the overall rigidit y
of the car. An additional load
path (4) is used to channel energy
through the upper part of the
shell and thus further protect the
passenger cell.
In minor collisions, easily replace -
able impact absorbers (5) protect
the bodyshell.
Sheet steel
Tailored blanks
Super high -strength steel
Ultra high -strength steel
Aluminium
Responsibility | Safet y
· 70 ·· 71 ·
Page 37 of 59
Porsche Side Impact Protection
System (POSIP).
POSIP, fit ted as standard, consists
of side impact protection beams
in the doors and t wo side airbags
on each side, namely a thorax
airbag located in the side of each
backrest and a head airbag incor-
porated within each door. Each
airbag has an approximate volume
of 8 litres, ensuring excellent
protection in the event of side
impact.
Additional safet y features include
the headrests which form an
integral part of each seat, an
energy-absorbing steering column,
three-point seat belts with height
adjustment (Coupés only), seat
belt pre-tensioners and force
limiters and energy-absorbing
elements in the dashboard.
Safety in the 911 Turbo
Cabriolets.
One fundamental principle at
Porsche is to provide high levels
of occupant protection, regardless
of whether the vehicle is a closed
or open-top design.
Torsional rigidit y and flexural
strength are exemplary for a t wo -
plus-t wo convertible. Body flexing
is minimal even on the most
poorly surfaced roads, ensuring
bet ter handling and greater
active safety.
Occupants are protected by an
automatically deploying roll- over
system if the vehicle were to overturn. Two spring-loaded roll-
over bars are neatly incorporated
behind each of the rear seats.
The roll- over sensor – part of the
airbag control unit – continuously
monitors the car’s pitch and roll,
contact with the road, as well as
lateral and longitudinal forces.
If the car were to overturn,
the top -padded bars would be
deployed instantly.
Of course, the 911 Turbo
Cabriolets also come as standard
with the Porsche Side Impact
Protection System (POSIP).
Responsibility | Safet y
· 72 ·· 73 ·
Page 38 of 59
In an era of intensif ying debate
about CO
2 emissions, every auto-
motive manufacturer is being
asked the question, ‘What is your
answer to the issue of fuel
consumption?’ Our answer has
long been the same: maximum
efficiency. Porsche has been reducing the
CO2 emissions of its vehicles by
an average of around 1.7 %* every
year for the past 15 years. In
relation to engine power, Porsche
is already among those manufac -
turers achieving the lowest CO
2
emissions. This has been achieved through ef ficient drive concepts
(e.g. DFI), light weight construc
-
tion, optimised aerodynamics and
low rolling resistance.
This high level of environmental
responsibilit y is demonstrated by
our approach to environmental
management at the Porsche devel -
opment centre in Weissach. Here,
all technological developments
are carried out with environmental
protection in mind. The objective is to achieve pure performance,
but not at the expense of the
environment.
You will find more information
in our separate brochure
‘Porsche and the Environment ’
or at w w w.porsche.com.
Exhaust emission control.
The 911 Turbo and the 911 Turbo S
models comply with stringent
emissions standards, including
Euro 5 in Europe and LEV II/ LEV
in the USA. Porsche vehicles
demonstrate that even high-
performance sportscars can
achieve moderate emission
values in their respective cate -
gory. This makes them not just
extremely exciting sportscars,
but very clean ones too.
What’s urgently expected of today’s management teams?
Responsibility.
Environment.
Think twice about every
additional ounce. Get more
power out of every drop of
fuel. Examine every path to a
solution. Why? Well, because
it’s our duty. And because
our efforts to achieve greater
efficiency will also give us
the engineering lead.
Responsibility | Environment
* The stated reduction in fuel consumption
has been calculated from the NEDC (New
European Drive Cycle) fuel consumption
figures for the respective model years of the
vehicles and in relation to the applicable
European legislation.
· 74 ·· 75 ·
Page 39 of 59
Fuel consumption and recycling.
Intelligent light weight construction
is a fundamental aspect of design
at Porsche. For both economic
and ecological reasons. This forms
the basis for achieving low fuel
consumption values combined
with outstanding performance.
It is economical thanks to the
high proportion of cast aluminium
alloys, magnesium, plastics and
high-strength sheet steel, the
lat ter being much stronger and
lighter than conventional steel.
The 911 Turbo and 911 Turbo S
models consist of almost 20 %
lightweight alloys.
It is also ecological because all
materials used are carefully
selected. Only the latest, environ -
mentally sound components are
used. All light weight materials are
easily recyclable, while the variet y
of synthetic components has been
reduced. Recycled plastics are
used in all areas of the car where
they meet our exacting technical
requirements. To simplify process -ing, all materials are labelled for
separate recycling.
In short, approximately 95
% of
today’s 911 Turbo and 911 Turbo S
models can be recycled.
Porsche primarily uses environmen -
tally friendly water-based paints.
All areas of the 911 Turbo and
911 Turbo S models are free from
asbestos, CFCs and components
manufactured using CFCs. Because
at Porsche, helping the environ -
ment doesn’t start at the end of a
vehicle’s life. It starts right at
the beginning at the planning and
development stages.Fuel.
The current 911 Turbo generation is
already compatible with fuels that
have an ethanol content of up to
10 %. A ‘biofuel’ made from naturally
replenishing materials, ethanol has
a positive impact on the carbon
dioxide balance since the plants
grown for its production also
absorb carbon dioxide from the
atmosphere. Hydrocarbon emissions from the
fuel supply system are low,
achieved through a combination of
an active carbon filter and a
special fuel-tank coating. All fuel
lines are made from aluminium,
whilst those carrying vapours are
made from multi-layer plastic.
Noise.
The 911 Turbo and 911 Turbo S
models comply with all current
noise regulations – without resort
-
ing to engine encapsulation.
To achieve this, we’ve eliminated
noise at source: engine compo -nents are more rigid, moving
parts lighter and tolerances
reduced to a minimum. High-
efficiency silencers and resona -
tors in the intake system help
to reduce noise even further. For
the entire service life of the car.
Responsibility | Environment
· 76 ·· 77 ·
Page 40 of 59
Personality
· 78 ·· 79 ·
