PASM, the electronic damping control
system, is standard in the 911 Carrera S
models and available as an option for
the 911 Carrera models. It actively and
continuously regulates damping forces
according to driving st yle and road
conditions. In addition, the suspension
is lowered by 10 mm.
PASM has t wo modes, which can be
selected using a separate but ton on
the centre console: ‘Normal’, which is a
blend of performance and comfort, and
‘Sport ’ where the setup is much firmer. To ensure efficient control interventions,
a multitude of sensors in the 911 record
the body movements that accompany
powerful acceleration, braking or uneven
road surfaces. The PASM control unit
evaluates the driving conditions and
modifies the damping force on each of
the wheels in accordance with the
selected mode.
In ‘Sport ’ mode, the suspension is set to
a harder damper rating. On uneven roads,
PASM immediately switches to a softer
rating, thereby improving contact bet ween the wheels and the road.
When the road surface improves, PASM
automatically reverts to the original,
harder rating. If ‘Normal’ mode is selected
and the driver’s st yle becomes more
assertive, PASM automatically switches
to a harder rating. Damping firms up,
and driving stabilit y and road safet y are
increased.
The results are tangible: increased
driving stability, improved comfort and
enhanced performance.
No need to let the laws of physics
spoil your fun.

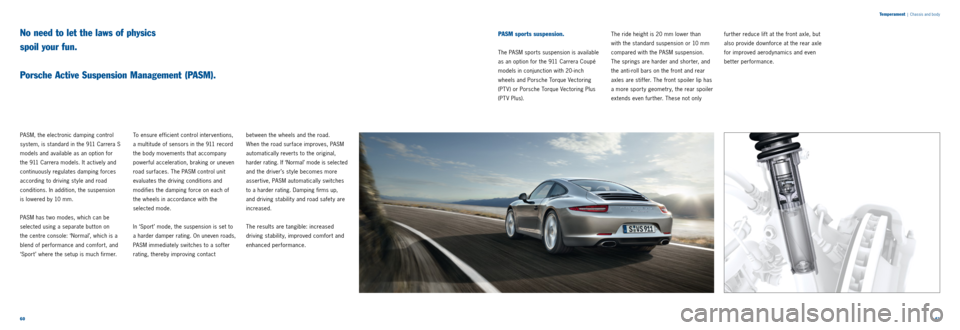

Porsche Active Suspension Management (PASM).PASM sports suspension.
The PASM sports suspension is available
as an option for the 911 Carrera Coupé
models in conjunction with 20-inch
wheels and Porsche Torque Vectoring
(PT V) or Porsche Torque Vectoring Plus
(PTV Plus). The ride height is 20 mm lower than
with the standard suspension or 10 mm
compared with the PASM suspension.
The springs are harder and shorter, and
the anti-roll bars on the front and rear
axles are stiffer. The front spoiler lip has
a more sport y geometry, the rear spoiler
extends even further. These not only further reduce lift at the front axle, but
also provide downforce at the rear axle
for improved aerodynamics and even
better performance.
Page 32 of 75
6263
T
emperament
| Chassis and body
With the optional Porsche Dynamic
Chassis Control (PDCC) for the S models
of the 911 Carrera, these characteristics
can be further accentuated: the vehicle
holds the road even bet ter and delivers
even sportier performance. PDCC is an active anti-
roll system that
suppresses lateral body movement during
cornering manoeuvres. In addition, it
minimises the lateral instability of the
vehicle on uneven ground. This effect is achieved with the aid of
hydraulic stabilising actuators in the form
of cylinders designed to optimise camber.
Lateral roll is counteracted by forces
generated at each individual wheel, based
on steering angle and lateral acceleration.

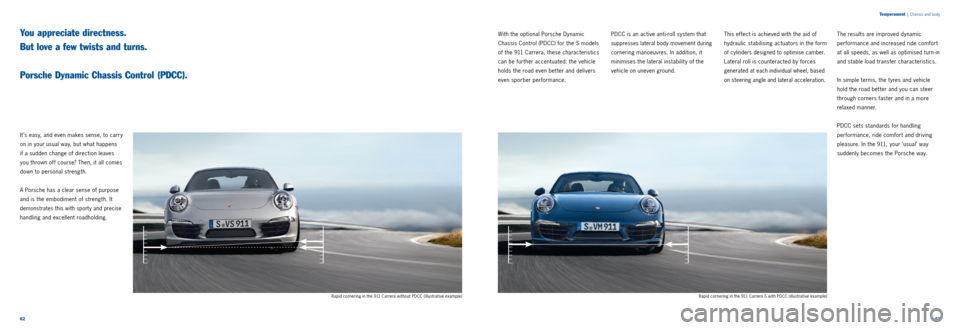

Rapid cornering in the 911 Carrera without PDCC (illustrative example) Rapid cornering in the 911 Carrera S with PDCC (illustrative example)
The results are improved dynamic
performance and increased ride comfort
at all speeds, as well as optimised turn-in
and stable load transfer characteristics.
In simple terms, the t yres and vehicle
hold the road bet ter and you can steer
through corners faster and in a more
relaxed manner.
PDCC sets standards for handling
performance, ride comfort and driving
pleasure. In the 911, your ‘usual’ way
suddenly becomes the Porsche way.
It ’s easy, and even makes sense, to carry
on in your usual way, but what happens
if a sudden change of direction leaves
you thrown off course? Then, it all comes
down to personal strength.
A Porsche has a clear sense of purpose
and is the embodiment of strength. It
demonstrates this with sport y and precise
handling and excellent roadholding.
You appreciate directness.
But love a few twists and turns.
Porsche Dynamic Chassis Control (PDCC).
Page 33 of 75
6465
T
emperament
| Chassis and body
SPORT button.
Fit ted as standard, the SPORT but ton
enables you to select a suspension setup
where the emphasis is on either comfort
or sport y performance. At the push of a
button, the electronic engine management
system switches the engine mapping to
offer an even sharper response and
engine dynamics that are more direct.
In vehicles with Porsche Doppelkupplung
(PDK), upshifts take place at higher
engine speeds and downshifts happen
sooner. In addition, coasting mode
and the auto start/stop function are
automatically deactivated. If fitted, the
optional sports exhaust system is also
activated automatically.
Sport Chrono Package.
The Sport Chrono Package including
dynamic engine mounts is available
as an option. This integrated system
provides simultaneous enhancement for
the chassis, engine and transmission.
Included in the package are a performance
display, a digital and an analogue stop -
watch and the SPORT PLUS but ton. An
additional display in the steering wheel
and instrument cluster indicates whether
the SPORT but tons and Launch Control
have been activated.
Every day can be sports day.
Additional performance enhancement systems.Electromechanical power steering.
Another possible definition of efficiency
is a system that works only when it is
needed, and then does so in a particularly
effective way.
This was the guiding principle for our
engineers in the development of the electromechanical power steering. Statis-
tics show that a car drives in a straight
line 90 % of the time. Unlike conventional
hydraulic pumps, the electric motor uses
energy only when the steering wheel is
actually turned. The absence of hydraulic
fluid also makes the system more
bene ficial to the environment.
As far as the other 10 % is concerned, we’re
optimally prepared as the steering system
is t ypically Porsche. It features a variable
steering ratio and responds sensitively
and directly at the same time as providing
customary agilit y, a high level of comfort
and precisely selected feedback from the
road. Our definition of efficient.
Power steering Plus.
Power steering Plus, the comfort-enhancing
power steering system, is available as an
option for the 911 Carrera models. At high
speeds, the steering is as firm as possible,
ensuring maximum precision whilst steer-
ing comfort remains as high. At low speeds,
the steering ratio of Power steering Plus
adjusts for much easier manoeuvring and
parking.
Page 34 of 75
6667
T
emperament
| Chassis and body
On activation of SPORT PLUS mode,
Porsche Active Suspension Management
(PASM) and, in the 911 Carrera S models,
optional Porsche Dynamic Chassis
Control (PDCC) switch to a harder
damping set ting and offer more direct
steering and, therefore, better
roadholding. In SPORT PLUS mode, the trigger
threshold for PSM is raised. Agilit y is
perceptibly enhanced when braking for
corners with PSM, allowing sportier
braking and exit acceleration. For even
greater dexterit y, PSM can be set to
standby while the car is still in
SPORT PLUS mode. For safet y, it is
set to intervene automatically only
when ABS assistance is required on both
the front wheels.
In combination with PDK, the Sport
Chrono Package has t wo additional
functions for a sport y drive that borders
on a motorsport experience. The first is ‘Launch Control’, which can be used
on the track to achieve the best
possible standing start – a racing start.
The second function is the ‘motorsport-
derived gearshift strategy’. Using this,
Porsche Doppelkupplung (PDK) is geared
up for extremely short shift times and optimum shift points for the maximum
acceleration available. This combination
of uncompromising and involving perfor-
mance is ideal for the racetrack.
A key component of the Sport Chrono
Package is the stopwatch mounted on
the dashboard. In conjunction with
optional PCM, a special performance
display enables you to view, store and
evaluate lap times or other driving times.
It shows the total driving time, lap
distance, lap number and lap times
recorded so far.
A feature of the Sport Chrono Package
borrowed from motorsport is the dynamic
engine mounts. These exploit the laws
of physics for your own driving pleasure.
Dynamic engine mounts.
You don’t have to take the 911 onto the
racetrack. But you can, more so than
ever, because dynamic engine mounts
are now included as part of the Sport
Chrono Package.
The electronically controlled system
minimises the oscillations and vibrations
of the entire drivetrain, especially
the engine, and combines the benefits
of a hard or soft engine mounting
arrangement.
A hard engine mounting delivers optimum
dynamic performance because it offers
the highest degree of handling precision
possible. Soft engine mounts, on the
other hand, minimise oscillations and
vibrations. While comfort is improved on
uneven road surfaces, this comes at
the expense of dynamic performance. Our engineers have solved this problem
by enabling the engine mounts to adapt
their stiffness and damping properties to
changes in driving st yle and road surface
conditions. This has been achieved by
use of a fluid with magnetic properties in
interaction with an electrically generated
field. For the driver, the results are tangi-
ble. Handling is perceptibly more stable
under load change conditions and in
fast corners. Whenever a less assertive
driving st yle is adopted, the dynamic
engine mounts provide a higher level of
comfor t.
Page 35 of 75
6869
Wheels.
The 911 Carrera models are equipped
with 19-inch Carrera wheels as standard.
These are light weight alloys featuring a
classic sport y design. Tyre sizes are
235/40 ZR 19 and 285/35 ZR 19 at the
front and rear, respectively. All-wheel-
drive models are fit ted with even wider
295/35 ZR 19 t yres at the rear.The S models are equipped with light-
alloy 20 -inch Carrera
S wheels as
standard. The visual effect is sport y and
dynamic. The t yres are slightly wider to
cope with the increased power output of
these models: 245/35 ZR 20 at the
front, 295/30 ZR 20 at the rear. All-
wheel-drive models have 305/30 ZR 20
t yres at the rear.
The large t yre size improves both ride
comfort and track performance. Rolling
resistance, dry braking distances and t yre
weight are all comparatively low, thereby
helping to reduce fuel consumption.
A selection of 20 -inch wheels is available
in our range of options.
Tyre Pressure Monitoring (TPM).
Integrated as standard, Tyre Pressure
Monitoring (TPM) sends warnings to the
on-board computer’s display screen in
the event of low t yre pressure or a
gradual or sudden loss of pressure. The
individual pressures in all four t yres can
be displayed in the instrument cluster.
Porsche Stability Management (PSM).
As standard, the 911 Carrera models are
equipped with enhanced Porsche Stability
Management (PSM), which maintains sta -
bilit y even at the limits of dynamic driving
performance. Sensors continuously moni -
tor the direction, speed, yaw velocit y and
lateral acceleration of the car. Using this
information, PSM is able to calculate the actual direction of travel at any given
moment. If the car begins to oversteer or
understeer, PSM applies selective braking
on individual wheels to restore stabilit y.
Under acceleration on wet or low-grip
road surfaces, PSM improves traction
using the automatic brake diffe
rential
(ABD) and anti -slip regulation (ASR).
When the SPORT PLUS mode of the
optional Sport Chrono Package is selected,
the PSM threshold is raised to allow a
sportier driving style.
For an even more dynamic experience,
you always have the option to deactivate
PSM. It is automatically reactivated,
for your safet y, only if you brake harder
and either of the front wheels (in SPORT
PLUS mode, both of the front wheels) requires ABS assistance. ABS and ABD,
however, remain active at all times.
PSM therefore offers a high level of
driving stability and safety combined
with extraordinary agilit y. It ’s an
apparent contradiction in terms, but an
intrinsic part of the Porsche identit y.
19 -inch Carrera wheel (standard on
the 911 Carrera models)
20-
inch Carrera S wheel (standard on
the 911 Carrera S models) 911 Carrera 4 Cabriolet with 20-inch Carrera Classic wheels
T
emperament | Chassis and body
For fuel consumption, CO2 emissions and efficiency class, please refer to pages 141/143.
Page 36 of 75
7071
T
emperament
| Chassis and body
PTV in conjunction with the manual
gearbox, or PT V Plus with Porsche
Doppelkupplung (PDK), are available as
options for the 911 Carrera models and
standard in the S models. Both systems
actively enhance vehicle dynamics and
stability. Operating in conjunction with a
mechanical (PT V) or electronic (PT V Plus)
rear differential lock, they work by
intelligently braking the rear wheels as
the situation demands.
As a function of steering angle and steering
speed, accelerator pedal position, yaw
rate and vehicle speed, PT V and PT V Plus
are able to improve steering response
and steering precision by specific braking
of the right or left rear wheel.
To be more precise, this means that when
the car is driven assertively into a corner,
moderate brake pressure is applied to the
inside rear wheel. Consequently, a greater
amount of drive force is distributed to the
outside rear wheel, inducing an additional
rotational pulse (yaw movement) around
the vehicle’s vertical axis. This results in
a direct and sport y steering action as the
car enters the corner.
At low and medium vehicle speeds, PT V
and PT V Plus significantly increase agilit y
and steering precision. At high speeds
and when accelerating out of corners,
the rear differential lock ensures greater
driving stabilit y. With PT V, the differential
lock is regulated mechanically; with
Attack the corners.
Maintain good posture.
Porsche Torque Vectoring (PTV) and
Porsche Torque Vectoring Plus (PTV Plus).
PT V Plus, it is regulated electronically and
the torque distribution is infinitely varia ble.
Whichever system is fit ted, it interacts
with Porsche Stabilit y Management (PSM)
to improve driving stabilit y on a range
of surface conditions, including the wet
and snow.
For the driver, this means remarkable
stability, easier handling and outstanding
traction as well as greater agilit y at every
speed with precise steering and stable
load transfer characteristics. What else?
Unrivalled driving pleasure at every t wist
and turn.
Page 37 of 75
discerning
tenacious
precise
controlled
balanced
intuitive
foresighted
Composure
uncompromising
Page 38 of 75
7475
Composure
| Safet y
Control, discipline, precision.
At Porsche, we take driving pleasure very seriously.
S a f e t y.
Brakes.
Another crucial piece of the Porsche
identit y is the brakes. We value them as
highly as we do our engines and chassis.
They set standards for deceleration and
stabilit y, and give the driver the reassur
-
ance needed to push the car to the limits
of its performance.
The 911 Carrera base models are fit ted
front and rear with anodised black four-
piston aluminium monobloc fixed
calipers. All brake discs have a diameter
of 330 mm. On the S models, we have fit ted larger
brakes and more brake pistons to cope
with the higher engine power of these
models. Consequently, they feature red
six-piston monobloc aluminium fixed
brake calipers at the front and four-piston
aluminium monobloc fixed calipers at
the rear. The brake disc diameter is
340 mm at the front and 330 mm at the
rear. The results are enhanced braking
performance and stability.
On all models, the brake calipers have
an enclosed monobloc construction.
This makes them tougher but lighter
and enables a more rapid response and release of the brake even under extreme
loads. The pedal travel is short and
the biting point precise. The brake discs
are cross-drilled for better performance
in the wet.
Other benefits of the standard braking
system include the anti-lock braking
system (ABS), designed to keep
deceleration constant. Pedal effort is
reduced and braking response improved
by an 8-/9-inch tandem vacuum brake
booster. In the S models, brake disc
cooling is further enhanced by the
inclusion of air spoilers.
Standard brake system on the 911 Carrera models
Standard brake system on the 911 Carrera S models
Page 39 of 75
7677
From the start, Porsche has been
synonymous with motorsport. Ever since
1948, when we found our identit y on the
racetrack, we have taken the experience
we have gained and transferred it to the

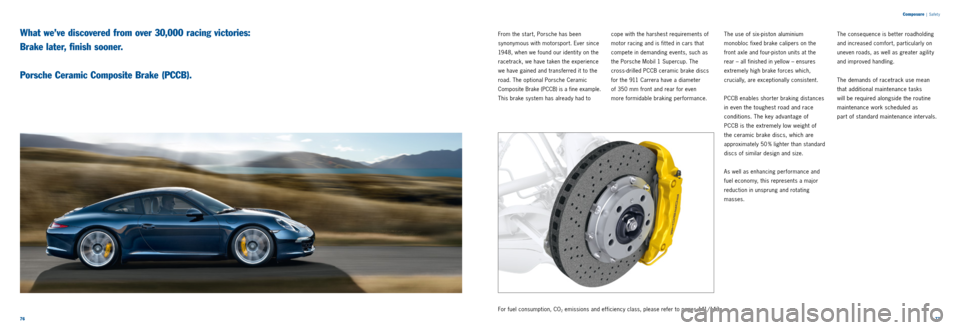

road. The optional Porsche Ceramic
Composite Brake (PCCB) is a fine example.
This brake system has already had to
Composure | Safet y
cope with the harshest requirements of
motor racing and is fit ted in cars that
compete in demanding events, such as
the Porsche Mobil 1 Supercup. The
cross-drilled PCCB ceramic brake discs
for the 911 Carrera have a diameter
of 350 mm front and rear for even
more formidable braking performance. What we’ve discovered from over 30,000 racing victories:
Brake later, finish sooner.
Porsche Ceramic Composite Brake (PCCB).The use of six-piston aluminium
monobloc fixed brake calipers on the
front axle and four-piston units at the
rear – all finished in yellow – ensures
extremely high brake forces which,
crucially, are exceptionally consistent.
PCCB enables shorter braking distances
in even the toughest road and race
conditions. The key advantage of
PCCB is the extremely low weight of
the ceramic brake discs, which are
approximately 50 % lighter than standard
discs of similar design and size.
As well as enhancing performance and
fuel economy, this represents a major
reduction in unsprung and rotating
masses. The consequence is better roadholding
and increased comfort, particularly on
uneven roads, as well as greater agilit y
and improved handling.
The demands of racetrack use mean
that additional maintenance tasks
will be required alongside the routine
maintenance work scheduled as
part of standard maintenance intervals.
For fuel consumption, CO2 emissions and efficiency class, please refer to pages 141/143.
Page 40 of 75
7879
Composure
| Safet y
Electric parking brake.
The electric parking brake, which you
can activate and deactivate manually,
releases automatically as you pull away.
With the hill-
hold function, you can
pull away without ever rolling back.
The system automatically detects when
the vehicle has come to a halt on an
uphill gradient requiring intervention.
PSM then maintains the brake pressure
at all four wheels to prevent the vehicle
from moving in the opposite direction.
Airbags.
The 911 Carrera models offer advanced
airbag technology in the form of full-size
driver and front passenger airbags, which
are inflated in t wo stages depending
on the severit y and t ype of accident (e.g.
frontal or offset frontal). In less serious
accidents, the airbags are only partially
inflated, thereby minimising discomfort
to the occupants. In addition to the central airbag control
unit on the transmission tunnel, a pair of
impact sensors are located near the
headlights. This allows a crash to be
detected and evaluated not just sooner,
but with even greater accuracy.
Porsche Side Impact Protection
System (POSIP).
Coupé or Cabriolet, the 911 models
are equipped as standard with the
Porsche Side Impact Protection System
(POSIP). It comprises side impact
protection elements in the doors and t wo airbags on each side. An integral
thorax airbag is located in each seat side
bolster, while the door panels each
contain an upwards-inflating head airbag.
Each thorax airbag has a volume of
10 litres and each head airbag 15 litres,
ensuring excellent protection in the event
of a side impact.
Cabriolet roll-over protection concept.
Despite their low weight, the 911 Carrera
Cabriolet models have exemplary
torsional rigidit y and flexural strength.
Body flexing is minimal even on irregular
road surfaces.
Increased protection is provided by
an automatically deploying roll-over
protection system if the car were to
overturn. Two spring-loaded roll-over
bars are neatly incorporated behind
the rear seats. The roll- over sensor
continuously monitors the car’s pitch
and roll, contact with the road, as
well as lateral and longitudinal forces.
If the car were to overturn, the roll- over
bars would be deployed instantly.
