CentralLocking
USA:FCCIDLXPRKY
116;
FCCIDLXPVIM145
Canada:TxF315P2255102275;
RxF315P2255102276A
Thisdevicecomplieswith:
Part15oftheFCCRules
RSS-21OofIndustryCanada.
Operationofthisdeviceissubjecttothefollow-
ingtwoconditions:
-Itmaynotcauseharmfulinterference,and
-itmustacceptanyinterferencereceived
includinginterferencethatmaycauseun-
desiredoperation.
Note
Themanufacturerisnotresponsibleforany
radioorTVinterferencecausedbyunauthorized
modificationstothisequipment.
Suchmodificationcouldvoidtheuser'sauthority
tooperatetheequipment.
Seethechapteron"Loadswitch-off","Power
windows","Lifting/slidingroof"and"Convertible
top".
Bothcardoorsandthefillerflapcanbecen-
trallyunlockedorlockedwiththeremotecon-
trol.
Thevehiclecannotbelockedifthedriver'sdoor
isnotcompletelyclosed.
Ashortsignalfromthealarmhornwilldraw
yourattentiontothefactthatthefollowing
componentsarenotcompletelyclosedwhen
youtrytolockthevehicle:
-Passenger'sdoor
-Luggagecompartmentlid
-Enginecompartmentlid
-Rearlid(Targa)
-Storagetray
-Glovecompartment
Note
Unlockingthevehiclebyusingthekeyinthe
doorlockandopeningthedoormayactivatethe
alarmsystemwithin10seconds.
Automaticrelocking
Ifthecarisunlockedbyremotecontroland
noneofthecardoorsisopenedwithinapprox.
60seconds,automaticrelockingtakesplace.
Thisrelockingtimecanbeadaptedtoyourindi-
vidualrequirements(4-120seconds)byan
authorizedPorschedealer.
Lockingconditions
[>
Lockcaronce.
Thedoorscannotbeopenedfromtheout-
side.
Alarmsystemandinfraredpassengercom-
partmentmonitoringareswitchedon.
Ifapersonoranimalremainsinthe
vehicle:
[>Quicklylockcartwice.
Thedoorscannotbeopenedfromtheout-
side.
Theinfraredpassengercompartmentmonitor-
ingisswitchedoff.
Unlockingthedoorwiththeinnerdoor
handle
Anypersonremaininginthelockedcarcan
openthedoorwiththeinnerdoorhandle:
1.Pullinnerdoorhandleoncetounlockdoor
lock.
2.Pullinnerdoorhandleagaintoopendoor.
Note
Informanypersonremaininginthecarthatthe
alarmsystemwillbetriggeredifthedoorisop-
ened.
[>[>[>
Controls,Instruments
21
Page 22 of 263
Controls,Instruments
[>
Unlockthedriver'sdoorwiththekeyatthe
doorlock.
Openthedoorandswitchtheignitionon
within10secondsinordertopreventthe
alarmsystemfrombeingtriggered.
Emergencyoperation-closing
[>Quicklyturnthekeyinthedriver'sdoorlock
tothelockpositionthreetimesinsuc-
cession.
Ifthereisadefectinthecentrallockingsys-
tem,allfunctioningelementsofthecentral
lockingsystemwillbelocked.
Thealarmsystemisswitchedon.
Theinfraredpassengercompartmentmonitor-
ingsystemisswitchedoff.
Thefaultshouldberemediedimmediatelyatan
authorizedPorschedealer.
Indicationbyemergencyflasherand
alarmhorn
Iftheremotecontrolisusedforunlockingor
locking,aresponseisprovidedbytheemer-
gencyflasher:
-Unlocking-singleflash.
-Locking-doubleflash.
-Lockingtwice-continuousilluminationforap-
prox.2secondsandshortalarm-hornsignal.
22
Emergencyoperation-opening
~Centrallockingswitch
Thecentrallockingswitchonthedashboardlets
youlockandunlockbothdoorselectrically.
Note
Ifthedoorsarelockedwiththekeyorremote
control,theycannotbeopenedbypressingthe
centrallockingswitch.
Locking
[>
Presstherocker-switchsymbol.
Indicatorlightlightsupifignitionison.
Unlocking
[>
Presstherocker-switchindicatorlight.
Indicatorlightgoesout.
Ifthedoorswerelockedwiththecentrallocking
switch,theycanbeopenedbypullingtheinner
doorhandle:
1.Pullinnerdoorhandleoncetounlockdoor
lock.
2.Pullinnerdoorhandleagaintoopendoor.
Page 23 of 263
Automaticdoorlocking
YourauthorizedPorschedealercanprogram
diversetypesofautomaticdoorlockinginthe
controlunitofthecentrallockingsystem:
Type1
Doorslockautomaticallywhentheignitionis
switchedon.
Type2
Doorslockautomaticallywhenaspeedof3-6
mph(5-10km/h)isexceeded.
Type3
Doorslockautomaticallywhentheignitionis
switchedon.Ifdoorsareopenedwiththeen-
ginerunning,theylockagainautomaticallywhen
aspeedof3-6mph(5-10km/h)isex-
ceeded.
Type4
Thedoorsdonotlockautomatically.
Note
Automaticallylockeddoorscanbeunlockedwith
thecentrallockingbuttonoropenedbypulling
ontheinsidedoorhandletwice.
A.Warning!
Inanemergencysituationwhereyouneed
toexitthecarthroughanautomatically
lockeddoor,rememberthefollowingpro-
ceduretoopenthedoor.
~Unlockthedoorsbypressingthecentrallock-
ingbuttonor
~pulltheinsidedoorhandletwicetoopenthe
door.
Faultindication
Adoublehornsignalduringlockingindicatesa
defectinthecentrallockingoralarmsystem.
Havethedefectremediedatanauthorized
Porschedealer.
Overloadprotection
Ifthecentrallockingsystemisoperatedmore
thantentimeswithinaminute,furtheroperation
isblockedfor30seconds.
Controls,Instruments
23
Page 24 of 263
A-Light-emittingdiodeforalarmsystem
B-Sensormoduleforinfraredpassengercompartment
monitoringsystem
AlarmSystem,
InfraredPassengerCompartment
Monitoring
Thealarmsystemandinfraredpassengercom-
partmentmonitoringsystemareswitchedon
whenthedoorsarelockedwiththekeyor
remotecontrol.
Seethechapteron"Centrallocking".
24Controls,Instruments
Unlockingthevehiclebyusingthekeyin
thedoorlockandopeningthedoormay
activatethealarmsystemwithin10sec-
onds.
Note(Cabriolet,Targa)
Theinfraredpassengercompartmentmonitoring
systemisalwaysswitchedoffwhentheconvert-
ibletoporglassslidingroofisopen.
Functionindication
Ifthealarmsystemisactivated,light-emitting
diodeAonthedashboardflashes.
If,afterlocking,thelight-emittingdiodedoesnot
flashor,aftertenseconds,itemitsdouble
flashes,thennotallalarmcontactsareclosed.
Additionally,abriefhornsignalsounds.
Whenthedoorsareunlocked,thealarmsystem
andinfraredpassengercompartmentmonitoring
systemareswitchedoffandthelight-emitting
diodegoesoff.
Whenthealarmisarmed,thefollowing
areasaremonitored
-Doors
-Luggagecompartmentlid
-Enginecompartmentlid
-Convertible-toplock(Cabriolet)
-Glassslidingrooflock(Targa)
-Rearlid(Targa)
-Radio
Glovecompartment
-Storagetraybetweenthefrontseats
-Passengercompartment
Ifoneofthesealarmcontactsisinterrupted,the
alarmhornsoundsforapproximately3minutes.
Additionally,theemergencyflasherandthepas-
sengercompartmentlightflashforapproxi-
matelyfiveminutes.
Whenthealarmistriggered,thelight-emitting
diodechangesovertodoubleflashes.
Inordernottolimittheactionrangeoftheinfra-
redpassengercompartmentmonitoringsystem:
I>Movesunvisorstooneofthefinalpositions.
I>Donotfoldthefrontseatbackrestsforward.
Page 25 of 263
Deactivating
theinfraredpassenger
compartmentmonitoringsystemfor
onelockingprocess
Ifapersonoranimalremainsinthecarwhileit
islocked,theinfraredpassengercompartment
monitoringsystemmustbeswitchedoff.
t>Quicklylockcartwice.
Thedoorsarelockedbutcanbeopened
fromtheinside:
1.Pullinnerdoorhandleoncetounlockdoor
lock.
2.Pullinnerdoorhandleagaintoopendoor.
Note
Informanypersonremaininginthecarthatthe
alarmsystemwillbetriggeredifthedoorisop-
ened.
Faultindication
Adoublehornsignalduringlockingindicatesa
defectinthecentrallockingoralarmsystem.
Havethedefectremediedatanauthorized
Porschedealer.
Controls,Instruments
25
Page 26 of 263
A-Rockerswitchfordoorwindows
B-Rockerswitchforrearwindows,Cabrioletonly
PowerWindows
/!\Warning!
Riskofanaccident.
I>Donotputanythingonornearthewindows
thatmayinterferewiththedriver'svision.
26Controls,Instruments
Riskofinjurywhenthedoorwindowsclose.
Thisappliesespeciallyifthewindowsare
closedwiththecomfortfunction,because
withthisfunctionthewindowgoesupauto-
matically.
I>Makesurenobodycanbeinjuredwhenthe
windowsclose.
I>Removetheignitionkeytoshutoffpowerto
thewindowswitcheswhenthevehicleisnot
attendedbyaresponsibleperson.
Readinessforoperationofpower
windows
-Withenginerunningor
-inignitionkeyposition1or
-withdoorclosedandignitionkeywithdrawn:
onlyuntilfirstopeningofthedoor.
Note(Cabriolet)
Therearsidewindowscannotbeclosedwhen
theconvertibletopisopen.
Opening
windows
~Openingwiththerockerswitch
~inthecenterconsole
I>Pressrockerswitchuntilthewindowhas
reachedthedesiredposition.
I>One-touchoperation(doorwindowsonly):
Pressrockerswitchbriefly.
Windowmovestoitsfinalposition.
Pressagaintostopthewindowinthedesired
position.
Comfortfunctionwhenunlocking
thevehicleatthedoorlock
I>Coupe,TargaandCabrioletwithhardtop:
Unlockcarwiththeremotecontrol.
Holdcarkeyindoorlockintheunlockingdi-
rectionuntilthewindowshavereachedthe
desiredposition.
Cabrioletwithouthardtop:
Unlockcarwiththeremotecontrol.
Thewindowscanonlybeopenedwiththe
convertibletopopen.
Page 27 of 263
Closingwindows
A25)
Closingwiththerockerswitch
'-=7inthecenterconsole
I>Pressrockerswitchuntilthewindowhas
reachedthedesiredposition.
I>One-touchoperation(doorwindowsonly):
Pressrockerswitchbriefly.
Windowmovestoitsfinalposition.
Pressagaintostopthewindowinthedesired
position.
Comfortfunctionwhenlockingthevehicle
atthedoorlock
I>Coupe,TargaandCabrioletwithhardtop:
Holdcarkeyindoorlockinthelockingdirec-
tionuntilthewindowshavereachedthe
desiredposition.
Cabrioletwithouthardtop:
Thewindowscanonlybeclosedwiththecon-
vertibletopclosed.
Anti-crushingprotection
Ifasidewindowisblockedduringclosing,itwill
stopandopenagainbyaboutaninch.
A
Warning!
Risk
of
severepersonalinjuries.
Ifthe
rockerswitchispressedagainwithin
10seconds
ofthe
windowbeingblocked,
the
windowwillclosewithitsfullclosing
force.Anti-crushingprotectionisdisabled.
I>Oncetheanti-crushingprotectionactstostop
thewindowandopensitslightly,donotpress
therockerswitchagainwithin10seconds
withoutcheckingtomakesurethatnothingis
blockingthepathofthewindow.
Thewindowwillclosewithfullclosingforce.
One-touchoperationisdisabledfor10seconds
afterblockageofasidewindow.
Automaticwindowlowering
Seethechapterson"Doors"and"Convertible
top".
Thestandbyfunctionofthepower
windowsswitchesoffaftertwohours
Whenthecarisunlocked,thepowerwindows
cannolongerbeoperatedaftertwohours(to
savethecarbattery).
I>Switchontheignitionorstarttheengineto
reactivatethepowerwindows.
Storing
endpositionofthewindows
Ifthebatteryisdisconnectedandreconnected,
thewindowswillnotberaisedautomatically
whenthedoorisclosed.
1.Closethewindowswiththerockerswitch
once.
2.Pressfronthalfofrockerswitchagainto
storetheendpositionofthewindowsinthe
controlunit.
Controls,Instruments
27
Page 28 of 263
A-Selectorswitch,driver's/passenger'sside
B-Mirroradjustment
RearViewMirrors
Beforedrivingthevehicle,adjusttheoutsideand
insidemirrors.
Itisimportantforsafedrivingthatyouhave
goodvisiontotherear.
/!\Warning!
Riskofanaccident.
t>Donotputanythingonornearthewindows
orthemirrorsthatmayinterferewiththe
driver'svision.
28Controls,Instruments
Doormirrors
Themirrorhousingishingedandcanbefolded
flatagainstthecartopreventdamageinthe
tightparkingareas.
Adjusting
1.Selectdriver'ssideorpassenger'ssidewith
rockerswitchA.
2.Movethedoormirrorglassesintheappropri-
atedirectionusingthecontrolswitchB.
Iftheelectricaladjustmentfacilityfails
t>Adjustmirrorbypressingonthemirrorface.
Automaticallyswivellingdownmirrorglass
onthepassenger'sside
Seethechapteron"Parkingaids"and"Seat
memory".
Insidemirror
Whenthemirrorisbeingadjusted,theanti-glare
leverAmustpointforward.
Basicposition:leverforward
Anti-glareposition:leverback
Page 29 of 263
A-Sensor
B-Switchforautomaticanti-glareoperation
C-Light-emittingdiode
AutomaticAnti-GlareInterior
MirrorandDriver'sDoorMirror
Sensorsonthefrontandrearsidesoftheinte-
riormirrormeasuretheincidentlight.
Themirrorsautomaticallychangetoanti-glare
positionorreverttotheirnormalstate,depend-
ingonthelightintensity.
Whenreversegearisselected,automaticanti-
glareoperationisswitchedoff.
Note
Theincidentlightintheareaofthesensors
mustnotberestricted,e.g.bystickersonthe
windscreen.
Switchingofftheautomaticanti-glare
operation
I>PressswitchB.
Light-emittingdiodeCgoesout.
Switchingontheautomaticanti-glare
operation
I>PressswitchB.
Light-emittingdiodeClightsup.
/!\Warning!
Riskofinjury.Electrolytefluidcanemerge
fromabrokenmirrorglass.
Thisfluidirritatestheskinandeyes.
I>Iftheelectrolytefluidshouldcomeintocon-
tactwiththeeyesorskin,immediatelyrinseit
offwithcleanwater.
Seeadoctorifnecessary.
Riskofdamagetothepaintworkandplas-
ticparts.Electrolytefluidcanberemoved
onlywhileitisstillwet.
I>Cleantheaffectedpartswithwater.
Controls,Instruments
29
Page 30 of 263
I>Presstherocker-switchsymbol.
Indicatorlightislit.
Themirrorheaterisreadyforoperationwhen
theignitionison.
30Controls,Instruments

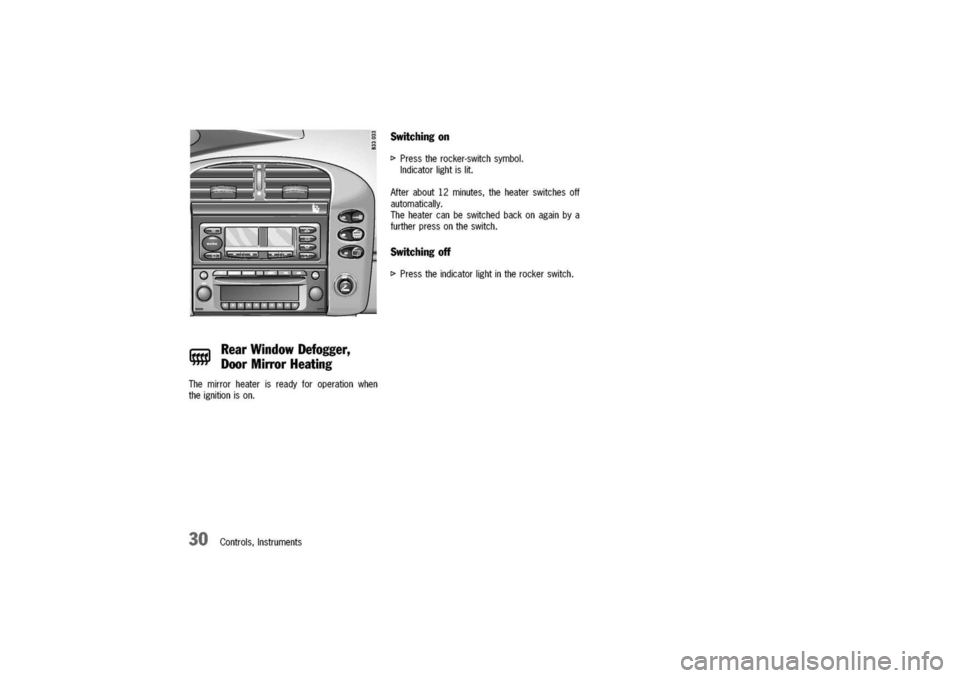

Switchingon
r;;;;'I
RearWindowDefogger,
~
DoorMirrorHeating
Afterabout12minutes,theheaterswitchesoff
automatically.
Theheatercanbeswitchedbackonagainbya
furtherpressontheswitch.
Switchingoff
I>
Presstheindicatorlightintherockerswitch.
