Page 271 of 282
Technical Data
271
Driving Performance Coupé** At DIN empty weight and half load, without performance-inhibiting extra equipment Driving Performance Cabriolet** At DIN empty weight and half load, without performance-inhibiting extra equipment 911 Carrera Manual transmission Tiptronic S
Top speed 177 mph (285 km/h) 174 mph (280 km/h)
Acceleration 0 - 100 km/h (62 mph) 5.0 seconds 5.5 seconds
911 Carrera S Manual transmission Tiptronic S
Top speed 182 mph (293 km/h) 177 mph (285 km/h)
Acceleration 0 - 100 km/h (62 mph) 4.8 seconds 5.3 seconds
911 Carrera Manual transmission Tiptronic S
Top speed 177 mph (285 km/h) 174 mph (280 km/h)
Acceleration 0 - 100 km/h (62 mph) 5.2 seconds 5.7 seconds
911 Carrera S Manual transmission Tiptronic S
Top speed 182 mph (293 km/h) 177 mph (285 km/h)
Acceleration 0 - 100 km/h (62 mph) 4.9 seconds 5.4 seconds
Page 272 of 282
272
Technical Data
DimensionsLength 175.6 in./4461 mm
Width 71.2 in./1808 mm
Height 51.6 in./1310 mm
Wheelbase 92.6 in./2350 mm
Ground clearance 4.2 in./106 mm
at maximum gross weight 3.4 in./86 mm
Turning circle 35.8 ft./10.9 m
Vehicles with PASM
Height 51.2 in./1300 mm
Ground clearance 3.8 in./96 mm
at maximum gross weight 3 in./76 mm
Page 273 of 282
Technical Data
273
Diagrams Acceleration diagram
Values have been determined at DIN empty weight
and with a 50 % load without additional equipment.
Transmission diagram
The transmission diagram is based on standard
values on the basis of a mean effective scrub ra-
dius. Changes of the scrub radius, the tire toler-
ance, wear and tear, deviating country equipment
and tire slip have not been taken into account.

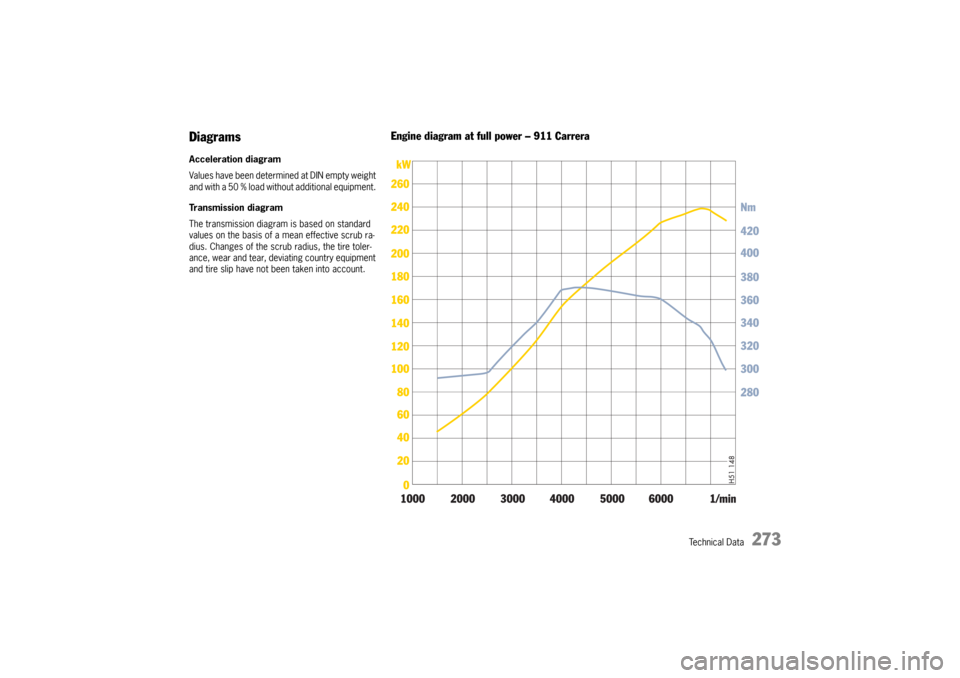

Engine diagram at full power – 911 Carrera
Page 274 of 282
274
Technical Data
Engine diagram at full power – 911 Carrera S
Page 275 of 282
Technical Data
275

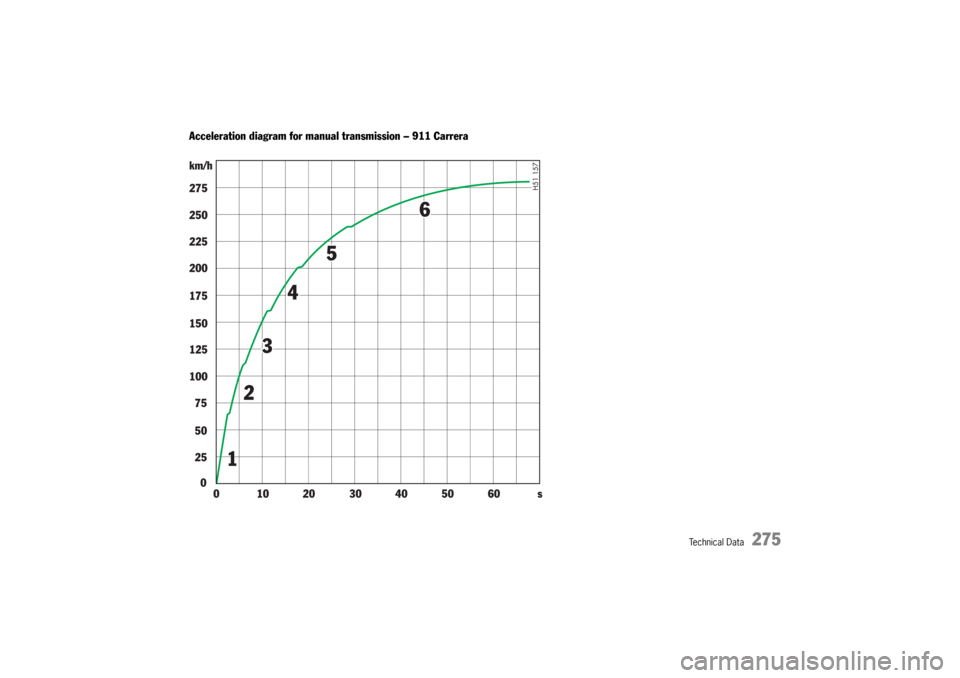

Acceleration diagram for manual transmission – 911 Carrera
Page 276 of 282
276
Technical Data

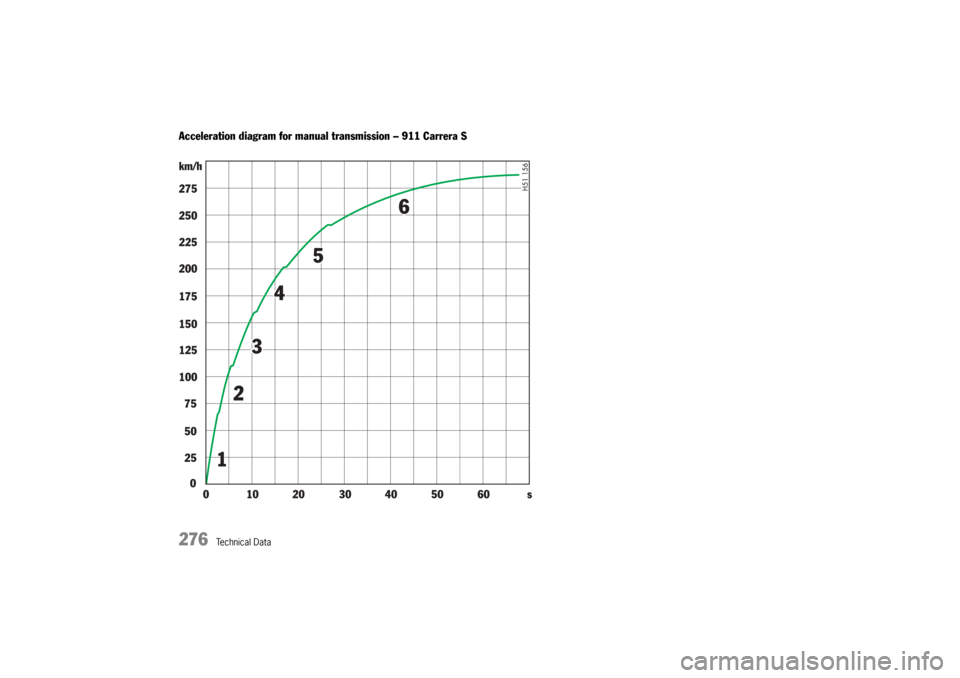

Acceleration diagram for manual transmission – 911 Carrera S
Page 277 of 282
Technical Data
277
Page 278 of 282
278
Index
IndexAABS (antilock brake system) .......................... 62
Warning light ........................................ 63
Air distribution ............................................ 120
Air filter ...................................................... 195
Airbag....................................................50
, 51
Switching off passenger airbag .............. 49
Warning light ........................................ 51
Air-conditioning compressor ................120, 122
Alarm system .......................................26, 142
Alcantara ................................................... 206
Antenna .............................................142, 201
Antifreeze................................................... 179
Antilock brake system (ABS) .......................... 62
Warning light ........................................ 63
Ashtray ...................................................... 124
Assembly aids for wheel changes................. 230
Audio operation ..................................140, 141
Auto-button, air conditioning ........................ 120
Automatic .................................................. 195
Air conditioning system ....................... 120
Anti-glare mirrors .................................. 32
Car washes ........................................ 201
Door locking ......................................... 21
Headlight adjustment........................... 114
Locking retractor .................................. 44
Speed control ...................... 80
, 118
, 119
Average consumption ...........................91, 104
Average speed .....................................91, 104
BBackrest
Adjustment ........................................... 34
Release ................................................ 34
Battery ....................................................... 236
Care .................................................. 237
Charging ............................................ 237
Putting vehicle into operation ............... 239
Remote control ................................... 241
Removing ........................................... 240
Warning light......................................... 88
Winter operation ................................. 238
Before driving off ................................... 14
, 15
Belts ................................................... 42, 206
Height adjustment ................................. 44
Tensioner ............................................. 42
Warning light......................................... 43
Blower adjustment............................. 121, 123
Brake light......................................... 254, 256
Brakes ....................................................... 185
Brake circuit division warning light ........ 186
Brake pad warning light ......................... 89
Fluid .......................................... 185, 268
Fluid warning light ............................... 186
Pads ............................................. 16, 61
Parking brake ....................................... 58
Test stand ............................................ 67
Break in hints................................................ 16
Bulbs, replacing .......................................... 244
CCabriolet ....................................................156
Canholder...................................................126
Capacities ..................................................268
Car care .....................................................198
Car telephone .............................................142
Car washes ................................................199
Carpet........................................................205
Catalytic converters ....................................192
Cautions ............................................ 178
, 208
Central locking ..............................................22
emergency operation.............................23
Central vents ..............................................123
Central warning light......................................89
Changing wheels .........................................230
Check engine
Warning light .........................................89
Checking pressure ......................................229
Child restraint
Anchorages ..........................................45
Switching off passenger airbag ..............49
System.................................................46
Chime ........................................................113
CHRONO stopwatch ......................................96
Cigarette lighter ..........................................125
Circulating-air button....................................121
Clock .................................................. 87, 104
Clothes hook ..............................................128
Clutch ................................................. 58, 144
Comfort seat ................................................34
Coming Home mode ...................................113
Page 279 of 282
Index
279
Compact disc
Player and Changer ............................. 141
Storage.............................................. 129
Compartment monitoring............................... 26
Convertible top ........................................... 156
Care .................................................. 200
Coolant ................................................84
, 179
Level.................................................. 179
Temperature gauge.............................. 84
Warning light ........................................ 84
Cooling system .....................................84, 179
Cruise control .............................. 88
, 118
, 119
Cupholder .................................................. 126
DDashboard ................................................... 70
Data bank .................................................. 262
Defrosting windows ...............................33
, 121
Diagnostic socket .................................17, 234
Diagrams ................................................... 273
Dimensions ................................................ 272
Door ............................................................ 21
Guard lights ........................................ 255
Handles................................................ 21
Locks...........................................21, 201
Mirror .................................................. 32
Mirror heating ....................................... 33
Windows ....................... 21
, 28, 156
, 203
Driving hints ................................................. 14
Driving in winter .......................................... 150
Driving performance ................................... 271
Drop-center rim .......................................... 221
DVD Navigation...................................132, 139
EElectrical system.........................................232
Emergency flasher ......................................112
Emergency operation
Central locking ......................................23
Lids ...................................................235
Sliding roof .........................................154
Tank flap ............................................188
Emergency service......................................208
Emergency starting
with jumper cables............................. 242
, 243
Emission control system ........... 7
, 89, 191
, 192
Engine
Checking the oil level ...........................101
Exhaust ..................................................9
Number ..............................................263
Oil consumption........................... 16, 181
Oil level ..............................................181
Oil level indicator.................................101
Oil pressure ..........................................88
Oil temperature .....................................80
Oils ........................................... 181, 268
Speeds ....................................... 16, 271
Starting ................................................74
Stopping ..............................................75
Engine compartment
Blower .......................................... 75, 84
Lid ............................................ 130, 131
Lid warning light ..................................130
Light ..................................................255
Environment ...................................................6
FFilling pressure, tire................................ 5
, 267
Fire extinguisher......................................... 135
Floor mats ................................................. 205
Fluids and fuels .......................................... 268
Fog lights .................................................. 113
Footbrake .................................................... 59
Footwell lights ............................................ 255
Fresh air intake .......................................... 123
Front lid ..................................................... 131
Fuel................................................. 4
, 86, 188
Containers ..................................... 8, 190
Economy ........................................... 187
Evaporation control ............................ 193
Level gauge ......................................... 86
Level warning light................................ 86
Recommendation ....................... 189, 190
Tank.................................................. 189
Function keys ............................................... 40
Fuses ........................................................ 234
GGarage door opener................................... 136
Garage lift ................................................. 224
Glove compartment .................................... 129
Gong ....................................... 18
, 73, 92, 113
Ground clearance ........................................... 9
Page 280 of 282
280
Index
HHandbrake ................................................... 58
Hardtop ..................................................... 169
Headlights ..........................................114
, 246
Adjusting ....................................257, 258
Cleaning system ................ 115
, 193
, 268
Headlights beam adjustment........................ 114
Heated rear window ...................................... 33
Heater ....................................................... 120
High beam
Indicator light........................................ 83
Lever ................................................. 113
Home mode ............................................... 113
HomeLink................................................... 136
Hoods................................................130, 131
Horn ............................................... 17
, 22, 24
IIgnition lock.................................................. 72
Immobilizer .................................................. 19
Indicator lights.............................................. 76
Instrument.................................................... 76
Illumination ........................................... 80
Lights ................................................ 113
Panel ...........................................70
, 105
Interior lights ................................................ 69
Interior mirror .........................................30, 32
JJumper cables ....................................215
, 242
KKeys ..................................................... 19
, 20
LLATCH System .............................................. 48
Leather care ............................................... 205
License plate light .............................. 113
, 255
Lids ........................................................... 131
Emergency unlocking .......................... 235
Lifting/sliding roof ....................................... 152
Light
Flasher ................................ 83
, 113
, 114
Low beam ................................. 113, 114
Sensor for instrument illumination........... 76
Switch ....................................... 113, 114
Light alloy wheels
Inscription .......................................... 221
Load switch-off ........................................... 233
Loading information .................................... 222
Locking ........................................................ 22
Conditions ............................................ 24
Lowering ...................................................... 52
Luggage carrier .......................................... 269
Luggage compartment ................................ 132
Lid ..................................................... 130
Lid warning light.................................. 130
Light .................................................. 255
Luggage compartment/
engine compartment lid, warning lights ......... 130
Luggage rack ............................................. 175
MMaintenance ...............................................178
Make-up mirror .............................................41
Maximum permitted engine speeds ....... 16
, 144
Mirrors ............................................ 30
, 32, 55
Anti-glare ..............................................32
Multi-functional steering wheel ........................40
NNavigation ..................................................139
Notes on
Car care .............................................198
Maintenance .......................................178
Number plate light.............................. 113
, 255
OOctane rating ..................................... 189
, 190
Off delay ....................................................113
Oil..............................................................181
Checking level.....................................101
Consumption.........................................16
Level checks.......................................181
Level indicator ....................................101
Pressure...............................................88
Temperature .........................................80
On-board computer .......................................90
Basic settings .....................................103
Language versions ..............................103
On-board literature ..........................................2
Orientation light ............................................69
Outside temperatur indicator..........................87
