Practical Tips, Emergency Service
279
Floor
The surface upon which the vehicle rests is flat
and approximately level.
Screen
The screen upon which headlamp beams are pro-
jected is perpendicular to the floor and the vehi-
cle’s longitudinal axis, flat, uniformly light in color,
unobstructed, and wide and high enough to ac-
commodate the vehicle beam patterns to be
aimed.
The screen should be wide enough to provide at
least 3.3 ft. (1 m) of space outboard of the vehi-
cle’s headlamp spacing.
Adjustment screws
fDetach side carpeting in luggage compart-
ment.
Unscrew plastic nut A.
Open the cover of the appropriate adjustment
screw.
The setting is adjusted by turning the hexagon
socket screws right or left, as appropriate.
B - Headlight vertical adjustmentVertical adjustment (screw B)
fturn clockwise = beam moves down
turn counter-clockwise = beam moves up
Note
fDo not alter the lateral adjustment.

280
Practical Tips, Emergency Service
Towing Certain state statutes and local ordinances prohib-
it towing with a chain, rope or even a tow bar.
In addition, damage to your vehicle may result
from improper procedures.
Consult your authorized Porsche dealer for de-
tails. Vehicle towing Flat bed towing is the preferred type of towing to
be used on Porsche vehicles.
Under certain circumstances, wheel lifts may be
used when the vehicle will not roll.
The vehicle must be towed with all four
wheels off the ground, otherwise damage to
the vehicle may result.
PDK selector lever emergency releaseIn the event of an electronics failure, the selector
lever must be released for towing.
1. Lift up the rubber mat in the oddments tray.
2. Insert a screwdriver in the opening and press
down until you feel it reach the limit position.
The selector lever can now be moved to
position N.
Towing hook The towing hook A is contained in the tool box in
the luggage compartment.
Caution!
Risk of damage to the vehicle.
fUse the towing hook only for an emergency to
remove the vehicle off the road. The towing
hook is to be used only to pull the vehicle onto
the flat bed, tractor or towing aparatus if the
vehicle will roll freely. Under no circumstances
is the vehicle to be secured using the towing
hook.
fNever use the towing hook to tow this or any
other vehicle.
fBear in mind the limited ground clearance of your car on uneven surfaces.

Practical Tips, Emergency Service
281
Fitting towing hook
When fitting on the rear of the vehicle, the license
plate must be removed.
1. Press the lower edge of the appropriate
plastic cover into the bumper until the cover
disengages.
2. Pull cover out of the bumper and let it hang by
its thread.
3. Completely screw in the towing hook A.Removing towing hook
1. Unscrew the towing hook A.
2. Insert plastic cover at the lower edge of the
opening.
3. Fold the cover up and press on its upper edge
to engage it in the bumper.
When removing on the rear of the vehicle, the
license plate must be mouted.

282
Practical Tips, Emergency Service
Pulling vehicle onto flat bed 1. Position wooden ramps at the base of the flat
bed to reduce the angle of the pull.
2. Reel in the hoist cable and check the underside
of the vehicle for any interference.
Tieing down vehicle on flat bed 1. Carefully feed towing straps through the open-
ing in the rear wheels.
Make sure metal parts of straps do not dam-
age rim.
Make sure the strap is flat over the rim bead.
Make sure brake backing plate is not dam-
aged.
2. Secure straps to rear of flat bed.
3. Reel in hoist cable only far enough to tension
tie-down straps. 4. Carefully feed towing straps through the open-
ing in the front wheels.
Make sure metal parts of straps do not dam-
age rim.
Make sure the strap is flat over the rim bead.
Make sure brake backing plate is not dam-
aged.
5. Secure straps to front of flat bed.
6. Release tension on hoist cable, but do not dis-
connect.
Use hoist cable as a safety cable.

Vehicle Identification, Technical Data

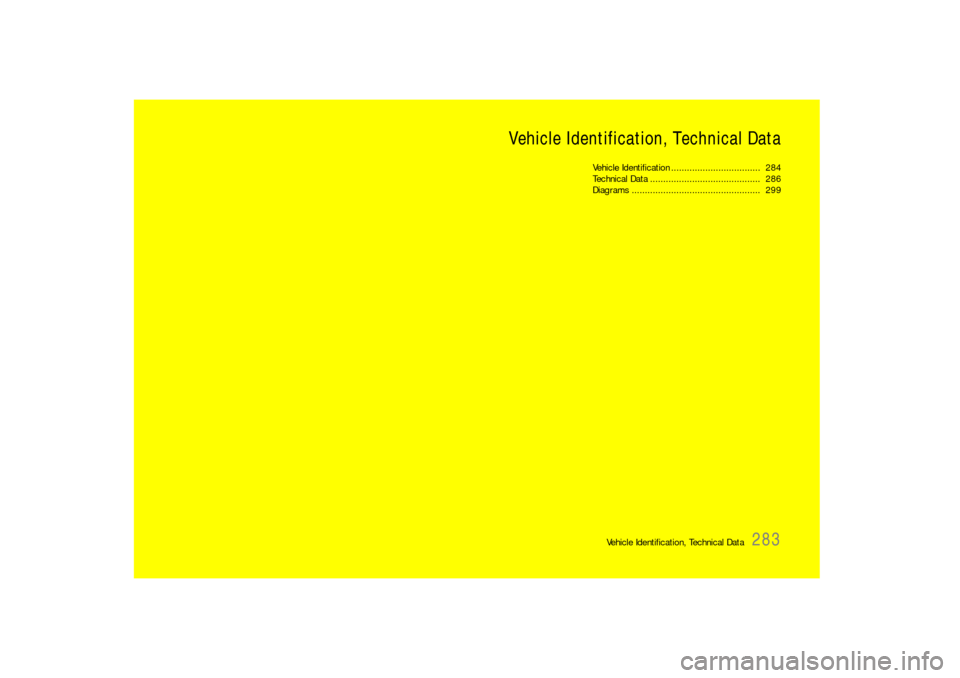

283 Vehicle Identification, Technical Data
Vehicle Identification.................................. 284
Technical Data .......................................... 286
Diagrams ................................................. 299

284
Vehicle Identification, Technical Data
Vehicle IdentificationWhen ordering spare parts or making inquiries,
please always quote the vehicle identification
number. Vehicle data bankThe vehicle data bank is attached to the inside of
the “Maintenance” booklet.
It contains all important data about your vehicle.
Note
This data bank cannot be re-ordered if it is lost or
damaged.
This label contains the following information:
1. Vehicle Identification No.
2. Type/Type description
3. Engine code/Transmission code
4. Paint No./Interior
5. Optional equipment
Vehicle identification number In accordance with Federal Safety Regulations,
the vehicle identification number of your car is lo-
cated at the bottom left of the windshield frame
and can be seen from the outside.
The vehicle identification number is in the luggage
compartment under the battery cover and at the
bottom left behind the windshield.
Removing the battery cover
fPlease see the chapter “BATTERY” on
Page 261.
Safety compliance stickerThe safety compliance sticker is your assurance
that your new Porsche complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manufac-
tured.
fThe sticker also shows the month and year of
production and the vehicle identification
number of your car (perforations) as well as
the Gross Vehicle Weight Rating and the Gross
Axle Weight Rating.

Vehicle Identification, Technical Data
285

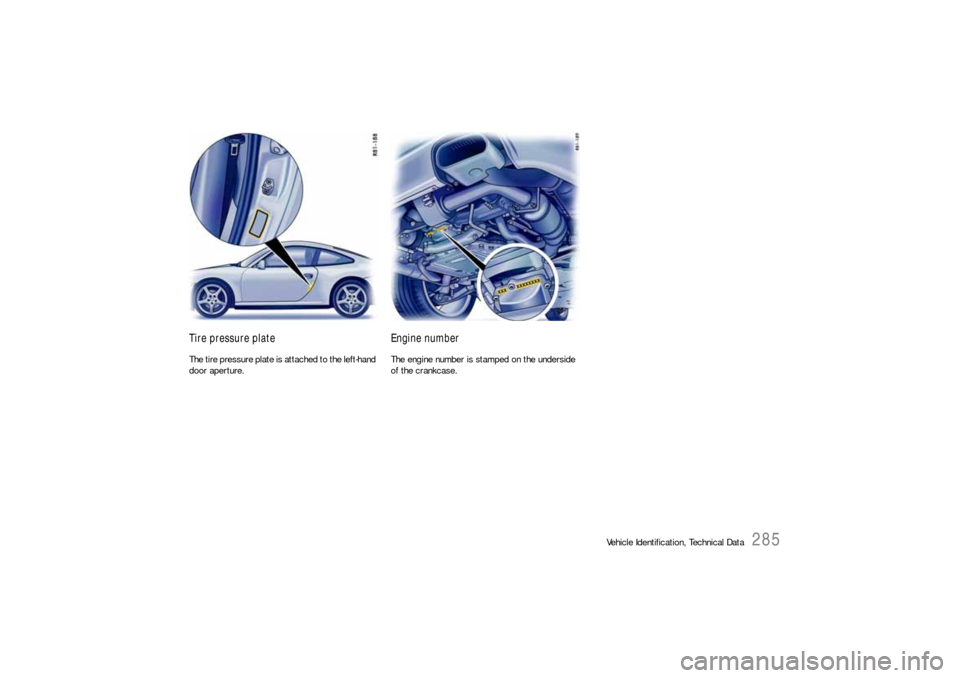

Tire pressure plateThe tire pressure plate is attached to the left-hand
door aperture.
Engine number The engine number is stamped on the underside
of the crankcase.

286
Technical Data
Technical DataEngine data
911 Carrera, 911 Carrera 4,
911 Targa 4911 Carrera S, 911 Carrera 4S,
911 Targa 4S911 Carrera S, 911 Carrera 4S,
911 Targa 4S
Power kit Carrera
Type MA 102 MA 101 MA 101S
Horizontally opposed engine,
liquid cooledHorizontally opposed engine,
liquid cooledHorizontally opposed engine,
liquid cooled
Number of cylinders 6 6 6
Bore 3.82 in./97 mm 4.02 in./102 mm 4.02 in./102 mm
Stroke 3.21 in./81.5 mm 3.05 in./77.5 mm 3.05 in./77.5 mm
Cubic capacity 220.5 cu. in./3614 cm
3 231.9 cu. in./3800 cm
3
231.9 cu. in./3800 cm
3
Net-horsepower 345 hp/254 kW385 hp/283 kW 408 hp/300 kW
at crankshaft speed 6500 rpm 6500 rpm 7300 rpm
Net torque 288 ft. lb./390 Nm 310 ft. lb./420 Nm 310 ft. lb./420 Nm
at crankshaft speed 4400 rpm 4400 rpm 4400 - 5800 rpm
Engine oil consumption up to 1.5 liters/1000 km
(1.6 quarts/622 miles)up to 1.5 liters/1000 km
(1.6 quarts/622 miles)up to 1.5 liters/1000 km
(1.6 quarts/622 miles)

Technical Data
287
Tires, Rims, Tracks 911 Carrera, 911 Carrera S
Tire Rim Rim offset Track
Summer tires*front 235/40 ZR 18 (91Y) 8 J x 18 H2 57 mm 58.5 in./1486 mm
rear 265/40 ZR 18 (101Y) XL 10.5 J x 18 H2 60 mm 60.4 in./1534 mm
orfront 235/35 ZR 19 (87Y) 8 J x 19 H2 57 mm 58.5 in./1486 mm
rear 295/30 ZR 19 (100Y) XL 11 J x 19 H2 67 mm 59.7 in./1516 mm
orfront 235/35 ZR 19 (87Y) 8.5 J x 19 H2 55 mm 58.5 in./1486 mm
rear 305/30 ZR 19 (102Y) XL 11.5 J x 19 H2 67 mm 59.7 in./1516 mm
Snow tiresfront 235/40 R 18 91V M+S 8 J x 18 H2 57 mm 58.5 in./1486 mm
rear 265/40 R 18 97V M+S** 10.5 J x 18 H2 60 mm 60.4 in./1534 mm
orfront 235/35 R 19 87V M+S 8 J x 19 H2 57 mm 58.5 in./1486 mm
rear 295/30 R 19 100V XL M+S 11 J x 19 H2 67 mm 59.7 in./1516 mm
The load capacity coefficient (e.g. “91”) and maximum speed code letter (e.g. “Y”) are minimum requirements.
Snow chainsCan be mounted only on the rear wheels; maximum speed 30 mph (50 km/h).
Use only Porsche authorized fine-link cross-type or edge chains.
Snow chain clearance can be guaranteed only on the tire + rim combination marked** without spacers.
Please see the chapter “SPACERS 911 CARRERA, 911 CARRERA S” on Page 255.
Tire and rim sizesExtensive tests are performed before specific tires and wheels are approved by Porsche. Your Porsche dealer has informa-
tion about approved tires and wheels and is happy to assist you.
If aftermarket tires and/or wheels are installed which are not approved by Porsche, the vehicle’s driveability, stability while
in motion and handling characteristics might be impaired. Since Porsche has no data on such combinations, Porsche cannot
stand behind the safety or durability of these aftermarket combinations.
* 911 Carrera S: Summer tires 19-inch only

288
Technical Data
Tires, Rims, Tracks 911 Carrera 4, 911 Carrera 4S, 911 Targa 4, 911 Targa 4S
Tire Rim Rim offset Track
Summer tires*front 235/40 ZR 18 (91Y) 8 J x 18 H2 57 mm 58.6 in./1488 mm
rear 295/35 ZR 18 (99Y) 11 J x 18 H2 51 mm 60.9 in./1548 mm
orfront 235/35 ZR 19 (87Y) 8 J x 19 H2 57 mm 58.6 in./1488 mm
rear 305/30 ZR 19 (102Y) XL 11 J x 19 H2 51 mm 60.9 in./1548 mm
orfront 235/35 ZR 19 (87Y) 8.5 J x 19 H2 55 mm 58.6 in./1488 mm
rear 305/30 ZR 19 (102Y) XL 11.5 J x 19 H2 50 mm 60.9 in./1548 mm
Snow tiresfront 235/40 R 18 91V M+S 8 J x 18 H2 57 mm 58.6 in./1488 mm
rear 295/35 R 18 99V M+S** 11 J x 18 H2 51 mm 60.9 in./1548 mm
orfront 235/35 R 19 87V M+S 8 J x 19 H2 57 mm 58.6 in./1488 mm
rear 295/30 R 19 100V XL M+S** 11 J x 19 H2 51 mm 60.9 in./1548 mm
The load capacity coefficient (e.g. “91”) and maximum speed code letter (e.g. “Y”) are minimum requirements.
Snow chainsCan be mounted only on the rear wheels; maximum speed 30 mph (50 km/h).
Use only Porsche authorized fine-link cross-type or edge chains.
Snow chain clearance can be guaranteed only on the tire + rim combination marked**.
Tire and rim sizesExtensive tests are performed before specific tires and wheels are approved by Porsche. Your Porsche dealer has information
about approved tires and wheels and is happy to assist you.
If aftermarket tires and/or wheels are installed which are not approved by Porsche, the vehicle’s driveability, stability while in
motion and handling characteristics might be impaired. Since Porsche has no data on such combinations, Porsche cannot stand
behind the safety or durability of these aftermarket combinations.
* 911 Carrera 4S, 911 Targa 4S: Summer tires 19-inch only
