PORSCHE 911 CARRERA 2013 6.G Information Manual
Manufacturer: PORSCHE, Model Year: 2013, Model line: 911 CARRERA, Model: PORSCHE 911 CARRERA 2013 6.GPages: 76, PDF Size: 11.32 MB
Page 11 of 76
2021
Strength
| The 911 Carrera
Meetings, conferences, business lunches.
How about some leisure in between?
The 911 Carrera.
In the 21st century, we find ourselves
caught bet ween all kinds of opposites on
a daily basis: bet ween the demands of
our work life and our private life, between
the real world and virtual realit y. How can
they all be reconciled? With a strong iden
tit y and a sports car that has incorporated
many contradictory notions since 1963.
Sportiness and everyday practicality
are a prime example. The 911 Carrera is
equipped as standard with direct fuel
injection (DFI) and VarioCam Plus for high
power, high torque, efficient combustion
and, as a result, comparatively low fuel
consumption. Tradition and innovation blend seamlessly
together in the rear
mounted 3.4 litre
flat six engine thanks to its downsized
capacity. Despite the reduced displace
ment, the engine is capable of delivering
even more power to the road than its
3.6 litre predecessor.
The figures speak for themselves. The
maximum power of 257 kW (350 hp) is
available at 7,400 rpm and the maxi
mum torque of 390 Nm is generated at
5,600 rpm. Yet, in conjunction with
Porsche Doppelkupplung (PDK), fuel con
sumption and CO
2 emissions have been
reduced by 16 % compared with the pre
vious model. Even more impressively, the
car accelerates from 0 to 62 mph in
4.8 seconds and reaches a top speed
of 179 mph.
The 911 Carrera generates powerful
forces, which are transmit ted precisely
and directly to the wheels by the 7 speed
manual gearbox. As with the optional PDK,
gears 1 to 6 have a sports ratio, while
7th gear has a long ratio for reduced fuel
consumption. The SPORT but ton, which
is fit ted as standard, makes it possible to
select an even more responsive engine
and transmission setup.
In terms of form and function, the single
tailpipes are especially imposing and emit a sound which is t ypically Porsche. The
19
inch Carrera wheels are fit ted as
standard and improve driving stability
and performance.
Sports car technology as standard, in
the form of black four piston monobloc
aluminium fixed calipers, Porsche Stability
Management (PSM) and Bi Xenon head
lights, shows that sportiness and safety
are not mutually exclusive.
Sport, moderation, everyday practicality
and st yle. Four key themes, one unifying
concept: the 911 Carrera.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Page 12 of 76
2223
Strength

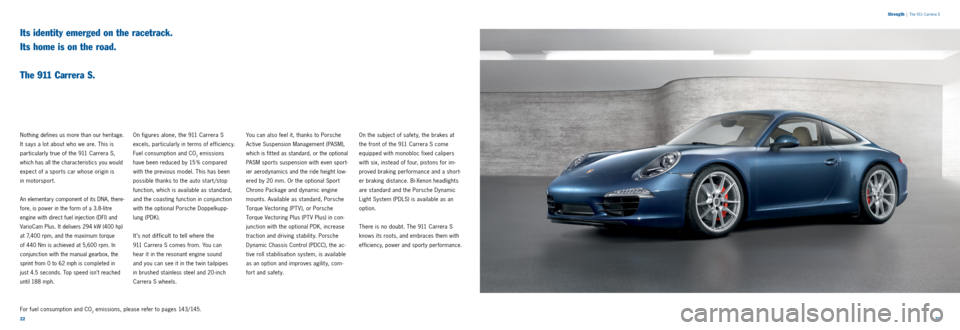

| The 911 Carrera S
Its identity emerged on the racetrack.
Its home is on the road.
The 911 Carrera S.
Nothing defines us more than our heritage.
It says a lot about who we are. This is
particularly true of the 9 11 Carrera S,
which has all the characteristics you would
expect of a sports car whose origin is
in motorsport.
An elementary component of its DNA, there
fore, is power in the form of a 3.8 litre
engine with direct fuel injection (DFI) and
VarioCam Plus. It delivers 294 kW (400 hp)
at 7,400 rpm, and the maximum torque
of 440 Nm is achieved at 5,600 rpm. In
conjunction with the manual gearbox, the
sprint from 0 to 62 mph is completed in
just 4.5 seconds. Top speed isn’t reached
until 188 mph.
On figures alone, the 9 11 Carrera S
excels, particularly in terms of efficiency.
Fuel consumption and CO
2 emissions
have been reduced by 15 % compared
with the previous model. This has been
possible thanks to the auto start /stop
function, which is available as standard,
and the coasting function in conjunction
with the optional Porsche Doppelkupp
lung (PDK).
It ’s not difficult to tell where the
911 Carrera S comes from. You can
hear it in the resonant engine sound
and you can see it in the t win tailpipes
in brushed stainless steel and 20 inch
Carrera S wheels. You can also feel it, thanks to Porsche
Active Suspension Management (PASM),
which is fit ted as standard, or the optional
PASM sports suspension with even
sport
ier aerodynamics and the ride height low
ered by 20 mm. Or the optional Sport
Chrono Package and dynamic engine
mounts. Available as standard, Porsche
Torque Vectoring (PTV), or Porsche
Torque Vectoring Plus (PTV Plus) in con
junction with the optional PDK, increase
traction and driving stability. Porsche
Dynamic Chassis Control (PDCC), the ac
tive roll stabilisation system, is available
as an option and improves agilit y, com
fort and safet y. On the subject of safet y, the brakes at
the front of the 911 Carrera S come
equipped with monobloc fixed calipers
with six, instead of four, pistons for im
proved braking performance and a short
er braking distance. Bi Xenon headlights
are standard and the Porsche Dynamic
Light System (PDLS) is available as an
option.
There is no doubt. The 9 11 Carrera S
knows its roots, and embraces them with
efficiency, power and sporty performance.
For fuel consumption and CO2 emissions, please refer to pages 143/145.
Page 13 of 76
2425
Strength

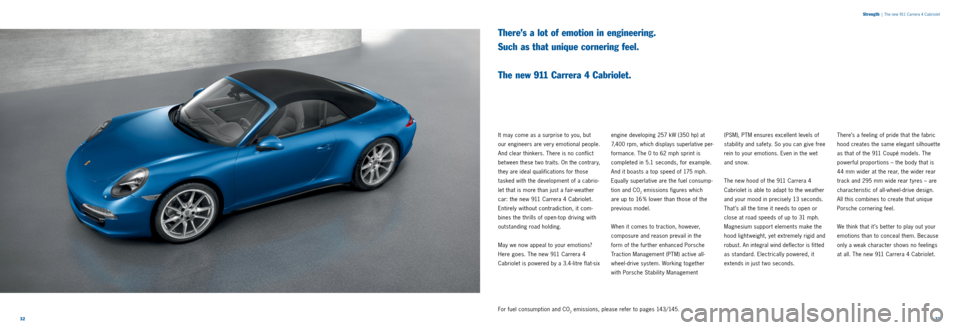

| The 911 Carrera Cabriolet
The future of the sports car
is wide open again.
The 911 Carrera Cabriolet.
Sometimes, the best option is to free
your mind, to look at things from a fresh
perspective and to explore your own
direction, not least when you’ve set
yourself ambitious goals for the future.
These goals can be achieved by opening
yourself up to new ideas.
This is the direction explored by the
911 Carrera Cabriolet. With forward
looking hood engineering, lightweight
materials and an integrated wind deflector,
it conceives a new kind of freedom and
broadens the appeal of the sports car. Smooth and firm, light and robust, the
design of the hood is impressive in terms
of both appearance and construction.
It
is made from three ultra light weight
magnesium elements and is covered in
fabric. This saves weight and, not only
does it improve aesthetics, it also reduces
unwanted noise. What you can still hear,
however, is the unadulterated sound of
y o u r 9 11 .
The wind deflector is fit ted as standard
and offers practically draught free driving
and minimal wind noise. Operation could
not be easier. Integrated directly behind the rear seats, it folds out electrically in
just t wo seconds and remains operable
up to a speed of 74 mph.
The performance figures of the
911 Carrera Cabriolet reflect the ambi
tious goals achieved by our engineers.
The downsized and rear mounted 3.4 litre
flat six engine delivers 257 kW (350 hp)
at 7,400 rpm and enables a top speed of
177 mph. Compared with the previous
model, fuel consumption and CO
2 emis
sions have been reduced by 15 %.
In summary, this articulate concept forms
the basis for a self assured personalit y.
Typified by its courage to adapt and
change, it derives pleasure from exploring
new directions. After all, the future is
wide open.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Page 14 of 76
2627
Strength

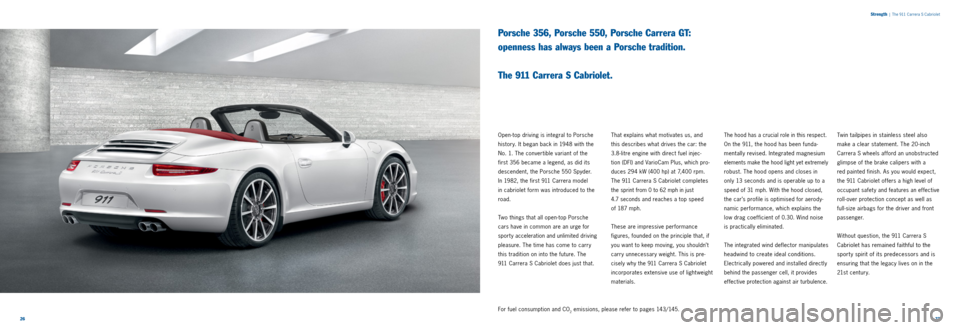

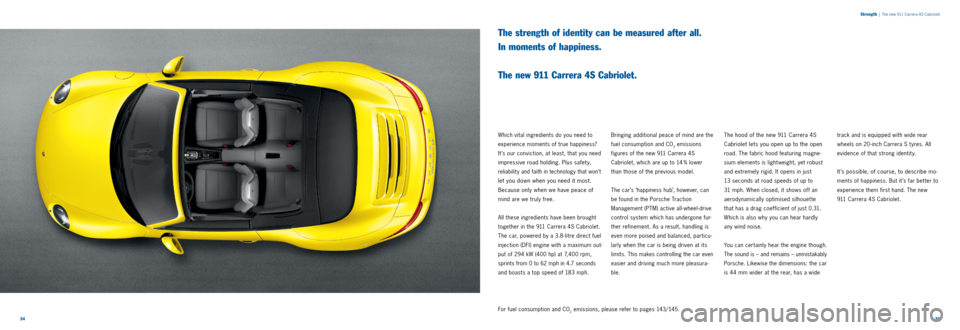

| The 911 Carrera S Cabriolet
Porsche 356, Porsche 550, Porsche Carrera GT:
openness has always been a Porsche tradition.
The 911 Carrera S Cabriolet.
Open top driving is integral to Porsche
history. It began back in 1948 with the
No. 1. The convertible variant of the
first 356 became a legend, as did its
descendent, the Porsche 550 Spyder.
In 1982, the first 911 Carrera model
in cabriolet form was introduced to the
road.
Two things that all open top Porsche
cars have in common are an
urge for
sport y acceleration and unlimited
driving
pleasure. The time has come to carry
this tradition on into the future. The
911 Carrera S Cabriolet does just that. That explains what motivates us, and
this describes what drives the car: the
3.8 litre engine with direct fuel injec
tion (DFI) and VarioCam Plus, which pro
duces 294 kW (400 hp) at 7,400 rpm.
The 911 Carrera S Cabriolet completes
the
sprint from 0 to 62 mph in just
4.7 s e c o n d s and reaches a top speed
of 187 mph.
These are impressive performance
figures, founded on the principle that, if
you want to keep moving, you shouldn’t
carry unnecessary weight. This is pre
cisely why the 911 Carrera S Cabriolet
incorporates extensive use of lightweight
materials.
The hood has a crucial role in this respect.
On the 911, the hood has been funda
mentally revised. Integrated magnesium
elements make the hood light yet extremely
robust. The hood opens and closes in
only 13 seconds and is operable up to a
speed of 31 mph. With the hood closed,
the car’s profile is optimised for aerody
namic performance, which explains the
low drag coefficient of 0.30. Wind noise
is practically eliminated.
The integrated wind deflector manipulates
headwind to create ideal conditions.
Electrically powered and installed directly
behind the passenger cell, it provides
effective protection against air turbulence.
Twin tailpipes in stainless steel also
make a clear statement. The 20 inch
Carrera S wheels afford an unobstructed
glimpse of the brake calipers with a
red painted finish. As you would expect,
the 911 Cabriolet offers a high level of
occupant safet y and features an effective
roll over protection concept as well as
full size airbags for the driver and front
p a s s e n g e r.
Without question, the 911 Carrera S
Cabriolet has remained faithful to the
sporty spirit of its predecessors and is
ensuring that the legacy lives on in the
21s t ce n t u r y.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Page 15 of 76
2829

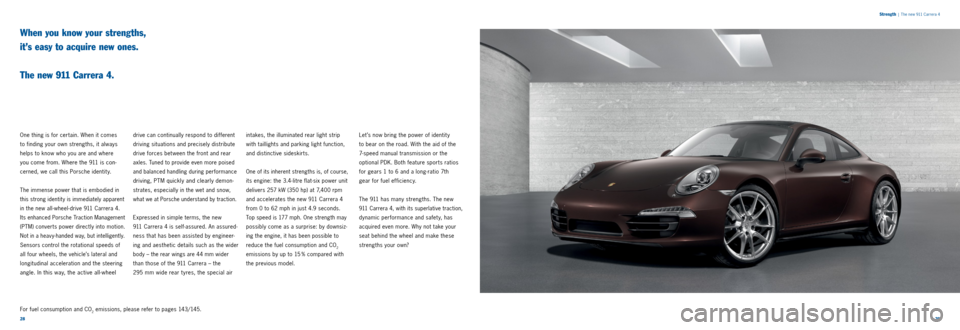

When you know your strengths,
it’s easy to acquire new ones.
The new 911 Carrera 4.
One thing is for certain. When it comes
to finding your own strengths, it always
helps to know who you are and where
you come from. Where the 911 is con
cerned, we call this Porsche identit y.
The immense power that is embodied in
this strong identit y is immediately apparent
in the new all wheel drive 911 Carrera 4.
Its enhanced Porsche Traction Management
(PTM) converts power directly into motion.
Not in a heav y handed way, but intelligently.
Sensors control the rotational speeds of
all four wheels, the vehicle’s lateral and
longitudinal acceleration and the steering
angle. In this way, the active all wheel drive can continually respond to different
driving situations and precisely distribute
drive forces bet ween the front and rear
axles. Tuned to provide even more poised
and balanced handling during performance
driving, PTM quickly and clearly
demon
strates, especially in the wet and snow,
what we at Porsche understand by traction.
Expressed in simple terms, the new
911 Carrera 4 is self assured. An assured
ness that has been assisted by engineer
ing and aesthetic details such as
the wider
body – the rear wings are 44 mm
wider
than those of the 911 Carrera – the
295 mm wide rear t yres, the special air intakes, the illuminated rear light strip
with taillights and parking light function,
and distinctive sideskirts.
One of its inherent strengths is, of course,
its engine: the 3.4 litre flat six power unit
delivers 257 kW (350 hp) at 7,400 rpm
and accelerates the new 911 Carrera 4
from 0 to 62 mph in just 4.9 seconds.
Top speed is 177 mph. One strength may
possibly come as a surprise: by
downsiz
ing the engine, it has been possible to
reduce the fuel consumption and CO
2
emissions by up to 15 % compared with
the previous model.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Strength | The new 911 Carrera 4
Let ’s now bring the power of identit y
to bear on the road. With the aid of the
7 speed manual transmission or the
optional PDK. Both feature sports ratios
for gears 1 to 6 and a long ratio 7th
gear for fuel efficiency.
The 911 has many strengths. The new
911 Carrera 4, with its superlative traction,
dynamic performance and safet y, has
acquired even more. Why not take your
seat behind the wheel and make these
strengths your own?
Page 16 of 76
3031
Switchbacks, hairpins, zigzags, S-bends ...
There are countless reasons for having intelligent all-wheel drive.
The new 9 11 Carrera 4S.
Steadfastness. Another apparent Porsche
contradiction. But whilst it ’s true that
sports cars are all about movement, about
surging forwards, it ’s even more impor
tant to stay calm at all times, to act with
composure and never rashly. So it ’s re
assuring that you can rely on the handling
characteristics of the new 911 Carrera 4S.
Particularly dependable is the enhanced
Porsche Traction Management (PTM)
active all wheel drive system, especially
when driving the car at the limits of per
formance. To achieve this, our engineers
have travelled right to the physical bound
aries – and extended them. PTM now ensures that the car is even more poised
and balanced and really comes into its
own
when adopting a sport y driving
st yle or travelling in extreme weather
conditions.
At the rear, the car is the personification
of road holding, with its 44 mm wider
body, wider track and road hugging
305 mm wide rear wheels. The seamless
horizontal taillight strip continues the
same st yling language. The all wheel
drive model is also recognisable from the
front thanks to its dynamically accentuat
ed cooling air intakes in the front end. Though the car is practically at one with
the ground, it cannot keep still. This is
unsurprising when it is powered by a
3.8 litre engine developing 294 kW
(400 hp) at 7,400 rpm. When combined
with Porsche Doppelkupplung (PDK),
this power unit can accelerate the car to
62 mph in just 4.3 seconds. And contin
ue up to a maximum speed of 184 mph.
This hasn’t come at the expense of fuel
consumption and CO
2 emissions either.
Figures for the new 911 Carrera 4S are
up to 13 % lower than those of its prede
cessor. Fuel efficient technologies, such
as electrical system recuperation, auto
start /stop – both fit ted as standard – and
the ‘coasting’ function of PDK, prove that
Porsche is continually resolving conflict
ing aims through Intelligent Performance.
Where safety is concerned, the mono
bloc fixed brake calipers at the front
have six pistons instead of four, whilst
the brake pads are 10 % larger. The result
is even shorter braking distances. Proof
that, at Porsche, safet y is an integral
part of performance, not its polar
opposite.
Steadfast through and through.
Corner after corner.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Strength | The new 911 Carrera 4S
Page 17 of 76
3233
engine developing 257 kW (350 hp) at
7,400 rpm, which displays superlative per
formance. The 0 to 62 mph sprint is
completed in 5.1 seconds, for example.
And it boasts a top speed of 175 mph.
Equally superlative are the fuel consump
tion and CO
2 emissions figures which
are up to 16 % lower than those of the
previous model.
When it comes to traction, however,
composure and reason prevail in the
form of the further enhanced Porsche
Traction Management (PTM) active all
wheel drive system. Working together
with Porsche Stability Management
It may come as a surprise to you, but
our engineers are very emotional people.
And clear thinkers. There is no conflict
bet ween these t wo traits. On the contrary,
they are ideal qualifications for those
tasked with the development of a cabrio
let that is more than just a fair weather
car: the new 911 Carrera 4 Cabriolet.
Entirely without contradiction, it com
bines the thrills of open top driving with
outstanding road holding.
May we now appeal to your emotions?
Here goes. The new 9 11 Carrera 4
Cabriolet is powered by a 3.4 litre flat six
Strength | The new 911 Carrera 4 Cabriolet
There’s a lot of emotion in engineering.
Such as that unique cornering feel.
The new 911 Carrera 4 Cabriolet.
(PSM), PTM ensures excellent levels of
stabilit y and safet y. So you can give free
rein to your emotions. Even in the wet
and snow.
The new hood of the
9 11 Carrera 4
Cabriolet is able to adapt to the weather
and your mood in precisely 13 seconds.
That ’s all the time it needs to open or
close at road speeds of up to 31 mph.
Magnesium support elements make the
hood light weight, yet extremely rigid and
robust. An integral wind deflector is fit ted
as standard. Electrically powered, it
extends in just t wo seconds. There’s a feeling of pride that the fabric
hood creates the same elegant silhouet te
as that of the
9 11 Coupé models. The
powerful proportions – the body that is
44 mm wider at the rear, the wider rear
track and 295 mm wide rear t yres – are
characteristic of all wheel drive design.
All this combines to create that unique
Porsche cornering feel.
We think that it ’s bet ter to play out your
emotions than to conceal them. Because
only a weak character shows no feelings
at all. The new
9 11 Carrera 4 Cabriolet.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Page 18 of 76
3435
Which vital ingredients do you need to
experience moments of true happiness?
It ’s our conviction, at least, that you need
impressive road holding. Plus safety,
reliabilit y and faith in technology that won’t
let you down when you need it most.
Because only when we have peace of
mind are we truly free.
All these ingredients have been brought
together in the 911 Carrera 4S Cabriolet.
The car, powered by a 3.8 litre direct fuel
injection (DFI) engine with a maximum out
put of 294 kW (400 hp) at 7,400 rpm,
sprints from 0 to 62 mph in 4.7 seconds
and boasts a top speed of 183 mph.
Strength | The new 911 Carrera 4S Cabriolet
The strength of identity can be measured after all.
In moments of happiness.
The new 911 Carrera 4S Cabriolet.
Bringing additional peace of mind are the
fuel consumption and CO
2 emissions
figures of the new 911 Carrera 4S
Cabriolet, which are up to 14 % lower
than those of the previous model.
The car’s ‘happiness hub’, however, can
be found in the Porsche Traction
Ma na
gement (PTM) active all wheel drive
control system which has undergone fur
ther refinement. As a result, handling is
even more poised and balanced, particu
larly when the car is being driven at its
limits.
This makes controlling the car even
easier
and driving much more pleasura
ble.
The hood of the new 911 Carrera 4S
Cabriolet lets you open up to the open
road. The fabric hood featuring magne
sium elements is light weight, yet robust
and extremely rigid. It opens in just
13 seconds at road speeds of up to
31 mph. When closed, it shows off an
aerodynamically optimised silhouette
that has a drag coefficient of just 0.31.
Which is also why you can hear hardly
any wind noise.
You can certainly hear the engine though.
The sound is – and remains – unmistakably
Porsche. Likewise the dimensions:
the car
is 44 mm wider at the rear, has a wide track and is equipped with wide rear
wheels on 20
inch Carrera S t yres. All
evidence of that strong identit y.
It’s possible, of course, to describe mo
ments of happiness. But it ’s far bet ter to
experience them first hand. The new
911 Carrera 4S Cabriolet.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
Page 19 of 76
ef\037cient
wild
relaxed
superior
true
spontaneous
assertive
down-to-
T
Page 20 of 76
3839
Temperament
|
Engines
To give more and take less.
That’s Porsche engineering.
Engines.
You could ask whether the sports car is
still relevant. It would be a good question,
but you might as well ask the same of
dreams.
The answer to both questions lies in the
future or, to be more precise, in the future
of the sports car. In the 911, the future
is already here. The highly efficient, state
ofthe art engines make a considerable
contribution to the comparatively low fuel
consumption, but their sound is still
unmistakably Porsche.
The 911 engines are also unmistakably
sport y thanks to the SPORT but ton fit ted
as st a n d a rd . At the push of a but ton, the engine be
comes tuned for a sharper response
and engine dynamics that are even more
direct.
The 3.4 litre engine of the 911 Carrera
models demonstrates, therefore, that
performance and efficiency need not be
mutually exclusive. Rather, the downsized
engine capacity and increased maximum
torque are the intelli
gent basis by which
power output can be increased in an
environmentally acceptable and sustain
able way. Fuel consumption and CO
2
emissions have been reduced by up to
16 % compared with the previous model. In their search for improved efficiency,
our engineers analysed an extensive series
of engine components. Answers were
found, including rapid heating of the
engine and gearbox to normal operating
temperature after an engine start by the
thermal management system, improved
air induction and extremely effective
direct fuel injection (DFI).
The same principle applies to the 3.8 litre
engine in the 911 Carrera S models.
There has been no change in displace
ment since the previous model, but
po wer output has been increased while
fuel consumption has been reduced by
up to 15 %. Weight is critical to efficiency. This is
why the engines have a lightalloy
construction, making them lightweight
and yet structurally rigid. The result
is comparatively low fuel consumption
and a long service life.
The engine is the intelligent core of our
identit y. What else could the ‘Dr. Ing.’ in
our company name possibly stand for?
For fuel consumption and CO
2 emissions, please refer to pages 143/145.
