PORSCHE 911 GT2 2008 5.G Information Manual

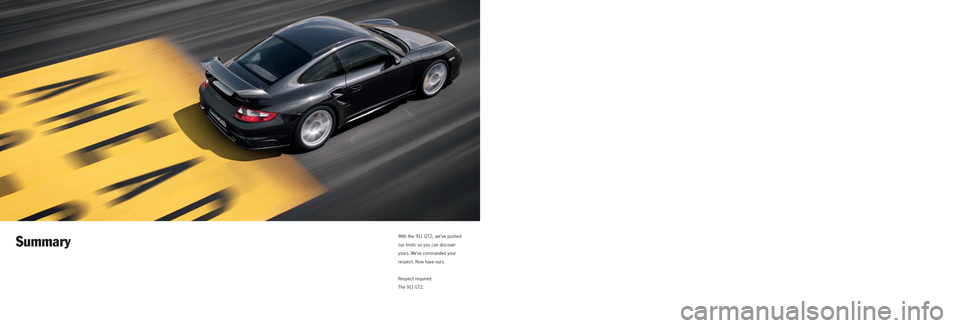

Summary
With the 911 GT2, we’ve pushed
our limits so you can
discover
yours. We’ve commanded
your
respect. Now have ours.
Respect required.
The 911 GT2.

· 107 · · 106 ·
The 911 GT2 |Technical data
Technical data
Engine
Cylinders6
Displacement3,600 cm3
Max. power (DIN)390 kW (530 hp)
at rpm6,500
Max. torque680 Nm
at rpm2,200 – 4,500
Compression ratio9.0 : 1
Transmission
LayoutRear-wheel drive
Manual gearbox6-speed
Chassis
Front axleMcPherson-strut suspension
Rear axleLSA multi-link suspension
SteeringVariable steering ratio,
power-assisted (hydraulic)
Turning circle10.9 m
BrakesPorsche Ceramic Composite Brake (PCCB):
6-piston monobloc aluminium fixed calipers
at front, 4-piston monobloc aluminium fixed
calipers at rear, discs internally vented and
cross-drilled
Vehicle stability systemPSM
Anti-lock braking systemABS 8.0
WheelsFront: 8.5J x 19 ET 53
Rear: 12J x 19 ET 51
Ty r e sFront: 235/35 ZR 19 (sport tyres)
Rear: 325/30 ZR 19 (sport tyres)
Weights
Unladen weight (DIN)1,440 kg
Unladen weight (EC)*1,515 kg
Permissible gross weight1,750 kg
Performance
Top speed329 km / h (204 mph)
0 –100 km / h (0 – 62 mph)3.7 secs
0 –160 km / h (0 – 99 mph)7.4 secs
0 – 200 km / h (0 –124 mph)11.2 secs
Flexibility 80 –120 km / h (50 –75 mph) 4.1 secs
in 5th gear
Fuel consumption/emissions**
In accordance with 80 / 1268 /EC as valid at the time of going to print
Urban in l / 100 km (mpg)18.8 (15.0)
Extra urban in l / 100 km (mpg)8.9 (31.7)
Combined in l / 100 km (mpg)12.5 (22.6)
CO2emissions in g /km298
Dimensions /aerodynamics
Length4,469 mm
Width1,852 mm
Height1,285 mm
Wheelbase2,350 mm
Luggage compartment volume105 litres
Tank capacity (refill volume)90 litres
Drag coefficient0.32
** Weight is calculated in accordance with the relevant EC Directives and is valid for standard specification vehicles only.
Optional equipment means greater weight. The figure given includes 68 kg for the driver and 7 kg for luggage.
** The figures given refer to vehicles with standard specification in Germany. Data determined in the NEDC (New European Driving Cycle) in accor-
dance with the EU5 (80/1268/ EEC) measurement method in the version valid at time of going to print. The figures do not relate to an individual
vehicle, nor do they constitute part of the offer. They are intended solely as a means of comparing different types of vehicle. Further information
on the individual vehicles can be obtained from your Porsche Centre.

· 109 · · 108 ·The 911 GT2 |
Index
Index
A
ABS 51
Air conditioning, automatic 69
Airbags 62
Alarm system 75
Anti-theft protection 75
Audio system 76
B
Bi-Xenon lighting system 56
Bodyshell structure 60
BOSE® Surround
Sound System 80
Braking system 58
C
Catalytic converters 34, 85
Charge-air cooling 16
Chassis 42
Chrono Package Plus 75, 92
Clubsport package 64, 92
CO
284
Colours 88
Comfort 66
Communication 76, 96
Cruise control 74
D
Design 16
Drive 18
Dual-mass flywheel 39
E
Electronic logbook 78
Engine 20
Engine cooling 26
Engine management system 36
Environment 82
Exhaust emission control 85
Exhaust system 34
Expansion intake manifold 32
Exterior 91
F
Factory collection 100
Fire extinguisher 64, 93
Front axle 44
Fuel supply 35
Fuel system 35, 85
G
Gearbox, manual 38
GSM telephone module 78
H
HomeLink®74
I
Ignition system 35
Instruments 68
Interior 68, 93
Interior materials 70, 95
K
Knock control,
cylinder-specific 36
L
Launch Assistant 38
Leather 89, 95
Lightweight design 24
Loudspeakers 79, 80
Lubrication, dry-sump 25
Luggage compartment 74
M
Mobile phone preparation 79
N
Navigation module 77
Noise 85
O
Oil supply 25
On-board computer 69
Oxygen-sensor control 34, 85
P
ParkAssist 74, 90
Personalisation 86
Porsche Active Suspension
Management (PASM) 48
Porsche Ceramic Composite
Brake (PCCB) 58
Porsche Communication
Management (PCM) 76
Porsche Side Impact
Protection (POSIP) 62
Porsche Stability
Management (PSM) 50
R
Ram air principle 17
Rear axle 45
Rear wing 17
Recycling 84
Roll cage 64, 92
S
Safety 54
Safety, active 56
Safety, passive 60
Seats 72
Seats, adaptive sports 73, 92
Seats, sport bucket 15, 72
Service 102
Servicing 85
Six-cylinder twin-turbo
boxer engine 20, 24
Sound Package Plus 79
Sport tyres 46
Stability control (SC) 14, 50
Steering 52
Steering wheel 71
Storage compartments 73
T
Technical data 106
Telephone module 78
Traction control (TC) 14, 50
Transmission 38
Turbocharger 28
TV tuner 78
Tyre Pressure
Monitoring (TPM) 47
U
Universal audio interface 79
V
Variable Turbine
Geometry (VTG) 28
VarioCam Plus 26
Vehicle tracking system 75
Voice control system 78
W
‘Welcome Home’ lighting 74
Wheels 46

The 911 GT2 |Das Konzept
The models featured in this publi-
cation are approved for road use
in Germany. Some items of equip-
ment are available as extra-cost
options only. The availability of
models and options may vary
from market to market due to
local restrictions and regulations.
For information on standard and
optional equipment, please consult
your Porsche Centre. All infor-
mation regarding construction,
features, design, performance,
dimensions, weight, fuel consump-
tion and running costs is correct
at the time of going to print.
Porsche reserves the right to alter
specifications and other product
information without prior notice.
Colours may differ from those
illustrated. Errors and omissions
excepted.
© Dr. Ing. h.c. F. Porsche AG, 2008
All text, images and other
information in this publication
are copyright
Dr. Ing. h.c. F. Porsche AG.No part of this publication may be
reproduced or transmitted, in
any form or by any means, without
prior permission in writing from Dr.
Ing. h.c. F. Porsche AG.
Porsche, the Porsche Crest,
911, Carrera, Tequipment,
PCCB, PCM and PSM
are registered trademarks of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
supports the use of paper from
sustainable forestry. This
catalogue is printed on paper
made from 100 % PEFC-certified
pulp (Program for the Endorse-
ment of Forest Certification).
Dr. Ing. h.c. F. Porsche AG
Porscheplatz 1
70435 Stuttgart
Germany
www.porsche.com
Edition: 03/08
Printed in Germany
WVK 235 320 09 GB/ WW
