display PORSCHE 911 GT3 2004 5.G Owner's Manual

Instrument On-board
Textdisplay in Meaning/measure
panel computer
on-boardcomputer

USA
ServiceHave
thebrake padsreplaced atan authorized

•
II

wear
on Porsche
dealerwithout delay.
brake pads

Canada

D
iJ

USA
Warning
Stopimmediately inasuitable place.

R
brake
Donot continue driving.Havethefault
fluid level remedied
atan authorized Porschedealer.

Canada
~

USA
Warning
Stopimmediately inasuitable place.

~
brake
Donot continue driving.Havethefault
distribution remedied
atan authorized Porschedealer.

Canada
~

USA
ASSfailure Have
thefault remedied atan authorized Porsche

ABS
III
dealer.

Canada

(@)
~
~
Airbag
failure Havethefault remedied atan authorized Porsche
dealer.

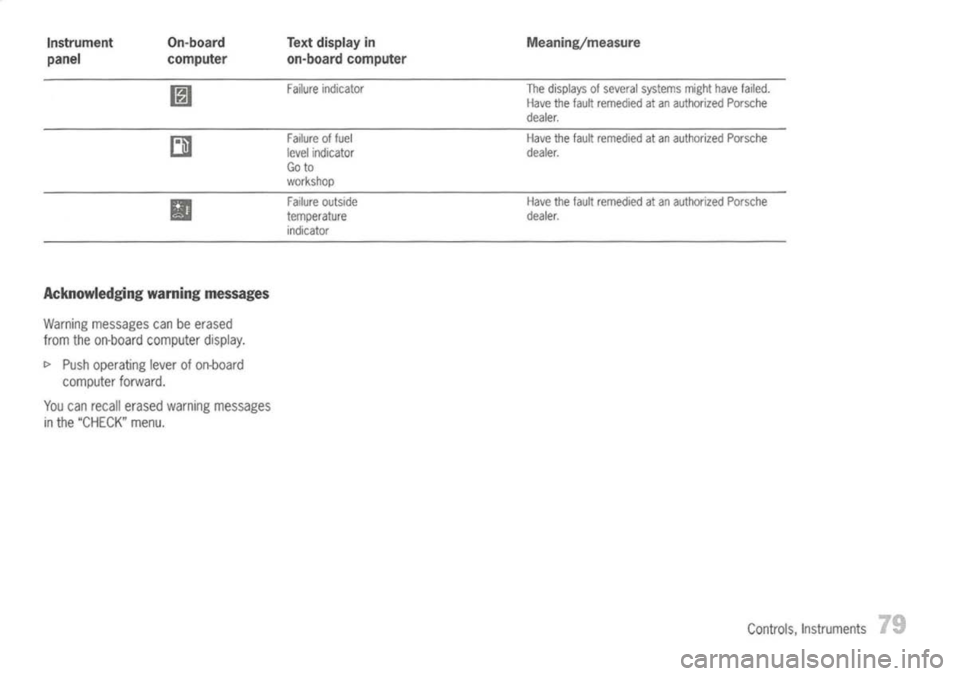

Controls, Instruments

Instrument
panel On-board
computer Text
display in
on-board computer

Failure indicator
Failure offuel
level indicator
Go to
workshop
Failure outside
temperature indicator
Meaning/measure

The displays ofseveral systems mighthavefailed.
Have thefault remedied atan authorized Porsche
dealer.
Have thefault remedied atan authorized Porsche
dealer.
Have thefault remedied atan authorized Porsche
dealer.
Acknowledging warningmessages
Warning messages canbeerased
from theon-board computer display.

£>
Push operating leverofon-board
computer forward.
You can recall erased warning messages
in the "CHECK" menu.
Controls,Instruments
79

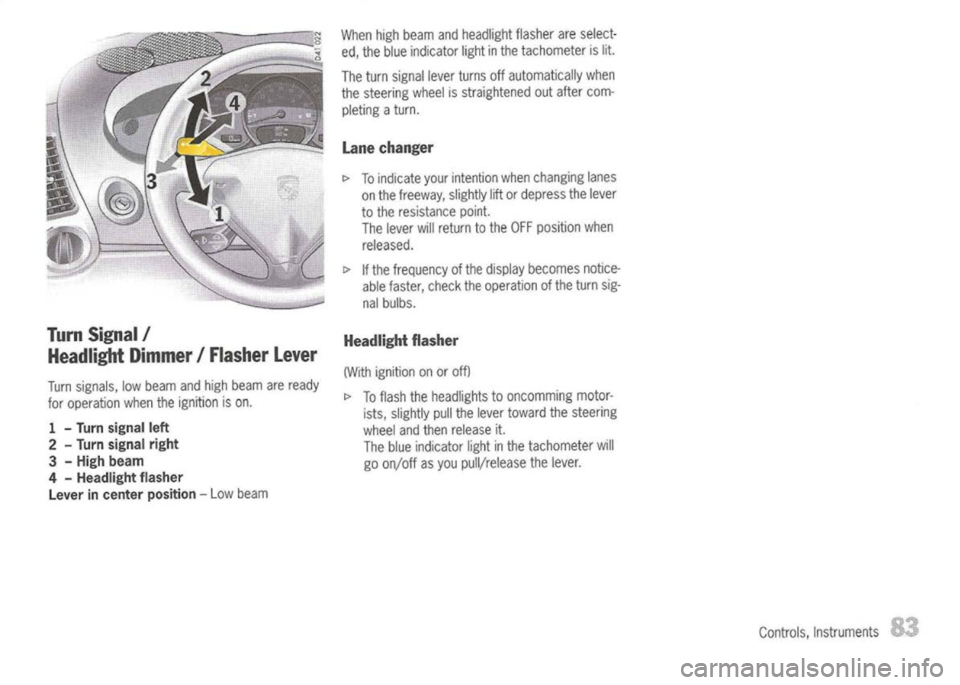

TurnSignal /
Headlight Dimmer/Flasher Lever

Turn signals, lowbeam andhigh beam areready
for operation whentheignition ison.

1 -
Turn
signal left
2 -
Turn signal right

3 -
High beam

4 -
Headlight flasher
Lever incenter position -
Low beam When
highbeam andheadlight flasherareselect-
ed, the blue indicator lightinthe tachometer islit.
The turn signal leverturns offautomatically when
the steering wheelisstraightened outafter com-
pleting aturn.

Lane changer

[>
Toindicate yourintention whenchanging lanes
on the freeway, slightlyliftordepress thelever
to the resistance point.
The lever willreturn tothe OFF position when
released.

[>
Ifthe frequency ofthe display becomes notice-
able faster, checktheoperation ofthe turn sig-
nal bulbs.

Headlight flasher

(With ignition onoroff)

[>
Toflash theheadlights tooncomming motor-
ists, slightly pullthelever toward thesteering
wheel andthen release it.
The blue indicator lightinthe tachometer will
go on/off asyou pull/release thelever.
Controls,Instruments

A

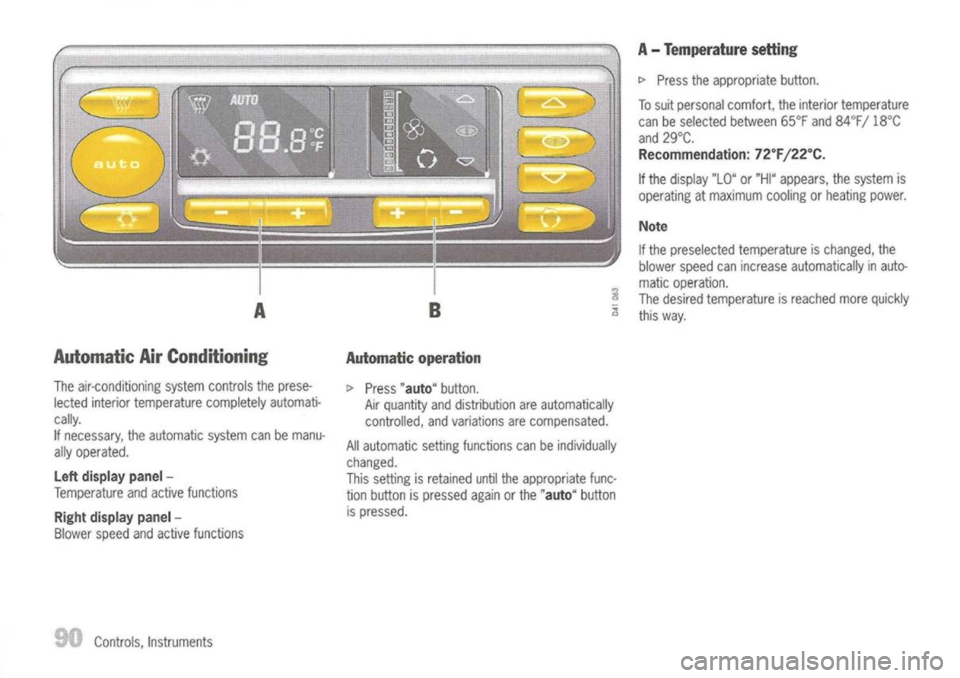

Automatic AirConditioning

The air-conditioning systemcontrols theprese-
lected interior temperature completelyautomati-
cally.
If necessary, theautomatic systemcanbemanu-
ally operated.

Left display panel-

Temperature andactive functions

Right display panel-

Blower speedandactive functions
Controls, Instruments
B

Automatic operation

c>
Press
"auto"
button.
Air quantity anddistribution areautomatically
controlled, andvariations arecompensated.
All automatic settingfunctions canbeindividually
changed.
This setting isretained untiltheappropriate func-
tion button ispressed againorthe
"auto"
button
is pressed.
A
-
Temperature setting

c>
Press theappropriate button.
To suit personal comfort, theinterior temperature
can beselected between 65°Fand84°F/18°C
and 29°C.

Recommendation: ]2°F
j22°C.

If the display "LO"or"HI" appears, thesystem is
operating atmaximum coolingorheating power.

Note
If the preselected temperature ischanged, the
blower speedcanincrease automatically inauto-
matic operation.
The desired temperature isreached morequickly
this way.

\qV
Defrosting thewindshield

po
Press button.
Windshield isdemisted ordefrosted asquickly
as possible.
Air flows tothe windshield only.

{} Switching compressor forair-
conditioning systemonoroff

Whenever outsidetemperatures exceed
3JDFj

3°C, theair-conditioning compressorisalways
switched oninautomatic operation.
The compressor canbeswitched offtosave fuel,
but control comfort isthen limited .

po
Press button .
The compressor isswitched off,thesymbol in
the left-hand displaygoesout.

po
Ifthe interior temperature istoo high, switch
compressor backonorpress
"auto"-button.

To dry incoming airindamp weather, donot
switch offthe air-conditioning compressor.
This prevents mistingofwindows.
B
-
Adjusting blowerspeed

po
Press theappropriate button.
Preset blower speedisincreased orde-
creased, and"Manual" appearsinthe right-
hand display field.
The speed stages areindicated bya
bar display.
The speed stages areindicated byabar display.
If the minus button ispressed atthe lowest blower
stage, theblower andautomatic controlare

switched off.

"OFF" isdisplayed inthe left-hand display.
Pressing onthe plus button orthe
"auto"
button
switches theblower andautomatic control
back
on again.
Circulating-air
setting

A
Warning!
Risk ofaccident duetohampered vision.
In circulating-air setting,thewindows can
mist up.

po
Only select circulating-air settingforshort
periods.

po
Ifwindows mistup,turn offthe circulating-air
setting bypressing thecirculating-air button
briefly andselect thefunction
"Defrost windshield".

• _) Switching circulating-air setting
..•. onoroff

po
Press button.
The outside-air supplyisinterrupted andonly
the inside airiscirculated.

Over approx. 37°Fj3°C

If the air-conditioning compressorwasoff,it
switches onautomatically. Theduration ofcircu-
lating-air modeisnot limited.

Below approx. 37°Fj3°C

The air-conditioning compressorisswitched off.
Circulating-air modeisautomatically endedafter
approx. 3minutes.

popopo

Controls, Instruments

Octane ratings

The CLC orAKI octane ratingisusually lowerthan
the RON rating:
For example: 95RON equals 90CLC orAKI
Unleaded
fuelsmaynotbeavailable outsidethe
continental U.S.andCanada. Therefore, werec-
ommend youdonot take your cartoareas or
countries whereunleaded fuelmay notbeavail-
able.
Octane ratingindicates afuel's ability toresist det-
onation. Therefore, buyingthecorrect octanegas
is important toprevent engine"damage".
The RON octane ratingisbased onthe research
method. TheCLC (U.S. CostofLiving Council oc-
tane rating) orAKI (antiknock index)octane rating
usually displayed onU.S. fuelpumps iscalculated
as research octanenumber plusmotor octane
number, dividedby2,that iswritten as:
Fuels
containing MMT

Some NorthAmerican fuelscontain anoctane en-
hancing additive calledmethylcyclopentadienyl
manganese tricarbonyl(MMT).

If
such fuels areused, youremission controlsys-
tem performance maybenegatively affected.
The check engine warning lightonyour instrument
panel mayturnon.

If
this occurs, Porsche recommends youstop us-
ing fuels containing MMT.
Portable FuelContainers

/!\
Danger!
Portable fuelcontainers, fullorpartially
empty, mayleakcausing anexplosion, orre-
sult infire incase ofan accident.

D>
Never carryadditional fuelinportable contain-
ers inyour vehicle.

Fuels
containing alcoholandether

Some areasofthe U.S. require oxygenated fuels
during certain portions ofthe year. Oxygenated fu-
els are fuels which contain alcohols (suchasmeth-
anol orethanol) orether (such asMTBE).
Under normal conditions, theamount ofthese
compounds inthe fuel willnot affect driveability.
You may useoxygenated fuelsinyour Porsche,
provided theoctane requirements foryour vehicle
are met. Werecommend, however,tochange to
a different fuelorstation
if
any ofthe following
problems occurwithyour vehicle:
- Deterioration ofdriveability andperformance.
- Substantially reducedfueleconomy.
- Vapor lockandnon-start problems, especially
at high altitude orathigh temperature.
- Engine malfunction orstalling.
R+M

-2-

or

RON+MON

2

Maintenance,CarCare
123

J

Jumper cables "145,160

K

Keys 19,20

L

Leather care 135
License platelight.. 82,172
Lids 99
Emergency unlocking 154
Light
Flasher 61,82, 83
Low beam 82,83
Switch 82,83
Light sensor forinstrument illumination 54,56
Load switch-off 152
Locking "22
Conditions 23
Luggage carrier 186
Luggage compartment.. 100,172
Lid 98
Lid warning light 54,56,98

M

Maintenance 112
Make-up mirror 103
Maximum permitted enginespeeds 16
Mirrors 28
Monitoring 24

192
Index
N

Notes on
Car care "130
Maintenance 112
Number platelight "82,172

o

Octane rating 122,123
Odometer 59
Oil 114,185
Consumption 16
Dipstick 116
Level checks
ll,
115
Level gauge
II

Pressure gauge 54,56,65
Pressure warninglight.. 54,56,65
On-board computer 54,56,67
Basic setting 68,73
Language selection 73
On-board literature 2
Orientation light 46
Outside-temperature display 68

p

Paint Care 130
Data 180
Parking
Brake 40,41
Brake warning light... 54,56
Light 82,168, 171
Particle filter 128Passenger
airbag,switching off 37
Passenger compartment monitoring,infrared..24
Plastic parts 134
Platform lift. 148
Power measurements 112
Power steering fluidlevel 127,185
Power windows 21,26,27
Practical tips 140

R

Radiator fan 53,114
Radio reception 105
Rear foglight... 82,
III

Rear spoiler 104
Rear viewmirrors 28
Rear window defogger 29
Relays 152
Remote control 20
Replacement key 19
Replacing bulbs 162
Replacing wiperblades 129
Roof Transport System 108,186
Running in 16

S

Safety belts 32,136
Warning light... 54,56
Safety compliance sticker 181
Seals 134
Side marker light... 82,170,
III

Side member panels 104
Snow chains 147
Snow tires 146

Sparekey 19,20
Speed Control 58,86, 87
Gong 69
Speedometer 54,60
analogue display 56
digital display 54,56
Spoiler 104
Starting engine 52
Steering lock 50
Steering wheel
Adjustment 31
Lock 51
Stopping engine 53
Storage options 96,97
Storage tray 97
Storing yourPorsche 137
Sun visors 103

T
Tachometer 54,56,61
Taillight 171
Tank 121,122,185
Ventilation system 126
Technical data 182
Temperature setting 88,90
Theft protection 18
Tires 16,141,184
Pressure 5,143, 183
Pressure compressor 100
Repair kit.. 149
Tires andtirecare 141
Tool kit 100
Towing 177,178 Tracks
184
Transmission 109,183
Fluid 185
Thpwu~r ~
Trunk entrapment 101
Turn signals 61,83,168,171
Indicator lights 54,56

U

Undercoating 124,133

V

Valves 145
Vanity mirror 103
Vehicle Care 130
Data 180,181
Identification label 180
Identification number 100,180
Washing 131
Ventilation 88
Vents 93
Voltmeter 54,56,58

w

Warning lampsandmessages 75
Washer fluid 126,185
Level warning light 54,56
Washing 131
Weights 186
Wheel Bolts 19,150 Changing
149
Wheels 135,184
Windows 26,27, 133
Washer nozzles 84
Washer system 84,126, 185
Windshield wiper/washer lever 84
Windshield wipers 84,85,129
Replacing 129

Winter operation

Battery "157
Coolant. 113
Engine oil 114
Jumper cables 160,161
Locks 132
Seals 134
Snow chains 147
Tires 146,184
Washer fluid 126
Wiper blades 129
Wiper Blades 129
Interval 84,85
Index
