90 Instrument Panel and Multi-Function Display
Instrument Panel USA Models
AEngine oil temperature gauge B Speedometer C Tachometer D Multi-function display E Coolant temperature gauge
F Engine oil pressure gauge G Reset button for trip counter display/ brightness setting for instrument panelH Odometer I Digital speedometer J Upshift indicator K Indicator for selector-lever position Gear displayL Fuel gauge M Marking showing position of filler flap
Warning and indicator lights on the tachometer
Warning and indicator lights on the speedometer
Emission control warning light (Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
PSM OFF warning light
ABS warning light
Turn signal, left
Turn signal, right
Brake warning light
High beam indicator light
Electric parking brake warning light
Rear fog light indicator light
HOLD function indicator light
Low beam indicator light
High Beam Assistant indicator light
PDLS warning light
Tire pressure warning light
14_991_Turbo_21.book Seite 90 Mittwoch, 9. April 2014 2:19 14
Page 93 of 300
Instrument Panel and Multi-Function Display 91
Instrument Panel Canada Models
AEngine oil temperature gauge B Speedometer C Tachometer D Multi-function display E Coolant temperature gauge
F Engine oil pressure gauge G Reset button for trip counter display/ brightness setting for instrument panelH Odometer I Digital speedometer J Upshift indicator K Indicator for selector-lever position Gear displayL Fuel gauge M Marking showing position of filler flap
Warning and indicator lights on the tachometer
Warning and indicator lights on the speedometer
Emission control warning light (Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
PSM OFF warning light
ABS warning light
Turn signal, left
Turn signal, right
Brake warning light
High beam indicator light
Electric parking brake warning light
Rear fog light indicator light
HOLD function indicator light
Low beam indicator light
High Beam Assistant indicator light
PDLS warning light
Tire pressure warning light
14_991_Turbo_21.book Seite 91 Mittwoch, 9. April 2014 2:19 14
Page 95 of 300
Instrument Panel and Multi-Function Display 93
F – Engine oil pressure gauge
The oil pressure is controlled as required and should be at least 51 psi (3.5 bar) at an engine speed of 5000 rpm.
The engine oil pressure varies depending on the engine speed, oil temperature and engine load.
If oil pressure drops abruptly and a message is displayed on the multi-function display when the engine is running or while driving:fStop immediately in a suitable place.fSwitch off the engine.fCheck whether there is an obvious oil leak on or under the car.fSelect “ Oil measurement” on the multi- function display.fPlease see the chapter “DISPLAY AND MEASUREMENT OF THE ENGINE OIL LEVEL” on page 101.fAdd engine oil if necessary.
Risk of engine damage.fDo not continue driving if there is an obvious oil leak.fDo not continue driving if the warning message appears even when the oil level is correct.fHave the fault corrected at an authorized Porsche dealer.
G – Reset button for trip counter display/ brightness setting for instrument lighting
Resetting trip counter display
fPress rotary switch G for approx. 1 second. The trip counter display is reset to “0”.
Adjusting brightness of instrument lighting
For information on adjusting the brightness of the instrument lighting:fPlease see the chapter “INTERIOR/READING LIGHTS” on page 84.
H – Odometer
The displays for the total mileage and individual trips are integrated in the speedometer on the instrument panel.
The upper display counts the total mileage, the lower display shows individual trips.
After exceeding 6,213 miles or 9,999 kilometers, the trip counter returns to 0.
I – Digital speedometer
The digital speedometer I is integrated in the tachometer on the instrument panel.
J – Upshift prompt indicator
The consumption-oriented shift indicator to the right of the digital speed display on the tachometer helps you to develop a fuel-saving driving style. The upshift indicator lights up – prompting you to shift up to the next-higher gear – depending on the selected gear, engine speed and accelerator pedal position.fChange to the next-higher gear when the upshift indicator lights up.
NOTICE
14_991_Turbo_21.book Seite 93 Mittwoch, 9. April 2014 2:19 14
Page 294 of 300
292 Index
Coasting mode............................................................ 150 Cockpit......................................................................... 10Adjusting lighting................................................ 82Cooling system, temperature gauge .................... 92Engine oil temperature gauge ............................. 92Fuel gauge ........................................................ 94Odometer .......................................................... 93Speedometer..................................................... 92Tachometer ....................................................... 92Warning and indicator lights, overview ................. 90 Comfort Entry function ................................................... 34Comfort memory ......................................................... 143Comfort pressureSelecting ......................................................... 110Speed warning ................................................. 111 Comfort settings Storing on memory buttons .............................. 143Storing on the car key ...................................... 143 Comfort tire pressureSpeed warning ................................................. 111CompressorTire pressure ................................................... 198Control systemsOverview (PTM, PSM, PASM, PDCC, PTV Plus) .... 179Convertible top ............................................................. 67Care ............................................................... 233Closing.............................................................. 69Emergency operation ......................................... 70Opening ............................................................ 68 Convertible-top compartment lid Service position ................................................. 26Coolant Checking level ................................................. 242Topping up ...................................................... 242 Cooling systemWarning on multi-function display ......................... 92Cornering lightDynamic ............................................................ 80 Countersteering assistance .......................................... 182Courtesy lighting, Entry function ..................................... 80Crankcase ventilation ................................................... 226Cruise control Accelerating .................................................... 156Decelerating .................................................... 156Functional description....................................... 155Interrupting operation ....................................... 156Storing speed .................................................. 156Switching off ................................................... 157Switching on .................................................... 156Cupholder ................................................................... 194
DData carrier for vehicle data ........................................ 284Daytime driving lights .................................................... 79Diagnostic socket ............................................... 146, 267Digital speedometer ...................................................... 93Dimensions ................................................................ 288DimmingAdjusting brightness of instrument lighting ........... 82Adjusting brightness of interior lighting ................ 84Direction indicator, stalk ................................................ 82Displacement, Technical data ....................................... 285DoorDe-icing door lock............................................ 232Locking if persons/animals are remaining in vehicle .............................................................. 22Locking with car key (remote control) .................. 22Locking with Porsche Entry & Drive (keyless) ....... 22Malfunctions when opening and closing ............... 26Opening and locking from inside ......................... 23Unlocking with car key (remote control) ............... 21Unlocking with Porsche Entry & Drive (keyless) .... 21Door locking, automatic ................................................ 22Door opening in an emergency situation ......................... 22DoorsCabriolet windows ............................................. 68 Drink holder................................................................ 194Drive The vehicle cannot be unlocked .......................... 26 Drive-Off Assistant....................................................... 184Driver memory package .............................................. 143DrivingIn Sport mode ..................................................... 3On the race circuit ............................................... 3 Driving light assistantDaytime driving lights......................................... 79Dynamic cornering light ..................................... 80Low beam ......................................................... 79Switching on ..................................................... 79Driving offAutomatic parking brake release upondriving off ....................................................... 152Launch Control ................................................ 175Driving performance, Technical data ............................. 285DVDInstallation location .......................................... 170Navigation....................................................... 170Player ............................................................. 170Dynamic cornering light ................................................. 80Dynamic Engine Mounting (PADM)................................. 188
EElectric parking brake Automatic parking brake release upon driving off ........................................................ 151Emergency braking function .............................. 151Operating ........................................................ 151Releasing ........................................................ 151Testing on brake test stand....................... 221, 241Warning light.................................................... 151 Electrical SystemEmergency unlocking, front luggage compartment lid .............................................. 270Emergency flasher......................................................... 83Emergency key ....................................................... 17, 29Emergency operationFiller flap ......................................................... 229of ignition key/control unit in ignition lock............. 28of luggage compartment lid ................................ 26of sunroof.......................................................... 65of tailgate .......................................................... 26Emergency operation convertible top .............................. 70Emergency release Lids ................................................................ 270 Emergency starting for flat battery ............................... 273Emergency starting with jumper cables ......................... 273Emission control (Check Engine)Functional description......................................... 95Engine Break in hints ....................................................... 6Checking oil level ..................................... 101, 222Cooling system .................................................. 92Oil-level gauge ................................................. 101Starting ........................................................... 148Starting engine automatically (Auto Start Stop function) Starting manually (Auto Start Stop function) ....... 150Stopping ......................................................... 148Stopping automatically (Auto Start Stop function) 149Technical data.................................................. 285Topping up oil .................................................. 222Engine compartment lid Cabriolet ........................................................... 26Service position ................................................. 26Engine drag torque control (MSR)Functional description....................................... 182Engine oil.................................................................... 221Change quantity ............................................... 289Checking level ................................................. 222Checking oil level ............................................. 101Consumption ................................................... 285Engine oil pressure........................................... 129
14_991_Turbo_21.book Seite 292 Mittwoch, 9. April 2014 2:19 14
Page 296 of 300

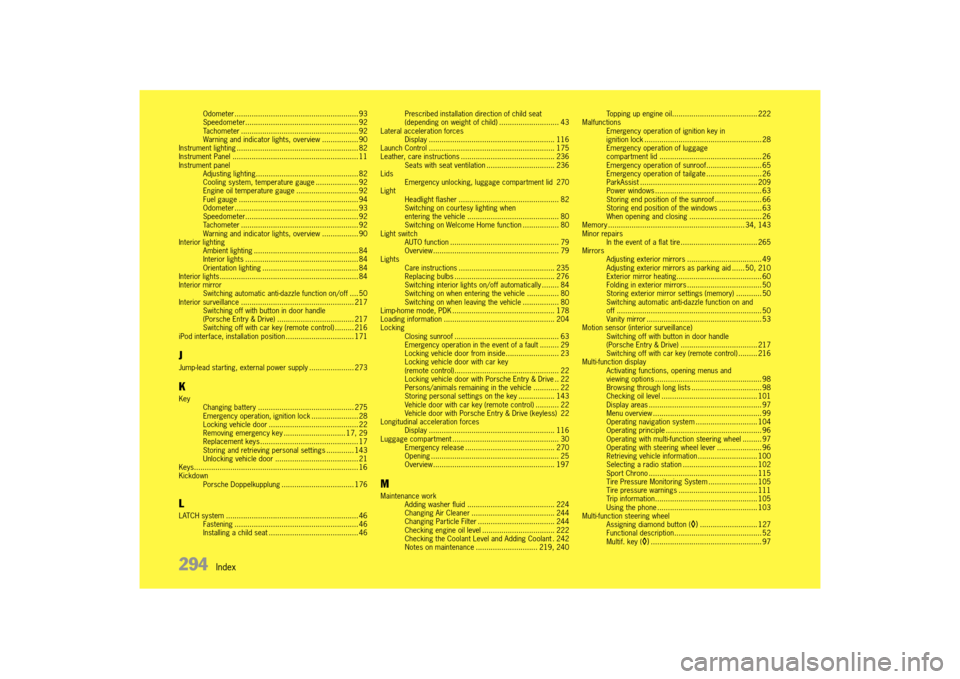

294 Index
Odometer .......................................................... 93 Speedometer..................................................... 92Tachometer ....................................................... 92Warning and indicator lights, overview ................. 90Instrument lighting ......................................................... 82Instrument Panel ........................................................... 11Instrument panelAdjusting lighting................................................ 82Cooling system, temperature gauge .................... 92Engine oil temperature gauge ............................. 92Fuel gauge ........................................................ 94Odometer .......................................................... 93Speedometer..................................................... 92Tachometer ....................................................... 92Warning and indicator lights, overview ................. 90Interior lighting Ambient lighting ................................................. 84Interior lights ..................................................... 84Orientation lighting ............................................. 84 Interior lights................................................................. 84Interior mirrorSwitching automatic anti-dazzle function on/off .... 50Interior surveillance ..................................................... 217Switching off with button in door handle(Porsche Entry & Drive) .................................... 217Switching off with car key (remote control) ......... 216 iPod interface, installation position ................................ 171
JJump-lead starting, external power supply ..................... 273
KKey Changing battery ............................................. 275Emergency operation, ignition lock ...................... 28Locking vehicle door .......................................... 22Removing emergency key ............................. 17, 29Replacement keys .............................................. 17Storing and retrieving personal settings ............. 143Unlocking vehicle door ....................................... 21 Keys............................................................................. 16Kickdown Porsche Doppelkupplung .................................. 176
LLATCH system .............................................................. 46Fastening .......................................................... 46Installing a child seat .......................................... 46
Prescribed installation direction of child seat (depending on weight of child) ............................ 43Lateral acceleration forcesDisplay ........................................................... 116Launch Control ........................................................... 175Leather, care instructions ............................................ 236Seats with seat ventilation ................................ 236LidsEmergency unlocking, luggage compartment lid 270Light Headlight flasher ............................................... 82Switching on courtesy lighting when entering the vehicle ........................................... 80Switching on Welcome Home function ................. 80 Light switchAUTO function ................................................... 79Overview........................................................... 79LightsCare instructions ............................................. 235Replacing bulbs ............................................... 276Switching interior lights on/off automatically ........ 84Switching on when entering the vehicle ............... 80Switching on when leaving the vehicle ................. 80Limp-home mode, PDK ................................................ 178Loading information .................................................... 204Locking Closing sunroof ................................................. 63Emergency operation in the event of a fault ......... 29Locking vehicle door from inside......................... 23Locking vehicle door with car key (remote control)................................................. 22Locking vehicle door with Porsche Entry & Drive .. 22Persons/animals remaining in the vehicle ............ 22Storing personal settings on the key ................. 143Vehicle door with car key (remote control) ........... 22Vehicle door with Porsche Entry & Drive (keyless) 22 Longitudinal acceleration forcesDisplay ........................................................... 116 Luggage compartment .................................................. 30 Emergency release .......................................... 270Opening ............................................................ 25Overview......................................................... 197
MMaintenance workAdding washer fluid ......................................... 224Changing Air Cleaner ....................................... 244Changing Particle Filter .................................... 244Checking engine oil level .................................. 222Checking the Coolant Level and Adding Coolant . 242Notes on maintenance ............................. 219, 240
Topping up engine oil........................................ 222 MalfunctionsEmergency operation of ignition key in ignition lock ....................................................... 28Emergency operation of luggage compartment lid ................................................ 26Emergency operation of sunroof.......................... 65Emergency operation of tailgate .......................... 26ParkAssist ....................................................... 209Power windows .................................................. 63Storing end position of the sunroof ...................... 66Storing end position of the windows .................... 63When opening and closing .................................. 26 Memory ................................................................ 34, 143Minor repairs In the event of a flat tire .................................... 265 Mirrors Adjusting exterior mirrors ................................... 49Adjusting exterior mirrors as parking aid ...... 50, 210Exterior mirror heating........................................ 60Folding in exterior mirrors ................................... 50Storing exterior mirror settings (memory) ............ 50Switching automatic anti-dazzle function on andoff .................................................................... 50Vanity mirror ...................................................... 53Motion sensor (interior surveillance) Switching off with button in door handle (Porsche Entry & Drive) .................................... 217Switching off with car key (remote control) ......... 216Multi-function display Activating functions, opening menus and viewing options .................................................. 98Browsing through long lists ................................. 98Checking oil level ............................................. 101Display areas ..................................................... 97Menu overview ................................................... 99Operating navigation system ............................. 104Operating principle ............................................. 96Operating with multi-function steering wheel ......... 97Operating with steering wheel lever ..................... 96Retrieving vehicle information ............................ 100Selecting a radio station ................................... 102Sport Chrono ................................................... 115Tire Pressure Monitoring System ....................... 105Tire pressure warnings ..................................... 111Trip information................................................ 105Using the phone ............................................... 103Multi-function steering wheelAssigning diamond button (◊ )........................... 127 Functional description......................................... 52Multif. key (◊ ).................................................... 97
14_991_Turbo_21.book Seite 294 Mittwoch, 9. April 2014 2:19 14
Page 297 of 300
Index 295
Operating principle .............................................97 Telephone function .............................................53
NNavigation system .......................................................170Using via multi-function display ..........................104

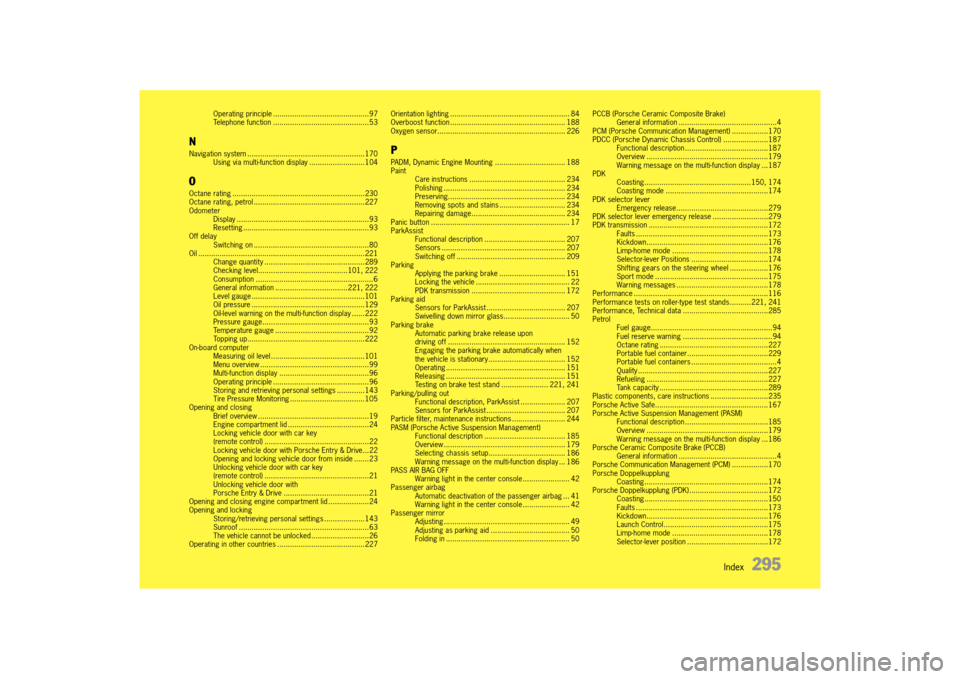

OOctane rating ..............................................................230Octane rating, petrol ....................................................227Odometer Display ..............................................................93Resetting ...........................................................93 Off delay Switching on ......................................................80 Oil ..............................................................................221Change quantity ...............................................289Checking level..........................................101, 222Consumption .......................................................6General information ..................................221, 222Level gauge .....................................................101Oil pressure .....................................................129Oil-level warning on the multi-function display ......222Pressure gauge..................................................93Temperature gauge ............................................92Topping up.......................................................222On-board computerMeasuring oil level ............................................101Menu overview ...................................................99Multi-function display ..........................................96Operating principle .............................................96Storing and retrieving personal settings .............143Tire Pressure Monitoring ...................................105Opening and closing Brief overview ....................................................19Engine compartment lid ......................................24Locking vehicle door with car key(remote control) .................................................22Locking vehicle door with Porsche Entry & Drive...22Opening and locking vehicle door from inside .......23Unlocking vehicle door with car key(remote control) .................................................21Unlocking vehicle door with Porsche Entry & Drive ........................................21 Opening and closing engine compartment lid ...................24Opening and lockingStoring/retrieving personal settings ...................143Sunroof .............................................................63The vehicle cannot be unlocked ...........................26Operating in other countries .........................................227
