Technical Data
279
fWhen changing tires or fitting new ones: Please see the chapter “WHEEL BOLTS” on Page 236.
Danger!
Installation of sizes not authorized by
Porsche may have a dangerous effect on
the driving stability and could result in
serious personal injury or death.
f Before mounting new tires, check with yourPorsche dealer about the current release status.
Boxster S Tires Rim Rim offset Track
Summer tires
front 235/40 ZR 18 91Y 8 J x 18 H2 57 mm 58.5 in./1486 mm
rear 265/40 ZR 18 101Y XL 9 J x 18 H2 43 mm 60.2 in./1528 mm
or front 235/35 ZR 19 87Y 8 J x 19 H2 57 mm 58.5 in./1486 mm
rear 265/35 ZR 19 94Y 9.5 J x 19 H2 46 mm 59.9 in./1522 mm
or front 235/35 ZR 19 87Y 8.5 J x 19 H2 55 mm 58.7 in./1490 mm
rear 265/35 ZR 19 94Y 10 J x 19 H2 42 mm 60.2 in./1530 mm
Snow tires front235/40 R 18 91V M+S 8 J x 18 H2 57 mm 58.5 in./1486 mm
rear * 255/40 R 18 95V M+S 9 J x 18 H2 43 mm 60.2 in./1528 mm
The load capacity coefficient (e.g. ”91“) and maximum sp eed code letter (e.g. ”Y“) are minimum requirements.
Tire and rim sizes Extensive tests are performed before specific tires and wheels are approved by Porsche. Your Porsche dealer has information
about approved tires and wheels and is happy to assist you. If aftermarket tires and/or wheels are installed which are not
approved by Porsche, the vehicle’s roadability and handling characteristics might be impaired. Since Porsche has no data on
such combinations, Porsche cannot st and behind the safety or durability of these aftermarket combinations.
Snow chains Can be mounted only on the rear wheels; maximum speed 30 mph/50 km/h. Use only Porsche authorized fine-link
cross-type or edge chains. Snow chain clearance can be guaranteed only with the tire + rim combination marked*
without spacers. Please see the chapter “SPACERS” on Page 243.

280
Technical Data
Driving Performance* * At DIN empty weight and half load, without performance-inhibiting extra equipment.
Boxster Manual transmission Porsche Doppelkupplung
Top track speed
6-speed transmission 164 mph/263 km/h 162 mph/261 km/h
Acceleration 0 – 60 mph 5.6 seconds
5.5 seconds
Acceleration 0 – 60 mph with Sport+ 5.3 seconds
Acceleration 0 – 100 km/h (6 2 mph) 5.9 seconds5.8 seconds
Acceleration 0 – 100 km/h (62 mph) with Sport+ 5.6 seconds
Boxster S Manual transmission Porsche Doppelkupplung
Top track speed 170 mph/274 km/h 169 mph/272 km/h
Acceleration 0 – 60 mph 5.0 seconds4.9 seconds
Acceleration 0 – 60 mph with Sport+ 4.7 seconds
Acceleration 0 – 100 km/h (6 2 mph) 5.3 seconds5.2 seconds
Acceleration 0 – 100 km/h (62 mph) with Sport+ 5.0 seconds

Technical Data
281
Capacities Use only fluids and fuels authorized by Porsche. Your authorized Porsche dealer will gladly advise you.
Your Porsche has been designed so that it is not necessary to mix any additives with oils or fuels.
Engine Oil change quantity with oil filter approx. 1.98 U.S.gallons/7.5 liters
Please see the chapter “ENGINE OIL RECOMMENDATION” on Page 200.
Coolant Boxster: approx. 6.05 - 6.18 U.S. gallons/22.9 - 23.4 liters
Boxster S : approx. 6.13 - 6.61 U.S. gallons/23.3 - 25 liters
Manual transmission and differential Boxster: approx. 0.79 U.S. gallons/3 liters
Boxster S: approx. 0.85 U.S. gallons/3.2 liters
Porsche Doppelkupplung
Gear set approx. 0.78 U.S. gallons/2.95 liters
Porsche Doppelkupplung
Clutch/Hydraulic fluid approx. 1.37 U.S. gallons/5.2 liters
Power steering approx. 1.1 quarts/1 liter hydraulic fluid Pentosin CHF 11 S
® or CHF 202 S
®
Brake fluidapprox. 0.4 quarts/0.39 liters; use
only Original Porsche brake fluid
Windshield washer approx. 0.66 U.S. gallons/2.5 liters without headlight washer
approx. 1.58 U.S. gallons/6 liters with headlight washer
Fuel tank Refill volume approx. 16.9 U.S. gallons/64 liters, including approx. 2.6 U.S.gallons/10 liters reserve.
Fuel quality Your engine is designed to provide optimum performance and fuel economy using unleaded premium fuel with
an octane rating of 98 RON (93 CLC or AKI).
Porsche therefore recommends the use of these fuels in your vehicle.
Porsche also recognizes that these fuels may not always be available. Be assured tha t your vehicle will operate
properly on unleaded premium fuels with octane numbers of at least 95 RON (90 CLC or AKI), since the engine’s
”Electronic Octane™ knock control“ will adapt the ignition timing, if necessary.

282
Technical Data
Weights
Dimensions BoxsterManual transmissionPorsche Doppelkupplung
Empty weight (depending on equipment) 2943 lbs. to 3153 lbs. 3009 lbs. to 3230 lbs.
1335 kg to 1430 kg 1365 kg to 1465 kg
Maximum gross weight 3605 lbs./1635 kg 3682 lbs./1670 kg
Maximum axle load, front* 1731 lbs./785 kg1731 lbs./785 kg
Maximum axle load, rear* 2017 lbs./915 kg 2017 lbs./915 kg
Boxster S Manual transmissionPorsche Doppelkupplung
Empty weight (depending on equipment) 2987 lbs. to 3175 lbs. 3042 lbs. to 3241 lbs.
1355 kg to 1440 kg 1380 kg to 1470 kg
Maximum gross weight 3627 lbs./1645 kg 3693 lbs./1675 kg
Maximum axle load, front* 1731 lbs./785 kg1731 lbs./785 kg
Maximum axle load, rear* 2072 lbs./940 kg 2072 lbs./940 kg
*The maximum gross weight must not be exceeded. Note: If additional accessories are installed, the useful load will be correspondingly less.
BoxsterBoxster S
Length 172.1 in./4372 mm
172.1 in./4372 mm
Width 70.9 in./1801 mm
70.9 in./1801 mm
Width with door mirrors 76.9 in./1952 mm
76.9 in./1952 mm
Height 50.9 in./1292 mm, with PASM 50.5 in./1282 mm
50.9 in./1294 mm, with PASM 50.6 in./1284 mm
Wheelbase 95.1 in./2415 mm
95.1 in./2415 mm
Ground clearance 4.4 in./112 mm, with PASM 4.1 in./105 mm
4.3 in./109 mm, with PASM 4.0 in./101 mm
Tu r n i n g c i rc l e 36.4 ft./11.1 m
36.4 ft./11.1 m

Technical Data
283

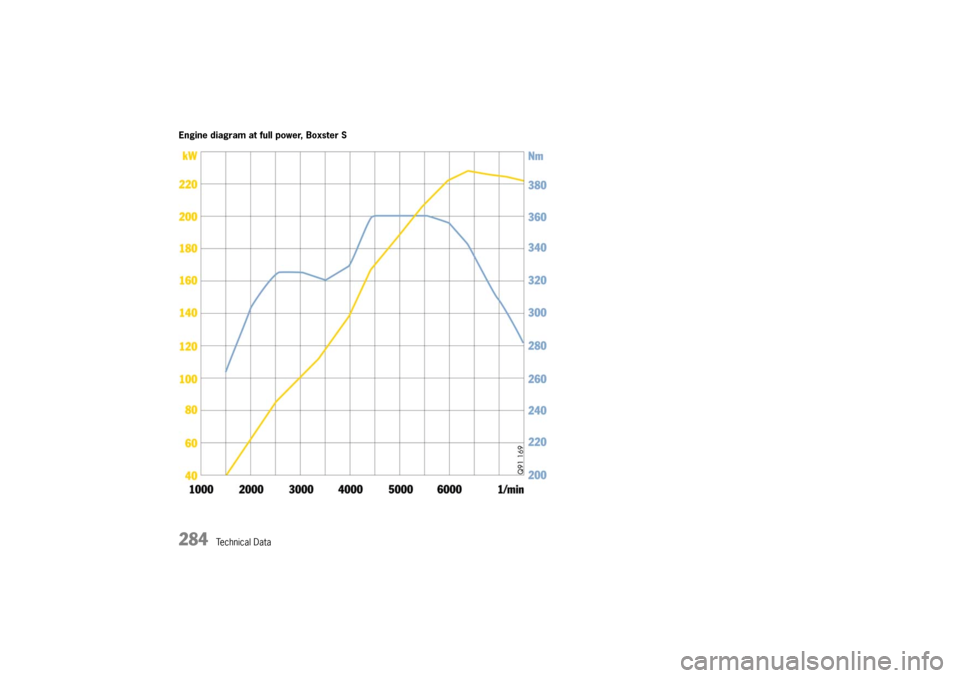

DiagramsEngine diagram at full power, Boxster

284
Technical Data

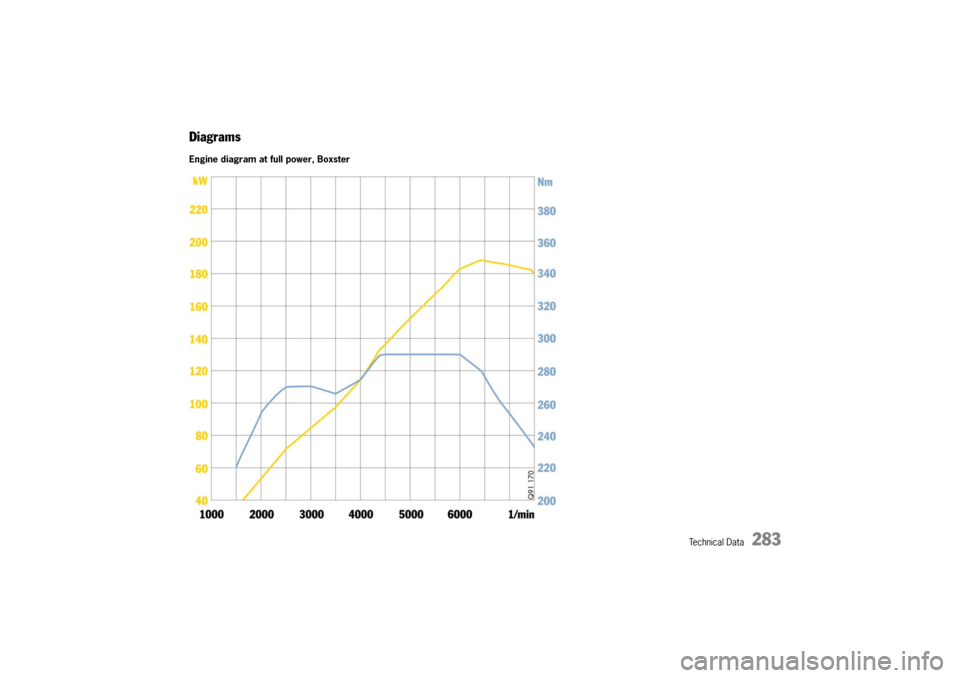

Engine diagram at full power, Boxster S
