Boxster S in Guards RedAir intake grilles
Exterior mirrorRear light module
The standard Porsche Stabilit y
Management (PSM, p. 63) further
enhances active safet y with its
brake assist feature and a pre-
charging function which increases
braking system readiness.

The design of the Boxster models
is governed by one philosophy
above all: that the st yling of a

Porsche reflects its inner values.
Here, the primary value is extreme
performance.
In the interior, the elegant sports
st yling is coupled with a high
degree of practicalit y. All the
important functions are intuitive
to control, including the optional
Porsche Communication Manage -
ment (PCM, p. 83) with 6.5-inch
touchscreen and CD/ DVD drive
with navigation module.
In conjunction with the PCM, the
optional BOSE
® Surround Sound
System supports 5.1 surround
sound.

A rhetorical question: What would
you do if we were to give you
the key now?
A real roadster is like true love:
you recognise it at first glance.
Design.
This concept also follows a
traditional Porsche theme: the
seamless blend of function
and design. Visually exciting
with performance to match.
The emphasis on high perform -
ance is immediately evident
from the front, where large air
intakes in a powerful geometric
design lend both Boxster models
a dynamic look – and increase
cooling power. On the Boxster,
the air intake grilles are finished
in the exterior colour, whereas
on the Boxster S they are con-
trasted in sporting black. The
athletic
appearance is comple -
mented by
striking spoiler lips.
The t wo models have a drag
coefficient
value of 0.29 and
0.30, respectively.
At the front, the headlight design
makes the Boxster models unmis
-
takable – especially at night.
The Boxster models are fit ted as
standard with halogen headlights
and LED day time running lights
integrated separately into the clus-
ters above the outer air intakes.
Bi-Xenon headlights with dynamic
cornering lights, including LED
day time running lights, are avail -
able on request. The dynamic
headlight design emphasises the
striking contour of the wing.

The rear features LED taillight
modules that blend harmoniously
with the overall design. The
centrally located stainless steel
tailpipe – t win tailpipes on the
Boxster S – and the rear diffusers
finished in sporting black com -
plete the powerful look. The
dynamic presence of the Boxster
models is further emphasised
by the clean, neat design of the
wheels. The Boxster is fit ted with
17-inch wheels as standard, the
Boxster S with 18-inch wheels.
A 19-inch option is available for
both models.
In short, although we rarely stick
to the rules, we have observed
one: form follows function. Design
and functionalit y are combined
perfectly in the Boxster models.
Boxster | The Boxster conceptBoxster | The Boxster concept

· 82 ·· 83 ·
Porsche and sound – inseparable
– not only in terms of the engine,
but also in the interior acoustics.
The audio system is specially
adapted to the Boxster models.
The result is a rich and more
enjoyable sound – both inside
and outside the car.
CDR-30 audio system.
Both Boxster models are equipped
as standard with the CDR-30
audio system with 5-inch display
(monochrome) and MP3-com -
patible CD drive. An integrated
six-disc CD autochanger is avail -
able as an option.

Calling the tune,
even when it comes to communication.
The FM dual tuner with RDS
diversit y, a total of 30 memory
presets, dynamic autostore

and speed-sensitive volume con -
trol are, as usual, all part of the
standard package. Just like the
high-qualit y sound, which is deliv -
ered by t wo high-range speakers
in the dashboard, t wo low-range
speakers in the door trims and
t wo 25-wat t output stages. For
an even more impressive sound
experience, you could opt for
the Sound Package Plus or BOSE®
Surround Sound System.
Controlling the CDR-30 audio
system could not be more simple:
the function keys ensure that all
the main functions are directly at
your finger-tips, and it is also pos -
sible to conveniently control all
of the most important functions
using the but tons on the optional
multifunction steering wheels.
Porsche Communication
Management (PCM) including
navigation module.
PCM is available on request for
both Boxster models. As the
central information and communi -
cations system, it can be used
for many dif ferent applications
and its ergonomic design makes
it easy and comfortable to
operate.

Boxster | Comfort
The main feature is the 6.5-inch
colour touchscreen with a
durable, easy-to - clean coating.
Functional, innovative and easy
to use, you will find the display
very clearly presented and a
maximum of five list entries per
page enable you to operate the
unit quickly and safely. Alterna -
tively, you can also operate the
PCM using conventional but ton
controls.

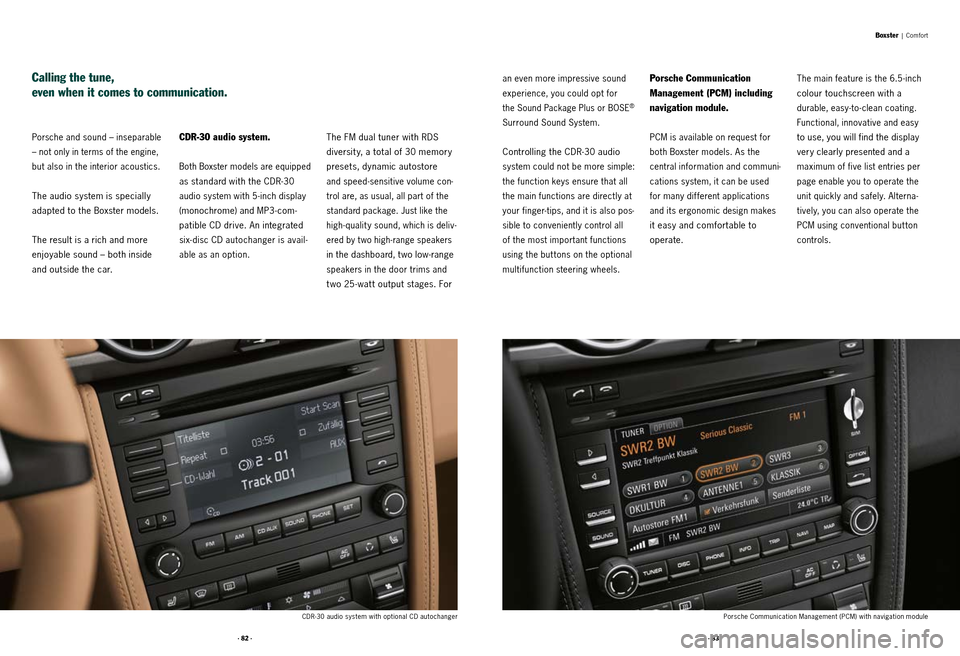

CDR-30 audio system with optional CD autochanger Porsche Communication Management (PCM) with navigation module

· 84 ·· 85 ·
Radio functions include up to
42 memory presets and an FM
dual tuner with RDS and fre -
quency diversit y, which continu -
ously scans in the background
for the best signal. The integrated single CD/ DVD
drive – in combination with the
optional BOSE
® Surround Sound
System – is also able to play
back music from audio and video
DVDs in the 5.1 digital surround
format. An integrated six-disc
CD/ DVD autochanger with MP3
compatibilit y is also available as
an option for the PCM.
Navigation module for PCM.
The GPS navigation module
included with the optional PCM
now has an internal hard drive
containing maps for most Euro
-
pean countries.
Boxster | Comfort
A touchscreen enables rapid
destination input and instant
viewing of traf fic information and
points of interest (POIs) by simply
allowing you to touch the symbols
on the map. Route diversions,
e.g. the nearest service stations,
can therefore be incorporated
quickly and easily into the current
route guidance.
When viewing a map, it is pos -
sible to select bet ween a 3D
perspective and the 2D display.
At motorway exits, graphical

turn indications are displayed for
bet ter orientation. In splitscreen
mode, you can choose to display
not only the current map over-
view, but also a list of icons that
represent dynamic route guidance.
Electronic logbook for PCM.
The optional electronic logbook
enables automatic recording of
relevant driving data. Once you
have downloaded the logbooks
via Bluetooth® or the optional
USB interface, you can evaluate
them on your home PC using
the sof t ware supplied (sof t ware
complies with all statutory
requirements for automatic log-
books as specified by the

German revenue authorities).
TV tuner.
A T V tuner, available as an option,
receives free-to -air analogue and
digital broadcasts (DVB-T) and
provides entertainment bet ween
journeys. For your safet y, the
T V picture cannot be displayed
while the vehicle is in motion.
Voice control system.
Almost all of the functions of the
PCM can be controlled using
the latest optional voice control
system with word-by-word input.
The menu item is read aloud
exactly as it is displayed on the
screen and the voice control
system recognises commands or
sequences of numbers, whoever
the speaker. It then gives an
audible acknowledgement and
carries out the functions you
request. There is no need to ‘train’
the system.
Telephone module for PCM.*
Available as an option, the quad-
band GSM telephone module
of fers convenience and excellent
reception. Hands-free calls can
be made by inserting a SIM card
directly into the PCM’s integral
SIM card reader. And for even
more convenience, the Bluetooth®
capabilit y of your mobile phone
can be used to make calls through
the SIM Access Profile (SAP).
Once automatic pairing is com -
plete, the mobile phone’s aerial is
switched off to conserve bat tery
charge and the phone operates
via the car aerial. Depending

on the t ype of mobile phone, this
gives access not only to the
numbers on the SIM card, but also
to the phone’s internal memory.
Porsche Communication Management (PCM) including navigation module
* See page 117/118 for information.

· 118 ·· 119 ·
Boxster | Personalisation
State-of-the-art.
And to your specification.
With the range of options featured
in this catalogue, you can make
your Porsche even more special.
Introducing Porsche Exclusive.

Have your vehicle individually and
exclusively tailored to your wishes
even before it leaves the factory.
Aesthetically and technically,
inside and outside, using fine
materials and with customary
Porsche qualit y. Our overriding
principle? Uniquely handcraf ted
to your taste. You will find a
wide range of design options in
the separate Porsche Exclusive
Boxster catalogue. Either your Porsche Centre or the
customer centre in Zuf fenhausen
(tel. +49 (0)711 911-25332) will

be happy to answer any questions
you may have. Please note that delivery times may be extended
for certain Porsche Exclusive
equipment.
Boxster
Boxster SAudio and communication.
I no.Option Page
• PCM including navigation module
1) ••P23 83, 8 4
• Integral CD/ DVD autochanger (six- disc for PCM)
1)••693 87
• Universal audio interface (AUX, USB, iPod
®, for PCM)3)••870 8 6 , 117
• T V tuner (for PCM)
••676 85
• Telephone module (for PCM)
2)••666 85
• Cordless handset for telephone module (for PCM)
••669 8 5 , 11 8
• Voice control system (for PCM)
••671 85, 86
• Electronic logbook (for PCM)
••6 41 8 5 , 11 8
1) May be incompatible with some copy- protected audio CDs/ DVDs.2) See page 117 for information3) For information on the compatibilit y of iPod® and iPhone® models, please contact your Porsche Centre.
The vehicles illustrated in the chapter on Personalisation may include additional options not featured in this catalogue.
For information on these options, please contact your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
– not available
• number/extra - cost option • standard equipment W no - cost option Electronic logbook for PCM
Cordless handset for telephone module and PCM
Porsche Exclusive

· 128 ·· 129 ·
Te r m Pa g e
A
Active safet y 60
Adaptive sports seats 74
Airbags 66, 67
Anti-theft protection 78
Audio interface, universal 86
Audio system CDR-30 82
B
Bi-Xenon headlights 65
BOSE
® Surround
Sound System 88
Boxer engine 26
Braking system 61
C
CD or CD/ DVD autochanger 87
Chassis 48
Child seats 67
Climate control 76
Colours 100
Comfort seats 74
Cruise control 76
Cylinder-specific
knock control 35
D
Direct fuel injection (DFI) 28
Dry-sump lubrication,
integrated 32
Dynamic cornering lights 65
E
Electronic logbook 85
Engine cooling 33
Engine management system
with electronic throt tle 35
Environment 90
Exclusive, Porsche 119
Exhaust emission control 93
Exhaust system 38
F
Factory collection 120
Fuel 94
H
H a rd t o p 81
Headlight cleaning system 65Heated seats
75
Heated steering wheel 73
Hill -start assist 47
HomeLink
®
Garage door opener 77
Hood 80
I
Ignition system 37
Individual equipment 98
Instruments 72
L
LED day time running lights 65
Lighting concept 64
Lightweight construction 32
Luggage compartment 79
M
Maintenance 95
Manual gearbox 47
Materials 75
N
Navigation module 84
Noise 95
O
Oil supply 32
On-board computer,
integrated 72
P
Pa rk A ssist 78
Passive safet y 66
Porsche Active Suspension
Management (PASM) 54
Porsche Ceramic Composite
Brake (PCCB) 61, 62
Porsche Communication
Management (PCM) 83
Porsche Doppelkupplung
(PDK) 42
Porsche Exclusive 119
Porsche Side Impact
Protection (POSIP) 67
Porsche Stabilit y
Management (PSM) 63, 64
R
Rear differential,
mechanically locking 54
Recycling 93
Resonance intake manifold 35
Roll-over protection 67
S
Seat ventilation 75
Service 95, 122
Servicing 39
Side windows, water- repellent 78
Six-cylinder Boxer engine 26
Sound Package Plus 87
Sport Chrono Package 56
Sport Chrono Package Plus 57
SportDesign Package 106
Sports bucket seats 75
Sports exhaust system 38
Sports seats 74
Standard seats 74
S te e r i n g 51
Steering wheels 46, 73
Storage compartments 76
T
Technical data 126
Telephone module 85
Telephone preparation 86
T V tuner 85
Tyre Pressure Monitoring
( TPM) 52

V
VarioCam Plus 36
Vehicle tracking system 79
Voice control system 85
W
‘Welcome Home’ lighting 77
W heels 52
Wind deflector 81
Wiper system 77
Index
