PORSCHE CAYMAN 2011 1.G Tequipment Manual
Manufacturer: PORSCHE, Model Year: 2011, Model line: CAYMAN, Model: PORSCHE CAYMAN 2011 1.GPages: 33, PDF Size: 6.97 MB
Page 21 of 33
· 40 ·· 41 ·
Sports-style footrest
Robust footrest with stainless
steel surround. Matches the look
of the standard pedals.
For lef t-hand drive vehicles only.
Cruise control (not shown)
Automatic speed control for the
30 –240 km/ h speed range.
Operated using a but ton on the
control stalk.
Rubber floor mats
Two at tractive tailored floor mats.
Non-slip and waterproof.
Floor mats with nubuck edging
Precision down to the last detail:
made-to -measure floor mats with
nubuck edging and inlay and
embroidered ‘PORSCHE’ logo, which
have a waterproof backing and
are non-slip. They are secured by
a special fastener system.
Sun/privacy screen
Protects against direct sunlight
and at the same time provides
additional privacy.
Sports-st yle footrestRubber floor mats
Floor mats with nubuck edging Sun/privacy screen
Page 22 of 33
· 42 ·· 43 ·
Door sill guards
A sport y and striking effect.
Whether you choose door sill
guards in carbon or stainless
steel, they provide a stylish and
dramatic finishing touch. If
you select illuminated door sill
guards, the white illuminated
model logo is a further highlight. Available with ‘Cayman’ or
‘Cayman S’ logo.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
Door sill guards in carbon Door sill guards in carbon, illuminated
Door sill guards in stainless steel
Door sill guards in stainless steel, illuminated
Page 23 of 33
· 44 ·· 45 ·
Universal audio interface
Audio and communication
Yet another of Porsche’s many
strengths: non-verbal communica-
tion. The Cayman is a technical
masterpiece. Engine, transmission,
chassis. Only the highest standards
are acceptable. Everything is per-
fectly in tune. Just like the audio
and communication technologies
from Porsche Tequipment, which
turn your Porsche into a mobile dynamic route calculation, a 3D
map display and automatic route
recording.
Universal audio interface
For vehicles with PCM, the storage
compartment in the centre console
will contain three connections: one
for an iPod
®, one for a USB stick/
MP3-player and one as an AUX
communications centre. All
designed to keep you fully
informed, to ensure you reach
your desti nation and, of course,
to enhance your driving pleasure.
PCM including navigation
module and CD/DVD autochanger
The central information and com-
munication system with a 6.5-inch
touchscreen is easy to operate.
The radio has an FM dual tuner
with RDS function. The CD/DVD
drive plays CDs and audio DVDs
and is MP3-compatible. Audio
playback of video DVDs is also
supported. The GPS navigation
system has a hard drive containing
map data for most European
countries. Other features include
interface for any chosen compatible
audio source. The iPod® or USB
stick can be operated conveniently
and safely via PCM, the multifunc-
tion steering wheel or the voice
control system.
For vehicles with the CDR-30 audio
system, the centre console storage
compartment will contain an AUX interface for connecting a com-
patible audio source. The volume
is adjusted using the controls on
the CDR-30 audio system, other
functions are operated using the
controls on the external audio
source itself.
Page 24 of 33
· 46 ·· 47 ·
Porsche Vehicle Tracking System (PVTS)Cordless handset for telephone module
Porsche Vehicle Tracking
System (PV TS)
Enables remote location of a
stolen vehicle in 27 European
countries as well as in Russia and
South Africa. Location is not
continual, but occurs only in the
event of an alarm. A silent alarm
is automatically triggered if the
car is stolen or tampered with, or
af ter notification from the vehicle
owner. In addition to the extra
Cordless handset for
telephone module
Handset display and separate
keypad for making telephone calls
d iscre e t l y.
Voice control system (not shown)
Almost all of the functions of
PCM can be activated by voice
control. The system recognises
commands or figure sequences
irrespective of the speaker. It
securit y offered by this system,
it may also, depending on the coun-
try, reduce your insurance premi-
um. The system has been tested
using multiple simulated thefts in
27 European countries and Russia
and the service has been adapted
to fully meet Porsche qualit y
requirements. Your Porsche Centre
will be happy to provide you with
further information.
Only for vehicles with optional
factory-fit ted preparation for
Porsche Vehicle Tracking System
(PV TS).
A separate contract with the
service provider recommended
by your Porsche Centre is
required, which is subject to
additional charges.
gives audible feedback and
guides you through the functions.
Without needing to ‘ train’ the
system, phone book entries can
be retrieved, a radio station
selected or the navigation destina -
tion entered directly by speaking
whole words rather than dictating
just one let ter at a time.
Only in conjunction with PCM.Navigation update (not shown)
Map update (Model Year 11) for
your navigation system.
Please consult your Porsche
Centre for information on the
data version of your PCM.
Page 25 of 33
· 48 ·· 49 ·
Telephone module
Mobile phone preparation
Electronic logbook
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
1 Only in conjunction with PCM.
2 Information on compatible mobile
telephones is available from
your Porsche Centre or visit
www.porsche.com.
Electronic logbook1
The optional electronic logbook
enables automatic recording of
mileage, route distance, date and
time, starting point and destination
as part of every journey. Once
you have downloaded the logbooks
from PCM via Bluetooth® or the
optional USB interface, you can
evaluate the data on your home
PC using the software supplied.
Telephone module1
Available as an option, the GSM
quadband telephone module offers
convenience and excellent recep-
tion. By inserting a SIM card
directly into the PCM’s integral SIM
card reader, calls can be made
using either the hands-free facility
or the optionally available cordless
handset. For even more conven-
ience, the Bluetooth
® capability
of a mobile phone can be used to
make calls.
Mobile phone preparation1
To enable a Bluetooth® connection
for those mobile phones that only
support the Handsfree Profile
(HFP)2, an optional hands-free facility
is available. With HFP, PCM acts
merely as a hands-free system
and can be used to control only
the basic functions of the phone.
The GSM connection is established
through the aerial of the mobile
phone.
Page 26 of 33
· 50 ·· 51 ·
The Cayman. An uncompromising
sportscar. In terms of performance
and also when it comes to trans-
port. Thanks to the child seats from
Porsche Tequipment, you can safely
carry passengers who are under 12 years of age. You can carry
plent y of luggage, too. The Cayman
boasts a luggage compartment
capacit y of 410 litres – 150 litres
at the front and 260 litres at the
rear.
After an intensive training session, it’s time to give your
body some well-deserved care.
Of course, you can also tailor your
Cayman to suit your own transport
requirements and make it even
more practical, whatever the
weather.
Page 27 of 33
· 52 ·· 53 ·
Deactivating the front passenger airbag
Child seat preparation for front passenger’s seat
red trim. The Porsche child seats
can be fixed conveniently and
safely on the front passenger’s
seat using a preparation kit or
the three - point belt system. For
increased safety, the Porsche Baby
and Porsche Junior Seat ISOFIX
have an independent five-point belt
system.
Child seat preparation for
front passenger’s seat
Includes ISOFIX mounting points
bet ween the backrest and squab
on the front passenger’s seat, as
well as a key- operated deactivation
system for the front passenger
airbag. The front passenger airbag
must be deactivated if carrying a
child up to 27 kg.
Every Porsche is designed not only
to deliver supreme performance,
but also to protect what ’s most
important: its occupants. Never-
theless, you can make the journey
even safer for your lit tle ones by
fit ting child seats from Porsche
Tequipment. Porsche child seats
Porsche child seats meet strict
safety standards. Specially
designed, tested and approved for
Porsche cars, they provide protec-
tion and comfort to passengers up
to 12 years of age. The fabrics are
breathable and easy to clean with
a removable and washable cover
in black and grey with a contrasting
Child seats
* The use of a child seat on the front passenger’s seat is permit ted only in conjunction with child seat preparation. Child seats must not be used with the sports bucket seats.
Child seats* ModelGroupWeightAge
Porsche Baby Seat ISOFIX,
G 0 +
Porsche Junior Seat ISOFIX,
G 1
Porsche Junior Plus Seat,
G 2 + G 3
0+up to 13 kgup to approx. 18 m o nt hs
19 to 18 kgapprox. 9 months to 4 years
2 + 315 to 36 kgapprox. 3 ½ to 12 years
Page 28 of 33
· 54 ·· 55 ·
bike carriers can be mounted on
the roof transport system.

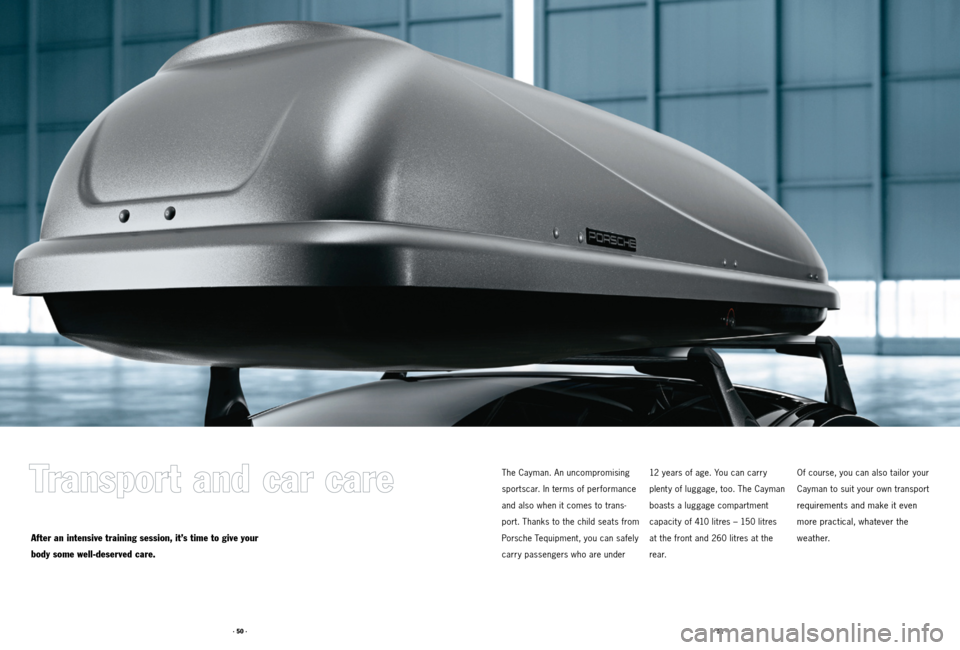

Roof box
Lockable plastic roof box with
310 -litre capacit y and integrated
ski-holder. Can be opened from
either side of vehicle. Dimensions:
L 2,260 x W 550 x H 380 mm.

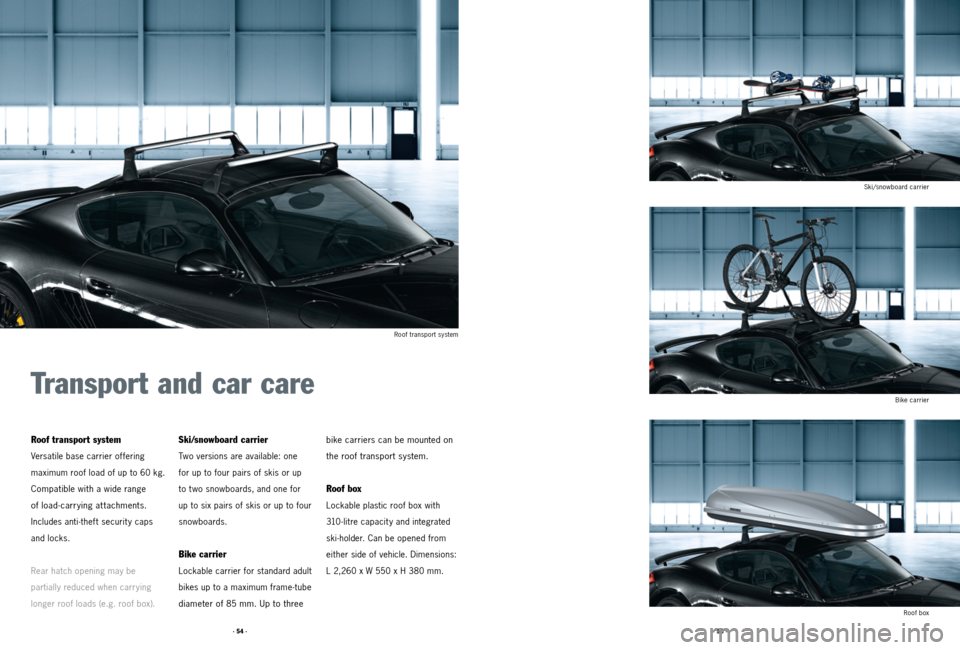

Roof transport system
Versatile base carrier of fering
maximum roof load of up to 60 kg.
Compatible with a wide range
of load - carr ying at tachments.
Includes anti-thef t securit y caps
and locks.
Rear hatch opening may be
partially reduced when carrying
longer roof loads (e.g. roof box).
Ski/snowboard carrier
Two versions are available: one
for up to four pairs of skis or up
to t wo snowboards, and one for
up to six pairs of skis or up to four
snowboards.
Bike carrier
Lockable carrier for standard adult
bikes up to a maximum frame-tube
diameter of 85 mm. Up to three
Roof transport systemSki/snowboard carrier
Bike carrierRoof box
Transport and car care
Page 29 of 33
· 56 ·· 57 ·
Luggage net (not shown)
Secure smaller items at the rear
of the car with this handy luggage
net. At taches to four lashing
eyelets on the engine cover or in
the rear luggage compartment.

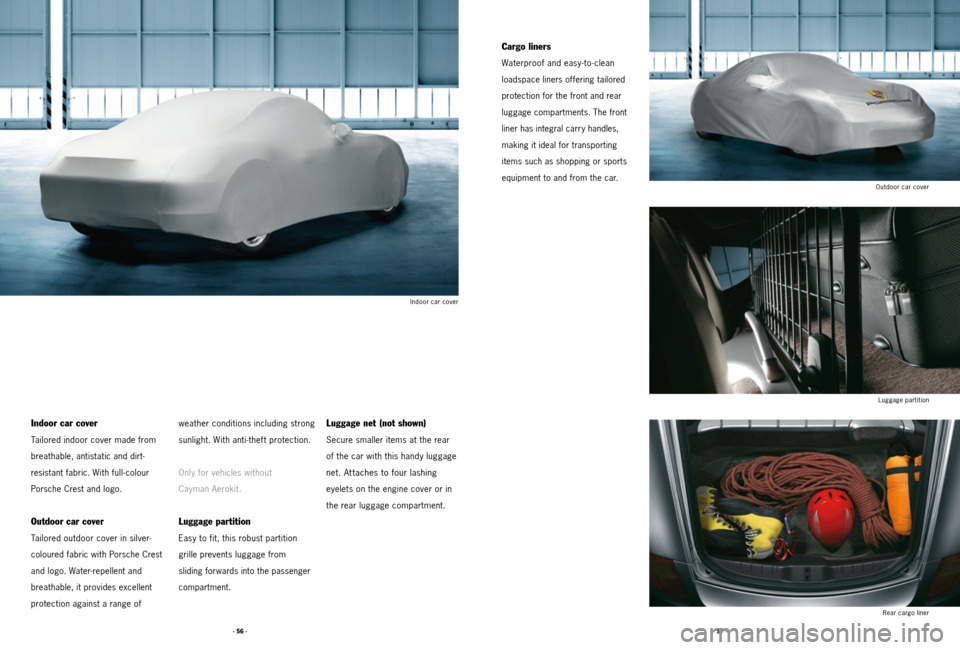

Indoor car cover
Tailored indoor cover made from
breathable, antistatic and dirt-
resistant fabric. With full- colour
Porsche Crest and logo.
Outdoor car cover
Tailored outdoor cover in silver-
coloured fabric with Porsche Crest
and logo. Water- repellent and
breathable, it provides excellent
protection against a range of weather conditions including strong
sunlight. With anti-theft protection.
Only for vehicles without
Cayman Aerokit.
Luggage partition
Easy to fit, this robust partition
grille prevents luggage from
sliding forwards into the passenger
compartment.
Cargo liners
Waterproof and easy-to - clean
loadspace liners offering tailored
protection for the front and rear
luggage compartments. The front
liner has integral carry handles,
making it ideal for transporting
items such as shopping or sports
equipment to and from the car.
Indoor car cover
Outdoor car cover
Luggage partition Rear cargo liner
Page 30 of 33
· 58 ·· 59 ·
Microfibre cleaning clothInterior care kit
Porsche Charge-o-mat II
Ice scraper
Car-care case
Aluminium case containing
high-quality car-care products
specially approved for your
Porsche. Includes insect remover,
shampoo, paint work polish, wax,
glass cleaner and leather cleaner.
All products are also available
se pa ra t e l y.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
Car-care case
Wheel cleaning kit
enabling easy removal of ice and
snow from your Porsche. Integral
rubber lip for removing water.
Interior care kit
Contains velour cleaner, leather
cleaner and conditioner, glass
cleaner and accessories.
Wheel cleaning kit
Care products and brush set for
alloy wheels. Cleaning fluid also
available separately as a refill.
Porsche Charge-o-mat II
Battery charger with charge main-
tenance and monitoring function.
An adapter is available for vehicles
without cigarette lighter.
Microfibre cleaning cloth
For gentle and efficient cleaning
of the PCM touchscreen and
other delicate surfaces in the
interior of your Porsche.
Contains three microfibre cloths.
Ice scraper
Practical accessory featuring
aluminium telescopic handle
