· 20 ·· 21 ·
Front: 8.5 J x 19 ET 55Rear: 10 J x 19 ET 4219-inch Carrera Sport wheels with summer tyres
Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch Carrera Classicwheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch Carrera S II wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch 911 Turbo wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch 911 Turbo II wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
■ Compatible
– Not compatible
1 Optional: Use of 5-mm spacers on
front and rear axles to widen track.
The wheel centres shown are not included,
except in the case of the 19-inch SportDesign
wheels in a black high-gloss finish. If your
vehicle documents do not contain details of
the wheel and tyre combination, please
request a technical approval certificate from
your Porsche Centre.
All tyres are designed exclusively for
Porsche as indicated by the special Porsche
desig nation (N0, N1, etc.) on the sidewall.
Tyres that do not carry this designation are
not recommended for use on your Porsche.
19-inch SportDesign wheels with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)
19-inch SportDesignwheels in a black high-gloss finish with summer tyres
Front: 8 J x 19 ET 57Rear: 9.5 J x 19 ET 46Front: 235/35 ZR 19 (87Y)Rear: 265/35 ZR 19 (94Y)

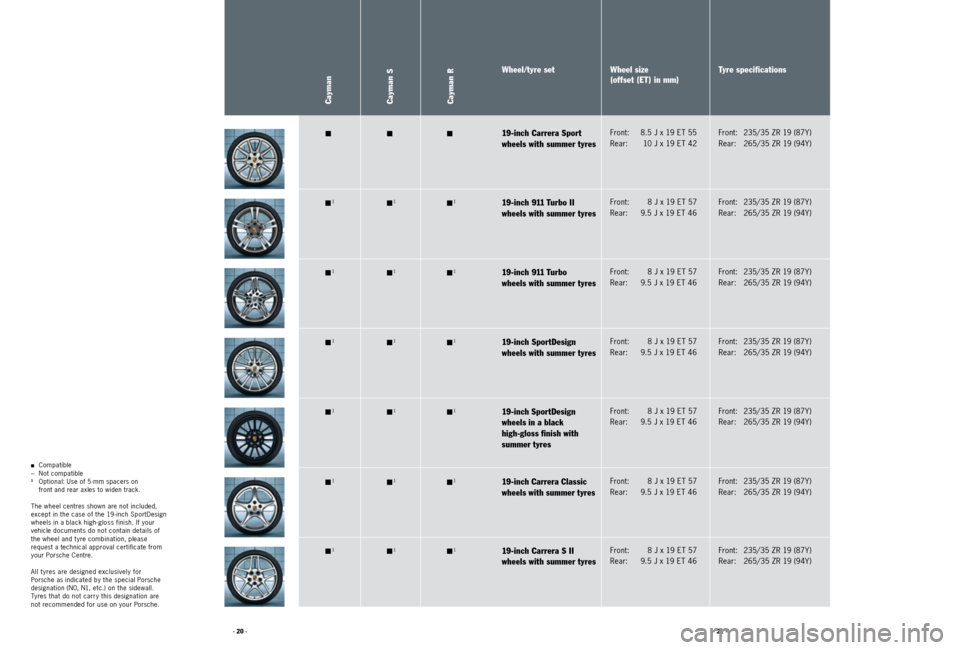

Wheel/tyre set Tyre specifications
Wheel size
(offset (ET) in mm)
■ 1
■ 1
■
■ 1
■ 1
Cayman
■ 1
■ 1
■ 1
■ 1
■
■ 1
■ 1
Cayman S
■ 1
■ 1
■ 1
■ 1
■
■ 1
■ 1
Cayman R
■ 1
■ 1
Page 12 of 33
· 22 ·· 23 ·
Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient tempera-
tures above +7 °C. Below this
point, the t yre compound begins to
harden and braking distances are
increased. We therefore recom -
mend that you fit winter tyres dur-
ing the colder months of the year.
Only then can you enjoy the highest
standards of active safet y from
your Cayman. All winter tyres
approved by Porsche are identified
by an ‘N’ designation on the
sidewall.
18-inch Cayman S IIwheels with winter tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 R 18 91V M+SRear: 255/40 R 18 95V M+S
18-inch Boxster S IIwheels with winter tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 R 18 91V M+SRear: 255/40 R 18 95V M+S
18-inch Cayman S IIwheels with summer tyres
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 43Front: 235/40 ZR 18 (91Y)Rear: 265/40 ZR 18 (101Y) XL
Front: 8 J x 18 ET 57Rear: 9 J x 18 ET 4318-inch Boxster S IIwheels with summer tyres
Front: 235/40 ZR 18 (91Y)Rear: 265/40 ZR 18 (101Y) XL
17-inch Cayman IIwheels with winter tyres
Front: 7 J x 17 ET 55Rear: 8.5 J x 17 ET 40Front: 205/55 R 17 91V M+SRear: 235/50 R 17 96V M+S
17-inch Boxster IIIwheels with winter tyres
Front: 7 J x 17 ET 55Rear: 8.5 J x 17 ET 40Front: 205/55 R 17 91V M+SRear: 235/50 R 17 96V M+S

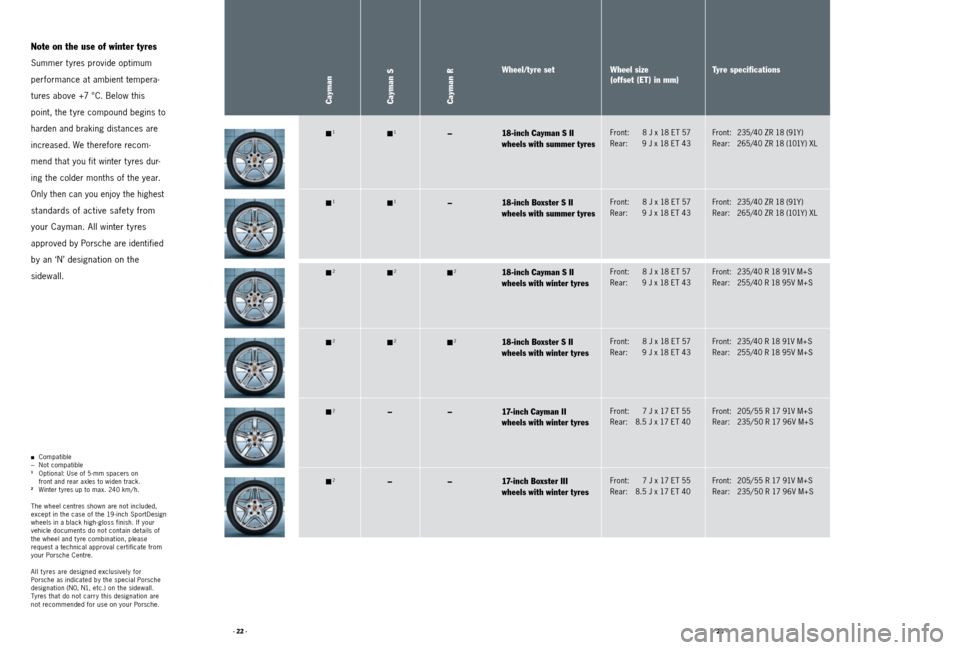

Wheel/tyre setTyre specifications
Wheel size
(offset (ET) in mm)
■ Compatible
– Not compatible
1 Optional: Use of 5-mm spacers on
front and rear axles to widen track.
2 Winter tyres up to max. 240 km/h.
The wheel centres shown are not included,
except in the case of the 19-inch SportDesign
wheels in a black high-gloss finish. If your
vehicle documents do not contain details of
the wheel and tyre combination, please
request a technical approval certificate from
your Porsche Centre.
All tyres are designed exclusively for
Porsche as indicated by the special Porsche
desig nation (N0, N1, etc.) on the sidewall.
Tyres that do not carry this designation are
not recommended for use on your Porsche.
■ 1
■ 1
■ 2
■ 2
■ 2
■ 2
Cayman
■ 1
■ 1
■ 2
■ 2
–
–
Cayman S
■ 2
■ 2
–
–
–
–
Cayman R
Page 13 of 33
· 24 ·· 25 ·
Anti-theft wheel protection
Set of four steel bolts with highly
secure locking system.
Crested valve caps
Silver- coloured valve caps with
embossed Porsche Crest.
Spacers
Wheel spacers create a wider
track for enhanced stabilit y and
presence on the road. When fit ted,
your Cayman will look even
sportier, as the wheels run virtually
flush with the body of the car.
Not suitable in conjunction with
19 -inch Carrera Sport wheels,
19 -inch Boxster Spyder wheels or
snow chains.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
W heel centres
Wheel bolts in black
Crested valve caps for cars with Ty re Pressure Moni toring
Spacers
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel spacers.
Wheel centres
Set of wheel centre caps with
full- colour Porsche Crest. The perfect finishing touch for any
Cayman wheel.
For 19 -inch Carrera Sport wheel
in a GT Silver Metallic finish.
For 19 -inch 911 Turbo II wheel in
a titanium-coloured paint finish.
For 19 -inch 911 Turbo wheel with
monochrome Porsche Crest.For 19 -inch SportDesign wheel
in a black high -gloss finish with
full - colour Porsche Crest.
Wheel bolts in black
Set of 20 wheel bolts, including 4
with highly secure locking system.
Available in t wo dif ferent versions
for vehicles with and without
5-mm spacers.
Snow chains
Anti-theft wheel protection
Page 14 of 33
· 26 ·· 27 ·
An athletic build, a low centre of
gravit y, excellent weight distribu -
tion. And this athlete’s heart beats
in just the right place: in the middle.
In short, the Cayman was designed
to accomplish extraordinary feats of strength and endurance. Yet
there’s still plent y of scope
for improvement – in appearance,
performance and sound. In other
words, its potential is just waiting
to be unleashed.Conform? Never.
Especially regarding sportiness, design, engine sound…
Page 15 of 33
· 28 ·· 29 ·
Sports bucket seat
With integral thorax airbag, manual
fore/aft adjustment and folding
backrest. The backrest shell is
made from plastic reinforced with
glass fibre and carbon fibre with a
stylish carbon-weave finish. Availa-
ble in black leather with embossed
Porsche Crest on the headrest,
or in black flame - resistant material.
Child seats must not be used
with the sports bucket seats.
Sports exhaust system
(not shown)
The t ypical Porsche sound –
powerful, robust, sporty. Better
still,
it can be further enhanced
using this sports exhaust system.
The package also includes the
sports tailpipe.
Some models may require additional
components. (Please see fit ting
and conversion instructions.)

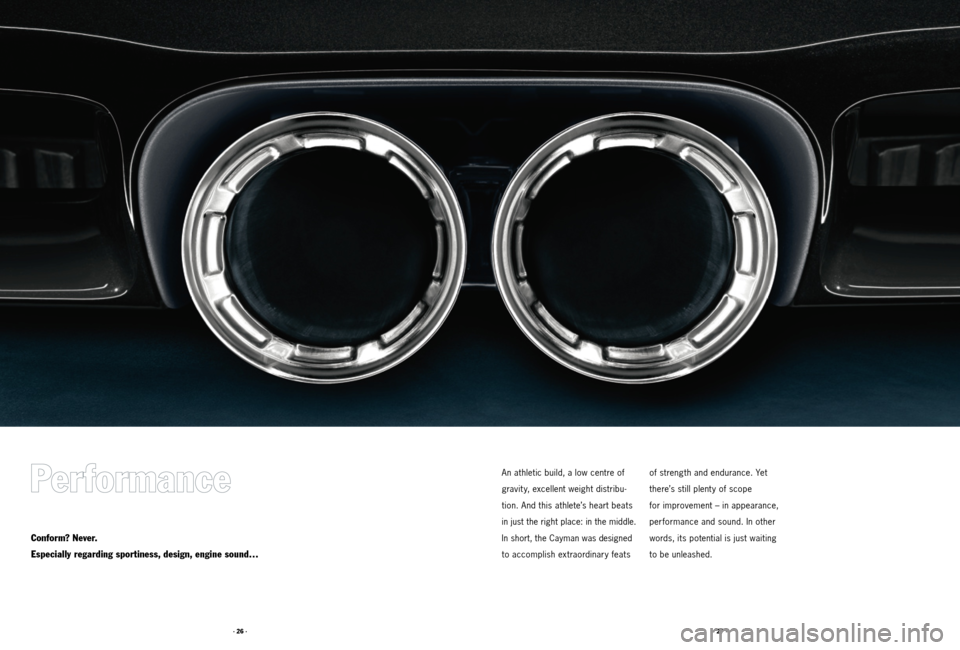

Sports tailpipe
Distinctive, stainless-steel t win
tailpipe with polished, nanocoat
finish. Gives a sport y look to the
rear of your Cayman.
Short shifter
This short-throw mechanism pro-
vides a faster, more accurate gear-
shif t action and a more dynamic
sportscar experience. Compatible
with all gear lever options.
Sports bucket seat
Fuel filler cap with Aluminium
Look finish
This elegant accessory is a st ylish
addition inspired by our racing
heritage. Modelled on filler caps
from historic race vehicles, it has
an engraved ‘PORSCHE’ logo and
securing tether.
Sport mode retrofit package
(not shown)
Can be activated at any time to
provide an even sportier set-up
for the engine and (in conjunction
with PASM) for the chassis. If
com
bined with PCM, the package
in
cludes memory functions for
lights, wipers, air conditioning and
door
locks. If combined with PDK,
it features the Launch Control
(racing start) function and the
motorsport-derived gearshift
s t ra t eg y.
For further product information
and part numbers, please refer to
the Tequipment Cayman price list.
Gear lever with short shifter
Gear lever without short shifter Sports tailpipe
Fuel filler cap with Aluminium Look finish
Page 16 of 33
· 30 ·· 31 ·
From the very first glance, you just
know the Cayman is a Porsche. The
same applies to the interior. Here,
every thing is functional and st ylish
– a logical continuation of the exte-
rior. The interior presents the ideal
opportunit y to express your own personal taste. We have a range
of elegant, high - qualit y materials
to help you, including macassar
wood, carbon, aluminium or
Alcantara, all of which can even
be combined.
Plenty of space,
but don’t expect to find room for
the conventional or the routine.
Page 17 of 33
· 32 ·· 33 ·

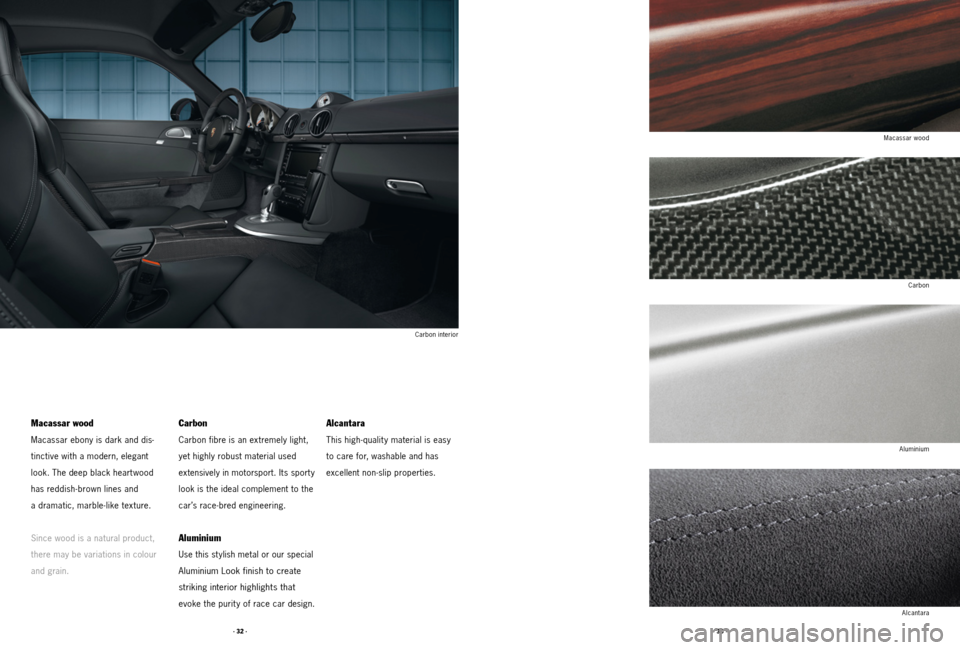

Macassar wood
Macassar ebony is dark and dis-
tinctive with a modern, elegant
look. The deep black heart wood
has reddish - brown lines and
a dramatic, marble - like texture.
Since wood is a natural product,
there may be variations in colour
and grain.
Carbon
Carbon fibre is an extremely light,
yet highly robust material used
extensively in motorsport. Its sport y
look is the ideal complement to the
car’s race-bred engineering.
Aluminium
Use this stylish metal or our special
Aluminium Look finish to create
striking interior highlights that
evoke the purity of race car design.
Alcantara
This high - qualit y material is easy
to care for, washable and has
excellent non-slip properties.
Macassar woodCarbon
Aluminium A lca nt ara

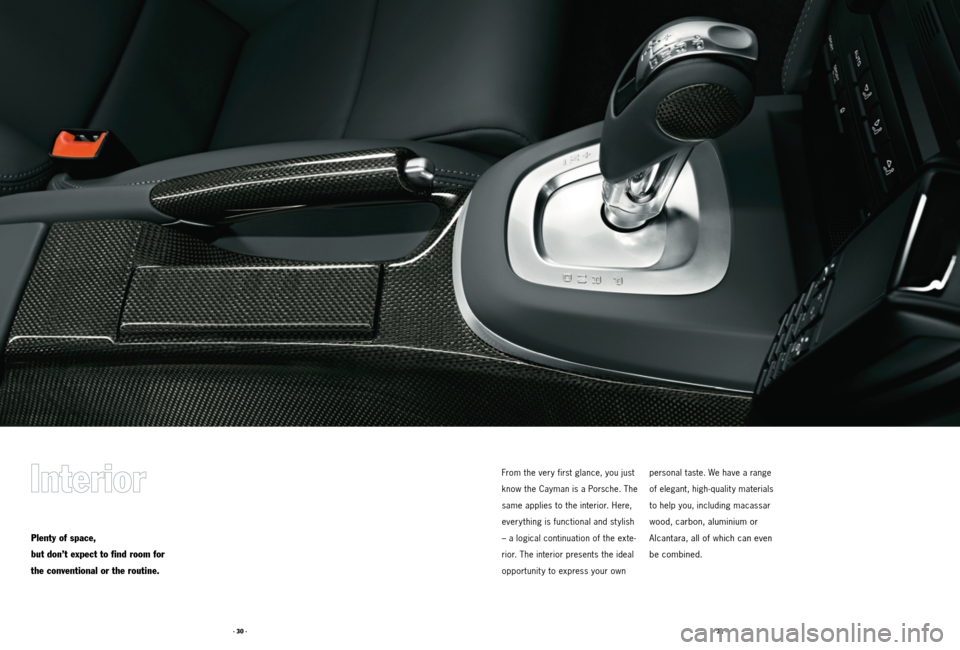

Carbon interior
Page 18 of 33
· 34 ·· 35 ·

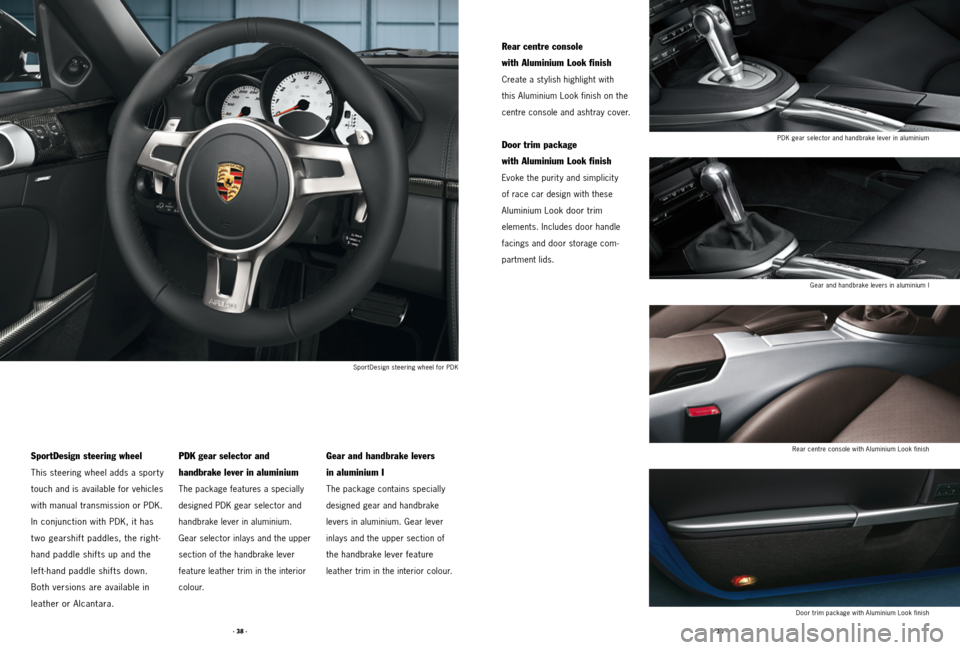

Interior package
Includes multifunction steering
wheel rim (not airbag module)
as well as gear lever/ PDK
1 gear
selector and handbrake lever.
Available in macassar wood or
carbon.
1 7-speed Porsche Doppelkupplung (PDK).
Door trim package
Includes door handle facings and
door storage compartment lids.
Available in macassar wood or
carbon.
Dashboard trim package
Dashboard trim strips and cup-
holder cover. Available in macassar
wood or carbon.
Rear centre console
Rear centre console including ashtray
cover. Available in macassar wood,
carbon or Alcantara.
The illustrations on pages 34
and 35 show the interior trim
packages in carbon.
PDK gear selector and handbrake lever in carbon
Door trim package in carbon
Dashboard trim package in carbon Rear centre console in carbon
Multifunction steering wheel rim in carbon
Page 19 of 33
· 36 ·· 37 ·

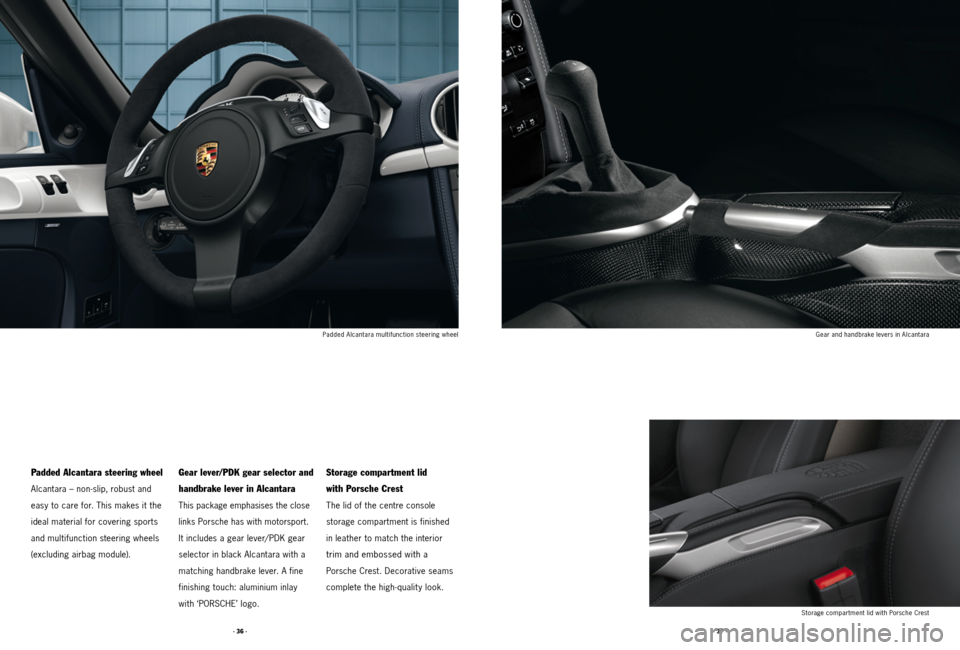

Padded Alcantara steering wheel
Alcantara – non-slip, robust and
easy to care for. This makes it the
ideal material for covering sports
and multifunction steering wheels
(excluding airbag module).
Gear lever/PDK gear selector and
handbrake lever in Alcantara
This package emphasises the close
links Porsche has with motorsport.
It includes a gear lever/PDK gear
selector in black Alcantara with a
matching handbrake lever. A fine
finishing touch: aluminium inlay
with ‘PORSCHE’ logo.
Storage compartment lid
with Porsche Crest
The lid of the centre console
storage compartment is finished
in leather to match the interior
trim and embossed with a
Porsche Crest. Decorative seams
complete the high-quality look.
Storage compartment lid with Porsche Crest
Padded Alcantara multifunction steering wheel
Gear and handbrake levers in Alcantara
Page 20 of 33
· 38 ·· 39 ·
Rear centre console
with Aluminium Look finish
Create a stylish highlight with
this Aluminium Look finish on the
centre console and ashtray cover.
Door trim package
with Aluminium Look finish
Evoke the purit y and simplicit y
of race car design with these
Aluminium Look door trim
elements. Includes door handle
facings and door storage com-
partment lids.
SportDesign steering wheel
This steering wheel adds a sport y
touch and is available for vehicles
with manual transmission or PDK.
In conjunction with PDK, it has
two gearshift paddles, the right-
hand paddle shifts up and the
left-hand paddle shifts down.
Both versions are available in
leather or Alcantara.
PDK gear selector and
handbrake lever in aluminium
The package features a specially
designed PDK gear selector and
handbrake lever in aluminium.
Gear selector inlays and the upper
section of the handbrake lever
feature leather trim in the interior
c ol o u r.
Gear and handbrake levers
in aluminium I
The package contains specially
designed gear and handbrake
levers in aluminium. Gear lever
inlays and the upper section of
the handbrake lever feature
leather trim in the interior colour.
SportDesign steering wheel for PDKPDK gear selector and handbrake lever in aluminium
Gear and handbrake levers in aluminium I
Rear centre console with Aluminium Look finish Door trim package with Aluminium Look finish
