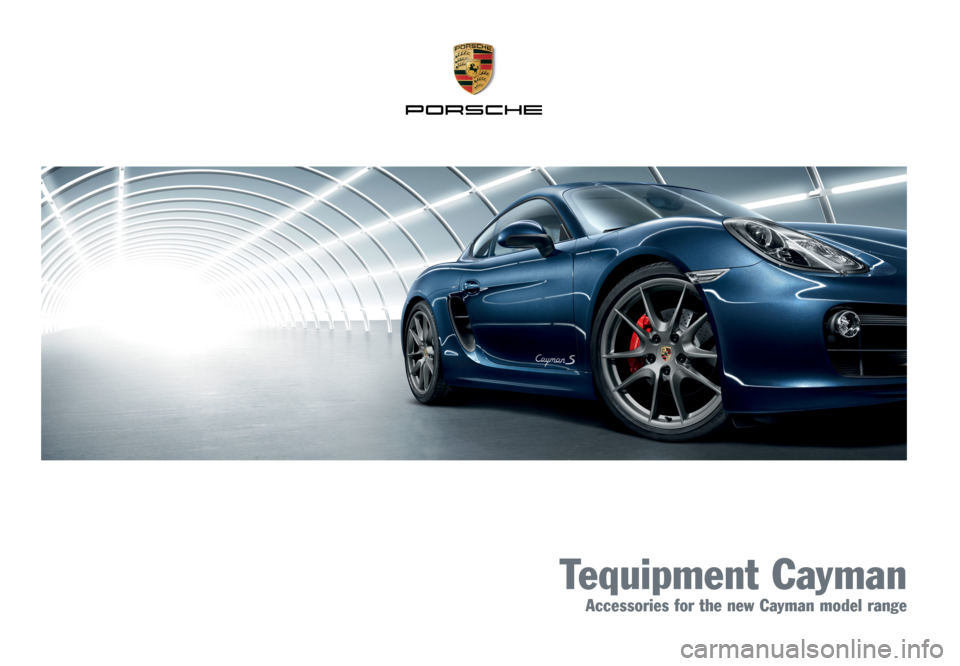

Tequipment Cayman
Accessories for the new Cayman model range
Page 2 of 29
As with the cars we create, all our after-
market accessories undergo rigorous
testing during their development. From
design through to approval, we thor -
oughly scrutinise important properties,
from safet y to performance and from
fitness for purpose to durability. After
all, they are more than just accessories;
they are part of a harmonious overall
concept – your Porsche. The same also applies to one of the
highlights in our range: the 20 -inch
SportTechno wheels painted in GT Silver
Metallic. The sizes of the wheels and
t yres have been maximised so that they
finish flush with the body of the car
and give it an even more imposing
appearance. As a mark of refinement,
the spokes and rim have a highly
polished surface finish. The wheel centres with full- colour
Porsche Crest
are available with a GT Silver Metallic
paint finish.
But how about if you want even more
from your car – more performance,
more st yle, more comfort, in short,
more individuality? No problem. Which -
ever Tequipment products you ask your
Porsche Centre to fit, your Porsche will always be the masterpiece that the
developers at Weissach envisaged it to be.
For peace of mind, you can rest assured
that your original warrant y will not be
affected.
For more information about
Porsche
Tequipment, please contact your Porsche
Centre or visit w w w.porsche.com.
Imagine a car whose exceptional perfor -
mance is matched by exceptional design.
A car with taut proportions and a smooth
silhouette. With defined lines and edges,
a long wheelbase and a wide track. That
car is the Cayman. Built to resolutely
master one particular code: the code of
the curve. For any thing that so self-
evidently goes its own way, there can be
no compromises.Dreams and reality.
Sometimes they’re one and the same thing.Just like there can be no compromises for
you – or indeed for the Porsche develop -
ment team at Weissach. Every single one
of them strives to get the best out of eve -
ry thing. The result: a very special vehicle
which you can subsequently personalise
with model-specific products provided by
Porsche Tequipment. Products designed
by the same Porsche engineers and
designers who made your car.
Page 3 of 29
Exterior 6
Express your sport y inner at titude and
accentuate the resolutely toned physique
of your Cayman with wheels and selected
additional options from Porsche
Tequipment.
Performance 20
Taking the performance concept to new
heights: welcome to the high-achievers
club.
Interior 24
Inner values matter. Whether your
emphasis is on performance, st yle or
classic appeal, we can turn your ideas
into realit y and your Cayman will always
be 100 % Porsche.
Audio and communication 36
A Porsche without intelligent
communi cation systems? Unimaginable.
Transport and car care 44
Your Porsche can carry much more
than the motorsport enthusiast inside it.
We offer a range of transport accesso ries
and cater for your car- care needs.
Panorama 52
A brief insight into the world of Porsche.
Index 55
Contents
For fuel consumption and CO2 emissions, please refer to page 55.
Page 4 of 29
6 · Exterior
A Cayman may not conform,
but it does live up to your expectations.
With the Cayman, it ’s all about performance
excellence. It ’s a concept that permeates
every aspect, from driving dynamics to
design, allowing you not only to explore
the physical limits of your car, corner
after corner, but the limits of your imagi -
nation too.
Why not use that imagination, for example,
to make a few changes to the Cayman’s
appearance? You can make it even more
emotive and expressive. Or perhaps you’d
prefer to emphasise the dynamic, unmis -
takable and uncompromising character of
your Cayman? Whatever your preference,
the products from the Porsche Tequipment
range, including a selection of wheels and
model designations for the doors, will give
your car an incomparable presence.
In short, this is your opportunit y to lend
the Cayman an even sportier character.
Namely your own.
Exterior
Page 5 of 29
12
8 · ExteriorExterior · 9
[1] Model designation on doors in black
With light-coloured exterior paintwork,
a black model designation on the doors
creates a striking contrast and heightens
your sense of anticipation as you step
inside.
Available as ‘ Cayman’ and ‘
Cayman S’
logo.
[2] Model designation on doors in silver
The silver- coloured model designation
on the doors reinforces the very special
character of your Cayman.
Available as ‘ Cayman’ and ‘
Cayman S’
logo.
You get more than add-ons to your car’s standard equipment.
You get more Porsche.
Page 6 of 29
1
10 · Exterior
Can you imagine your Cayman equipped
with one of the wheel and t yre sets from
Porsche Tequipment? We can. They bring
added individualit y combined with a high
level of agilit y, as well as safet y. In other words, they offer even greater
driving pleasure. Keeping your feet on the
ground need never be boring.
Striking design and high performance.
What goes for your car goes for your wheels, too.
Exterior · 11
[1] 20-inch SportTechno wheels
with summer tyres
Set of one-piece alloy wheels optimised
for low weight thanks to flow-forming
technology. The 20-inch SportTechno wheels are char
-
acterised by their imposing design and
size. Clearly defined lines mean that they
are extremely easy to care for. With
GT Silver Metallic paint finish and front
surfaces with high-gloss polished finish.
Page 7 of 29
2
1
4
36
8
5
7
[1] 20-inch Carrera S
wheels with summer tyres
The design of the 20 -inch Carrera S
wheels is both dynamic and powerful –
just like your
Porsche.
[2] 20-inch Carrera S wheels
in satin platinum with summer tyres
Your Porsche delivers excellent dynamic
performance, and so do these wheels.
The 20 -inch Carrera S wheels with sum -
mer t yres and a paint finish in satin
platinum emphasise the sporty character
of your car and offer even more individu -
alit y. Includes wheel centres with full-
colour Porsche Crest.
[3] 20-inch Carrera S wheels painted
in black (high-gloss) with summer tyres
The centre spokes painted in black (high-
gloss) give an imposing appearance.
In combination with the summer t yres,
the 20-inch Carrera S wheels appear even
more
power ful. Includes wheel centres
with full-
colour Porsche Crest.
[4] 20-inch Carrera Classic wheels
with summer tyres
Elegant, highly polished 10 -spoke
wheels with a t wo -tone finish. The
intricate spokes provide a clear view
of the Porsche brake system.
[7] 18-inch Cayman wheels
with winter tyres
The minimalist dual-spoke design of these
18-inch alloy wheels accentuates the
sport y credentials of the Cayman, estab-
lishing a firm link with performance –
and with the road.
[8] 19-inch Cayman S wheels
with winter tyres
The classic five -spoke design of these
19-inch wheels lends the character –
and looks – of your sports car an
ex tra dynamic edge.
[5] 18-inch Boxster wheels
with winter tyres
These one-piece alloy wheels are not only
the ideal match for your Porsche, they
provide excellent cold -weather traction in
conjunction with the winter tyres.
[6] 19-inch Boxster S wheels
with winter tyres
The dual five-spoke design of these
wheels will accentuate the sport y appear -
ance of your Cayman, while the winter
t yres offer improved traction in cold and
wet conditions.
12 · Exterior Exterior · 13
Page 8 of 29
For footnotes, please refer to page 17.
14
· Exterior
Exterior · 15
Product Cayman
Cayman S
Wheel dimensions
(offset (ET) in mm) Tyre specifications Product
Cayman
Cayman S
Wheel dimensions
(offset (ET) in mm) Tyre specifications

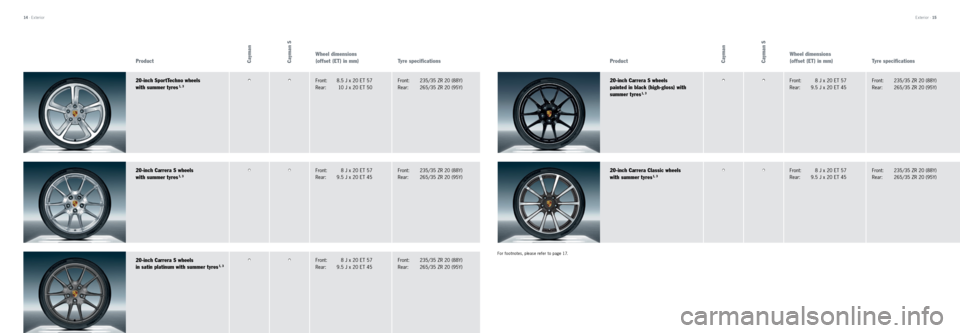

20-inch SportTechno wheels
with summer tyres 1, 3••Front: 8.5 J x 20 ET 57
Rear: 10 J x 20 ET 50 Front:
235/35 ZR 20 (88Y)
Rear: 265/35 ZR 20 (95Y)
20-inch Carrera S wheels
with summer tyres 1, 3••Front: 8 J x 20 ET 57
Rear: 9.5 J x 20 ET 45 Front:
235/35 ZR 20 (88Y)
Rear: 265/35 ZR 20 (95Y)
20-inch Carrera S wheels
painted in black (high-gloss) with
summer tyres
1, 3
••Front: 8 J x 20 ET 57
Rear: 9.5 J x 20 ET 45 Front:
235/35 ZR 20 (88Y)
Rear: 265/35 ZR 20 (95Y)
20-inch Carrera Classic wheels
with summer tyres 1, 3••Front: 8 J x 20 ET 57
Rear: 9.5 J x 20 ET 45 Front:
235/35 ZR 20 (88Y)
Rear: 265/35 ZR 20 (95Y)
20-inch Carrera S wheels
in satin platinum with summer tyres 1, 3••Front: 8 J x 20 ET 57
Rear: 9.5 J x 20 ET 45 Front:
235/35 ZR 20 (88Y)
Rear: 265/35 ZR 20 (95Y)
Page 9 of 29
• Compatible
– Not compatible
1 If your vehicle documents do not contain details of the
correct wheel and tyre combination, please request a
technical approval certificate from your Porsche Centre.
All t yres are designed exclusively for Porsche as indi-
cated by the special Porsche designation (N0, N1, etc.)
on the sidewall. Tyres that do not carr y this designa -
tion are not recommended for use on your Porsche.
2 Winter t yres up to max. 240 km/ h (149 mph).3 Not compatible with 5 mm wheel spacers.4 Compatible with snow chains if no spacers fit ted.5 Not compatible with snow chains – for winter
t y res o n l y.
6 Optional: use of 5 mm spacers on front and rear axles
to widen track.
Exterior · 17
18-inch Cayman wheels
with winter tyres 1, 2, 4, 6••Front: 8 J x 18 ET 57
Rear: 9 J x 18 ET 47 Front:
235/45 R 18 94V M+S
Rear: 265/45 R 18 101V M+S
19-inch Cayman S wheels
with winter tyres 1, 2, 3, 5••Front: 8 J x 19 ET 57
Rear: 9.5 J x 19 ET 45 Front:
235/40 R 19 92V M+S
Rear: 265/40 R 19 98V M+S
Product Cayman
Cayman S
Wheel dimensions
(offset (ET) in mm) Tyre specifications
Notes on the use of winter tyres
Summer t yres provide optimum perfor -
mance at ambient temperatures above
+7 °C. Below this point, the t yre com-
pound begins to harden and braking
distances are increased. We therefore recommend that you fit
winter t yres during the colder months
of the year so that you can drive your
Cayman safe in the knowledge that it will
continue to meet our high standards for
driving safet y even at low temperatures. All winter t yres approved by
Porsche are
identified by an ‘N’ designation on the side -
wall. These t yres are beneficial because
they have been optimised to produce less
noise, rolling resistance is reduced for
improved fuel economy, and, importantly, braking distances are shorter at low
temperatures (below +3 °C).
16 · Exterior
19-inch Boxster S wheels
with winter tyres 1, 2, 3, 5••Front: 8 J x 19 ET 57
Rear: 9.5 J x 19 ET 45 Front:
235/40 R 19 92V M+S
Rear: 265/40 R 19 98V M+S
18-inch Boxster wheels
with winter tyres 1, 2, 4, 6••Front: 8 J x 18 ET 57
Rear: 9 J x 18 ET 47 Front:
235/45 R 18 94V M+S
Rear: 265/45 R 18 101V M+S
Product Cayman
Cayman S
Wheel dimensions
(offset (ET) in mm) Tyre specifications
Page 10 of 29
5
2 4
3
1
18 · Exterior Exterior · 19
For logistical and technical reasons related to the production process, we are unable to accept orders
for a par ticular make of t yre.
*) = Quiet rolling noise )) = Moderate rolling noise ))) = Loud rolling noise
Ty r e t yp eSizeFuel efficiency/
rolling
resistance Wet grip class
External
rolling noise*
class External
rolling noise
(dB)
Summer tyres 235/45 ZR18
265/45 ZR18
235/40 ZR19
265/40 ZR19
235/35 ZR20
265/35 ZR20E
E
E
E
F–E
E C
C–B
B–A
B–A
C–A
C–A)) –)
)
)) –)
))
))
))) –))69 – 68
69
71– 6 8
72–70
72.3 –71
73.9 –72
Winter tyres 235/45 R18
265/45 R18
235/40 R19
265/40 R19E
F–E
F–E
E C
C
C
C)) –)
))
))
))72– 69
73 –71
71–70
71
Fuel efficiency class, wet grip class, rolling noise class: [1] Snow chains
Specially designed for
Porsche models
and featuring ultra-fine links for minimal
adhesion of ice and snow. Set of t wo
for rear axle.
Not compatible with wheel spacers.
[2] Wheel centres
Set of four wheel centre caps with full-
colour Porsche Crest. The perfect finish -
ing touch for any Cayman wheels.
[3] Crested valve caps
Silver- coloured valve caps with embossed
Porsche Crest. For vehicles with Type
Pressure Monitoring (TPM)
1 (without fig.)
and without Type Pressure Monitoring
(TPM)
1.
1 Type Pressure Monitoring (TPM)
[4] Anti-theft wheel protection
Set of four wheel bolts for alloy wheels
with a highly secure coding system
(Thatcham).
[5] Wheel spacers
Wheel spacers create a wider track for
enhanced stabilit y and presence on the
road. When fit ted, your Cayman will look even sportier, as the wheels run virtually
flush with the body of the car. Package
comprises a set of four spacers (5 mm),
sixteen wheel bolts and four anti-theft
wheel bolts in black.
Only in conjunction with 18-inch wheel sets.
[6] Wheel bolts in black including
anti-theft protection (not shown)
Set of black wheel bolts, comprising six -
teen wheel bolts and four anti-theft wheel
bolts. Two versions available: for vehicles
with and vehicles without 5 mm spacers.
10 0 10 5110 11 5
Example: Braking distance in % (measured with the use of t yres conforming to the Porsche specification). Braking
distances optimised by the use of Porsche winter t yres. Absolute values may var y.
Braking with ABS on wet road surface
80–0 km/h (49–0 mph) at +3 °C
Approx. 12 % shorter braking distance
With winter t yres
With summer t yres
How tyres influence braking performance:
Braking with ABS on snow
40–0 km/h (24–0 mph)
With winter t yres With summer t yres
Approx. 19 % shorter braking distance
