dashboard PORSCHE CAYMAN S 2010 1.G Information Manual

Sport Chrono stopwatchSPORT and SPORT PLUS but tons
on the centre console
Three -spoke sports steering wheel with gearshif t switches
For maximum dexterit y, PSM
can be set to standby while the
car is still in ‘Sport ’ mode (p. 72).
For safet y, it is set to intervene
automatically only when ABS
assistance is required on both
front wheels.
A key component of the Sport
Chrono Package is the swivel-
mounted stopwatch in the centre
of the dashboard with analogue
and digital display.
In combination with Porsche
Doppelkupplung (PDK), the Sport
Chrono Package offers t wo addi -
tional functions that are activated
by the SPORT PLUS but ton.
First, ‘Launch Control’, which
ensures you achieve the fastest
possible rate of acceleration from
a standing start – on the racetrack,
for example. ‘Launch Control’ is

operated via the SPORT PLUS
but ton with the ‘D’ or ‘M’ drive
position selected. Whilst the driver
depresses the brake pedal
with the lef t foot, the right foot
depresses the accelerator pedal
to the floor. With the accelerator
in the kickdown position, the
delayed until the upper rev range.
The shif t times are shorter, the
gear changes sportier. At low
rates of deceleration, the system
initiates a swif ter, brake-induced
downshift. In manual mode,

gear changes are faster and more
dynamic. In ‘Sport ’ mode, the
PSM system (p. 72) intervenes
later for increased longitudinal and
lateral dynamics. PSM now af fords
greater manoeuvrabilit y under
braking and exit acceleration,
especially at low speeds.
Sport Chrono Package.
Do you think driving a Porsche
should be an even more involving
experience than it is already? Your
wish is our command. On request,
we can equip your vehicle with the
Sport Chrono Package, which is
available for both of the Cayman
models. Its functions enable even
sportier tuning of the engine and
chassis and guarantee even more
driving pleasure.
Selecting the SPORT but ton
on the centre console activates ‘Sport ’ mode, which makes
throt tle response significantly
more immediate, adjusts the
rev-limiter to a harder set ting,

and tunes the engine dynamics
for performance driving.
The optional Porsche Active
Suspension Management (PASM)
also switches to ‘Sport ’ mode,
which of fers harder damping
and more direct steering and,
therefore, bet ter road holding.
With the optional PDK in automatic
mode, gearshif t points are system detects the driver’s
request for Launch mode and revs
the engine to an optimum speed
of approximately 6,500 rpm.
Engine torque increases and the
clutch closes slightly. The message
‘Launch Control’ appears on
the display on the steering wheel
for PDK. The driver now quickly
releases the brake – and prepares
for maximum acceleration.
Second, the ‘motorsport- derived
gearshif t strategy’. Using this, PDK
is geared up for maximum shif t
speed, the shortest possible shif t
times and optimum shif t points
for maximum acceleration – for
uncompromising performance.
Sport Chrono Package Plus.
On request, the optional Porsche
Communication Management
(PCM, p. 92) can be combined
with the Sport Chrono Package
Plus. In addition to the functions
of the Sport Chrono Package,
it includes a personal memory
function, which can be controlled
using PCM, and a performance
display for evaluating lap times.
Throttle
response
in ‘Sport’
mode Throttle
response
in ‘Normal’
mode
Both sets of characteristics
are dependent on engine
speed
Pedal travel (%)
(%)
Torque
as percentage of maximum
Comparison of the ETC characteristic curve in ‘Normal’ mode and ‘Sport ’ mode
Cayman | Chassis
6263

Porsche Side Impact Protection (POSIP) Cayman
Other passive safet y features
include headrests integrated into
the seat backrests, an energy
absorbing steering column,

three-point seat belts, front seat-
belt pretensioners and force
limiters, energy-absorbing
elements in the dashboard
and flame-resistant materials
throughout the interior.
Child seats.1)
The child seat preparation
package, which includes ISOFIX
mounting points and a key switch
for deactivating the passenger
airbag, is available from Porsche
Tequipment. A full range of
child seats is also available from
Porsche Tequipment.
Passive safety: airbags.
Each of the full-size airbags is
inflated in t wo stages, depending
on the severit y of an accident.
In less serious accidents, the
airbags are only partially inflated,
thereby minimising discomfort
for the occupants. Also fit ted as
standard is Porsche Side Impact
Protection (POSIP). It comprises
Anti-theft protection.
Both models are equipped
with an immobiliser with in -key
transponder. In addition, the
Cayman S has an alarm system
with contact-sensitive exterior
protection as standard (optional
for the Cayman). It is activated
and deactivated by the remote
control integrated in the ignition
key, which is also used to lock and
unlock the doors. Radar-based
interior surveillance is available as
an option for both models.
side impact protection elements
in the doors and t wo airbags

on each side. An integral thorax
airbag is located in the seat back -
rests, while each door panel
contains a head airbag. With each
having a volume of approximately
8 litres, these airbags of fer
excellent protection in the event
of a side impact.
Vehicle tracking system.
In conjunction with the alarm
system, this optional preparation
enables future installation of a
vehicle tracking system available
from Porsche Tequipment.
It makes it possible to locate a
stolen vehicle across most of the
countries of Europe. The package
includes a special wiring loom
and a higher- capacit y bat tery.
A tilt sensor for the alarm system
is also included.
1) Child seats must not be used with
sports bucket seats.
Cayman | Safet y
7475

Cayman S dashboard with optional equipment, including PCM, cordless handset, Tyre Pressure Monitoring (TPM), Sport Chrono Package Plus and PDK
Doppel
kupplung (PDK), as well as
the selected gear. The dial on the
left contains the analogue speed -
ometer with digital trip meter and
total distance display. The design
and legibilit y of the dials are also
enhanced by the white backlight
illumination. of this steering wheel is of fered

as an option. Also available as an
option is the three-spoke sports
steering wheel with gearshift
paddles (p. 52). For extra comfort
on those cold days, steering
wheel heating is also available

on
request for all steering wheels
(steering wheel heating available
only in conjunction with heated
seats).
Instruments.
Each black circular dial in the
instrument cluster – aluminium-
coloured in the Cayman S model
– provides important information
at a glance. In the centre is the
analogue rev counter with digital
speedometer and a customisable
display of key data from the
Steering wheels.
The Cayman models feature as
standard a three-spoke sports
steering wheel with full-size airbag.
The steering wheel is adjustable
for height and reach and the
rim is in smooth -finish leather.
As an option, you can specif y a
three-spoke multifunction steering
wheel in leather with integrated
but tons for the most essential
standard on -board computer.

Additional data, such as average
fuel consumption, fuel range
or the data of the optional TPM
can be shown as desired.
The right-hand dial displays a
range of information, including
the outside temperature and shif t
pat tern of the optional Porsche audio and, where applicable,

navigation and telephone functions.
Alternatively, the multifunction
steering wheel is available in
smooth -finish leather, Aluminium
Look, carbon or macassar wood.
Fit ted as standard in conjunction
with Porsche Doppelkupplung
(PDK) is the three-spoke sports
steering wheel with gearshift
switches. A multifunction version
Cayman | Comfort
8081

Rear luggage space Cup holder
Lockable glove compartment
Door compartment
Cayman roof transport system
Storage compartments.
The interior of the Cayman models
is packed with a wide range
of ingenious and ergonomically
positioned storage spaces. On the
passenger’s side, there is a large,
lockable glove compartment, which
will contain integral CD storage
if you have selected an optional
sound system. Other storage
compartments can be found
beneath the radio or PCM, in the
rear centre console and in the
door armrests. In the Cayman S,
the lids of these compartments are
trimmed in leather. Bet ween the
t wo seats, on the engine bulkhead,
is another compartment offering
4.5 litres of storage space.
The dashboard trim strip neatly
conceals t wo separate cup holders.
mounting the roof transport
system is fit ted as standard,
while at tachments are available
from Porsche Tequipment through
your Porsche Centre.
at tachments are available for

the roof transport system, such as
a roof box and carriers for bikes
and skis/snowboards – for sport y
activities 365 days a year. The
maximum permissible roof load
is 60 kg. The preparation for Roof transport system.
The optional roof transport system
is aerodynamically efficient and
made of aluminium. Its low weight
and uncomplicated mechanism
make it easy to fit. A range of
Cayman | Comfort
8889

CDR-30 audio system
When you’re driving along with bells and whistles,
why not listen to some music, too?
Porsche audio and communication systems.
output stages. For an even more
impressive sound experience,
you could opt for the Sound
Package Plus or BOSE
® Surround
Sound System.
Controlling the CDR-30 could not
be more simple: the function keys
ensure that all the main functions
are directly at your fingertips,
and it is possible to conveniently
control all of the most important
functions using the but tons on
any of the optional multifunction
steering wheels.
Admit tedly, to outperform the

distinctively powerful Porsche
sound is a real challenge.
Nevertheless, we’ve tried and
have developed audio systems
that offer a genuine alternative.
CDR-30 audio system.
Both Cayman models are
equipped as standard with the
CDR-30 audio system with
a 5-inch display (monochrome)
and an MP3- compatible CD drive. An integrated six- disc CD/ DVD
autochanger is available as an
option.
The FM dual tuner with RDS

diversit y, a total of 30 memory
presets, dynamic autostore and
speed-sensitive volume control
are, as usual, all part of the
standard package. Just like the
high-qualit y sound, which is
delivered by t wo high -range
speakers in the dashboard, t wo
low/mid-range speakers in the
door trims and t wo 25-wat t
Cayman | Comfort
90 91

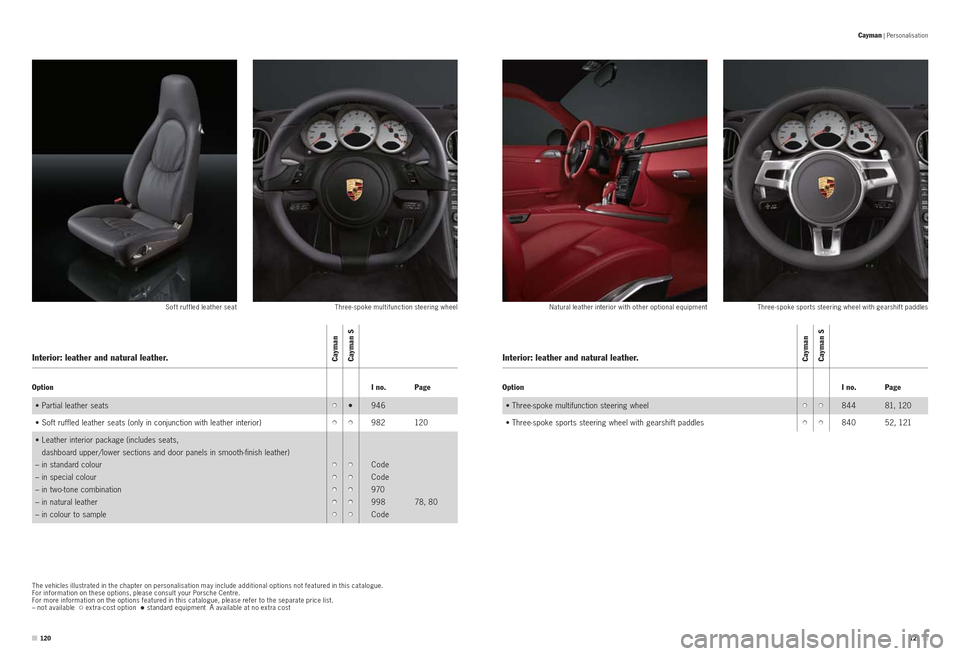

OptionI no.Page
• Three-spoke multifunction steering wheel
••844 81, 12 0
• Three-spoke sports steering wheel with gearshift paddles
••840 52, 121
Option I no.Page
• Partial leather seats
• •946
•
Soft ruffled leather seats (only in conjunction with leather interior)
••982 12 0
•
Leather interior package (includes seats,
dashboard upper/lower sections and door panels in smooth-finish leather)
– in standard colour
– in special colour
– in two-tone combination
– in natural leather
– in colour to sample
•
•
•
•
•
•
•
•
•
•
Code
Code
970
998
Code 78, 80
Cayman
Cayman
SInterior: leather and natural leather.Cayman
Cayman SInterior: leather and natural leather.
Three -spoke multifunction steering wheel Natural leather interior with other optional equipment Three -spoke sports steering wheel with gearshif t paddles
Sof t ruf fled leather seat
Cayman | Personalisation
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
– not available
extra - cost option • standard equipment A available at no extra cost
120
121
