PORSCHE CAYNNE 2004 1.G User Guide

Overview Illustrations
11
Driver’s cockpit1. Power Lift Gate
See Page 23.
2. Power Windows
See Page 87.
3. Inner door Handle
See Page 28.
4. Door mirror adjustment
See Page 55.
5. Engine compartment lid release
See Page 29.
6. Parking brake
See Page 162.
7. Diagnostic socket
8. Parking brake release
See Page 162.
9. Ignition lock/steering lock
See Page 158.
10.Seat adjustment
See Page 34.
11.Instrument lighting knob
See Page 105.
12.Light switch
See Page 104.
10_Cayenne_21_KW17.book Seite 11 Donnerstag, 9. April 2009 3:33 15

12
Overview Illustrations

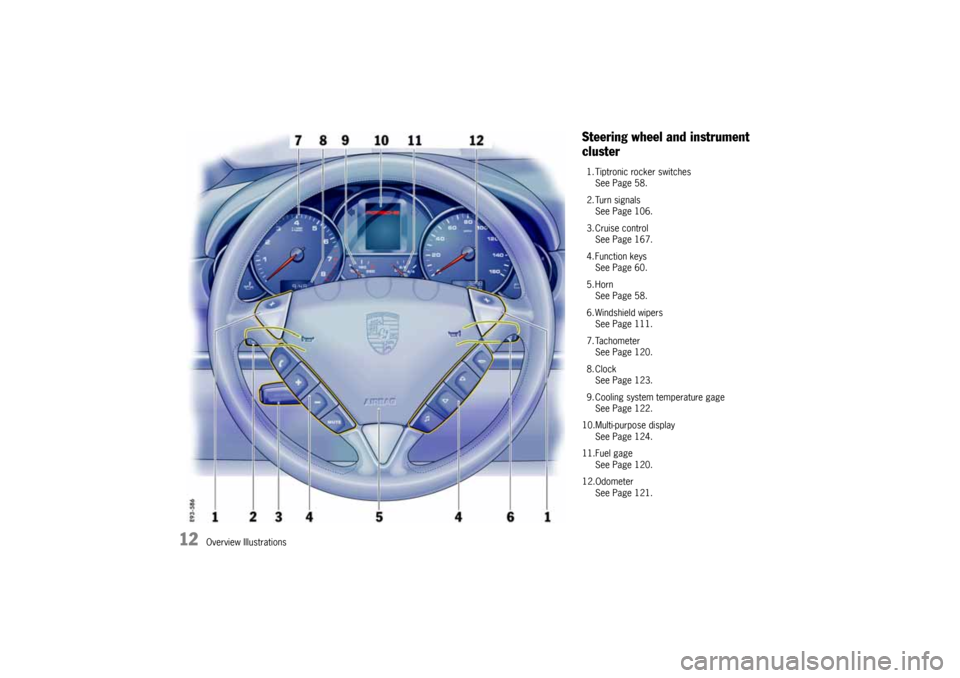

Steering wheel and instrument
cluster1. Tiptronic rocker switches
See Page 58.
2. Turn signals
See Page 106.
3. Cruise control
See Page 167.
4. Function keys
See Page 60.
5. Horn
See Page 58.
6. Windshield wipers
See Page 111.
7. Tachometer
See Page 120.
8. Clock
See Page 123.
9. Cooling system temperature gage
See Page 122.
10.Multi-purpose display
See Page 124.
11.Fuel gage
See Page 120.
12.Odometer
See Page 121.
10_Cayenne_21_KW17.book Seite 12 Donnerstag, 9. April 2009 3:33 15

Overview Illustrations
13

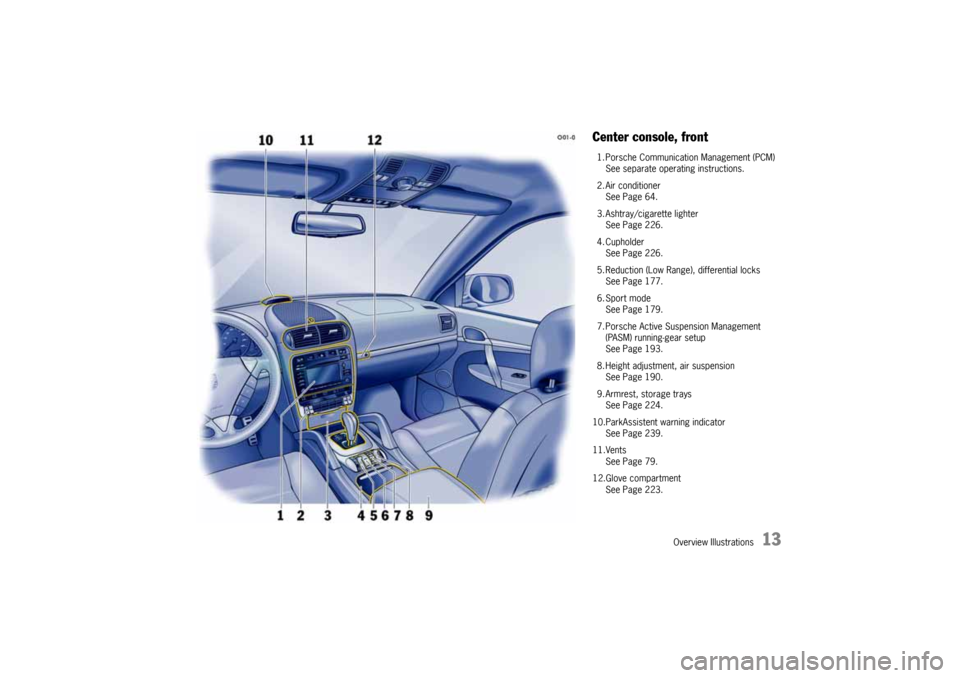

Center console, front1. Porsche Communication Management (PCM)
See separate operating instructions.
2. Air conditioner
See Page 64.
3. Ashtray/cigarette lighter
See Page 226.
4. Cupholder
See Page 226.
5. Reduction (Low Range), differential locks
See Page 177.
6. Sport mode
See Page 179.
7. Porsche Active Suspension Management
(PASM) running-gear setup
See Page 193.
8. Height adjustment, air suspension
See Page 190.
9. Armrest, storage trays
See Page 224.
10.ParkAssistent warning indicator
See Page 239.
11.Vents
See Page 79.
12.Glove compartment
See Page 223.
10_Cayenne_21_KW17.book Seite 13 Donnerstag, 9. April 2009 3:33 15

14

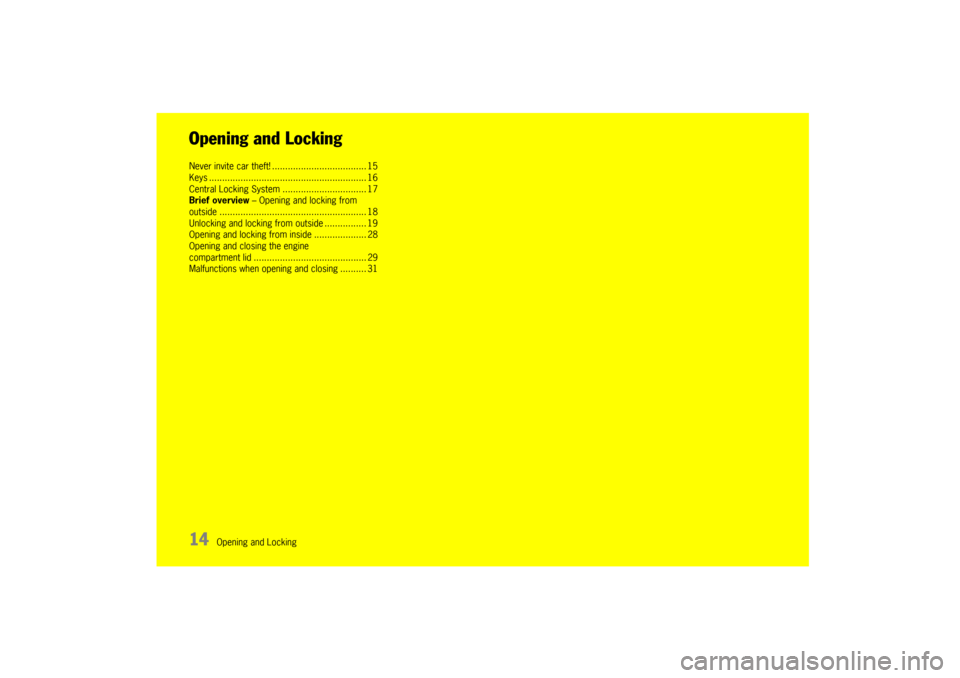

Opening and Locking
Opening and LockingNever invite car theft! .................................... 15
Keys ............................................................ 16
Central Locking System................................ 17
Brief overview – Opening and locking from
outside ........................................................ 18
Unlocking and locking from outside ................ 19
Opening and locking from inside .................... 28
Opening and closing the engine
compartment lid ........................................... 29
Malfunctions when opening and closing .......... 31
10_Cayenne_21_KW17.book Seite 14 Donnerstag, 9. April 2009 3:33 15

Opening and Locking
15
Never invite car theft!An unlocked car with the key in the ignition lock
invites car theft.
A steering wheel lock and a gong alarm are
standard equipment in your Porsche. The gong
alarm will sound if you open the driver's door while
the key is still in the ignition lock. It is your remin-
der to pull the key out of the ignition lock and to
lock the doors.
Warning!
Any uncontrolled movement of the vehicle
may result in property damage, serious
personal injury or death.
Never leave your vehicle unattended with the
key in the ignition lock, especially if children
and/or pets are left unattended in the
vehicle. They can operate power windows
and other controls. If the engine is left
running, they may accidentally engage the
shift lever. Serious personal injury or death
could result from loss of control of the
vehicle.
fAlways remove the ignition key.
fAlways set the parking brake.
fLock the doors with the key or with the remote control.
Warning!
Risk of a serious accident.
The steering column will lock when you re-
move the key while you are driving or as the
car is rolling to a stop. You will not be able to
steer the car.
Serious personal injury or death could result
from loss of control of the vehicle.
fNever remove the key from the steering lock while you are driving.To protect your vehicle and your possessions
from theft, you should always proceed as
follows when leaving your vehicle:
fClose windows.
fClose sliding/lifting roof or Panorama Roof
System.
fRemove ignition key (switch ignition off in
vehicles that have Porsche Entry & Drive).
fEngage steering lock.
fLock storage tray between the front seats and
glove compartment.
fRemove valuables (e.g. car documents, radio
control module, cell phones, house keys) from
the car.
fLock doors.
fLock the glove compartment.
fClose oddment trays.
fCover luggage compartment with the luggage
compartment cover.
fClose rear lid and rear window.
10_Cayenne_21_KW17.book Seite 15 Donnerstag, 9. April 2009 3:33 15

16
Opening and Locking

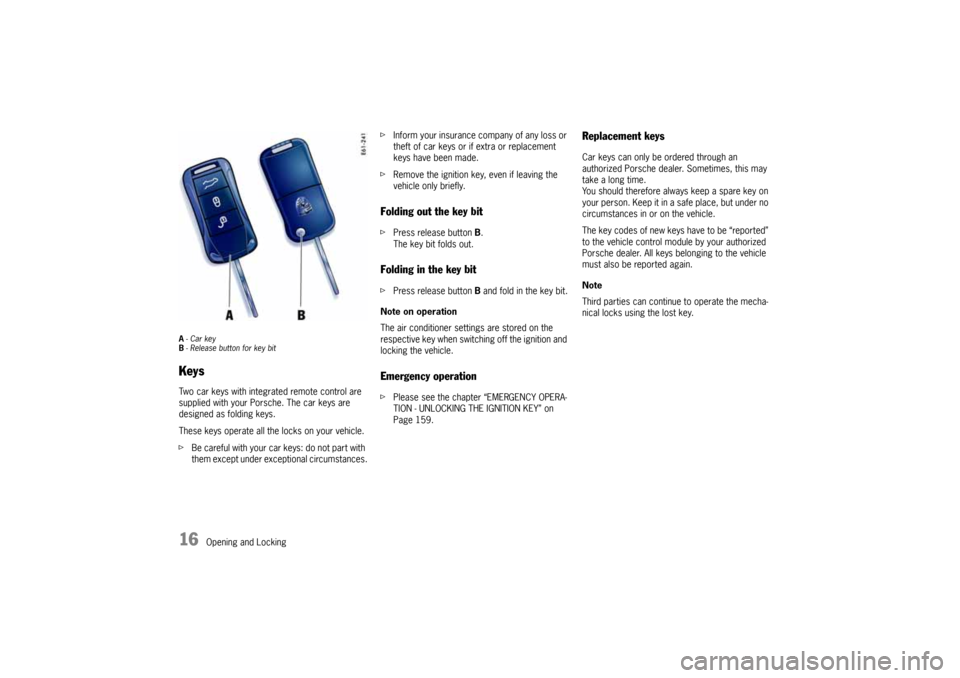

A-Car key
B- Release button for key bitKeysTwo car keys with integrated remote control are
supplied with your Porsche. The car keys are
designed as folding keys.
These keys operate all the locks on your vehicle.
fBe careful with your car keys: do not part with
them except under exceptional circumstances.fInform your insurance company of any loss or
theft of car keys or if extra or replacement
keys have been made.
fRemove the ignition key, even if leaving the
vehicle only briefly.
Folding out the key bitfPress release button B.
The key bit folds out.Folding in the key bitfPress release button B and fold in the key bit.
Note on operation
The air conditioner settings are stored on the
respective key when switching off the ignition and
locking the vehicle.Emergency operationfPlease see the chapter “EMERGENCY OPERA-
TION - UNLOCKING THE IGNITION KEY” on
Page 159.
Replacement keysCar keys can only be ordered through an
authorized Porsche dealer. Sometimes, this may
take a long time.
You should therefore always keep a spare key on
your person. Keep it in a safe place, but under no
circumstances in or on the vehicle.
The key codes of new keys have to be “reported”
to the vehicle control module by your authorized
Porsche dealer. All keys belonging to the vehicle
must also be reported again.
Note
Third parties can continue to operate the mecha-
nical locks using the lost key.
10_Cayenne_21_KW17.book Seite 16 Donnerstag, 9. April 2009 3:33 15

Opening and Locking
17

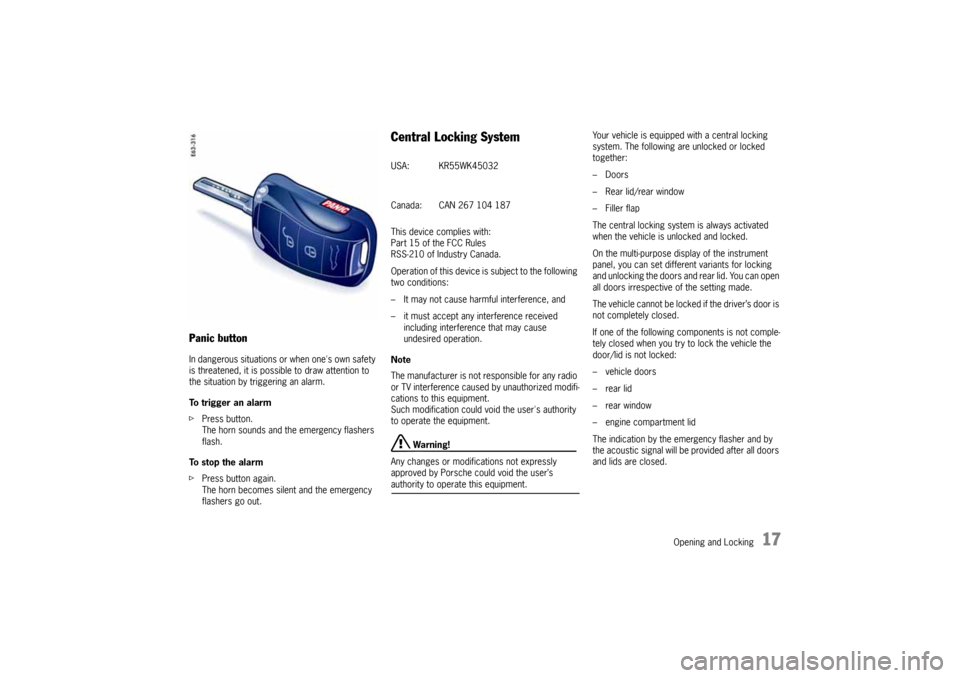

Panic buttonIn dangerous situations or when one's own safety
is threatened, it is possible to draw attention to
the situation by triggering an alarm.
To trigger an alarm
fPress button.
The horn sounds and the emergency flashers
flash.
To stop the alarm
fPress button again.
The horn becomes silent and the emergency
flashers go out.
Central Locking System This device complies with:
Part 15 of the FCC Rules
RSS-210 of Industry Canada.
Operation of this device is subject to the following
two conditions:
– It may not cause harmful interference, and
– it must accept any interference received
including interference that may cause
undesired operation.
Note
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifi-
cations to this equipment.
Such modification could void the user's authority
to operate the equipment.
Warning!
Any changes or modifications not expressly
approved by Porsche could void the user’s
authority to operate this equipment.Your vehicle is equipped with a central locking
system. The following are unlocked or locked
together:
– Doors
– Rear lid/rear window
– Filler flap
The central locking system is always activated
when the vehicle is unlocked and locked.
On the multi-purpose display of the instrument
panel, you can set different variants for locking
and unlocking the doors and rear lid. You can open
all doors irrespective of the setting made.
The vehicle cannot be locked if the driver’s door is
not completely closed.
If one of the following components is not comple-
tely closed when you try to lock the vehicle the
door/lid is not locked:
– vehicle doors
– rear lid
–rear window
– engine compartment lid
The indication by the emergency flasher and by
the acoustic signal will be provided after all doors
and lids are closed.USA: KR55WK45032
Canada: CAN 267 104 187
10_Cayenne_21_KW17.book Seite 17 Donnerstag, 9. April 2009 3:33 15

18
Opening and Locking
Brief overview – Opening and
locking from outsideThe Porsche Entry & Drive option can be recogni-
zed by the buttons A in the door handles.
This brief overview does not replace the informati-
on provided in the chapter “Opening and locking
from outside”. In particular, warnings are not re-
placed by this brief overview.
Key Porsche Entry & DriveWhat do I want to do?
What do I have to do?
What happens?
Unlocking
Using the key:
Press button on the key once.
Press button on the key twice.
With Porsche Entry & Drive:
Grip door handle fully.The emergency flasher flashes once.
The driver’s door can be opened.
All vehicle doors and the rear lid can be opened.
The doors and the rear lid
can be opened.
Locking
Using the key:
Press button on the key.
With Porsche Entry & Drive:
Press the button A in the handle.
The emergency flasher flashes twice and an
acoustic signal will sound twice.
The doors are locked.
Locking if persons/animals
are remaining in vehicle (switching off passenger compartment
monitoring of the alarm system)fPlease see the chapter “TEMPORARILY
DEACTIVATING PASSENGER COMPARTMENT
MONITORING SYSTEM” on Page 246.Switching off alarm
Press button on the key.
10_Cayenne_21_KW17.book Seite 18 Donnerstag, 9. April 2009 3:33 15

Opening and Locking
19

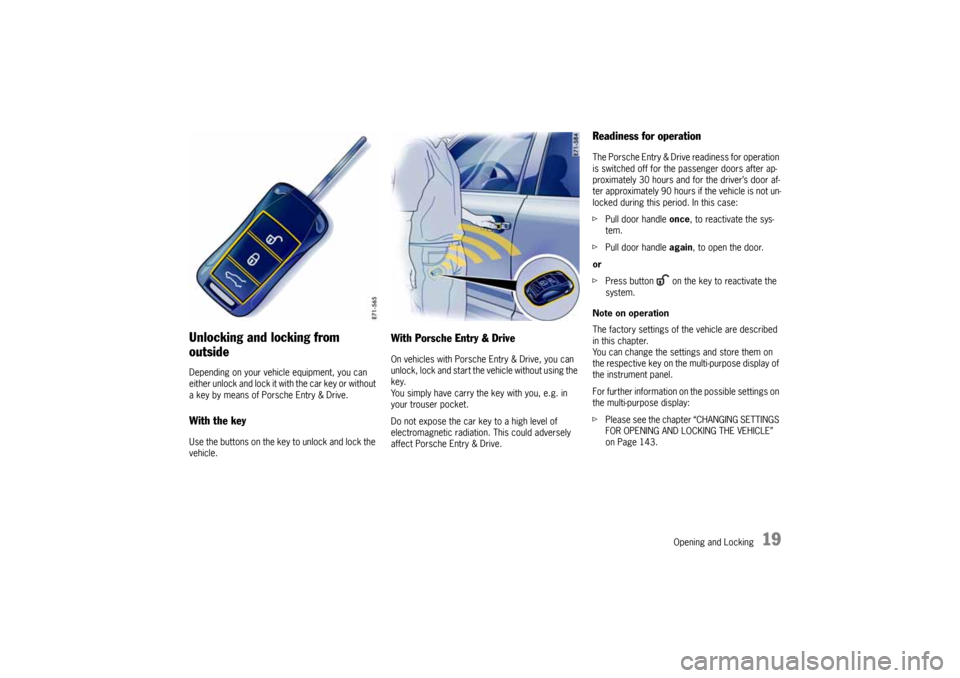

Unlocking and locking from
outsideDepending on your vehicle equipment, you can
either unlock and lock it with the car key or without
a key by means of Porsche Entry & Drive. With the keyUse the buttons on the key to unlock and lock the
vehicle.
With Porsche Entry & DriveOn vehicles with Porsche Entry & Drive, you can
unlock, lock and start the vehicle without using the
key.
You simply have carry the key with you, e.g. in
your trouser pocket.
Do not expose the car key to a high level of
electromagnetic radiation. This could adversely
affect Porsche Entry & Drive.
Readiness for operationThe Porsche Entry & Drive readiness for operation
is switched off for the passenger doors after ap-
proximately 30 hours and for the driver’s door af-
ter approximately 90 hours if the vehicle is not un-
locked during this period. In this case:
fPull door handle once, to reactivate the sys-
tem.
fPull door handle again, to open the door.
or
fPress button on the key to reactivate the
system.
Note on operation
The factory settings of the vehicle are described
in this chapter.
You can change the settings and store them on
the respective key on the multi-purpose display of
the instrument panel.
For further information on the possible settings on
the multi-purpose display:
fPlease see the chapter “CHANGING SETTINGS
FOR OPENING AND LOCKING THE VEHICLE”
on Page 143.
10_Cayenne_21_KW17.book Seite 19 Donnerstag, 9. April 2009 3:33 15

20
Opening and Locking

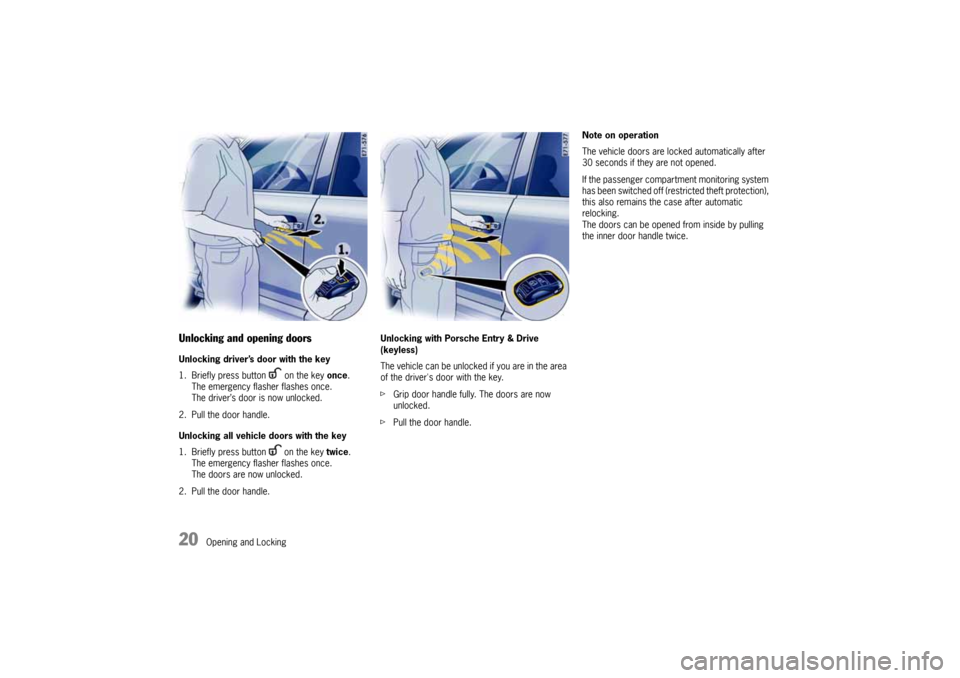

Unlocking and opening doorsUnlocking driver’s door with the key

1. Briefly press button on the key once.
The emergency flasher flashes once.
The driver’s door is now unlocked.
2. Pull the door handle.
Unlocking all vehicle doors with the key

1. Briefly press button on the key twice.
The emergency flasher flashes once.
The doors are now unlocked.
2. Pull the door handle.Unlocking with Porsche Entry & Drive
(keyless)
The vehicle can be unlocked if you are in the area
of the driver's door with the key.
fGrip door handle fully. The doors are now
unlocked.
fPull the door handle.Note on operation
The vehicle doors are locked automatically after
30 seconds if they are not opened.
If the passenger compartment monitoring system
has been switched off (restricted theft protection),
this also remains the case after automatic
relocking.
The doors can be opened from inside by pulling
the inner door handle twice.10_Cayenne_21_KW17.book Seite 20 Donnerstag, 9. April 2009 3:33 15
