PORSCHE CAYNNE 2004 1.G Owners Manual

Minor Repairs
341

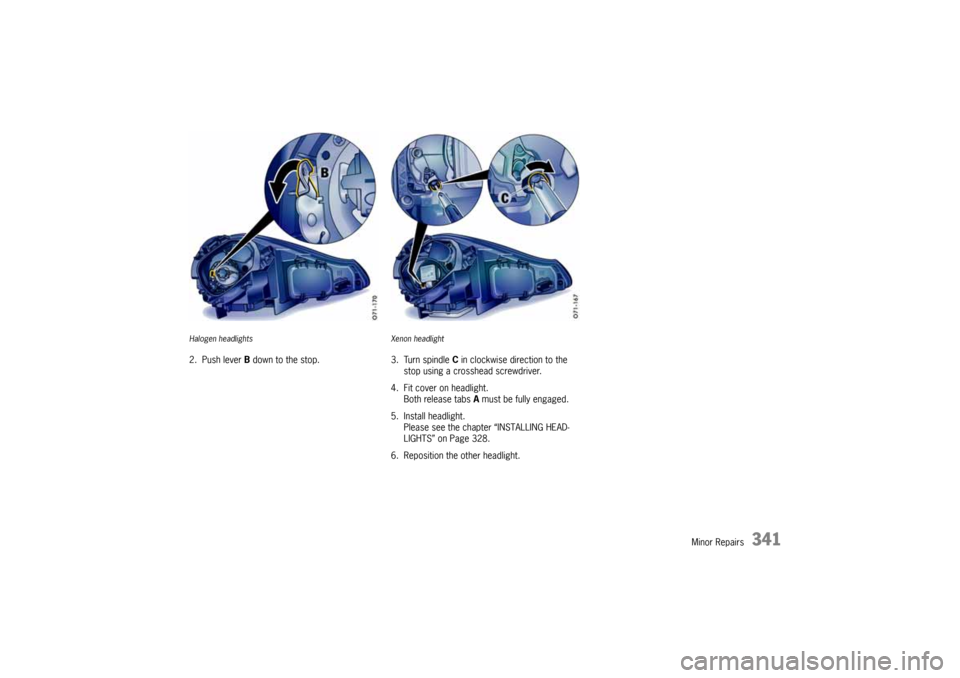

Halogen headlights2. Push lever B down to the stop.
Xenon headlight3. Turn spindle C in clockwise direction to the
stop using a crosshead screwdriver.
4. Fit cover on headlight.
Both release tabs A must be fully engaged.
5. Install headlight.
Please see the chapter “INSTALLING HEAD-
LIGHTS” on Page 328.
6. Reposition the other headlight.
10_Cayenne_21_KW17.book Seite 341 Donnerstag, 9. April 2009 3:33 15

342
Minor Repairs

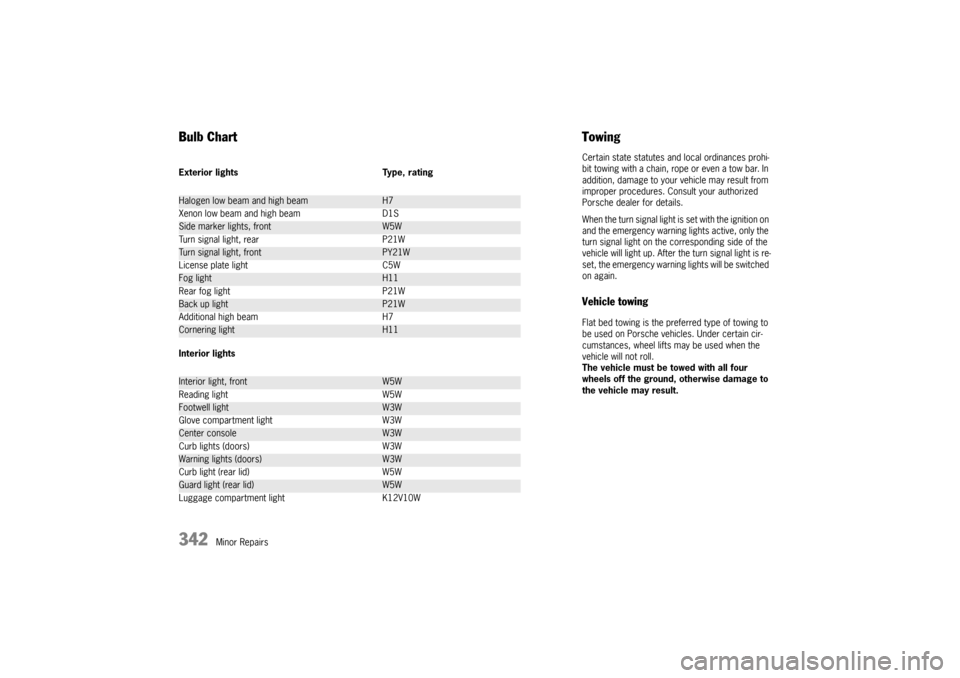

Bulb ChartExterior lights Type, ratingHalogen low beam and high beam
H7
Xenon low beam and high beam D1S
Side marker lights, front
W5W
Turn signal light, rear P21W
Turn signal light, front
PY21W
License plate light C5W
Fog light
H11
Rear fog light P21W
Back up light
P21W
Additional high beam H7
Cornering light
H11
Interior lights
Interior light, front
W5W
Reading light W5W
Footwell light
W3W
Glove compartment light W3W
Center console
W3W
Curb lights (doors) W3W
Warning lights (doors)
W3W
Curb light (rear lid) W5W
Guard light (rear lid)
W5W
Luggage compartment light K12V10W
TowingCertain state statutes and local ordinances prohi-
bit towing with a chain, rope or even a tow bar. In
addition, damage to your vehicle may result from
improper procedures. Consult your authorized
Porsche dealer for details.
When the turn signal light is set with the ignition on
and the emergency warning lights active, only the
turn signal light on the corresponding side of the
vehicle will light up. After the turn signal light is re-
set, the emergency warning lights will be switched
on again.Vehicle towingFlat bed towing is the preferred type of towing to
be used on Porsche vehicles. Under certain cir-
cumstances, wheel lifts may be used when the
vehicle will not roll.
The vehicle must be towed with all four
wheels off the ground, otherwise damage to
the vehicle may result.
10_Cayenne_21_KW17.book Seite 342 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
343
Towing hookDepending on the vehicle equipment, the spare-
wheel well contains one or two towing hooks.
Caution!
Risk of damage to the vehicle.
fUse the towing hook only for an emergency to
remove the vehicle off the road. The towing
hook is to be used only to pull the vehicle onto
the flat bed, tractor or towing aparatus if the
vehicle will roll freely. Under no circumstances
is the vehicle to be secured using the towing
hook.
fNever use the towing hook to tow this or any other vehicle.

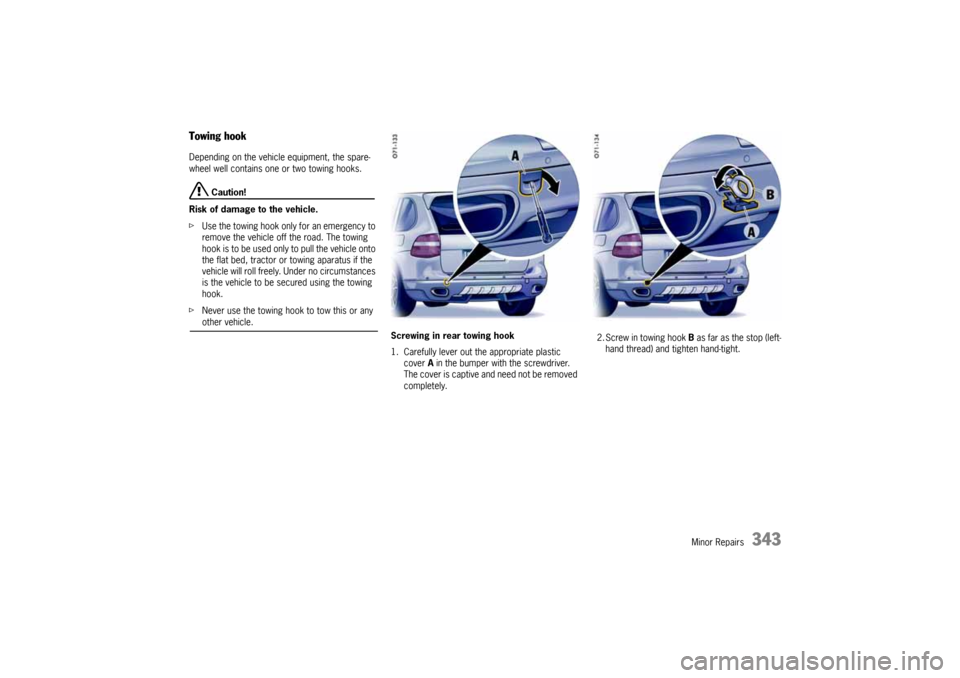

Screwing in rear towing hook
1. Carefully lever out the appropriate plastic
cover A in the bumper with the screwdriver.
The cover is captive and need not be removed
completely.2. Screw in towing hook B as far as the stop (left-
hand thread) and tighten hand-tight.
10_Cayenne_21_KW17.book Seite 343 Donnerstag, 9. April 2009 3:33 15

344

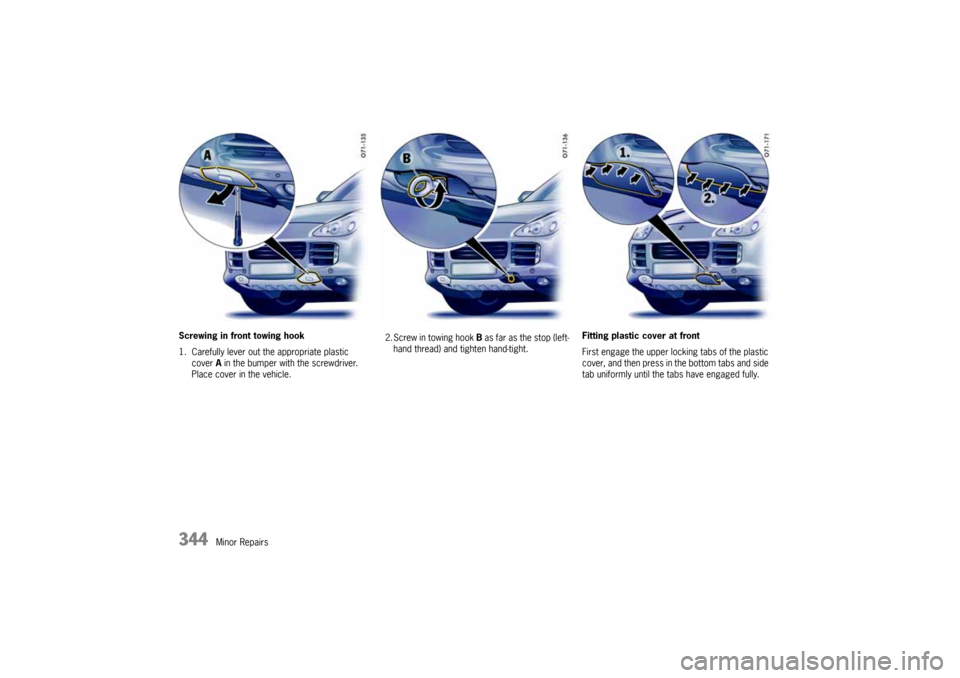

Minor Repairs Screwing in front towing hook
1. Carefully lever out the appropriate plastic
cover A in the bumper with the screwdriver.
Place cover in the vehicle.2. Screw in towing hook B as far as the stop (left-
hand thread) and tighten hand-tight.Fitting plastic cover at front
First engage the upper locking tabs of the plastic
cover, and then press in the bottom tabs and side
tab uniformly until the tabs have engaged fully.
10_Cayenne_21_KW17.book Seite 344 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
345

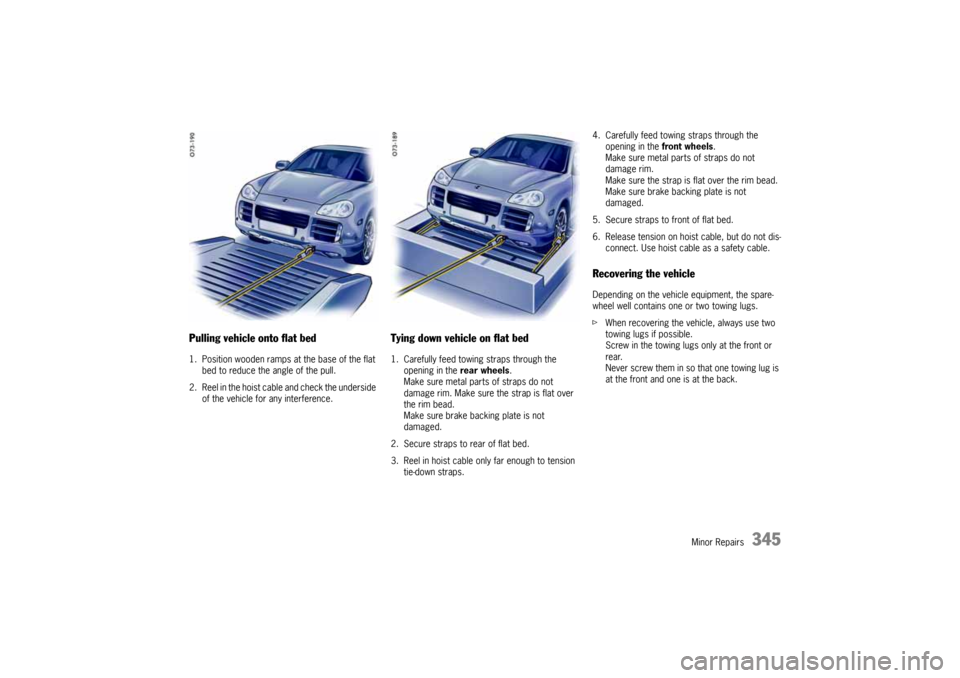

Pulling vehicle onto flat bed1. Position wooden ramps at the base of the flat
bed to reduce the angle of the pull.
2. Reel in the hoist cable and check the underside
of the vehicle for any interference.
Tying down vehicle on flat bed1. Carefully feed towing straps through the
opening in the rear wheels.
Make sure metal parts of straps do not
damage rim. Make sure the strap is flat over
the rim bead.
Make sure brake backing plate is not
damaged.
2. Secure straps to rear of flat bed.
3. Reel in hoist cable only far enough to tension
tie-down straps.4. Carefully feed towing straps through the
opening in the front wheels.
Make sure metal parts of straps do not
damage rim.
Make sure the strap is flat over the rim bead.
Make sure brake backing plate is not
damaged.
5. Secure straps to front of flat bed.
6. Release tension on hoist cable, but do not dis-
connect. Use hoist cable as a safety cable.
Recovering the vehicleDepending on the vehicle equipment, the spare-
wheel well contains one or two towing lugs.
fWhen recovering the vehicle, always use two
towing lugs if possible.
Screw in the towing lugs only at the front or
rear.
Never screw them in so that one towing lug is
at the front and one is at the back.
10_Cayenne_21_KW17.book Seite 345 Donnerstag, 9. April 2009 3:33 15

346
Tire Pressure and Technical Data
Tire Pressure and Technical DataVehicle Identification.................................... 347
Engine Data................................................ 349
Tires, Rims, Tracks ..................................... 350
Tire Pressures, Cold (68 °F/20 °C) .............. 354
Weights...................................................... 356
Ground Clearance ....................................... 357
Capacities .................................................. 359
Dimensions ................................................ 360
Driving Performance ................................... 361
