Overview Illustrations
11
Driver’s cockpit1. Power Lift Gate
See Page 23.
2. Power Windows
See Page 87.
3. Inner door Handle
See Page 28.
4. Door mirror adjustment
See Page 55.
5. Engine compartment lid release
See Page 29.
6. Parking brake
See Page 162.
7. Diagnostic socket
8. Parking brake release
See Page 162.
9. Ignition lock/steering lock
See Page 158.
10.Seat adjustment
See Page 34.
11.Instrument lighting knob
See Page 105.
12.Light switch
See Page 104.
10_Cayenne_21_KW17.book Seite 11 Donnerstag, 9. April 2009 3:33 15

36
Seats, Mirrors and Steering Wheel
Seat positionA correct sitting position is important for safe and
fatigue-free driving. We recommend the following
procedure for adjusting the driver’s seat to suit
individual requirements:
1. Adjust the seat height to give yourself enough
headroom and an unobstructed view outside
the vehicle.
2. Adjust the seat until, with the accelerator pedal
fully depressed, your leg is straight but your
entire foot still rests on the accelerator pedal.
3. Grip the top half of the steering wheel. Set the
backrest angle and steering wheel position so
that your arms are almost outstretched.
However, your shoulders must still rest on the
backrest.
4. If necessary, correct the seat fore-and-aft
adjustment.
5. Adjust the height of the headrest so that the
upper edge is at eye level or higher.
Adjusting the seatA Front seat height adjustment.
B Rear seat height adjustment.C Fore and aft adjustment.
D Backrest angle adjustment.
E Lumbar support adjustment.
To permit a relaxed sitting posture, the back-
rest curvature is infinitely adjustable in vertical
and horizontal directions for individual pelvis
and spinal column support.
fPress the switch in the direction indicated by
the arrows until the desired setting is reached.
10_Cayenne_21_KW17.book Seite 36 Donnerstag, 9. April 2009 3:33 15

Seats, Mirrors and Steering Wheel
37
Front seat with memoryPersonal seat, door mirror, steering wheel and
safety belt height adjustments can be stored and
recalled on the person buttons A and car keys.
Warning!
Risk of crushing due to uncontrolled recall of
settings.
fCancel automatic adjustment by pressing any
of the seat adjustment buttons.
fDo not leave children in the car unattended.Memory options–Seat adjustment
– Door mirror adjustmentComfort memory options–Seat adjustment
– Door mirror adjustment
– Steering wheel and safety belt height adjust-
ment
Recalling the settings using the car key or
in vehicles that have Porsche Entry &
DrivefOpen the driver’s door.
The stored settings of the driver's seat are
recalled automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any driver’s seat setting button.Recalling the settings with person buttons
1 - 3 (driver’s and passenger’s seat)1. Unlock vehicle and open the driver’s door.
2. Press the relevant person button until the
stored positions have been reached
or
Briefly touch the person button if the ignition
key is inserted or if the ignition is switched on
(in vehicles that have Porsche Entry & Drive).
The stored positions for each seat are recalled
automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any seat adjustment button.
10_Cayenne_21_KW17.book Seite 37 Donnerstag, 9. April 2009 3:33 15

38
Seats, Mirrors and Steering Wheel
Storing driver’s seat settingsStoring settings on a person button and a car
key
1. Apply the parking brake.
2. Switch ignition on.
3. Make the required adjustments to the seat,
mirror, steering wheel and safety belt.
4. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.
The settings are now stored on the desired
person button.
5. Withdraw car key or switch ignition off in
vehicles that have Porsche Entry & Drive.
6. Press the SET memory button within
10 seconds and keep the button depressed
until an acknowledge tone is obtained.
The settings are now assigned to the car key.

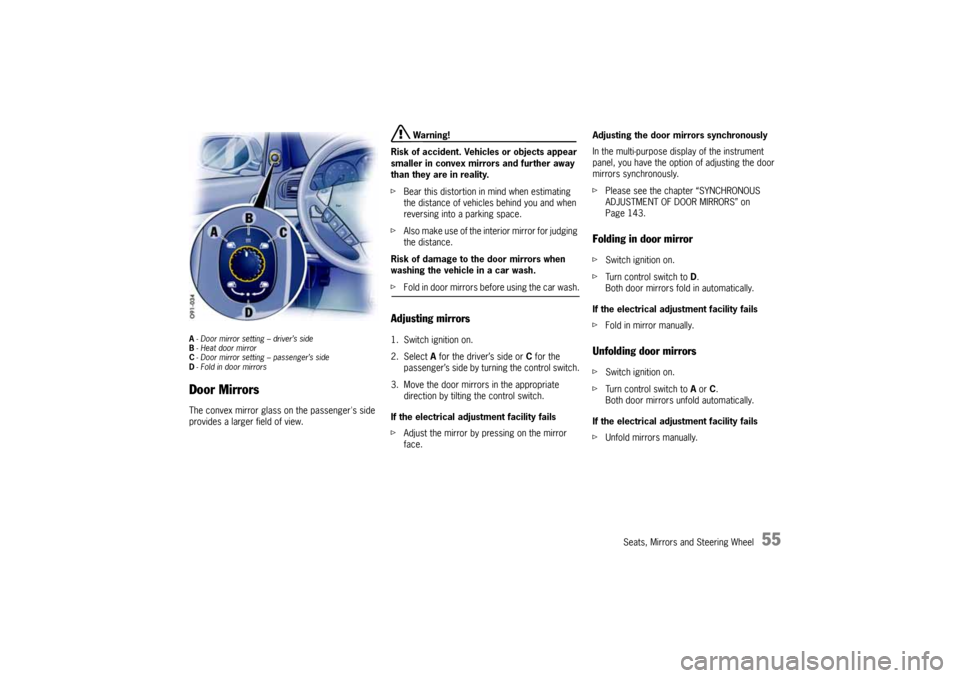

A-Control switch for door mirror adjustment
C- Passenger mirror settingStoring passenger mirror setting as a
parking aidIf the passenger’s mirror is supposed to swivel
downwards when reversing, this can also be
stored in the driver’s seat setting.
1. Apply the parking brake.
2. Switch ignition on.
3. Press the relevant person button.
4. Engage reverse gear.5. Set the control switch A for the mirror setting
to the passenger’s side C.
The passenger’s mirror swivels downwards.
6. Adjust the passenger’s mirror to the required
setting.
7. Briefly press the SET memory button and,
within 10 seconds, hold down the person
button on which the setting is to be stored until
an acknowledge tone is obtained.
Storing passenger seat settings1. Apply the parking brake.
2. Switch ignition on.
3. Adjust seat position and belt height.
4. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.Automatic storage – driver’s seatIf settings were changed after the driver’s door
was opened, these new settings are temporarily
stored when the vehicle is locked.
This storage is deleted if the vehicle is unlocked
with a programed key and the driver’s door is
opened. Then the settings of the key used is
recalled.
10_Cayenne_21_KW17.book Seite 38 Donnerstag, 9. April 2009 3:33 15

44
Seats, Mirrors and Steering Wheel fMake sure that the belts and buckles fit
correctly on the rear seat bench.
Releasing the safety beltfHold the belt tongue.
fPress the red button (arrow).
fGuide belt tongue to the reel.
Safety belt height adjustmentThe heights of the belt deflectors for the driver’s
seat, passenger’s seat and the outer rear seats
can be adjusted.
Adjust the height of the safety belt so that it runs
across the middle of the shoulder, not against the
neck.
Adjusting belt height manually
fUpward – push belt deflector up.
fDownward – press button A and move belt
deflector.Adjusting belt height electrically
fOperate rocker switch B in the desired
direction until the optimal belt adjustment is
reached.
On vehicles with comfort memory, seat belt height
adjustment can be stored on the person buttons
and vehicle keys and recalled with these.
fPlease see the chapter “FRONT SEAT WITH
MEMORY” on Page 37.
10_Cayenne_21_KW17.book Seite 44 Donnerstag, 9. April 2009 3:33 15

Seats, Mirrors and Steering Wheel
47
Seat adjustment for the passenger's seat
Danger!
Safety belts only offer protection when the
backrest is upright and the belts are properly
positioned on the body. Improperly positio-
ned safety belts can cause serious personal
injury or death in an accident.
fDo not operate the car with the driver or pas-senger backrests excessively reclined.
If the seat is in an extreme position (e.g., the back-
rest is in contact with the rear seat bench), the
backrest can warp. Warping of the backrest can
lead to malfunctions.
fCorrect the seat adjustment.
The seat is not jammed and is self-supporting.
The backrest is in the upright position.
fDo not transport a load and objects in the rear
footwell or under the passenger's seat.
If the load or objects are under the seat, they
can cause malfunctions.
If the weight on the passenger's seat is reduced
significantly, e.g., by supporting weight on the
armrest, the passenger's airbag can be switched
off.fSelect an upright seat position, and do not
support weight on the armrests or lean out of
the window.
Always keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area. Do not lean against the inside of the door
or outside the window while the vehicle is
moving.
If the passenger's seat is warped significantly, a
message is displayed in the multi-purpose display
in the instrument panel:
fCorrect the seat adjustment.
fPlease see the chapter “OVERVIEW OF
WARNING MESSAGES” on Page 149.
Vehicle modifications to accommodate
persons with disabilitiesBecause modifications to your vehicle could
compromise your advanced airbag system,
please call 1-800-PORSCHE prior to having your
vehicle modified.
Automatic deactivation of the passenger
airbags
Danger!
The use of a child restraint system in the
front passenger seat can result in serious
personal injury or death to the child from an
airbag deployment.
To reduce risk of injury from an inflating
airbag in an accident, Porsche strongly
recommends:
fUnder all normal circumstances, the child seat
must be placed in the rear.
Do not use a child restraint system in the front passenger seat.
Before transporting a child on the passenger seat:
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 49.
– When a child weighing up to 29 lbs (13 kg)
is seated in the child restraint system, the front
airbag is automatically deactivated on the pas-
senger side.
– When an adult is seated in the front seat the
front airbag remains active on the passenger‘s
side.
10_Cayenne_21_KW17.book Seite 47 Donnerstag, 9. April 2009 3:33 15

Seats, Mirrors and Steering Wheel
55
A- Door mirror setting – driver’s side
B- Heat door mirror
C- Door mirror setting – passenger’s side
D- Fold in door mirrorsDoor MirrorsThe convex mirror glass on the passenger's side
provides a larger field of view.
Warning!
Risk of accident. Vehicles or objects appear
smaller in convex mirrors and further away
than they are in reality.
fBear this distortion in mind when estimating
the distance of vehicles behind you and when
reversing into a parking space.
fAlso make use of the interior mirror for judging
the distance.
Risk of damage to the door mirrors when
washing the vehicle in a car wash.
fFold in door mirrors before using the car wash.Adjusting mirrors1. Switch ignition on.
2. Select A for the driver’s side or C for the
passenger’s side by turning the control switch.
3. Move the door mirrors in the appropriate
direction by tilting the control switch.
If the electrical adjustment facility fails
fAdjust the mirror by pressing on the mirror
face.Adjusting the door mirrors synchronously
In the multi-purpose display of the instrument
panel, you have the option of adjusting the door
mirrors synchronously.
fPlease see the chapter “SYNCHRONOUS
ADJUSTMENT OF DOOR MIRRORS” on
Page 143.
Folding in door mirrorfSwitch ignition on.
fTurn control switch to D.
Both door mirrors fold in automatically.
If the electrical adjustment facility fails
fFold in mirror manually.Unfolding door mirrorsfSwitch ignition on.
fTurn control switch to A or C.
Both door mirrors unfold automatically.
If the electrical adjustment facility fails
fUnfold mirrors manually.
10_Cayenne_21_KW17.book Seite 55 Donnerstag, 9. April 2009 3:33 15

204
Luggage Compartment, Loadspace and Storage
Folding rear seats forward and
returning to upright positionThe rear seats are divided and can be folded
forward individually to make the loadspace bigger.
Caution!
Risk of damage to seat cushions, backrest,
and seat belt if only the backrest is folded
forward.
fAlways fold seat cushions and backrest forward.

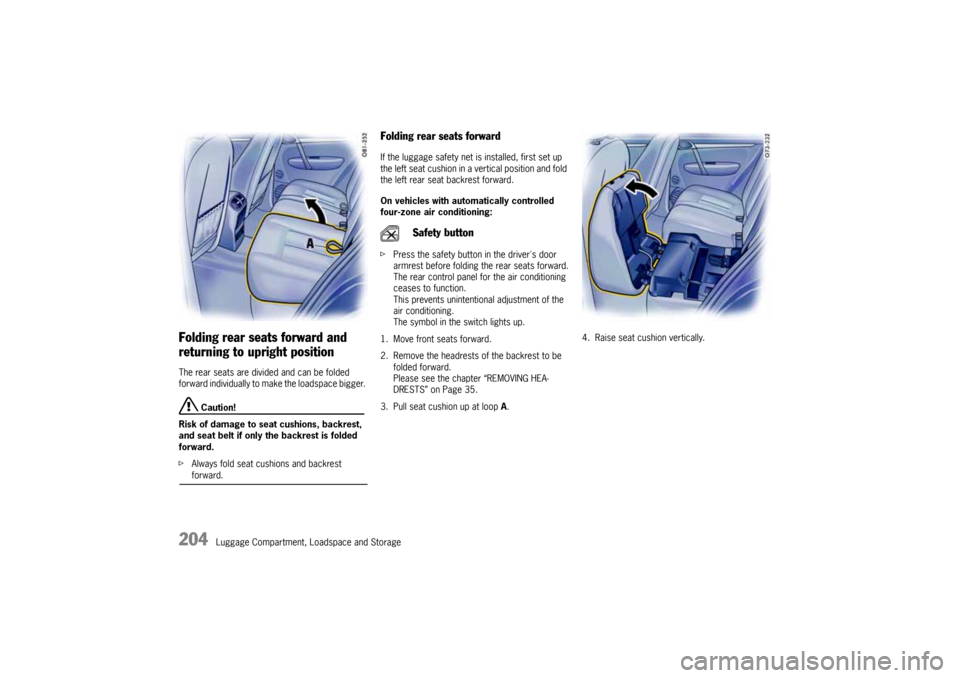

Folding rear seats forwardIf the luggage safety net is installed, first set up
the left seat cushion in a vertical position and fold
the left rear seat backrest forward.
On vehicles with automatically controlled
four-zone air conditioning:
fPress the safety button in the driver's door
armrest before folding the rear seats forward.
The rear control panel for the air conditioning
ceases to function.
This prevents unintentional adjustment of the
air conditioning.
The symbol in the switch lights up.
1. Move front seats forward.
2. Remove the headrests of the backrest to be
folded forward.
Please see the chapter “REMOVING HEA-
DRESTS” on Page 35.
3. Pull seat cushion up at loop A.4. Raise seat cushion vertically.
Safety button
10_Cayenne_21_KW17.book Seite 204 Donnerstag, 9. April 2009 3:33 15

Index
371
Emergency operation of ignition key
in ignition lock
............................................... 159
Emergency operation of rear lid
.......................... 31
Emergency operation of sliding/lifting roof
........... 94
Emergency operation, Panorama roof system
..... 101
Emergency operation, spare wheel bracket
........ 311
Emergency unlocking of the filler flap
................ 267
Overview of warning messages
on the multi-purpose display
............................. 149
Panorama roof system
...................................... 99
ParkAssist
.................................................... 240
Parking heater
................................................. 85
Power windows
................................................ 90
Tiptronic selector lever emergency operation
...... 175
When opening and closing
................................. 31
Manual air conditioning
Defrosting windshield
........................................ 67
Information on air-conditioning compressor
........... 65
Opening the cover flap
...................................... 64
Operating overview
........................................... 67
REST mode
..................................................... 65
Setting air distribution
....................................... 68
Setting air quantity
........................................... 68
Setting fan
...................................................... 68
Setting temperature
......................................... 68
Switching air-conditioning compressor on/off
........ 65
Switching ECON mode on/off
............................. 65
Switching on recirculating-air mode
..................... 68
Using engine residual heat
................................. 65
Manual headlight beam adjustment
............................. 234
Manual transmission
Clutch
.......................................................... 169
Shift pattern
.................................................. 169
Maximum permitted engine speeds
............................ 169
Measurements, Technical data
.................................. 360
Memory
.................................................................. 37Automatic storage
............................................ 38
Recalling seat settings
...................................... 37
Storing driver’s seat settings
.............................. 38
Storing passenger’s seat settings
....................... 38
Minor repairs
In the event of a flat tire
.................................. 295
Jack in the luggage compartment
..................... 291
Securing the vehicle against rolling
................... 295
Tool kit in the luggage compartment
................. 292
Towing the vehicle
.......................................... 342
Mirrors
.......................................................... 62
, 234
Activating synchronous adjustment
of door mirrors
.............................................. 143
Additional door mirrors when towing a trailer
....... 234
Adjusting door mirrors
...................................... 55
Adjusting door mirrors as parking aid
.................. 56
Adjusting the door mirrors synchronously
............. 55
Automatic anti-dazzle function for interior mirror
.... 57
Folding in door mirrors
...................................... 55
Interior mirror
.................................................. 57
Storing door mirror settings (memory)
................. 56
Switching automatic anti-dazzle operation
on and off
....................................................... 57
Switching door mirror heating on/off
................... 56
Switching on manual anti-dazzle operation
............ 57
Unfolding door mirrors
...................................... 55
Motion sensor (passenger compartment monitoring)
Switching off on the multi-purpose display
.......... 142
Moving-off assistant
For Tiptronic S (hillholder)
................................ 187
On vehicles with manual transmission
(Porsche Drive-Off Assistant)
............................ 188
Multi-functional steering wheel
Functional description
....................................... 60
Illumination of steering wheel buttons,
switching on/off
............................................... 61
Operating the function keys
................................ 60
Multi-purpose display
Activating synchronous mirror adjustment
.......... 143
Changing settings
for opening and locking the vehicle
.................... 143
Changing settings of central locking system
....... 143
Displaying status of level control
....................... 131
Displaying status of locks/reduction
.................. 131
Displaying warning messages
........................... 130
Displaying/resetting average consumption
.......... 132
Gear display for Tiptronic S
.............................. 171
Operating principle
......................................... 124
Overview of warning messages
......................... 149
Resetting to factory settings
............................ 148
Setting a speed limit
....................................... 129
Setting compass
............................................ 147
Setting language for displays
........................... 148
Setting lighting off delay
.................................. 146
Setting the clock
............................................ 146
Setting the tire type and size
............................ 134
Setting Tire Pressure Monitoring
....................... 132
Setting tire sealant/sealing set
......................... 140
Setting units of displays
..................................148
Setting vehicle loading
....................................135
Switching daytime driving lights on/off
...............145
Switching off passenger compartment monitoring
142
Using the telephone
........................................128
NNavigation system
...................................................220
Nearfield lighting
.....................................................124
Normal level
...........................................................190
OOctane rating, fuel
...................................................269
Octane ratings
........................................................269
Odometer
Display
.........................................................121
Resetting
......................................................121
Off delay
Setting
.........................................................146
Switching on
..................................................109
Off-road
Crossing obstacles
.........................................201
Driving downhill
..............................................198
Driving systems for off-road driving
...................196
Engaging the center differential lock
..................178
Engaging the rear differential lock
.....................178
Low Range indicator light
.................................179
Rules for off-road driving
..................................195
Sand
............................................................201
Setting special terrain level
..............................191
Setting terrain level
.........................................191
Switching on Low Range (reduction)
...................178
Track ruts
.....................................................202
Uphill driving
..................................................197
Water crossing
..............................................199
Off-road ABS
..........................................................198
Off-road ABS functional description
.............................187
Off-road driving
Crossing obstacles
.........................................201
Downhill driving
..............................................198
Driving rules
..................................................195
Engaging the center differential lock
..................178
Engaging the rear differential lock
.....................178
Low Range (reduction) indicator light
.................179
Recommendation
...........................................196
Rules for driving
.............................................195
10_Cayenne_21_KW17.book Seite 371 Donnerstag, 9. April 2009 3:33 15
