Opening and Locking
21
Locking doorsLocking with the key
fClose the door.
fBriefly press button on the key once.
The emergency flasher flashes twice and an
acoustic signal will sound twice.
fIf persons or animals remaining in the car:
Please see the chapter “TEMPORARILY
DEACTIVATING PASSENGER COMPARTMENT
MONITORING SYSTEM” on Page 246.
Locking with Porsche Entry & Drive (keyless)
You must carry the key with you.
fClose the door.
fBriefly press the Porsche Entry & Drive locking
button A in the door handle.
The emergency flasher flashes twice and an
acoustic signal will sound twice.
fIf persons or animals remaining in the car:
Please see the chapter “TEMPORARILY
DEACTIVATING PASSENGER COMPARTMENT
MONITORING SYSTEM” on Page 246.Note on operation for locking the doors
The vehicle cannot be locked if the driver’s door is
open.
Automatic door locking and automatic
door unlocking
Warning!
In an emergency situation where you need to
exit the car through an automatically locked
door, remember the following procedure to
open the door.
fUnlock the doors by pressing the central
locking button or
fpull the inside door handle twice to open the door.
In the multi-purpose display of the instrument
panel, you have the option of selecting diverse
variants of automatic door locking (AUTO LOCK)
and automatic door unlocking (AUTO UNLOCK).
fFor further information:
Please see the chapter “SETTING AUTO LOCK
(AUTOMATIC DOOR LOCKING) AND AUTO
UNLOCK (AUTOMATIC DOOR UNLOCKING)” on
Page 144.
10_Cayenne_21_KW17.book Seite 21 Donnerstag, 9. April 2009 3:33 15
Page 22 of 379
22
Opening and Locking
Unlocking and opening rear lid
(vehicles with spare wheel bracket)On vehicles with spare wheel bracket, this must be
swung to the side before opening the rear lid.
fFor further information on opening the spare
wheel bracket:
Please see the chapter “OPENING SPARE
WHEEL BRACKET” on Page 310.
Danger!
Risk of poisoning. Exhaust gases can enter
the passenger compartment when the rear
lid is open.
fAlways keep the rear lid closed when the
engine is running.
fAlways keep the rear lid closed while driving.
The vehicle doors remain locked after unlocking
the rear lid.
The rear lid is locked automatically after
30 seconds if it is not opened.
Unlocking with the key
fPress button on the key.
fPress the release handle (arrow) on the rear lid
and open the rear lid.Unlocking with Porsche Entry & Drive
(keyless)
Warning!
Risk of being locked out of vehicles with
Porsche Entry & Drive.
fDo not leave the key in the vehicle if the vehicle
is locked and access is gained through the
rear lid. The vehicle is automatically locked
when the rear lid is closed.
If the key has been left in the vehicle, the emer-
gency flasher flashes twice and a warning sig-
nal sounds. The rear lid can be opened again
within approx. 30 seconds.
After 30 seconds have elapsed, the vehicle
can be unlocked again only with the second key.
The rear lid is unlocked if you are in the rear area
of the vehicle with the key.
fPress the release handle (arrow) on the rear lid
and open the rear lid.
10_Cayenne_21_KW17.book Seite 22 Donnerstag, 9. April 2009 3:33 15
Page 23 of 379
Opening and Locking
23
Locking the rear lid
Warning!
Danger of crushing. The rear lid is auto-
matically pulled into the lock and locked.
fMake sure that your fingers are not under the
rear lid.
fKeep foreign objects or limbs away from
moving parts (latch striker) of the power
closing mechanism.
fDo not leave children in the car unattended.The rear lid has a power closing mechanism.
1. Pull down the rear lid by means of the closing
handle (arrow), and press it gently into the
lock.
The rear lid is automatically pulled closed and
locked. (only if rear lid is unlocked)
2. Lock the vehicle.
Powerliftgate (Rear Lid)
Danger!
Risk of poisoning. Exhaust gases can enter
the passenger compartment when the rear
lid is open.
fAlways keep the rear lid closed when the
engine is running.
fAlways keep the rear lid closed while driving.
Danger of injury and damage if the rear lid is
automatically opened or closed in an uncon-
trolled way!
fDo not leave children in the car unattended.
fOpen or close the rear lid only when the vehicle
is stationary.
fNever drive with the rear window or rear lid
open.
Exhaust gases can enter the passenger
compartment.
fOpen or close the rear lid only when there are
no persons, animals or objects within its
movement range.
fAlways observe the opening and closing opera-
tion so that movement can be stopped at any
time in the event of danger.
10_Cayenne_21_KW17.book Seite 23 Donnerstag, 9. April 2009 3:33 15
Page 24 of 379
24
Opening and Locking fMake sure that there is sufficient clearance be-
hind or above the vehicle (e.g. roof transport
systems, garage ceiling).
fRemove rear rack systems before opening the
rear lid automatically. Warning!
Risk of being locked out of vehicles with
Porsche Entry & Drive.
fDo not leave the key in the vehicle if the vehicle
is locked and access is gained through the
rear window. The vehicle is automatically
locked when the rear lid is closed.
If the key has been left in the vehicle, the emer-
gency flasher flashes twice and a warning
signal sounds. The rear lid can be opened
again within approx. 30 seconds.
After 30 seconds have elapsed, the vehicle
can be unlocked again only with the second key.
Acoustic indication during opening/closing
of the rear lid
Opening and closing of the rear lid are indicated
by three warning tones.
You can have the warning tones activated/deacti-
vated at your authorized Porsche dealer.Opening the rear lid automatically
When the vehicle is operated with a trailer, the rear
lid can only be opened with the release button on
the rear lid.
There are three ways of opening the rear lid:
Option 1
fMake sure the vehicle is unlocked if your
vehicle is not equipped with Porsche Entry &
Drive. Then briefly press the release handle on
the rear lid.
The vehicle need not be unlocked on vehicles
with Porsche Entry & Drive. You simply have
carry the car key with you, e.g. in your trouser
pocket.Option 2
fPress the button on the key for approx.
1 second.
If the vehicle is locked, the vehicle doors re-
main locked when the rear lid is opened.
10_Cayenne_21_KW17.book Seite 24 Donnerstag, 9. April 2009 3:33 15
Page 25 of 379
Opening and Locking
25
Option 3
fPull and hold the button in the driver’s door with
the ignition switched on until the rear lid has
opened fully.
Opening is interrupted if the button is released
prematurely.Automatically closing the rear lid
Make sure that the load is not in the area of the
rear lid when the lid is closed, otherwise the clo-
sing operation will be interrupted after contact
with the load, and the rear lid will open again by a
few inches.
fBriefly press the button in the rear lid trim pa-
nel.Interrupting the opening or closing operation
in the event of danger
The opening or closing operation is interrupted im-
mediately if one of the following buttons is
pressed:
fPress the button on the key
or
Release the button in the driver’s door
or
Briefly press the button in the rear lid trim pa-
nel
or
Briefly press the release button on the rear lid.
Automatic operation can be continued again at
any time. To do this, press the corresponding but-
ton.
Detection of obstacles during opening
The rear lid will stop moving if the system detects
that the opening is blocked by an obstacle. A war-
ning signal then sounds.
When the obstacle has been removed, the rear lid
can be opened by pressing
the button on the key
or
the button in the driver’s door
or
the release button on the rear lid.
10_Cayenne_21_KW17.book Seite 25 Donnerstag, 9. April 2009 3:33 15
Page 26 of 379
26
Opening and Locking Detection of obstacles during closing Warning!
Danger of crushing.
fDespite the presence of this detection system,
you are still responsible for keeping yourself
and others entirely out of the way of the door as it is closing.
The closing operation is interrupted if closing of
the rear lid is blocked by an obstacle.
A warning signal sounds and the rear lid opens
again by a few inches.
When the obstacle has been removed, the rear lid
can be closed by pressing one of the correspon-
ding buttons.Adjusting the opening height of the rear lid
The opening height of the rear lid can be individu-
ally adjusted so that the rear lid does not collide
with the garage ceiling, for example.
On vehicles with level control, the vehicle height
changes depending on the setting of the level con-
trol system. For this reason, always adjust the ope-
ning height with the vehicle at the highest level set-
ting so that the rear lid cannot accidentally collide
with the garage ceiling, for example.
1. Stand behind the vehicle and open the rear lid.
2. Press the button on the key to stop the
automatic opening operation at around 2/3 of
the opening height.
3. Now move the rear lid up by hand until the desi-
red opening height is reached. Make sure that
there is a sufficient minimum clearance from
any obstacle.
4. Press and hold the button in the rear lid trim pa-
nel for approx. 3 seconds.
An acknowledgement signal sounds, and the
emergency flasher lights up once.
The opening height of the rear lid has now
been programmed.
The rear lid can now be closed by briefly pres-
sing the button.
This setting cannot be deleted. If a different set-
ting is required, repeat steps 1 to 4.Malfunctions of the rear lid drive
The automatic function is not active if the battery
voltage is too low.
If a button is pressed, the rear lid lock is unlocked
and a warning signal sounds for 3 seconds. The
rear lid can now be opened by hand.
fCharge the vehicle battery.
Emergency operation of the rear lid
A warning signal sounds for approx. 3 seconds if
the automatic opening or closing operation is in-
terrupted by a fault.
fOpen or close the rear lid by hand.
10_Cayenne_21_KW17.book Seite 26 Donnerstag, 9. April 2009 3:33 15
Page 27 of 379
Opening and Locking
27
Unlocking and opening rear windowThe vehicle doors remain locked after unlocking
the rear lid.
The rear window is locked automatically after
30 seconds if it is not opened.
Unlocking with the key
(only on vehicles without Powerliftgate)
fPress button on the key for approx.
2seconds.
The rear window pops open.Unlocking with the key
1. Press button on the key.
2. Press the release button A and open the
window.
Unlocking with Porsche Entry & Drive
(keyless)
Warning!
Risk of being locked out of vehicles with
Porsche Entry & Drive.
fDo not leave the key in the vehicle if the vehicle
is locked and access is gained through the
rear window. The vehicle is automatically
locked when the rear window is closed.
If the key has been left in the vehicle, the emer-
gency flasher flashes twice and a warning
signal sounds. The rear window can be opened
again within approx. 30 seconds.
After 30 seconds have elapsed, the vehicle
can be unlocked again only with the second key.
Danger!
Risk of poisoning. Exhaust gases can enter
the passenger compartment when the rear
window is open.
fAlways keep the rear lid and rear window
closed when the engine is running.
fAlways keep the rear lid and rear window closed while driving.
The rear window is unlocked if you are in the rear
area of the vehicle with the key.
fPress the release button A and open the
window.
Closing the rear windowClose the rear window and press it into the lock
until it can be felt to engage.
Note on operation
On vehicles with Porsche Entry & Drive, the rear
lid, rear window and spare wheel bracket can no
longer be opened when the car key with remote
control is out of range.
10_Cayenne_21_KW17.book Seite 27 Donnerstag, 9. April 2009 3:33 15
Page 28 of 379
28
Opening and Locking
Opening and locking from insideThe factory settings of the vehicle are described
in this chapter.
You can change the settings and store them on
the respective key on the multi-purpose display of
the instrument panel.
fFor further information on the possible settings
(e.g. Auto Lock and Auto Unlock) on the multi-
purpose display:
Please see the chapter “CHANGING SETTINGS
FOR OPENING AND LOCKING THE VEHICLE”
on Page 143.
Locking doorsfPress the right half of the button in the door
panel.
All vehicle doors will be locked.
The doors can be opened by pulling the inner
door handle twice.
Automatic with Auto Lock
The vehicle is locked automatically when a speed
of 6 km/h (4 mph) is exceeded.Unlocking doorsfPress the left half of the button in the door
panel.
If pressed on the front doors, all doors will be
unlocked.
If pressed on the rear doors, only the relevant
door will be unlocked.
Automatic with Auto Unlock
The vehicle is automatically unlocked when the
ignition key is withdrawn or the ignition is switched
off.
Note on operation
If the vehicle was locked by remote control or with
the key, it cannot be unlocked with the central
locking button.
Opening doorsOpening unlocked doors
fPull inner door handle once.
Opening locked doors
fPull inner door handle twice.
Button in the armrest
Button in the armrest
10_Cayenne_21_KW17.book Seite 28 Donnerstag, 9. April 2009 3:33 15
Page 29 of 379
Opening and Locking
29
Securing rear doorsYou can secure the rear doors to prevent uninten-
tional opening when driving.
Switching child lock on and off
The child locks are fitted in the lock area of the
rear doors.
The doors cannot be opened from inside when the
child locks are engaged.
fTo engage: Turn child lock to position A.
fTo disengage: Turn child lock to position B.The power windows, central locking buttons on
the rear doors and the rear control panel for the
air conditioning can be disabled by means of the
safety button in the armrest of the driver’s door.
fPress the safety button to switch child protec-
tion on and off.
The symbol in the safety button lights up if
child protection is active.
Opening and closing the engine
compartment lidOpening
Caution!
Risk of damage to engine compartment lid or
windshield wipers.
fMake sure that the windshield wipers are not
pulled out forwards when opening the engine
compartment lid.
fAlways switch the windshield wipers off (wiper
stalk in position0) before opening the engine
compartment lid.
If the wiper arms are not in their final position,
they will automatically move to this position
when the engine compartment lid is opened.
This will happen even if the ignition is off.
The wiper arms remain in this position until the
lid is closed and the wiper system is switched off and then on again.
Switching child protection on/off
10_Cayenne_21_KW17.book Seite 29 Donnerstag, 9. April 2009 3:33 15
Page 30 of 379
30

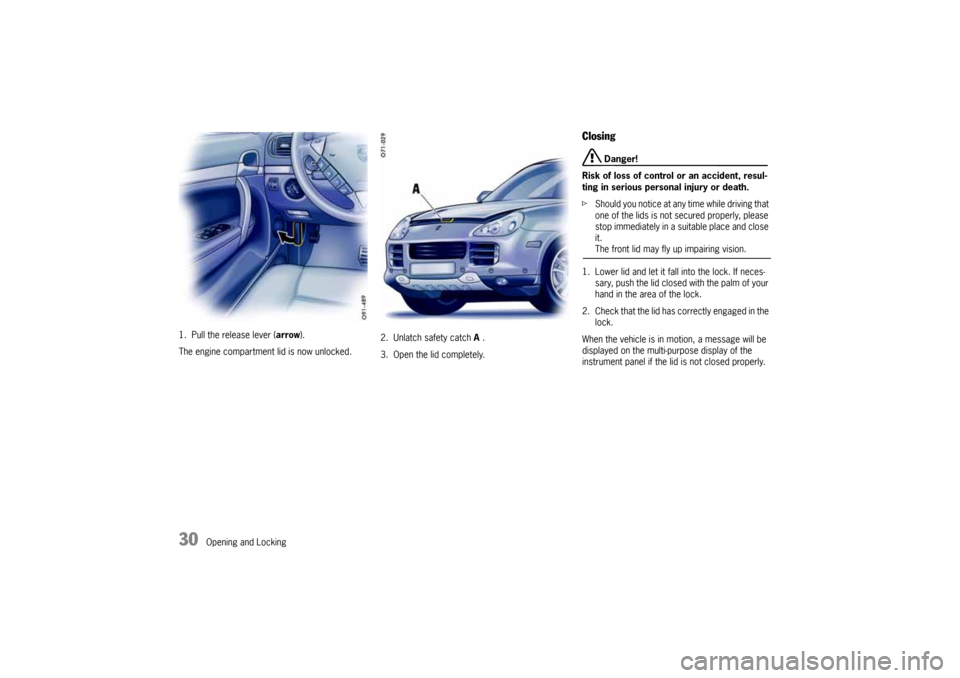

Opening and Locking 1. Pull the release lever (arrow).
The engine compartment lid is now unlocked.2. Unlatch safety catch A .
3. Open the lid completely.
Closing
Danger!
Risk of loss of control or an accident, resul-
ting in serious personal injury or death.
fShould you notice at any time while driving that
one of the lids is not secured properly, please
stop immediately in a suitable place and close
it.The front lid may fly up impairing vision.
1. Lower lid and let it fall into the lock. If neces-
sary, push the lid closed with the palm of your
hand in the area of the lock.
2. Check that the lid has correctly engaged in the
lock.
When the vehicle is in motion, a message will be
displayed on the multi-purpose display of the
instrument panel if the lid is not closed properly.
10_Cayenne_21_KW17.book Seite 30 Donnerstag, 9. April 2009 3:33 15
