Opening and Locking
31
Malfunctions when opening and
closingEmergency operation of rear lidIf the rear lid cannot be opened with the radio re-
mote control (e.g., if the battery of the remote
control is dead), the emergency operation must
be performed:
1. Unlock and open the driver’s door with the car
key.
2. Switch on the ignition so that the alarm system
will not be triggered.
3. Check if the TAILGATE function is activated in
the multi-purpose display of the instrument
panel.
Please see the chapter “SETTING REAR LID
LOCKING” on Page 144.
4. Press the central locking button in the armrest.
The rear lid is now unlocked and can be opened
with the unlocking handle.
Only one door is unlockedThe setting for locking and unlocking the doors
and rear lid has been changed on the multi-
purpose display of the instrument panel. You can
open all doors irrespective of the setting made.
fPress button on the key twice within
2seconds.The vehicle cannot be unlockedThe remote control of the key may
– not function correctly due to radio waves (also
radio contact between remote control and
vehicle in the case of Porsche Entry & Drive),
– fail due to a fault,
– fail due to an exhausted battery.
fUnlock the vehicle with the unfolded key in the
key lock.
fIf you unlock the vehicle with the key at the
door lock, only the driver’s door can be
opened.
In order to prevent the alarm system from
being triggered, you must switch the ignition
on within 15 seconds of opening the door.
The vehicle cannot be lockedThis is recognizable by the fact that the
emergency flasher does not flash and there is no
locking noise.
The remote control of the key may
– not function correctly due to radio waves (also
radio contact between remote control and
vehicle in the case of Porsche Entry & Drive),
– fail due to a fault,
– fail due to an exhausted battery.
fLock the vehicle with the unfolded key at the
door lock.
If there is a defect in the central locking system,
operating the lock barrel in the driver’s door will
lock all functioning locking elements of the central
locking system.
fFor information on locking the doors by means
of the emergency operation:
Please see the chapter “NOT ALL VEHICLE
DOORS ARE LOCKED” on Page 32.
fHave faults in the central locking system reme-
died at an authorized Porsche dealer.
10_Cayenne_21_KW17.book Seite 31 Donnerstag, 9. April 2009 3:33 15
Page 32 of 379
32
Opening and Locking
Not all vehicle doors are lockedThe central locking system has failed. The doors
must be locked with the emergency locking
device.

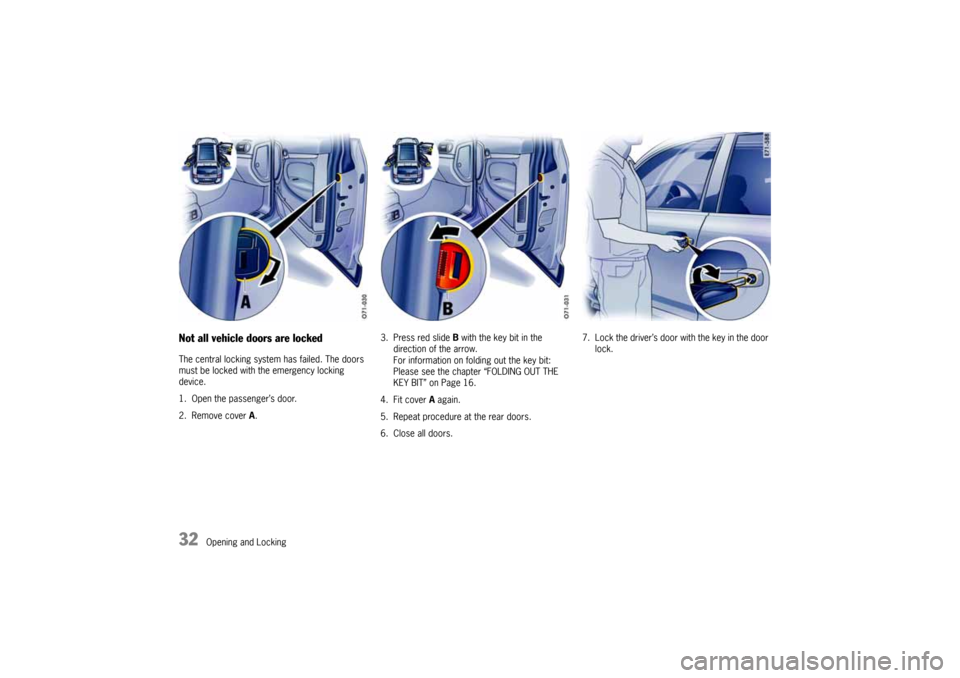

1. Open the passenger’s door.
2. Remove cover A.3. Press red slide B with the key bit in the
direction of the arrow.
For information on folding out the key bit:
Please see the chapter “FOLDING OUT THE
KEY BIT” on Page 16.
4. Fit cover A again.
5. Repeat procedure at the rear doors.
6. Close all doors.7. Lock the driver’s door with the key in the door
lock.10_Cayenne_21_KW17.book Seite 32 Donnerstag, 9. April 2009 3:33 15
Page 33 of 379
Seats, Mirrors and Steering Wheel

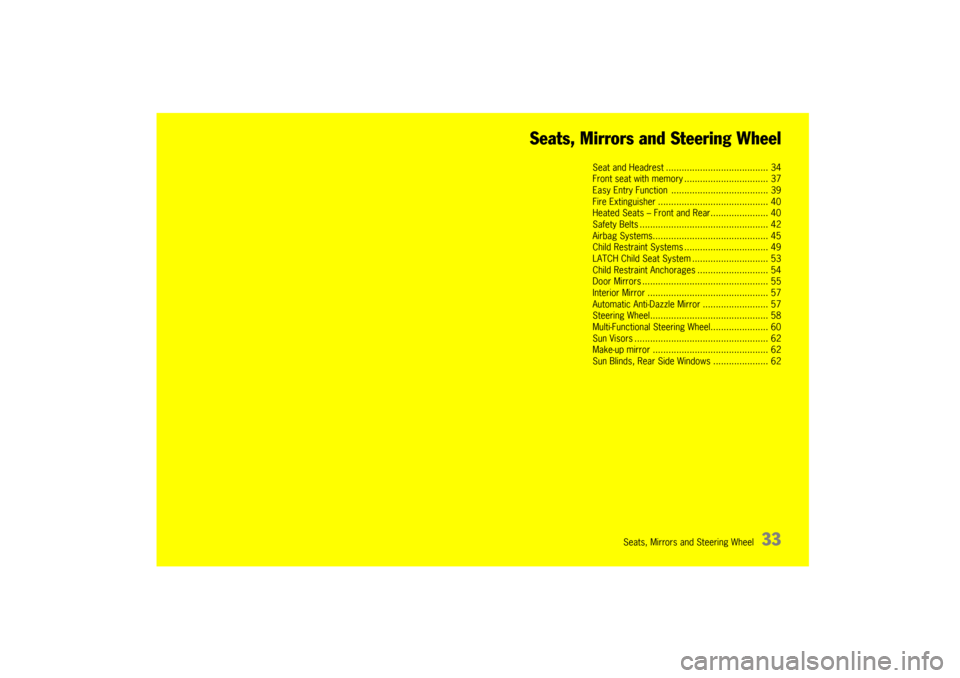

33 Seats, Mirrors and Steering Wheel
Seat and Headrest ....................................... 34
Front seat with memory ................................ 37
Easy Entry Function ..................................... 39
Fire Extinguisher .......................................... 40
Heated Seats – Front and Rear...................... 40
Safety Belts ................................................. 42
Airbag Systems............................................ 45
Child Restraint Systems ................................ 49
LATCH Child Seat System ............................. 53
Child Restraint Anchorages ........................... 54
Door Mirrors ................................................ 55
Interior Mirror .............................................. 57
Automatic Anti-Dazzle Mirror ......................... 57
Steering Wheel............................................. 58
Multi-Functional Steering Wheel...................... 60
Sun Visors ................................................... 62
Make-up mirror ............................................ 62
Sun Blinds, Rear Side Windows ..................... 62
10_Cayenne_21_KW17.book Seite 33 Donnerstag, 9. April 2009 3:33 15
Page 34 of 379
34
Seats, Mirrors and Steering Wheel
Seat and Headrest
Danger!
The seat may move unexpectedly if you
attempt to adjust while driving. This could
cause sudden loss of control, resulting in
serious personal injury or death.
fDo not adjust seats while the vehicle is in mo-
tion.The backrest locks must be engaged at all
times while the vehicle is in motion.
Safety belts only offer protection when the
backrest is upright and the belts are properly
positioned on the body.
Improperly positioned safety belts or safety
belts worn by passengers in an excessively
reclined position can cause serious personal
injury or death in an accident.
fDo not operate the car with the driver or pas-
senger backrests excessively reclined.
Please see the chapter “SEAT POSITION” on
Page 36.
fPorsche recommends the use of L.A.T.C.H.
(Lower Anchorage and Tether for Children)
equipped Porsche child seats.
Risk of injury if persons or animals are in the
movement range of the seat during seat ad-
justment.
fAdjust the seat so that no-one is put a risk.Your vehicle is equipped with a total of five head-
rests in the backrests of the front and rear seats.
The height of the headrests in the front and back
seats is adjustable. All headrests are removable.
All occupants, including the driver, should not
operate a vehicle or sit in a vehicle’s seat until the
headrests and backrests are placed in their pro-
per positions so that the risk of neck injuries is
minimized in the event of a crash.
For proper positioning and operation of the head-
rest, the backrest’s inclination should be adjusted
such that the headrest is in an upright position.
Driver and passengers should be seated upright
and in the center of their seats.
Adjusting headrests
Danger!
Improperly positioned headrests can cause
serious personal injury or death in an acci-
dent.
fAdjust the headrest so that the upper edge of
the headrest is brought to eye level or higher.
fDo not drive the vehicle without the headrest in place and properly adjusted.

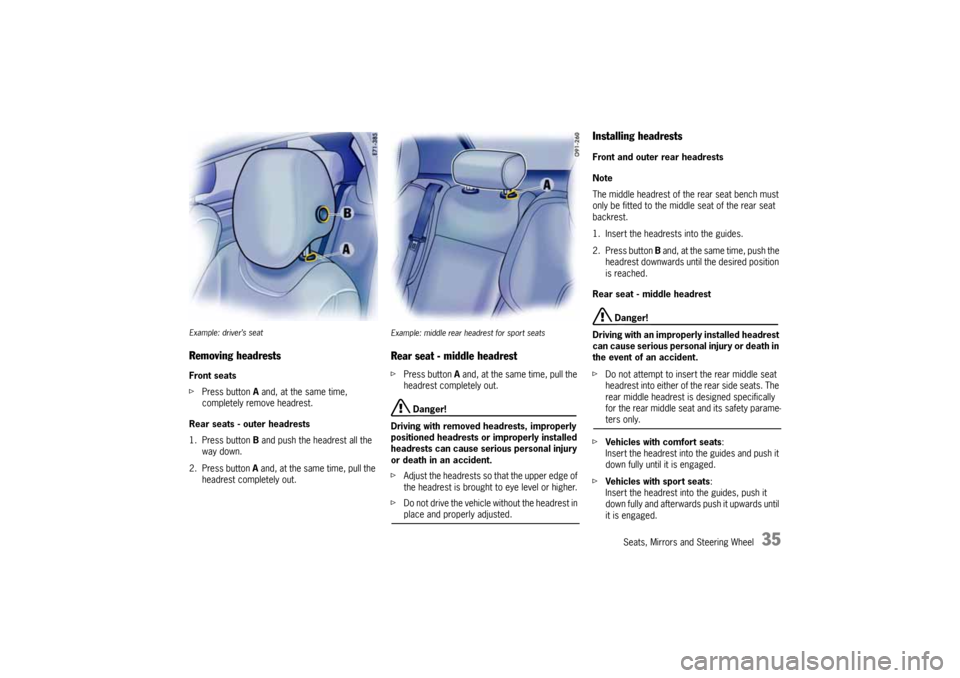

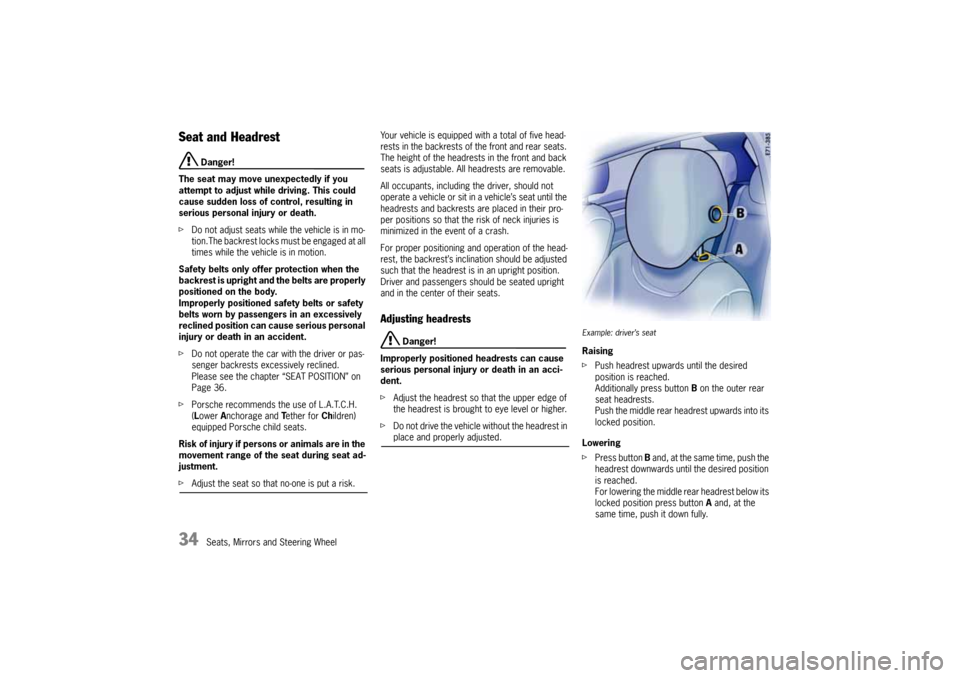

Example: driver’s seatRaising
fPush headrest upwards until the desired
position is reached.
Additionally press button B on the outer rear
seat headrests.
Push the middle rear headrest upwards into its
locked position.
Lowering
fPress button B and, at the same time, push the
headrest downwards until the desired position
is reached.
For lowering the middle rear headrest below its
locked position press button A and, at the
same time, push it down fully.
10_Cayenne_21_KW17.book Seite 34 Donnerstag, 9. April 2009 3:33 15
Page 35 of 379
Seats, Mirrors and Steering Wheel
35
Example: driver’s seatRemoving headrestsFront seats
fPress button A and, at the same time,
completely remove headrest.
Rear seats - outer headrests
1. Press button B and push the headrest all the
way down.
2. Press button A and, at the same time, pull the
headrest completely out.
Example: middle rear headrest for sport seatsRear seat - middle headrestfPress button A and, at the same time, pull the
headrest completely out.
Danger!
Driving with removed headrests, improperly
positioned headrests or improperly installed
headrests can cause serious personal injury
or death in an accident.
fAdjust the headrests so that the upper edge of
the headrest is brought to eye level or higher.
fDo not drive the vehicle without the headrest in place and properly adjusted.
Installing headrestsFront and outer rear headrests
Note
The middle headrest of the rear seat bench must
only be fitted to the middle seat of the rear seat
backrest.
1. Insert the headrests into the guides.
2. Press button B and, at the same time, push the
headrest downwards until the desired position
is reached.
Rear seat - middle headrest
Danger!
Driving with an improperly installed headrest
can cause serious personal injury or death in
the event of an accident.
fDo not attempt to insert the rear middle seat
headrest into either of the rear side seats. The
rear middle headrest is designed specifically
for the rear middle seat and its safety parame-ters only.
fVehicles with comfort seats:
Insert the headrest into the guides and push it
down fully until it is engaged.
fVehicles with sport seats:
Insert the headrest into the guides, push it
down fully and afterwards push it upwards until
it is engaged.
10_Cayenne_21_KW17.book Seite 35 Donnerstag, 9. April 2009 3:33 15
Page 36 of 379
36
Seats, Mirrors and Steering Wheel
Seat positionA correct sitting position is important for safe and
fatigue-free driving. We recommend the following
procedure for adjusting the driver’s seat to suit
individual requirements:
1. Adjust the seat height to give yourself enough
headroom and an unobstructed view outside
the vehicle.
2. Adjust the seat until, with the accelerator pedal
fully depressed, your leg is straight but your
entire foot still rests on the accelerator pedal.
3. Grip the top half of the steering wheel. Set the
backrest angle and steering wheel position so
that your arms are almost outstretched.
However, your shoulders must still rest on the
backrest.
4. If necessary, correct the seat fore-and-aft
adjustment.
5. Adjust the height of the headrest so that the
upper edge is at eye level or higher.

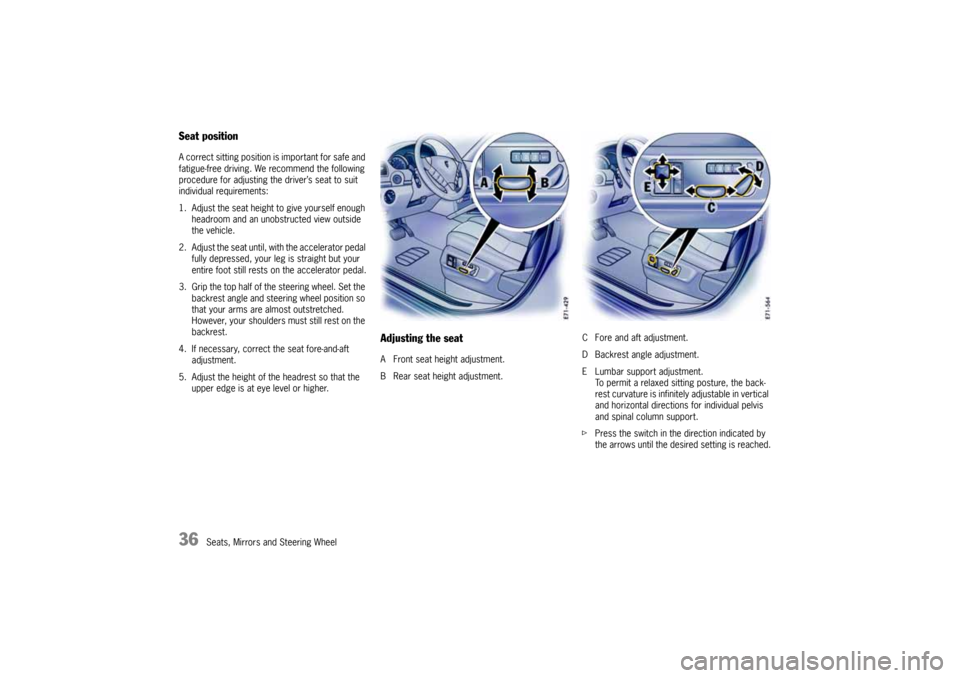

Adjusting the seatA Front seat height adjustment.
B Rear seat height adjustment.C Fore and aft adjustment.
D Backrest angle adjustment.
E Lumbar support adjustment.
To permit a relaxed sitting posture, the back-
rest curvature is infinitely adjustable in vertical
and horizontal directions for individual pelvis
and spinal column support.
fPress the switch in the direction indicated by
the arrows until the desired setting is reached.
10_Cayenne_21_KW17.book Seite 36 Donnerstag, 9. April 2009 3:33 15
Page 37 of 379
Seats, Mirrors and Steering Wheel
37

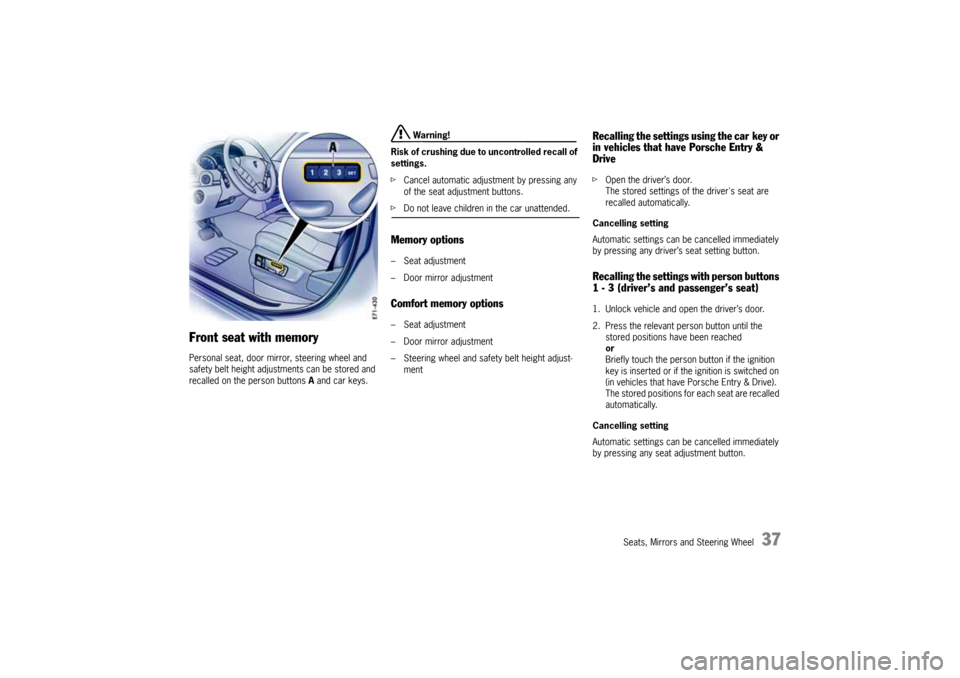

Front seat with memoryPersonal seat, door mirror, steering wheel and
safety belt height adjustments can be stored and
recalled on the person buttons A and car keys.
Warning!
Risk of crushing due to uncontrolled recall of
settings.
fCancel automatic adjustment by pressing any
of the seat adjustment buttons.
fDo not leave children in the car unattended.Memory options–Seat adjustment
– Door mirror adjustmentComfort memory options–Seat adjustment
– Door mirror adjustment
– Steering wheel and safety belt height adjust-
ment
Recalling the settings using the car key or
in vehicles that have Porsche Entry &
DrivefOpen the driver’s door.
The stored settings of the driver's seat are
recalled automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any driver’s seat setting button.Recalling the settings with person buttons
1 - 3 (driver’s and passenger’s seat)1. Unlock vehicle and open the driver’s door.
2. Press the relevant person button until the
stored positions have been reached
or
Briefly touch the person button if the ignition
key is inserted or if the ignition is switched on
(in vehicles that have Porsche Entry & Drive).
The stored positions for each seat are recalled
automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any seat adjustment button.
10_Cayenne_21_KW17.book Seite 37 Donnerstag, 9. April 2009 3:33 15
Page 38 of 379
38
Seats, Mirrors and Steering Wheel
Storing driver’s seat settingsStoring settings on a person button and a car
key
1. Apply the parking brake.
2. Switch ignition on.
3. Make the required adjustments to the seat,
mirror, steering wheel and safety belt.
4. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.
The settings are now stored on the desired
person button.
5. Withdraw car key or switch ignition off in
vehicles that have Porsche Entry & Drive.
6. Press the SET memory button within
10 seconds and keep the button depressed
until an acknowledge tone is obtained.
The settings are now assigned to the car key.

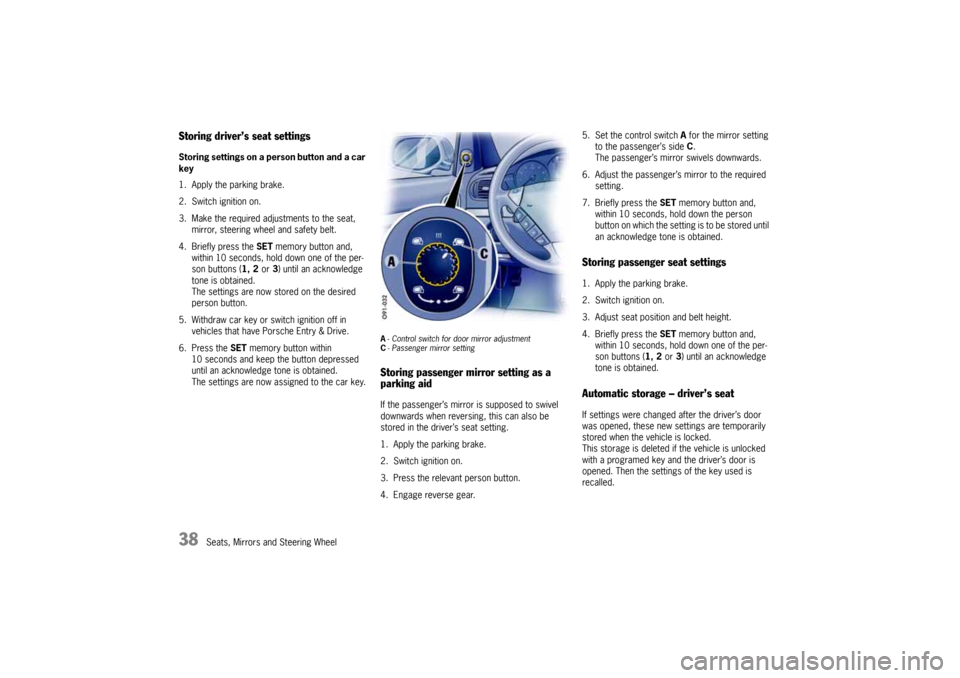

A-Control switch for door mirror adjustment
C- Passenger mirror settingStoring passenger mirror setting as a
parking aidIf the passenger’s mirror is supposed to swivel
downwards when reversing, this can also be
stored in the driver’s seat setting.
1. Apply the parking brake.
2. Switch ignition on.
3. Press the relevant person button.
4. Engage reverse gear.5. Set the control switch A for the mirror setting
to the passenger’s side C.
The passenger’s mirror swivels downwards.
6. Adjust the passenger’s mirror to the required
setting.
7. Briefly press the SET memory button and,
within 10 seconds, hold down the person
button on which the setting is to be stored until
an acknowledge tone is obtained.
Storing passenger seat settings1. Apply the parking brake.
2. Switch ignition on.
3. Adjust seat position and belt height.
4. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.Automatic storage – driver’s seatIf settings were changed after the driver’s door
was opened, these new settings are temporarily
stored when the vehicle is locked.
This storage is deleted if the vehicle is unlocked
with a programed key and the driver’s door is
opened. Then the settings of the key used is
recalled.
10_Cayenne_21_KW17.book Seite 38 Donnerstag, 9. April 2009 3:33 15
Page 39 of 379
Seats, Mirrors and Steering Wheel
39
Easy Entry Function The Easy Entry function makes it easier for you to
get in and out of the car.
Warning!
Risk of crushing if persons are behind the
driver's seat when settings are recalled.
Risk of damage if the rear seat bench is fol-
ded forward when settings are recalled.
fSwitch off the Easy Entry function if there are
persons behind the driver's seat or if the rear seat bench is folded forward.

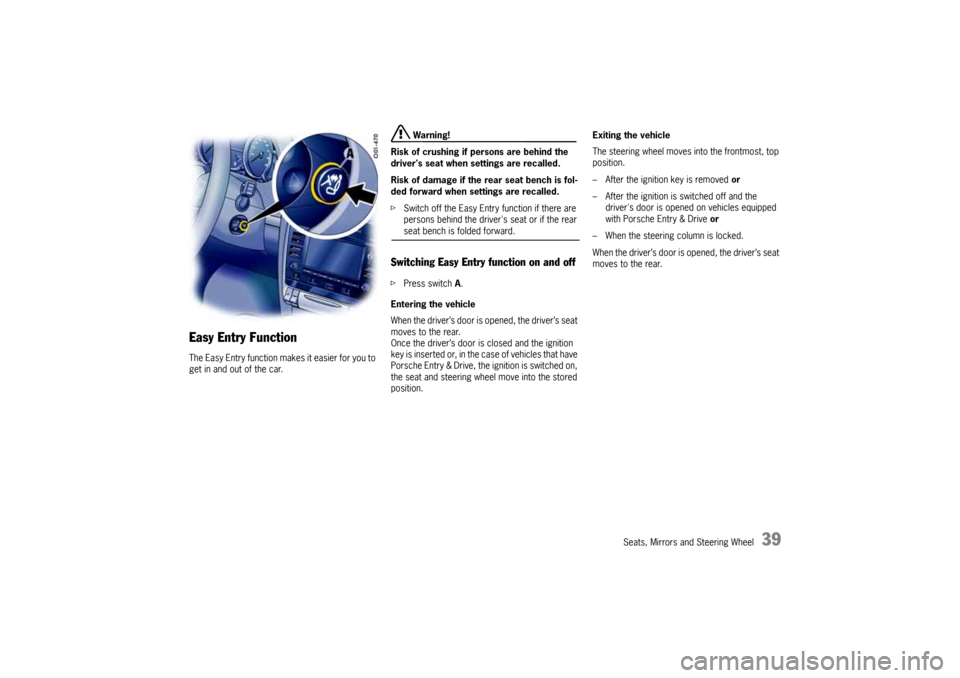

Switching Easy Entry function on and offfPress switch A.
Entering the vehicle
When the driver’s door is opened, the driver’s seat
moves to the rear.
Once the driver’s door is closed and the ignition
key is inserted or, in the case of vehicles that have
Porsche Entry & Drive, the ignition is switched on,
the seat and steering wheel move into the stored
position.Exiting the vehicle
The steering wheel moves into the frontmost, top
position.
– After the ignition key is removed or
– After the ignition is switched off and the
driver's door is opened on vehicles equipped
with Porsche Entry & Drive or
– When the steering column is locked.
When the driver’s door is opened, the driver’s seat
moves to the rear.
10_Cayenne_21_KW17.book Seite 39 Donnerstag, 9. April 2009 3:33 15
Page 40 of 379
40
Seats, Mirrors and Steering Wheel

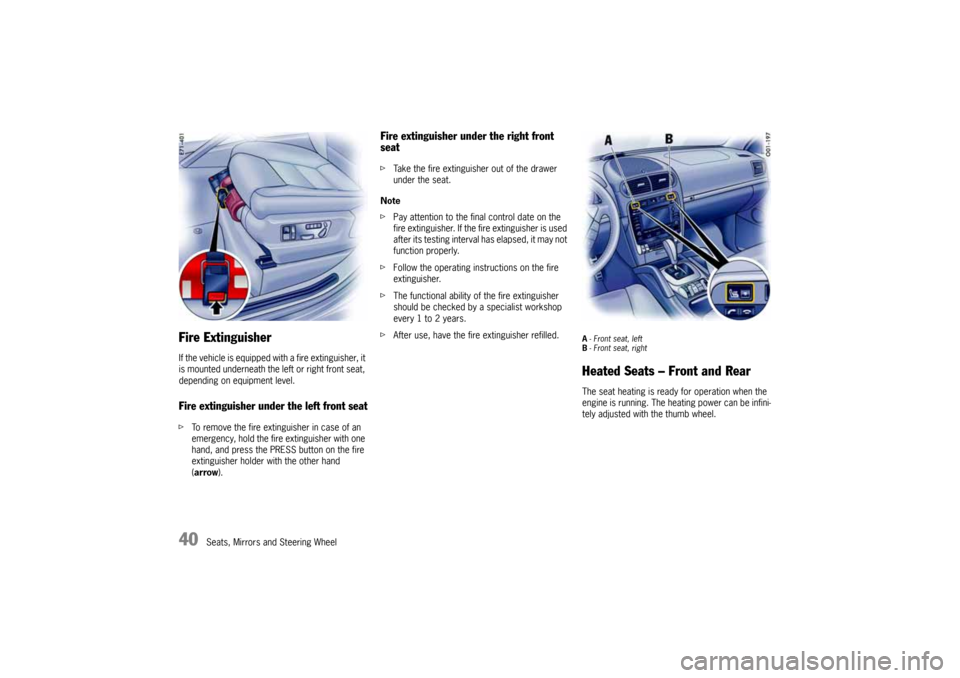

Fire ExtinguisherIf the vehicle is equipped with a fire extinguisher, it
is mounted underneath the left or right front seat,
depending on equipment level.Fire extinguisher under the left front seatfTo remove the fire extinguisher in case of an
emergency, hold the fire extinguisher with one
hand, and press the PRESS button on the fire
extinguisher holder with the other hand
(arrow).
Fire extinguisher under the right front
seatfTake the fire extinguisher out of the drawer
under the seat.
Note
fPay attention to the final control date on the
fire extinguisher. If the fire extinguisher is used
after its testing interval has elapsed, it may not
function properly.
fFollow the operating instructions on the fire
extinguisher.
fThe functional ability of the fire extinguisher
should be checked by a specialist workshop
every 1 to 2 years.
fAfter use, have the fire extinguisher refilled.
A-Front seat, left
B-Front seat, rightHeated Seats – Front and RearThe seat heating is ready for operation when the
engine is running. The heating power can be infini-
tely adjusted with the thumb wheel.
10_Cayenne_21_KW17.book Seite 40 Donnerstag, 9. April 2009 3:33 15
