Controls, Safety, Instruments
81

82
Controls, Safety, Instruments

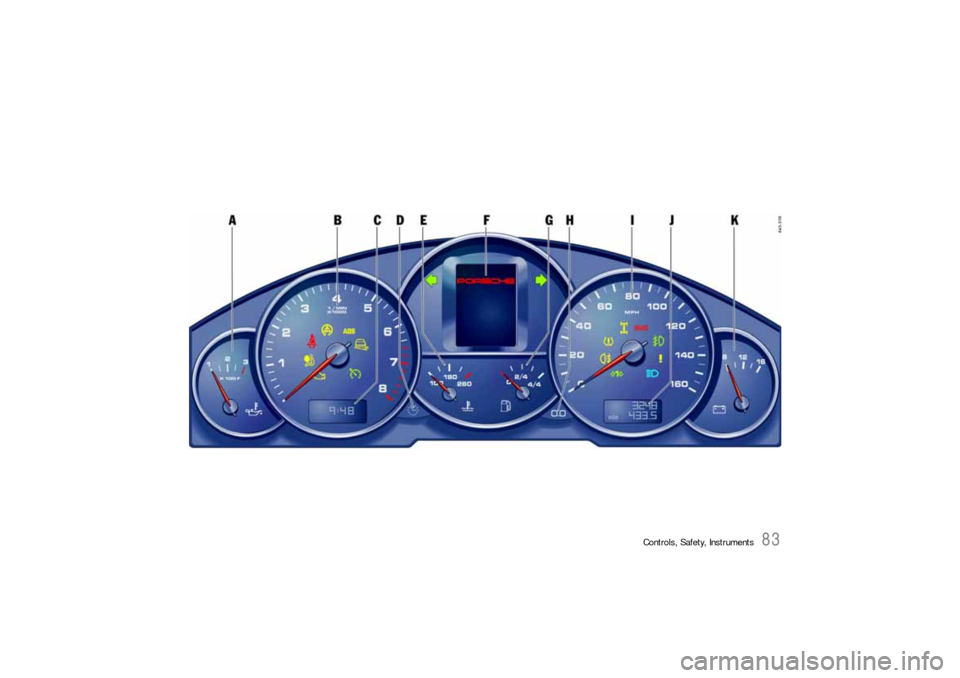

Instrument Panel USA ModelsWarning and indicator lights on the
tachometer
Indicator lights in central instrument
panelWarning and indicator lights on the
speedometer
A Oil temperature gauge
BTachometer
CClock
D Clock reset button
E Cooling system temperature gauge
F Multi-purpose display
G Fuel gauge
H Reset button for trip counter display
I Speedometer
J Mileage displays
KVoltmeter Emission Control warning light
(Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
ABS warning light
Cruise control readiness
Hydraulically disengageable anti-roll bars
Turn signal indicator light, left
Turn signal indicator light, right
Trailer turn signal
Indicator light
Rear fog light indicator light
Tire pressure warning light
Differential locking indicator light
Brake warning light
Fog light indicator light
General warning
Observe warning message on the multi-
purpose display!
High beam indicator light

Controls, Safety, Instruments
83

84
Controls, Safety, Instruments

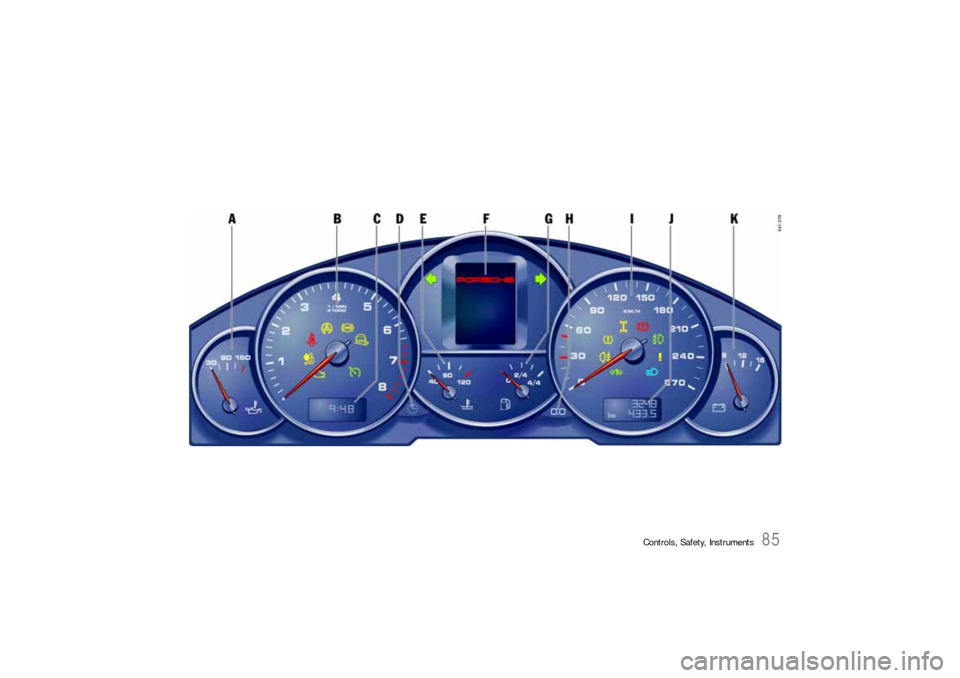

Instrument Panel Canada ModelsWarning and indicator lights on the
tachometer
Indicator lights in central instrument
panelWarning and indicator lights on the
speedometer
A Oil temperature gauge
BTachometer
CClock
D Clock reset button
E Cooling system temperature gauge
F Multi-purpose display
G Fuel gauge
H Reset button for trip counter display
I Speedometer
J Mileage displays
KVoltmeter Emission Control warning light
(Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
ABS warning light
Cruise control readiness
Hydraulically disengageable anti-roll bars
Turn signal indicator light, left
Turn signal indicator light, right
Trailer turn signal
Indicator light
Rear fog light indicator light
Tire pressure warning light
Differential locking indicator light
Brake warning light
Fog light indicator light
General warning
Observe warning message on the multi-
purpose display!
High beam indicator light

Controls, Safety, Instruments
85

86

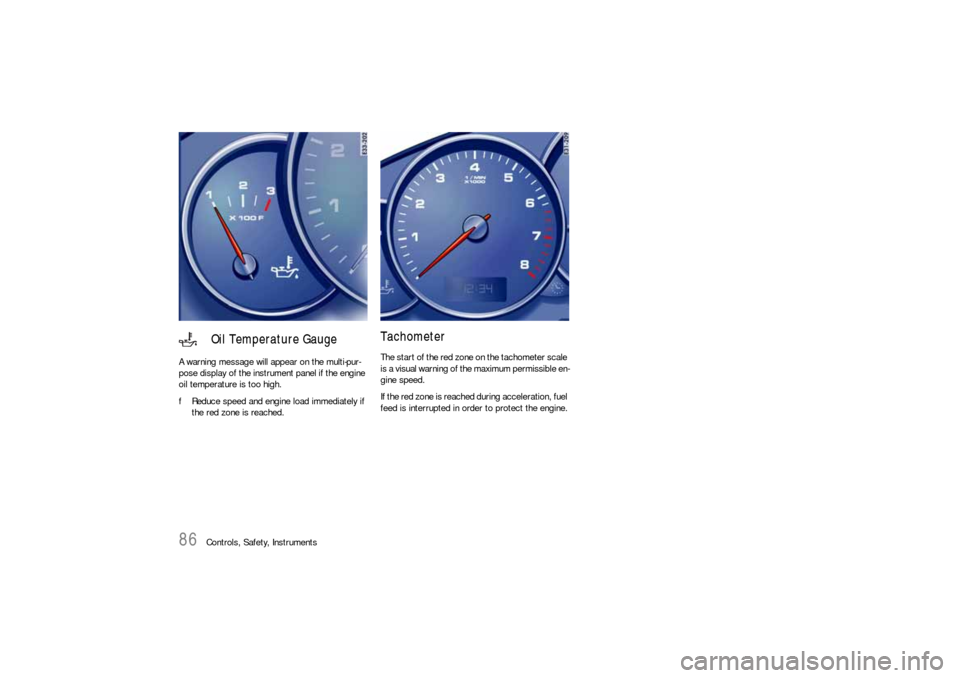

Controls, Safety, Instruments A warning message will appear on the multi-pur-
pose display of the instrument panel if the engine
oil temperature is too high.
fReduce speed and engine load immediately if
the red zone is reached.
TachometerThe start of the red zone on the tachometer scale
is a visual warning of the maximum permissible en-
gine speed.
If the red zone is reached during acceleration, fuel
feed is interrupted in order to protect the engine.
Oil Temperature Gauge

Controls, Safety, Instruments
87
fIf the cooling system is in any way faulty, con-

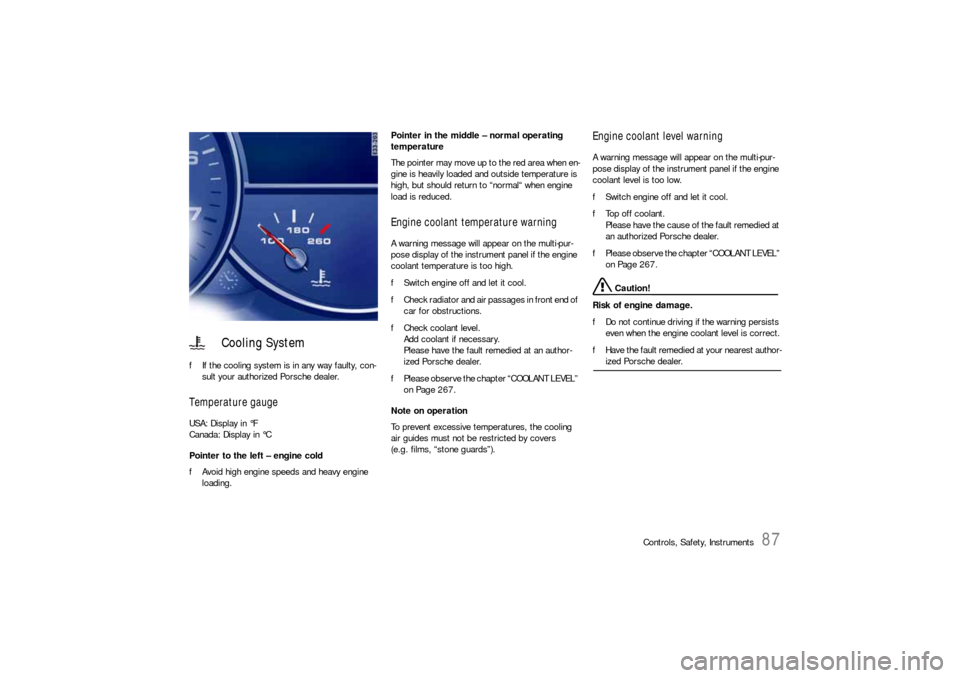

sult your authorized Porsche dealer.Temperature gaugeUSA: Display in °F
Canada: Display in °C
Pointer to the left – engine cold
fAvoid high engine speeds and heavy engine
loading.Pointer in the middle – normal operating
temperature
The pointer may move up to the red area when en-
gine is heavily loaded and outside temperature is
high, but should return to “normal“ when engine
load is reduced.
Engine coolant temperature warningA warning message will appear on the multi-pur-
pose display of the instrument panel if the engine
coolant temperature is too high.
fSwitch engine off and let it cool.
fCheck radiator and air passages in front end of
car for obstructions.
fCheck coolant level.
Add coolant if necessary.
Please have the fault remedied at an author-
ized Porsche dealer.
fPlease observe the chapter “COOLANT LEVEL”
on Page 267.
Note on operation
To prevent excessive temperatures, the cooling
air guides must not be restricted by covers
(e.g. films, “stone guards”).
Engine coolant level warningA warning message will appear on the multi-pur-
pose display of the instrument panel if the engine
coolant level is too low.
fSwitch engine off and let it cool.
fTop off coolant.
Please have the cause of the fault remedied at
an authorized Porsche dealer.
fPlease observe the chapter “COOLANT LEVEL”
on Page 267.
Caution!
Risk of engine damage.
fDo not continue driving if the warning persists
even when the engine coolant level is correct.
fHave the fault remedied at your nearest author-ized Porsche dealer.
Cooling System

88
Controls, Safety, Instruments

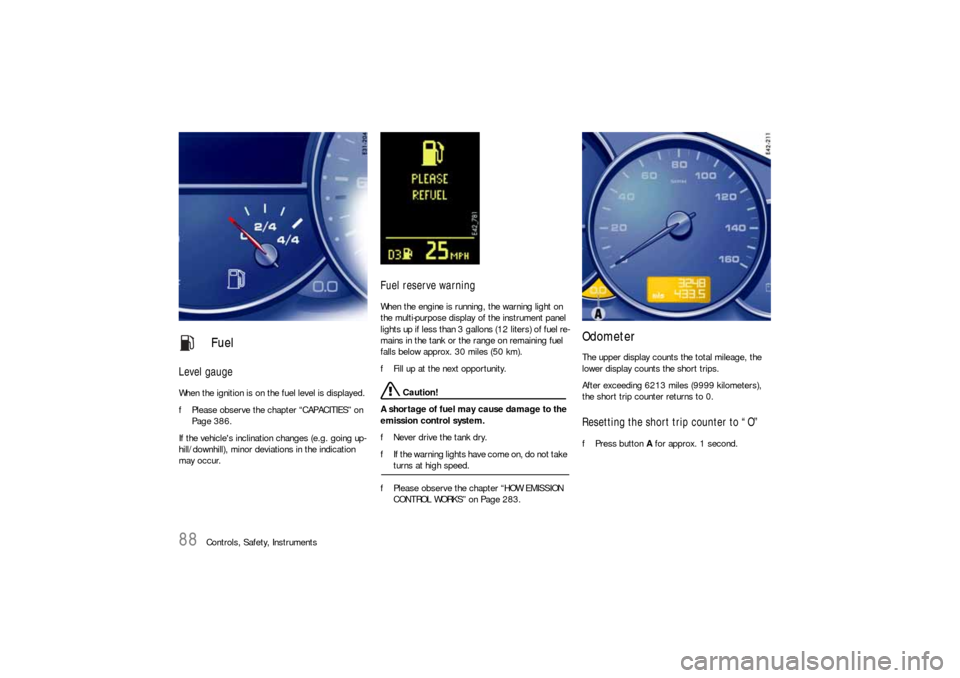

Level gaugeWhen the ignition is on the fuel level is displayed.
fPlease observe the chapter “CAPACITIES” on
Page 386.
If the vehicle's inclination changes (e.g. going up-
hill/downhill), minor deviations in the indication
may occur.
Fuel reserve warningWhen the engine is running, the warning light on
the multi-purpose display of the instrument panel
lights up if less than 3 gallons (12 liters) of fuel re-
mains in the tank or the range on remaining fuel
falls below approx. 30 miles (50 km).
fFill up at the next opportunity.
Caution!
A shortage of fuel may cause damage to the
emission control system.
fNever drive the tank dry.
fIf the warning lights have come on, do not take turns at high speed.
fPlease observe the chapter “HOW EMISSION
CONTROL WORKS” on Page 283.
OdometerThe upper display counts the total mileage, the
lower display counts the short trips.
After exceeding 6213 miles (9999 kilometers),
the short trip counter returns to 0.Resetting the short trip counter to “O”fPress button A for approx. 1 second.
Fuel

Controls, Safety, Instruments
89

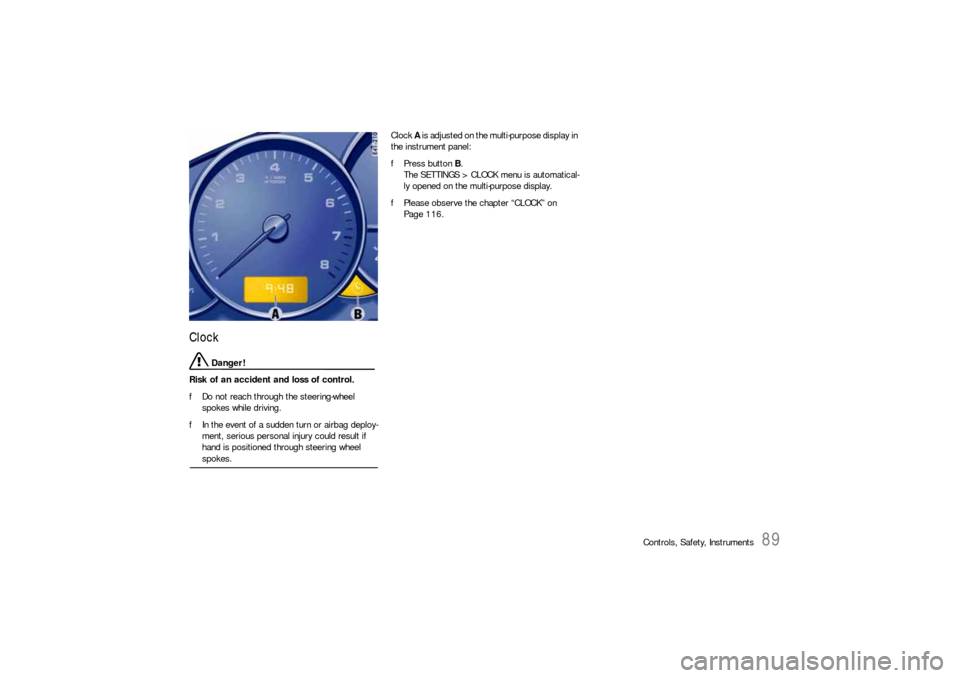

Clock
Danger!
Risk of an accident and loss of control.
fDo not reach through the steering-wheel
spokes while driving.
fIn the event of a sudden turn or airbag deploy-
ment, serious personal injury could result if
hand is positioned through steering wheel spokes.Clock A is adjusted on the multi-purpose display in
the instrument panel:
fPress button B.
The SETTINGS > CLOCK menu is automatical-
ly opened on the multi-purpose display.
fPlease observe the chapter “CLOCK” on
Page 116.

90

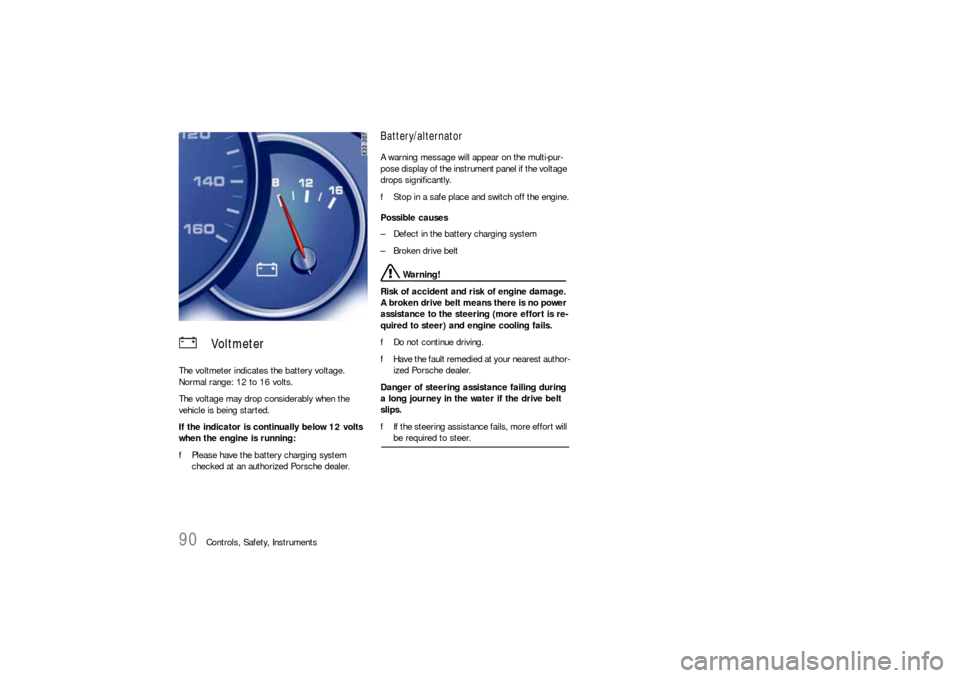

Controls, Safety, Instruments The voltmeter indicates the battery voltage.
Normal range: 12 to 16 volts.
The voltage may drop considerably when the
vehicle is being started.
If the indicator is continually below 12 volts
when the engine is running:
fPlease have the battery charging system
checked at an authorized Porsche dealer.
Battery/alternatorA warning message will appear on the multi-pur-
pose display of the instrument panel if the voltage
drops significantly.
fStop in a safe place and switch off the engine.
Possible causes
– Defect in the battery charging system
– Broken drive belt
Warning!
Risk of accident and risk of engine damage.
A broken drive belt means there is no power
assistance to the steering (more effort is re-
quired to steer) and engine cooling fails.
fDo not continue driving.
fHave the fault remedied at your nearest author-
ized Porsche dealer.
Danger of steering assistance failing during
a long journey in the water if the drive belt
slips.
fIf the steering assistance fails, more effort will be required to steer.
Voltmeter
