horn PORSCHE CAYNNE TURBO 2006 1.G Owners Manual

Controls, Safety, Instruments
13
In the driver's seat...fCheck operation of the horn.
fPosition seat for easy reach of foot pedals and
controls.To reduce the possibility of injury from
the airbag deployment, you should always sit
back as far from the steering wheel as is prac-
tical, while still maintaining full vehicle control.
fAdjust the inside and outside rear view mirrors.
fBuckle your safety belts.
fCheck operation of the foot and parking brake.
fCheck all warning and indicator lights with igni-
tion on and engine not running.
fStart engine and check all warning displays for
warning symbols.
fNever leave an idling car unattended.
fLock doors from inside, especially with chil-
dren in the car to prevent inadvertent opening
of doors from inside or outside. Drive with
doors locked.
On the road...fNever drive after you have consumed alcohol
or drugs.
fAlways have your safety belt fastened.
fAlways drive defensively.
Expect the unexpected.
fUse signals to indicate turns and lane changes.
fTurn on headlights at dusk or when the driving
conditions warrant it.
fAlways keep a safe distance from the vehicle in
front of you, depending on traffic, road and
weather conditions.
fReduce speed at night and during inclement
weather.
Driving in wet weather requires caution and re-
duced speeds, particularly on roads with
standing water, as the handling characteristics
of the vehicle may be impaired due to hydro-
planing of the tires.
fAlways observe speed limits and obey road
signs and traffic laws.
fWhen tired, get well off the road, stop and take
a rest. Turn the engine off. Do not sit in the ve-
hicle with engine idling.
Please observe the chapter “ENGINE EX-
HAUST” on Page 6.fWhen parked, always set the parking brake.
Move the Tiptronic selector lever to “P“.
On hills also turn the front wheels toward the
curb.
fWhen emergency repairs become necessary,
move the vehicle well off the road. Turn on the
emergency flasher and use other warning de-
vices to alert other motorists. Do not park or
operate the vehicle in areas where the hot ex-
haust system may come in contact with dry
grass, brush, fuel spill or other flammable ma-
terial.
fMake it a habit to have the engine oil checked
with every fuel filling.

Controls, Safety, Instruments
15
1 Power windows
2 Inner door handle
3 Door mirror adjustment
4 Engine compartment lid release
5 Parking brake
6 Diagnostic socket (OBD)
7 Parking brake release
8 Ignition lock/steering lock
9 Steering wheel adjustment
10 Seat adjustment
11 Instrument lighting knob
12 Light switch
13 Turn signal/high, low beam/headlight flasher
stalk
14 Operating lever for cruise control
15 Rocker switches for Tiptronic
16 Horn
17 Emergency flasher switch
18 Glove compartment

18
Controls, Safety, Instruments
Panic buttonIn dangerous situations or when one's own safety
is threatened, it is possible to draw attention to
the situation by triggering an alarm. To trigger an alarm
fPress button.
The horn sounds and the emergency flashers
flash.
To stop the alarm
fPress button again.
The horn becomes silent and the emergency
flashers go out.

28
Controls, Safety, Instruments
Alarm System,
Passenger Compartment
Monitoring, Inclination SensorThis device complies with:
Part 15 of the FCC Rules
RSS-210 of Industry Canada.
Operation of this device is subject to the following
two conditions:
– It may not cause harmful interference, and
– it must accept any interference received in-
cluding interference that may cause undesired
operation.
Note
fThe manufacturer is not responsible for any ra-
dio or TV interference caused by unauthorized
modifications to this equipment.
Such modification could void the user's author-
ity to operate the equipment.
Warning!
Any changes or modifications not expressly ap-
proved by Porsche could void the user’s authority
to operate this equipment.Avoiding false alarmsfAlways close the sliding/lifting roof and all door
windows.
fDo not leave a mobile phone switched on in the
glasses case of the roof console.
fAlways turn off the alarm system before you at-
tach a trailer. The inclination sensor could trig-
ger the alarm unintentionally.Switching off the alarm system if it is
triggeredfUnlock vehicle doors or
fSwitch ignition on.
The following alarm contacts are
monitored– Doors
– Engine compartment lid
–Rear lid
–Rear window
– Passenger compartment
– Vehicle inclination
fIf one of these alarm contacts is interrupted,
the alarm horn sounds for approx. 30 seconds
and the emergency flashers flash.
After 5 seconds of interruption the alarm is
triggered again. This cycle is repeated ten
times. USA: KR5KESSY
Canada: CAN 267 104 139

62
Controls, Safety, Instruments
Steering WheelTiptronic rocker switchesThe Porsche Tiptronic is a six-speed transmission
and features an “automatic” and a “manual” gear-
shift mode.
You can change temporarily to manual mode using
rocker switches A on the steering wheel.
fPlease observe the chapter “TIPTRONIC S” on
Page 214.
HornfPress button B to operate the horn.Airbag unitAirbag unit C is located behind the padded steer-
ing wheel boss.
In conjunction with the safety belts, the “airbag” is
a safety system designed to provide the driver and
passengers with maximum protection from injury
in an accident.
fPlease observe the chapter “AIRBAG SYS-
TEMS” on Page 50.
Steering Wheel HeatingIf the interior temperature in the vehicle is lower
than +54°F (12°C) when the ignition is switched
on, the steering wheel heating is switched on au-
tomatically.
When this happens, the steering wheel adjusts to
a temperature of +73°F (23°C).
If the interior temperature rises above +71°F
(22°C) when the vehicle is operational, the steer-
ing wheel heating switches off again.

Controls, Safety, Instruments
119
Signal
MAIN MENU > SETTINGS > COMFORT > DOOR
OPENING > SIGNAL
If the function TURN SIGNALS is active, opening of
the door is confirmed by the emergency flashers
flashing.
fSelect type of signal with the rocker switch.
fPress RESET switch.
If the function HORN is active, opening of the door
is confirmed by an acoustic signal.
fSelect HORN with the rocker switch.
fPress RESET switch.Mirrors
MAIN MENU > SETTINGS > COMFORT > MIRRORS
When this function is active, the mirrors move
simultaneously and in the same direction.
fSelect SYNCHRONISING with the rocker
switch.
fPress RESET switch.
LightingMAIN MENU > SETTINGS > LIGHTS
You can set the duration the lights remain on after
the vehicle is locked.
fSelect OFF DELAY with the rocker switch.
fPress RESET switch. The set coming home
time is active.
fSelect time with the rocker switch and press
the RESET switch.
fYou can use the rocker switch to set an off-de-
lay time (Coming Home function) ranging from
15 to 90 seconds. The time is set in incre-
ments of 15 seconds.
fPress RESET switch.

Practical Tips, Minor Repairs
325

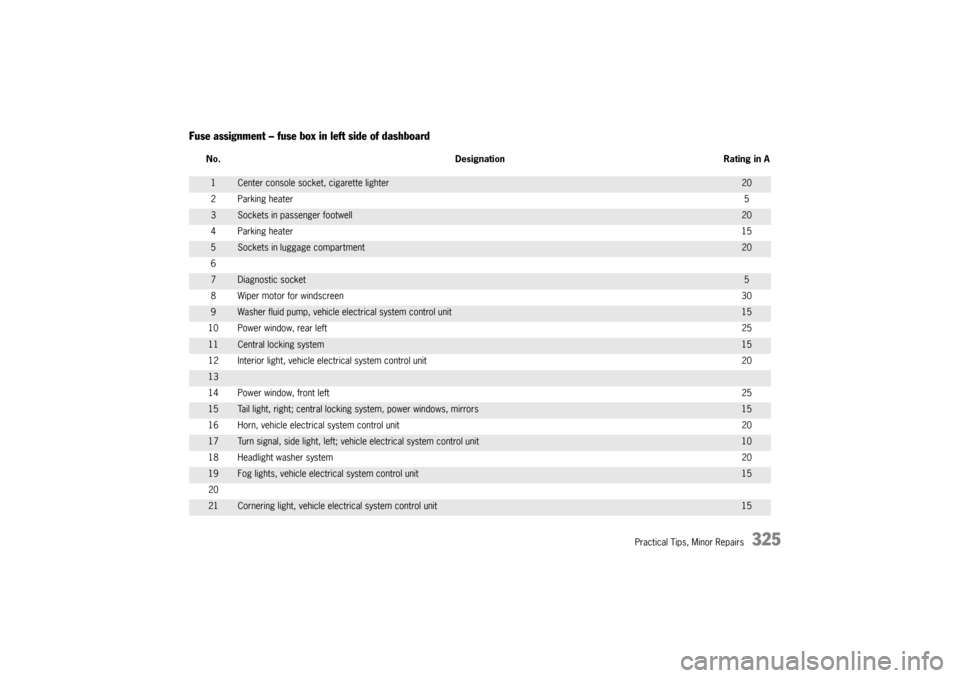

Fuse assignment – fuse box in left side of dashboard
No. Designation Rating in A1
Center console socket, cigarette lighter
20
2 Parking heater5
3
Sockets in passenger footwell
20
4 Parking heater15
5
Sockets in luggage compartment
20
6
7
Diagnostic socket
5
8 Wiper motor for windscreen30
9
Washer fluid pump, vehicle electrical system control unit
15
10 Power window, rear left25
11
Central locking system
15
12 Interior light, vehicle electrical system control unit20
1314 Power window, front left2515
Tail light, right; central locking system, power windows, mirrors
15
16 Horn, vehicle electrical system control unit20
17
Turn signal, side light, left; vehicle electrical system control unit
10
18 Headlight washer system20
19
Fog lights, vehicle electrical system control unit
15
20
21
Cornering light, vehicle electrical system control unit
15

Index
381
Evaporation control ............................. 270
Level gauges ........................................ 86
Recommendations .............................. 269
Fuel containers, portable ........................ 6
, 270
Fuel gauge ................................................... 86
Fuel quality ..................................................... 8
Function keys ............................................... 64
Lighting ................................................ 65
Fuse assignment......................................... 325
Fuses......................................................... 323
GGarage door opener.................................... 178
Allocating ........................................... 179
Changeable code system .................... 179
Deleting ............................................. 180
Fixed code system .............................. 179
Gear display ............................................... 215
Glasses case .............................................. 188
Glove compartment .................................... 189
Gross weight .............................................. 207
Ground clearance .............................. 374
, 375
HHand-held transmitter ......................... 178
, 179
Headlight beam adjustment ................ 123, 132
Headlights ................................ 210
, 279
, 349
Bi-Xenon ............................................. 351
Changing for left-hand traffic ................ 359
Closing the housing lid ........................ 351
Height adjustment ............................... 359
Opening the housing lid ....................... 351
Setting ............................................... 358Washer system ...................................136
Headrest ......................................................40
Installing ...............................................40
Removing .............................................40
Setting .................................................40
Heated rear window .........141
, 142
, 143
, 147
Height adjustment ..............................227, 244
High beam.........................................130, 133
Indicator light .................................80, 82
Switch ................................................133
High Range...............99
, 216
, 218
, 223
, 226
On-road driving program ......................222
High-pressure cleaning units.........................274
Horn ............................................................62
IIdentification number ...................................364
Idling..........................................................215
Ignition lock ..................................................70
Immobilizer...................................................21
Inclination sensor ..............24
, 26, 28, 34, 35
Function indication................................32
Monitored areas ....................................28
Switching off.........................................29
Switching on .........................................29
Switching on, temporarily.......................30
Instrument panel
Lighting ..............................................132
Interior light, front .......................................160
Interior lighting............................................160
Interior mirror ...............................................66
ISOFIX system...............................................60
JJack ................................................. 246
, 299
Jacking point ............................................. 307
Jump lead starting
Leads ................................................ 344
Jumper cables ........................................... 343
KKeys............................................................ 17
Changing the battery .......................... 346
Kickdown................................................... 217LLeather care .............................................. 280
Left-hand traffic.......................................... 359
Level control
..................... 98
, 174
, 191
, 227
, 244
, 301
Loading level.................... 245
, 246
, 375
Low level ........................................... 244
Normal level....................................... 244
Special low level................................. 244
Special terrain level ............................ 244
Switching on and off ........................... 246
Warning light ...................................... 246
License plate light............................. 162, 357
Lid
Engine compartment .......................... 199
Luggage compartment ....................... 194
Seal .................................................. 279
Lifting
Garage lift.......................................... 300
Jack .................................................. 307
