Driving and Driving Safety
207
ABS Brake System
(Anti-Lock Brake System)
Warning!
In spite of the advantages of ABS, it is still the
driver’s responsibility to adapt his driving style and
maneuvers in line with road and weather
conditions, as well as the traffic situation.
The increased safety that is provided should not
induce you to take greater risks with your safety.
The limits set by the physic s of driving cannot be
overcome, even with ABS.
Risk of accidents due to inappropriate speed
cannot be reduced by ABS.
ABS ensures
– Full steering control
The vehicle remains steerable
– Good driving stability
No skidding due to locked wheels
– Optimum braking distance
Shorter stopping distance in most cases
– Prevention of wheel locking
No flat spots on the tires Function
The decisive advantage of ABS lies in the driving
stability and maneuverability of the vehicle in
hazardous situations.
ABS prevents locking of
the wheels during full
braking, on almost all road surfaces, until just
before the vehicle stops.
ABS begins to control the braking process as
soon as a wheel shows a tendency to lock.
This controlled braking process is comparable
with extremely rapid cadence braking.
The pulsating brake pedal and a “juddering noise”
warn the driver to adapt his driving speed to the
road conditions.
f If full braking is necessary, press the brake
pedal fully during the whole braking operation,
even though the pedal is pulsating. Do not
reduce brake pressure. If the ABS warning light lig
hts up on the instrument
panel while the engine is running, the ABS has
switched off because of a fault.
The warning message “ABS failure” appears on
the multi-function display in the instrument panel.
For information on warning messages on the
multi-function display:
f Please see the chapter “OVERVIEW OF
WARNING MESSAGES” on page 152.
In this case, the brake system will operate without
lock prevention, as on vehicles without ABS.
f Adapt your driving style to the changed
braking behavior.
The ABS must be checked by your authorized
Porsche dealer in order to prevent the
occurrence of further faults with unpredictable
consequences.
Please contact a qualified specialist workshop.
We recommend that you have an authorized
Porsche dealer to do this work as they have
trained workshop personnel and the necessary
parts and tools.
The ABS control unit is adjusted for the approved
tire dimensions.
The use of tires with no n-approved dimensions can
lead to different wheel speeds, causing ABS to
switch off. Warning light USA
Warning light Canada

254
Maintenance and Car Care
Engine OilIt is important to perform oil changes regularly in
accordance with the intervals specified in your
Maintenance Schedule.Engine oil consumptionIt is normal for your engine to consume oil.
The rate of oil consumption depends on the quality
and viscosity of oil, the speed at which the engine
is operated, the climate, road conditions as well
as the amount of dilution and oxidation of the
lubricant.
If the vehicle is used for repeated short trips, and
consumes a normal amount of oil, the engine oil
measurement may not show any drop in the oil
level at all, even afte r 600 miles (1000 km) or
more. This is because the oil is gradually
becoming diluted with fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out when the
vehicle is driven at high speeds, as on an
expressway, making it then appear that oil is
excessively consumed after driving at high
speeds.
If the conditions you drive your vehicle in are
dusty, humid, or hot, the frequency of the oil
change intervals should be greater. If the vehicle is driven at a high rate of speed,
climatic conditions are warm, and the load is high,
the oil should be checked more frequently, as
driving conditions will de
termine the rate of oil
consumption.
– The engine in your vehicle depends on oil to lubricate and cool all of its moving parts.
Therefore, the engine oil should be checked
regularly and kept at the required level.
– Make it a habit to have the engine oil level checked with every refueling.
– The oil pressure warning light is not an oil level indicator.
The oil pressure warning light indicates serious
engine damage may be occuring when lit, if
engine rpm is above idle speed.
Checking Engine-Oil Levelf Check the oil level on the multi-function display
at regular intervals before refuelling.
f Please see the chapter “OIL LEVEL DISPLAY
AND MEASUREMENT OF THE ENGINE OIL
LEVEL” on page 121.
Warning!
Engine oil is hazardous to your health and
may be fatal if swallowed.
f Keep engine oil out of children's reach.
Used engine oil contains chemicals that have
caused cancer in laboratory animals.
f Always protect your skin by washing thoroughly with soap and water.
Top-up quantity
The difference between the minimum and
maximum marks on the segment display is
approx. 1.06 US quearts (1 liter).
One segment of the display corresponds to
a top-up quantity of approx. 0.26 US quarts
(0.25 liters).
f Never add more engine oil than required to
reach the maximum mark.

258
Maintenance and Car Care
1. If the engine is hot, cover the reservoir cap
with a cloth.
Open cap carefully and allow any overpressure
to escape.
Then unscrew cap completely.
2. Read off the engine coolant level. Top up with coolant if necessary.
Only add a mixture of antifreeze and water
in equal parts.
Antifreeze in coolant:
50 % provides antifreeze protection
down to –31 °F (–35 °C).
Do not top up over the plus marking.
3. Screw the cap on the reservoir closed until it locks securely.
4. Have the cooling system checked. Please contact a qualif ied specialist workshop.
We recommend that you have an authorized
Porsche dealer to do this work as they have
trained workshop personnel and the necessary
parts and tools. Maintenance notes
If pure water is added in an emergency, the mixing
ratio will have to be corrected.
A significant loss of coolan
t indicates a leak in the
cooling system.
f The cause must be eliminated without delay.
Please contact a qualified specialist workshop.
We recommend that you have an authorized
Porsche dealer to do this work as they have
trained workshop personnel and the necessary
parts and tools.
Radiator fansThe radiators and radiator fans are in the front
of the vehicle.
Warning!
Risk of injury.
The fans can start running when a certain
temperature is reached, even with the
engine switched off.
f Exercise extreme care when working close to
the radiator fans and make sure the engine is switched off.
Brake FluidRegular checking of the brake fluid is part of
servicing.
The fluid level should always be between the
MIN and MAX markings.
A slight decrease in the fluid level due to wear
and automatic readjustment of the disc brakes
is normal.
However, if the fluid level falls significantly or
goes below the MIN marking, the brake system
may have developed a leak.
fHave the brake system checked immediately.
Please contact a qualified specialist workshop.
We recommend that you have an authorized

260
Maintenance and Car Care
The warning light on the instrument panel and
the warning message on the multi-function display
alert you to the fact that the washer fluid level
is too low.
f
Add washer fluid at the next opportunity.
In this case, the remaining quantity is only approx.
1 litre. The maximum filling capacity is approx.
5.8USquarts (5.5liters).
Adding washer fluid
1. Open cap on washer fluid reservoir.
2. Add washer fluid.
3. Close cap carefully.
Power Steering
Warning!
Risk of accidents. When the engine is
stationary (e.g. when on tow) or the hydraulic
system fails, there is no power steering
assistance available.
Therefore, substantially more force will have
to be exerted to steer the vehicle.
f Exercise extreme care when your vehicle is
being towed.
f Have the fault corrected. Please contact a
qualified specialist workshop. We recommend
that you have an authorized Porsche dealer to
do this work as they have trained workshop personnel and the necessary parts and tools.
Regular checking of hydraulic fluid is part of
servicing.
The flow noise heard at full steering lock is design-
related and does not indicate a defect in the
steering system. Vehicles with Porsche Dynamic Chassis
Control (PDCC)
If the fluid level is too
low, the message “Check
steering oil level” will appe ar on the multi-function
display.
f Have the fluid level checked immediately.
f Please contact a qualified specialist workshop.
We recommend that you have an authorized
Porsche dealer to do this work as they have
trained workshop personnel and the necessary
parts and tools.
Warning light and warning
message

Minor Repairs
309
Removing headlights1. Switch off the ignition and remove the ignition
key, or pull out the control unit on vehicles with
Porsche Entry & Drive.
2. Open the engine compartment lid.
3. Take a socket wrench out of the tool kit.
4. Place the socket wrench on the release and turn in direction of arrow until you feel and hear
the headlight being released. 5. Pull headlight approx. 4 in. (10 cm) forward
out of the fender.
6. Press back the releas e tab of the connector A
and pull connector off.
7. Press the release lever on the underside of the rapid-action coupling on the breather hose B
up and pull it off.
8. Pull headlight out completely.
Installing headlights1. Move the headlight release mechanism to unlock position. Insert the headlight into the
guide rails, attach the connector A and
breather hose B and then slide the headlight
fully into the fender.
2. Press the headlight to the rear and simultaneously turn the socket wrench in
direction of arrow. You should feel and hear the
headlight locking mechanism engage.
3. Check that the headlight is seated securely.
4. Remove the socket wrench and place it in the tool kit.
5. Close engine compartment lid.

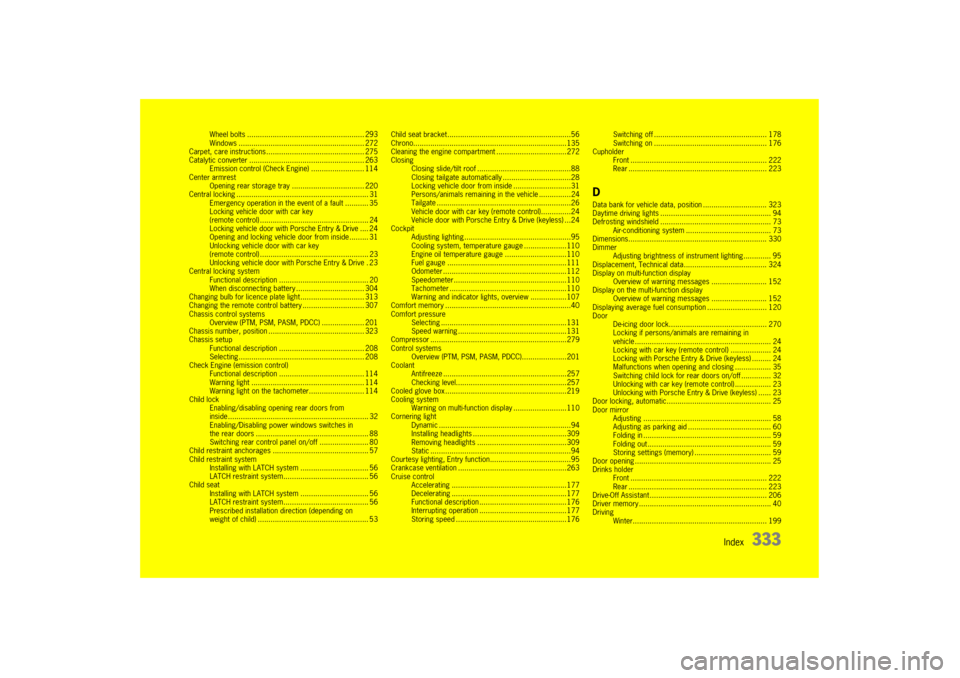

Index
333
Wheel bolts ....................................................... 293
Windows ............ ...................................... ......... 272
Carpet, care instructions .. ............................................ 275
Catalytic converter .......... ............................................ 263
Emission control (Check Engine) ......................... 114
Center armrest Opening rear storage tr ay .................................. 220
Central locking .................... .......................................... 31
Emergency operation in th e event of a fault ........... 35
Locking vehicle door with car key
(remote control) ............. ...................................... 24
Locking vehicle door with Porsche Entry & Drive .... 24
Opening and locking vehicle door from inside ......... 31
Unlocking vehicle door with car key
(remote control) ............. ...................................... 23
Unlocking vehicle door with Porsche Entry & Drive . 23
Central locking system Functional description .......................................... 20
When disconnecting batt ery ................................ 304
Changing bulb for licence pl ate light.............................. 313
Changing the remote contro l battery ............................. 307
Chassis control systems Overview (PTM, PSM, PA SM, PDCC) .................... 201
Chassis number, position . ............................................ 323
Chassis setup Functional description ........................................ 208
Selecting............ ...................................... ......... 208
Check Engine (emission control) Functional description ........................................ 114
Warning light ................. .................................... 114
Warning light on the tach ometer.......................... 114
Child lock Enabling/disabling opening rear doors from
inside ................. ...................................... ........... 32
Enabling/Disabling power windows switches in
the rear doors ............... ...................................... 88
Switching rear control pa nel on/off ....................... 80
Child restraint anchorages ............................................. 57
Child restraint system Installing with LATCH sy stem ................................ 56
LATCH restraint system.. ...................................... 56
Child seat Installing with LATCH sy stem ................................ 56
LATCH restraint system.. ...................................... 56
Prescribed installation direction (depending on
weight of child) .......... .......................................... 53 Child seat bracket..............
............................................56
Chrono................... .......................................... ...........135
Cleaning the engine compar tment .................................272
Closing Closing slide/tilt roof .... ........................................88
Closing tailgate automati cally ................................28
Locking vehicle door from inside .......... .................31
Persons/animals remaining in the vehicle ...............24
Tailgate ............... ................................................26
Vehicle door with car key (remote control)..............24
Vehicle door with Porsche Entry & Drive (keyless) ...24
Cockpit Adjusting lighting .......... ........................................95
Cooling system, temperat ure gauge ....................110
Engine oil temperature ga uge .............................110
Fuel gauge ...... ..................................................111
Odometer ............ ..............................................112
Speedometer....... ..............................................110
Tachometer ..................... ..................................110
Warning and indicator ligh ts, overview .................107
Comfort memory ................... ........................................40
Comfort pressure Selecting ......... ..................................................131
Speed warning ................. ..................................131
Compressor ........... .......................................... ...........279
Control systems Overview (PTM, PSM, PASM , PDCC).....................201
Coolant Antifreeze ........ ..................................................257
Checking level.............. ......................................257
Cooled glove box ............... ..........................................219
Cooling system Warning on multi-function display .........................110
Cornering light Dynamic .............. ................................................94
Installing headlights ...... ......................................
309
Removing headlights ........ ..................................309
Static .................. ................................................94
Courtesy lighting, Entry func tion......................................95
Crankcase ventilation ......... ..........................................263
Cruise control Accelerating .................... ..................................177
Decelerating .... ..................................................177
Functional description ... ......................................176
Interrupting operation ... ......................................177
Storing speed ......................................... ...........176Switching off ..................
................................... 178
Switching on .................. ................................... 176
Cupholder Front ................. ............................................... 222
Rear .................. ............................................... 223
DData bank for vehicle data, position .............................. 323
Daytime driving lights ....... ............................................. 94
Defrosting windshield ....... ............................................. 73
Air-conditioning system ........................................ 73
Dimensions.......... ........................................... ............ 330
Dimmer Adjusting brightness of inst rument lighting............. 95
Displacement, Technical da ta....................................... 324
Display on multi-function display Overview of warning messages .......... ................ 152
Display on the multi-function display Overview of warning me ssages .......................... 152
Displaying average fuel co nsumption ............................ 120
Door De-icing door lock....... ....................................... 270
Locking if persons/animals are remaining in
vehicle ................................... ............................. 24
Locking with car key (remot e control) ................... 24
Locking with Porsche Entry & Drive (keyless) ......... 24
Malfunctions when opening and closing ................. 35
Switching child lock for re ar doors on/off .............. 32
Unlocking with car key (rem ote control)................. 23
Unlocking with Porsche Entr y & Drive (keyless) ...... 23
Door locking, automatic.... ............................................. 25
Door mirror Adjusting ....................... ..................................... 58
Adjusting as parking aid . ...................................... 60
Folding in ....................... ..................................... 59
Folding out..................... ..................................... 59
Storing settings (memor y) .................................... 59
Door opening ....... ........................................... .............. 25
Drinks holder Front ................. ............................................... 222
Rear .................. ............................................... 223
Drive-Off Assistant ............ ........................................... 206
Driver memory ..... ........................................... .............. 40
Driving Winter................ ............................................... 199

334

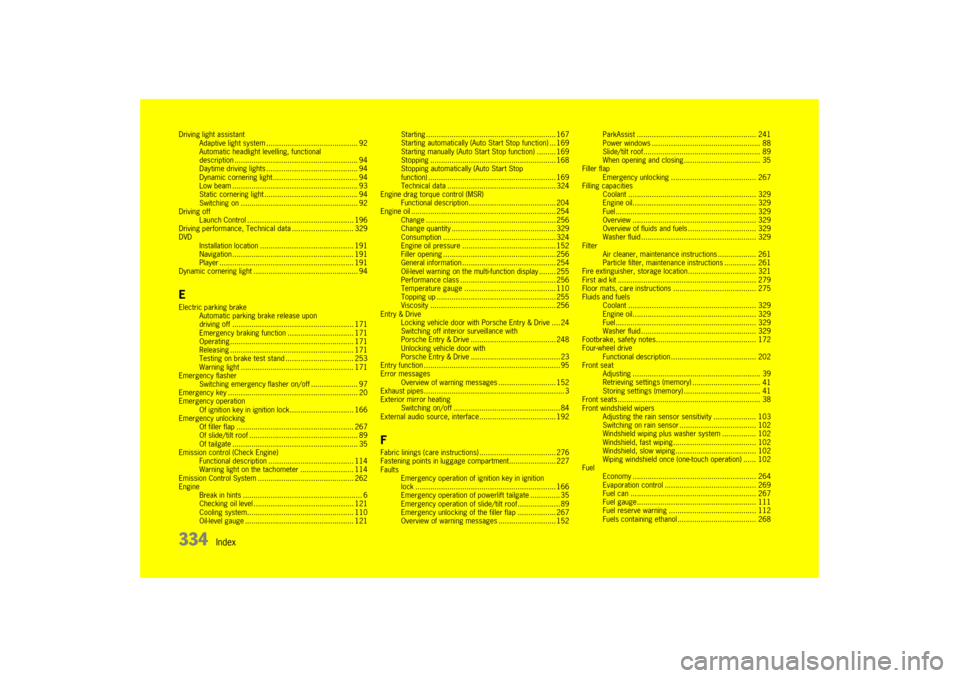

Index
Driving light assistantAdaptive light system .. ......................................... 92
Automatic headlight le velling, functional
description ...... ....................................... ............. 94
Daytime driving lights .. ......................................... 94
Dynamic cornering light ........................................ 94
Low beam ........... ...................................... .......... 93
Static cornering light ... ......................................... 94
Switching on .................. ..................................... 92
Driving off Launch Control ............... ................................... 196
Driving performance, Techni cal data ............................. 329
DVD Installation location ..... ....................................... 191
Navigation ........... ...................................... ........ 191
Player ................. ...................................... ........ 191
Dynamic cornering light ..... ............................................ 94EElectric parking brake
Automatic parking brake release upon
driving off ....... .................................................. 171
Emergency braking functi on ............................... 171
Operating ............ ...................................... ........ 171
Releasing .................................................. ........ 171
Testing on brake test st and ................................ 253
Warning light .................. ................................... 171
Emergency flasher Switching emergency flashe r on/off ...................... 97
Emergency key ..... ........................................................ 20
Emergency operation Of ignition key in igniti on lock.............................. 166
Emergency unlocking Of filler flap ................ ....................................... 267
Of slide/tilt roof .......... ......................................... 89
Of tailgate ...................... ..................................... 35
Emission control (Check Engine)
Functional description . ....................................... 114
Warning light on the tach ometer ......................... 114
Emission Control System ... .......................................... 262
Engine Break in hints ............. ........................................... 6
Checking oil level ........ ....................................... 121
Cooling system.... ...................................... ........ 110
Oil-level gauge ................ ................................... 121 Starting .............
................................................ 167
Starting automatically (Auto Start Stop function) ... 169
Starting manually (Auto Star t Stop function) ......... 169
Stopping .............. ............................................. 168
Stopping automatically (Auto Start Stop
function) ............ ................................................ 169
Technical data .................. ................................. 324
Engine drag torq ue control (MSR)
Functional description.... ..................................... 204
Engine oil ............ ........................................................ 254
Change ................ ............................................. 256
Change quantity ............ .....................................
329
Consumption ........ ............................................. 324
Engine oil pressure ....... ..................................... 152
Filler opening ................ ..................................... 256
General information ....... ..................................... 254
Oil-level warning on the mult i-function display ........ 255
Performance class ............ ................................. 256
Temperature gauge .......... ................................. 110
Topping up ........... ............................................. 255
Viscosity ........... ................................................ 256
Entry & Drive Locking vehicle door with Porsche Entry & Drive .... 24
Switching off interior surveillance with
Porsche Entry & Drive ... ..................................... 248
Unlocking vehicle door with
Porsche Entry & Drive ... ....................................... 23
Entry function ...... .......................................... ................ 95
Error messages Overview of warning mess ages ........................... 152
Exhaust pipes...... ............................................................ 3
Exterior mirror heating Switching on/off ........... ....................................... 84
External audio source, inter face.................................... 192
FFabric linings (care instruct ions) .................................... 276
Fastening points in luggage compartment...................... 227
Faults Emergency operation of ig nition key in ignition
lock ..................... ............................................. 166
Emergency operation of po werlift tailgate .............. 35
Emergency operation of slid e/tilt roof.................... 89
Emergency unlocking of the filler flap .................. 267
Overview of warning mess ages ........................... 152 ParkAssist ..........
.............................................. 241
Power windows ................... ................................ 88
Slide/tilt roof .......................................... ............. 89
When opening and closin g.................................... 35
Filler flap
Emergency unlocking ...... .................................. 267
Filling capacities Coolant .............. .............................................. 329
Engine oil........................ .................................. 329
Fuel........................................ .......................... 329
Overview ............ .............................................. 329
Overview of fluids and fuels ................. ............... 329
Washer fluid .................... .................................. 329
Filter Air cleaner, maintenance instructions .................. 261
Particle filter, maintenance instructions ............... 261
Fire extinguisher, storage lo cation ................................ 321
First aid kit ........ .............................................. ........... 279
Floor mats, care instructio ns ....................................... 275
Fluids and fuels Coolant .............. .............................................. 329
Engine oil........................ .................................. 329
Fuel........................................ .......................... 329
Washer fluid .................... .................................. 329
Footbrake, safety notes..... .......................................... 172
Four-wheel drive Functional description .. ...................................... 202
Front seat Adjusting ............ ................................................ 39
Retrieving settings (mem ory)
................................ 41
Storing settings (memor y) .................................... 41
Front seats ............ .......................................... ............. 38
Front windshield wipers Adjusting the rain sensor sensitivity .................... 103
Switching on rain sensor .................................... 102
Windshield wiping plus wa sher system ................ 102
Windshield, fast wiping..... .................................. 102
Windshield, slow wiping ...................................... 102
Wiping windshield once (one-touch operation) ...... 102
Fuel Economy ............ .............................................. 264
Evaporation control ......... .................................. 269
Fuel can ......... .................................................. 267
Fuel gauge...... .................................................. 111
Fuel reserve warning ... ...................................... 112
Fuels containing ethanol ..................................... 268

336

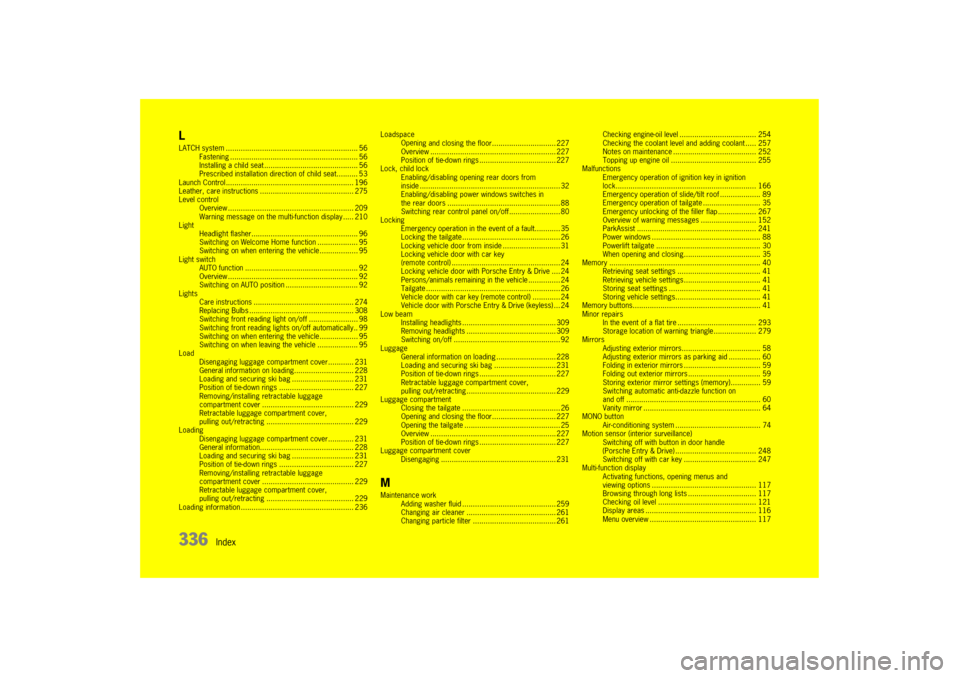

Index
LLATCH system .............................................................. 56
Fastening ....................... ..................................... 56
Installing a child seat ... ......................................... 56
Prescribed installation dire ction of child seat.......... 53
Launch Control .................. .......................................... 196
Leather, care instructions .................................... ........ 275
Level control Overview ............. ...................................... ........ 209
Warning message on the mult i-function display ..... 210
Light Headlight flasher......... ......................................... 96
Switching on Welcome Home function ................... 95
Switching on when entering the vehicle.................. 95
Light switch AUTO function ................ ..................................... 92
Overview ............. ...................................... .......... 92
Switching on AUTO positi on .................................. 92
Lights Care instructions ........ ....................................... 274
Replacing Bulbs .............. ................................... 308
Switching front reading lig ht on/off ....................... 98
Switching front reading light s on/off automatically.. 99
Switching on when entering the vehicle.................. 95
Switching on when leaving the vehicle ................... 95
Load Disengaging luggage comp artment cover ............ 231
General information on lo ading............................ 228
Loading and securing ski bag ............................. 231
Position of tie-down ri ngs ................................... 227
Removing/installing retractable luggage
compartment cover ........ ................................... 229
Retractable luggage compartment cover,
pulling out/retracting .. ....................................... 229
Loading Disengaging luggage comp artment cover ............ 231
General information..... ....................................... 228
Loading and securing ski bag ............................. 231
Position of tie-down ri ngs ................................... 227
Removing/installing retractable luggage
compartment cover ........ ................................... 229
Retractable luggage compartment cover,
pulling out/retracting .. ....................................... 229
Loading information ........... .......................................... 236 Loadspace
Open
ing and closing the floor................ .............. 227
Overview .............. ............................................. 227
Position of tie-down ring s .................................... 227
Lock, child lock
Enabling/disabling opening rear doors from
inside ................ ...................................... ............ 32
Enabling/disabling power windows switches in
the rear doors .............. ....................................... 88
Switching rear control pa nel on/off........................ 80
Locking Emergency operation in th e event of a fault............ 35
Locking the tailgate ....... ....................................... 26
Locking vehicle door from inside ........................... 31
Locking vehicle door with car key
(remote control) ............ ....................................... 24
Locking vehicle door with Porsche Entry & Drive .... 24
Persons/animals remaining in the vehicle ............... 24
Tailgate ............. ...................................... ............ 26
Vehicle door with car key (remote control) ............. 24
Vehicle door with Porsche Entry & Drive (keyless) ... 24
Low beam Installing headlights ....... ..................................... 309
Removing headlights ......... ................................. 309
Switching on/off ........... ....................................... 92
Luggage General information on lo ading ............................ 228
Loading and securing ski bag ............................. 231
Position of tie-down ring s .................................... 227
Retractable luggage compartment cover,
pulling out/retracting ..... ..................................... 229
Luggage compartment Closing the tailgate ....... ....................................... 26
Opening and closing the floor................ .............. 227
Opening the tailgate ...... ....................................... 25
Overview .............. ............................................. 227
Position of tie-down ring s .................................... 227
Luggage compartment cover Disengaging ...... ................................................ 231MMaintenance work
Adding washer fluid ....... ..................................... 259
Changing air cleaner ..... ..................................... 261
Changing particle filter ....................................... 261 Checking engine-oil leve
l .................................... 254
Checking the coolant level and adding coolant ..... 257
Notes on maintenance ..... .................................. 252
Topping up engine oil .. ...................................... 255
Malfunctions
Emergency operation of ignition key in ignition
lock.................... .............................................. 166
Emergency operation of slid e/tilt roof ................... 89
Emergency operation of ta ilgate ........................... 35
Emergency unlocking of the filler flap.................. 267
Overview of warning me ssages .......................... 152
ParkAssist .......... .............................................. 241
Power windows ................... ................................ 88
Powerlift tailgate ......... ........................................ 30
When opening and closin g.................................... 35
Memory ................... .................................................... 40
Retrieving seat settings ....................................... 41
Retrieving vehicle settin gs.................................... 41
Storing seat settings ... ........................................ 41
Storing vehicle settings ........................................ 41
Memory buttons..... .......................................... ............. 41
Minor repairs In the event of a flat ti re ..................................... 293
Storage location of warnin g triangle.................... 279
Mirrors Adjusting exterior mirror s..................................... 58
Adjusting exterior mirrors as parking aid ............... 60
Folding in exterior mirr ors .................................... 59
Folding out exterior mirr ors .................................. 59
Storing exterior mirror sett ings (memory).............. 59
Switching automatic anti-dazzle function on
and off ............... ................................................ 60
Vanity mirror ................... .................................... 64
MONO button Air-conditioning system ........................................ 74
Motion sensor (int er
ior surveillance)
Switching off with bu tton in door handle
(Porsche Entry & Drive) ...................................... 248
Switching off with car ke y .................................. 247
Multi-function display Activating functions, opening menus and
viewing options ............... .................................. 117
Browsing through long li sts ................................ 117
Checking oil level ........ ...................................... 121
Display areas .................. .................................. 116
Menu overview .................... .............................. 117

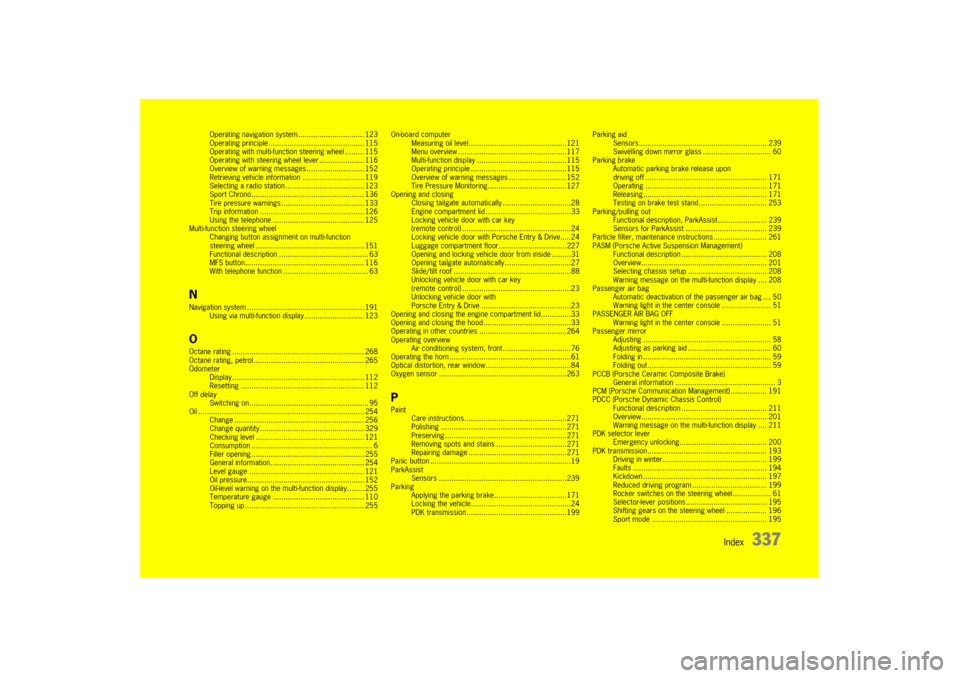

Index
337
Operating navigation system ............................... 123
Operating principle......... .................................... 115
Operating with multi-function steering wheel ......... 115
Operating with steering wh eel lever ..................... 116
Overview of warning me ssages ........................... 152
Retrieving vehicle inform ation ............................. 119
Selecting a radio statio n ..................................... 123
Sport Chrono................. .................................... 136
Tire pressure warnings ....................................... 133
Trip information ......... ........................................ 126
Using the telephone ....... .................................... 125
Multi-function steering wheel Changing button assign ment on multi-function
steering wheel ............... .................................... 151
Functional description .......................................... 63
MFS button.................... .................................... 116
With telephone function ........................................ 63
NNavigation system ............... ........................................ 191
Using via multi-function display ............................ 123OOctane rating ....... .......................................... ............. 268
Octane rating, petrol ........ ............................................ 265
Odometer Display ..................................................... ......... 112
Resetting ................................................. ......... 112
Off delay Switching on.................. ...................................... 95
Oil ................................................................. ............. 254
Change .............. ...................................... ......... 256
Change quantity ............. .................................... 329
Checking level ............... .................................... 121
Consumption ...... ...................................... ............. 6
Filler opening ............. ........................................ 255
General information ........ .................................... 254
Level gauge .................. .................................... 121
Oil pressure.......................................... ............. 152
Oil-level warning on the mult i-function display........ 255
Temperature gauge ....... .................................... 110
Topping up ......... ...................................... ......... 255On-board computer
Measuring oil level..............................................121
Menu overview ................. ..................................117
Multi-function display .... ......................................115
Operating principle ....... ......................................115
Overview of warning me ssages ...........................152
Tire Pressure Monitoring .....................................127
Opening and closing Closing tailgate automati cally ................................28
Engine compartment lid .... ....................................33
Locking vehicle door with car key
(remote control) ...................................... .............24
Locking vehicle door with Porsche Entry & Drive.....24
Luggage compartment floo r................................227
Opening and locking vehicle door from inside .........31
Opening tailgate automatica lly ...............................27
Slide/tilt roof ............... ........................................88
Unlocking vehicle door with car key
(remote control)
...................................... .............23
Unlocking vehicle door with
Porsche Entry & Drive .. ........................................23
Opening and closing the engine compartment lid..............33
Opening and closing the hood .........................................33
Operating in other countries .........................................264
Operating overview Air conditioning system, front ................................76
Operating the horn ............. ............................................61
Optical distortion, rear wi ndow ........................................84
Oxygen sensor ...................... ......................................263
PPaint
Care instructions .......... ......................................271
Polishing ............. ..............................................271
Preserving ........... ..............................................271
Removing spots and stai ns .................................271
Repairing damage ............ ..................................271
Panic button ........... .......................................... .............19
ParkAssist Sensors .............. ..............................................239
Parking Applying the parking brak e..................................171
Locking the vehicle....... ........................................24
PDK transmission .................................... ...........199 Parking aid
Sensors ............. ............................................... 239
Swivelling down mirror glass ................................ 60
Parking brake Automatic parking brake release upon
driving off ...... ................................................... 171
Operating .......... ............................................... 171
Releasing ........... ............................................... 171
Testing on brake test st and ................................ 253
Parking/pulling out Functional description, ParkAssist ....................... 239
Sensors for ParkAssist .......................... ............ 239
Particle filter, maintenance instructions ......................... 261
PASM (Porsche Active Suspension Management) Functional description . ....................................... 208
Overview................................ ........................... 201
Selecting chassis setup . .................................... 208
Warning message on the mult i-function display .... 208
Passenger air bag Automatic deactivation of the passenger air bag .... 50
Warning light in the cent er console ....................... 51
PASSENGER AIR BAG OFF Warning light in the cent er console ....................... 51
Passenger mirror Adjusting ....................... ..................................... 58
Adjusting as parking aid . ...................................... 60
Folding in ....................... ..................................... 59
Folding out..................... .....................................
59
PCCB (Porsche Ceramic Composite Brake) General information ........ ....................................... 3
PCM (Porsche Communicatio n Management) ................. 191
PDCC (Porsche Dyna mic Chassis Control)
Functional description . ....................................... 211
Overview................................ ........................... 201
Warning message on the mult i-function display .... 211
PDK selector lever Emergency unlocking...... ................................... 200
PDK transmission ................. ....................................... 193
Driving in winter.......... ....................................... 199
Faults ................ ............................................... 194
Kickdown ........... ............................................... 197
Reduced driving program ................................... 199
Rocker switches on the steering wheel.................. 61
Selector-lever positions ...................................... 195
Shifting gears on the st eering wheel ................... 196
Sport mode ....... ............................................... 195
