remote start PORSCHE PANAMERA 2009 1.G Information Manual

Contents
9
Battery....................................................... 303
External Power Supply, Jump-Lead
Starting...................... ................................ 306
Changing the Remote Control Battery ........... 307
Replacing Bulbs .......... ................................ 308
Headlights ...................... ............................ 308
Side Turn Signal Ligh t ................................. 312
Licence Plate Lights .... ................................ 313
Side Marker Light ... .................................... 313
Changing Light-Emitting Diodes and
Long-Life Bulbs ........... ............................... 314
Headlight Adjustment .. ................................ 314
Towing ....................................................... 316
Fire Extinguisher ......... ................................ 321Tire Pressure and Technical Data ..... 322Vehicle Identification Data ............................ 323
Engine Data................................................ 324
Wheels, Tires.............. ................................ 325
Tire Pressure for Cold Tires (68 °F/20 °C) .... 326
Weights...................................................... 328
Filling Capacities ......... ................................ 329
Driving Performance ... ................................ 329
Dimensions .................... ............................ 330Index .............................................. 331

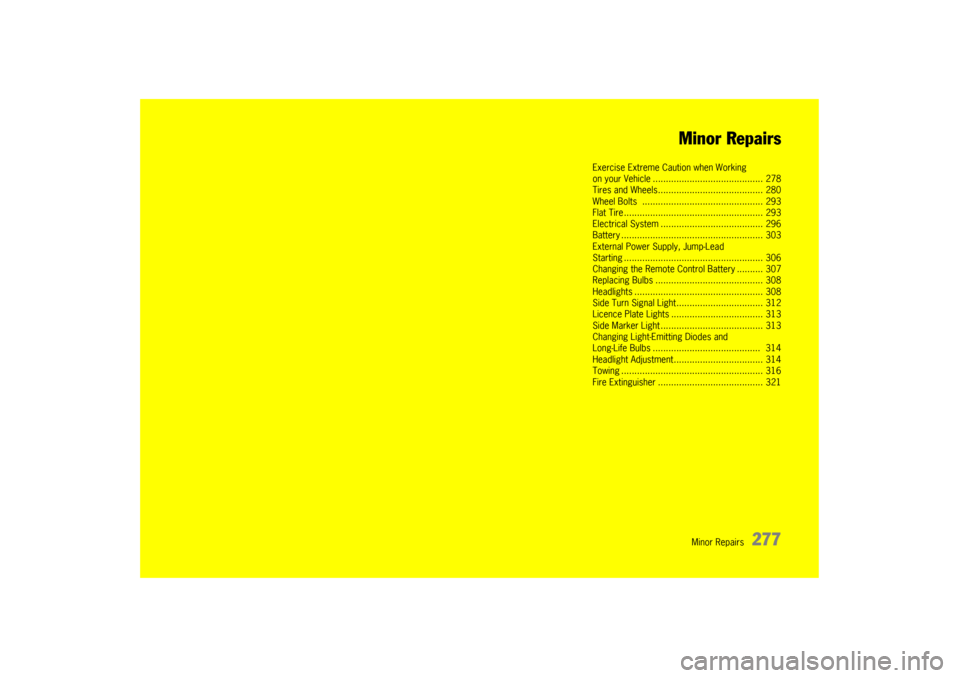

Minor Repairs
277
Minor Repairs
Exercise Extreme Caution when Working
on your Vehicle .......
................................... 278
Tires and Wheels..... ................................... 280
Wheel Bolts ................ .............................. 293
Flat Tire .................. ................................... 293
Electrical System .... ................................... 296
Battery ............................................ .......... 303
External Power Supply, Jump-Lead
Starting ........................................... .......... 306
Changing the Remote Co ntrol Battery .......... 307
Replacing Bulbs ...... ................................... 308
Headlights ....................................... .......... 308
Side Turn Signal Ligh t................................. 312
Licence Plate Lights ................................... 313
Side Marker Light .... ................................... 313
Changing Light-Emitting Diodes and
Long-Life Bulbs ......................................... 314
Headlight Adjustment .................................. 314
Towing ........................ .............................. 316
Fire Extinguisher .......................... .............. 321

Minor Repairs
307
4. Leave the engine of the donor vehicle running at a higher engine speed.
5. Start the engine. An attempted start using jump leads should
not last more than 15 seconds. Then wait for
at least one minute.
6. Disconnect the negative lead from the ground
point for jump-lead starting ( –) first, then from
the negative terminal of the donor battery.
7. Disconnect the positive lead from the positive terminal of the donor ba ttery first, then from
the positive terminal for jump-lead starting ( +).
8. Close the cap on the posi tive terminal for jump-
lead starting ( +).Charging the batteryAutomotive batteries loose their efficiency when
not in use. The charge available in your battery can
be measured with a battery hydrometer. We
recommend that the battery voltage be tested by
your Porsche dealer who has the appropriate
equipment.
If the car is not driven for prolonged periods, the
battery must be charged at least every 6 weeks.
A discharged battery allo ws rapid formation of
sulfates, leading to premature deterioration of the
plates.
Danger!
Hydrogen gas genera ted by the battery
could cause an explosion, resulting in
serious personal injury or death.
f Charge battery in a well ventilated area.
f Never charge a frozen battery. It may explode
because of gas trapped in the ice. Allow a
frozen battery to thaw out first.
f If you get electrolyte, which is an acid, in your
eyes or on your skin, immediately rinse with
cold water for several minutes and call a doctor.
Your authorized Porsche dealer will be pleased to
advise you about a suitable charger.
f Always observe the instructions provided by
the charger manufacturer.
1. Connect the charger to the jump-lead starting terminals.
Only plug into the mains and switch the
charger on when it is connected up correctly.
2. Switch on the charger.
3. After charging the battery, first switch off the charger and then disconnect it.
f Please see the chapter “PUTTING VEHICLE
INTO OPERATION” on page 305.
Changing the Remote Control
BatteryNote
f Please observe the regulations for disposing
of batteries.Car keyIf the battery in the remote control becomes too
weak, the message “Replace ignition key battery”
will appear on the multi-function display in the
instrument panel.
The battery should be changed in this case.

332
Index
Switching on and off .......................................... 170
Automatic (PDK transmission) Rocker switches on the st eering wheel .................. 61
Automatic brake differential (ABD) Functional description . ....................................... 204
Automatic driving light assistant Adaptive light system .. ......................................... 92
Automatic headlight levelling Functional description . ......................................... 94
Automatic speed control (cruise control) Accelerating ........ ...................................... ........ 177
Decelerating........................................... ........... 177
Functional description . ....................................... 176
Interrupting operation.. ....................................... 177
Storing speed.. .................................................. 176
Switching off .................. ................................... 178
Switching on .................. ................................... 176
Automatic transmission...... .......................................... 193
AUX interface, installation position ................................ 192
Auxiliary high-beam headlight Changing bulb ................ ................................... 311
Installing headlights..... ....................................... 309
Removing headlights ....... ................................... 309
BBaby seat
Installing with LATCH sy stem ................................ 56
LATCH restraint system .. ..................................... 56
Prescribed installation direction (depending on
weight of child) ........... ......................................... 53
Battery ........................................ ............................... 191
Care ................... ...................................... ........ 304
Changing in car key .... ....................................... 307
Charge state ... .................................................. 303
Charging ............. ...................................... ........ 307
General information..... ....................................... 303
Jump-lead starting .......... ................................... 306
Location.............. ...................................... ........ 303
Procedure after connectio n ................................ 305
Replacing .................................................. ........ 305
Vehicle electrical system voltage indication .......... 113
Winter driving ..................... ............................... 304
Before driving off .............. .............................................. 4
Belt tensioner Functional description . ......................................... 45 Belts...................
.......................................... ................ 44
Adjusting belt height .......................... ................... 47
Belt tensioner functional description ...................... 45
Care instructions........... ..................................... 276
Fastening ..................... ....................................... 46
Opening ............ ...................................... ............ 46
Warning light on the tach ometer ............................ 45
Bi-Xenon headlight Changing bulb for auxiliary high-beam headlight .... 311
Installing headlights ....... ..................................... 309
Removing headlights ......... ................................. 309
Brake booster ........................ ..................................... 174
Brake fluid Changing .............. ............................................. 259
Warning light on speedometer
............................. 259
Brake pads Breaking in new brake pa ds .................................... 6
Warning message, brakes . ................................. 174
Brake pedal............. .................................................... 173
Brake wear Warning message ............. ................................. 174
Brakes Applying/releasing parkin g brake ........................ 171
Brake pad warning messag e ............................... 174
Brake pedal ...................... ................................. 173
Brake wear warning mess age ............................. 174
Break in new brake pads ........................................ 6
Footbrake.......... ................................................ 172
Test stand ......... ................................................ 253
Break in hints ..................... ............................................. 6
Breaking in Engine ................. ................................................. 6
Engine oil and fuel consumption during break-in
period ...................................... ............................. 6
Hints .................... ................................................. 6
New brake pads and brake discs ............................ 6
New tires .......... .................................................... 6
Brief overview Air conditioning, front co ntrol panel ....................... 68
Air conditioning, rear co ntrol panel ........................ 69
Opening and locking the ve hicle from outside ......... 21
Windshield wipers ............. ................................. 101
Bulbs Changing bulb for auxiliary high-beam headlight .... 311
Changing bulb for licence plate light .................... 313
Changing bulb for side ma rker light ..................... 313 Changing bulb for
side turn signal light................ 312
CCar care
Air bags.............. .............................................. 276
Alcantara ............ .............................................. 276
Alloy wheels .................... .................................. 274
Cleaning the engine comp artment....................... 272
Fabric linings............... ...................................... 276
Headlights, plastic componen ts, adhesive foils .... 274
Laying up your Porsche ..................................... 276
Leather............... .............................................. 275
Paint .................. .............................................. 271
Seals.................. .............................................. 275
Seat belts ....... .................................................. 276
Undercoating ......................................... ........... 273
Use of high-pressure cleaning equipment ............ 270
Washing the vehicle, inst ructions ........................ 270
Wheel bolts ..................... .................................. 293
Windows ............. .............................................. 272
Car key (remote control) Emergency operation of key in ignition lock ......... 166
Locking vehicle door ....... .................................... 24
Unlocking vehicle door . ........................................ 23
Car Telephone ...................... ...................................... 190
Care instructions Air bags.............. .............................................. 276
Alcantara ............ .............................................. 276
Alloy wheels .................... .................................. 274
Car washing .................... .................................. 270
Carpet ................ .............................................. 275
Cleaning the engine comp artment....................... 272
Fabric linings............... ...................................... 276
Headlights, plastic componen ts, adhesive foils .... 274
Laying up your Porsche ..................................... 276
Leather............... .............................................. 275
Mats................... .............................................. 275
Paint .................. .............................................. 271
Radar sensor ......................................... ...........
274
Reversing camera ........... .................................. 274
Seals.................. .............................................. 275
Seat belts ....... .................................................. 276
Ultrasound sensors, Park Assist .......................... 274
Undercoating ......................................... ........... 273
Use of high-pressure cleaning equipment ............ 270

338
Index
Performance tests on roller-type test stands................. 253
Performance, Technical data ........................................ 324
Person buttons (memory) ... ............................................ 41
Petrol Fuel can .......... .................................................. 267
Fuel gauge ..................... ................................... 111
Fuel reserve warning .......................................... 112
Octane rating ................. ................................... 265
Portable fuel containers ......................................... 3
Quality ................ ...................................... ........ 265
Refuelling ....................... ................................... 265
Tank capacity ................. ................................... 329
Plastic components, care in structions ........................... 274
Porsche Active Suspension Management (PASM) Air suspension and level control .......................... 209
Functional description . ....................................... 208
Overview ............. ...................................... ........ 201
Warning message on the mult i-function display ..... 208
Porsche Ceramic Composite Brake (PCCB) General information..... ........................................... 3
Porsche Communication Manage ment (PCM) ................. 191
Porsche Doppelkupplung (P DK) .................................... 193
Driving in winter .......... ....................................... 199
Faults ....................................................... ........ 194
Kickdown ............ ...................................... ........ 197
Launch Control ............... ................................... 196
Reduced driving program ................................... 199
Selector-lever position. ....................................... 193
Shifting gears on the stee ring wheel.................... 196
Sport mode ......... ...................................... ........ 195
Porsche Dynamic Chassis Control (PDCC) Functional description . ....................................... 211
Overview ............. ...................................... ........ 201
Warning message on the mult i-function display ..... 211
Porsche Entry & Drive
Inclination sensor ........ .......................................
249
Interior surveillance ..... ....................................... 249
Locking the vehicle ..... ......................................... 24
Unlocking the vehicle .. ......................................... 23
Porsche Stability Management (PSM) Functional description . ....................................... 202
Multi-function light in th e tachometer ................... 205
Overview ............. ...................................... ........ 201
Switching off .................. ................................... 204
Switching on .................. ................................... 205Porsche Traction Management (PTM)
Functional description.... ..................................... 202
Power steering Checking and adding hydrau lic fluid ..................... 260
Power windows
Adjusting after connecting battery ......................... 88
Malfunctions ................. ....................................... 88
Opening/closing windows wi th rocker switch .......... 86
Overview of driver’s door control panel .................. 86
Overview of passenger’s d oor control panel ........... 86
Powerlift tailgate Closing.............. ...................................... ............ 28
Opening ............ ...................................... ............ 27
Safety notes .. ...................................... ................ 27
Pressure Tires (bar/psi) ............... ..................................... 326
Protection against towi ng (inclination sensor)
Switching off with Porsche Entry & Drive .............. 248
Switching off with remote control ........................ 247
PSM (Porsche Stab ility Management)
Functional description.... ..................................... 202
Multi-function light in th e tachometer.................... 205
Overview .............. ............................................. 201
Switching off .................... ................................. 204
Switching on ...... ................................................ 205
Warning light on the multi-f unction display ............ 305
PTM (Porsche Traction Management) Functional description.... ..................................... 202
Pulling out/parking Func
tional description, Pa rkAssist ....................... 239
Sensors for ParkAssist .. ..................................... 239
Push-starting ....... ........................................................ 321RRadar sensor for adaptive cruise control ...... ................. 274
Radiator fan Installation position........ ..................................... 258
Safety notes .. .................................................... 258
Radio Tips ..................... ............................................. 189
Radio remote control ......................................... ............ 19
Rain sensor Adjusting ........................................................... 103
Switching on ...... ................................................ 102 Reading lights, front
Switching on/off .............. .................................... 98
Switching on/off automatica lly.............................. 99
Rear fog light Switching on ................... .................................... 92
Rear roll-up blind ............... ............................................ 66
Rear seats............. .......................................... ............. 38
Folding forward ............... .................................. 226
Rear spoiler, operating prin ciple ................................... 214
Rear window Optical distortion ......... ........................................ 84
Rear window wiper Switching on intermittent operation ..................... 104
Window wiping ................ .................................. 104
Rear-axle load ........ .......................................... ........... 236
Rearview camera .................. ...................................... 241
Reduced driving program, PDK ..................... ............... 199
Refrigerated box in the rear of the vehicle, opening ....... 226
Refuelling .............. .......................................... ........... 267
Relays Replacing ....................... .................................. 296
Remote control ................. ............................................ 19
Changing battery ............. .................................. 307
Locking vehicle door ....... .................................... 24
Unlocking vehicle door . ........................................ 23
Removing/installing luggage compartment cover .......... 229
Replacement keys................. ........................................ 19
REST button Air-conditioning system ........................................

71
Restraint systems for children Installing with LATCH sy stem ................................ 56
LATCH restraint system ... .................................... 56
Prescribed installation direction (depending on
age of child)................ ........................................ 53
Retractable rear spoiler Extending and retracting .................................... 215
Operating principle ...... ...................................... 214
Roll stabilisation Porsche Dynamic Chassis Control (PDCC) ........... 211
Roll-up blind ...................... ............................................ 65
Roll-up sunblind For rear window, lowe red automatically when
reversing ................................ ............................ 66
Raising/lowering for rear side windows ................. 65
Raising/lowering for rear window .......................... 66
Roof load .............. .......................................... ........... 328

340
Index
Switching automatic anti-dazzle function on and off .......... 60
Switching child protection on/off Disabling rear control pane l and power windows .... 80
Switching MONO mode on/off Air-conditioning system ........................................ 74
Switching on air-recirculation mode Air-conditioning system ........................................ 74
Switching on parking light .. ............................................ 96TTachometer
Display................ ...................................... ........ 110
Tailgate Closing ..................................................... .......... 26
Closing automatically .. ......................................... 28
Opening .............. ...................................... .......... 25
Opening automatically ..... ..................................... 27
Tailpipes Stainless steel, care inst ructions......................... 274
Tank Ventilation system........... ................................... 269
Technical data Driving performance ....... ................................... 329
Engine ................ ...................................... ........ 324
Tire pressure (psi/bar) ....................................... 326
Tires, wheels ... .................................................. 325
Weights .............. ...................................... ........ 328
Technical modification s to the vehicle, information ......... 253
Telephone.................................... ............................... 190
Using via multi-function display ............................ 125
Test stands Brake test ...................... ................................... 253
Performance test ............ ................................... 253
Theft protection ................... ......................................... 18
Tie-down rings................... .......................................... 228
Tie-down rings, fastening points in luggage
compartment ............................... ............................... 227
Tire Care ................... ...................................... ........ 284
Life ..................... ...................................... ........ 283
Traction .................................................... ........ 281
Wear......................................................... ........ 283
Tire pressure ........ ...................................................... 326
Air pressure (psi/bar) .. ....................................... 326
Data (psi/bar) ............. .......................................
326Filling information ..........
..................................... 129
Selecting comfort pressu re ................................ 131
Speed warning .................. ................................. 131
System learning ............ ..................................... 134
Tire pressure plate ........ ..................................... 323
Tire type information ..... ..................................... 130
Warnings .............. ............................................. 133
Tire Pressure Monitoring (T PM) ..................................... 127
Tire pressure plate ......... ............................................. 323
Tire sealant ......... ........................................................ 279
Tire sealant/sealing set For defective ti res ................. ............................. 293
Tires Breaking in new tires ..... ......................................... 6
Changing .............. ............................................. 292
Damage ................................... ......................... 284
Fixing a flat tire ......... ......................................... 293
General information ....... ..................................... 280
Inscription on radial tire ...................................... 288
Replacing .......... ................................................ 285
Rim offset ......... ................................................ 325
Sealant ................ ............................................. 293
Setting type and size ..... ..................................... 132
Sidewall ............... ............................................. 288
Size ..................... ............................................. 325
Snow chains (general info rmation) ....................... 288
Storage................ ............................................. 286
Tire pressure plate ........ ..................................... 323
Tire pressure, data (psi/b ar) ............................... 326
Valves .................. ............................................. 285
Winter tires (general info rmation)
......................... 287
Tool kit ............... ........................................................ 279
Tools ...................... .................................................... 279
Torque, Technical data........ ......................................... 324
Towing Screwing in towing lug... ..................................... 319
Towing lug in tool kit . ......................................... 279
Tow-starting ............ .................................................... 321
Tracks .................... .................................................... 330
Transmission Porsche Doppelkupplung (P DK) ........................... 193
Transmission and cha ssis control systems
Overview (PTM, PSM, PASM , PDCC) .................... 201
Transport (on car trai ns, ferries, etc.)
Securing the vehicle ...... ..................................... 320
Switching off inclination sensor ............. .............. 247Trip counter
Display ............... .............................................. 112
Resetting ............ .............................................. 112
Trip information ................ .......................................... 126
Turn signal, changing side tu rn signal light .................... 312
Turn signal, stalk .............. ............................................ 96
UUltrasound sensor, ParkAssi st ..................................... 239
Undercoating, care instruct ions.................................... 273
Universal audio interface, inst allation position ................ 192
Unlocking Opening vehicle door from inside .......................... 31
Unlocking and opening tail gate ............................. 25
Unlocking vehicle door fr om inside........................ 32
Unlocking vehicle door with car key (remote control) ..
23
Unlocking vehicle door wi th Porsche Entry & Drive
(keyless) ......... .................................................... 23
Upshift prompt....... .......................................... ........... 112
USB interface, installation position................................ 192
Using engine residual heat .................................... ......... 71
Air-conditioning system ........................................ 71VVanity mirror...... .............................................. ............. 64
Vehicle Battery ............... .............................................. 191
Keys .................. ................................................ 19
Storage .............. .............................................. 304
Vehicle data........... .......................................... ........... 323
Vehicle door Locking from inside ..... ........................................ 31
Locking with car key (rem ote control) ................... 24
Locking with Porsche Entry & Drive (keyless) ......... 24
Malfunctions when opening and closing ................. 35
Switching child lock for re ar doors on/off.............. 32
Unlocking with car key (remote control)................. 23
Unlocking with Porsche Entr y & Drive (keyless) ...... 23
Vehicle information Retrieving on multi-functi on display ..................... 119
Vehicle key (remote control) Changing battery ............. .................................. 307
