PORSCHE PANAMERA 2011 1.G Tequipment Manual

· 21 ·
· 20 ·
n 1, 2, 3
–
–
n 1, 2
n 1, 2
n 1, 2, 3
n 1, 2, 3
n 1, 2
Panamera
Panamera 4
Panamera Diesel
Panamera S
Panamera 4S
Panamera S Hybrid
Panamera Turbo
Panamera Turbo S
n 1, 2n 1, 2, 3
n n 3

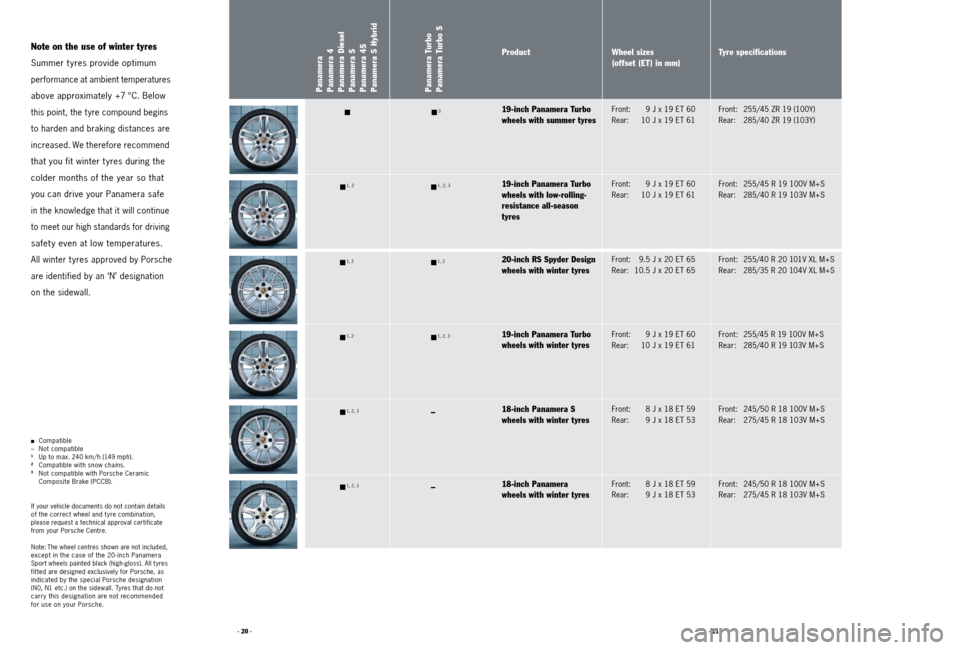

Product Wheel sizes
(offset (ET) in mm) Tyre specifications Note on the use of winter tyres
Summer t yres provide optimum

performance at ambient temperatures
above approximately +7 °C. Below
this point, the t yre compound begins
to harden and braking distances are
increased. We therefore recommend
that you fit winter t yres during the
colder months of the year so that
you can drive your Panamera safe

in the knowledge that it will continue
to meet our high standards for driving
safet y even at low temperatures.
All winter t yres approved by Porsche
are identified by an ‘N’ designation
on the sidewall.
n Compatible
– Not compatible
1 Up to max. 240 km/ h (149 mph).2 Compatible with snow chains.3 Not compatible with Porsche Ceramic
Composite Brake (PCCB).
If your vehicle documents do not contain detailsof the correct wheel and tyre combination,please request a technical approval cer tificate
from your Porsche Centre.
Note: The wheel centres shown are not included,except in the case of the 20 - inch PanameraSpor t wheels painted black (high -gloss). All t yresfit ted are designed exclusively for Porsche, asindicated by the special Porsche designation(N0, N1 etc.) on the sidewall. Tyres that do notcarry this designation are not recommended
for use on your Porsche.
19-inch Panamera Turbo
wheels with summer tyres Front: 9 J x 19 ET 60
Rear: 10 J x 19 ET 61 Front:
255/45 ZR 19 (100Y)
Rear: 285/40 ZR 19 (103Y)
Front: 9 J x 19 ET 60
Rear: 10 J x 19 ET 61
19-inch Panamera Turbo
wheels with low-rolling-
resistance all-season
tyresFront: 255/45 R 19 100V M+S
Rear: 285/40 R 19 103V M+S
Front: 9.5 J x 20 ET 65
Rear: 10.5 J x 20 ET 65
20-inch RS Spyder Design
wheels with winter tyresFront: 255/40 R 20 101V XL M+S
Rear: 285/35 R 20 104V XL M+S
19-inch Panamera Turbo
wheels with winter tyresFront: 9 J x 19 ET 60
Rear: 10 J x 19 ET 61 Front:
255/45 R 19 100V M+S
Rear: 285/40 R 19 103V M+S
18-inch Panamera S
wheels with winter tyresFront: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53 Front:
245/50 R 18 100V M+S
Rear: 275/45 R 18 103V M+S
18-inch Panamera
wheels with winter tyresFront: 8 J x 18 ET 59
Rear: 9 J x 18 ET 53 Front:
245/50 R 18 100V M+S
Rear: 275/45 R 18 103V M+S

· 23 ·
· 22 ·
available: for vehicles with or
without wheel spacers.
Wheel bolts in black including
anti-theft protection
Set of 20 wheel bolts, four of
which are anti-theft wheel bolts.
Two versions available: for vehicles
with or without wheel spacers.
For further product information and
part numbers, please refer to the
Tequipment Panamera price list.
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Wheel centres
Set of wheel centre caps with
full-colour Porsche Crest. The
perfect finishing touch for any
Panamera wheel.
For the 20 -inch Panamera Sport
wheel in a GT Silver Metallic finish. For the 20 -inch Panamera Sport
wheel painted black (high-gloss).
For the 20 -inch 911 Turbo II wheel
in a titanium-coloured paint finish.
Crested valve caps
Silver-coloured valve caps with

embossed Porsche Crest.
Wheel spacers
Set of t wo 5-mm wheel spacers
and 20 wheel bolts, four of which
are anti-theft wheel bolts. The spacers are for the rear axle and
create a wider track for enhanced
stability and presence on the
road. When fit ted, your Panamera
will look even sportier, as the
wheels run virtually flush with the
body of the car.
Not compatible with the 20 -inch
Panamera Sport wheel or snow
chains.
Anti-theft wheel protection
Set of four wheel bolts with

anti-theft protection. Two versions
Snow chains Wheel centre
Crested valve caps for vehicles
with TPM
Wheel spacers
Crested valve caps for vehicles

without TPM

· 25 ·
· 24 ·
The Panamera is a Porsche, so it
was never going to be ordinary.
It ’s a development that draws
on experience gained from six
decades of Porsche motorsport
and over 28,000 racing victories. The result is clear to see, and can
be felt the moment you depress

the accelerator. Everything about
the Panamera is uncompromisingly
sport y, but there is room for even
more. For example, you could select the Porsche Ceramic

Composite Brake (PCCB) or the
Panamera Turbo Powerkit.
Or why not combine the t wo?
Performance is something you have to work on.

· 27 ·
· 26 ·

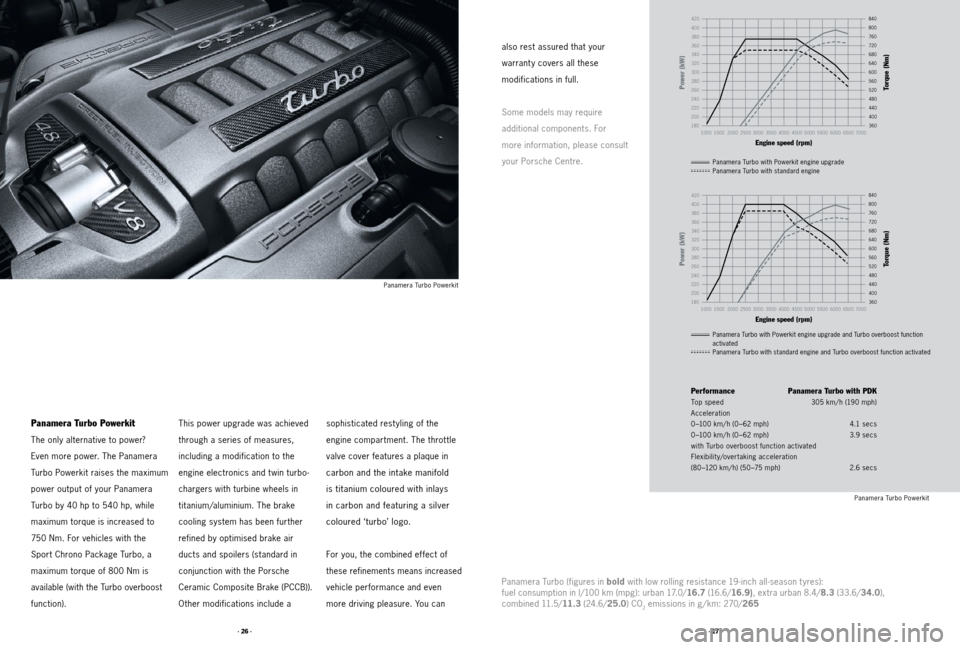

Panamera Turbo Powerkit
The only alternative to power?
Even more power. The Panamera
Turbo Powerkit raises the maximum
power output of your Panamera
Turbo by 40 hp to 540 hp, while
maximum torque is increased to
750 Nm. For vehicles with the
Sport Chrono Package Turbo, a
maximum torque of 800 Nm is
available (with the Turbo overboost
function). This power upgrade was achieved
through a series of measures,

including a modification to the
engine electronics and twin turbo -
chargers with turbine wheels in
titanium/aluminium. The brake
cooling system has been further
refined by optimised brake air
ducts and spoilers (standard in
conjunction with the Porsche
Ceramic Composite Brake (PCCB)).
Other modifications include a sophisticated rest yling of the

engine compartment. The throttle
valve cover features a plaque in
carbon and the intake manifold
is titanium coloured with inlays
in carbon and featuring a silver
coloured ‘turbo’ logo.
For you, the combined effect of
these refinements means increased
vehicle performance and even
more driving pleasure. You can
Panamera Turbo Powerkit
Panamera Turbo Powerkit
also rest assured that your
warrant y covers all these
modifications in full.
Some models may require
additional components. For
more information, please consult
your Porsche Centre.
Performance Panamera Turbo with PDK Top speed 305 km/ h (190 mph)
Acceleration
0 –100 km/ h (0 – 62 mph) 4.1 secs
0 –100 km/ h (0 – 62 mph) 3.9 secs
with Turbo overboost function activated
Flexibility/overtaking acceleration
(80 –120 km/ h) (50 –75 mph) 2.6 secs
Panamera Turbo with Powerkit engine upgrade
Panamera Turbo with standard engine
Panamera Turbo with Powerkit engine upgrade and Turbo overboost function
activated
Panamera Turbo with standard engine and Turbo overboost function activated
260
240
220
200
180 280 300 320 340 360 380 400
1500
200025003000 3500400045005000 5500600065001000
420
Power (kW)
Engine speed (rpm)
360
520 560 600 640 680 720 760 800
400440
480
840
T
orque (Nm)
Panamera T urbo mit Leistungssteigerung
Panamera T urbo Serie
7000
260
240
220
200
180280 300 320 340 360 380 400
1500
200025003000 3500400045005000 5500600065001000
420
Power (kW)
Engine speed (rpm)
360
520 560 600 640 680 720 760 800
400440
480
840
T
orque (Nm)
Panamera T urbo mit Leistungssteigerung bei aktiver T urbo-Overboostfunktion
Panamera T urbo Serie bei aktiver T urbo-Overboostfunktion
7000
Panamera Turbo (figures in bold with low rolling resistance 19-inch all-season tyres):
fuel consumption in l/100 km (mpg): urban 17.0/ 16.7 (16.6/ 16.9), extra urban 8.4/ 8.3 (33.6/ 34.0),
combined 11.5/11. 3 (24.6/25.0) CO
2 emissions in g / km: 270/ 265

· 29 ·
· 28 ·
Spor ts exhaust system
Sports tailpipes
Porsche Ceramic Composite Brake (PCCB)
Sports tailpipes
Give the rear of your Panamera
an even more powerful look with
these twin dual-tube tailpipes in

a unique design in highly polished
chrome-plated stainless steel.
Not compatible with sports
exhaust system.
Not available for Panamera Diesel
or Panamera S Hybrid.

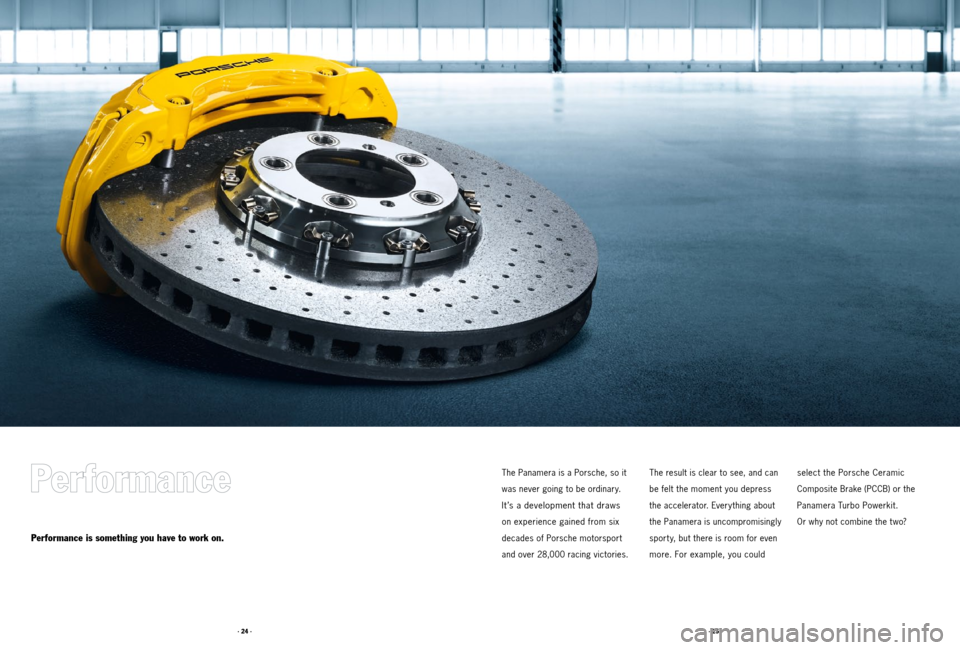

Porsche Ceramic Composite
Brake (PCCB)
PCCB is a high-tech brake system.
Its carbon-fibre-reinforced,
internally vented and cross-drilled
ceramic brake discs have a diame -
ter of 410 mm at the front and
350 mm at the rear. Six-piston
aluminium monobloc brake cali -
pers at the front and four-piston
units at the rear – all with a yellow
finish – provide extremely high
and consistent levels of friction.
The brake discs are made from
a specially treated carbon-fibre
material that is not only much
harder than metal, it is also more
resistant to heat. PCCB brake
discs are also 50 % lighter than
standard discs of similar design,
which increases agilit y and
reduces fuel consumption.
Only available for Panamera Turbo
with 20-inch wheels.
Sports exhaust system
The sports exhaust system com -
prises an optimised main silencer
with tailpipes in a unique design.
The sport y sound is selected using
a separate but ton in the centre
console.

· 31 ·
· 30 ·

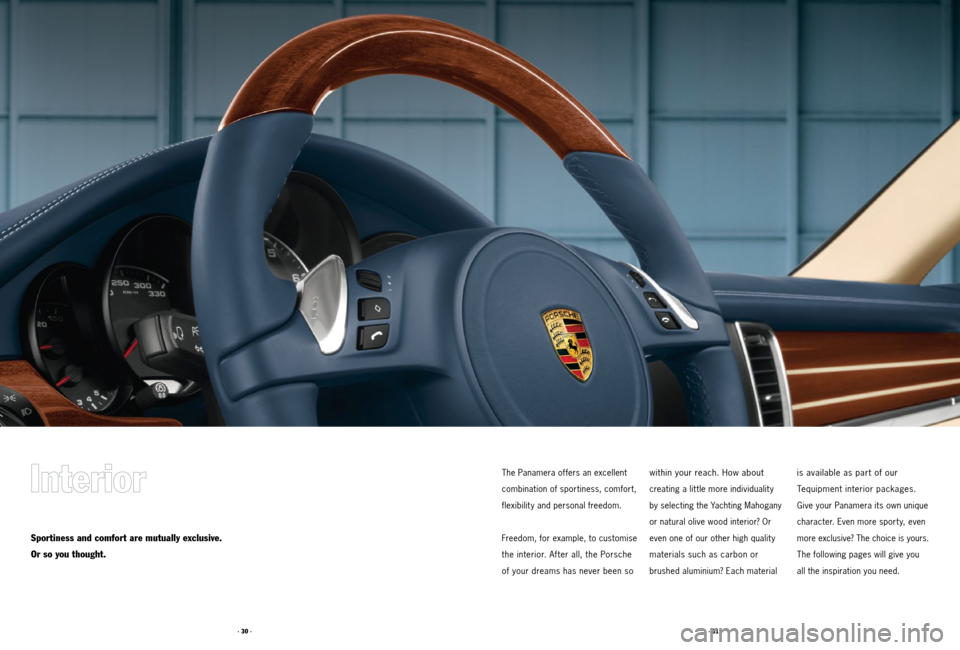

The Panamera offers an excellent
combination of sportiness, comfort,
flexibility and personal freedom.
Freedom, for example, to customise
the interior. After all, the Porsche
of your dreams has never been so
within your reach. How about
creating a lit tle more individualit y
by selecting the Yachting Mahogany
or natural olive wood interior? Or
even one of our other high qualit y
materials such as carbon or
brushed aluminium? Each material
is available as part of our
Tequipment interior packages.
Give your Panamera its own unique
character. Even more sport y, even
more exclusive? The choice is yours.
The following pages will give you
all the inspiration you need.
Sportiness and comfort are mutually exclusive.
Or so you thought.

· 33 ·
· 32 ·
Walnut1
A classic, high qualit y dark wood
with a unique and appealing grain.
Tineo1
This light, reddish-brown hardwood
from the South American Andes
creates a very elegant look thanks
to its striking horizontal grain.
Anthracite birch1
This anthracite coloured birchwood
has an at tractive wav y grain, an impressive dual-tone effect and

a silky sheen.
Natural olive1
A high qualit y ash wood with an
olive grain and a silky mat t sheen,
giving a combination of elegance,
individuality and luxury.
Yachting Mahogany1
Inspired by the construction of
exclusive yachts, mahogany is a
fine dark wood. Light maple inserts
provide a st ylish contrast.
Carbon
Carbon is a light but highly durable
material which has its origins in
motorsport. Its sport y look is the
ideal complement to the car’s
race bred engineering.
Brushed aluminium
Brushed aluminium sets clear
accents and gives the interior
a sporty minimalist appearance.
Brushed aluminium interior package Tineo
Walnut
Natural olive
Anthracite birch
Carbon
Yachting Mahogany
Alcantara
Brushed aluminium
Alcantara
This high qualit y material is easy
to care for, washable and has
excellent non-slip properties.
1 Since wood is a natural product,
there may be variations in colour
and grain.

· 35 ·
· 34 ·
Interior packages
Would you like to make your
Panamera even more individual,
even more refined, or even sport -
ier? Our range of interior packages
enables you to choose the finish
you would like for the decorative
trims on the dashboard and doors,
the decorative plate on the centre
console lower section, the front
ashtray cover, the cupholder
cover in the rear and the storage
compartment lid on the rear centre
console. Packages are available
in walnut, tineo, anthracite birch,
natural olive, Yachting Mahogany,
carbon or brushed aluminium.
Extended trim package
The extended trim package creates
an outstanding effect when com -
bined with one of our interior pack -
ages, but is equally at tractive on
its own. The extended trim package
comprises the PDK1 gear selector
in aluminium and the multifunction
steering wheel rim (not including
airbag module) available in walnut,
tineo, anthracite birch, Yachting
Mahogany or carbon.
Only available for vehicles with PDK
and multifunction steering wheel.
1 7-speed Porsche Doppelkupplung
(PDK).
Interior in carbon
Extended trim package in carbonInterior in Yachting Mahogany

· 37 ·
· 36 ·
PDK gear selector in aluminium
PDK gear selector in Alcantara
Extended trim package in
Alcantara
This package comprises a PDK
gear selector and multifunction
steering wheel with steering wheel
rim in black Alcantara.
Only available for vehicles with PDK
and multifunction steering wheel.
PDK gear selector in aluminium
Specially designed PDK gear
selector in aluminium. The PDK
gear selector inlays feature
leather trim in the interior colour.
PDK gear selector in Alcantara
This gear selector highlights
the close association bet ween
Porsche and motorsport. Finished
in black Alcantara.
Extended trim package in Alcantara

· 39 ·
· 38 ·
Vehicle key painted
One vehicle key featuring side
mouldings with a painted finish.
Available in selected colours.
SportDesign steering wheel
This leather steering wheel, availa -
ble in selected leather colours and
with
gearshift paddles located be -
hind the right- and left-hand spokes,
will appeal to anyone who wants
to
make motorsport st yle gear chang -
es.
The right-hand paddle shifts
up, the left-hand paddle shifts down, confirming
that optimum comfort
and sporti
ness needn’t be mutually
exclusive.
Not available for vehicles with
manual gearbox.
Key pouch in leather
In smooth-finish leather with
decorative stitching and embossed
Porsche Crest.
Includes a tether
for the vehicle key.
SportDesign steering wheel
Vehicle key painted
Key pouch in leather
