Cooling compartment in the rear
The cooling compartment integrat -
ed bet ween the individual seats
in the rear has a capacit y of
10.5 litres and features a separate
on/off switch. It chills to a temper -
ature of approximately 6 °C.
Cooling compartment in the rear Sun/privacy screen
Two drinking glasses with Porsche
Crest and logo are included.
The cooling compartment is

accessible through the opening
in the large rear centre console
located between the seats.
Only available for vehicles with
large centre console in the rear. Not compatible with the reversible
loadspace mat, the luggage net or
the cargo liner.
Cooling compartment reduces
luggage compartment capacity.
Sun/privacy screen
Protects against direct sunlight
through the rear screen and at
the same time provides additional
privacy. At taches to the rear
screen by a system of clips.

· 43 ·
· 42 ·
Reversible loadspace mat with
nubuck edging
This reversible mat with loading
edge protection shields the lug -
gage compartment from dirt and
protects the vehicle paintwork
from scratches during loading.
One side is trimmed in velour in
the interior colour, the other side features a hard-wearing, non-slip
rubber surface.
Not compatible with the cooling
compartment in the rear.
Floor mats with nubuck edging
Precision down to the last detail:
four made-to -measure floor mats
with nubuck edging and ‘
PORSCHE ’
logo, which have a waterproof
backing and are non-slip. Floor
mat displacement is prevented
by a special securing system.
Reversible loadspace mat with nubuck edging
Rubber floor mats
Floor mats with nubuck edging
Rubber floor mats
Four made-to-measure floor mats

in an appealing design featuring
the Panamera silhouette. Non-slip
and waterproof.

· 45 ·
· 44 ·
Door sill guards
For a sport y and striking effect,
illuminated or non-illuminated door
sill guards provide a stylish and
dramatic finishing touch. Those

featuring a white illuminated model
logo are a special highlight. Fit ted
front and rear, the door sill guards
are available in a selection of
elegant materials: Yachting
Mahogany, a dark wood with
light maple inlays (high-gloss);
carbon, a material reminiscent
of the race track; or brushed
aluminium, a durable material
with a classy look. Available with ‘Panamera’,

‘Panamera 4’, ‘Panamera S’,
‘Panamera 4S’, ‘turbo’ or
‘turbo S’ logo.
Door sill guards in Yachting
Mahogany are non-illuminated and come without logo. Provisionally
available from 09/2011.

For further product information and
part numbers, please refer to the
Tequipment Panamera price list.
Door sill guards in carbon
Door sill guards in carbon, illuminated
Door sill guards in brushed aluminium, illuminated
Door sill guards in Yachting Mahogony

· 47 ·
· 46 ·
Universal audio interface
PCM with navigation module and CD/ DVD autochanger
Please consult your Porsche
Centre for information on the data
version of your PCM.
Universal audio interface
For vehicles with PCM, the front
armrest storage compartment
will contain two connections: an
AUX interface for connecting an
external audio source, and a USB
port enabling you to connect a
PCM with navigation module and
CD/DVD autochanger
The central information and com -
munication system with a high-res -
olution 7-inch WVGA TFT colour
touchscreen is easy to operate.
The radio has an FM dual tuner fre -
quency diversit y with RDS, which
continuously scans for the opti -
mum frequency. The six-disc CD/
DVD autochanger plays CDs and audio DVDs and is MP3-compati
-
ble. Audio playback of video
DVDs is also supported. The GPS
navigation system has a hard
drive containing map data for
most European countries. Other
features include dynamic route
calculation, a 3D map display
and automatic route recording. Only available for vehicles with

BOSE
® Surround Sound System
or Burmester
® High-End Surround
Sound System.
Navigation update PCM 3.1
(not shown)
Latest map update (Model Year
2011) for your navigation system.

Audio and communication
USB memory stick containing
MP3
tracks, an MP3 player, an
iPod
® or an iPhone®. The USB
stick, iPod
® or iPhone® can be
operated conveniently via PCM,
the multifunction steering wheel
or the voice control system.

· 49 ·
· 48 ·
Electronic logbook Telephone module
Mobile phone preparation
Cordless handset for telephone module
Telephone module1
The quadband GSM telephone
module offers convenience and
excellent reception. By inserting
a SIM card directly into the PCM’s
integral SIM card reader, calls can
be made using either the hands-
free facility or the optionally availa -
ble cordless handset. Alternatively,
the Bluetooth® capability of a
mobile phone can be used to make
calls.
Mobile phone preparation1
To enable a Bluetooth® connection
for those mobile phones that sup -
port the Handsfree Profile (HFP)
2,
an optional mobile phone prepara -
tion is available. With HFP, the
PCM acts as a hands-free system.
Using the PCM, it is possible to
control the basic functions of the
mobile phone. The GSM connection
is established through the mobile
phone’s aerial.
Cordless handset for telephone
module
Bluetooth® handset display and
separate keypad for making
telephone calls discreetly.

Only available for vehicles with
PCM and telephone module.
1 Only available for vehicles with
PCM.
2 For information on compatible
mobile phones, please contact
your Porsche Centre or visit
www.porsche.com.
Electronic logbook1
The optional electronic logbook
enables automatic recording of
mileage, route distance, time and
date, starting point and destination
as part of every journey. Once you
have downloaded the logbooks
from the PCM via Bluetooth® or the
optional USB interface, you can
evaluate the data on your home
PC using the soft ware supplied.

· 51 ·
· 50 ·
Wireless internet access
Porsche Vehicle Tracking System (PV TS)
In addition to the extra securit y
offered by this system, it may also,
depending on the country, reduce
your insurance premium. The
system has been tested using
multiple simulated thefts in order
to ensure that the service fully
meets strict Porsche requirements.
Your Porsche Centre will be happy
to provide you with further
information.
Only available for vehicles already
equipped with preparation for the
Porsche Vehicle Tracking System
(PV TS).
A separate contract with the
service provider recommended by
your Porsche Centre is required,
which is subject to additional
charges.Wireless internet access
A compact, high-end WLAN router
installed neatly in the glove com -
partment and an additional aerial
fitted inconspicuously between the
A-pillar and windscreen surround
enable you to receive and broad -
cast the signal of your mobile
network provider. This convenient
internet access point gives you
on-the-move online access from
Porsche Vehicle Tracking System
(PV TS)
Enables remote location of a stolen
vehicle within 27 European coun -
tries as well as Russia and South
Africa. Location is not continual,
but occurs only in the event of an
alarm. A silent alarm is automati -
cally triggered if the car is stolen
or tampered with, or after notifi -
cation from the vehicle owner. multiple WiFi-enabled client devices
(e.g. laptops, smartphones or

netbooks), simultaneously if neces -
sary, up to a maximum download
speed of 7.2 Mb/s. Supports the
HSPA / UMTS, EDGE and GPRS
mobile data networks.
A data-enabled SIM card and a sep -
arate, valid subscription to a
mobile network provider (subject to charge) are required for inter
-
net access.
For further product information
and part numbers, please refer
to the Tequipment Panamera
price list.

· 53 ·
· 52 ·
Four adults and their luggage in a
sportscar? Yes, it is possible – in
the Panamera.

The interior of the Panamera offers
occupants plent y of space and
comfort. For children, we have a
range of optional Porsche child
seats.
Our roof transport systems ensure
that even bulky items of luggage
can be accommodated.
The cargo liner shields the luggage
compartment from dirt. The
luggage net holds items safely
in
position. A car cover protects
the exterior of your vehicle. We also
The Panamera has space for four.
Luggage included.
Not only on the inside.
offer a range of car care products
so that your Panamera always
makes an excellent, sport y
impression.

· 55 ·
· 54 ·
1 The use of a Porsche child seat on the front passenger seat is permit ted only in conjunction with ISOFIX child seat mounting points on the front
passenger seat (pre - deliver y option order no. 899).

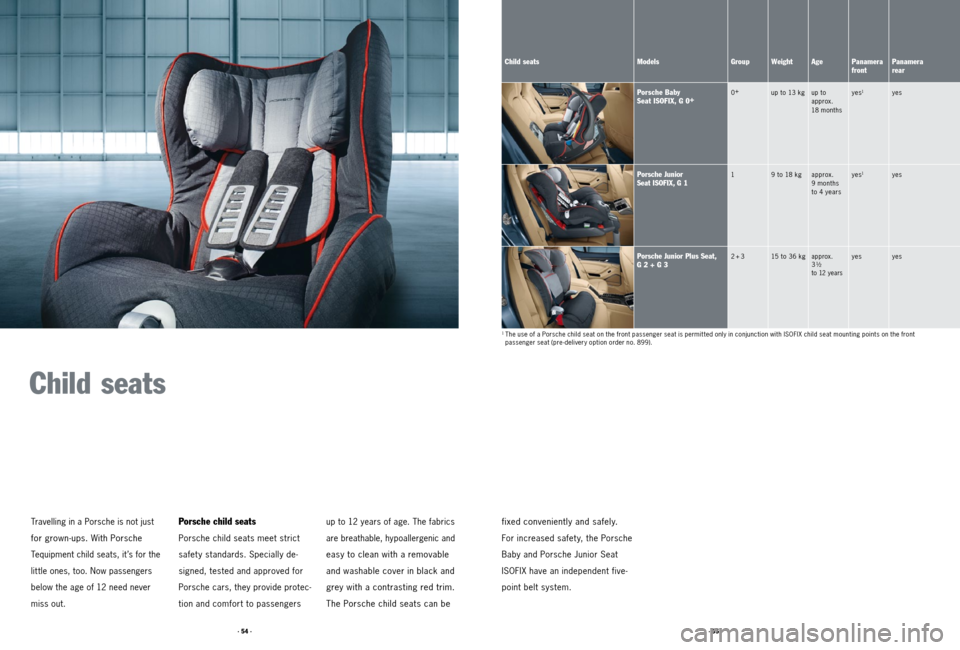

Child seats Models
Porsche Junior Seat ISOFIX, G 1
Porsche Junior Plus Seat,
G 2 + G 3
Porsche Baby
Seat ISOFIX, G 0 +Group
WeightAgePanamera
frontPanamera
rear0
+
up to 13 kgup to
approx.
18 m o n t hsyes1yes
1 9 to 18 kgapprox.
9 months
to 4 years yes
1yes
2+3 15 to 36 kg
approx.
3 ½
to 12 years
yes yes
up to 12 years of age. The fabrics
are breathable, hypoallergenic and
easy to clean with a removable
and washable cover in black and
grey with a contrasting red trim.
The Porsche child seats can be
Travelling in a Porsche is not just
for grown-ups. With Porsche
Tequipment child seats, it ’s for the
lit tle ones, too. Now passengers
below the age of 12 need never
miss out.
Porsche child seats
Porsche child seats meet strict
safet y standards. Specially de -
signed, tested and approved for
Porsche cars, they provide protec -
tion and comfort to passengers
Child seats
fixed conveniently and safely.
For increased safet y, the Porsche
Baby and Porsche Junior Seat
ISOFIX have an independent five-
point belt system.

· 57 ·
· 56 ·
Roof transport system Roof box (wide)
Roof box (narrow)
Roof box (wide)
Lockable plastic roof box in
black (high-gloss) with a capacit y
of ap
proximately 520 litres and
integrated ski carrier. Can be
opened
from either side of vehicle.
Dimensions: L 2,180 x W 895 x
H 400 mm.
Roof transport system
Versatile base carrier offering a
maximum roof load of up to 75 kg.
Compatible with all Tequipment
load carrying at tachments for
a variet y of purposes. Includes
anti-theft securit y caps and locks. Rear hatch opening may be

partially reduced when carrying
longer roof loads.
Roof box (narrow)
Lockable plastic roof box in Silver
Grey with a capacit y of approxi -
mately 310 litres and integrated

ski carrier. Can be opened from
either side of vehicle. Dimensions:
L 2,260 x W 550 x H 380 mm.

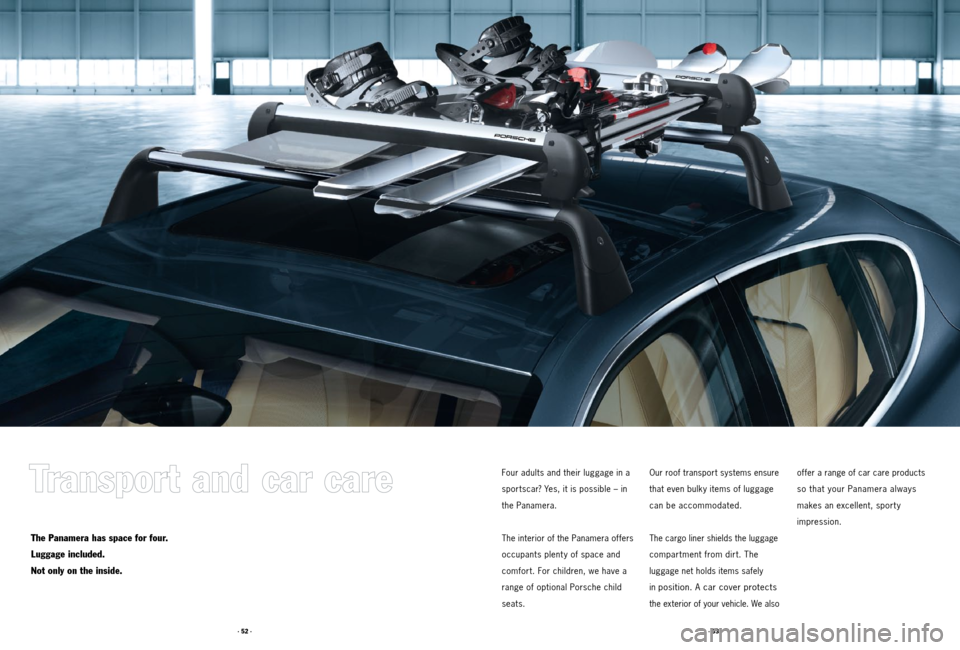

Transport and car care

· 59 ·
· 58 ·
Ski/snowboard carrier
Bike carrier
Lockable carrier for standard
bikes up to a maximum frame-tube
diameter of 85 mm. Up to three
bike carriers can be mounted on
the roof transport system.
Ski/snowboard carrier
Two versions are available: one
for up to four pairs of skis or up
to t wo snowboards, and one for
up to six pairs of skis or up to
four snowboards.
Surfboard carrier
Carrier for the safe transport of
board and mast.
Boat carrier
Mounting system for the safe
transport of a boat.
Not suitable for rubber dinghies.
Surfboard carrier
Bike carrier
Boat carrier
