Page 31 of 543
Comfort System operation refer to “Electronic Vehicle
Information Center (EVIC) — Customer-Programmable
Features (SETUP)” in section 4.
DOOR LOCKS
Manual Door Locks
Front and rear doors may be locked or unlocked by
moving the lock plunger up or down.
Front doors may be opened with the inside door handle
without lifting the lock plunger. Doors locked before
closing will remain locked when closed.
The emergency key will unlock the driver door lock on
your vehicle.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
Page 32 of 543
Power Door Locks — If Equipped
A power door LOCK switch is on each front door trim
panel. Use this switch to lock or unlock the doors.If you press the power door LOCK switch while the key
is in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.
Automatic Door Locks – If Equipped
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
Automatic Door Lock Programming
The Automatic Unlock Doors On Exit feature can be
enabled or disabled as follows:
•For vehicles equipped with the EVIC, refer to “Auto
Lock Doors” under “Customer-Programmable Fea-
tures (SETUP)” in the “Electronic Vehicle Information
Center (EVIC),” in Section 4 of this manual.Power Door Lock Switch Location
1 - Unlock
2 - Lock
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 543
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
3. Place the key into the ignition.
4. Within 15 seconds cycle the key from the OFF position
to the ON position a minimum of four times, ending in
the OFF position. (Do not start the engine).
5. Within 30 seconds, press the driver’s door LOCK
switch. 6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Auto Unlock On Exit — If Equipped
This feature unlocks all of the doors of the vehicle when
any door is opened. This will occur only after the vehicle
has been shifted into the PARK position after the vehicle
has been driven (shifted out of PARK and all doors
closed).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
Page 34 of 543
Auto Unlock On Exit Programming — If Equipped
The Automatic Unlock Doors On Exit feature can be
enabled or disabled as follows:
•For vehicles equipped with the EVIC, refer to “Unlock
Doors If Driver Exits” under “Customer-
Programmable Features (SETUP)” in the “Electronic
Vehicle Information Center (EVIC),” in Section 4 of
this manual.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chimes that may be confusing during this
programming procedure.)
3. Insert the key into the ignition. 4. Within 15 seconds, cycle the key from the OFF position
to the ON position a minimum of four times, ending in
the OFF position.
(Do not start the engine).
5. Within 30 seconds, press the driver’s door UNLOCK
switch.
6. A single chime will sound to indicate the feature has
been changed.
7. Repeat the above steps to alternate the availability of
this feature.
8. If a chime is not heard, the program mode was
canceled before the feature could be changed. If neces-
sary, repeat the above procedure.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 543
Child Protection Door Lock
To provide a safer environment for children riding in the
rear seat, the rear doors (if equipped) of your vehicle
have the child protection door lock system.
To use the system, open each rear door, use a flat blade
screwdriver (or emergency key) and rotate the dial
counterclockwise to engage the lock and clockwise todisengage the child protection locks. When the system on
a door is engaged, that door can only be opened by using
the outside door handle even if the inside door lock is in
the unlocked position.
Child Protection Door Lock LocationChild Lock Control
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
Page 36 of 543
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:
•After setting the child protection door lock system,
always test the door from the inside to make certain it
is in the desired position.
•For emergency exit with the system engaged, move
the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
WINDOWS
Power Windows – If Equipped
Power Window Switches
1 – Left Front 3 – Right Rear
2 – Right Front 4 – Left Rear
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 543
The control on the left front door panel has UP-DOWN
switches that give you fingertip control of all power
windows. There is a single opening and closing switch on
the front passenger door for passenger window control
and on the rear doors of Quad Caband Crew Cab
models. The windows will operate when the ignition
switch is turned to the ON or ACC position, and for up
to 10 minutes after the ignition is turned OFF or until a
front door is opened.
NOTE: The Key Off Power Delay feature will allow the
power windows to operate for up to 10 minutes after the
ignition is turned OFF. This feature is cancelled when
either front door is opened.WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Auto-Down
Both the driver and front passenger window switch have
an Auto-Down feature. Press the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto-Down movement, op-
erate the switch in either the up or down direction and
release the switch.
To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
Page 38 of 543
To open the window part way, press to the first detent
and release it when you want the window to stop.
Auto-Up Feature with Anti-Pinch Protection
(4-Door Models Driver’s and Front Passenger Door
Only) — If Equipped
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:
•If the window runs into any obstacle during the
auto-closure, it will reverse direction and then go back
down. Remove the obstacle and use the window
switch again to close the window. Any impact due torough road conditions may trigger the auto reverse
function unexpectedly during auto closure. If this
happens, pull the switch lightly to the first detent and
hold to close the window manually.
•If the Auto-Up function is lost, reset the Auto-Up
function by running the window all the way up and
then hold the switch in the full up position for two
seconds.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Window LOCKOUT Switch (4–Door Models Only)
The window LOCKOUT switch on the driver’s door
allows you to disable the window control on the other
doors. To disable the window controls on the other doors,
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 543
press the window LOCK button into the latched or down
position. To enable the window controls, press the win-
dow LOCK button again and return the switch to the
released or up position.Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or in partially open positions. This is a
normal occurrence and can be minimized. If the buffeting
occurs with the rear windows open, open the front and
rear windows together to minimize the buffeting.
Window Lockout Switch
1 – Window Lockout Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

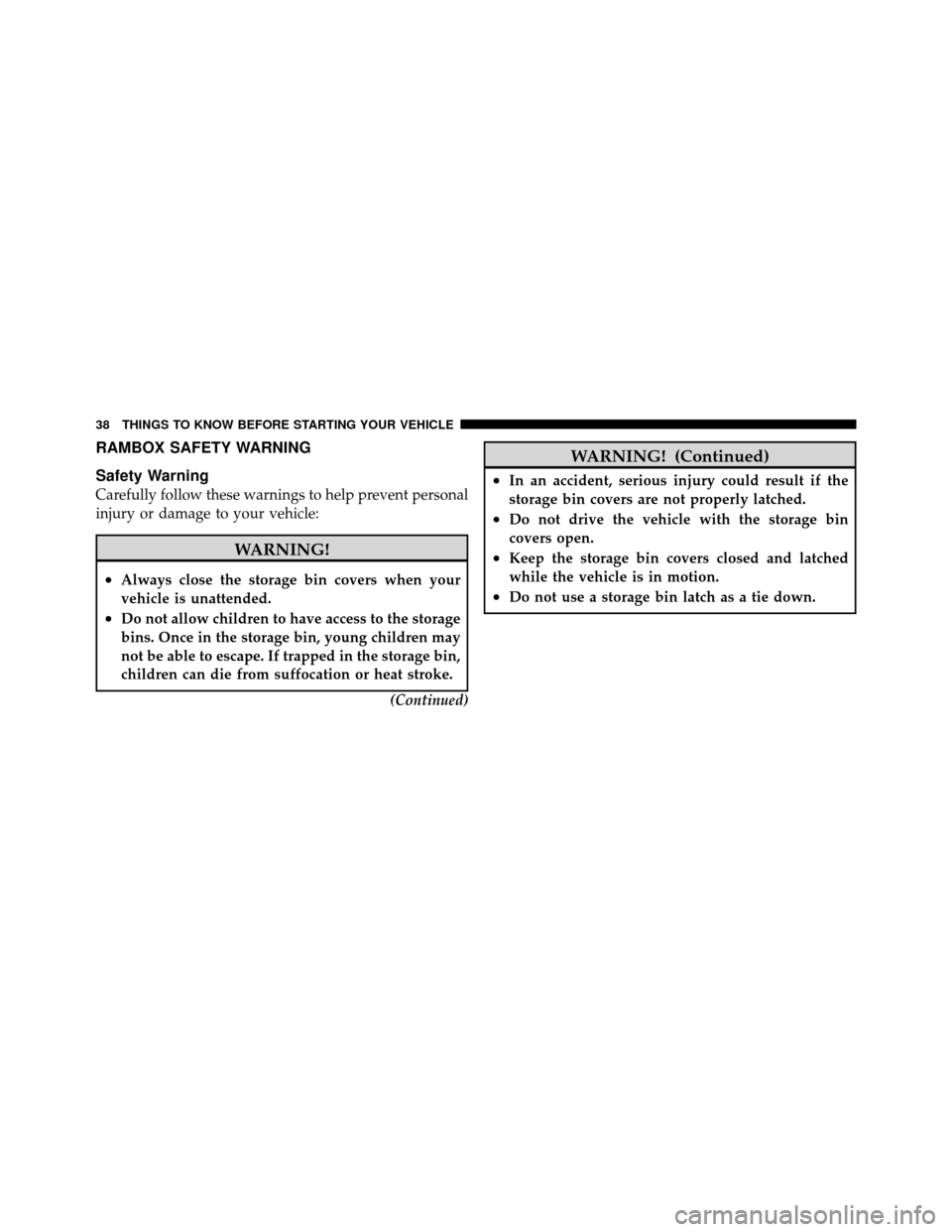

Page 40 of 543
RAMBOX SAFETY WARNING
Safety Warning
Carefully follow these warnings to help prevent personal
injury or damage to your vehicle:
WARNING!
•Always close the storage bin covers when your
vehicle is unattended.
•Do not allow children to have access to the storage
bins. Once in the storage bin, young children may
not be able to escape. If trapped in the storage bin,
children can die from suffocation or heat stroke.(Continued)
WARNING! (Continued)
•In an accident, serious injury could result if the
storage bin covers are not properly latched.
•Do not drive the vehicle with the storage bin
covers open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•Do not use a storage bin latch as a tie down.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
