Page 481 of 543

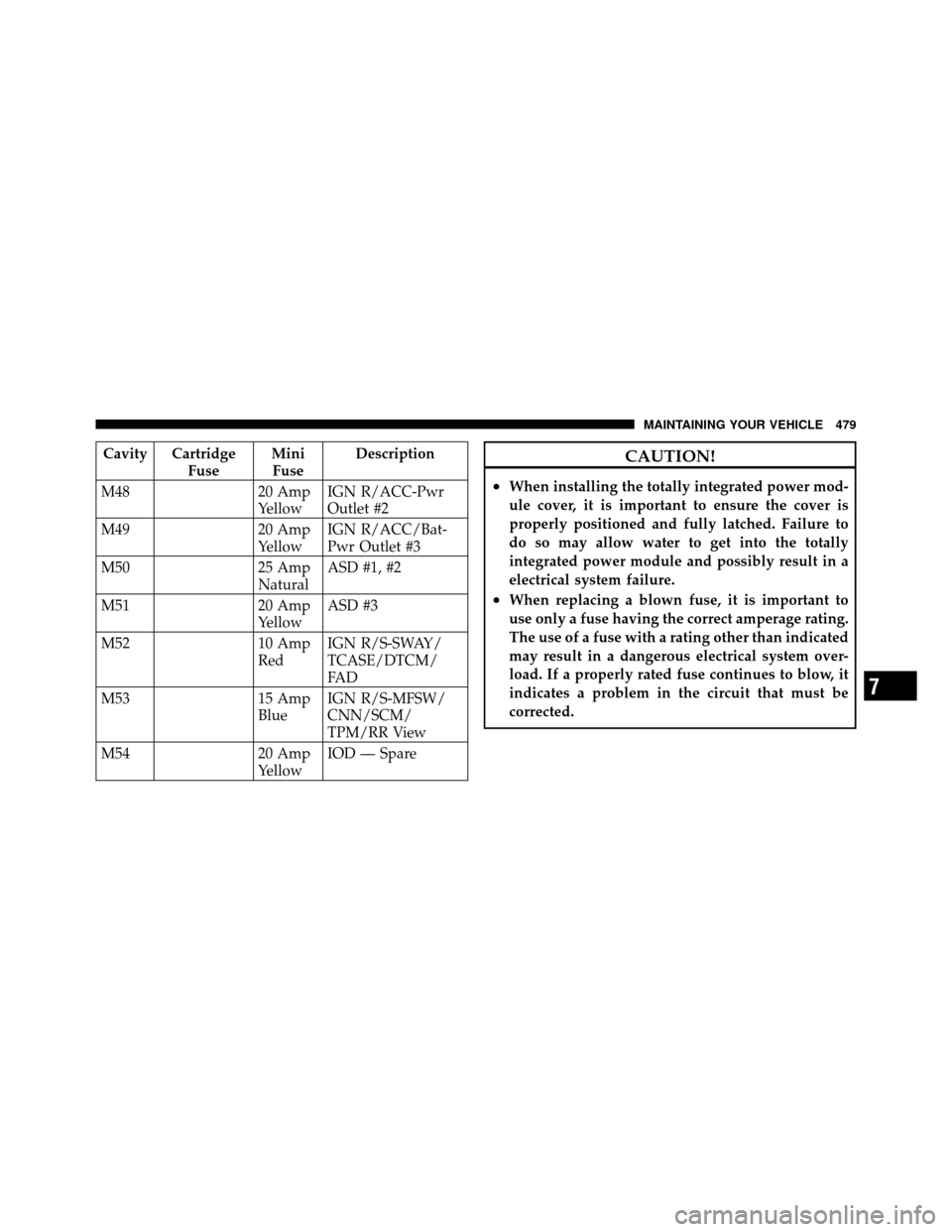

Cavity CartridgeFuseMini
Fuse Description
M48 20 Amp
YellowIGN R/ACC-Pwr
Outlet #2
M49 20 Amp
YellowIGN R/ACC/Bat-
Pwr Outlet #3
M50 25 Amp
NaturalASD #1, #2
M51 20 Amp
YellowASD #3
M52 10 Amp
RedIGN R/S-SWAY/
TCASE/DTCM/
FA D
M53 15 Amp
BlueIGN R/S-MFSW/
CNN/SCM/
TPM/RR View
M54 20 Amp
YellowIOD — SpareCAUTION!
•When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 479
Page 482 of 543

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition-Off Draw (IOD) fuse located in
the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.
•The electronic shift transfer case should be placed in
the 4HI mode and kept in this position to minimize the
battery drain.
•As an alternative to the above steps you may discon-
nect the negative cables from both batteries.
•Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutesin the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE:
•When reinstalling the IOD fuse push firmly until fully
seated; the gauges in the instrument cluster will do a
full sweep when the ignition key is cycled to RUN.
This is a normal condition.
•When the vehicle is shipped from the factory, the IOD
fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play NO FUSE.”
480 MAINTAINING YOUR VEHICLE
Page 483 of 543

REPLACEMENT LIGHT BULBS
LIGHT BULBS — InteriorBulb No.
Overhead Console Lamp ............... TS212-2
Dome Lamp ........................... 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS — Exterior Bulb No.
Backup ................................ 921
Center High Mounted Stop Lamp (CHMSL) ..... 921
Fog Lamp ............................. 9145
Dual Headlamp ......................... H13
Quad Headlamp — Low Beam .............. H11
Quad Headlamp — High Beam ..............9005
Side Marker (Dual Headlamp) .............3157KSide Marker (Quad Headlamp)
............3157NA
Rear License Plate Lamp ................... 194
Rear Cargo Lamp ........................ 921
Rear Tail/Turn and Stop .................. 3157K
BULB REPLACEMENT
Dual or Quad Headlamp/Front Park and Turn
Signal — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the four plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the
upper radiator seal to the radiator.
5. Remove the upper radiator seal from the vehicle.
7
MAINTAINING YOUR VEHICLE 481
Page 484 of 543

6. Remove the two headlamp assembly attachment
screws.
7. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash shield.
Access to the rear of the lamp can be gained through this
access hole.8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough to
disengage it from the lock post on the back of the front
lamp unit housing.
9. Remove the headlamp assembly. Grasp the outboard
edge of the lamp and pull it straight forward to disen-
gage the ball stud from the plastic grommet.
482 MAINTAINING YOUR VEHICLE
Page 485 of 543

10. Disconnect electrical connectors.
11. Replace bulb(s) as necessary.
CAUTION!
•Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.
NOTE: There are access covers over both headlamp
bulb access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.
Fog Lamps
1. Reach under and behind the front bumper to access
the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector
from the fog lamp bulb.
3. Rotate the bulb counterclockwise
1 4turn to unlock the
bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.7
MAINTAINING YOUR VEHICLE 483
Page 486 of 543

Rear Tail/Stop, Turn Signal and Backup Lamps
1. Remove the two screws that pass through the bed
sheetmetal.2. Pull the outboard side of the lamp rearward far
enough to unsnap the two receptacles on the outboard
side of the lamp housing from the two plastic snap post
retainers in the outer box side panel.
484 MAINTAINING YOUR VEHICLE
Page 487 of 543

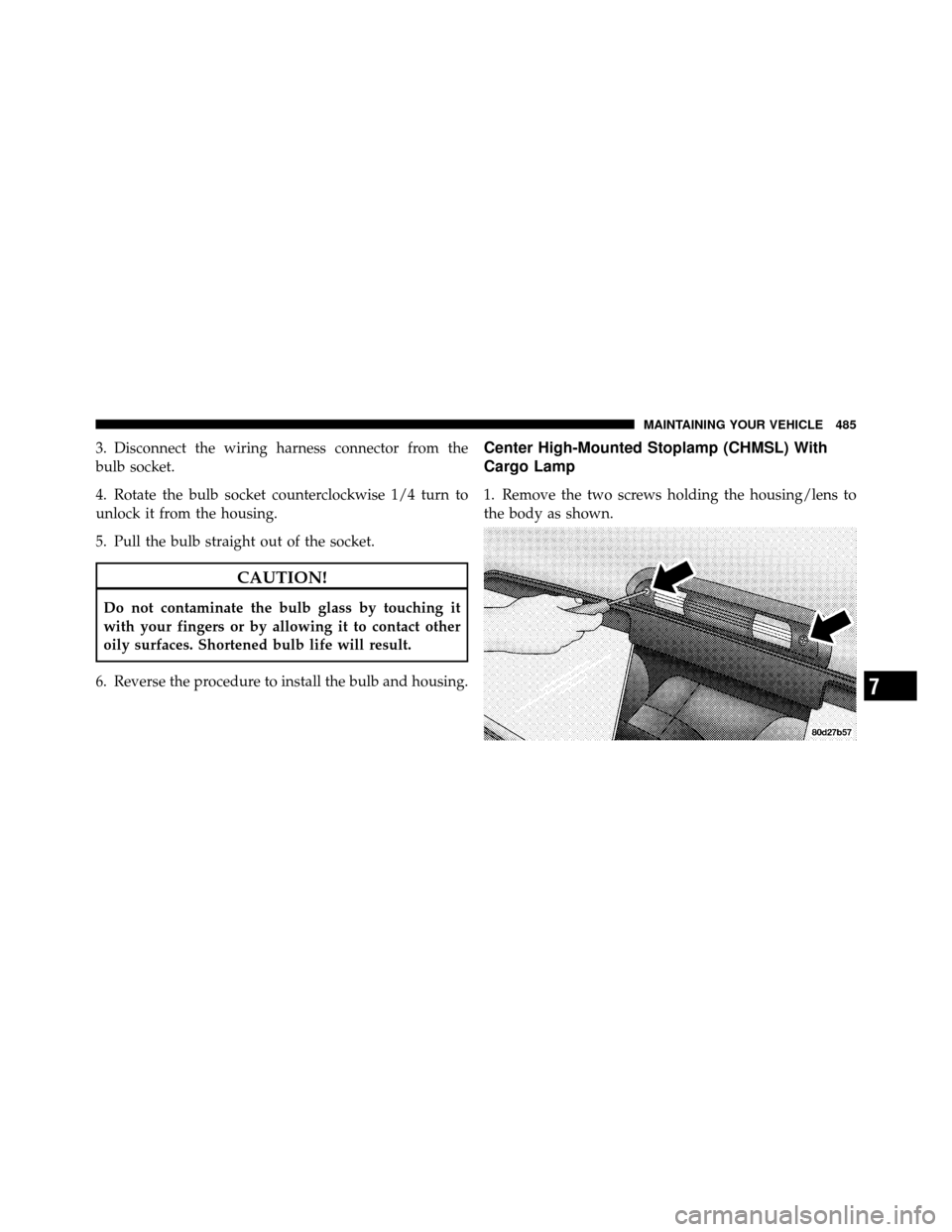

3. Disconnect the wiring harness connector from the
bulb socket.
4. Rotate the bulb socket counterclockwise 1/4 turn to
unlock it from the housing.
5. Pull the bulb straight out of the socket.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
6. Reverse the procedure to install the bulb and housing.
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp
1. Remove the two screws holding the housing/lens to
the body as shown.
7
MAINTAINING YOUR VEHICLE 485
