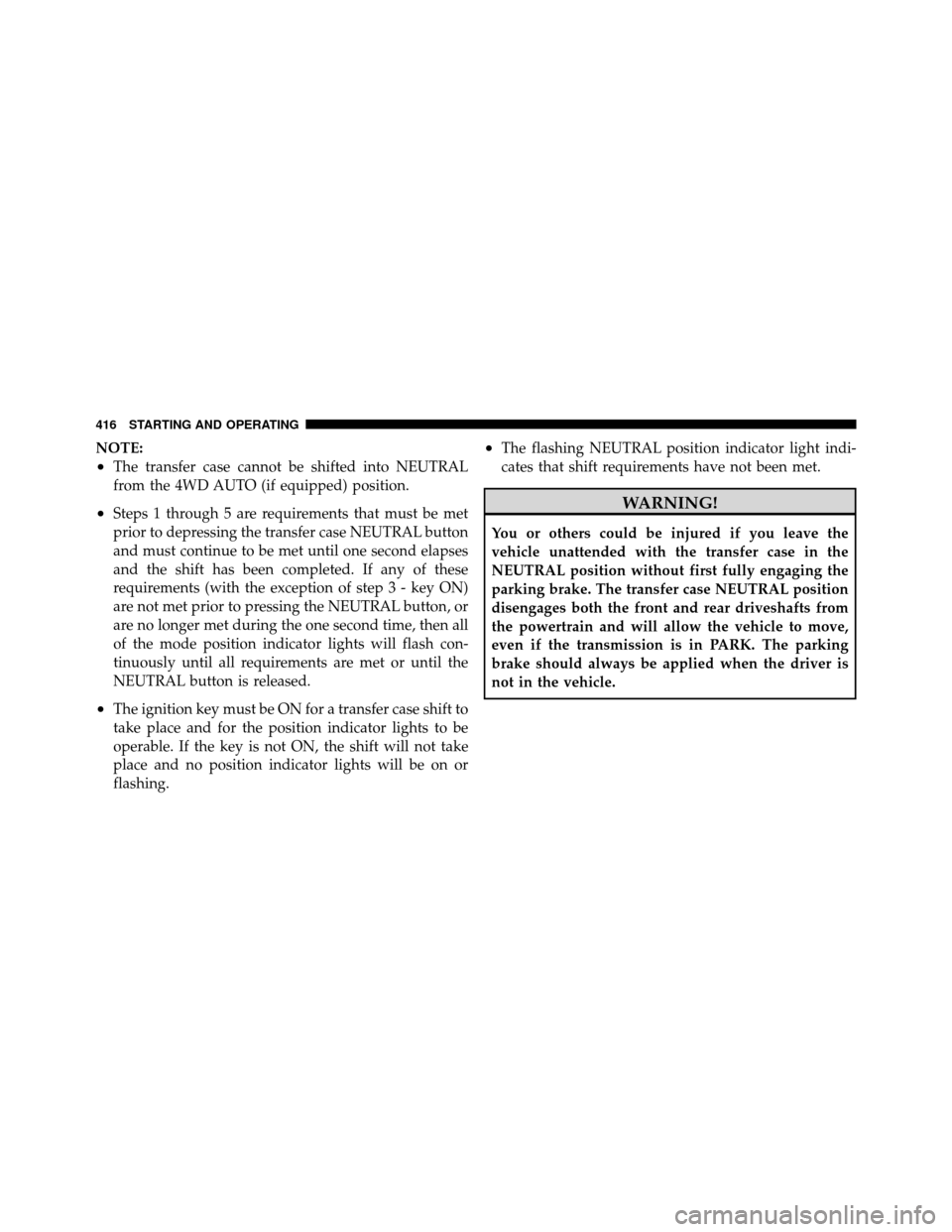

NOTE:
•The transfer case cannot be shifted into NEUTRAL
from the 4WD AUTO (if equipped) position.
•Steps 1 through 5 are requirements that must be met
prior to depressing the transfer case NEUTRAL button
and must continue to be met until one second elapses
and the shift has been completed. If any of these
requirements (with the exception of step 3 - key ON)
are not met prior to pressing the NEUTRAL button, or
are no longer met during the one second time, then all
of the mode position indicator lights will flash con-
tinuously until all requirements are met or until the
NEUTRAL button is released.
•The ignition key must be ON for a transfer case shift to
take place and for the position indicator lights to be
operable. If the key is not ON, the shift will not take
place and no position indicator lights will be on or
flashing.
•The flashing NEUTRAL position indicator light indi-
cates that shift requirements have not been met.
WARNING!
You or others could be injured if you leave the
vehicle unattended with the transfer case in the
NEUTRAL position without first fully engaging the
parking brake. The transfer case NEUTRAL position
disengages both the front and rear driveshafts from
the powertrain and will allow the vehicle to move,
even if the transmission is in PARK. The parking
brake should always be applied when the driver is
not in the vehicle.
416 STARTING AND OPERATING

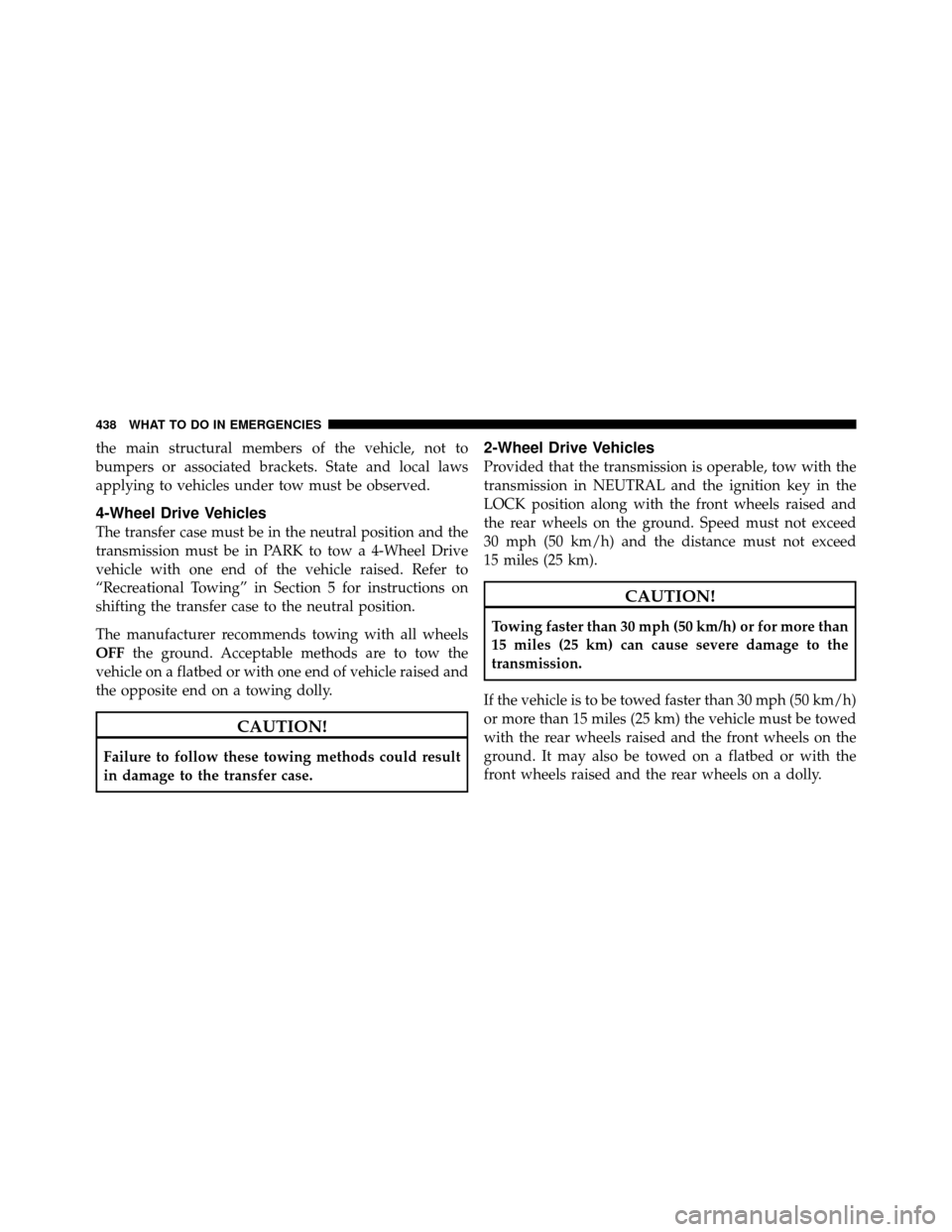

the main structural members of the vehicle, not to
bumpers or associated brackets. State and local laws
applying to vehicles under tow must be observed.
4-Wheel Drive Vehicles
The transfer case must be in the neutral position and the
transmission must be in PARK to tow a 4-Wheel Drive
vehicle with one end of the vehicle raised. Refer to
“Recreational Towing” in Section 5 for instructions on
shifting the transfer case to the neutral position.
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of vehicle raised and
the opposite end on a towing dolly.
CAUTION!
Failure to follow these towing methods could result
in damage to the transfer case.
2-Wheel Drive Vehicles
Provided that the transmission is operable, tow with the
transmission in NEUTRAL and the ignition key in the
LOCK position along with the front wheels raised and
the rear wheels on the ground. Speed must not exceed
30 mph (50 km/h) and the distance must not exceed
15 miles (25 km).
CAUTION!
Towing faster than 30 mph (50 km/h) or for more than
15 miles (25 km) can cause severe damage to the
transmission.
If the vehicle is to be towed faster than 30 mph (50 km/h)
or more than 15 miles (25 km) the vehicle must be towed
with the rear wheels raised and the front wheels on the
ground. It may also be towed on a flatbed or with the
front wheels raised and the rear wheels on a dolly.
438 WHAT TO DO IN EMERGENCIES

appear the next time the vehicle is started. This might
indicate a damaged cap. If the problem is detected twice
in a row, the system will turn on the MIL. Resolving the
problem will turn the MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
7
MAINTAINING YOUR VEHICLE 445

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition-Off Draw (IOD) fuse located in
the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.
•The electronic shift transfer case should be placed in
the 4HI mode and kept in this position to minimize the
battery drain.
•As an alternative to the above steps you may discon-
nect the negative cables from both batteries.
•Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutesin the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE:
•When reinstalling the IOD fuse push firmly until fully
seated; the gauges in the instrument cluster will do a
full sweep when the ignition key is cycled to RUN.
This is a normal condition.
•When the vehicle is shipped from the factory, the IOD
fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play NO FUSE.”
480 MAINTAINING YOUR VEHICLE

Fluid Level Check................... 466,467
Fluid Type ........................ 466,490
Gear Ranges ......................... 315
Shifting ............................. 320
Special Additives ...................... 469
Torque Converter ...................... 319
Axle Fluid .......................... 465,490
Axle Lubrication (Axle Fluid) ............... 465
Back-Up Camera ........................ 168
Battery ............................... 451
Emergency Starting ..................... 433
Keyless Transmitter Replacement (RKE) ....... 24
Saving Feature (Protection) ............... 151
Belts, Seat ............................ 41,84
Body Builders Guide ....................... 6
Body Mechanism Lubrication ............... 453
B-Pillar Location ........................ 367
Brake Assist System ...................... 351 Brake Control System, Electronic
............. 350
Brake Fluid ......................... 464,490
Brake System ........................ 347,463
Anti-Lock (ABS) .................... 348,350
Fluid Check .......................... 464
Master Cylinder ....................... 464
Parking ............................. 346
Warning Light ........................ 235
Brake/Transmission Interlock ............... 313
Break-In Recommendations, New Vehicle ........ 81
Bulb Replacement ....................... 481
Bulbs, Light .......................... 85,481
Calibration, Compass ..................... 254
Camera, Rear ........................... 168
Camper ............................... 216
Capacities, Fluid ........................ 488
Caps, Filler Oil (Engine) .......................... 449
10
INDEX 523

Heated Mirrors....................... 97,199
Heated Seats ........................... 138
Heater ............................... 293
Heater, Engine Block ..................... 311
High Beam/Low Beam Select (Dimmer) Switch . . 153
Hitches Trailer Towing ........................ 403
Hoisting .............................. 433
HomeLink (Garage Door Opener) Transmitter . . . 174
Hood Release .......................... 145
Ignition ............................... 14
Key ............................... 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 15
Infant Restraint .......................... 69
Inflation Pressure Tires .................... 377
Information Center, Vehicle ................. 244 Inside Rearview Mirror
.................... 93
Instrument Cluster ................. 223,225,227
Instrument Panel and Controls .............. 222
Instrument Panel Lens Cleaning ............. 474
Integrated Power Module (Fuses) ............ 475
Interior Appearance Care .................. 472
Interior Lights .......................... 149
Intermittent Wipers (Delay Wipers) ........... 154
Introduction ............................. 4
Inverter Outlet (115V) ..................... 188
Jack Location ........................... 420
Jump Starting .......................... 433
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 15
Keyless Entry System ...................... 20
10
INDEX 529

Keys................................. 12
Knee Bolster ............................ 54
Lane Change and Turn Signals .............. 152
Lap Belts .............................. 49
Lap/Shoulder Belts ....................... 41
LATCH (Lower Anchors and
Tether for CHildren) ...................... 72
Latches ................................ 85
Leaks, Fluid ............................ 85
Life of Tires ............................ 376
Light Bulbs ............................. 85
Lights .............................. 85,146
Airbag ...................... 54,61,66,84,240
Alarm .............................. 230
Anti-Lock ........................... 241
Anti-Lock Warning ..................... 349
Automatic Headlights ................... 147
Brake Warning ........................ 235 Bulb Replacement
...................... 481
Cargo .............................. 150
Center Mounted Stop ................... 485
Check Engine (Malfunction Indicator) ........ 239
Courtesy/Reading ..................... 172
Daytime Running ...................... 151
Electronic Stability Program (ESP) Indicator . . . 357
Exterior .............................. 85
Fog .......................... 148,241,483
Hazard Warning Flasher ................. 420
Headlights ........................... 147
High Beam ........................ 153,234
High Beam Indicator .................... 234
High Beam/Low Beam Select ............. 153
Illuminated Entry ....................... 19
Instrument Cluster .................. 223,227
Interior .......................... 149,172
Lights On Reminder .................... 151
Low Fuel ............................ 234
530 INDEX

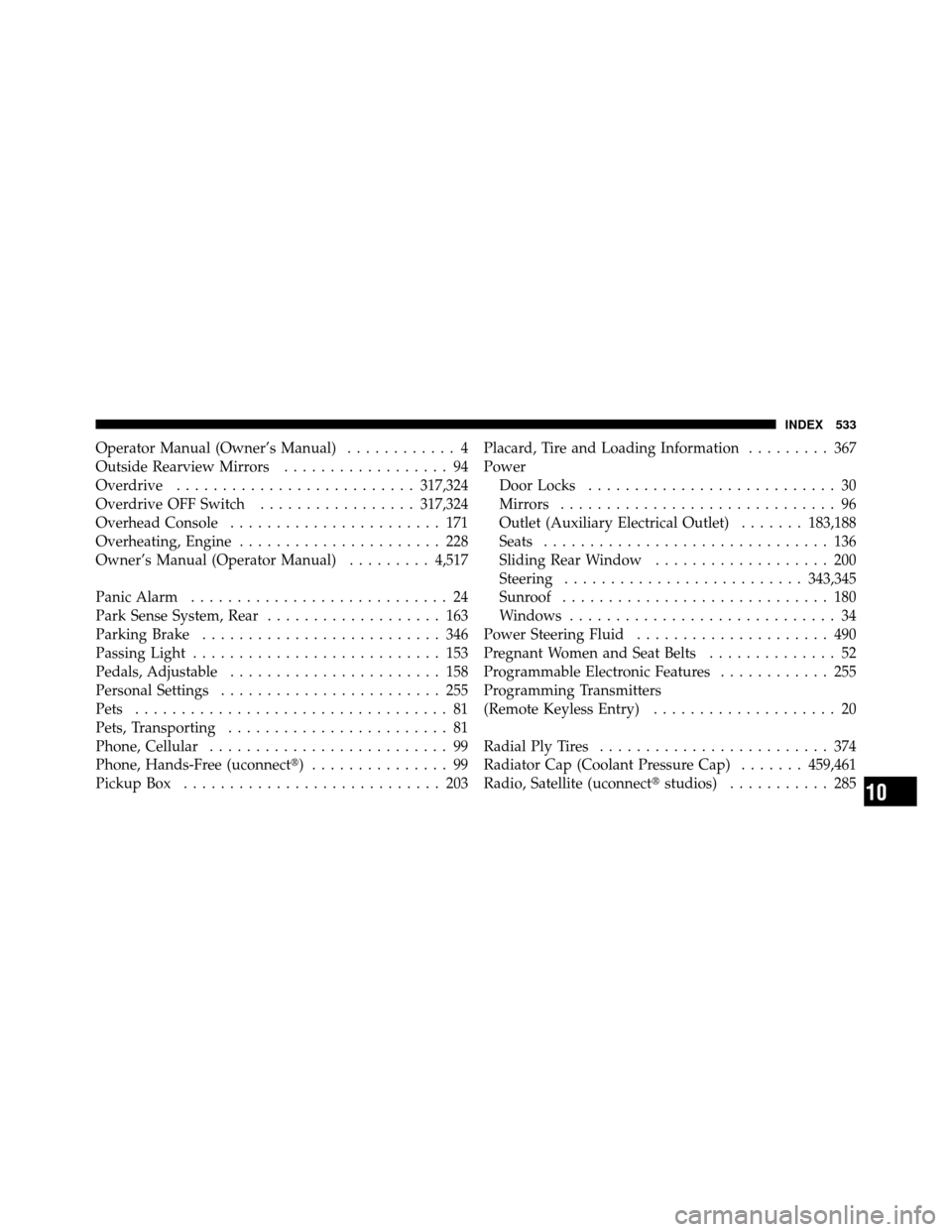

Operator Manual (Owner’s Manual)............ 4
Outside Rearview Mirrors .................. 94
Overdrive .......................... 317,324
Overdrive OFF Switch .................317,324
Overhead Console ....................... 171
Overheating, Engine ...................... 228
Owner’s Manual (Operator Manual) .........4,517
Panic Alarm ............................ 24
Park Sense System, Rear ................... 163
Parking Brake .......................... 346
Passing Light ........................... 153
Pedals, Adjustable ....................... 158
Personal Settings ........................ 255
Pets .................................. 81
Pets, Transporting ........................ 81
Phone, Cellular .......................... 99
Phone, Hands-Free (uconnect) ............... 99
Pickup Box ............................ 203 Placard, Tire and Loading Information
......... 367
Power Door Locks ........................... 30
Mirrors .............................. 96
Outlet (Auxiliary Electrical Outlet) .......183,188
Seats ............................... 136
Sliding Rear Window ................... 200
Steering .......................... 343,345
Sunroof ............................. 180
Windows ............................. 34
Power Steering Fluid ..................... 490
Pregnant Women and Seat Belts .............. 52
Programmable Electronic Features ............ 255
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 374
Radiator Cap (Coolant Pressure Cap) .......459,461
Radio, Satellite (uconnect studios)........... 285
10
INDEX 533

Rear Axle (Differential).................... 465
Rear Cargo Area Utility Rails ............... 214
Rear Park Sense System ................... 163
Rear Window Features .................... 199
Rear Window, Sliding ..................... 200
Reclining Front Seats ..................... 134
Recorder, Event Data ...................... 67
Recreational Towing ...................... 412
Shifting into Transfer Case Neutral (N) ....... 413
Shifting out of Transfer Case Neutral (N) ..... 415
Reformulated Gasoline .................... 387
Refrigerant ............................ 453
Reminder, Seat Belt ....................... 51
Remote Control Starting System ........................ 25
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 291
Remote Starting System .................... 25
Replacement Keys ........................ 16 Replacement Parts
....................... 446
Replacement Tires ....................... 376
Reporting Safety Defects ................... 516
Resetting Oil Change Indicator ...........233,249
Restraint, Head ......................... 136
Restraints, Child ....................... 69,74
Restraints, Occupant ...................... 39
Rotation, Tires .......................... 379
Safety Checks Inside Vehicle ................. 84
Safety Checks Outside Vehicle ............... 84
Safety Defects, Reporting .................. 516
Safety, Exhaust Gas ....................... 83
Safety Information, Tire ................... 362
Safety Tips ............................. 82
Satellite Radio Antenna ................... 286
Satellite Radio (uconnect studios)........... 285
Schedule, Maintenance .................... 492
Seat Belt Maintenance .................... 474
534 INDEX

Seat Belt Reminder....................... 51
Seat Belts .......................... 39,41,84
Adjustable Upper Shoulder Anchorage ........ 49
And Pregnant Women ................... 52
Child Restraint ....................... 69,81
Extender ............................. 52
Front Seat ............................ 41
Inspection ............................ 84
Reminder ............................ 242
Seats .............................. 132,140
Adjustment .......................... 132
Child ............................... 81
Folding Floor ......................... 201
Heated ............................. 138
Memory ............................ 141
Power .............................. 136
Reclining ............................ 134
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........459,489Sentry Key (Immobilizer)
................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 513
Service Contract ......................... 515
Service Manuals ........................ 517
Setting the Clock ................ 261,262,265,274
Settings, Personal ........................ 255
Shifting ............................... 312
Automatic Transmission ..............315,320
Transfer Case, Shifting into Transfer Case
Neutral (N) .......................... 413
Transfer Case, Shifting out of Transfer
Case Neutral (N) ...................... 415
Shoulder Belt Upper Anchorage .............. 49
Shoulder Belts ........................... 41
Side Airbag ............................. 62
Signals, Turn ...................... 85,152,227
10
INDEX 535
