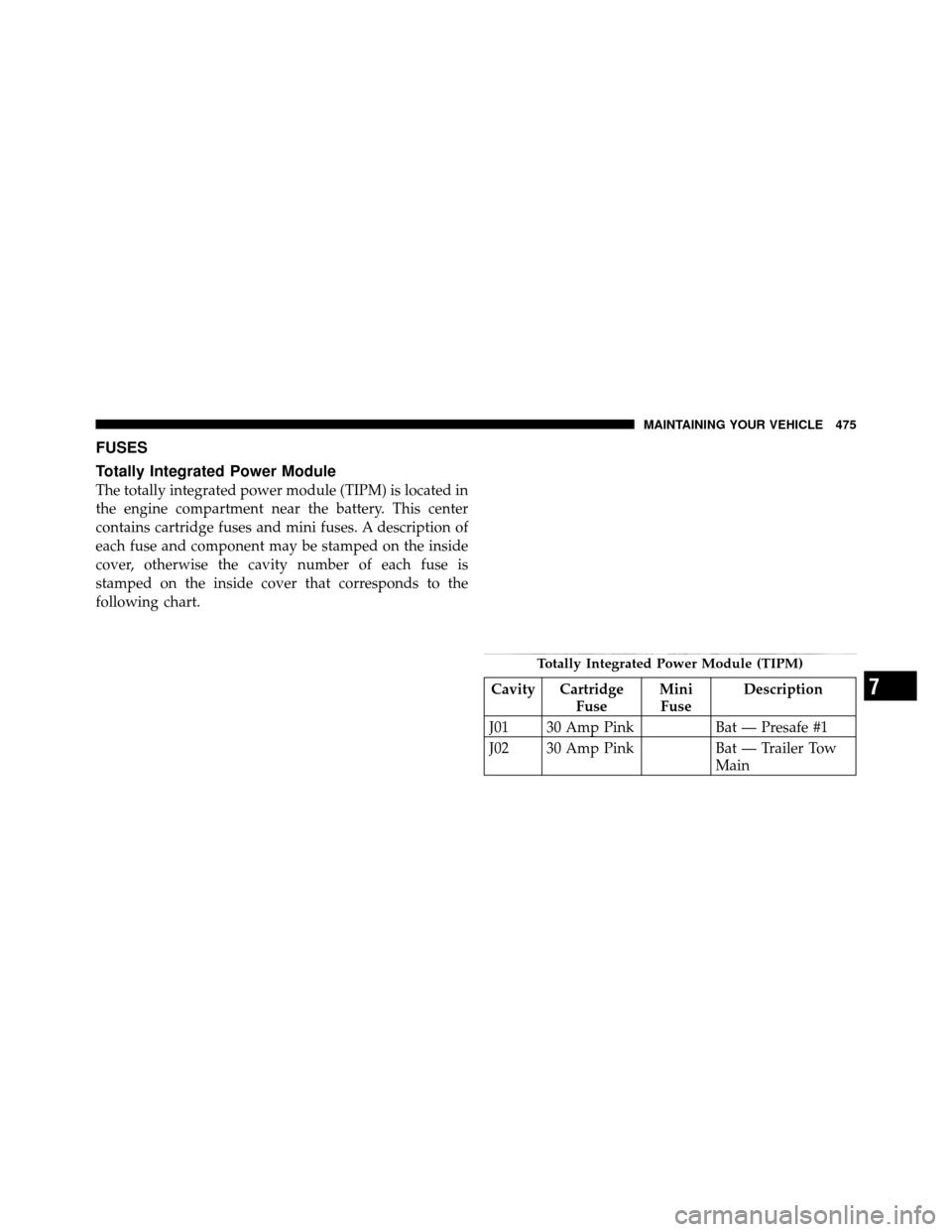

FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is located in
the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A description of
each fuse and component may be stamped on the inside
cover, otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to the
following chart.
Cavity CartridgeFuseMini
Fuse Description
J01 30 Amp Pink Bat — Presafe #1
J02 30 Amp Pink Bat — Trailer Tow
Main
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 475
