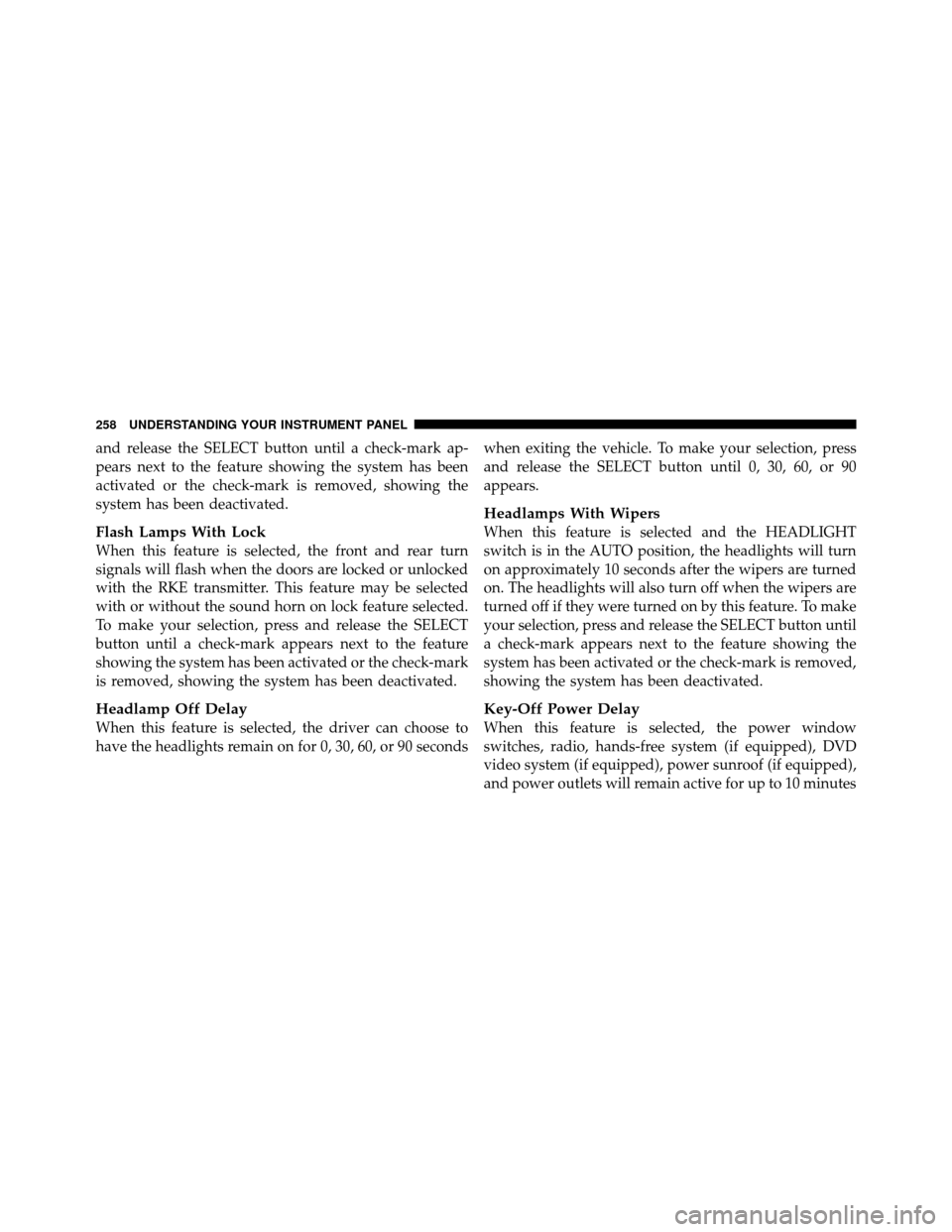

Page 260 of 543
and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed, showing the
system has been deactivated.
Flash Lamps With Lock
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
with the RKE transmitter. This feature may be selected
with or without the sound horn on lock feature selected.
To make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed, showing the system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 secondswhen exiting the vehicle. To make your selection, press
and release the SELECT button until 0, 30, 60, or 90
appears.
Headlamps With Wipers
When this feature is selected and the HEADLIGHT
switch is in the AUTO position, the headlights will turn
on approximately 10 seconds after the wipers are turned
on. The headlights will also turn off when the wipers are
turned off if they were turned on by this feature. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed,
showing the system has been deactivated.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, hands-free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
258 UNDERSTANDING YOUR INSTRUMENT PANEL

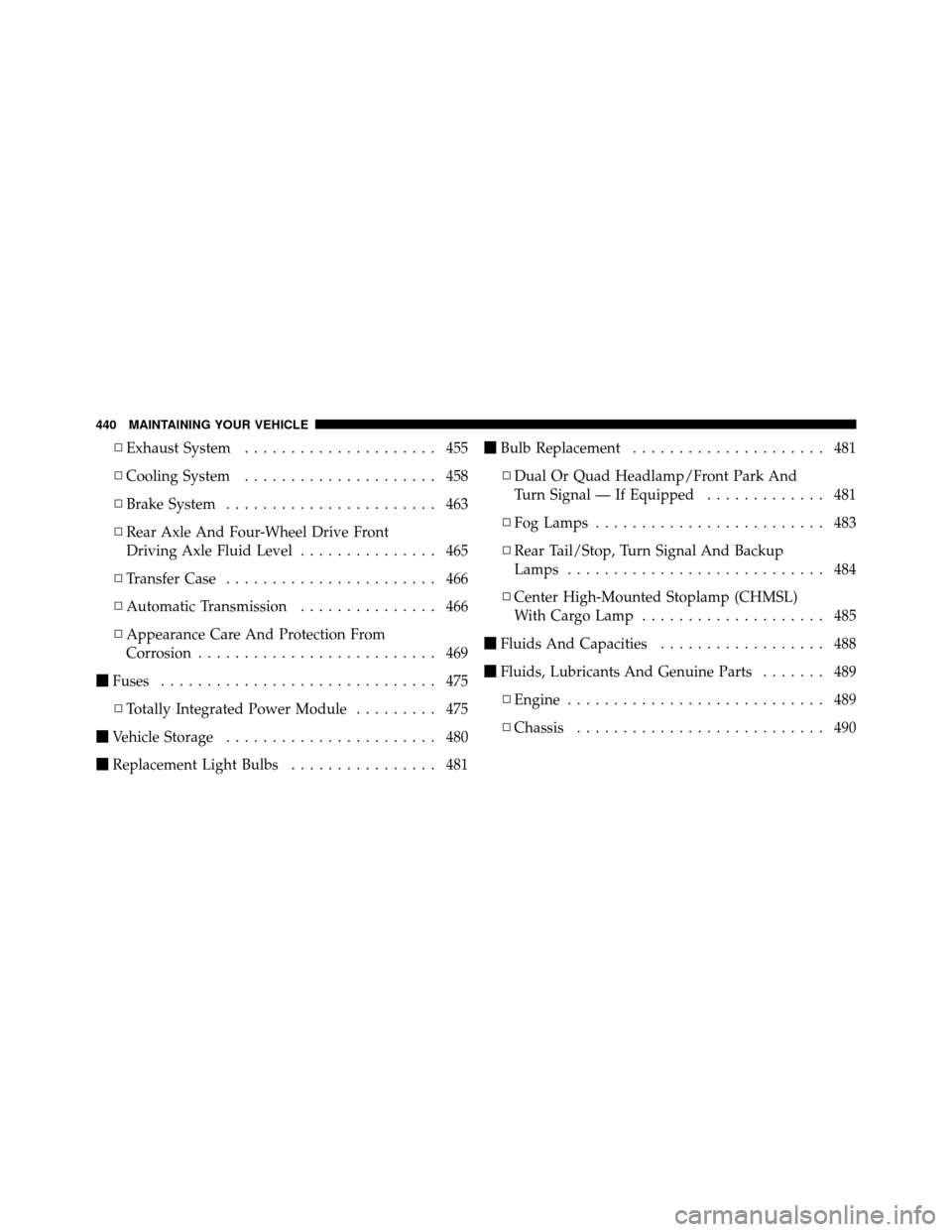

Page 442 of 543
▫Exhaust System ..................... 455
▫ Cooling System ..................... 458
▫ Brake System ....................... 463
▫ Rear Axle And Four-Wheel Drive Front
Driving Axle Fluid Level ............... 465
▫ Transfer Case ....................... 466
▫ Automatic Transmission ............... 466
▫ Appearance Care And Protection From
Corrosion .......................... 469
Fuses .............................. 475
▫ Totally Integrated Power Module ......... 475
Vehicle Storage ....................... 480
Replacement Light Bulbs ................ 481
Bulb Replacement ..................... 481
▫ Dual Or Quad Headlamp/Front Park And
Turn Signal — If Equipped ............. 481
▫ Fog Lamps ......................... 483
▫ Rear Tail/Stop, Turn Signal And Backup
Lamps ............................ 484
▫ Center High-Mounted Stoplamp (CHMSL)
With Cargo Lamp .................... 485
Fluids And Capacities .................. 488
Fluids, Lubricants And Genuine Parts ....... 489
▫ Engine ............................ 489
▫ Chassis ........................... 490
440 MAINTAINING YOUR VEHICLE
Page 483 of 543
REPLACEMENT LIGHT BULBS
LIGHT BULBS — InteriorBulb No.
Overhead Console Lamp ............... TS212-2
Dome Lamp ........................... 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS — Exterior Bulb No.
Backup ................................ 921
Center High Mounted Stop Lamp (CHMSL) ..... 921
Fog Lamp ............................. 9145
Dual Headlamp ......................... H13
Quad Headlamp — Low Beam .............. H11
Quad Headlamp — High Beam ..............9005
Side Marker (Dual Headlamp) .............3157KSide Marker (Quad Headlamp)
............3157NA
Rear License Plate Lamp ................... 194
Rear Cargo Lamp ........................ 921
Rear Tail/Turn and Stop .................. 3157K
BULB REPLACEMENT
Dual or Quad Headlamp/Front Park and Turn
Signal — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the four plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the
upper radiator seal to the radiator.
5. Remove the upper radiator seal from the vehicle.
7
MAINTAINING YOUR VEHICLE 481

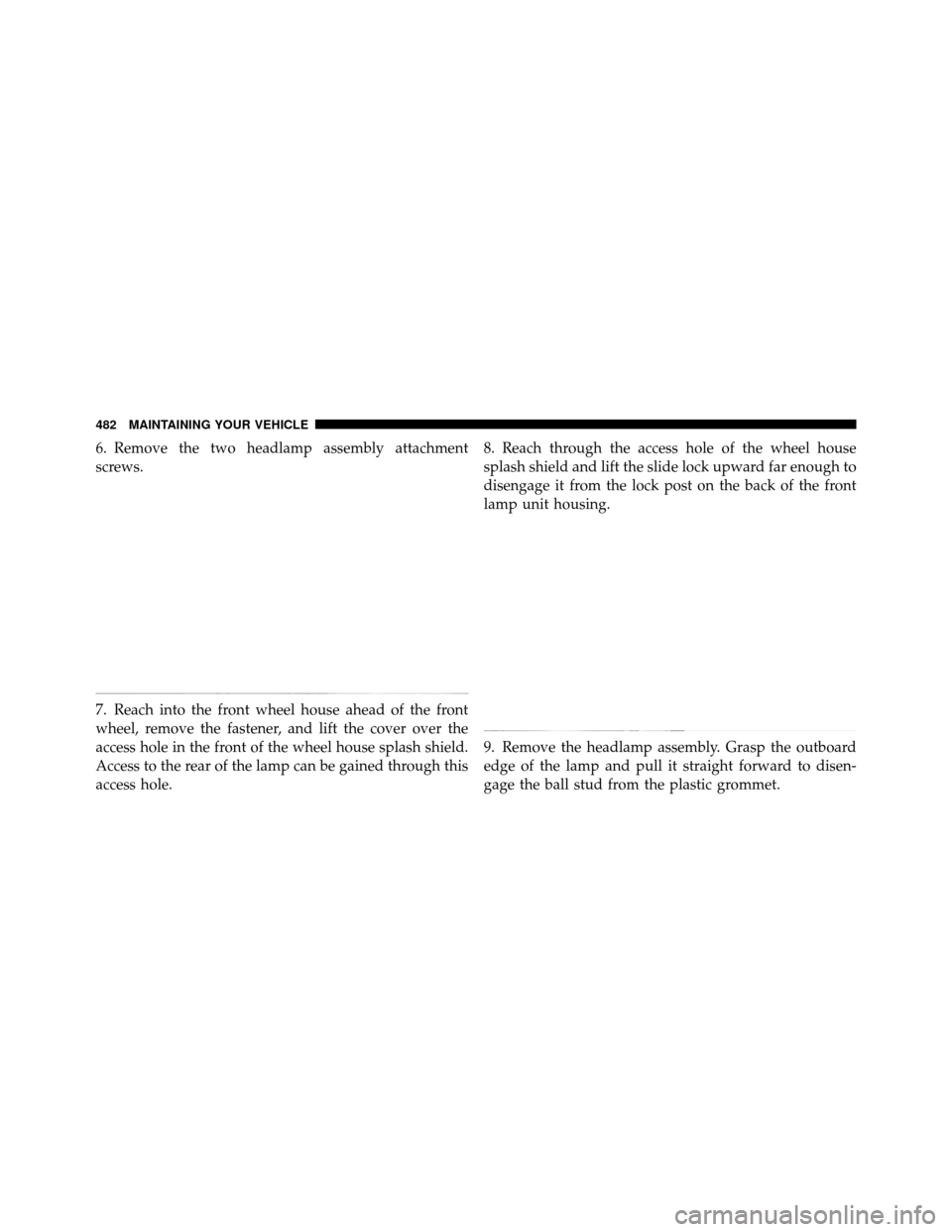

Page 484 of 543
6. Remove the two headlamp assembly attachment
screws.
7. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash shield.
Access to the rear of the lamp can be gained through this
access hole.8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough to
disengage it from the lock post on the back of the front
lamp unit housing.
9. Remove the headlamp assembly. Grasp the outboard
edge of the lamp and pull it straight forward to disen-
gage the ball stud from the plastic grommet.
482 MAINTAINING YOUR VEHICLE

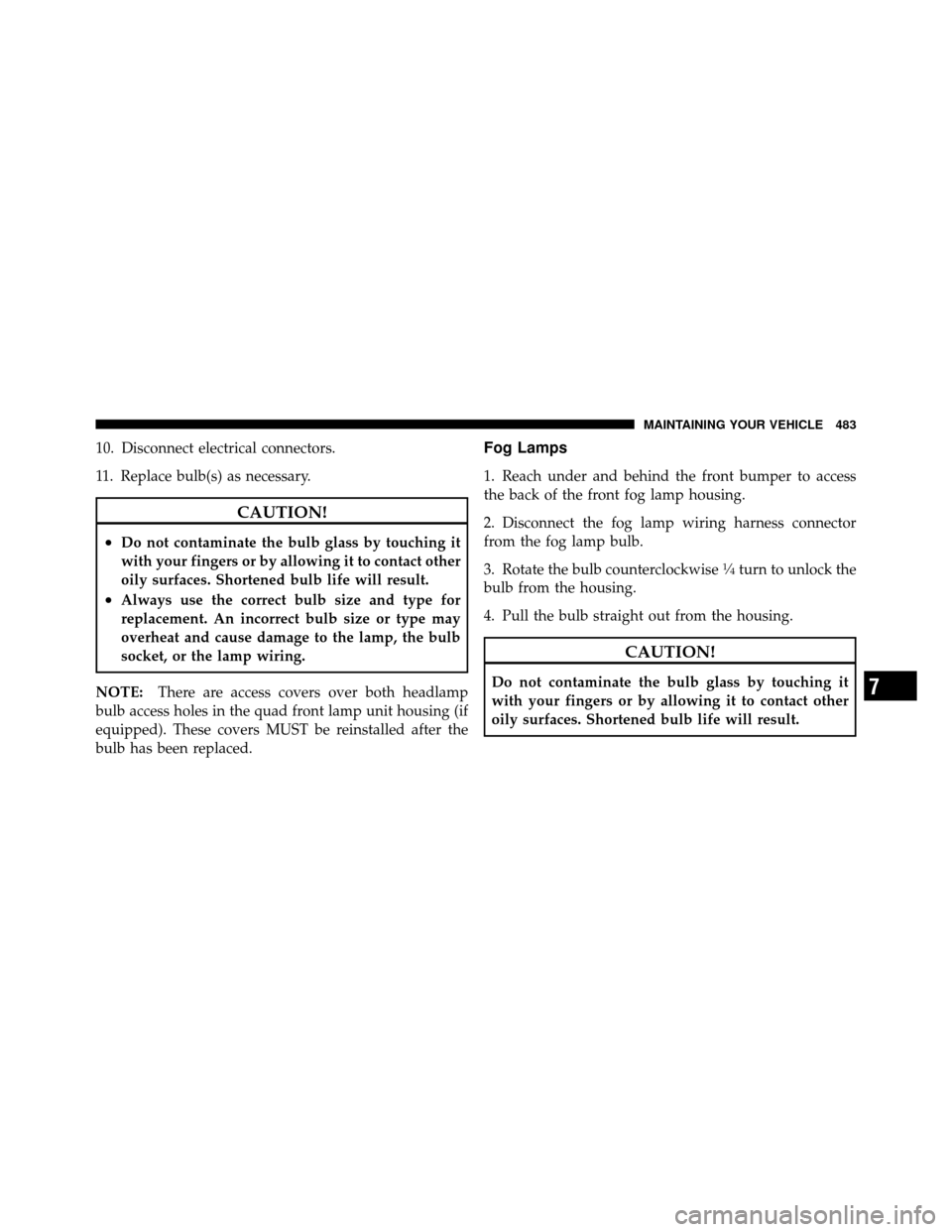

Page 485 of 543
10. Disconnect electrical connectors.
11. Replace bulb(s) as necessary.
CAUTION!
•Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.
NOTE: There are access covers over both headlamp
bulb access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.
Fog Lamps
1. Reach under and behind the front bumper to access
the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector
from the fog lamp bulb.
3. Rotate the bulb counterclockwise
1 4turn to unlock the
bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.7
MAINTAINING YOUR VEHICLE 483
