Ram 1500 2013 Owner's Manual

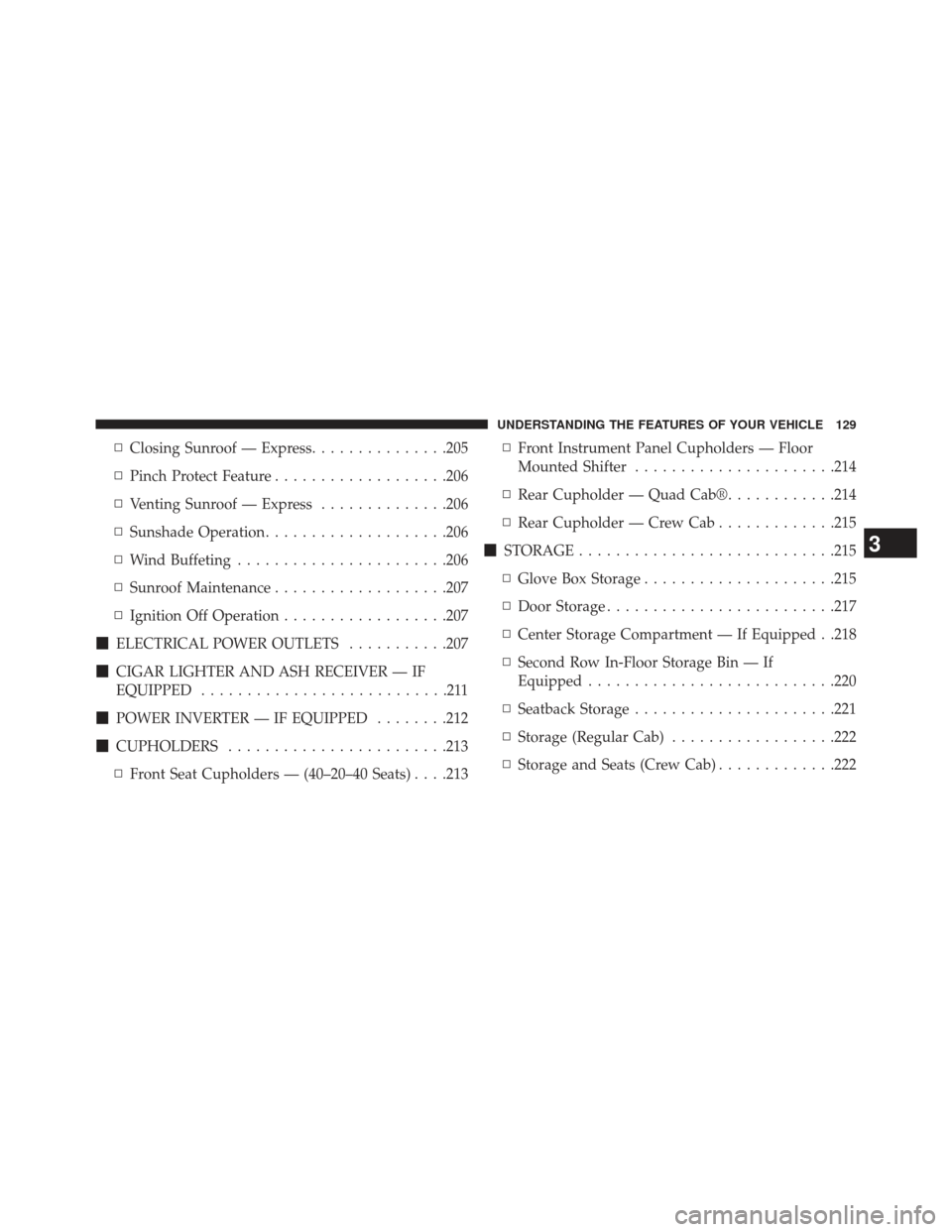

▫Closing Sunroof — Express ...............205
▫ Pinch Protect Feature ...................206
▫ Venting Sunroof — Express ..............206
▫ Sunshade Operation ....................206
▫ Wind Buffeting ...................... .206
▫ Sunroof Maintenance ...................207
▫ Ignition Off Operation ..................207
 ELECTRICAL POWER OUTLETS ...........207
 CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED ...........................211
 POWER INVERTER — IF EQUIPPED ........212
 CUPHOLDERS ....................... .213
▫ Front Seat Cupholders — (40–20–40 Seats) . . . .213 ▫
Front Instrument Panel Cupholders — Floor
Mounted Shifter ..................... .214
▫ Rear Cupholder — Quad Cab® ............214
▫ Rear Cupholder — Crew Cab .............215
 STORAGE ........................... .215
▫ Glove Box Storage .....................215
▫ Door Storage ........................ .217
▫ Center Storage Compartment — If Equipped . .218
▫ Second Row In-Floor Storage Bin — If
Equipped .......................... .220
▫ Seatback Storage ..................... .221
▫ Storage (Regular Cab) ..................222
▫ Storage and Seats (Crew Cab) .............222
3

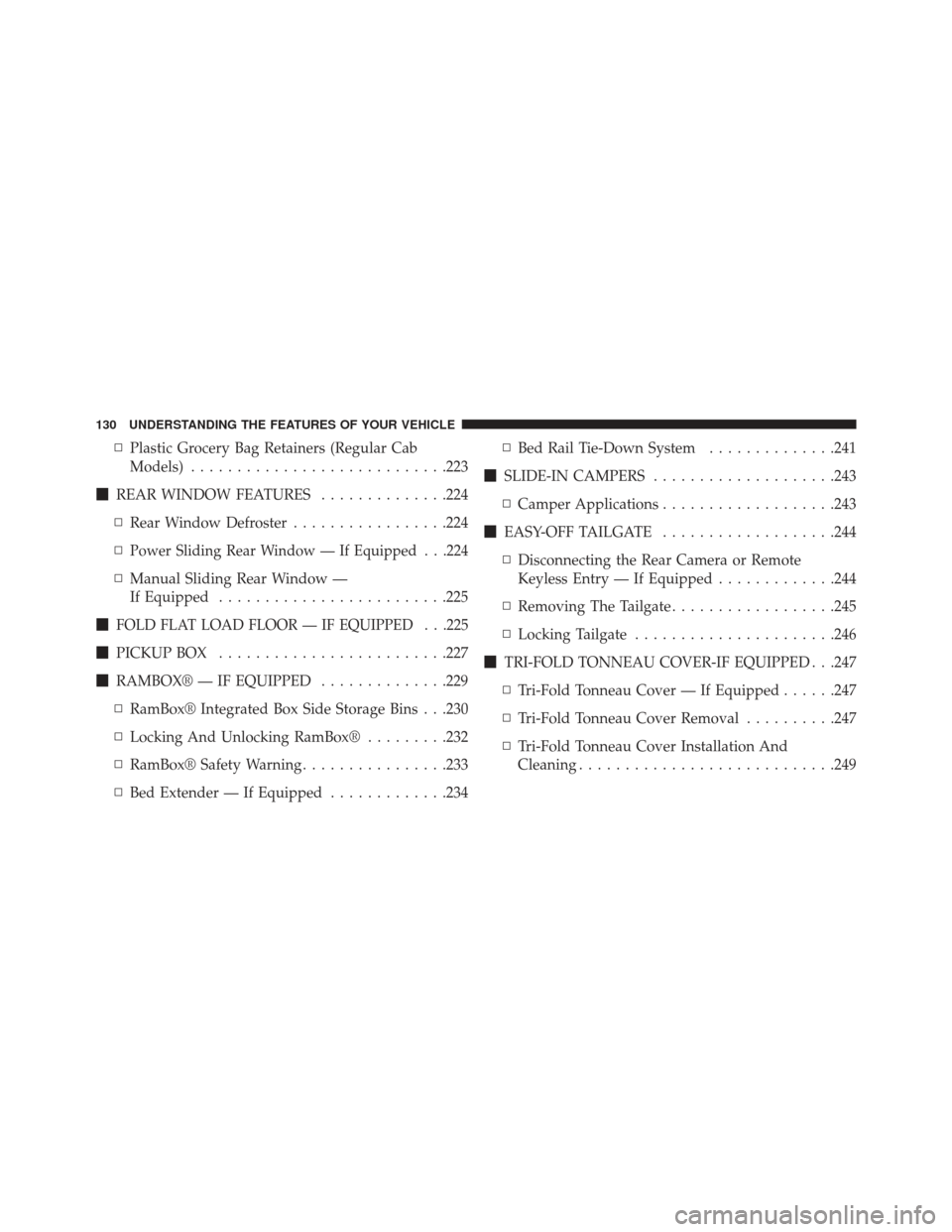

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

▫Plastic Grocery Bag Retainers (Regular Cab
Models) ........................... .223
 REAR WINDOW FEATURES ..............224
▫ Rear Window Defroster .................224
▫
Power Sliding Rear Window — If Equipped . . .224
▫ Manual Sliding Rear Window —
If Equipped ........................ .225

FOLD FLAT LOAD FLOOR — IF EQUIPPED . . .225
 PICKUP BOX ........................ .227
 RAMBOX® — IF EQUIPPED ..............229
▫ RamBox® Integrated Box Side Storage Bins . . .230
▫ Locking And Unlocking RamBox® .........232
▫ RamBox® Safety Warning ................233
▫ Bed Extender — If Equipped .............234▫
Bed Rail Tie-Down System ..............241
 SLIDE-IN CAMPERS ....................243
▫ Camper Applications ...................243
 EASY-OFF TAILGATE ...................244
▫ Disconnecting the Rear Camera or Remote
Keyless Entry — If Equipped .............244
▫ Removing The Tailgate ..................245
▫ Locking Tailgate ..................... .246
 TRI-FOLD TONNEAU COVER-IF EQUIPPED . . .247
▫ Tri-Fold Tonneau Cover — If Equipped ......247
▫ Tri-Fold Tonneau Cover Removal ..........247
▫ Tri-Fold Tonneau Cover Installation And
Cleaning ........................... .249
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while the small control under the
mirror is set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

Automatic Dimming Mirror — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:This feature is disabled when the vehicle is in
reverse gear to improve rear view viewing.
Automatic Dimming Mirror
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror With Rear View
Camera Display — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
When the vehicle is placed into reverse gear a video
display illuminates to display the image generated by the
rear view camera located on the tailgate handle. The auto
dimming feature is also disabled to improve rear view
viewing.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Automatic Dimming Mirror With Rear View Camera
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex passenger side
mirror.
Outside Mirrors Folding Feature
All outside mirrors are designed to be able to be manu-
ally folded both forward and rearward to prevent dam-
age.CAUTION!
It is recommended to fold the mirrors into the full
rearward position to resist damage when entering a
car wash or a narrow location.
Folding Mirror
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Folding Outside Mirrors — If Equipped
If equipped with power folding mirrors, they can be
electrically folded rearward and unfolded into the drive
position.
The switch for the power folding mirrors is located
between the power mirror switches L (left) and R (right).
Press the switch once and the mirrors will fold in, press
the switch a second time and the mirrors will return to
the normal driving position.
If the mirror is manually folded after electrically cycled,
a potential extra button push is required to get the
mirrors back to the home position. If the mirror does not
electrically fold check for ice or dirt build up at the pivot
area which can cause excessive drag.
Power Folding Mirror Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

Power Mirrors — If Equipped
The controls for the power mirrors are located on the
driver’s door trim panel.
The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch.To adjust a mirror, press either the L (left) or R (right)
button to select the mirror that you want to adjust.
Power Mirror Controls Location
Power Mirror Controls
1 — Mirror Select Buttons
2 — Four-Way Mirror Control Switch
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to moveHeated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster if equipped. Some vehicles may
not be equipped with rear window defroster, in this case
the heated mirrors will still function as intended. Refer to
“Rear Window Features” in “Understanding The Fea-
tures Of Your Vehicle” for further information.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
The driver ’s outside mirror will automatically adjust for
glare from vehicles behind you. This feature is controlled
by the inside automatic dimming mirror and will auto-
matically adjust for headlight glare when the inside
mirror adjusts.
Power Mirror Movement
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

Illuminated Vanity Mirror — If Equipped
Illuminated vanity mirrors are located on each sun visor.
To use the mirror, rotate the sun visor down and swing
the mirror cover upward. The lights will turn on auto-
matically. Closing the mirror cover turns off the light.
“Slide-On-Rod” Features Of Sun Visor — If
Equipped
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.
To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired
position.
Illuminated Vanity Mirror
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
