Ram 1500 2013 Owner's Manual

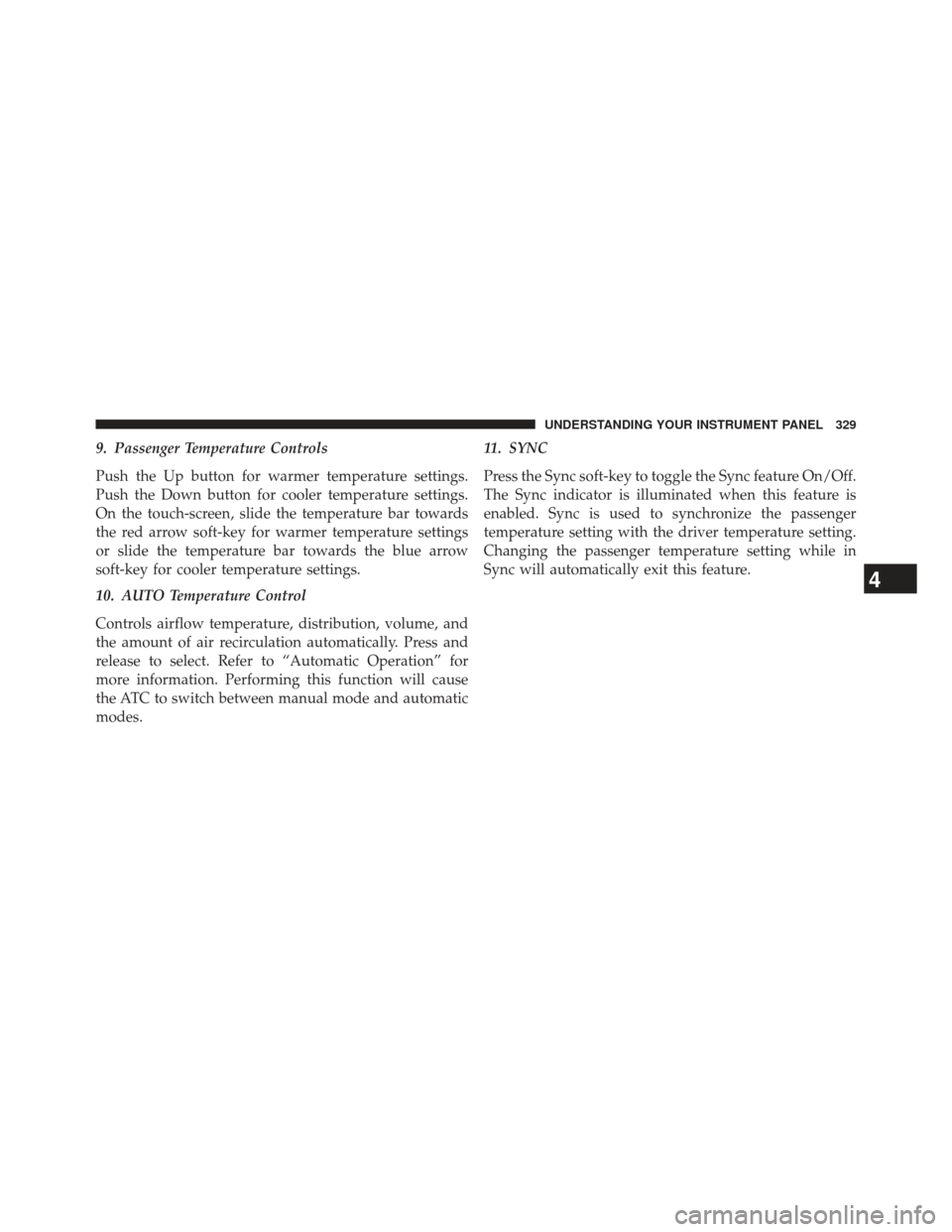

9. Passenger Temperature Controls
Push the Up button for warmer temperature settings.
Push the Down button for cooler temperature settings.
On the touch-screen, slide the temperature bar towards
the red arrow soft-key for warmer temperature settings
or slide the temperature bar towards the blue arrow
soft-key for cooler temperature settings.
10. AUTO Temperature Control
Controls airflow temperature, distribution, volume, and
the amount of air recirculation automatically. Press and
release to select. Refer to “Automatic Operation” for
more information. Performing this function will cause
the ATC to switch between manual mode and automatic
modes.11. SYNC
Press the Sync soft-key to toggle the Sync feature On/Off.
The Sync indicator is illuminated when this feature is
enabled. Sync is used to synchronize the passenger
temperature setting with the driver temperature setting.
Changing the passenger temperature setting while in
Sync will automatically exit this feature.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 329

Automatic Operation
1. Press the AUTO hard-key or soft-key button on theAutomatic Temperature Control (ATC) Panel. 2. Next, adjust the temperature you would like the
system to maintain by adjusting the driver and pas-
senger temperature hard or soft control buttons. Once
the desired temperature is displayed, the system will
achieve and automatically maintain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.
Dual Zone Automatic Temperature Controls — Soft-keys
330 UNDERSTANDING YOUR INSTRUMENT PANEL

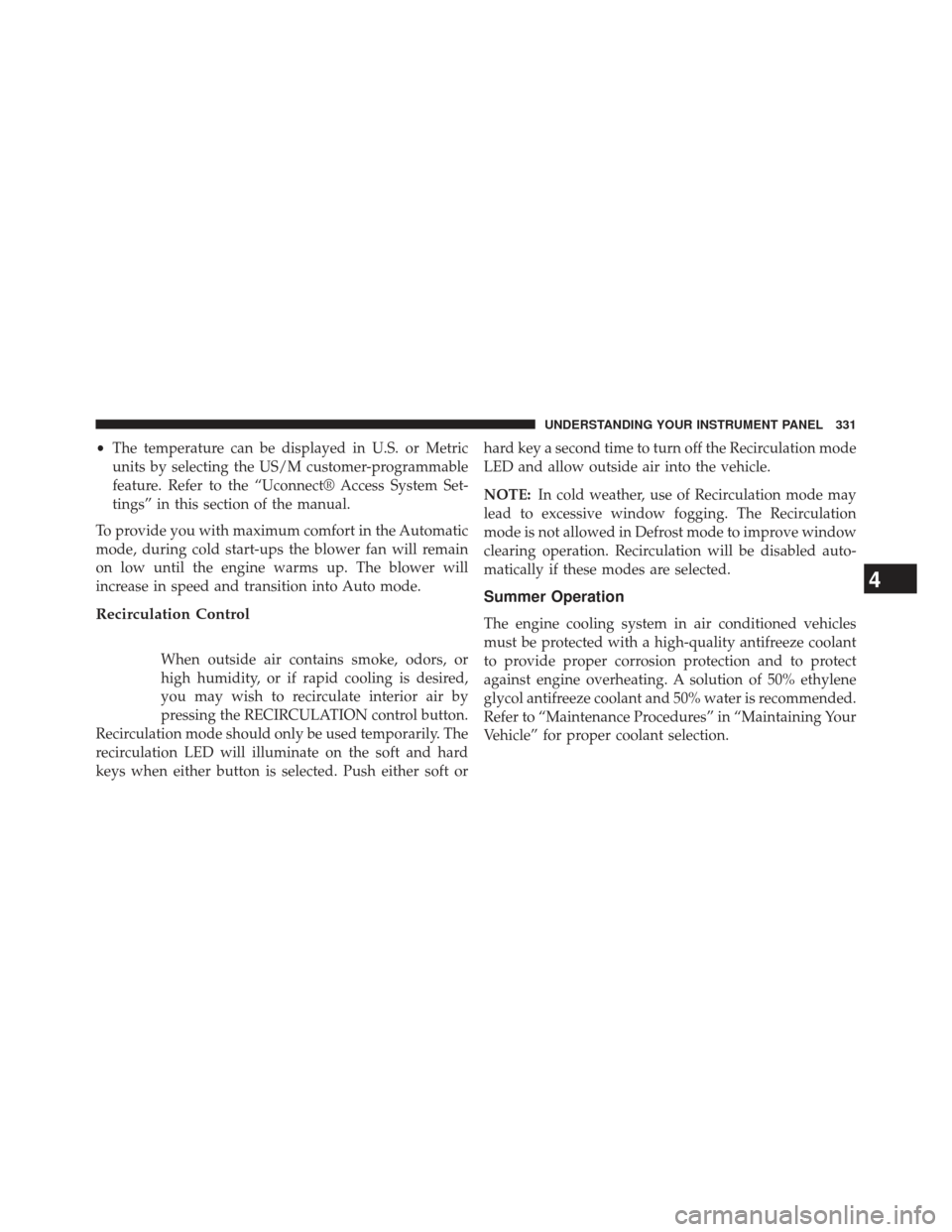

•The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Uconnect® Access System Set-
tings” in this section of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.
Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.
Recirculation mode should only be used temporarily. The
recirculation LED will illuminate on the soft and hard
keys when either button is selected. Push either soft or hard key a second time to turn off the Recirculation mode
LED and allow outside air into the vehicle.
NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in Defrost mode to improve window
clearing operation. Recirculation will be disabled auto-
matically if these modes are selected.
Summer Operation
The engine cooling system in air conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is function-
ing properly and the proper amount, type, and concen-
tration of coolant is used. Refer to “Maintenance
Procedures” in “Maintaining Your Vehicle” for proper
coolant selection. Use of the air Recirculation mode
during Winter months is not recommended because it
may cause window fogging.
Vacation/Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in
fresh air with the blower setting in high. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging and Frosting
Vehicle windows tend to fog on the inside of the glass in
mild, rainy and/or humid weather. Windows may frost
on the inside of the glass in very cold weather. To clear
the windows, select Defrost or Mix mode and increase
the front blower speed. Do not use the Recirculation
mode without A/C for long periods, as fogging may
occur.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, can cause
odor, and if they enter the plenum they could plug the
water drains. In Winter months make sure the air intake
is clear of ice, slush and snow.
332 UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Tips Chart
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333

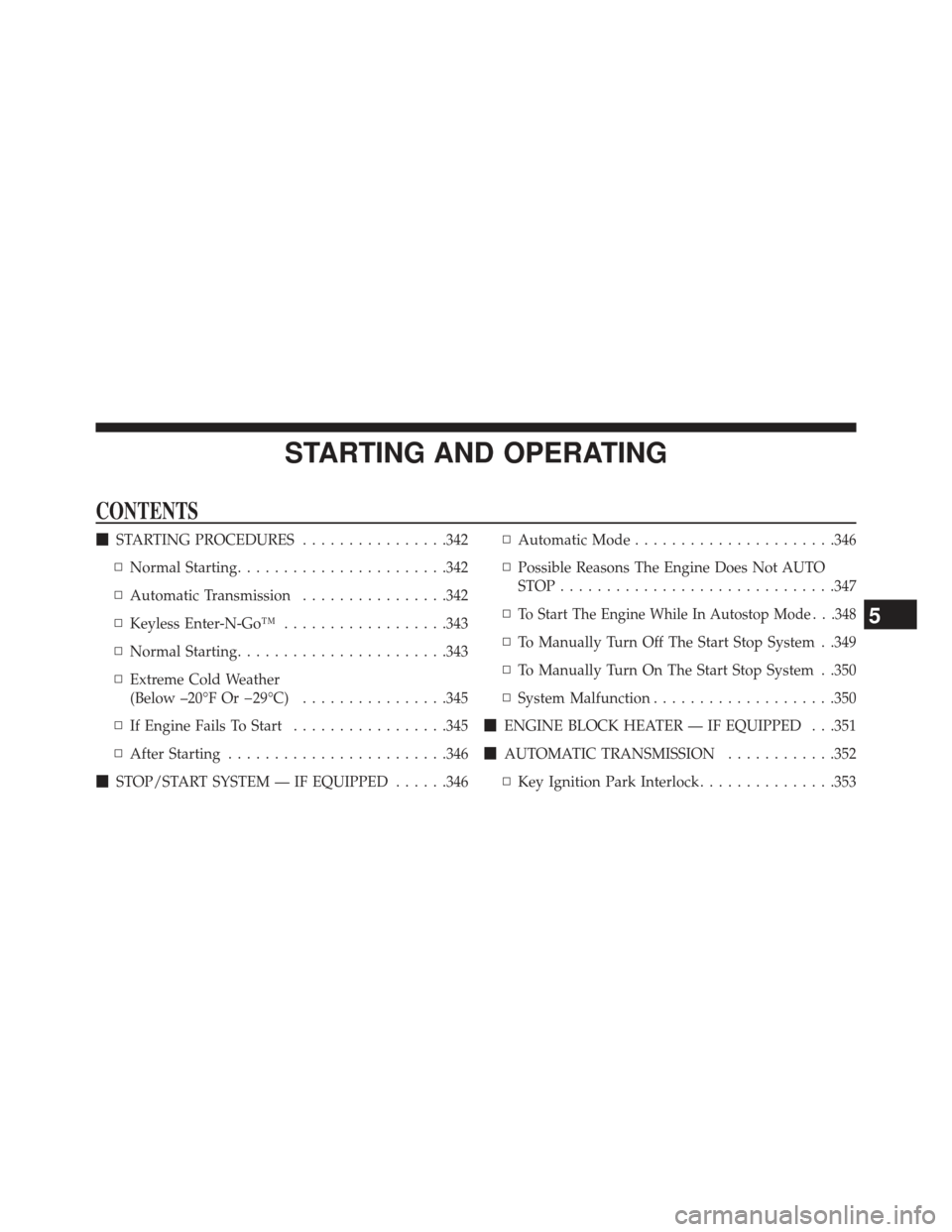

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................342
▫ Normal Starting ...................... .342
▫ Automatic Transmission ................342
▫ Keyless Enter-N-Go™ ..................343
▫ Normal Starting ...................... .343
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................345
▫ If Engine Fails To Start .................345
▫ After Starting ....................... .346
 STOP/START SYSTEM — IF EQUIPPED ......346▫
Automatic Mode ..................... .346
▫ Possible Reasons The Engine Does Not AUTO
STOP............................. .347
▫
To Start The Engine While In Autostop Mode . . .348
▫ To Manually Turn Off The Start Stop System . .349
▫ To Manually Turn On The Start Stop System . .350
▫ System Malfunction ....................350
 ENGINE BLOCK HEATER — IF EQUIPPED . . .351
 AUTOMATIC TRANSMISSION ............352
▫ Key Ignition Park Interlock ...............353
5

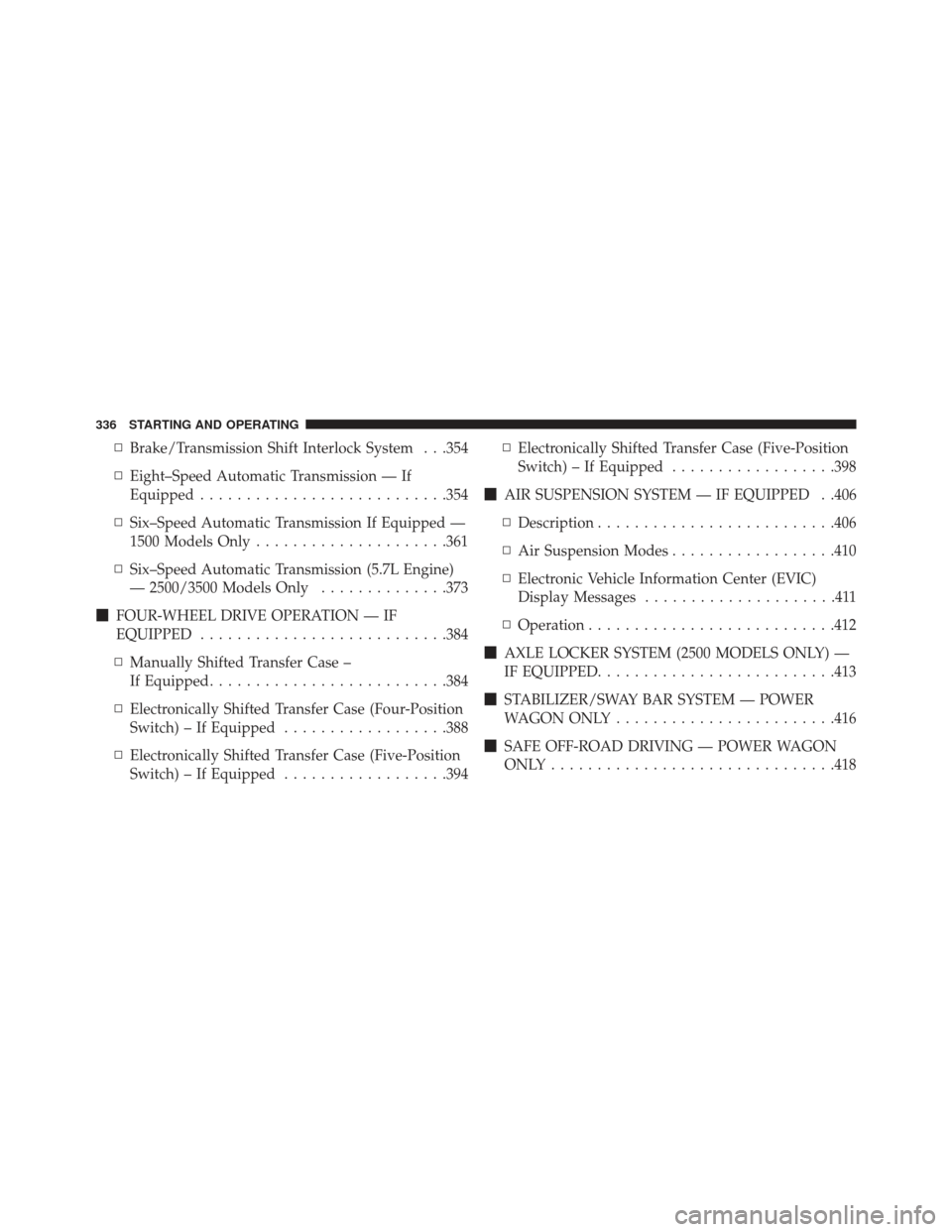

▫Brake/Transmission Shift Interlock System . . .354
▫ Eight–Speed Automatic Transmission — If
Equipped .......................... .354
▫ Six–Speed Automatic Transmission If Equipped —
1500 Models Only .....................361
▫ Six–Speed Automatic Transmission (5.7L Engine)
— 2500/3500 Models Only ..............373
 FOUR-WHEEL DRIVE OPERATION — IF
EQUIPPED .......................... .384
▫ Manually Shifted Transfer Case –
If Equipped ......................... .384
▫ Electronically Shifted Transfer Case (Four-Position
Switch) – If Equipped ..................388
▫ Electronically Shifted Transfer Case (Five-Position
Switch) – If Equipped ..................394 ▫
Electronically Shifted Transfer Case (Five-Position
Switch) – If Equipped ..................398
 AIR SUSPENSION SYSTEM — IF EQUIPPED . .406
▫ Description ......................... .406
▫ Air Suspension Modes ..................410
▫ Electronic Vehicle Information Center (EVIC)
Display Messages .....................411
▫ Operation .......................... .412
 AXLE LOCKER SYSTEM (2500 MODELS ONLY) —
IF EQUIPPED ......................... .413
 STABILIZER/SWAY BAR SYSTEM — POWER
WAGON ONLY ....................... .416
 SAFE OFF-ROAD DRIVING — POWER WAGON
ONLY.............................. .418
336 STARTING AND OPERATING

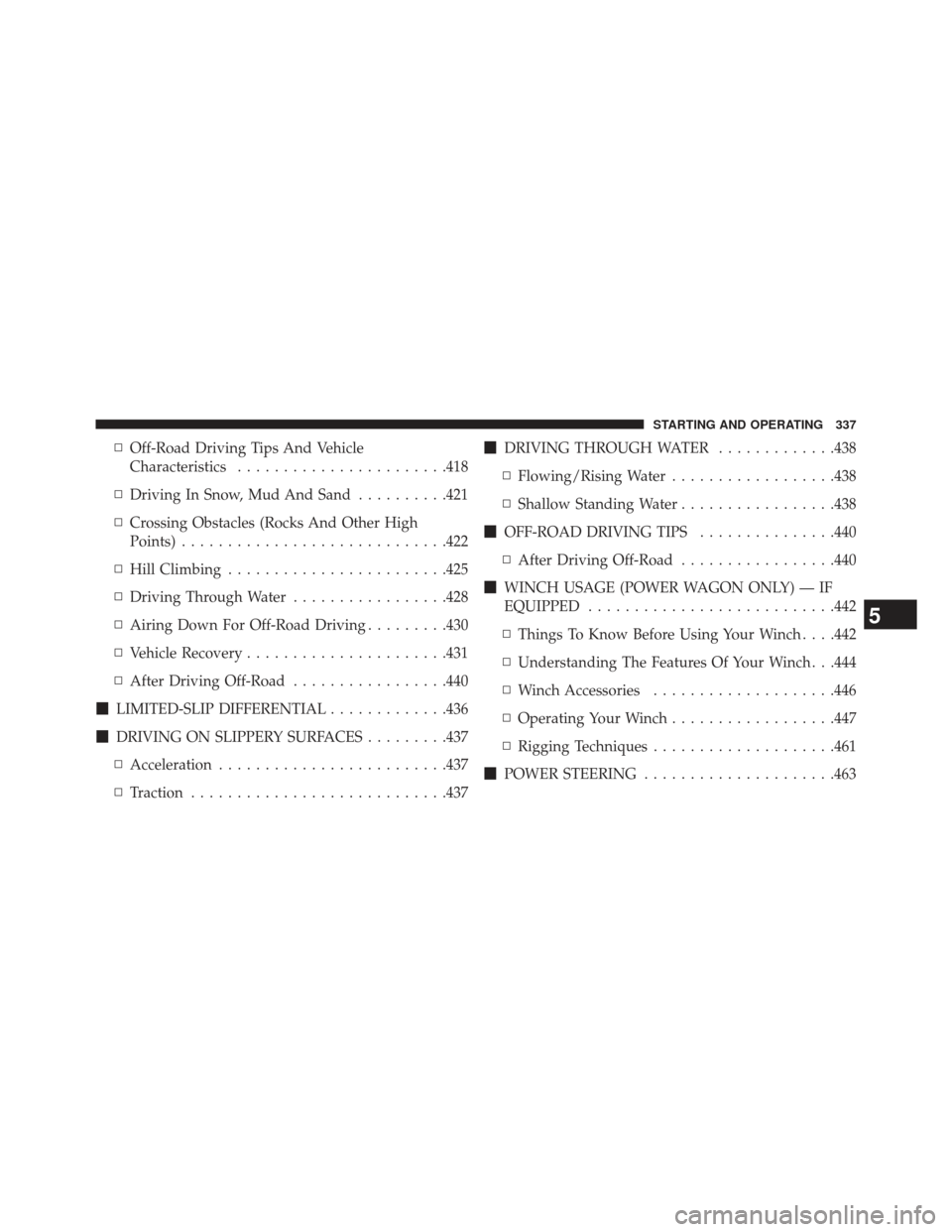

▫Off-Road Driving Tips And Vehicle
Characteristics ...................... .418
▫ Driving In Snow, Mud And Sand ..........421
▫ Crossing Obstacles (Rocks And Other High
Points) ............................ .422
▫ Hill Climbing ....................... .425
▫ Driving Through Water .................428
▫ Airing Down For Off-Road Driving .........430
▫ Vehicle Recovery ..................... .431
▫ After Driving Off-Road .................440
 LIMITED-SLIP DIFFERENTIAL .............436
 DRIVING ON SLIPPERY SURFACES .........437
▫ Acceleration ........................ .437
▫ Traction ........................... .437
DRIVING THROUGH WATER .............438
▫ Flowing/Rising Water ..................438
▫ Shallow Standing Water .................438
 OFF-ROAD DRIVING TIPS ...............440
▫ After Driving Off-Road .................440
 WINCH USAGE (POWER WAGON ONLY) — IF
EQUIPPED .......................... .442
▫ Things To Know Before Using Your Winch . . . .442
▫ Understanding The Features Of Your Winch . . .444
▫ Winch Accessories ....................446
▫ Operating Your Winch ..................447
▫ Rigging Techniques ....................461
 POWER STEERING .....................463
5
STARTING AND OPERATING 337

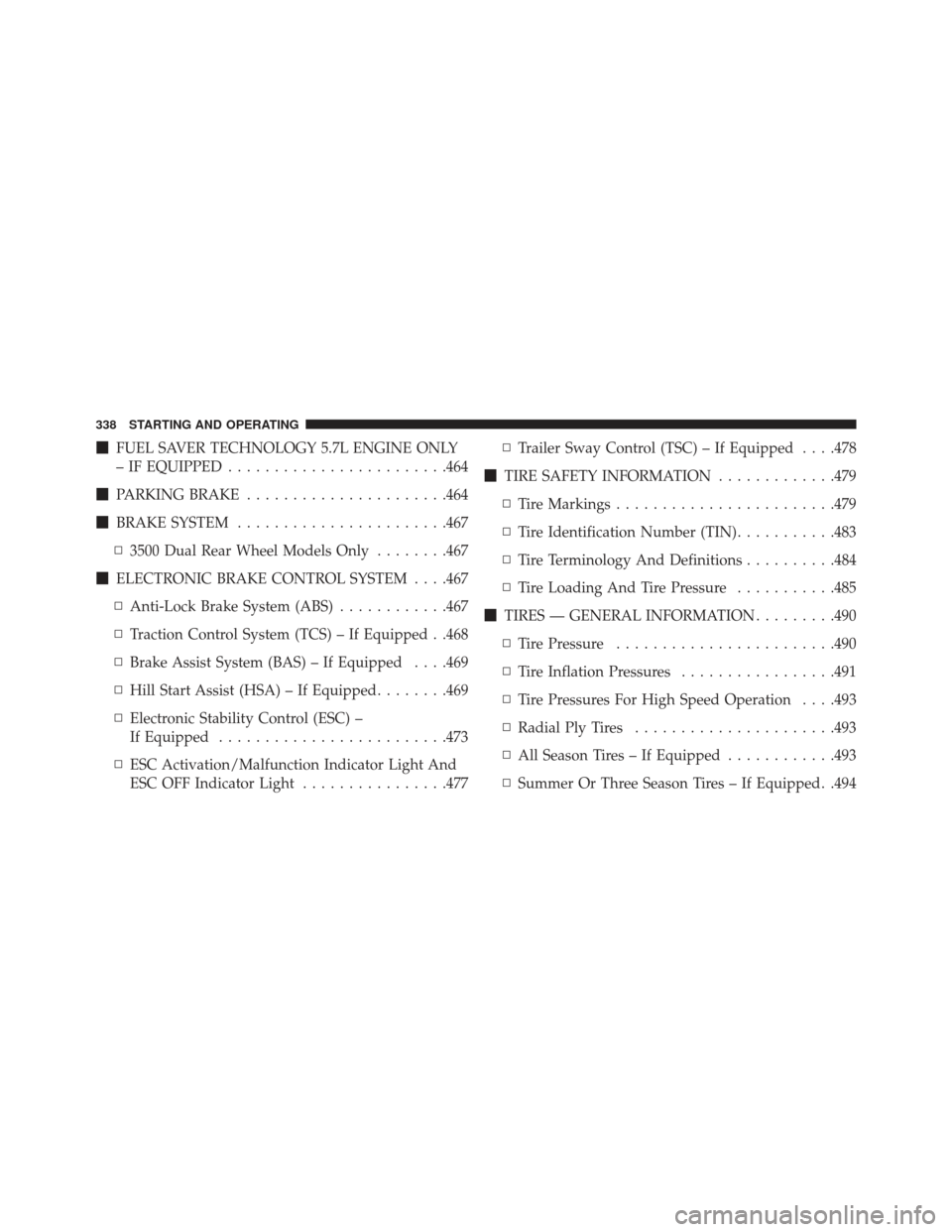

FUEL SAVER TECHNOLOGY 5.7L ENGINE ONLY
– IF EQUIPPED ....................... .464
 PARKING BRAKE ..................... .464
 BRAKE SYSTEM ...................... .467
▫ 3500 Dual Rear Wheel Models Only ........467
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .467
▫ Anti-Lock Brake System (ABS) ............467
▫ Traction Control System (TCS) – If Equipped . .468
▫ Brake Assist System (BAS) – If Equipped . . . .469
▫ Hill Start Assist (HSA) – If Equipped ........469
▫ Electronic Stability Control (ESC) –
If Equipped ........................ .473
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................477 ▫
Trailer Sway Control (TSC) – If Equipped . . . .478
 TIRE SAFETY INFORMATION .............479
▫ Tire Markings ....................... .479
▫ Tire Identification Number (TIN) ...........483
▫ Tire Terminology And Definitions ..........484
▫ Tire Loading And Tire Pressure ...........485
 TIRES — GENERAL INFORMATION .........490
▫ Tire Pressure ....................... .490
▫ Tire Inflation Pressures .................491
▫ Tire Pressures For High Speed Operation . . . .493
▫ Radial Ply Tires ..................... .493
▫ All Season Tires – If Equipped ............493
▫ Summer Or Three Season Tires – If Equipped. .494
338 STARTING AND OPERATING
