Page 581 of 734

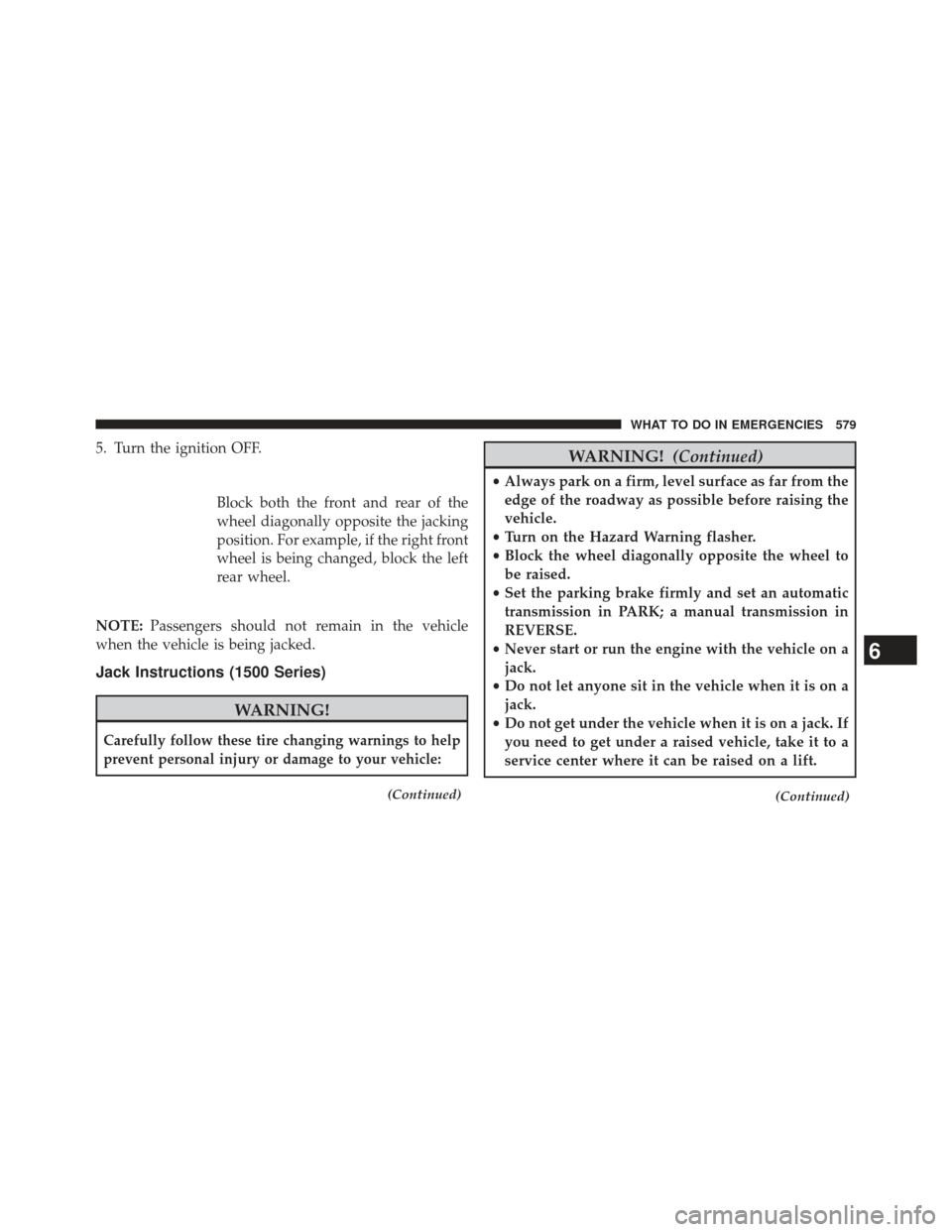

Ram 1500 2013  Owners Manual 5. Turn the ignition OFF.Block both the front and rear of the
wheel diagonally opposite the jacking
position. For example, if the right front
wheel is being changed, block the left
rear wheel.
NOTE: P

Page 582 of 734

Ram 1500 2013  Owners Manual WARNING!(Continued)
•Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
• T

Page 583 of 734

Ram 1500 2013  Owners Manual When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as shown
below.
4X2 Front Jacking Location Indicator4X2 Front Jacking Location6
WHAT TO DO IN EMERGE

Page 584 of 734

Ram 1500 2013  Owners Manual 4x4 Series Trucks Front Jacking Location
There is a jack location indicator on the rear portion of the
lower control arm.
When changing a front wheel, place the scissor jack
under the rear portion of

Page 585 of 734

Ram 1500 2013  Owners Manual drive tube to the extension tube. Place the jack under the
axle between the wheel and the shock bracket with the
drive tubes extending to the rear.
Connect the jack tube extension and wheel wrench.CAU

Page 586 of 734

Ram 1500 2013  Owners Manual 5. Remove the wheel nuts and pull the wheel off. Installthe spare wheel and wheel nuts with the cone shaped
end of the wheel nuts toward the wheel. To avoid the
risk of forcing the vehicle off the jac

Page 587 of 734

Ram 1500 2013  Owners Manual NOTE:Do not oil wheel studs. For chrome wheels, do
not substitute with chrome plated wheel nuts.
To Stow The Flat Or Spare
NOTE: Vehicles equipped with aluminum wheels can-
not be stored under the veh

Page 588 of 734

Ram 1500 2013  Owners Manual 2. Lift the spare tire with one hand to give clearance totilt the retainer at the end of the cable and position it
properly across the wheel opening. 3. Attach the wheel wrench to the jack extension t

Page 589 of 734

Ram 1500 2013  Owners Manual 4. Rotate the lug wrench handle clockwise until thewheel is drawn into place against the underside of the
vehicle. Continue to rotate until you feel the winch
mechanism slip, or click three or four ti

Page 590 of 734

Ram 1500 2013  Owners Manual Reinstalling The Jack And Tools (1500 Series)
1. Tighten the jack all the way down by turning the jackturn-screw counterclockwise until the jack is snug.
2. Position the jack and tool bag. Make sure t
