Ram 1500 2013 Owner's Manual

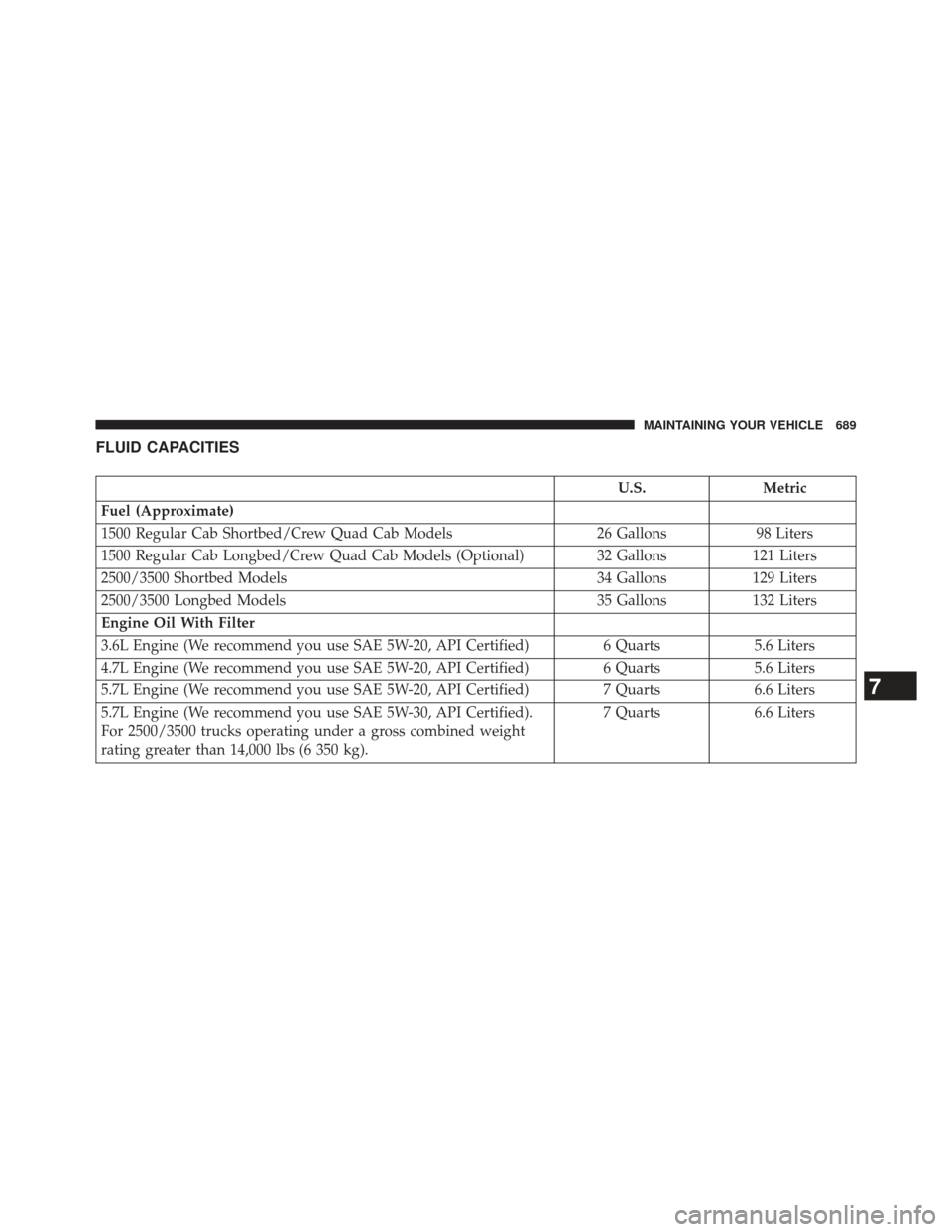

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models 26 Gallons98 Liters
1500 Regular Cab Longbed/Crew Quad Cab Models (Optional) 32 Gallons 121 Liters
2500/3500 Shortbed Models 34 Gallons129 Liters
2500/3500 Longbed Models 35 Gallons132 Liters
Engine Oil With Filter
3.6L Engine (We recommend you use SAE 5W-20, API Certified) 6 Quarts5.6 Liters
4.7L Engine (We recommend you use SAE 5W-20, API Certified) 6 Quarts5.6 Liters
5.7L Engine (We recommend you use SAE 5W-20, API Certified) 7 Quarts6.6 Liters
5.7L Engine (We recommend you use SAE 5W-30, API Certified).
For 2500/3500 trucks operating under a gross combined weight
rating greater than 14,000 lbs (6 350 kg). 7 Quarts
6.6 Liters
7
MAINTAINING YOUR VEHICLE 689

U.S.Metric

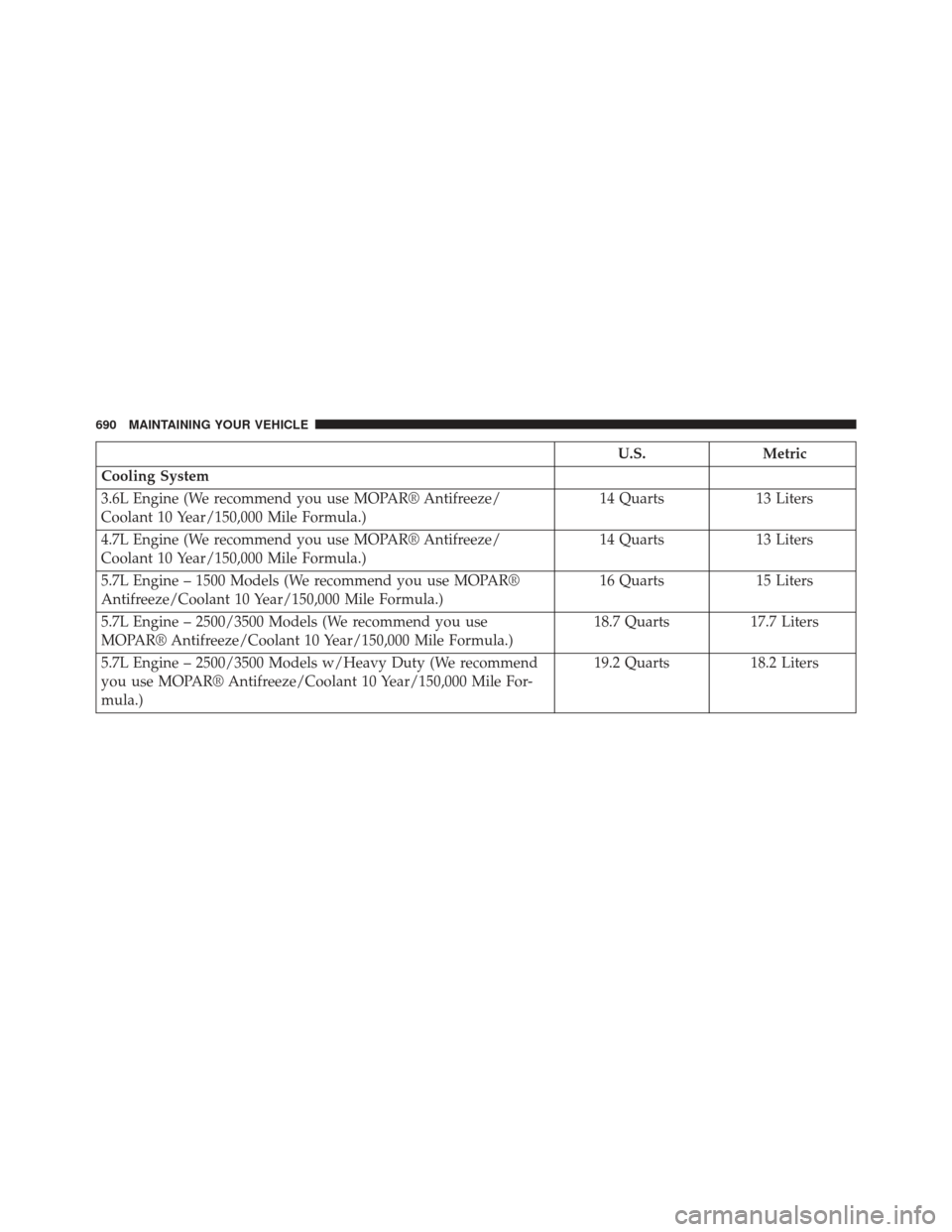

Cooling System
3.6L Engine (We recommend you use MOPAR® Antifreeze/
Coolant 10 Year/150,000 Mile Formula.) 14 Quarts
13 Liters
4.7L Engine (We recommend you use MOPAR® Antifreeze/
Coolant 10 Year/150,000 Mile Formula.) 14 Quarts
13 Liters
5.7L Engine – 1500 Models (We recommend you use MOPAR®
Antifreeze/Coolant 10 Year/150,000 Mile Formula.) 16 Quarts
15 Liters
5.7L Engine – 2500/3500 Models (We recommend you use
MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula.) 18.7 Quarts
17.7 Liters
5.7L Engine – 2500/3500 Models w/Heavy Duty (We recommend
you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile For-
mula.) 19.2 Quarts
18.2 Liters
690 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant
10 Year/150,000 Mile Formula OAT (Organic Additive
Technology).
Engine Oil We recommend you use API Certified SAE 5W-20
Engine Oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395.
Engine Oil – 5.7L Engine For 2500/3500 trucks operating
under a gross combined weight rating greaterthan
14,000 lbs/(6,350 kg.) We recommend you use API Certified SAE 5W-30
Engine Oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395.
Engine Oil Filter We recommend you use MOPAR® brand Engine Oil
Filters.
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap
0.043 in [1.1 mm])
7
MAINTAINING YOUR VEHICLE 691

ComponentFluid, Lubricant, or Genuine Part
Spark Plugs – 4.7L Engine We recommend you use MOPAR® Spark Plugs. Up-
per Bank — (Gap 0.040 in [1 mm])
We recommend you use MOPAR® Spark Plugs.
Lower Bank — (Gap 0.051 in [1.30 mm])
Spark Plugs – 5.7L Engine We recommend you use MOPAR® Spark Plugs (Gap
0.043 in [1.1 mm])
Fuel Selection – 3.6L and 4.7L Engines 87 Octane
Fuel Selection – 5.7L Engine 87 Octane Acceptable - 89 Octane Recommended
Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission — Eight-Speed Automatic We recommend you use MOPAR® ZF 8&9 Speed ATF™ Automatic Transmission Fluid.
Automatic Transmission — Six-Speed Automatic with
Gasoline Engine (For Diesel Engine see Diesel Supple-
ment) We recommend you use MOPAR® ATF+4® Automatic
Transmission Fluid.
692 MAINTAINING YOUR VEHICLE

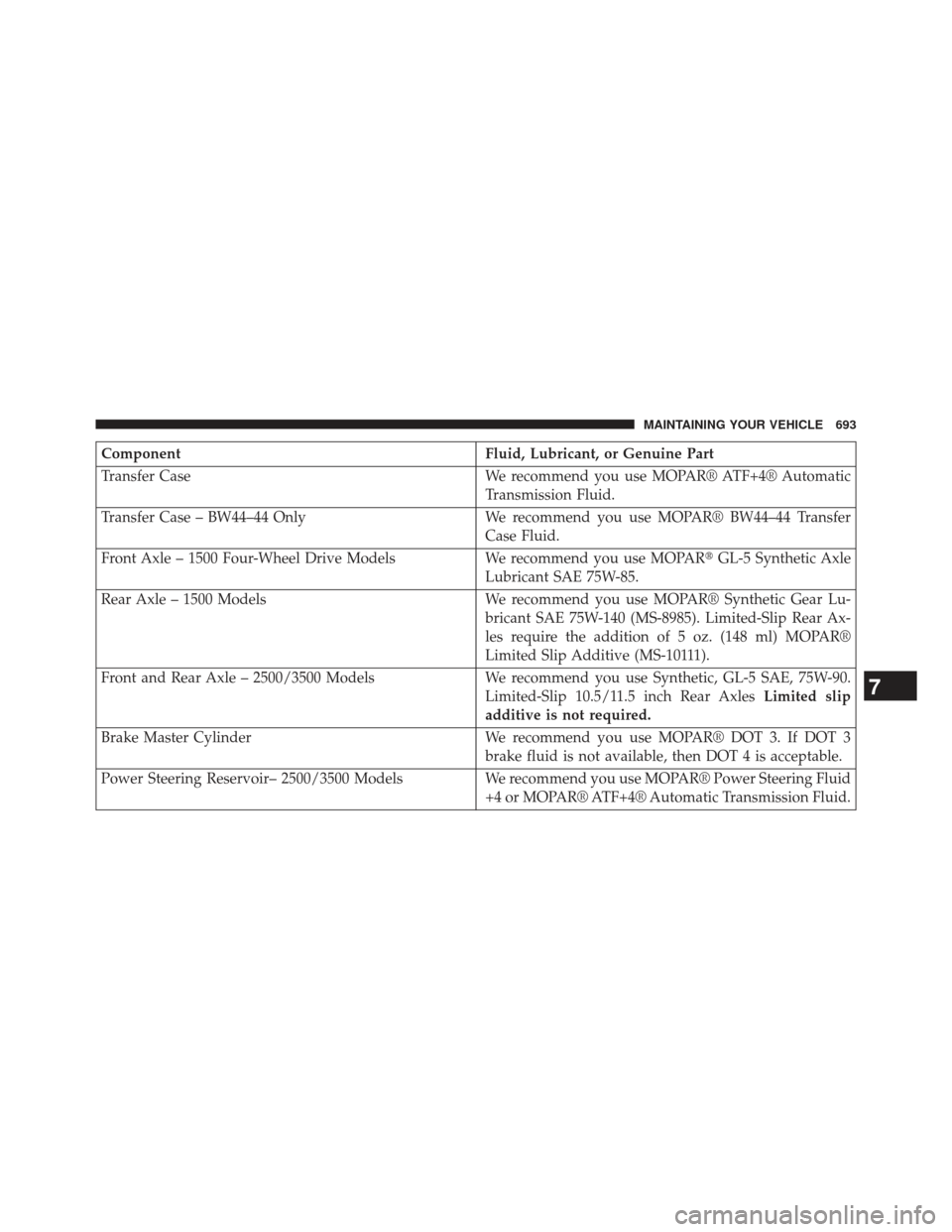

ComponentFluid, Lubricant, or Genuine Part
Transfer Case We recommend you use MOPAR® ATF+4® Automatic
Transmission Fluid.
Transfer Case – BW44–44 Only We recommend you use MOPAR® BW44–44 Transfer
Case Fluid.
Front Axle – 1500 Four-Wheel Drive Models We recommend you use MOPARGL-5 Synthetic Axle
Lubricant SAE 75W-85.
Rear Axle – 1500 Models We recommend you use MOPAR® Synthetic Gear Lu-
bricant SAE 75W-140 (MS-8985). Limited-Slip Rear Ax-
les require the addition of 5 oz. (148 ml) MOPAR®
Limited Slip Additive (MS-10111).
Front and Rear Axle – 2500/3500 Models We recommend you use Synthetic, GL-5 SAE, 75W-90.
Limited-Slip 10.5/11.5 inch Rear Axles Limited slip
additive is not required.
Brake Master Cylinder We recommend you use MOPAR® DOT 3. If DOT 3
brake fluid is not available, then DOT 4 is acceptable.
Power Steering Reservoir– 2500/3500 Models We recommend you use MOPAR® Power Steering Fluid
+4 or MOPAR® ATF+4® Automatic Transmission Fluid.
7
MAINTAINING YOUR VEHICLE 693

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............696
▫ Maintenance Chart ...................697
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other thanyour authorized dealer, the message can be reset by refer-
ring to the steps described under “Electronic Vehicle Infor-
mation Center (EVIC)/Oil Change Required” in “Under-
standing Your Instrument Panel” for further information.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering (2500/3500 Models
Only) and transmission as needed
• Check function of all interior and exterior lights
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S696 MAINTENANCE SCHEDULES

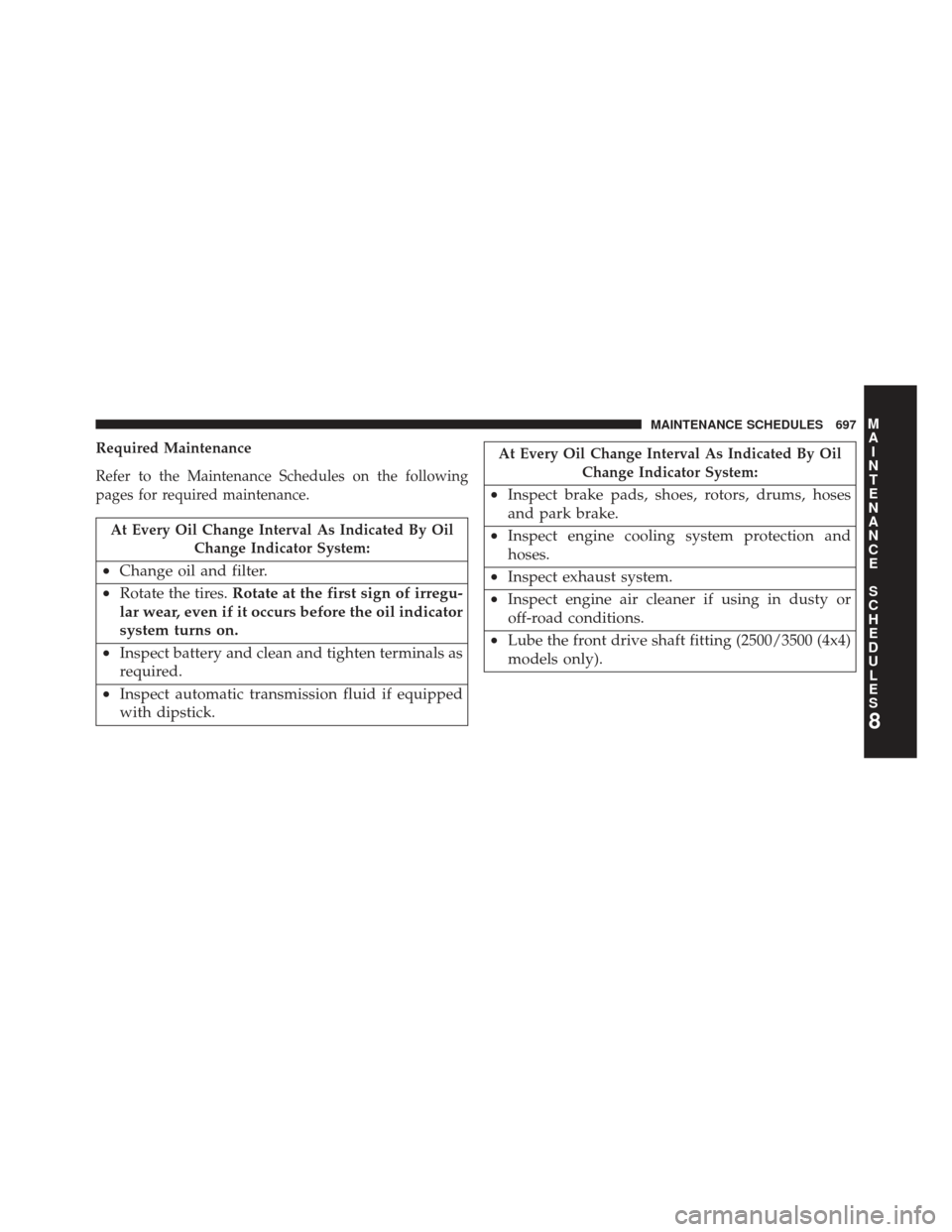

Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By OilChange Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
• Lube the front drive shaft fitting (2500/3500 (4x4)
models only).
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 697

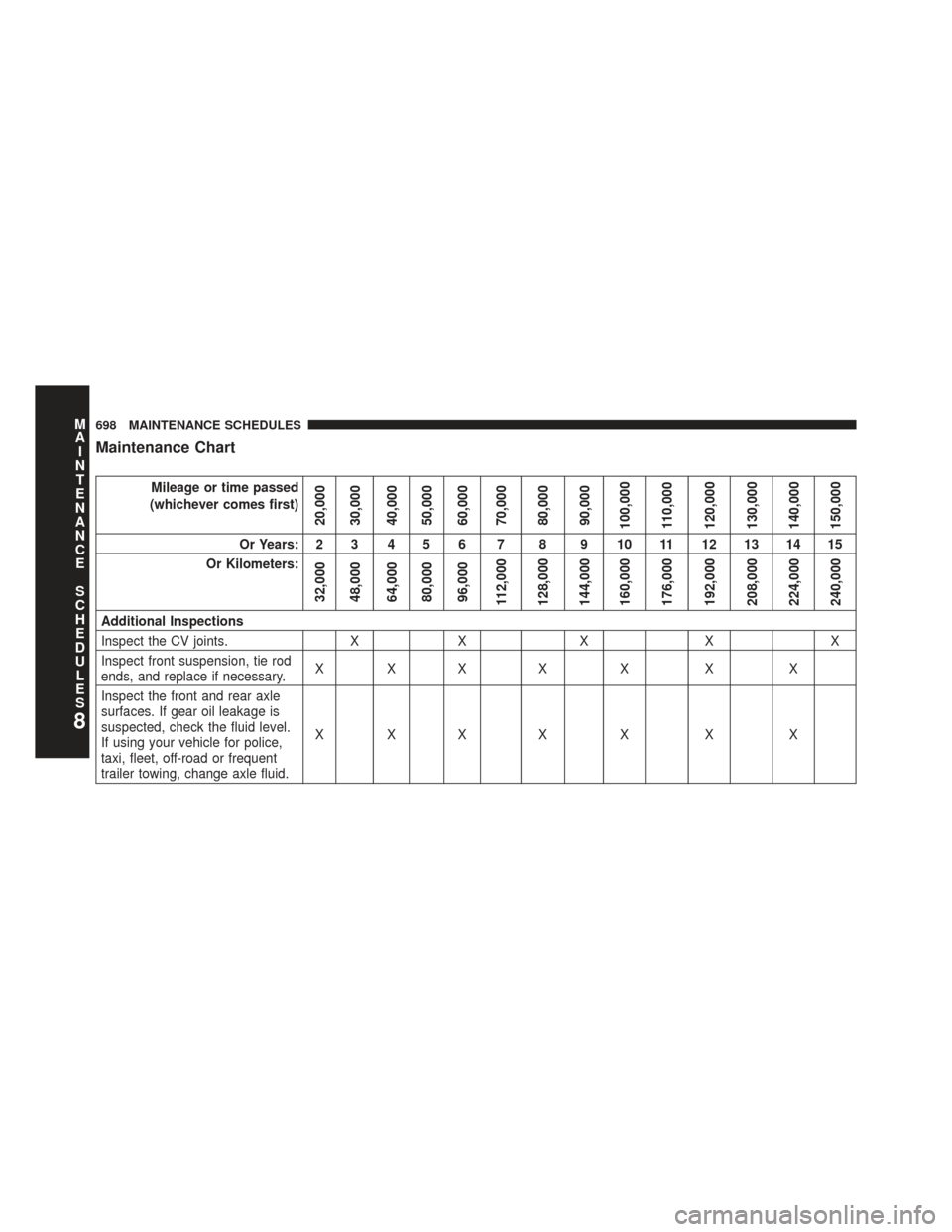

Maintenance Chart
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. XX X X X
Inspect front suspension, tie rod
ends, and replace if necessary. XXX X X X X
Inspect the front and rear axle
surfaces. If gear oil leakage is
suspected, check the fluid level.
If using your vehicle for police,
taxi, fleet, off-road or frequent
trailer towing, change axle fluid. XXX X X X X
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S698 MAINTENANCE SCHEDULES
