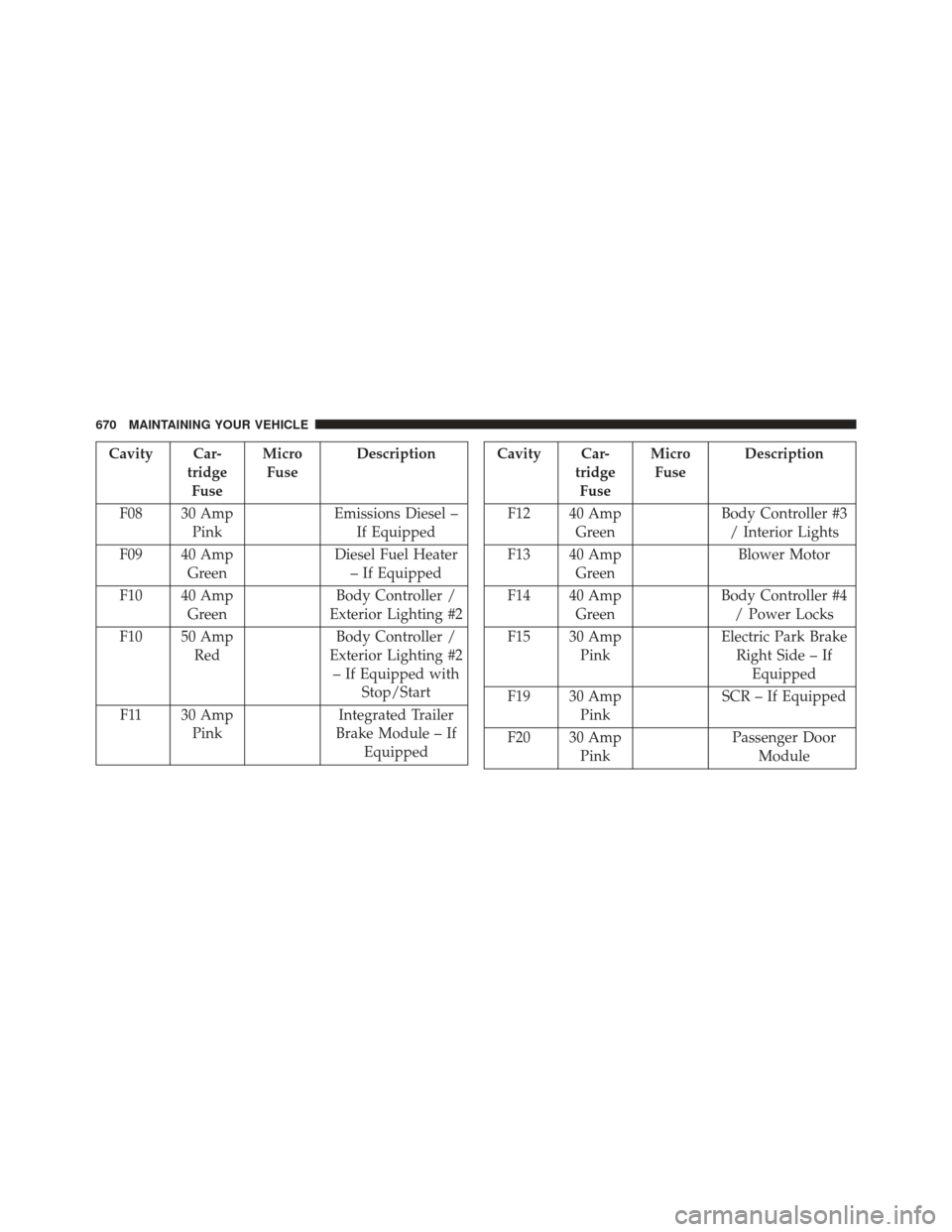

Cavity Car-tridgeFuse Micro
Fuse Description
F08 30 Amp Pink Emissions Diesel –
If Equipped
F09 40 Amp Green Diesel Fuel Heater
– If Equipped
F10 40 Amp Green Body Controller /
Exterior Lighting #2
F10 50 Amp Red Body Controller /
Exterior Lighting #2 – If Equipped with Stop/Start
F11 30 Amp Pink Integrated Trailer
Brake Module – If EquippedCavity Car- tridgeFuse Micro
Fuse Description
F12 40 Amp Green Body Controller #3
/ Interior Lights
F13 40 Amp Green Blower Motor
F14 40 Amp Green Body Controller #4
/ Power Locks
F15 30 Amp Pink Electric Park Brake
Right Side – If Equipped
F19 30 Amp Pink SCR – If Equipped
F20 30 Amp Pink Passenger Door
Module
670 MAINTAINING YOUR VEHICLE

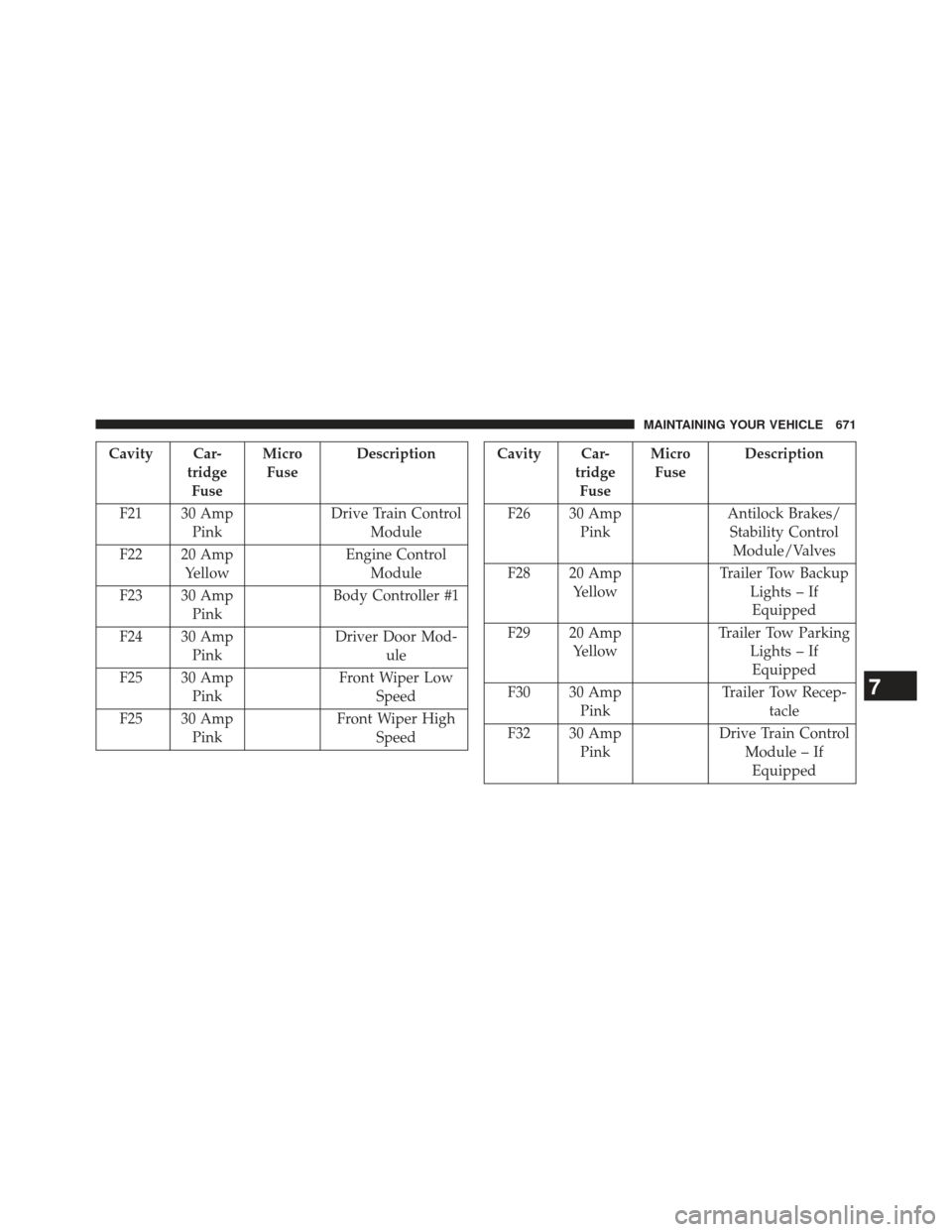

Cavity Car-tridgeFuse Micro
Fuse Description
F21 30 Amp Pink Drive Train Control
Module
F22 20 Amp Yellow Engine Control
Module
F23 30 Amp Pink Body Controller #1
F24 30 Amp Pink Driver Door Mod-
ule
F25 30 Amp Pink Front Wiper Low
Speed
F25 30 Amp Pink Front Wiper High
SpeedCavity Car- tridgeFuse Micro
Fuse Description
F26 30 Amp Pink Antilock Brakes/
Stability Control Module/Valves
F28 20 Amp Yellow Trailer Tow Backup
Lights – IfEquipped
F29 20 Amp Yellow Trailer Tow Parking
Lights – IfEquipped
F30 30 Amp Pink Trailer Tow Recep-
tacle
F32 30 Amp Pink Drive Train Control
Module – IfEquipped
