Ram 1500 2015 User Guide

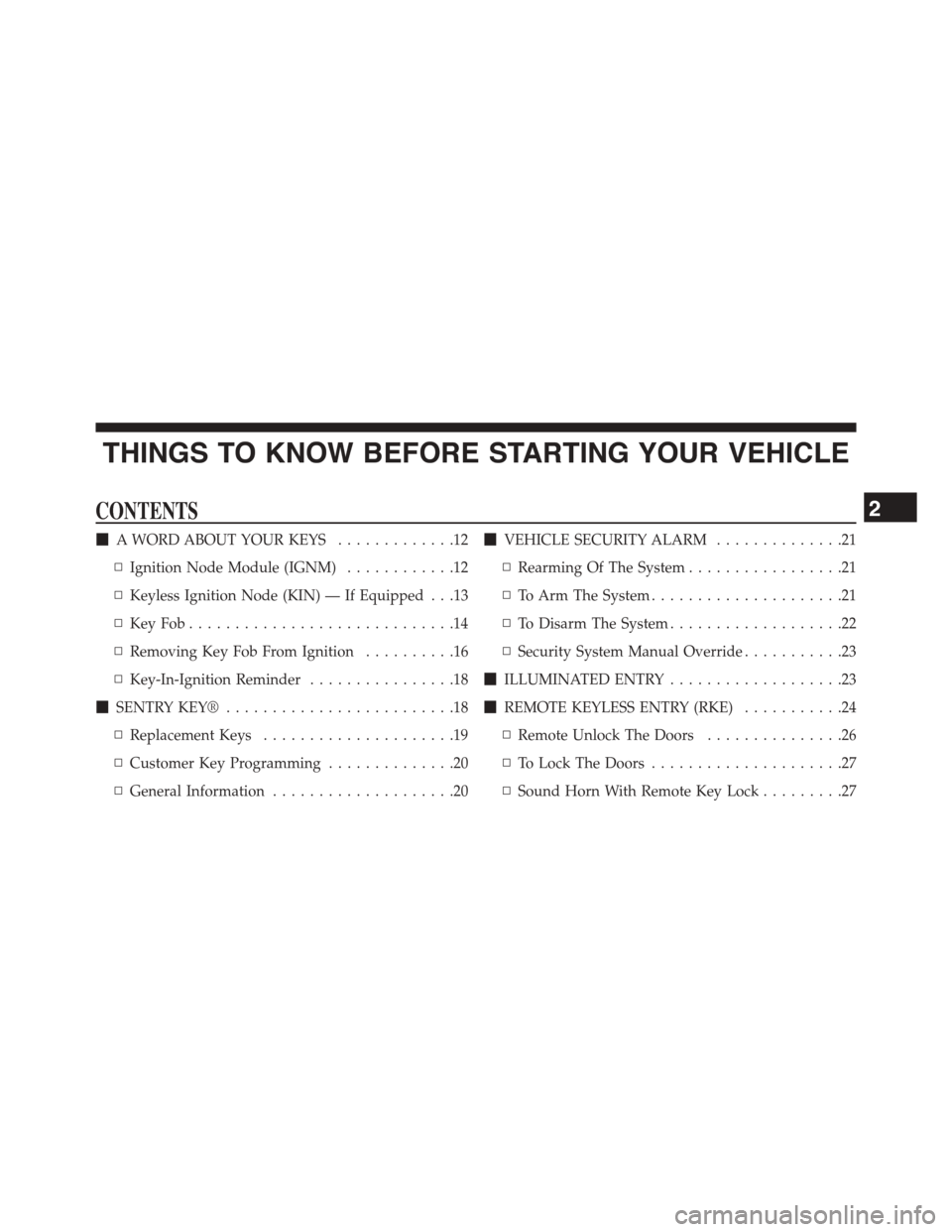

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
!A WORD ABOUT YOUR KEYS.............12
▫Ignition Node Module (IGNM)............12
▫Keyless Ignition Node (KIN) — If Equipped . . .13
▫Key Fob . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
▫Removing Key Fob From Ignition..........16
▫Key-In-Ignition Reminder................18
!SENTRY KEY®.........................18
▫Replacement Keys.....................19
▫Customer Key Programming..............20
▫General Information....................20
!VEHICLE SECURITY ALARM..............21
▫Rearming Of The System.................21
▫To Arm The System.....................21
▫To Disarm The System...................22
▫Security System Manual Override...........23
!ILLUMINATED ENTRY...................23
!REMOTE KEYLESS ENTRY (RKE)...........24
▫Remote Unlock The Doors...............26
▫To Lock The Doors.....................27
▫Sound Horn With Remote Key Lock.........27
2

▫Using The Panic Alarm..................28
▫RKE Air Suspension (Remote Lowering Of
The Vehicle) — If Equipped...............29
▫Programming Additional Transmitters........30
▫Transmitter Battery Replacement...........30
▫General Information....................33
!REMOTE STARTING SYSTEM —
IF EQUIPPED..........................34
▫How To Use Remote Start................34
!DOOR LOCKS.........................37
▫Manual Door Locks.....................37
▫Power Door Locks — If Equipped..........39
▫Child-Protection Door Lock...............41
!KEYLESS ENTER-N-GO™.................42
!WINDOWS...........................46
▫Power Windows — If Equipped...........46
▫Wind Buffeting.......................50
!OCCUPANT RESTRAINT SYSTEMS..........50
▫Important Safety Precautions..............50
▫Seat Belt Systems......................52
▫Supplemental Restraint System (SRS)........67
▫Child Restraints.......................83
▫Transporting Pets.....................113
!ENGINE BREAK-IN RECOMMENDATIONS . . .113
!SAFETY TIPS.........................114
▫Transporting Passengers.................114
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Exhaust Gas.........................115
▫Safety Checks You Should Make Inside The
Vehicle.............................116
▫Periodic Safety Checks You Should Make Outside
The Vehicle.........................118
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a either a bladed key with an immobilizer chip
in it, or a Key Fob with Remote Keyless Entry (RKE)
transmitter and an Ignition Node Module (IGNM). The
keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Ignition Node (KIN).
Ignition Node Module (IGNM)
The Ignition Node Module (IGNM) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
Ignition Module
1—OFF2—ACCESSORY3—ON/RUN4—START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Keyless Ignition Node (KIN) — If Equipped
This feature allows the driver to operate the ignition switch
with the push of a button, as long as the Remote Keyless
Entry (RKE) transmitter is in the passenger compartment.
The Keyless Ignition Node (KIN) has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.
NOTE:In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch and with your foot
applied on the brake pedal.
Keyless Ignition Node (KIN)
1—OFF2—ACC(ACCESSORY)3—ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Key Fob
Key Fob — If Equipped
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. You can keep the emergency key with you when
valet parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
NOTE:When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Insert the Key Fob into the ignition and place
the ignition in the ON/RUN mode to disarm the security
system.
Emergency Key Removal (IGNM)
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

KIN Key Fob — If equipped
This KIN Key Fob allows the driver to operate the
ignition switch with the push of a button, as long as the
Remote Keyless Entry (RKE) transmitter is in the passen-
ger compartment. The Keyless Ignition Node (KIN) has
four operating positions, three of which are labeled and
will illuminate when in position. The three positions are
OFF, ACC, and ON/RUN. The fourth position is START,
during start RUN will illuminate. It also contains the
Remote Keyless Entry (RKE) transmitter and an emer-
gency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. You can keep the emergency key with you when
valet parking.
To remove the emergency key, slide the mechanical latch
on the backside of the Key Fob sideways with your
thumb and then pull the key out with your other hand.
NOTE:When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Insert the Key Fob into the ignition and place the
ignition in the ON/RUN mode to disarm the security system.
NOTE:You can insert the double-sided emergency key
into the door lock cylinder with either side up.
Emergency Key Removal Keyless Enter-N-Go™ Fob (KIN)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

Removing Key Fob From Ignition
Place the shift lever in PARK (if equipped with an
automatic transmission). Turn the Key Fob to the OFF
position and then remove the Key Fob.
NOTE:
•The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for up
to 10 minutes after the ignition switch is turned to the
OFF position. Opening either front door will cancel
this feature. Refer to “Uconnect® Settings” (Engine Off
Options) in “Understanding Your Instrument Panel”
for further information.
•For vehicles not equipped with a touchscreen radio,
refer to “Electronic Vehicle Information Center
(EVIC)/ Settings (Customer-Programmable Features)”
in “Understanding Your Instrument Panel” for further
information.
•For vehicles equipped with a touchscreen radio, refer
to “Uconnect® Settings” in “Understanding Your In-
strument Panel” for further information.
CAUTION!
•If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
•Do not attempt to remove the Key Fob while in this
condition, damage could occur to the Key Fob or
ignition module. Only remove the emergency key
for locking and unlocking the doors.
•Leave the Key Fob in the ignition and either:
•Jump Start the vehicle.
•Charge the battery.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and push
ignition button to place ignition in OFF mode.
When leaving the vehicle, always lock your ve-
hicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
(Continued)
WARNING!(Continued)
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
a chime will sound to remind you to remove the Key Fob.
NOTE:
•#Keyed#Ignition systems will chime in OFF or ACC
when the driver door is open.
•“Keyless#Ignition systems will chime in ACC or RUN
when the driver door is open.
•If equipped with Electronic Vehicle Information Center
(EVIC)/Driver Information Display (DID), the EVIC
will display “Key In Ignition”.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, an Ignition Node Mod-
ule, Keyless Ignition Node (KIN) and a RF receiver to
prevent unauthorized vehicle operation. Therefore, only
Key Fobs that are programmed to the vehicle can be used
to start and operate the vehicle. The system will not allow
the engine to crank if an invalid Key Fob is used to start
and operate the vehicle. The system will shut the engine
off in two seconds if an invalid Key Fob is used to start
the engine.
NOTE:A Key Fob that has not been programmed is also
considered an invalid key.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
