Page 710 of 871

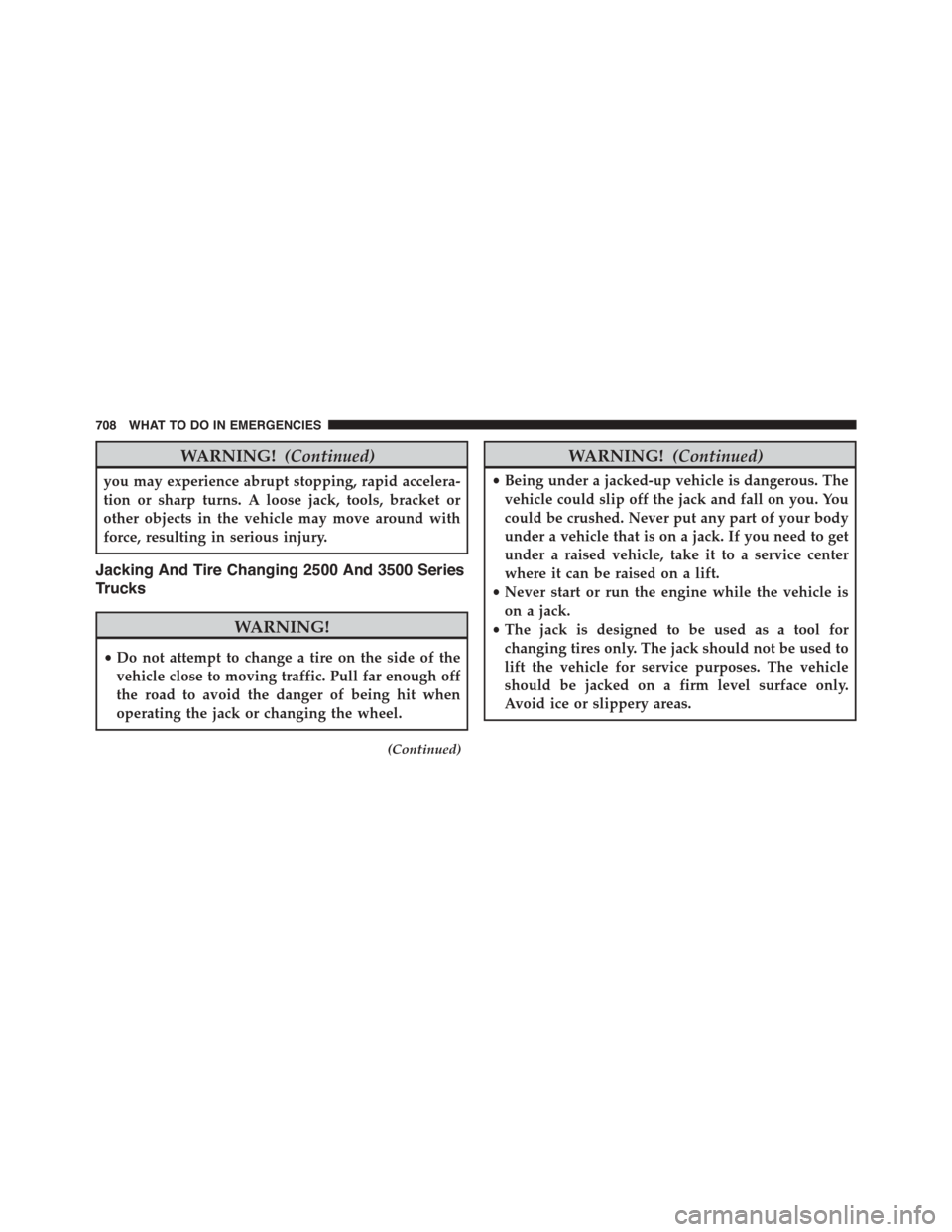

Ram 1500 2015 User Guide WARNING!(Continued)
you may experience abrupt stopping, rapid accelera-
tion or sharp turns. A loose jack, tools, bracket or
other objects in the vehicle may move around with
force, resulting in serio

Page 718 of 871

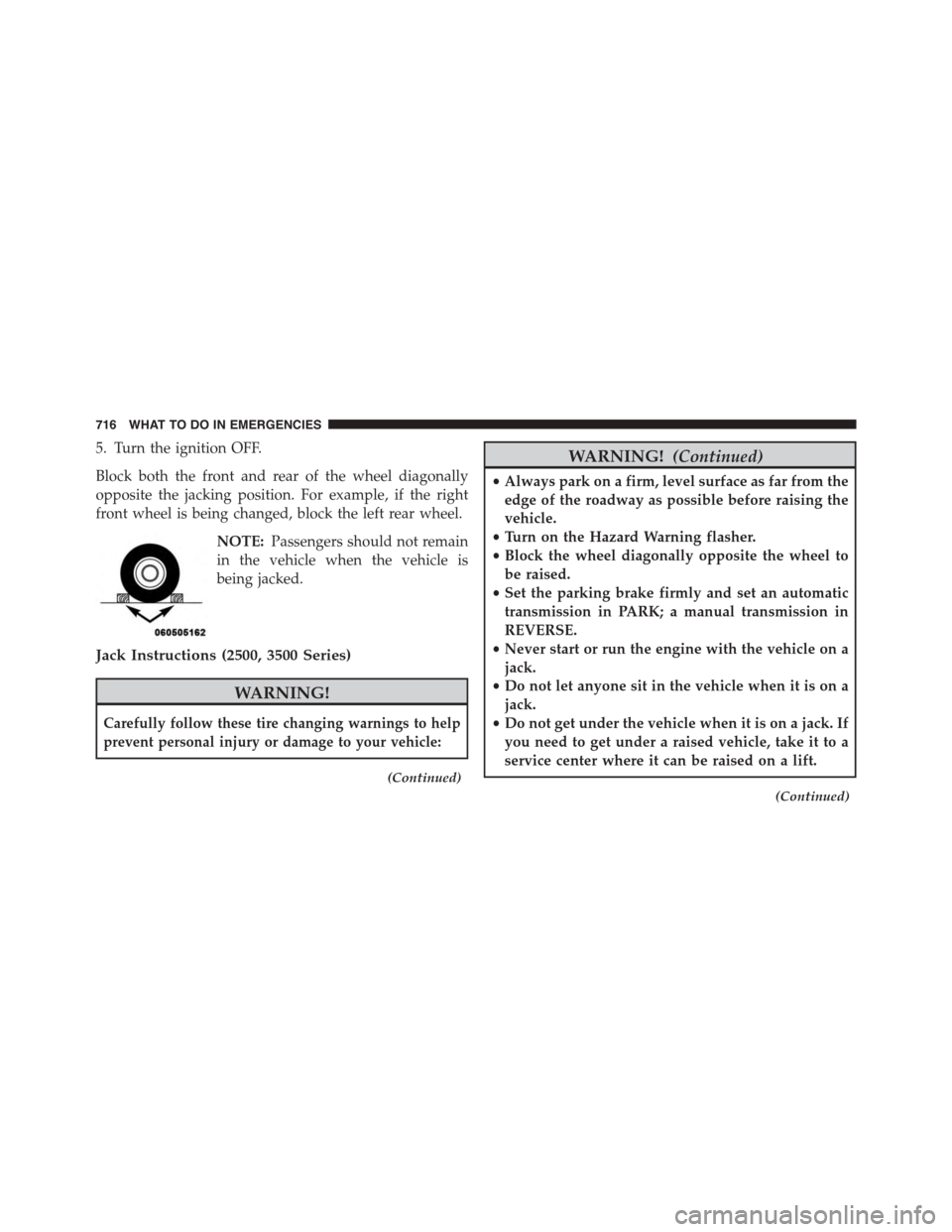

Ram 1500 2015 User Guide 5. Turn the ignition OFF.
Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if the right
front wheel is being changed, block the left rear wheel.
NOTE:P

Page 719 of 871

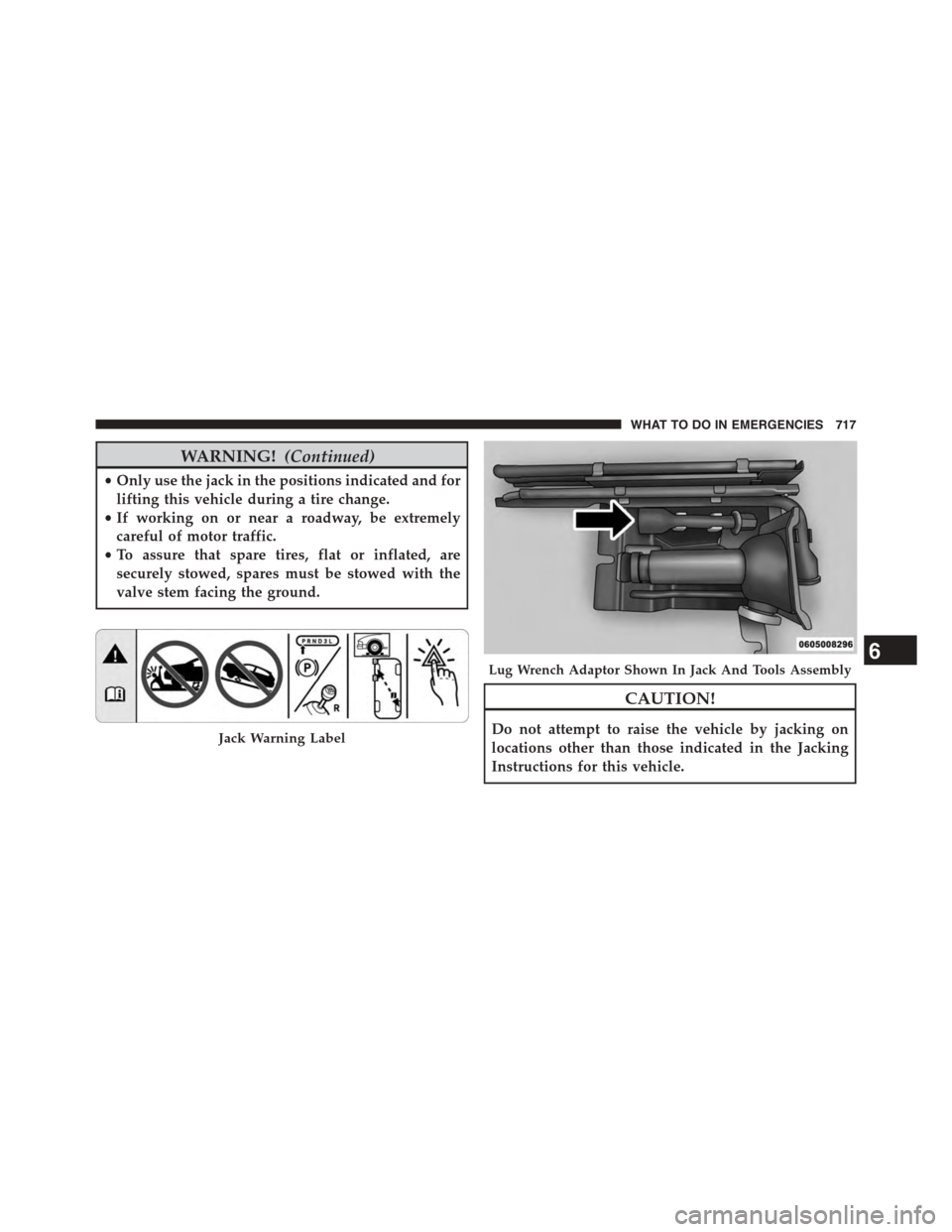

Ram 1500 2015 User Guide WARNING!(Continued)
•Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
•To

Page 721 of 871

Ram 1500 2015 User Guide 3. Placement of the jack:
Front Jacking Location
When changing the front wheel, assemble the jack drive
tube to the jack and connect the drive tube to the
extension tube. Place the jack under the axle

Page 722 of 871

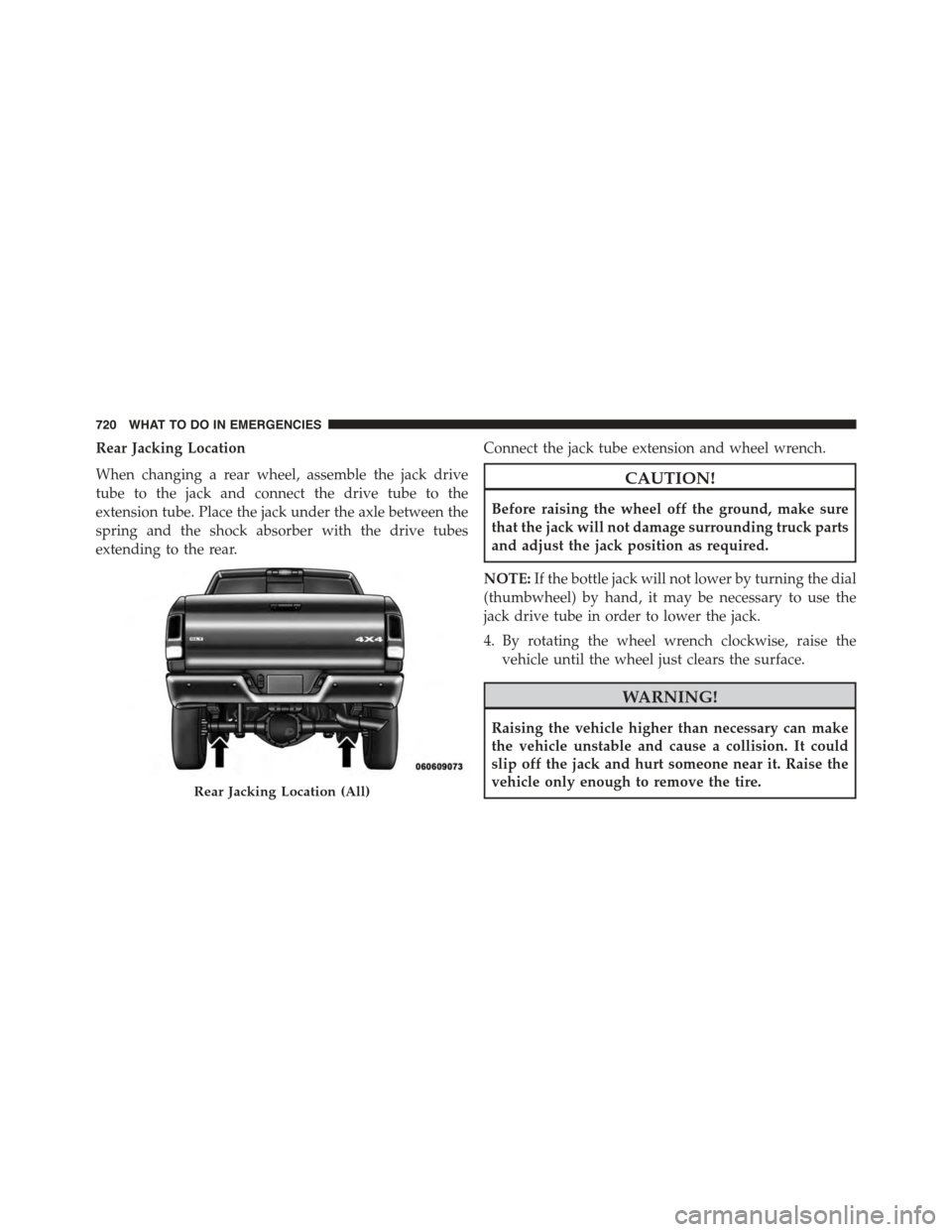

Ram 1500 2015 User Guide Rear Jacking Location
When changing a rear wheel, assemble the jack drive
tube to the jack and connect the drive tube to the
extension tube. Place the jack under the axle between the
spring and the sh

Page 730 of 871

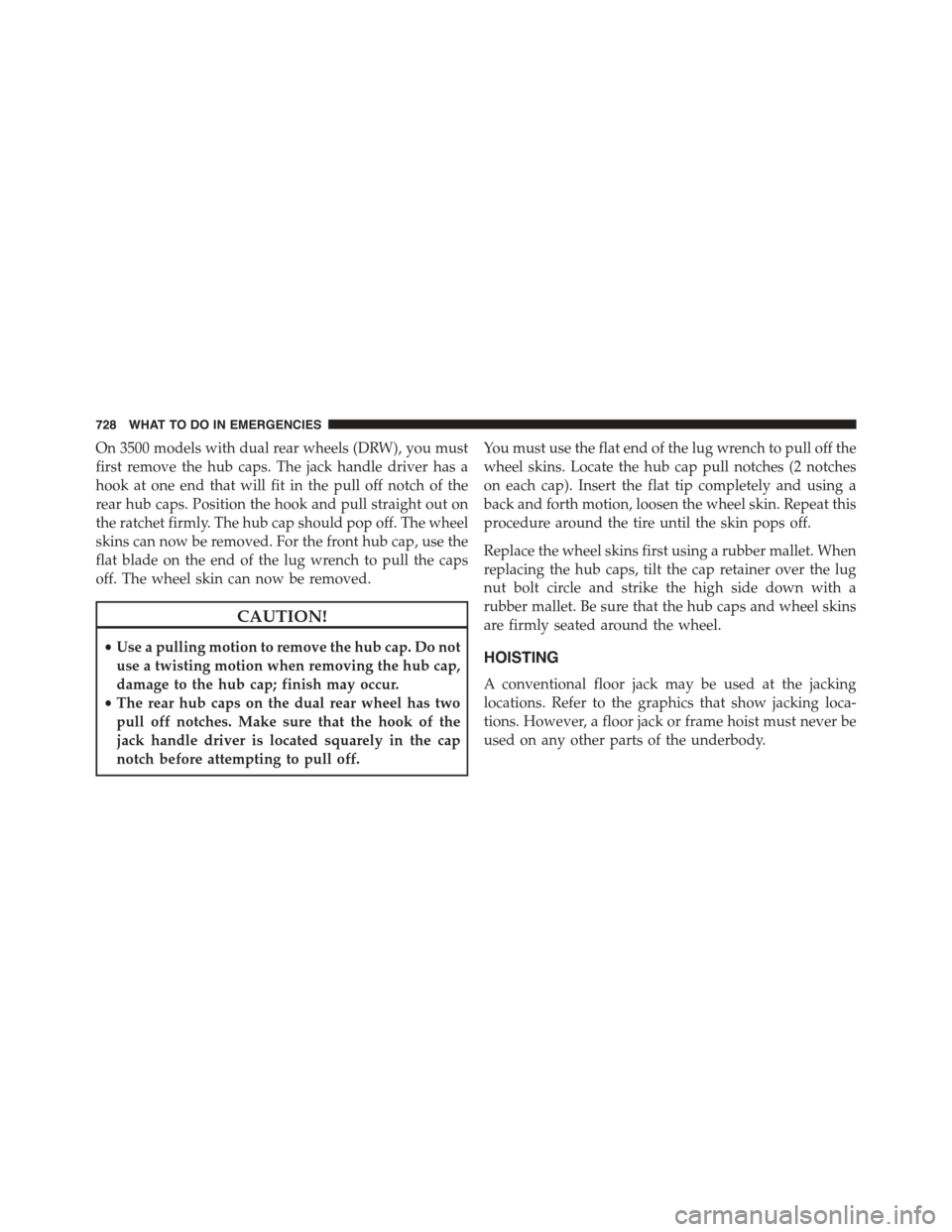

Ram 1500 2015 User Guide On 3500 models with dual rear wheels (DRW), you must
first remove the hub caps. The jack handle driver has a
hook at one end that will fit in the pull off notch of the
rear hub caps. Position the hook
