WHAT TO DO IN EMERGENCIES
CONTENTS
!HAZARD WARNING FLASHERS...........685
!IF YOUR ENGINE OVERHEATS............685
!WHEEL AND TIRE TORQUE
SPECIFICATIONS......................686
▫Torque Specifications..................686
!JACKING AND TIRE CHANGING..........688
▫Jacking And Tire Changing 1500 Series
Trucks.............................688
▫Jacking And Tire Changing 2500 And
3500 Series Trucks.....................708
!HOISTING...........................728
!JUMP-STARTING PROCEDURES...........729
▫Preparations For Jump-Start..............729
▫Jump-Starting Procedure................731
!FREEING A STUCK VEHICLE.............734
!EMERGENCY TOW HOOKS —
IF EQUIPPED.........................735
!SHIFT LEVER OVERRIDE................736
▫Column Shifter — If Equipped............736
▫Center Console Shifter — If Equipped.......737
6
Page 690 of 871
After 25 miles (40 km) check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated
against the wheel.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.
JACKING AND TIRE CHANGING
Jacking And Tire Changing 1500 Series Trucks
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
(Continued)
4 And 5 Lug Nuts/Bolts Torque Pattern
688 WHAT TO DO IN EMERGENCIES
Page 698 of 871
Preparations

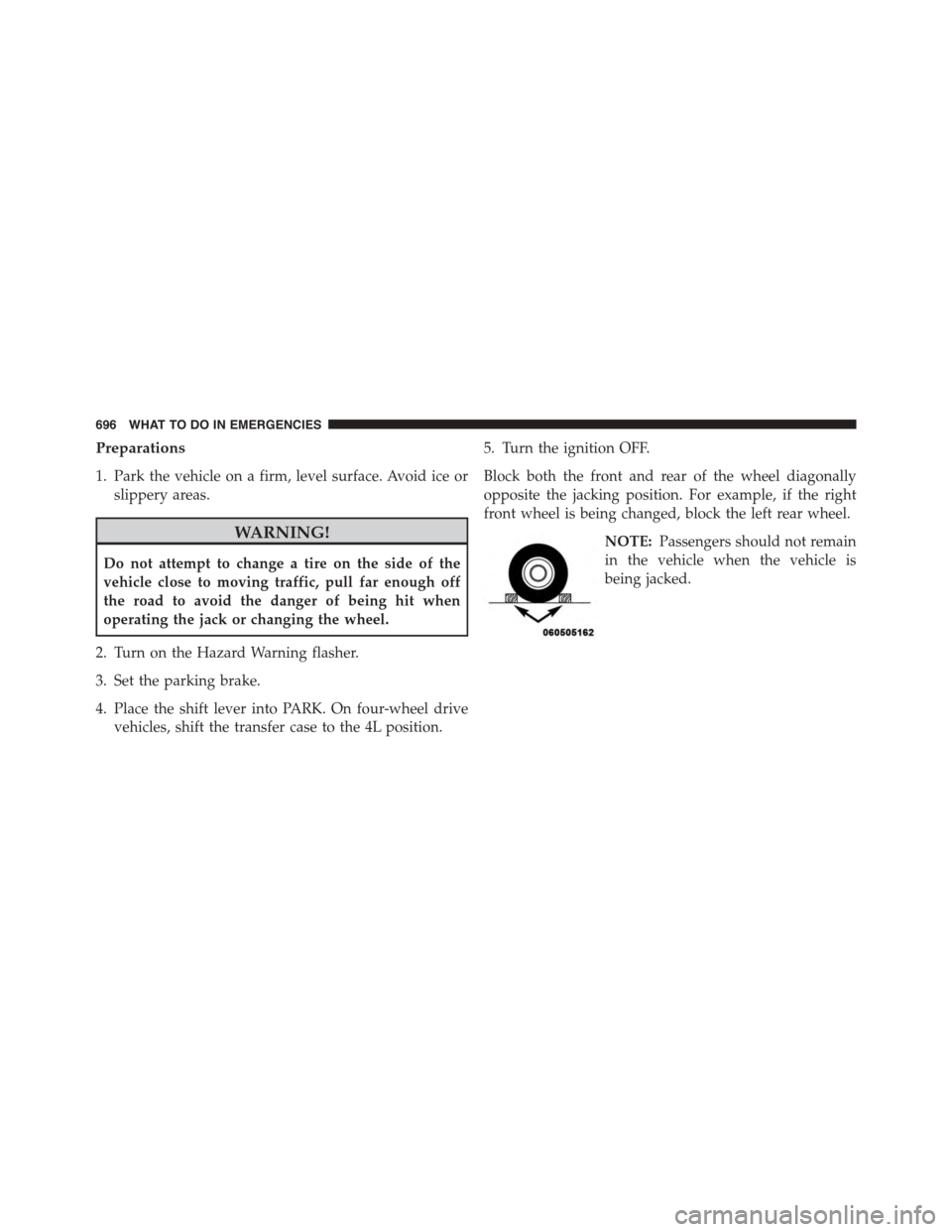

1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK. On four-wheel drive
vehicles, shift the transfer case to the 4L position.
5. Turn the ignition OFF.
Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if the right
front wheel is being changed, block the left rear wheel.
NOTE:Passengers should not remain
in the vehicle when the vehicle is
being jacked.
696 WHAT TO DO IN EMERGENCIES
Page 700 of 871
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare wheel, jack, and tools from storage.
2. Using the wheel wrench, loosen, but do not remove,
the wheel nuts by turning them counterclockwise one
turn while the wheel is still on the ground.

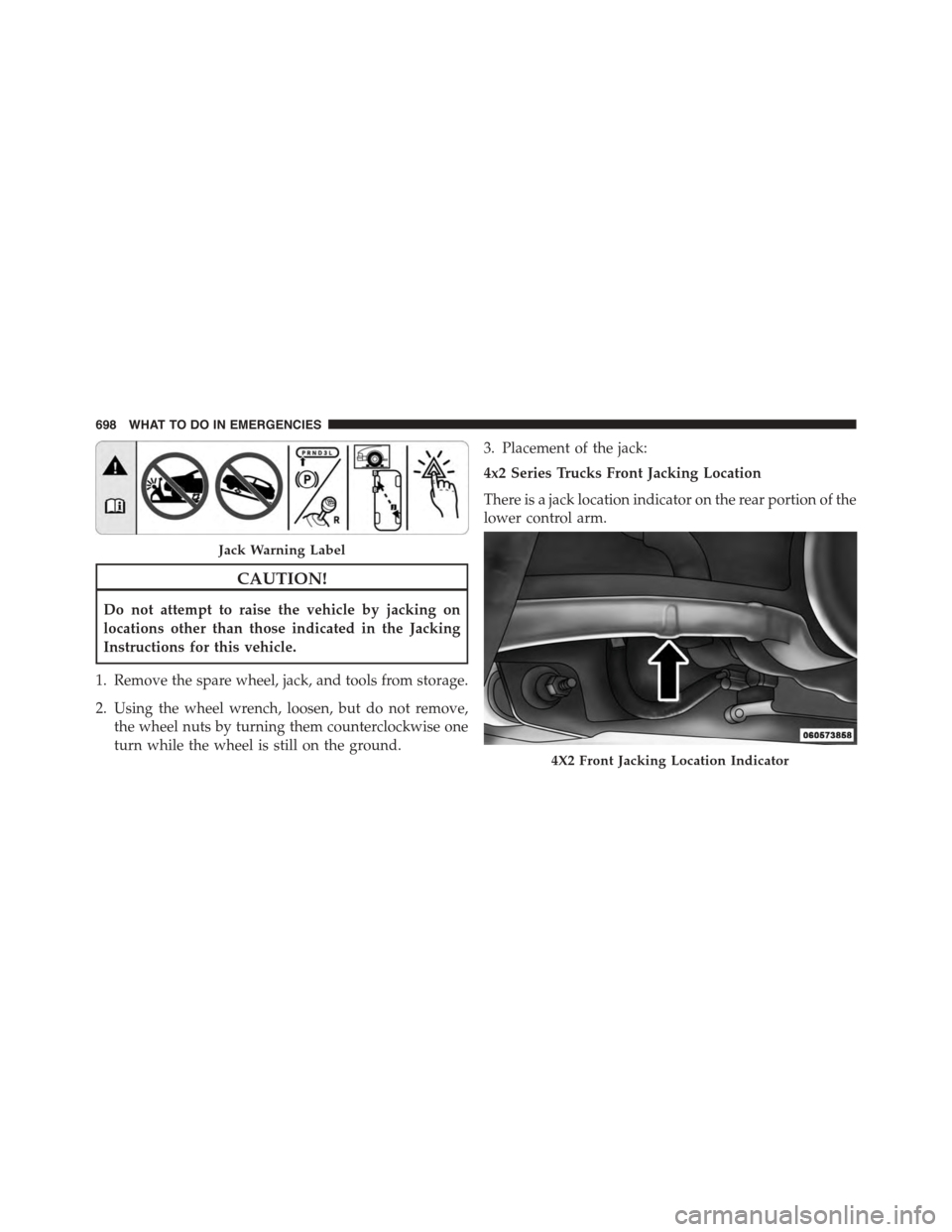

3. Placement of the jack:
4x2 Series Trucks Front Jacking Location
There is a jack location indicator on the rear portion of the
lower control arm.
Jack Warning Label
4X2 Front Jacking Location Indicator
698 WHAT TO DO IN EMERGENCIES
Page 701 of 871

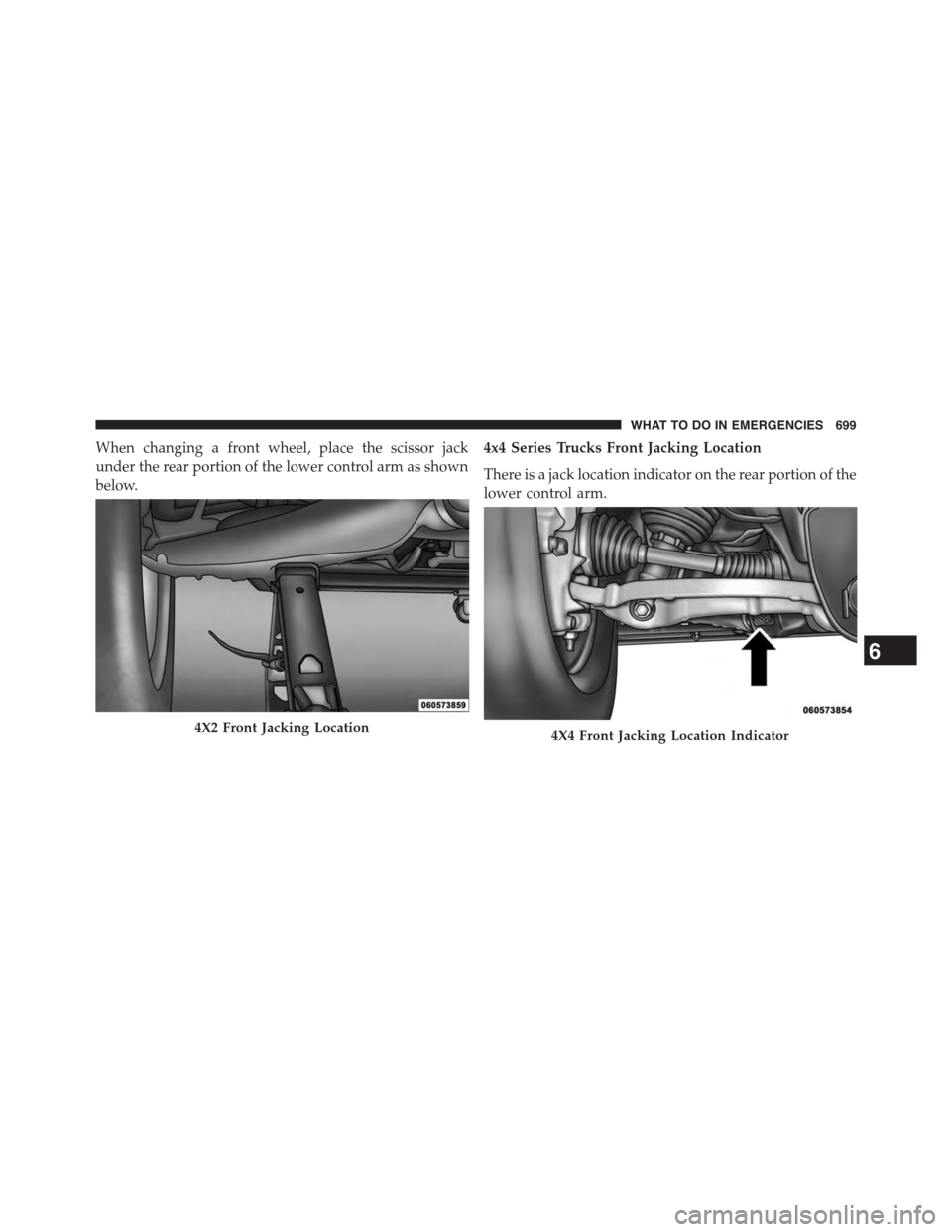

When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as shown
below.
4x4 Series Trucks Front Jacking Location
There is a jack location indicator on the rear portion of the
lower control arm.
4X2 Front Jacking Location4X4 Front Jacking Location Indicator
6
WHAT TO DO IN EMERGENCIES 699
Page 702 of 871

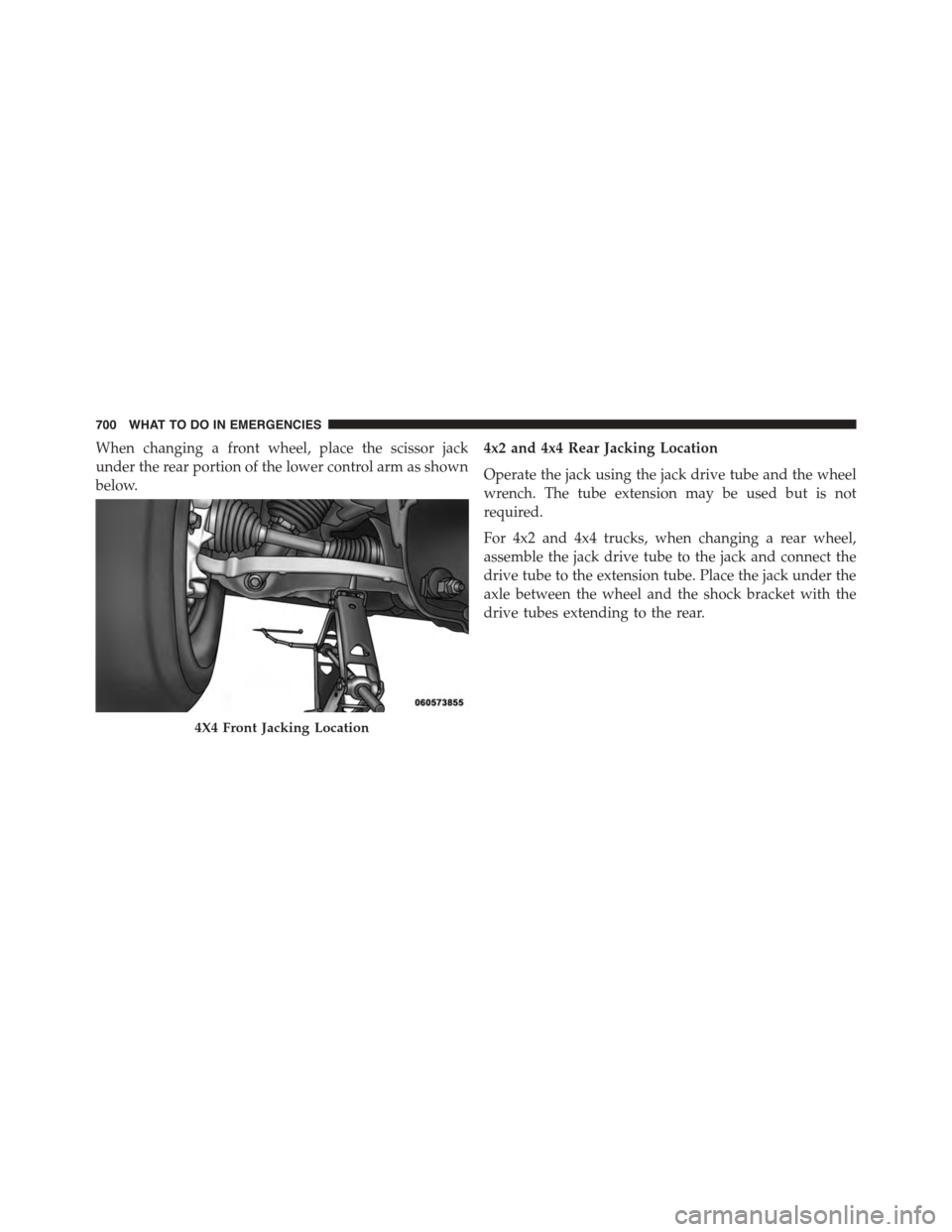

When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as shown
below.
4x2 and 4x4 Rear Jacking Location
Operate the jack using the jack drive tube and the wheel
wrench. The tube extension may be used but is not
required.
For 4x2 and 4x4 trucks, when changing a rear wheel,
assemble the jack drive tube to the jack and connect the
drive tube to the extension tube. Place the jack under the
axle between the wheel and the shock bracket with the
drive tubes extending to the rear.
4X4 Front Jacking Location
700 WHAT TO DO IN EMERGENCIES
Page 703 of 871
Connect the jack tube extension and wheel wrench.
CAUTION!
Before raising the wheel off the ground, make sure
that the jack will not damage surrounding truck parts
and adjust the jack position as required.
4. By rotating the lug wrench clockwise, raise the vehicle
until the wheel just clears the surface.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle unstable and cause a collision. It could
slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
5. Remove the wheel nuts and pull the wheel off. Install
the spare wheel and wheel nuts with the cone shaped
end of the wheel nuts toward the wheel. To avoid the
risk of forcing the vehicle off the jack, do not fully
tighten the wheel nuts until the vehicle has been
lowered.
6. Finish tightening the lug nuts. Push down on the
wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until
Rear Jacking Location6
WHAT TO DO IN EMERGENCIES 701
