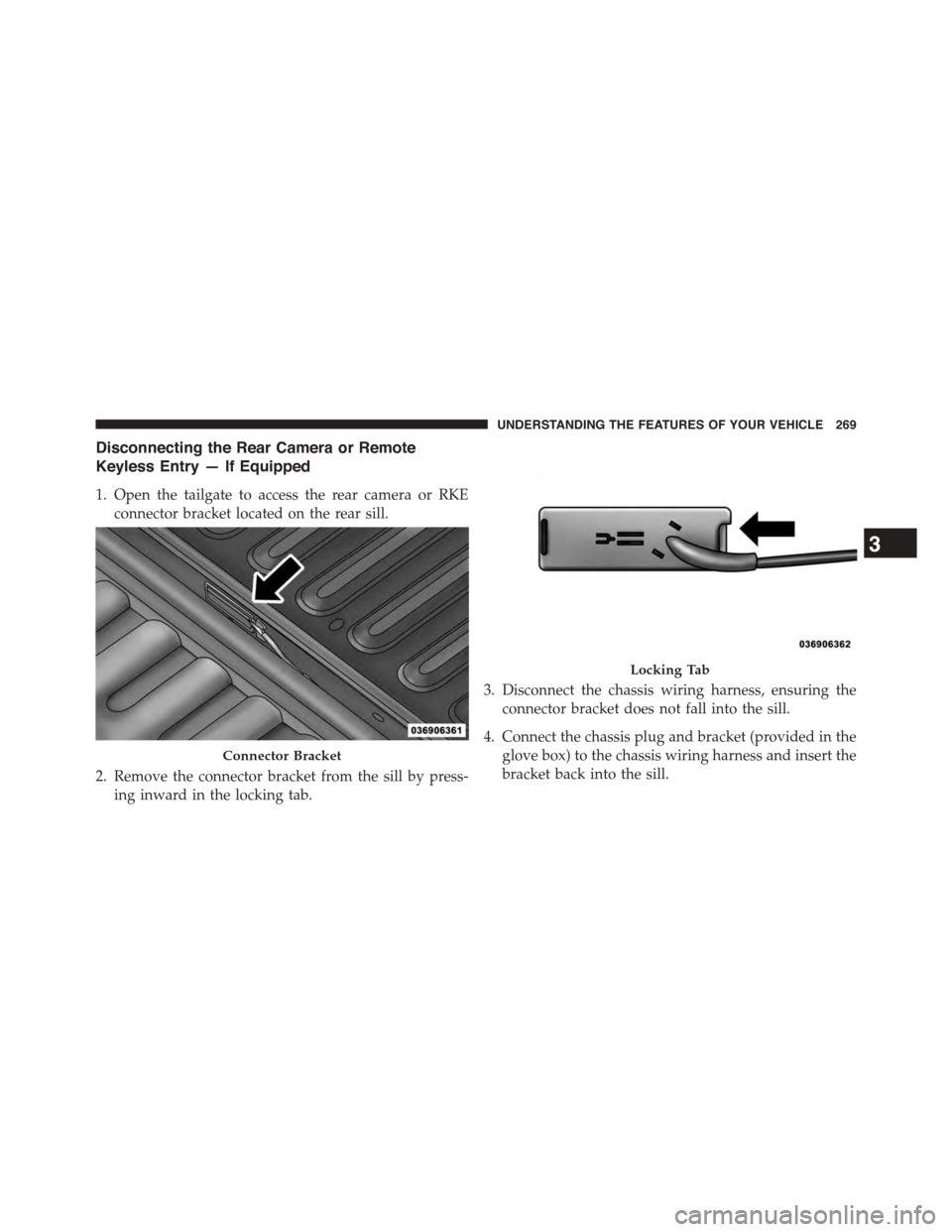

Disconnecting the Rear Camera or Remote
Keyless Entry — If Equipped
1. Open the tailgate to access the rear camera or RKE
connector bracket located on the rear sill.
2. Remove the connector bracket from the sill by press-
ing inward in the locking tab.
3. Disconnect the chassis wiring harness, ensuring the
connector bracket does not fall into the sill.
4. Connect the chassis plug and bracket (provided in the
glove box) to the chassis wiring harness and insert the
bracket back into the sill.
Connector Bracket
Locking Tab
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269

5. Connect the tailgate plug (provided in the glove box)
to the tailgate wiring harness to ensure that the
terminals do not corrode.
6. Tape the tailgate harness and bracket against the
forward-facing surface of the tailgate. This will pre-
vent damaging the connector and bracket when stor-
ing or reinstalling the tailgate.

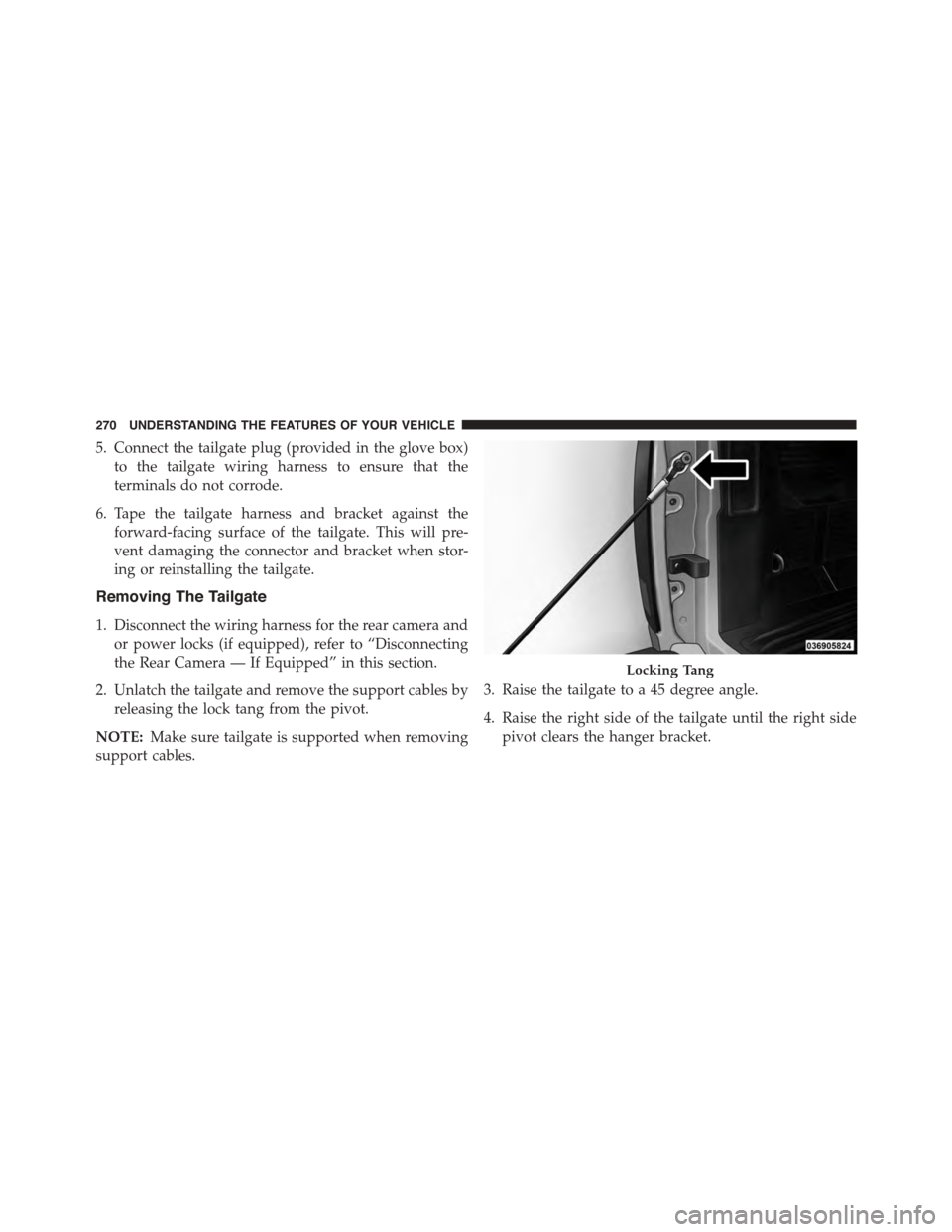

Removing The Tailgate
1. Disconnect the wiring harness for the rear camera and
or power locks (if equipped), refer to “Disconnecting
the Rear Camera — If Equipped” in this section.
2. Unlatch the tailgate and remove the support cables by
releasing the lock tang from the pivot.
NOTE:Make sure tailgate is supported when removing
support cables.
3. Raise the tailgate to a 45 degree angle.
4. Raise the right side of the tailgate until the right side
pivot clears the hanger bracket.
Locking Tang
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

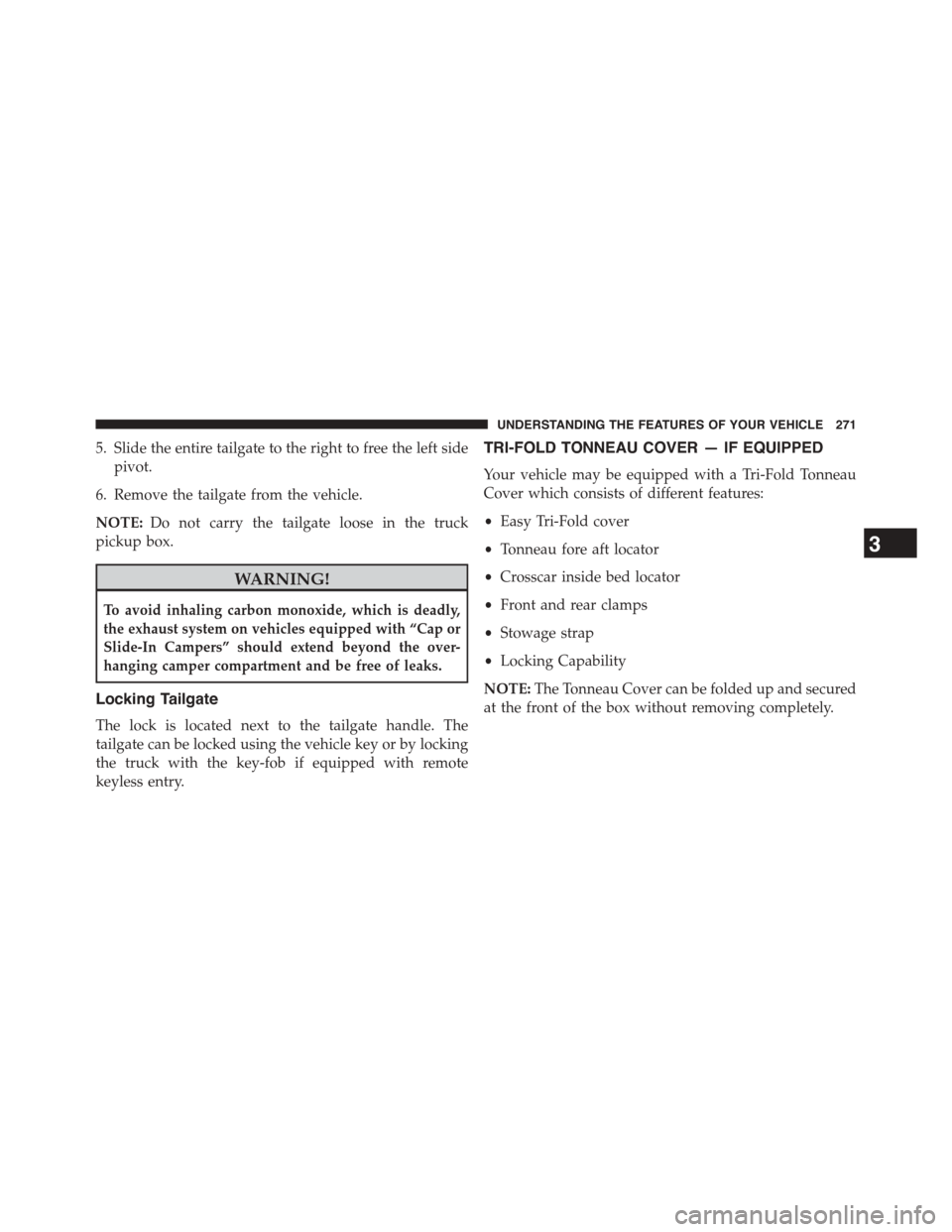

5. Slide the entire tailgate to the right to free the left side
pivot.
6. Remove the tailgate from the vehicle.
NOTE:Do not carry the tailgate loose in the truck
pickup box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap or
Slide-In Campers” should extend beyond the over-
hanging camper compartment and be free of leaks.
Locking Tailgate
The lock is located next to the tailgate handle. The
tailgate can be locked using the vehicle key or by locking
the truck with the key-fob if equipped with remote
keyless entry.
TRI-FOLD TONNEAU COVER — IF EQUIPPED
Your vehicle may be equipped with a Tri-Fold Tonneau
Cover which consists of different features:
•Easy Tri-Fold cover
•Tonneau fore aft locator
•Crosscar inside bed locator
•Front and rear clamps
•Stowage strap
•Locking Capability
NOTE:The Tonneau Cover can be folded up and secured
at the front of the box without removing completely.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271

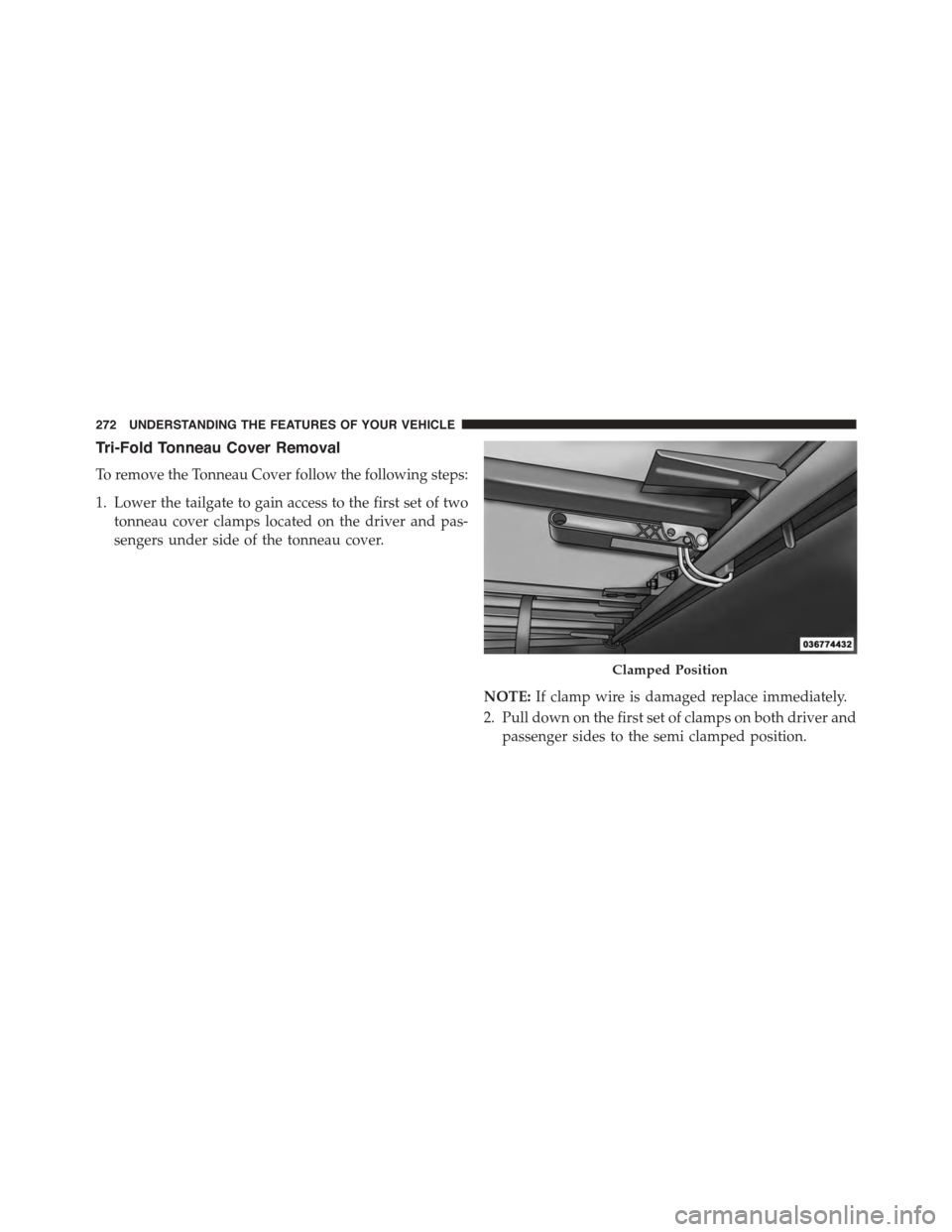

Tri-Fold Tonneau Cover Removal
To remove the Tonneau Cover follow the following steps:
1. Lower the tailgate to gain access to the first set of two
tonneau cover clamps located on the driver and pas-
sengers under side of the tonneau cover.
2. Pull down on the first set of clamps on both driver and
passenger sides to the semi clamped position.
Clamped Position
NOTE:If clamp wire is damaged replace immediately.
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Pull down on the clamp wire and push the clamp up
into the proper released position.
NOTE:Be sure the clamp and clamp wire is in the
proper released position.
Semi Clamped PositionProper Released Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273

CAUTION!
Make sure the tonneau cover clamp and clamp wire
is in the proper released position. If the clamp and
clamp wire is not properly released, damage to the
tonneau cover material will result.
4. Pick up on the tonneau cover and fold it back onto the
second panel.
5. Pick up on the cover and fold it back onto the third
panel.
6. Once in the third panel position pull down on the
second set of clamps on both driver and passenger
sides to the semi clamped position.
Improper Clamp Wire Released Position
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

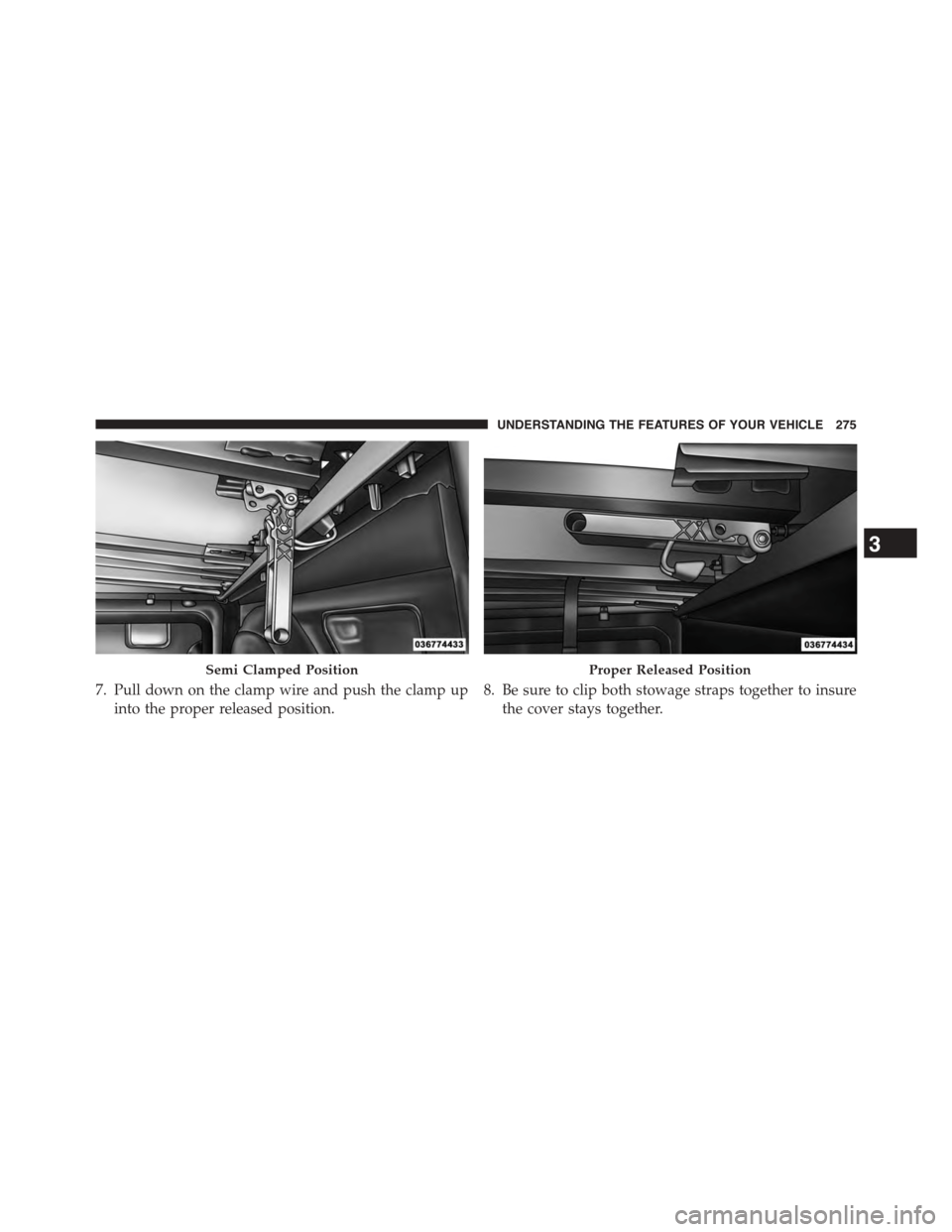

7. Pull down on the clamp wire and push the clamp up
into the proper released position.
8. Be sure to clip both stowage straps together to insure
the cover stays together.
Semi Clamped PositionProper Released Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275

9. With two people remove the cover.
NOTE:Be sure the Tonneau Cover has been folded
completely before removing.
Tri-Fold Tonneau Cover Installation
To install the Tonneau Cover follow the following steps:
1. Position the folded Tonneau Cover on the truck bed
and push the Cover forward against the front of the
truck bed. The Tonneau Cover centers itself when
placed on the vehicle.
2. Pull down on the first set of clamp handles to release
the clamps from the stowed position.
Stowage Strap
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

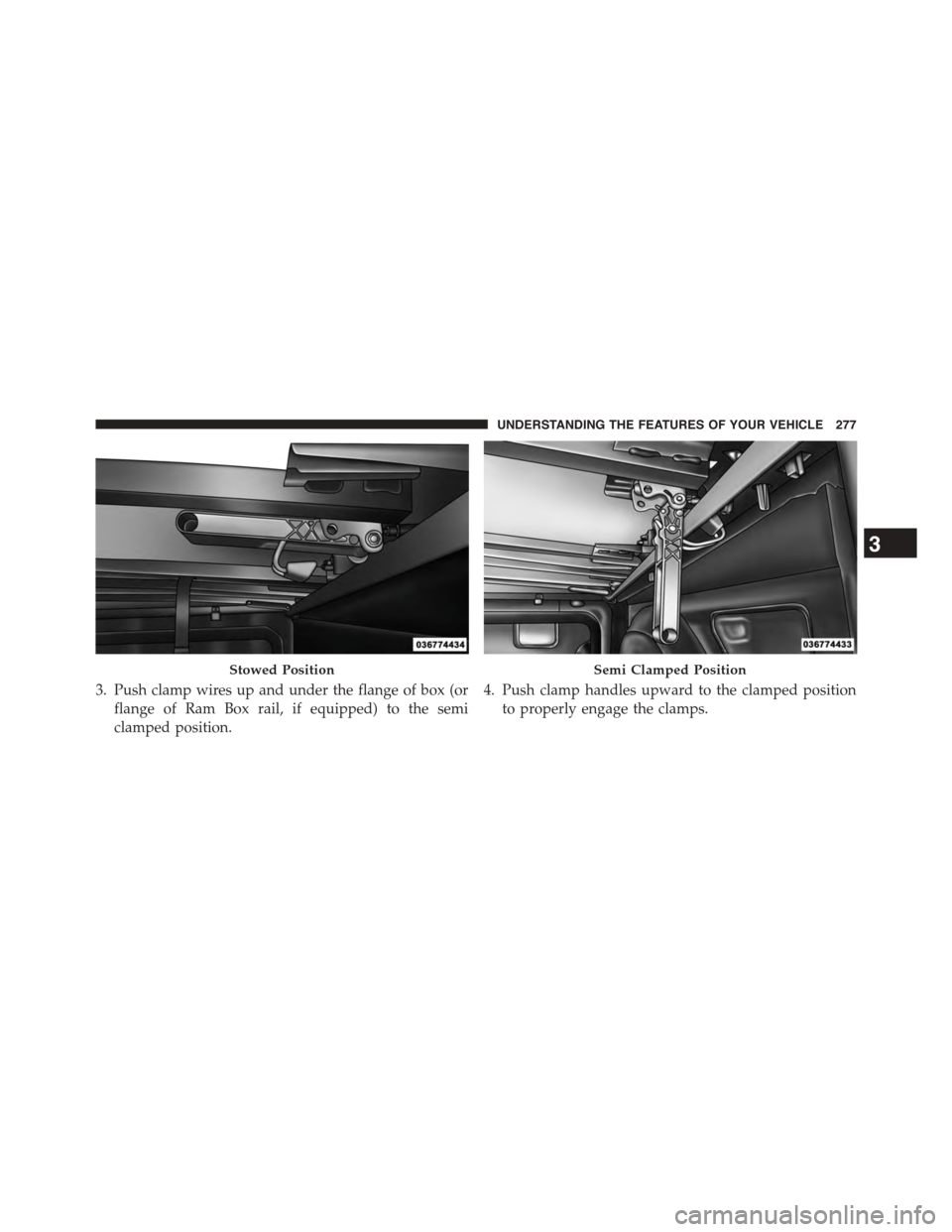

3. Push clamp wires up and under the flange of box (or
flange of Ram Box rail, if equipped) to the semi
clamped position.
4. Push clamp handles upward to the clamped position
to properly engage the clamps.
Stowed PositionSemi Clamped Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277

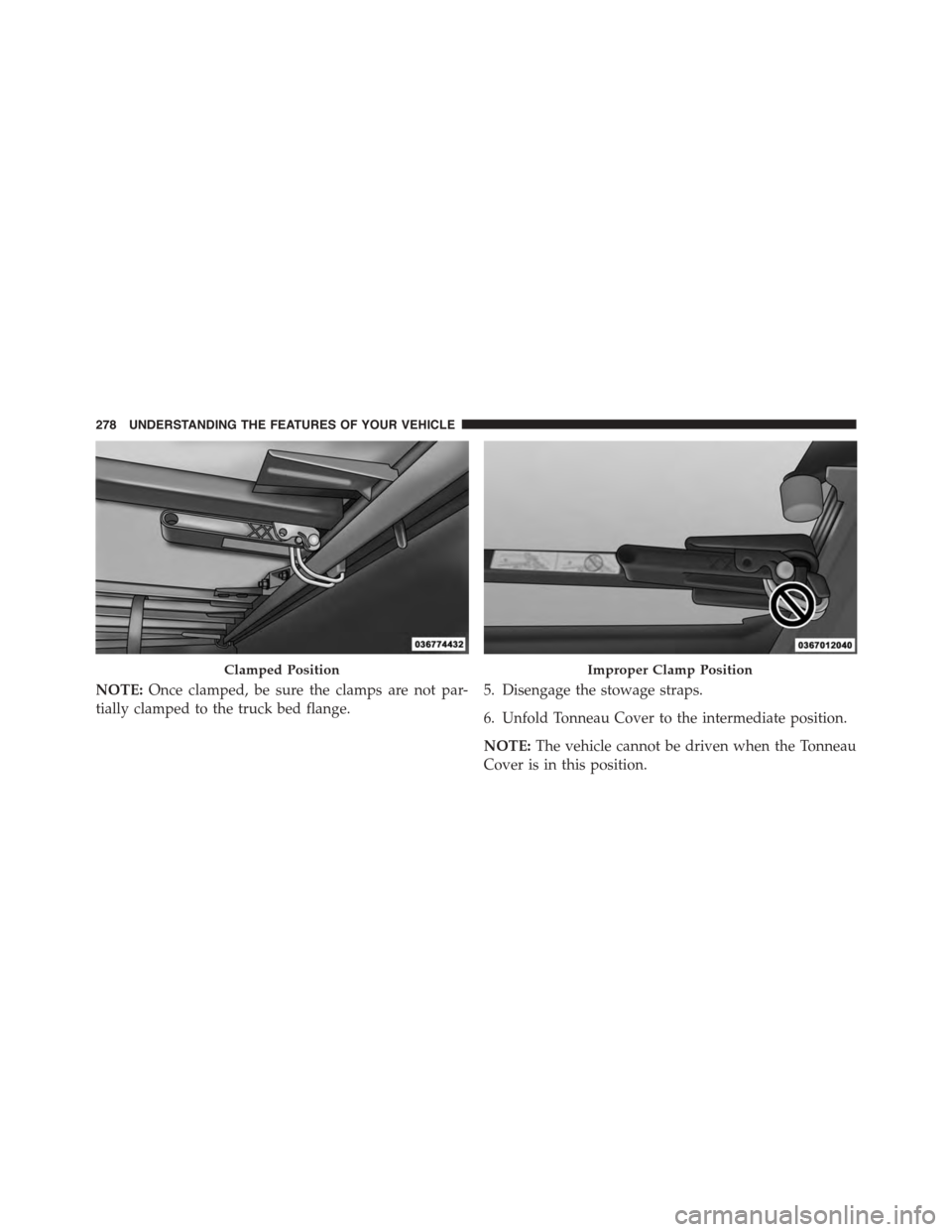

NOTE:Once clamped, be sure the clamps are not par-
tially clamped to the truck bed flange.
5. Disengage the stowage straps.
6. Unfold Tonneau Cover to the intermediate position.
NOTE:The vehicle cannot be driven when the Tonneau
Cover is in this position.
Clamped PositionImproper Clamp Position
