Page 691 of 871

Ram 1500 2015  Owners Manual WARNING!(Continued)
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is

Page 692 of 871

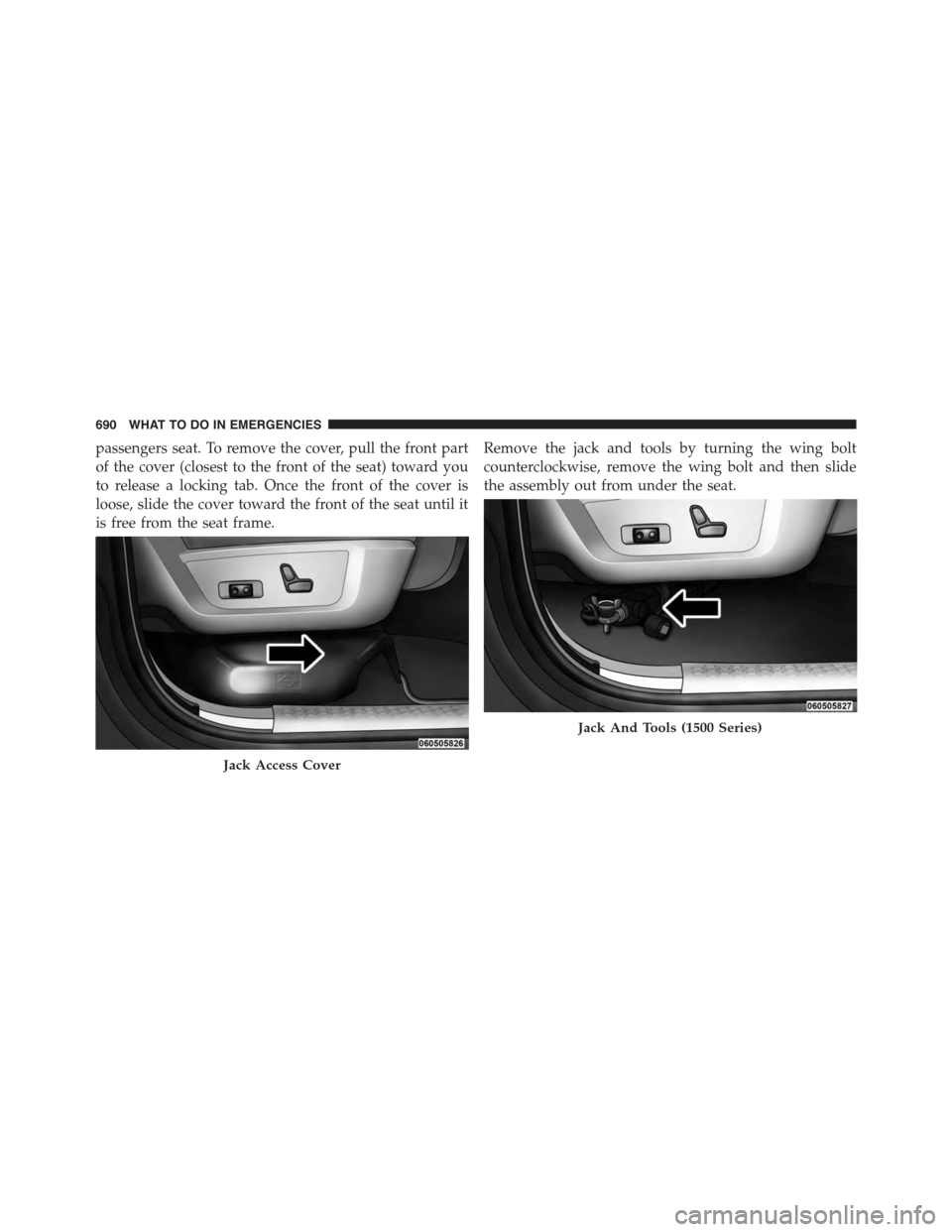

Ram 1500 2015  Owners Manual passengers seat. To remove the cover, pull the front part
of the cover (closest to the front of the seat) toward you
to release a locking tab. Once the front of the cover is
loose, slide the cover tow

Page 693 of 871

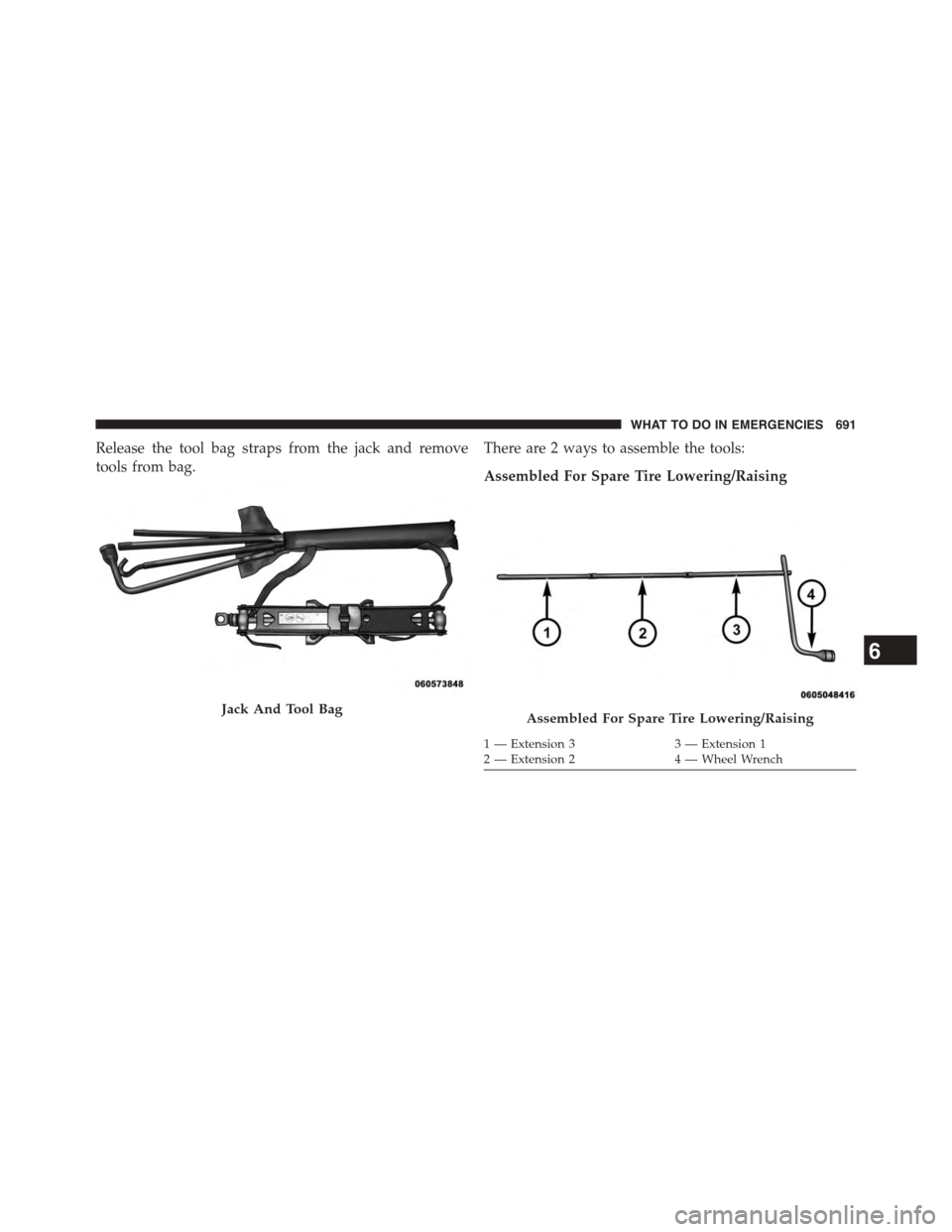

Ram 1500 2015  Owners Manual Release the tool bag straps from the jack and remove
tools from bag.
There are 2 ways to assemble the tools:
Assembled For Spare Tire Lowering/Raising
Jack And Tool BagAssembled For Spare Tire Lowerin

Page 694 of 871

Ram 1500 2015  Owners Manual CAUTION!
•The wheel wrench can only be attached to exten-
sion 1.
•When attaching the tool to the winch mechanism
be sure the large flared end opening on extension 3
is positioned correctly over t

Page 695 of 871

Ram 1500 2015  Owners Manual WARNING!
After using the jack and tools, always reinstall them
in the original carrier and location. While driving
you may experience abrupt stopping, rapid accelera-
tion or sharp turns. A loose jack

Page 696 of 871

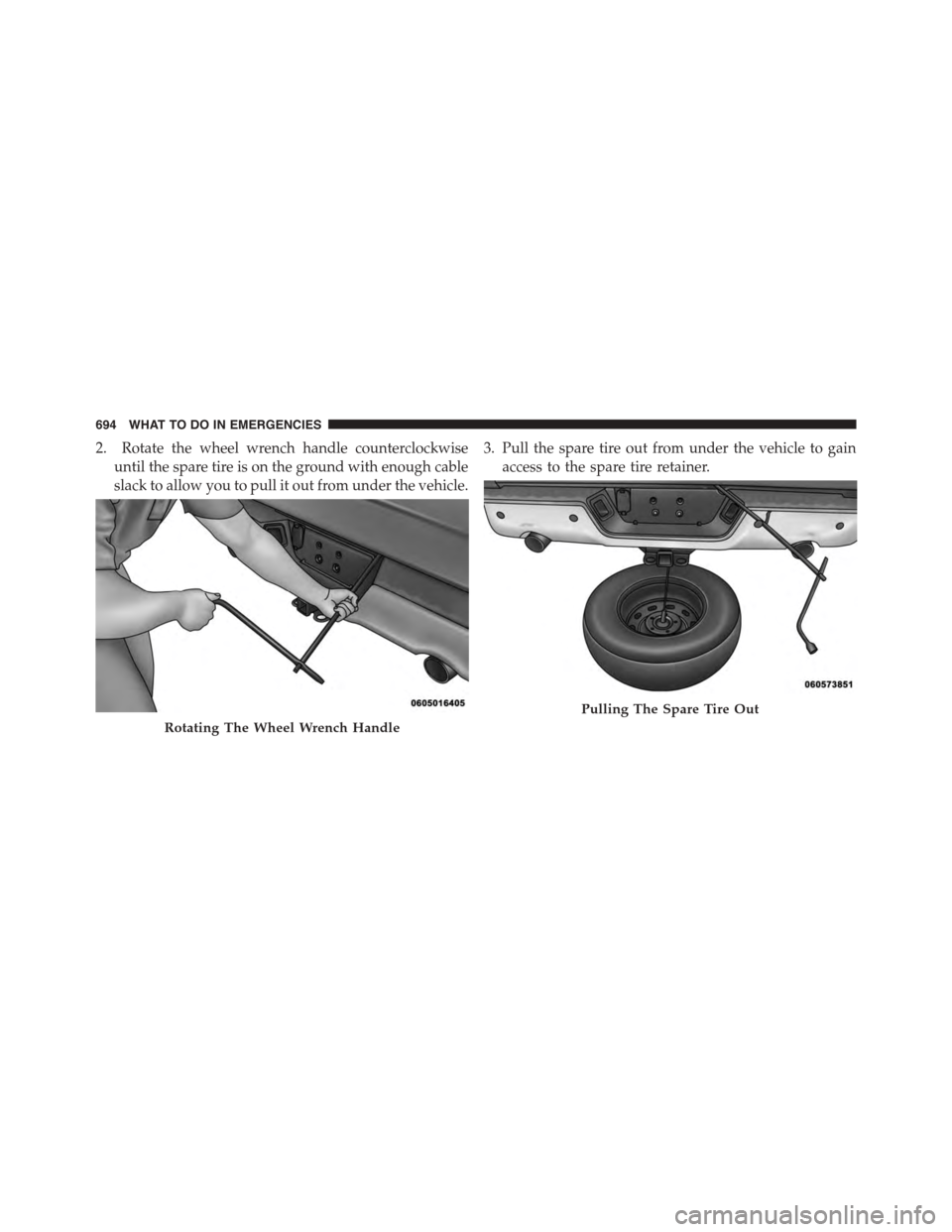

Ram 1500 2015  Owners Manual 2. Rotate the wheel wrench handle counterclockwise
until the spare tire is on the ground with enough cable
slack to allow you to pull it out from under the vehicle.
3. Pull the spare tire out from und

Page 697 of 871

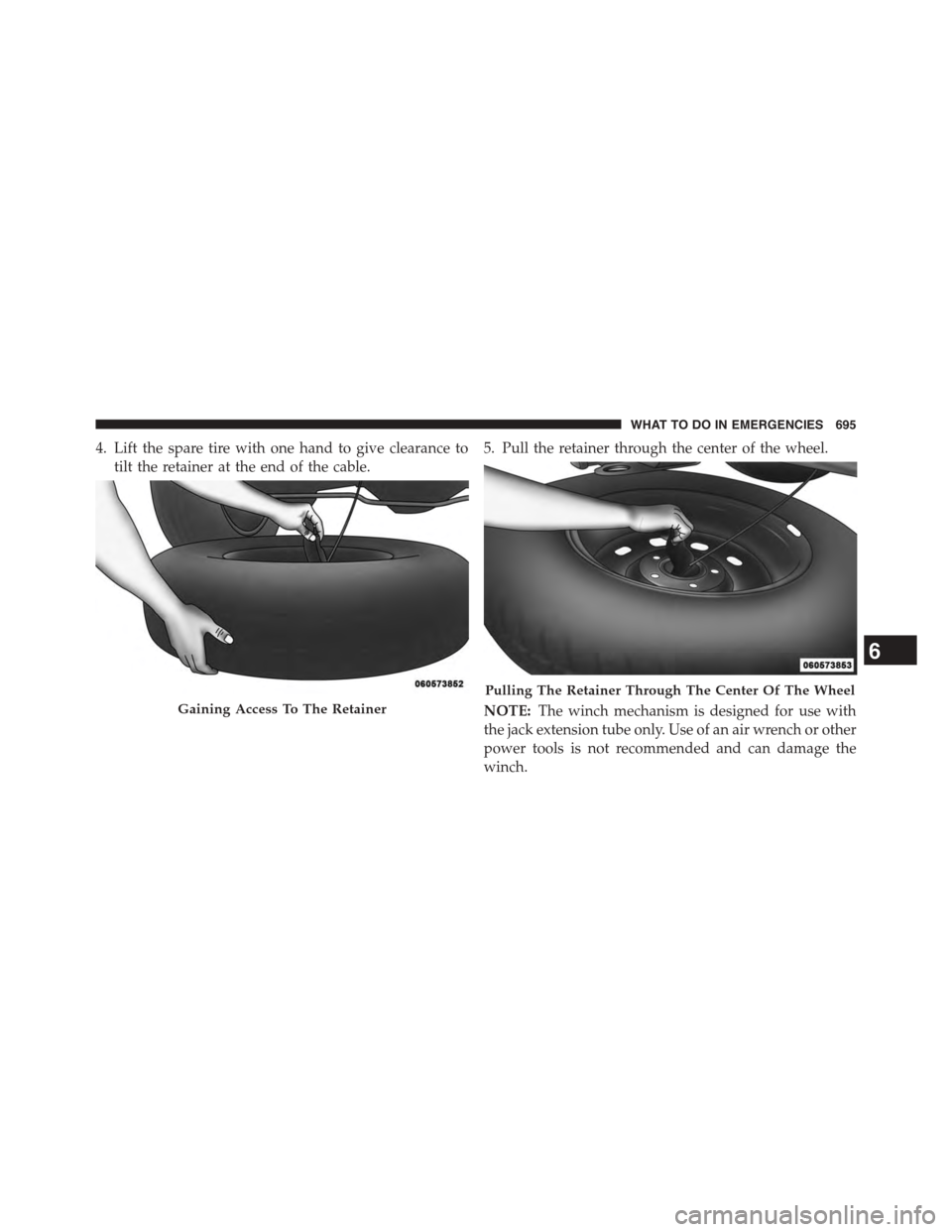

Ram 1500 2015  Owners Manual 4. Lift the spare tire with one hand to give clearance to
tilt the retainer at the end of the cable.
5. Pull the retainer through the center of the wheel.
NOTE:The winch mechanism is designed for use

Page 698 of 871

Ram 1500 2015  Owners Manual Preparations
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off

Page 699 of 871

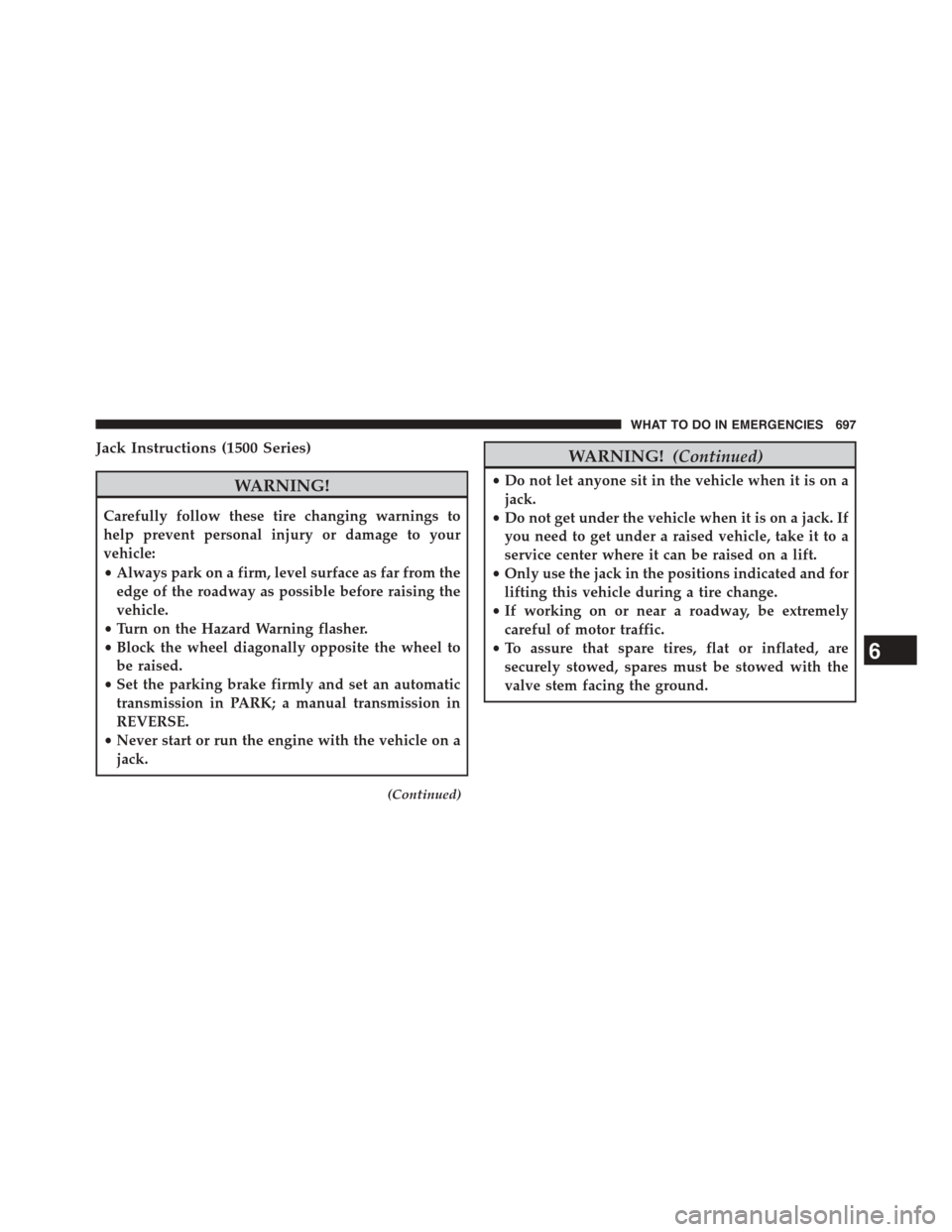

Ram 1500 2015  Owners Manual Jack Instructions (1500 Series)
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
•Always park on a firm, level surface as far from th

Page 700 of 871

Ram 1500 2015  Owners Manual CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare wheel, jack, and tools from storage.
2
