CAUTION!
Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
WARNING!
If you continue operating the vehicle when the
Transmission Temperature Warning Light is illumi-
nated you could cause the fluid to boil over, come in
contact with hot engine or exhaust components and
cause a fire.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 319

Rear Fog Light Indicator
Yellow Telltale
LightWhat It Means
Rear Fog Light Indicator
This indicator will illuminate when the rear fog lights are on.
Low Coolant Level Indicator Light
Yellow Telltale
LightWhat It Means
Low Coolant Level Indicator Light
This telltale will turn on to indicate the vehicle coolant level is low.
320 UNDERSTANDING YOUR INSTRUMENT PANEL

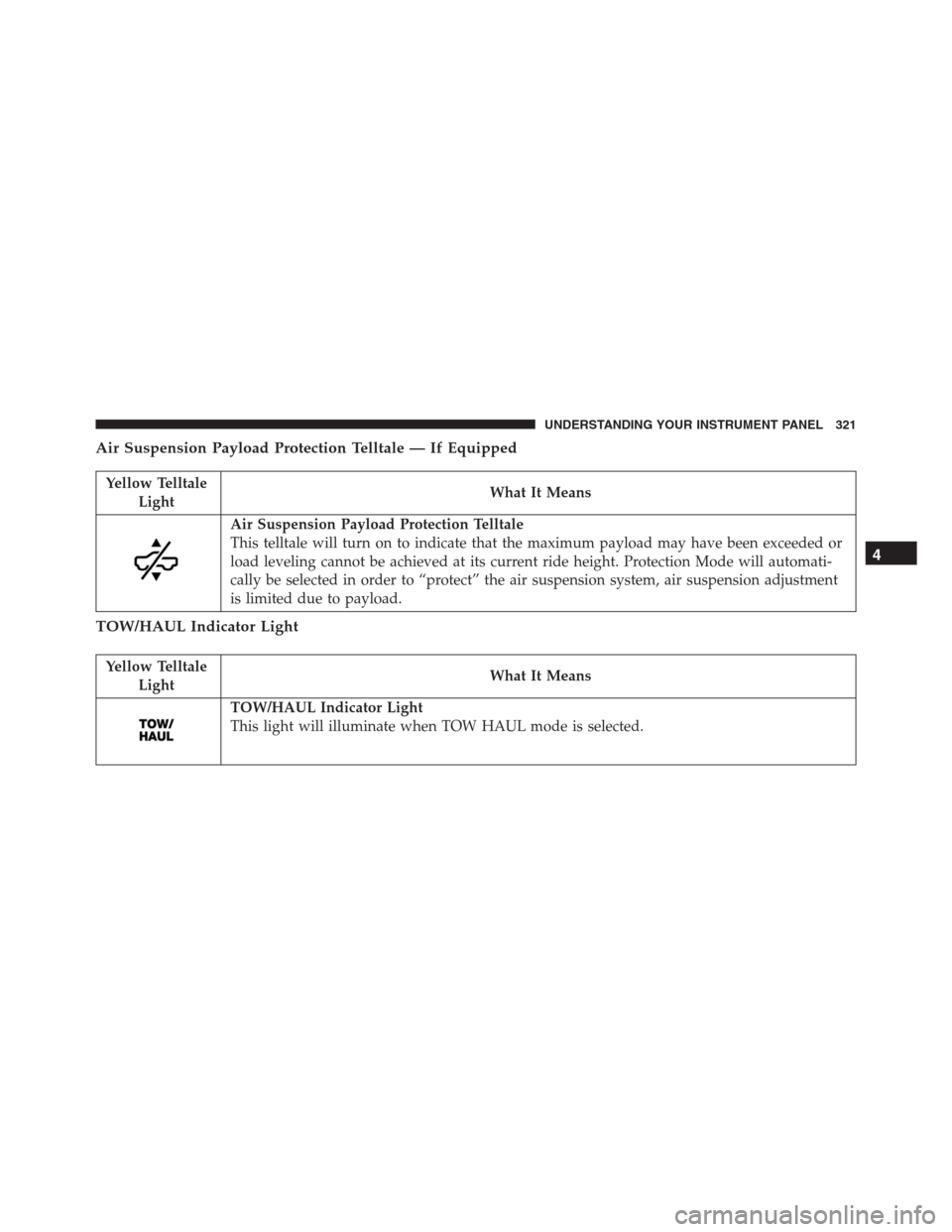

Air Suspension Payload Protection Telltale — If Equipped
Yellow Telltale
LightWhat It Means
Air Suspension Payload Protection Telltale
This telltale will turn on to indicate that the maximum payload may have been exceeded or
load leveling cannot be achieved at its current ride height. Protection Mode will automati-
cally be selected in order to “protect” the air suspension system, air suspension adjustment
is limited due to payload.
TOW/HAUL Indicator Light
Yellow Telltale
LightWhat It Means
TOW/HAUL Indicator Light
This light will illuminate when TOW HAUL mode is selected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 321

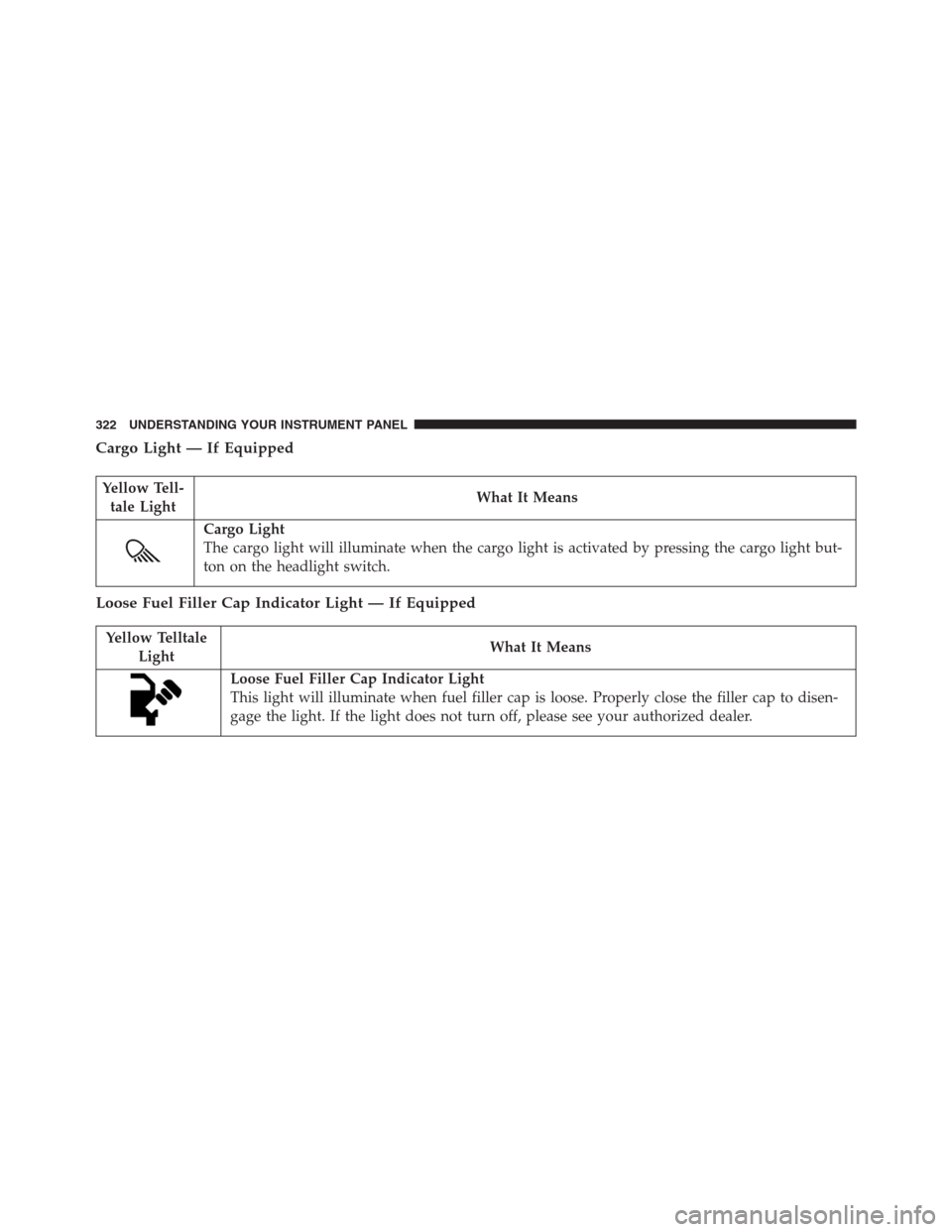

Cargo Light — If Equipped
Yellow Tell-
tale LightWhat It Means
Cargo Light
The cargo light will illuminate when the cargo light is activated by pressing the cargo light but-
ton on the headlight switch.
Loose Fuel Filler Cap Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Loose Fuel Filler Cap Indicator Light
This light will illuminate when fuel filler cap is loose. Properly close the filler cap to disen-
gage the light. If the light does not turn off, please see your authorized dealer.
322 UNDERSTANDING YOUR INSTRUMENT PANEL

Service Stop/Start System Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Service Stop/Start System Indicator Light
This telltale will turn on to indicate the Stop/Start system is not functioning properly and
service is required.

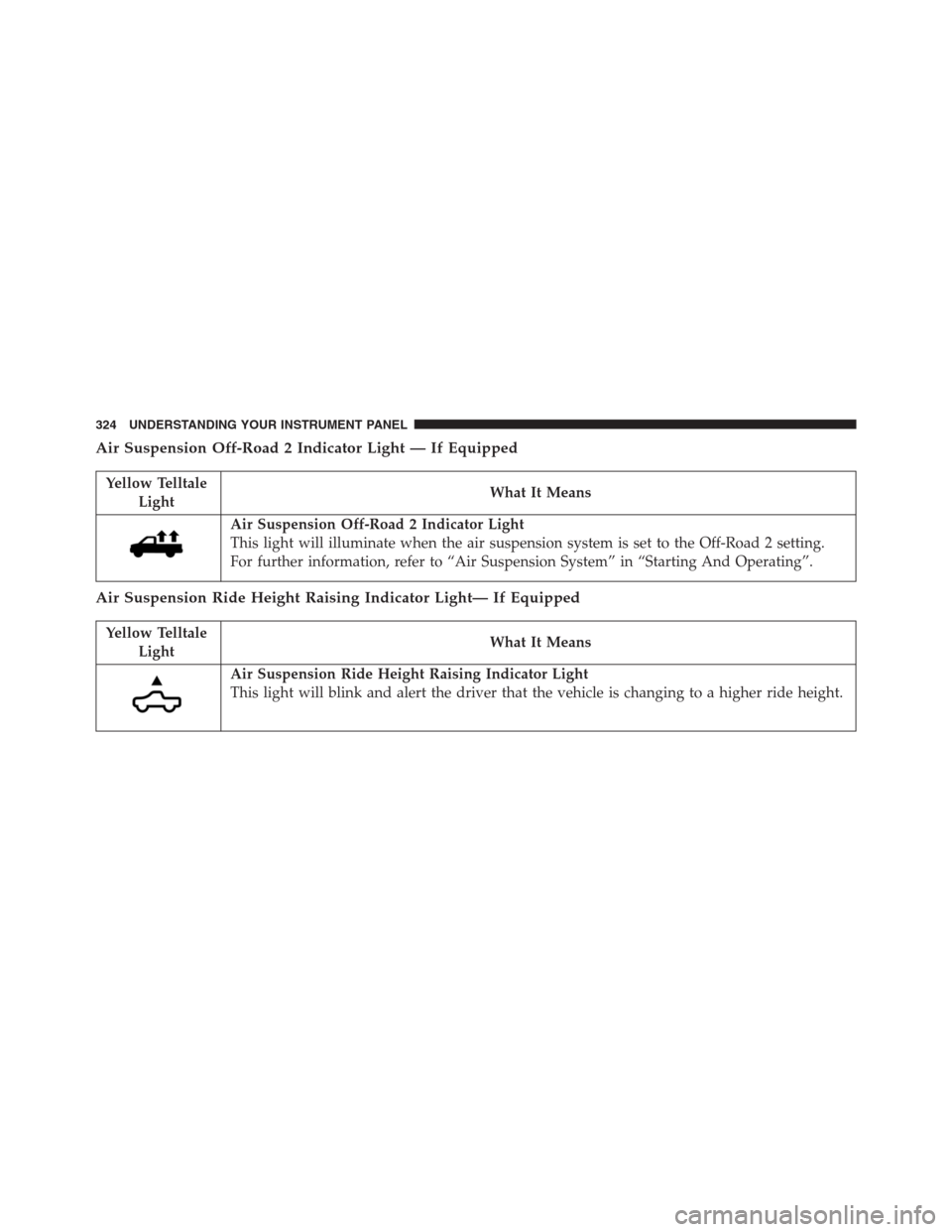

Air Suspension Off-Road 1 Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Air Suspension Off-Road 1 Indicator Light
This light will illuminate when the air suspension system is set to the Off-Road 1 setting.
For further information, refer to “Air Suspension System” in “Starting And Operating”.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 323

Air Suspension Off-Road 2 Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Air Suspension Off-Road 2 Indicator Light
This light will illuminate when the air suspension system is set to the Off-Road 2 setting.
For further information, refer to “Air Suspension System” in “Starting And Operating”.
Air Suspension Ride Height Raising Indicator Light— If Equipped
Yellow Telltale
LightWhat It Means
Air Suspension Ride Height Raising Indicator Light
This light will blink and alert the driver that the vehicle is changing to a higher ride height.
324 UNDERSTANDING YOUR INSTRUMENT PANEL

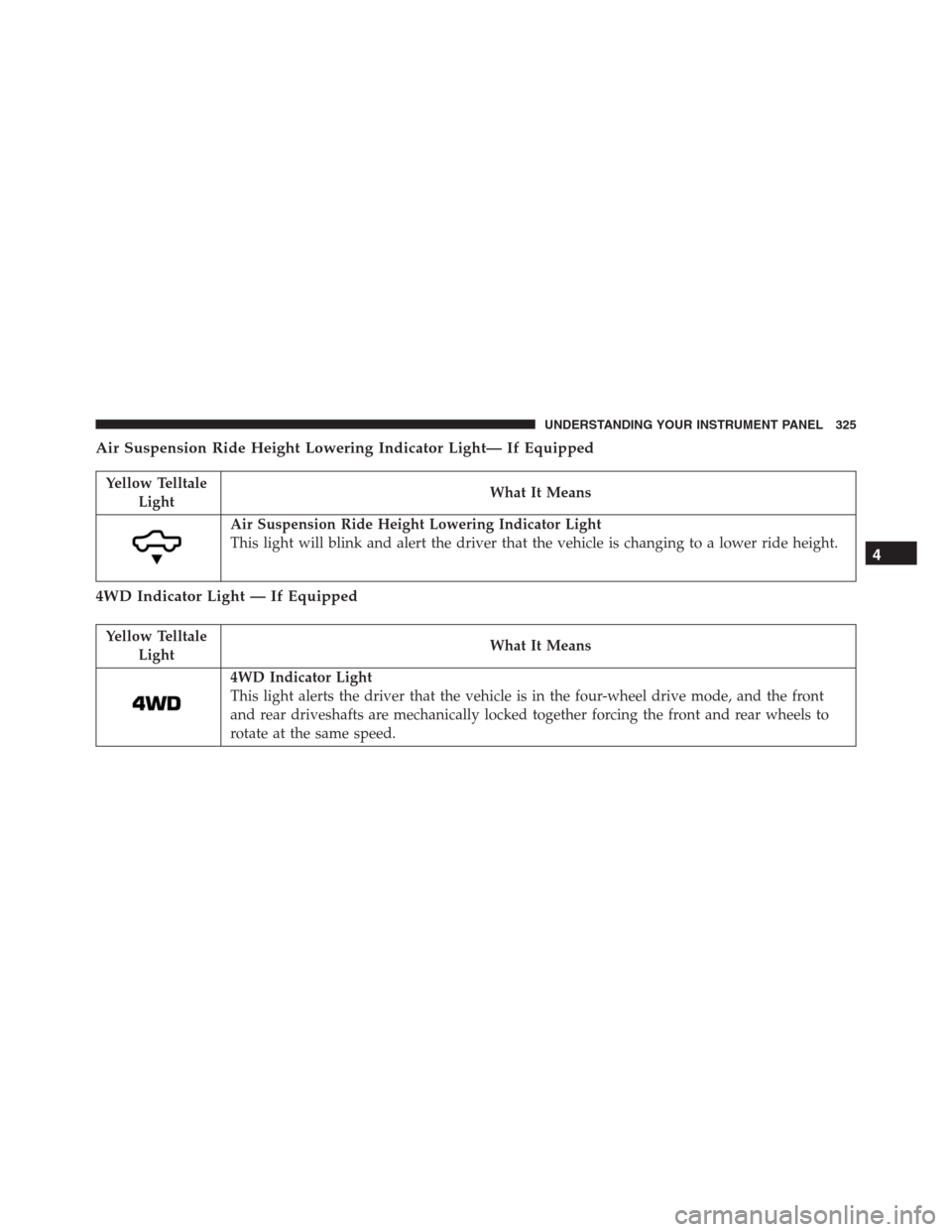

Air Suspension Ride Height Lowering Indicator Light— If Equipped
Yellow Telltale
LightWhat It Means
Air Suspension Ride Height Lowering Indicator Light
This light will blink and alert the driver that the vehicle is changing to a lower ride height.
4WD Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
4WD Indicator Light
This light alerts the driver that the vehicle is in the four-wheel drive mode, and the front
and rear driveshafts are mechanically locked together forcing the front and rear wheels to
rotate at the same speed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 325

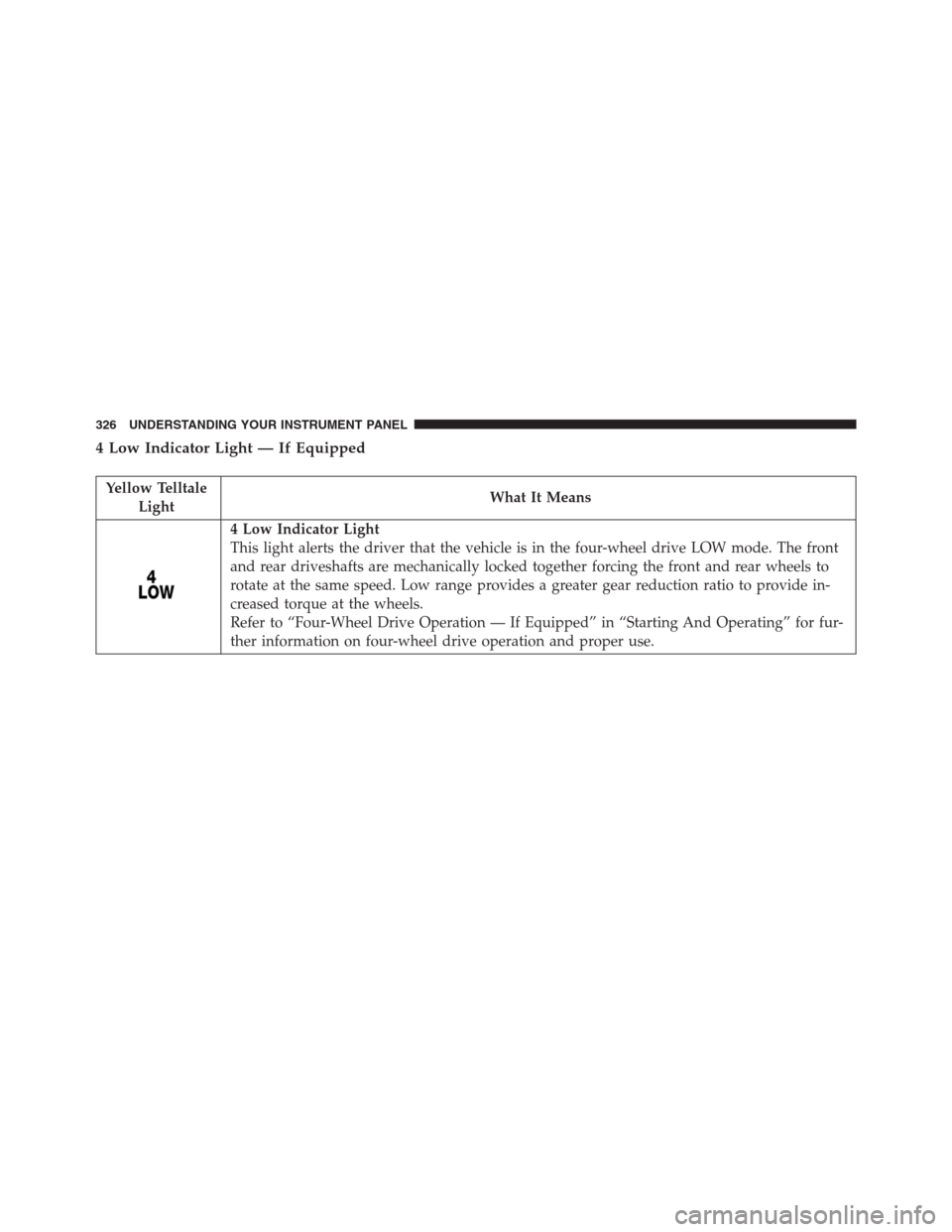

4 Low Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
4 Low Indicator Light
This light alerts the driver that the vehicle is in the four-wheel drive LOW mode. The front
and rear driveshafts are mechanically locked together forcing the front and rear wheels to
rotate at the same speed. Low range provides a greater gear reduction ratio to provide in-
creased torque at the wheels.
Refer to “Four-Wheel Drive Operation — If Equipped” in “Starting And Operating” for fur-
ther information on four-wheel drive operation and proper use.
326 UNDERSTANDING YOUR INSTRUMENT PANEL

Service 4WD Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Service 4WD Indicator Light
If the light stays on or comes on during driving, it means that the 4WD system is not func-
tioning properly and that service is required. We recommend you drive to the nearest ser-
vice center and have the vehicle serviced immediately.
2WD Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
2WD Indicator Light
This light alerts the driver that the vehicle is in the two-wheel drive mode.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 327

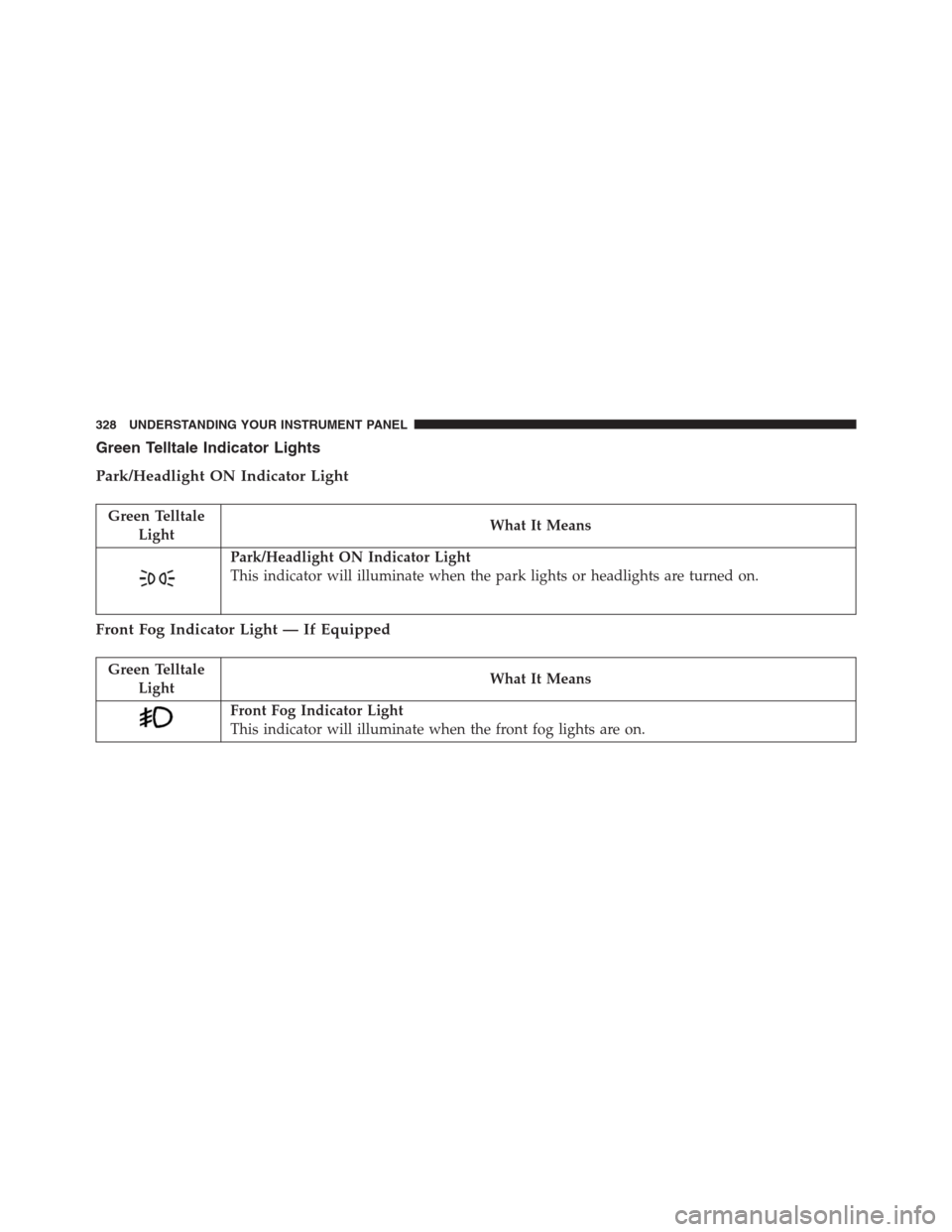

Green Telltale Indicator Lights
Park/Headlight ON Indicator Light
Green Telltale
LightWhat It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Front Fog Indicator Light — If Equipped
Green Telltale
LightWhat It Means
Front Fog Indicator Light
This indicator will illuminate when the front fog lights are on.
