REPLACEMENT BULBS
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
Interior Bulbs
Bulb Number
Overhead Console
LampsTS 212–9
Dome Lamp 7679
For lighted switches, see your authorized dealer for
replacement instructions.
Exterior Bulbs
Bulb Number
Base Quad Headlamp –
Low BeamH11LL
Base Quad Headlamp –
High Beam9005LL
Front Turn Signal Lamp
(Base Quad Headlamp)3157NA
Premium Bi Halogen
Projector Headlamp -
Low Beam9005Sl+
Premium Bi Halogen
Projector Headlamp -
High Beam9005LL
Front Turn Signal Lamp
(Premium Headlamp)LED (Serviced at Autho-
rized Dealer)
Fog Lamp (Horizontal
shape)9145
7
MAINTAINING YOUR VEHICLE 849

Bulb Number
Fog Lamp (Vertical
shape)9006
Center High Mounted
Stop Lamp (CHMSL)921K
Rear Cargo Lamp 921
LED Center High
Mounted Stop Lamp
(CHMSL)/Cargo LampLED (Serviced at Autho-
rized Dealer)
Cab Roof Marker Lamps 194NA
Base Rear Tail/Turn and
Stop Lamp3157K
Premium Rear Tail/Turn
and Stop LampLED (Serviced at Autho-
rized Dealer)Bulb Number
Premium Backup Lamp 7440/W21W
Rear Lamp Bar ID
Marker Lamp194
Side Marker Lamps
(Dual Rear Wheels)194
Backup Lamp 921
Rear License Plate Lamp 194
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
850 MAINTAINING YOUR VEHICLE

Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park And
Turn — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the six plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.
4. Remove the two plastic push-in rivets that secure the
upper radiator seal to the radiator.
5. Remove the upper radiator seal from the vehicle.
6. Remove the two headlamp assembly attachment
screws.7. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash
shield. Access to the rear of the lamp can be gained
through this access hole.
Headlamp Assembly Attachment Screw Locations
7
MAINTAINING YOUR VEHICLE 851

8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough
to disengage it from the lock post on the back of the
front lamp unit housing.9. Remove the headlamp assembly. Grasp the outboard
edge of the lamp and pull it straight forward to
disengage the ball stud from the plastic grommet.
10. Disconnect the wiring harness connectors from the
bulb socket.
11. Replace bulb(s) as necessary.
CAUTION!
•Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.
Slide Lock
852 MAINTAINING YOUR VEHICLE

NOTE:There are access covers over both headlamp bulb
access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.
Fog Lamps — If Equipped
1. Reach under and behind the front bumper to access
the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector
from the fog lamp bulb.
3. Rotate the bulb counterclockwise ¼ turn to unlock the
bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
Rear Tail/Stop, Turn Signal And Backup Lamps
1. Remove the two screws that pass through the bed
sheet metal.
7
MAINTAINING YOUR VEHICLE 853

2. Pull the outboard side of the lamp rearward far
enough to unsnap the two receptacles on the outboard
side of the lamp housing from the two plastic snap
post retainers in the outer box side panel.3. Disconnect the wiring harness connectors from the
bulb socket.
4. Rotate the bulb socket counterclockwise 1/4 turn to
unlock it from the housing.
5. Pull the bulb straight out of the socket.
Tail Lamp Screw LocationsPulling Out The Tail Lamp
854 MAINTAINING YOUR VEHICLE

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
6. Reverse the procedure to install the bulb and housing.
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp

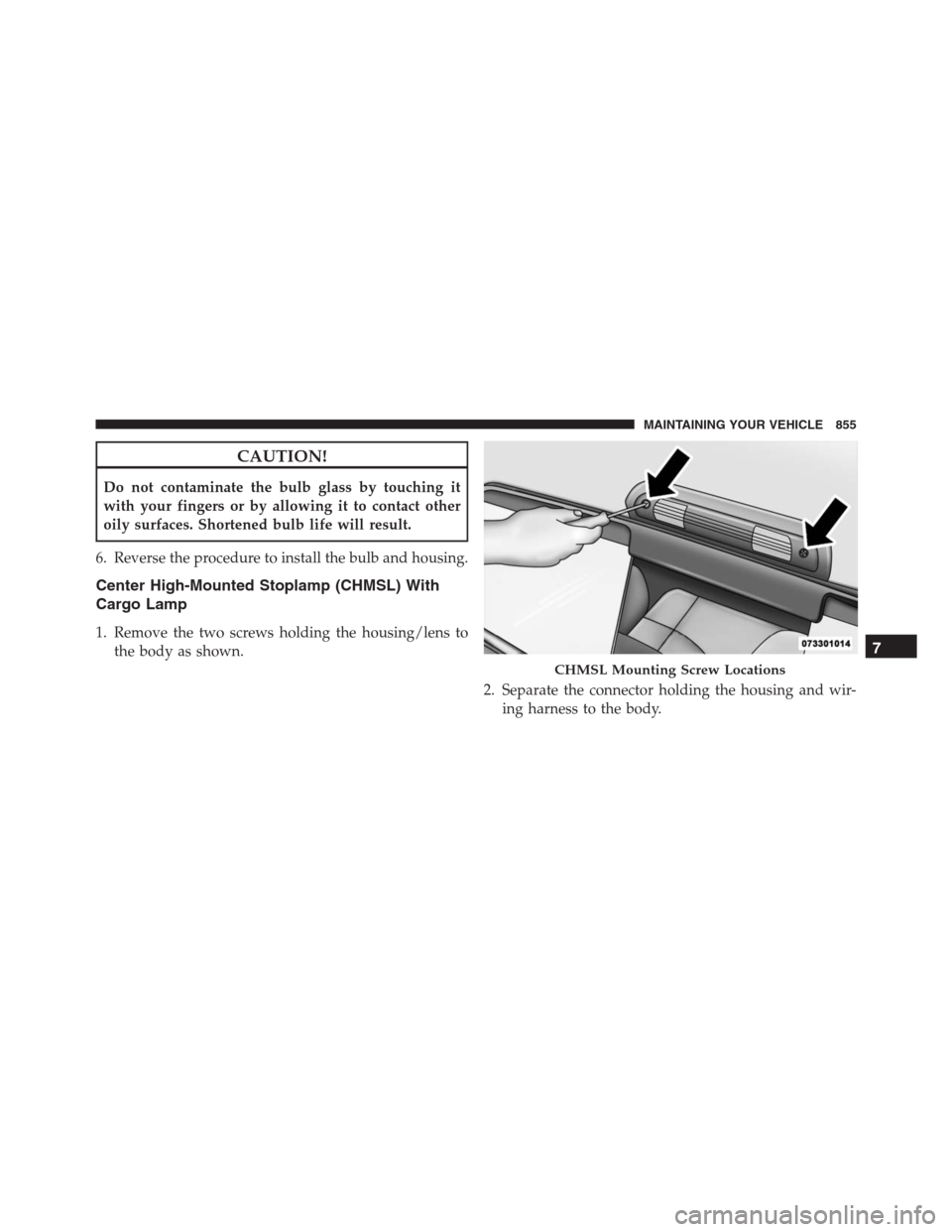

1. Remove the two screws holding the housing/lens to
the body as shown.
2. Separate the connector holding the housing and wir-
ing harness to the body.
CHMSL Mounting Screw Locations
7
MAINTAINING YOUR VEHICLE 855

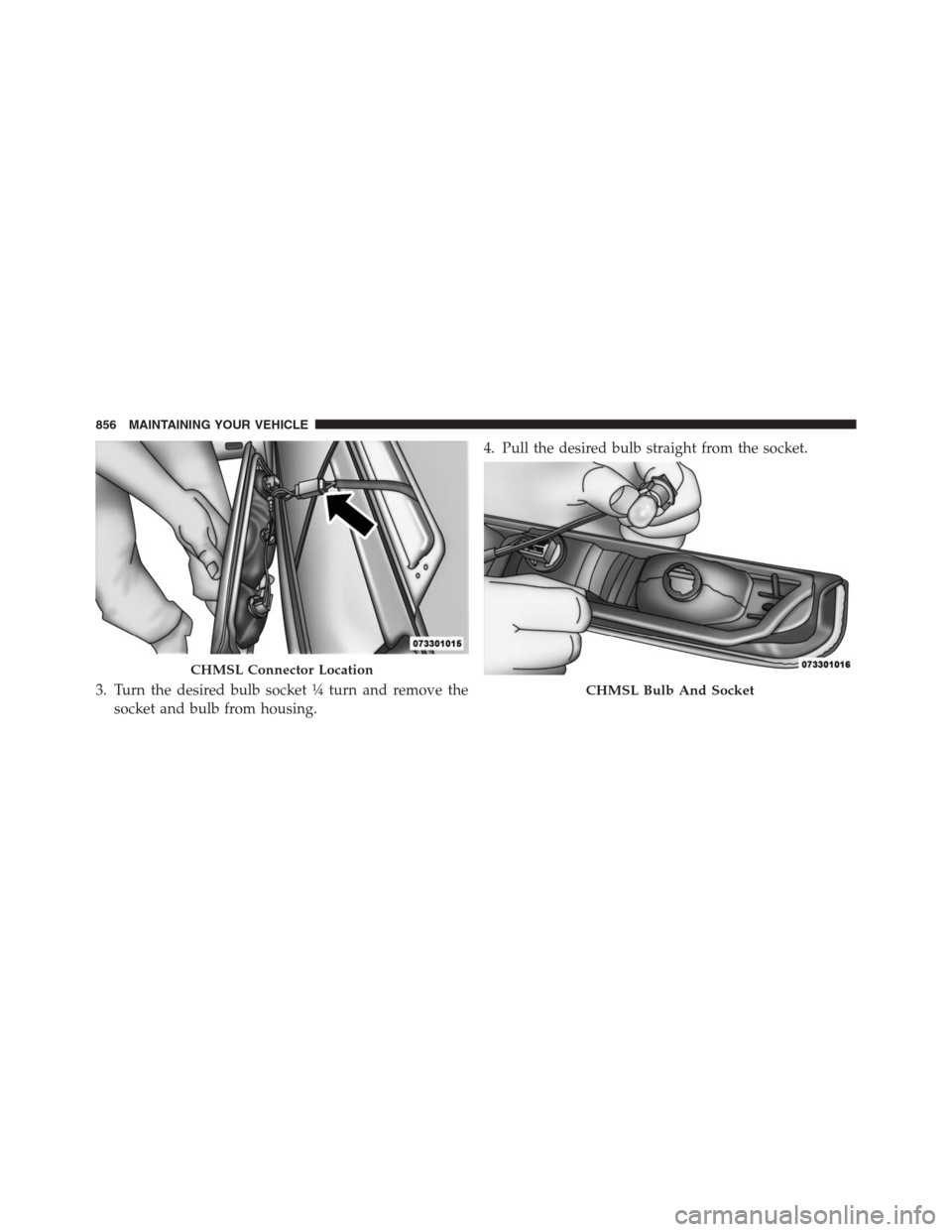

3. Turn the desired bulb socket ¼ turn and remove the
socket and bulb from housing.4. Pull the desired bulb straight from the socket.
CHMSL Connector Location
CHMSL Bulb And Socket
856 MAINTAINING YOUR VEHICLE

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Outside Bulbs: Cargo Lamps
•Inside Bulb: Center High-Mounted Stop Lamp
5. Reverse the procedure for installation of bulbs and
housing.
Cab Top Clearance Lamps — If Equipped

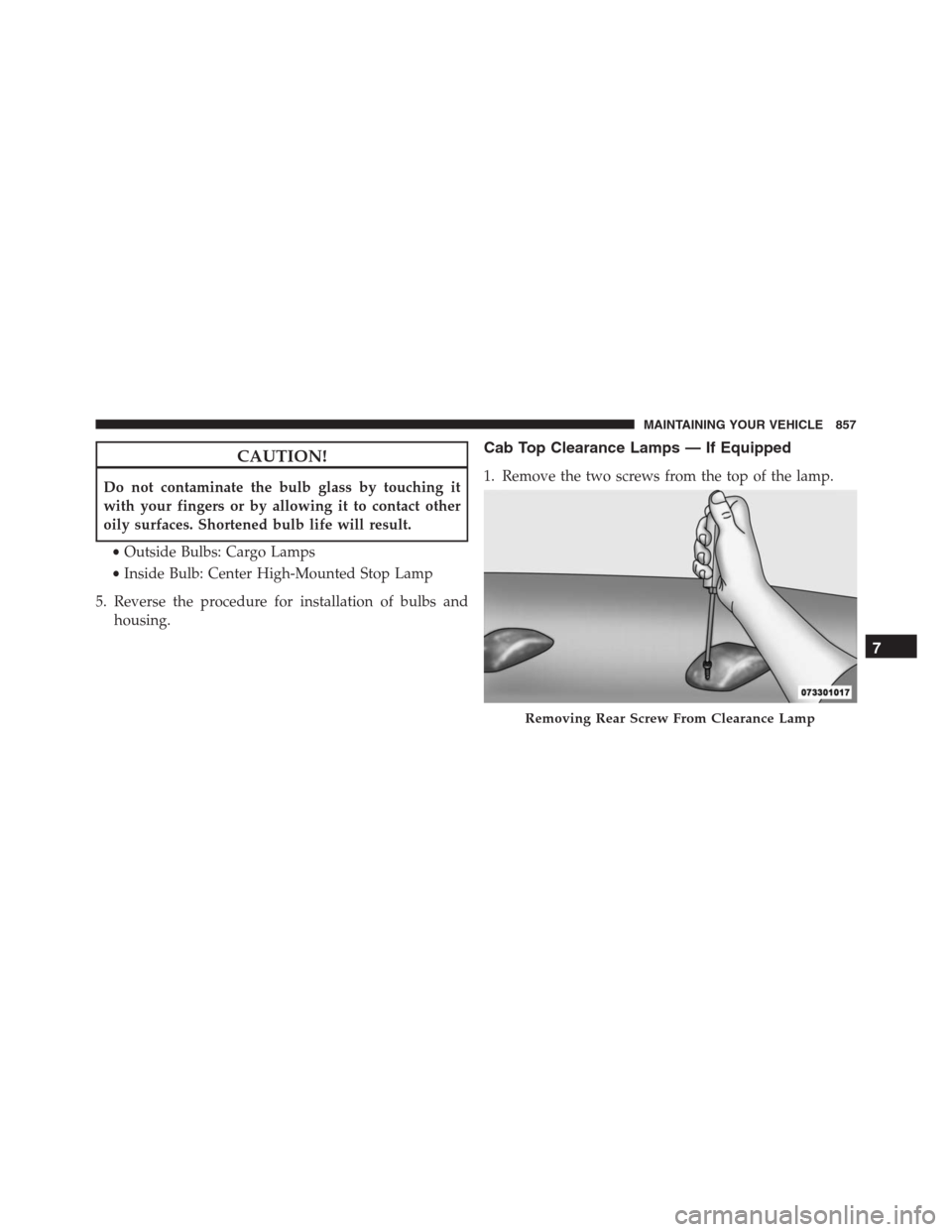

1. Remove the two screws from the top of the lamp.
Removing Rear Screw From Clearance Lamp
7
MAINTAINING YOUR VEHICLE 857

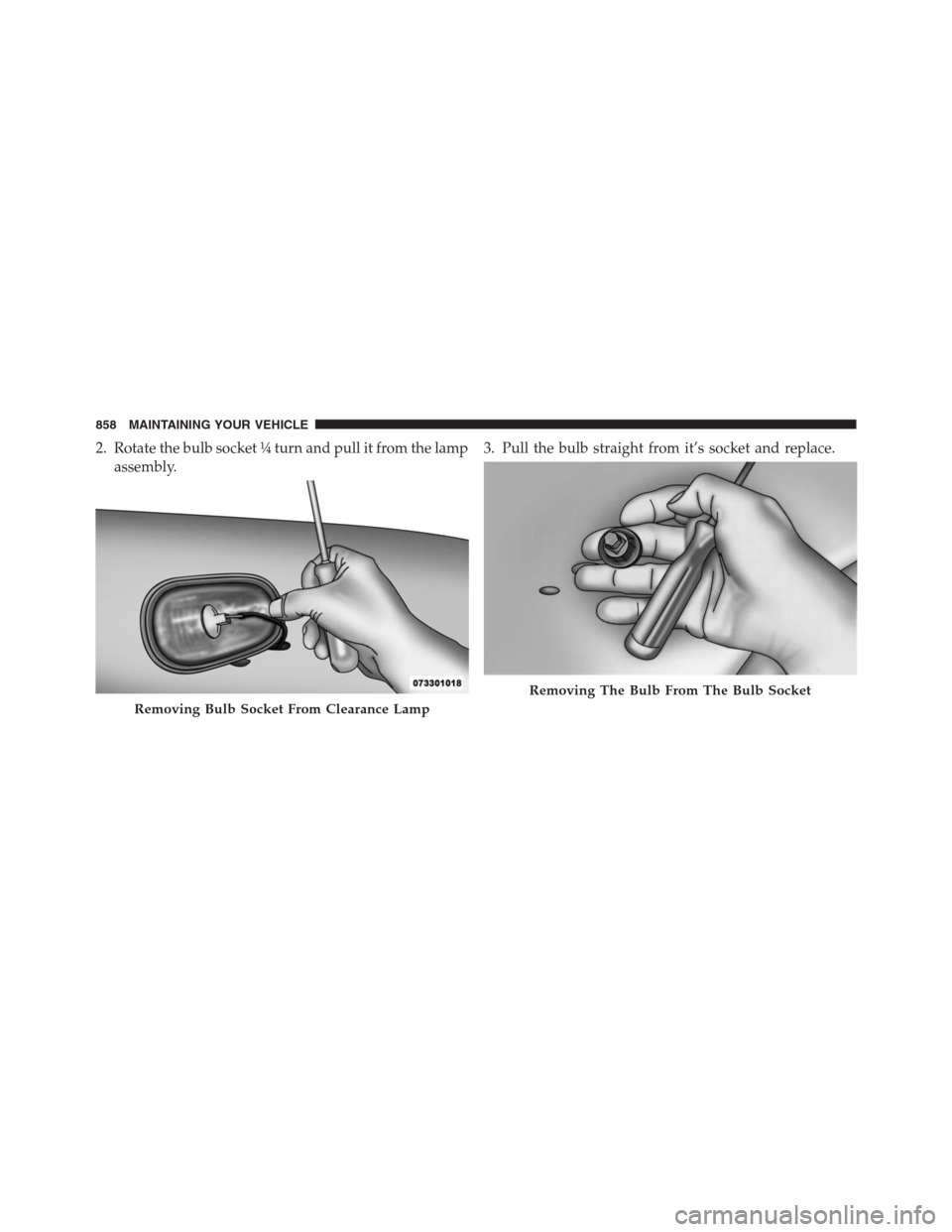

2. Rotate the bulb socket ¼ turn and pull it from the lamp
assembly.3. Pull the bulb straight from it’s socket and replace.
Removing Bulb Socket From Clearance Lamp
Removing The Bulb From The Bulb Socket
