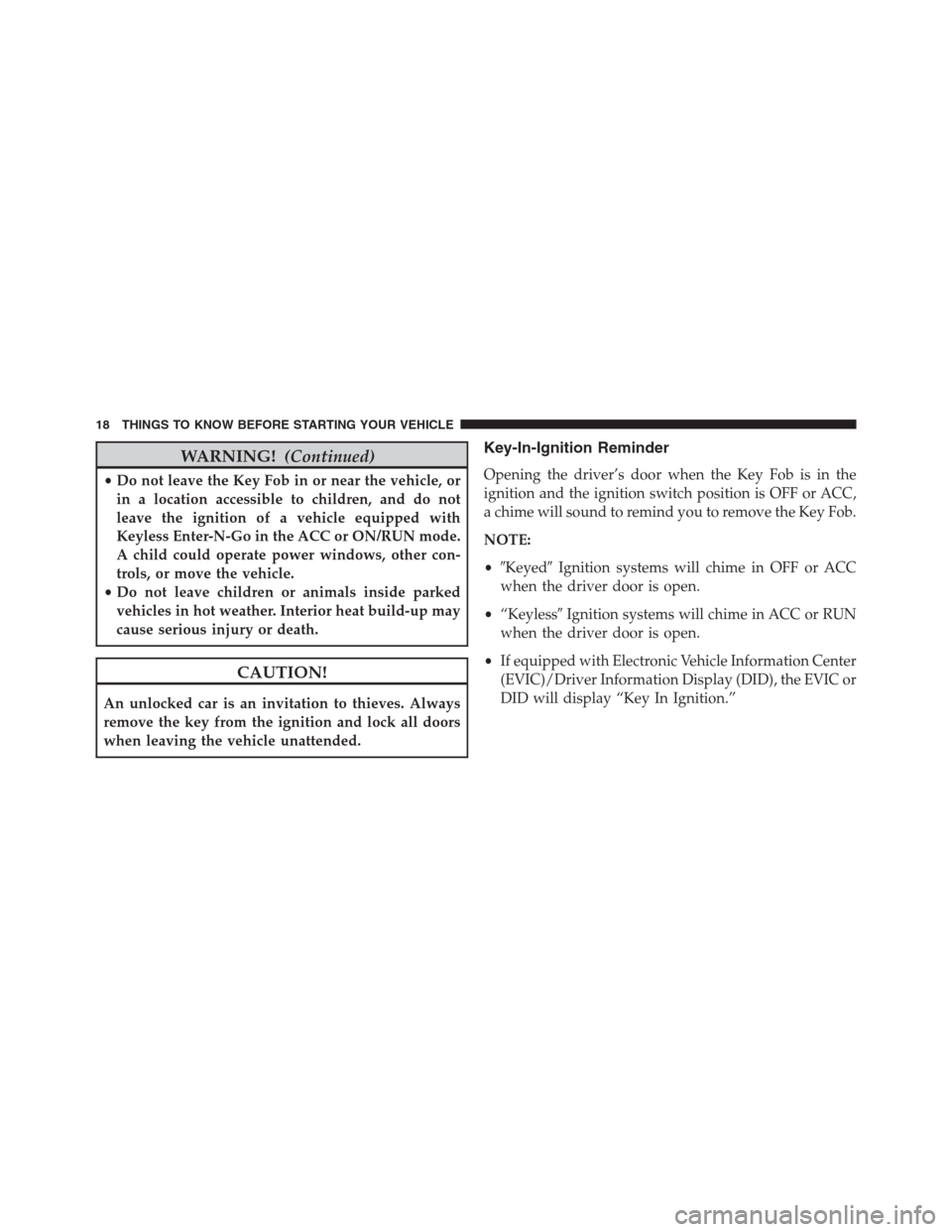

WARNING!(Continued)
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
a chime will sound to remind you to remove the Key Fob.
NOTE:
•KeyedIgnition systems will chime in OFF or ACC
when the driver door is open.
•“KeylessIgnition systems will chime in ACC or RUN
when the driver door is open.
•If equipped with Electronic Vehicle Information Center
(EVIC)/Driver Information Display (DID), the EVIC or
DID will display “Key In Ignition.”
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

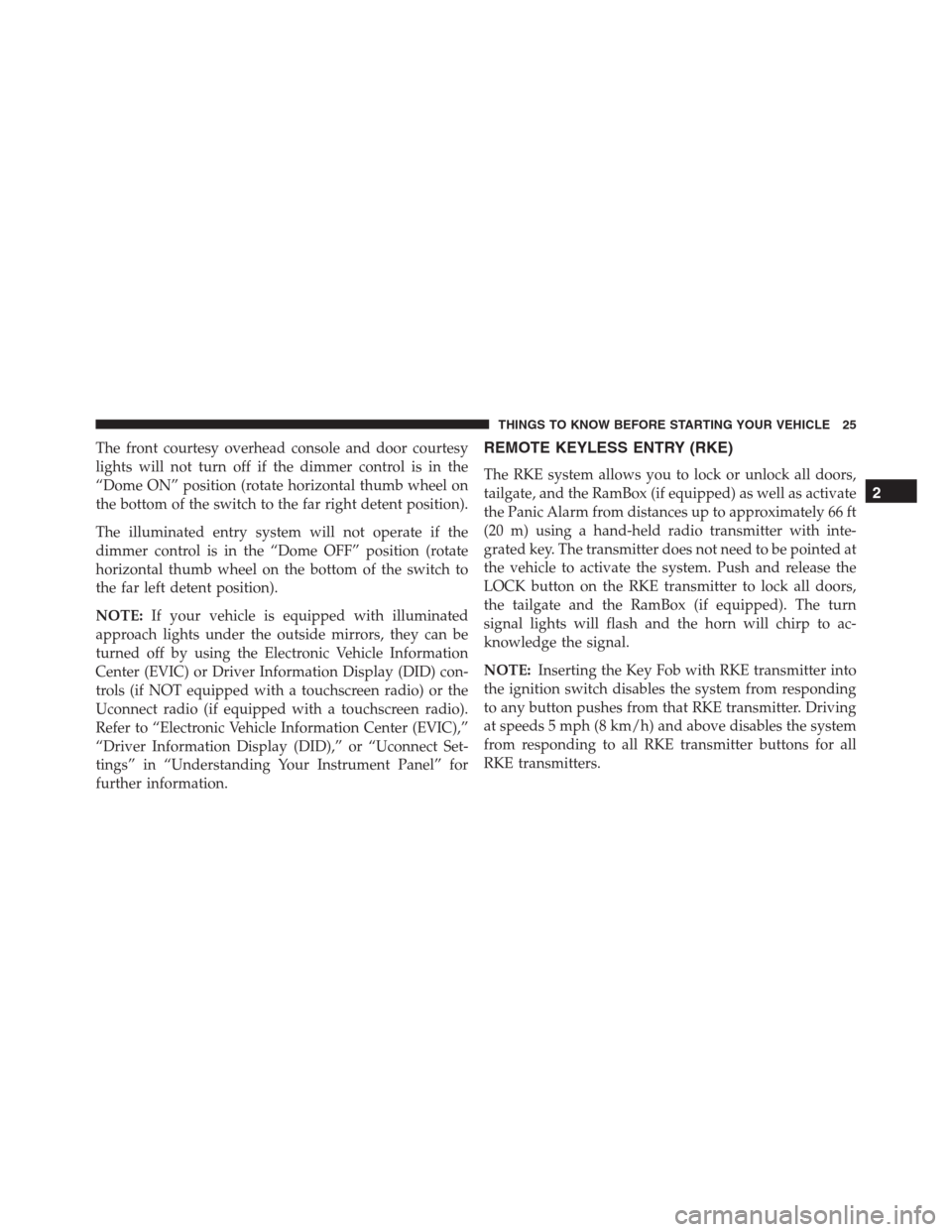

The front courtesy overhead console and door courtesy
lights will not turn off if the dimmer control is in the
“Dome ON” position (rotate horizontal thumb wheel on
the bottom of the switch to the far right detent position).
The illuminated entry system will not operate if the
dimmer control is in the “Dome OFF” position (rotate
horizontal thumb wheel on the bottom of the switch to
the far left detent position).
NOTE:If your vehicle is equipped with illuminated
approach lights under the outside mirrors, they can be
turned off by using the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID) con-
trols (if NOT equipped with a touchscreen radio) or the
Uconnect radio (if equipped with a touchscreen radio).
Refer to “Electronic Vehicle Information Center (EVIC),”
“Driver Information Display (DID),” or “Uconnect Set-
tings” in “Understanding Your Instrument Panel” for
further information.REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock all doors,
tailgate, and the RamBox (if equipped) as well as activate
the Panic Alarm from distances up to approximately 66 ft
(20 m) using a hand-held radio transmitter with inte-
grated key. The transmitter does not need to be pointed at
the vehicle to activate the system. Push and release the
LOCK button on the RKE transmitter to lock all doors,
the tailgate and the RamBox (if equipped). The turn
signal lights will flash and the horn will chirp to ac-
knowledge the signal.
NOTE:Inserting the Key Fob with RKE transmitter into
the ignition switch disables the system from responding
to any button pushes from that RKE transmitter. Driving
at speeds 5 mph (8 km/h) and above disables the system
from responding to all RKE transmitter buttons for all
RKE transmitters.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

Remote Start Abort Message
The following messages will display in the EVIC/DID if
the vehicle fails to remote start or exits remote start
prematurely:
•Remote Start Cancelled — Door Open
•Remote Start Cancelled — Hood Ajar
•Remote Start Cancelled — Fuel Low
•Remote Start Cancelled — System Fault
•Remote Start Disabled — Start Vehicle to Reset
The EVIC/DID message stays active until the ignition is
turned to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START buttonon the
RKE transmitter twice within five seconds. The park-
ing lights will flash, vehicle doors will lock, and thehorn will chirp twice (if programmed). Once the
vehicle has started, the engine will run for 15 minutes.
NOTE:
•If your power door locks were unlocked, Remote Start
will automatically lock the doors.
•If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

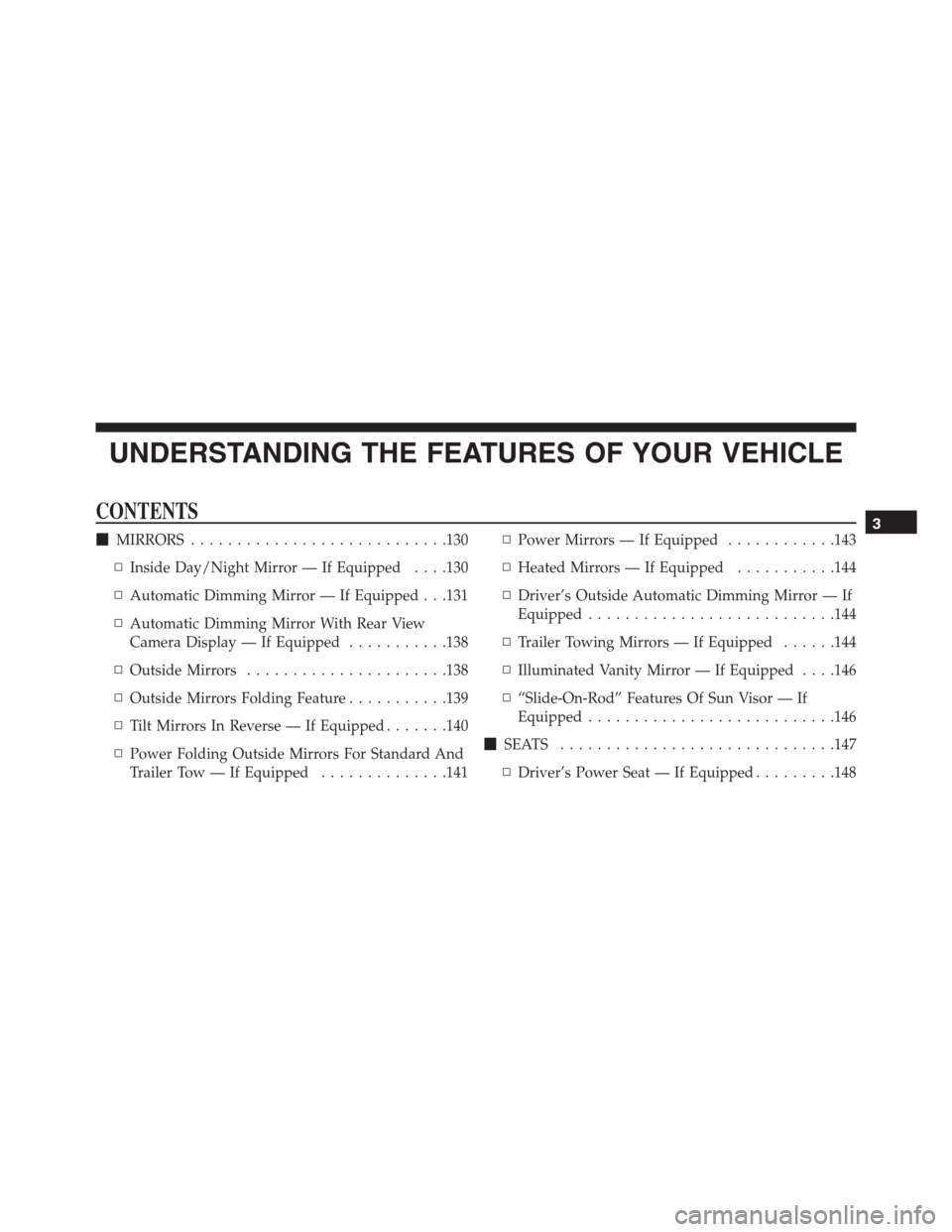

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS............................130
▫Inside Day/Night Mirror — If Equipped. . . .130
▫Automatic Dimming Mirror — If Equipped . . .131
▫Automatic Dimming Mirror With Rear View
Camera Display — If Equipped...........138
▫Outside Mirrors......................138
▫Outside Mirrors Folding Feature...........139
▫Tilt Mirrors In Reverse — If Equipped.......140
▫Power Folding Outside Mirrors For Standard And
Trailer Tow — If Equipped..............141▫Power Mirrors — If Equipped............143
▫Heated Mirrors — If Equipped...........144
▫Driver’s Outside Automatic Dimming Mirror — If
Equipped...........................144
▫Trailer Towing Mirrors — If Equipped......144
▫Illuminated Vanity Mirror — If Equipped. . . .146
▫“Slide-On-Rod” Features Of Sun Visor — If
Equipped...........................146
SEATS ..............................147
▫Driver’s Power Seat — If Equipped.........1483

▫To Accelerate For Passing...............195
PARKSENSE REAR PARK ASSIST — IF
EQUIPPED...........................196
▫ParkSense Sensors.....................196
▫ParkSense Warning Display..............196
▫ParkSense Display.....................197
▫Enabling And Disabling ParkSense.........201
▫Service The ParkSense Rear Park Assist
System.............................202
▫Cleaning The ParkSense System...........203
▫ParkSense System Usage Precautions........203
PARKSENSE FRONT AND REAR PARK ASSIST —
IF EQUIPPED..........................205
▫ParkSense Sensors.....................206▫ParkSense Warning Display..............206
▫ParkSense Display.....................207
▫Enabling And Disabling Front And/Or Rear
ParkSense...........................209
▫Service The ParkSense Park Assist System. . . .210
▫Cleaning The ParkSense System...........211
▫ParkSense System Usage Precautions........211
PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED...........................214
OVERHEAD CONSOLE — IF EQUIPPED.....217
▫Courtesy/Reading Lights...............217
GARAGE DOOR OPENER — IF EQUIPPED . . .219
▫Before You Begin Programming HomeLink . . .220
▫Programming A Rolling Code............221
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

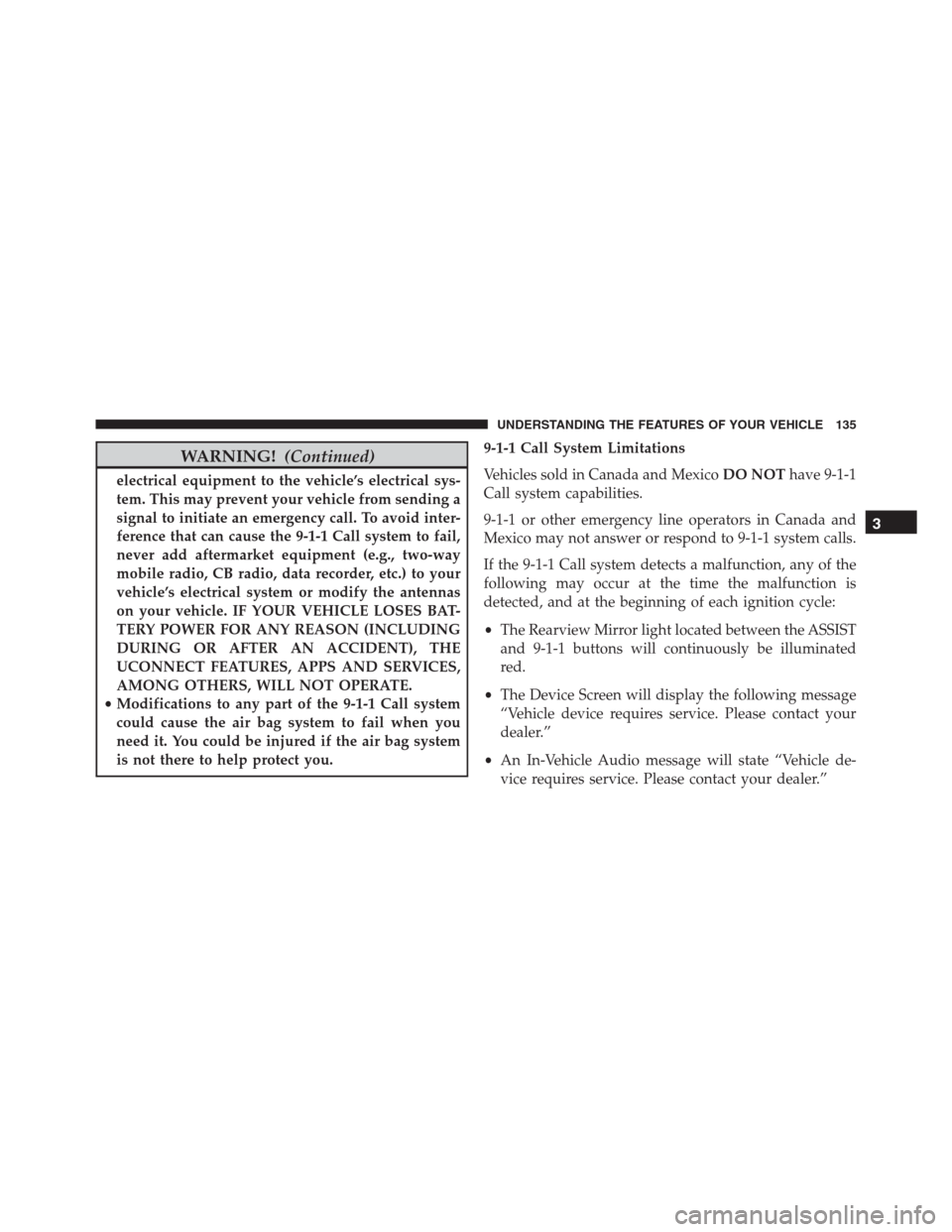

WARNING!(Continued)
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•The Rearview Mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated
red.
•The Device Screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
•An In-Vehicle Audio message will state “Vehicle de-
vice requires service. Please contact your dealer.”
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

Automatic Dimming Mirror With Rear View
Camera Display — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
When the vehicle is placed into reverse gear a video
display illuminates to display the image generated by the
rear view camera located on the tailgate handle. The auto
dimming feature is also disabled to improve rear view
viewing.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Automatic Dimming Mirror With Rear View Camera
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

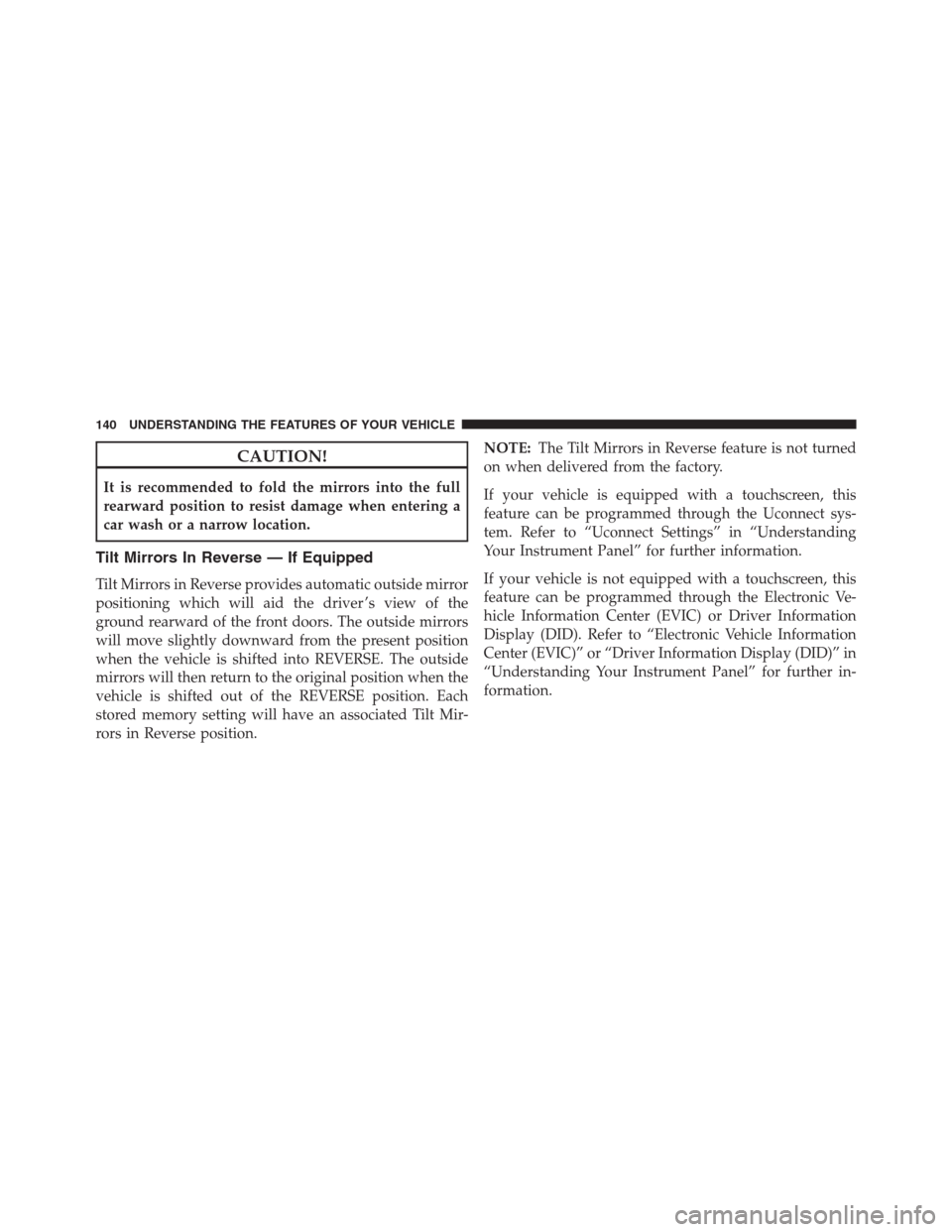

CAUTION!
It is recommended to fold the mirrors into the full
rearward position to resist damage when entering a
car wash or a narrow location.
Tilt Mirrors In Reverse — If Equipped
Tilt Mirrors in Reverse provides automatic outside mirror
positioning which will aid the driver ’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into REVERSE. The outside
mirrors will then return to the original position when the
vehicle is shifted out of the REVERSE position. Each
stored memory setting will have an associated Tilt Mir-
rors in Reverse position.NOTE:The Tilt Mirrors in Reverse feature is not turned
on when delivered from the factory.
If your vehicle is equipped with a touchscreen, this
feature can be programmed through the Uconnect sys-
tem. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
If your vehicle is not equipped with a touchscreen, this
feature can be programmed through the Electronic Ve-
hicle Information Center (EVIC) or Driver Information
Display (DID). Refer to “Electronic Vehicle Information
Center (EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

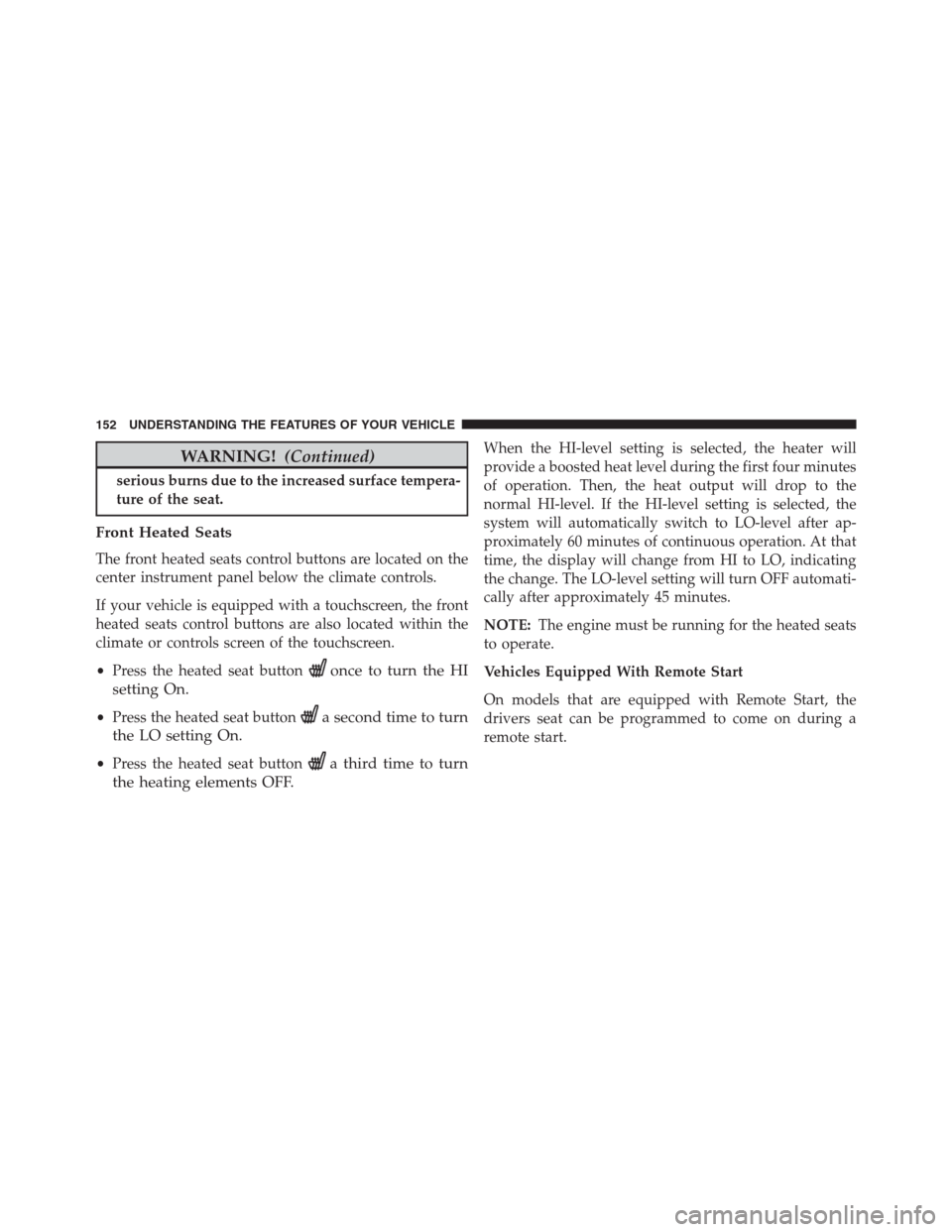

WARNING!(Continued)
serious burns due to the increased surface tempera-
ture of the seat.
Front Heated Seats
The front heated seats control buttons are located on the
center instrument panel below the climate controls.
If your vehicle is equipped with a touchscreen, the front
heated seats control buttons are also located within the
climate or controls screen of the touchscreen.
•Press the heated seat button
once to turn the HI
setting On.
•Press the heated seat buttona second time to turn
the LO setting On.
•Press the heated seat buttona third time to turn
the heating elements OFF.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal HI-level. If the HI-level setting is selected, the
system will automatically switch to LO-level after ap-
proximately 60 minutes of continuous operation. At that
time, the display will change from HI to LO, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 45 minutes.
NOTE:The engine must be running for the heated seats
to operate.
Vehicles Equipped With Remote Start
On models that are equipped with Remote Start, the
drivers seat can be programmed to come on during a
remote start.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If your vehicle is equipped with a touchscreen, this
feature can be programmed through the Uconnect sys-
tem. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
If your vehicle is not equipped with a touchscreen, this
feature can be programmed through the Electronic Ve-
hicle Information Center (EVIC) or Driver Information
Display (DID). Refer to “Electronic Vehicle Information
Center (EVIC)” or “Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.
Rear Heated Seats
On some models, the two outboard seats are equipped
with heated seats. The heated seat switches for these
seats are located on the rear of the center console.There are two heated seat switches that allow the rear
passengers to operate the seats independently. You can
choose from HI, LO or OFF heat settings. Amber indica-
tor lights in each switch indicate the level of heat in use.
Two indicator lights will illuminate for HI, one for LO
and none for OFF.
Push the switch once to select HI-level heating.
Push the switch a second time to select LO-
level heating. Push the switch a third time to
shut the heating elements OFF.
NOTE:
•Once a heat setting is selected, heat will be felt within
two to five minutes.
•The engine must be running for the heated seats to
operate.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
