Ram 1500 2019 Owner's Manual

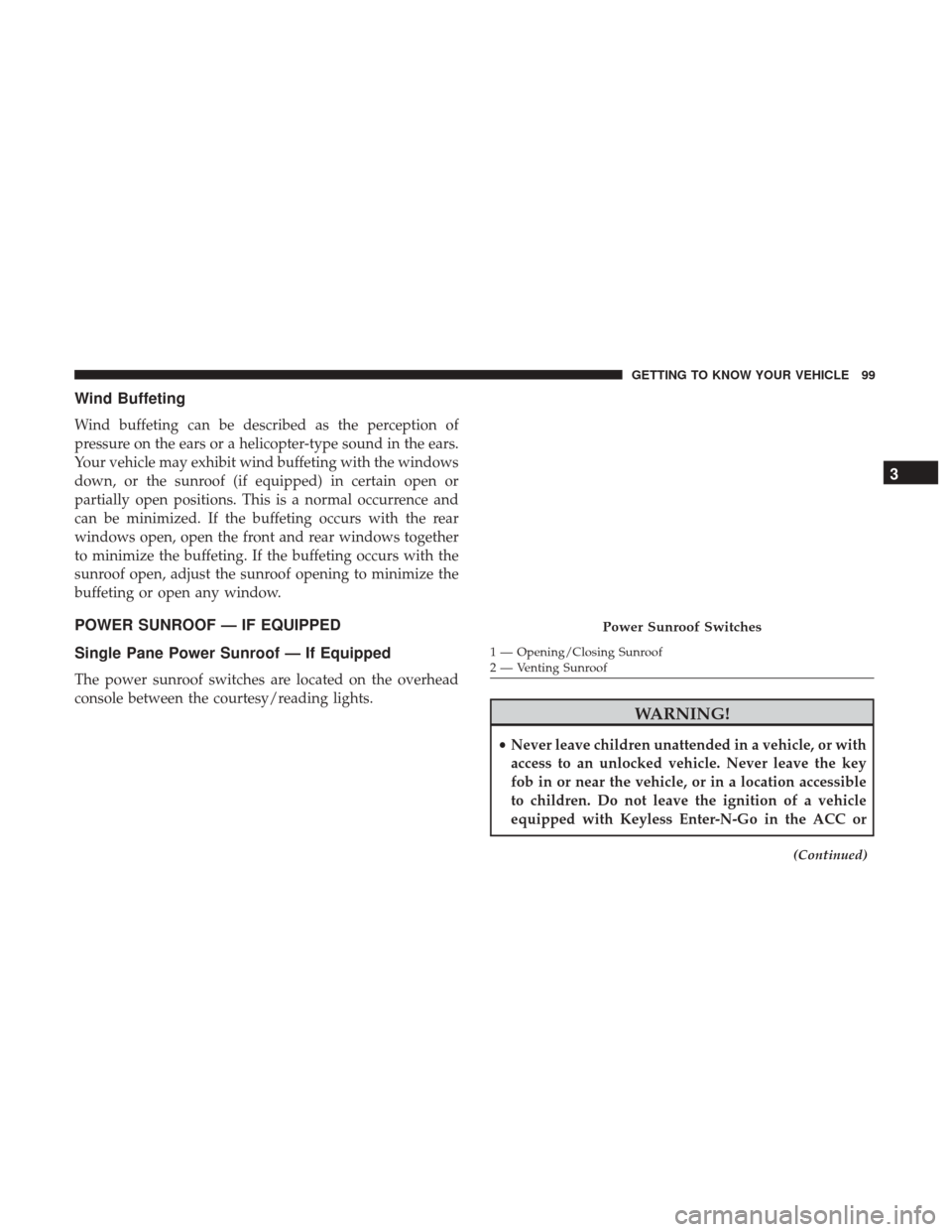

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, open the front and rear windows together
to minimize the buffeting. If the buffeting occurs with the
sunroof open, adjust the sunroof opening to minimize the
buffeting or open any window.
POWER SUNROOF — IF EQUIPPED
Single Pane Power Sunroof — If Equipped
The power sunroof switches are located on the overhead
console between the courtesy/reading lights.
WARNING!
•Never leave children unattended in a vehicle, or with
access to an unlocked vehicle. Never leave the key
fob in or near the vehicle, or in a location accessible
to children. Do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or
(Continued)
Power Sunroof Switches
1 — Opening/Closing Sunroof
2 — Venting Sunroof
3
GETTING TO KNOW YOUR VEHICLE 99

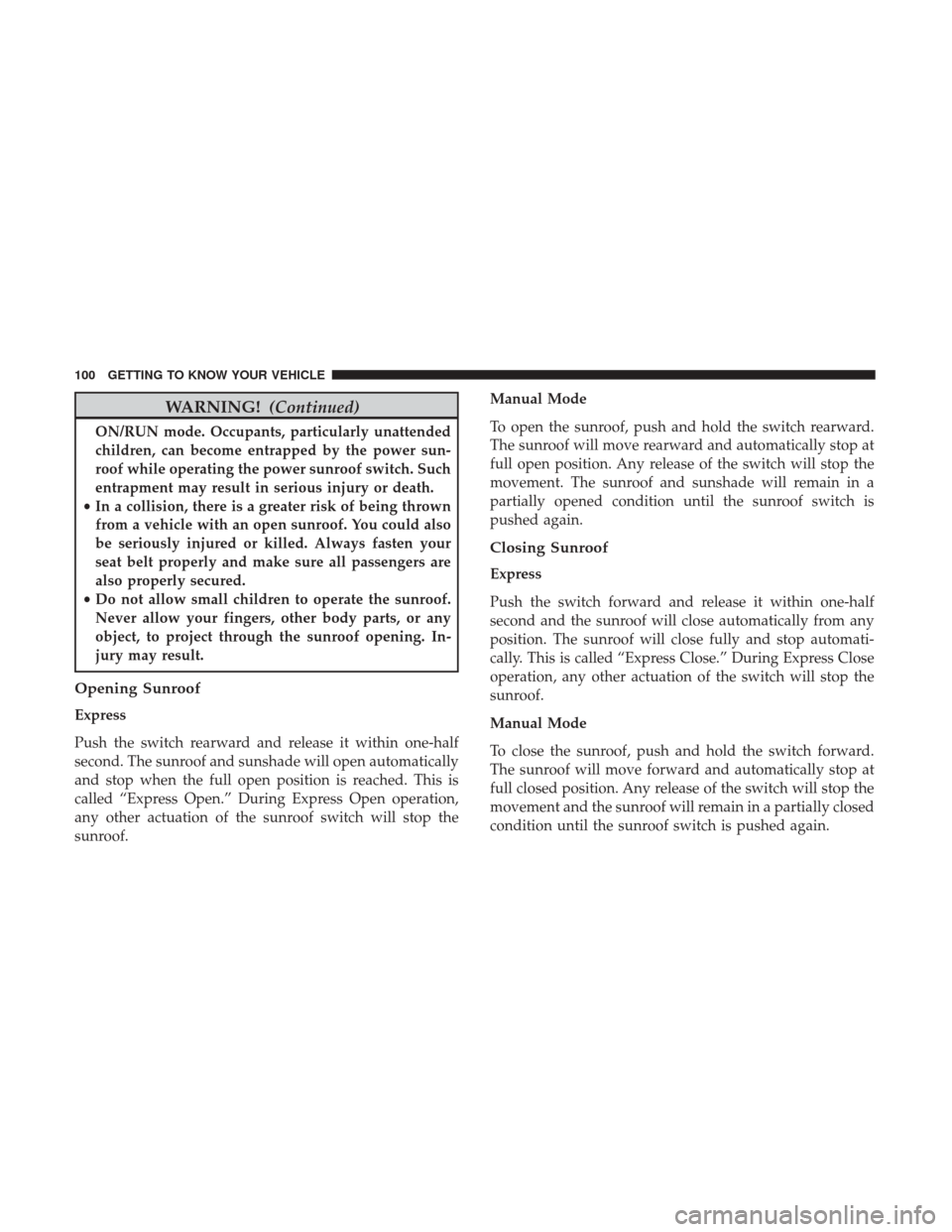

WARNING!(Continued)
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.
• In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.
• Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.
Opening Sunroof
Express
Push the switch rearward and release it within one-half
second. The sunroof and sunshade will open automatically
and stop when the full open position is reached. This is
called “Express Open.” During Express Open operation,
any other actuation of the sunroof switch will stop the
sunroof. Manual Mode
To open the sunroof, push and hold the switch rearward.
The sunroof will move rearward and automatically stop at
full open position. Any release of the switch will stop the
movement. The sunroof and sunshade will remain in a
partially opened condition until the sunroof switch is
pushed again.
Closing Sunroof
Express
Push the switch forward and release it within one-half
second and the sunroof will close automatically from any
position. The sunroof will close fully and stop automati-
cally. This is called “Express Close.” During Express Close
operation, any other actuation of the switch will stop the
sunroof.
Manual Mode
To close the sunroof, push and hold the switch forward.
The sunroof will move forward and automatically stop at
full closed position. Any release of the switch will stop the
movement and the sunroof will remain in a partially closed
condition until the sunroof switch is pushed again.
100 GETTING TO KNOW YOUR VEHICLE

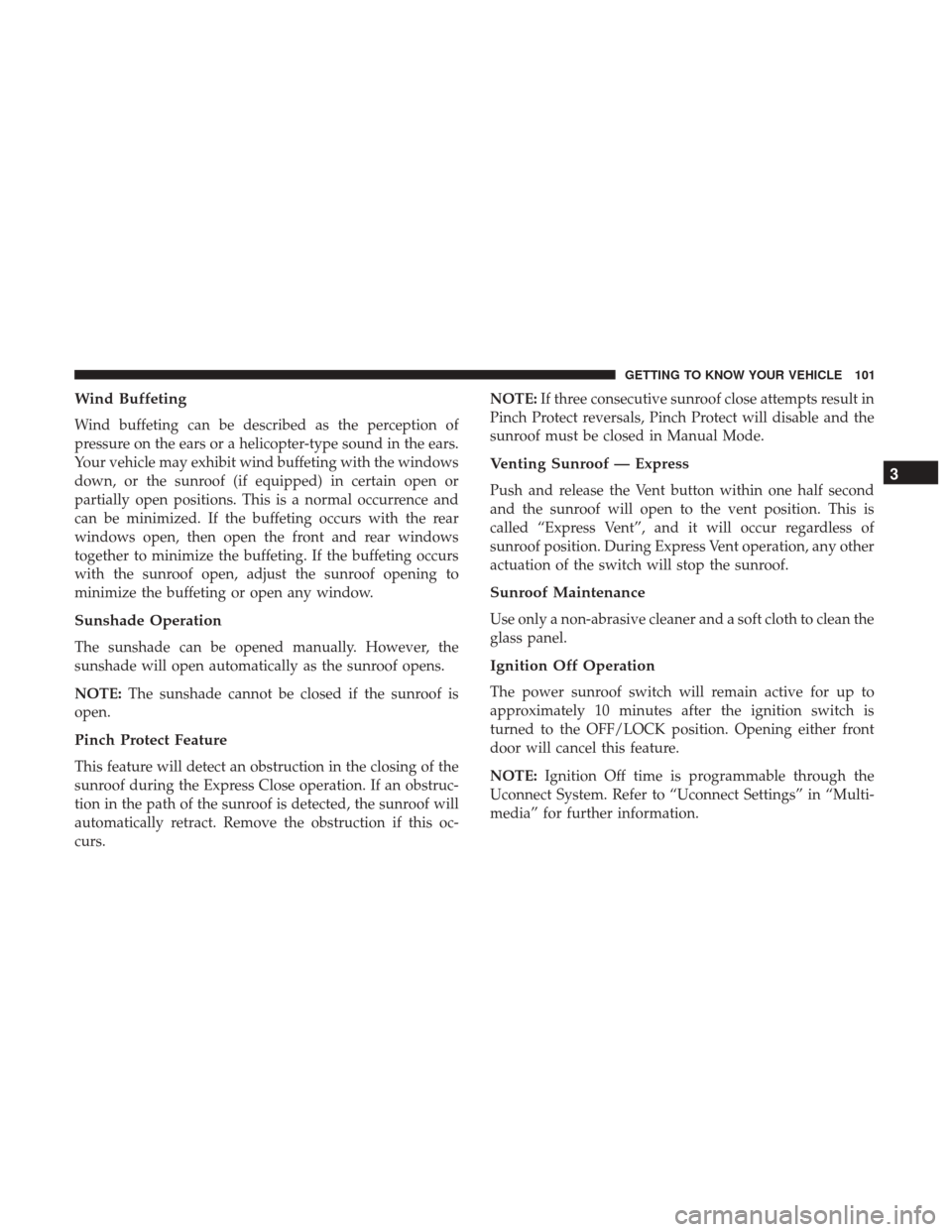

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE:The sunshade cannot be closed if the sunroof is
open.
Pinch Protect Feature
This feature will detect an obstruction in the closing of the
sunroof during the Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs. NOTE:
If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.
Venting Sunroof — Express
Push and release the Vent button within one half second
and the sunroof will open to the vent position. This is
called “Express Vent”, and it will occur regardless of
sunroof position. During Express Vent operation, any other
actuation of the switch will stop the sunroof.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.
Ignition Off Operation
The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
turned to the OFF/LOCK position. Opening either front
door will cancel this feature.
NOTE: Ignition Off time is programmable through the
Uconnect System. Refer to “Uconnect Settings” in “Multi-
media” for further information.
3
GETTING TO KNOW YOUR VEHICLE 101

Relearn Procedure
For vehicles equipped with a sunroof, there is a relearn
procedure that allows you to calibrate the sunroof when
the “Express Operation” feature stops working. To reset the
sunroof, follow these steps:
1. Set the ignition to the ACC or the ON/RUN position.
2. Ensure that the sunroof is in the fully closed position.
3. Push and hold the close switch. The sunroof will hit thehard stop and move to the vent position after ten
seconds.
4. Release the close switch.
5. Push and hold the close switch again within five sec- onds to begin the teaching process. The sunroof will
complete one full cycle and return to the fully closed
position.
NOTE: If the close switch is released anytime during the
teach cycle, the procedure will need to be repeated starting
from the first step.
6. Once the sunroof has stopped in the fully closed posi- tion, release the close switch. The sunroof is now reset
and ready to use.
Dual Pane Power Sunroof — If Equipped
The power sunroof switches are located on the overhead
console between the courtesy/reading lights.
Power Sunroof Switches
1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade
102 GETTING TO KNOW YOUR VEHICLE

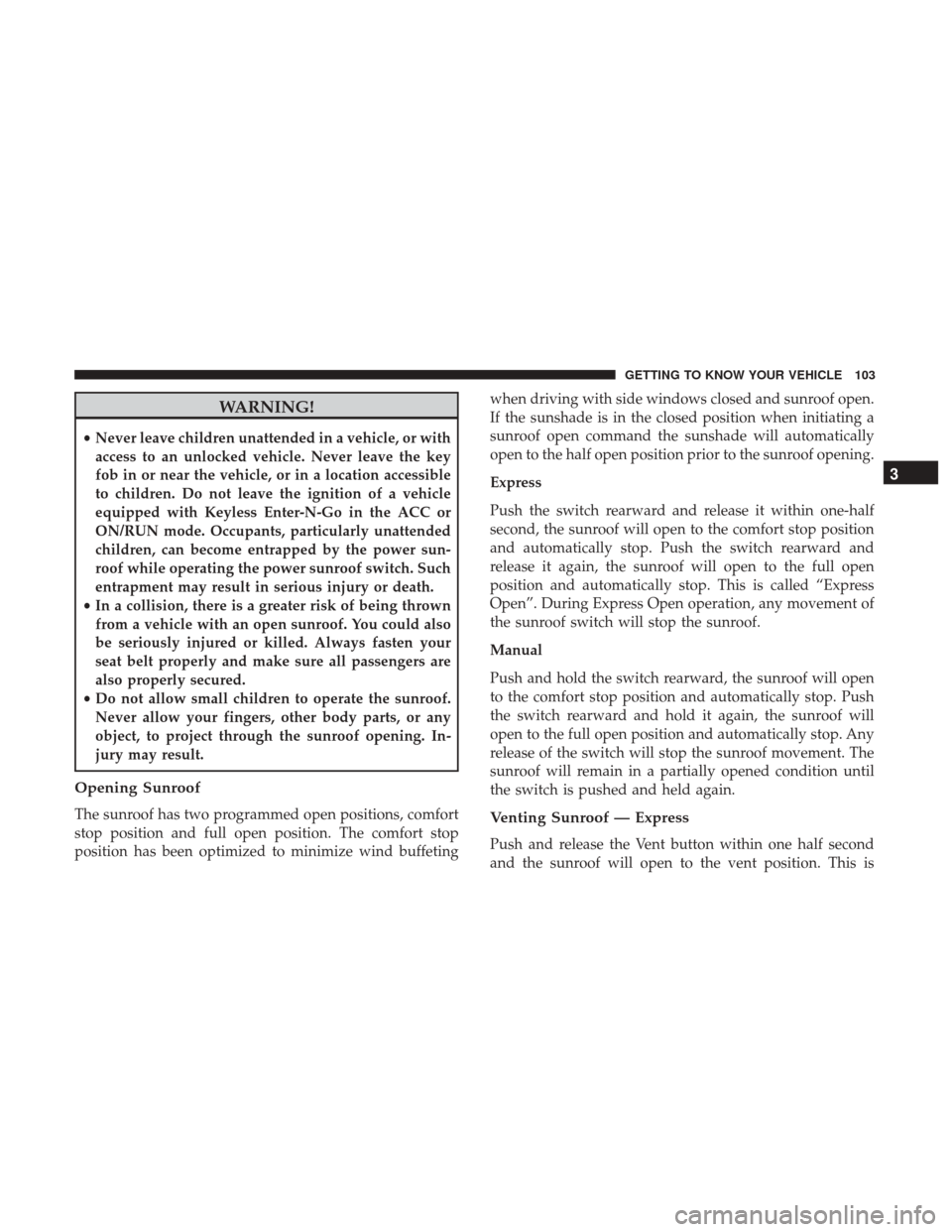

WARNING!
•Never leave children unattended in a vehicle, or with
access to an unlocked vehicle. Never leave the key
fob in or near the vehicle, or in a location accessible
to children. Do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.
• In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.
• Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.
Opening Sunroof
The sunroof has two programmed open positions, comfort
stop position and full open position. The comfort stop
position has been optimized to minimize wind buffeting when driving with side windows closed and sunroof open.
If the sunshade is in the closed position when initiating a
sunroof open command the sunshade will automatically
open to the half open position prior to the sunroof opening.
Express
Push the switch rearward and release it within one-half
second, the sunroof will open to the comfort stop position
and automatically stop. Push the switch rearward and
release it again, the sunroof will open to the full open
position and automatically stop. This is called “Express
Open”. During Express Open operation, any movement of
the sunroof switch will stop the sunroof.
Manual
Push and hold the switch rearward, the sunroof will open
to the comfort stop position and automatically stop. Push
the switch rearward and hold it again, the sunroof will
open to the full open position and automatically stop. Any
release of the switch will stop the sunroof movement. The
sunroof will remain in a partially opened condition until
the switch is pushed and held again.Venting Sunroof — Express
Push and release the Vent button within one half second
and the sunroof will open to the vent position. This is
3
GETTING TO KNOW YOUR VEHICLE 103

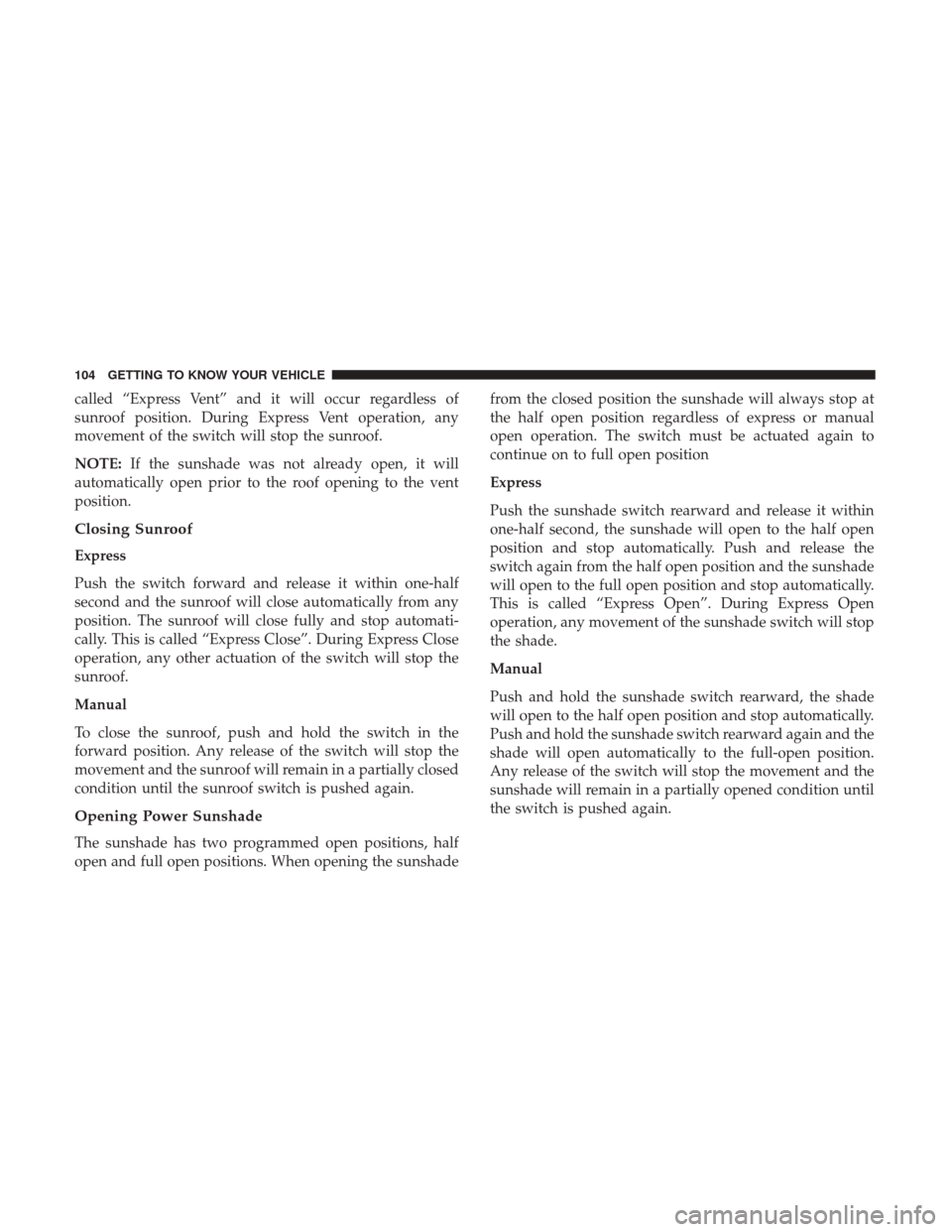

called “Express Vent” and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.
NOTE:If the sunshade was not already open, it will
automatically open prior to the roof opening to the vent
position.
Closing Sunroof
Express
Push the switch forward and release it within one-half
second and the sunroof will close automatically from any
position. The sunroof will close fully and stop automati-
cally. This is called “Express Close”. During Express Close
operation, any other actuation of the switch will stop the
sunroof.
Manual
To close the sunroof, push and hold the switch in the
forward position. Any release of the switch will stop the
movement and the sunroof will remain in a partially closed
condition until the sunroof switch is pushed again.
Opening Power Sunshade
The sunshade has two programmed open positions, half
open and full open positions. When opening the sunshade from the closed position the sunshade will always stop at
the half open position regardless of express or manual
open operation. The switch must be actuated again to
continue on to full open position
Express
Push the sunshade switch rearward and release it within
one-half second, the sunshade will open to the half open
position and stop automatically. Push and release the
switch again from the half open position and the sunshade
will open to the full open position and stop automatically.
This is called “Express Open”. During Express Open
operation, any movement of the sunshade switch will stop
the shade.
Manual
Push and hold the sunshade switch rearward, the shade
will open to the half open position and stop automatically.
Push and hold the sunshade switch rearward again and the
shade will open automatically to the full-open position.
Any release of the switch will stop the movement and the
sunshade will remain in a partially opened condition until
the switch is pushed again.
104 GETTING TO KNOW YOUR VEHICLE

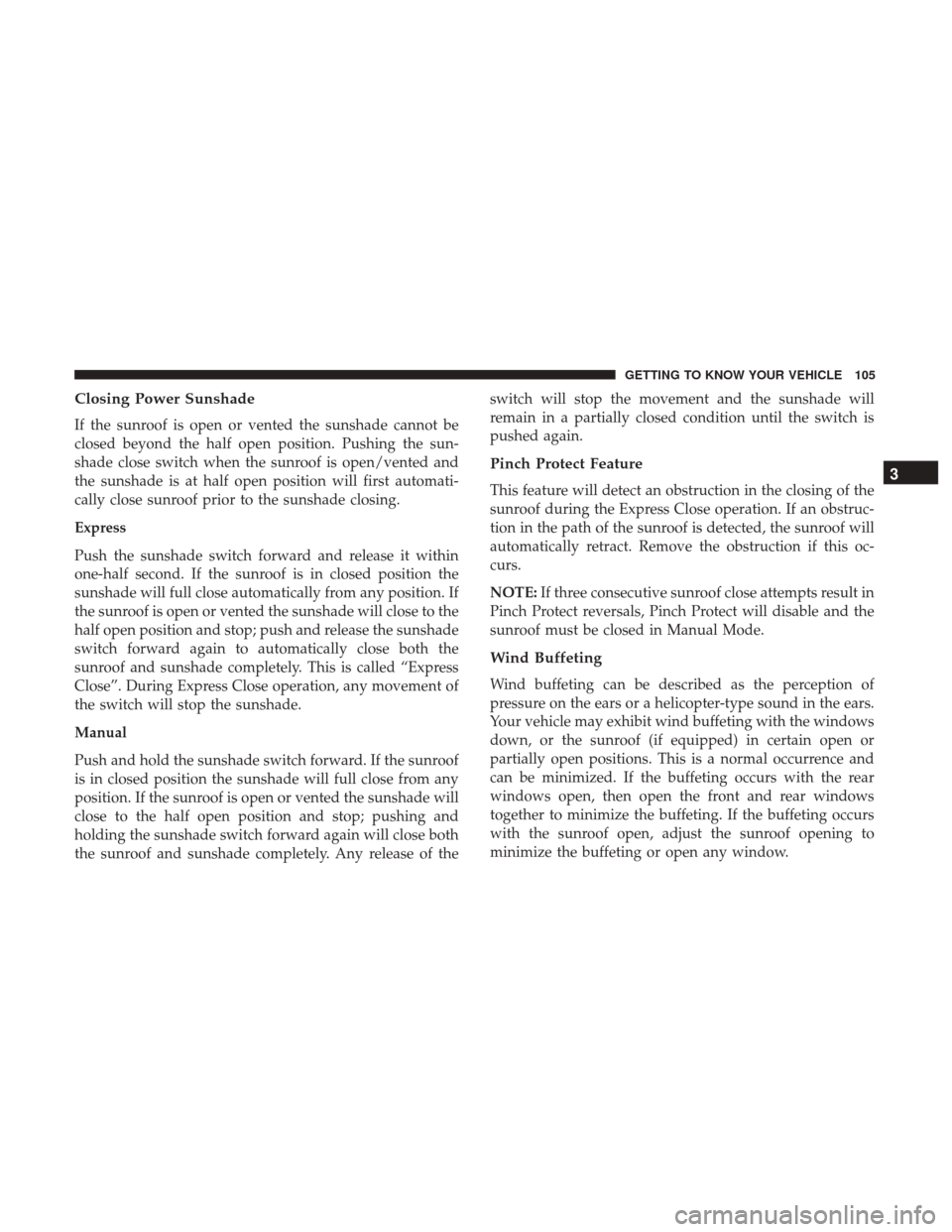

Closing Power Sunshade
If the sunroof is open or vented the sunshade cannot be
closed beyond the half open position. Pushing the sun-
shade close switch when the sunroof is open/vented and
the sunshade is at half open position will first automati-
cally close sunroof prior to the sunshade closing.
Express
Push the sunshade switch forward and release it within
one-half second. If the sunroof is in closed position the
sunshade will full close automatically from any position. If
the sunroof is open or vented the sunshade will close to the
half open position and stop; push and release the sunshade
switch forward again to automatically close both the
sunroof and sunshade completely. This is called “Express
Close”. During Express Close operation, any movement of
the switch will stop the sunshade.
Manual
Push and hold the sunshade switch forward. If the sunroof
is in closed position the sunshade will full close from any
position. If the sunroof is open or vented the sunshade will
close to the half open position and stop; pushing and
holding the sunshade switch forward again will close both
the sunroof and sunshade completely. Any release of theswitch will stop the movement and the sunshade will
remain in a partially closed condition until the switch is
pushed again.
Pinch Protect Feature
This feature will detect an obstruction in the closing of the
sunroof during the Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs.
NOTE:
If three consecutive sunroof close attempts result in
Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
3
GETTING TO KNOW YOUR VEHICLE 105

Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.
Ignition Off Operation
The power sunroof switch will remain active for up to
approximately 10 minutes after the ignition switch is
turned to the OFF/LOCK position. Opening either front
door will cancel this feature.
NOTE:Ignition Off time is programmable through the
Uconnect System. Refer to “Uconnect Settings” in “Multi-
media” for further information.
HOOD
To Open The Hood
To open the hood, two latches must be released.
1. Pull the hood release lever located below the steering wheel at the base of the instrument panel.
Hood Release Location
106 GETTING TO KNOW YOUR VEHICLE

2. Reach into the opening beneath the center of the hoodand push the safety latch lever to the left to release it,
before raising the hood.To Close The Hood
Lower the hood to approximately 12 inches (30 cm) from
the engine compartment and drop it. Make sure that the
hood is completely closed.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center
of the hood to ensure that both latches engage.Safety Latch Location
3
GETTING TO KNOW YOUR VEHICLE 107

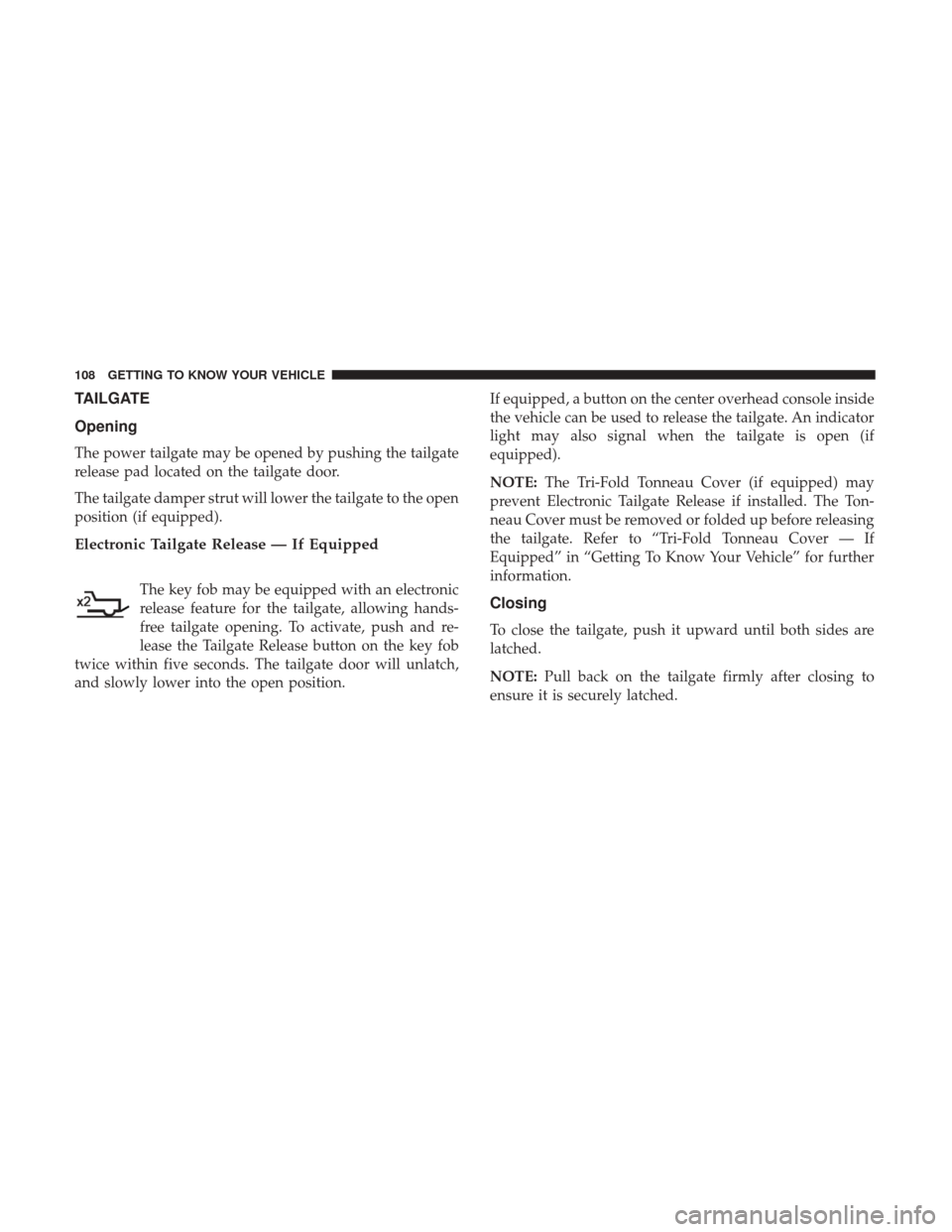

TAILGATE
Opening
The power tailgate may be opened by pushing the tailgate
release pad located on the tailgate door.
The tailgate damper strut will lower the tailgate to the open
position (if equipped).
Electronic Tailgate Release — If Equipped
The key fob may be equipped with an electronic
release feature for the tailgate, allowing hands-
free tailgate opening. To activate, push and re-
lease the Tailgate Release button on the key fob
twice within five seconds. The tailgate door will unlatch,
and slowly lower into the open position. If equipped, a button on the center overhead console inside
the vehicle can be used to release the tailgate. An indicator
light may also signal when the tailgate is open (if
equipped).
NOTE:
The Tri-Fold Tonneau Cover (if equipped) may
prevent Electronic Tailgate Release if installed. The Ton-
neau Cover must be removed or folded up before releasing
the tailgate. Refer to “Tri-Fold Tonneau Cover — If
Equipped” in “Getting To Know Your Vehicle” for further
information.Closing
To close the tailgate, push it upward until both sides are
latched.
NOTE: Pull back on the tailgate firmly after closing to
ensure it is securely latched.
108 GETTING TO KNOW YOUR VEHICLE
