Page 502 of 698
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Engine Oil Viscosity (SAE Grade) — 5.7L Engine
Mopar SAE 5W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or equiva-
lent is recommended for all operating temperatures. This
engine oil improves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes are
followed.
Synthetic engine oils which do not have both the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact an authorized dealer, service station
or governmental agency for advice on how and where used
oil and oil filters can be safely discarded in your area.
500 SERVICING AND MAINTENANCE
Page 561 of 698
5.7L Engine
Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.This engine is designed to meet all emis-
sions regulations and provide satisfac-
tory fuel economy and performance
when using high-quality unleaded gaso-
line having an octane range of 87 to 89 as
specified by the (R+M)/2 method. The
use of 89 octane “Plus” gasoline is rec-
ommended for optimum performance and fuel economy.
While operating on gasoline with an octane number of 87,
hearing a light knocking sound from the engine is not a
cause for concern. However, if the engine is heard making
a heavy knocking sound, see your dealer immediately. Use
of gasoline with an octane number lower than 87 can cause
engine failure and may void or not be covered by the New
Vehicle Limited Warranty.
Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before consider-
ing service for the vehicle.
Reformulated Gasoline
Many areas of the country require the use of cleaner burning
gasoline referred to as “Reformulated Gasoline”. Reformu-
lated gasoline contains oxygenates and are specifically
blended to reduce vehicle emissions and improve air quality.
The use of reformulated gasoline is recommended. Prop-
erly blended reformulated gasoline will provide improved
performance and durability of engine and fuel system
components.
Materials Added To Fuel
Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines that
have these additives will help improve fuel economy,
reduce emissions, and maintain vehicle performance.
Designated TOP TIER Detergent Gaso-
line contains a higher level of detergents
to further aide in minimizing engine
and fuel system deposits. When avail-
able, the usage of TOP TIER Detergent
gasoline is recommended. Visit
www.toptiergas.com for a list of TOP
TIER Detergent Gasoline Retailers.
9
TECHNICAL SPECIFICATIONS 559
Page 563 of 698
MMT In Gasoline
Methylcyclopentadienyl Manganese Tricarbonyl (MMT) is
a manganese-containing metallic additive that is blended
into some gasoline to increase octane. Gasoline blended
with MMT provides no performance advantage beyond
gasoline of the same octane number without MMT. Gaso-
line blended with MMT reduces spark plug life and
reduces emissions system performance in some vehicles.
The manufacturer recommends that gasoline without
MMT be used in your vehicle. The MMT content of
gasoline may not be indicated on the gasoline pump;
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.
Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.
(Continued)
CAUTION! (Continued)
•An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.
• The use of fuel additives, which are now being sold
as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.
NOTE: Intentional tampering with the emissions control
system can result in civil penalties being assessed against
you.
9
TECHNICAL SPECIFICATIONS 561

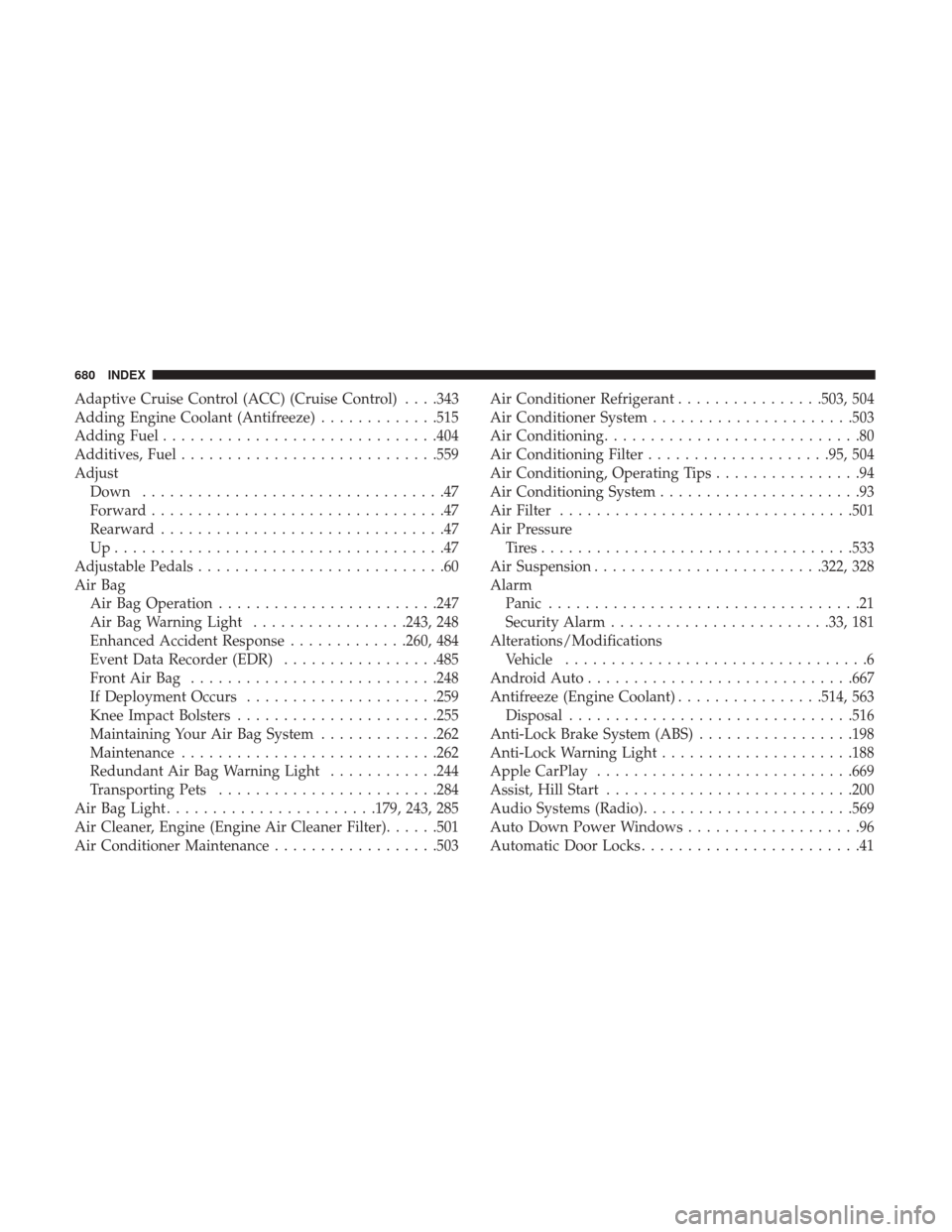

Page 682 of 698
Adaptive Cruise Control (ACC) (Cruise Control) . . . .343
Adding Engine Coolant (Antifreeze).............515
Adding Fuel ............................. .404
Additives, Fuel ........................... .559
Adjust Down .................................47
Forward ................................47
Rearward ...............................47
Up....................................47
Adjustable Pedals ...........................60
Air Bag Air Bag Operation ....................... .247
Air Bag Warning Light .................243, 248
Enhanced Accident Response .............260, 484
Event Data Recorder (EDR) .................485
FrontAirBag .......................... .248
If Deployment Occurs .....................259
Knee Impact Bolsters ..................... .255
Maintaining Your Air Bag System .............262
Maintenance ........................... .262
Redundant Air Bag Warning Light ............244
Transporting Pets ....................... .284
Air Bag Light ...................... .179, 243, 285
Air Cleaner, Engine (Engine Air Cleaner Filter) ......501
Air Conditioner Maintenance ..................503 Air Conditioner Refrigerant
................503, 504
Air Conditioner System ..................... .503
Air Conditioning ............................80
Air Conditioning Filter ....................95, 504
Air Conditioning, Operating Tips ................94
Air Conditioning System ......................93
Air Filter ............................... .501
Air Pressure Tires................................. .533
Air Suspension ........................ .322, 328
Alarm Panic ..................................21
Security Alarm....................... .33, 181
Alterations/Modifications Vehicle .................................6
Android Auto ............................ .667
Antifreeze (Engine Coolant) ................514, 563
Disposal .............................. .516
Anti-Lock
Brake System (ABS) .................198
Anti-Lock Warning Light .....................188
Apple CarPlay ........................... .669
Assist, Hill Start .......................... .200
Audio Systems (Radio) ...................... .569
Auto Down Power Windows ...................96
Automatic Door Locks ........................41
680 INDEX

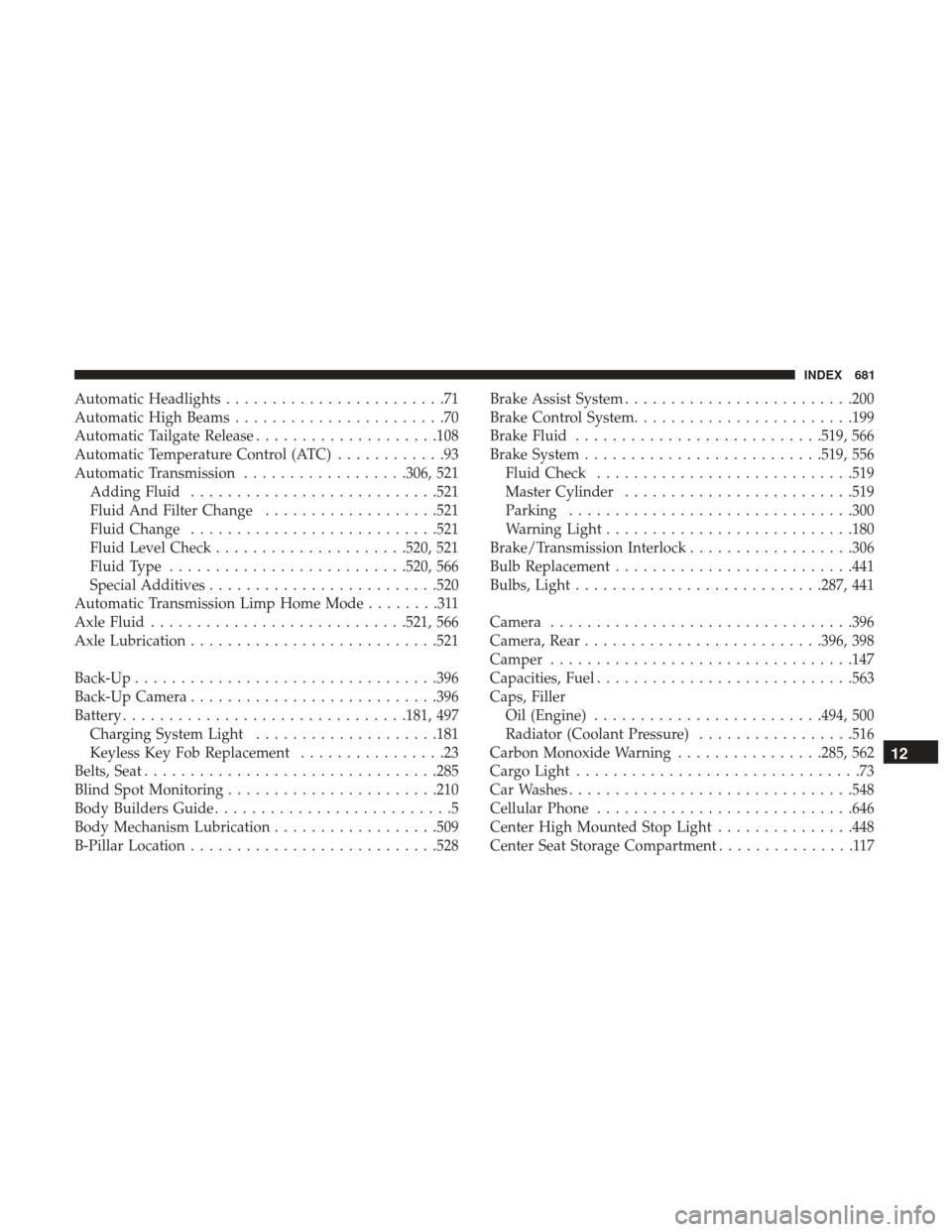

Page 683 of 698
Automatic Headlights........................71
Automatic High Beams .......................70
Automatic Tailgate Release ....................108
Automatic Temperature Control (ATC) ............93
Automatic Transmission ..................306, 521
Adding Fluid .......................... .521
Fluid And Filter Change ...................521
Fluid Change .......................... .521
Fluid Level Check .....................520, 521
Fluid Type ......................... .520, 566
Special Additives ........................ .520
Automatic Transmission Limp Home Mode ........311
Axle Fluid ........................... .521, 566
Axle Lubrication .......................... .521
Back-Up ................................ .396
Back-Up Camera .......................... .396
Battery .............................. .181, 497
Charging System Light ....................181
Keyless Key Fob Replacement ................23
Belts, Seat ............................... .285
Blind Spot Monitoring ...................... .210
Body Builders Guide ..........................5
Body Mechanism Lubrication ..................509
B-Pillar Location .......................... .528Brake Assist System
........................ .200
Brake Control System ....................... .199
Brake Fluid .......................... .519, 566
Brake System ......................... .519, 556
Fluid Check ........................... .519
Master Cylinder ........................ .519
Parking .............................. .300
Warning Light .......................... .180
Brake/Transmission Interlock ..................306
Bulb Replacement ......................... .441
Bulbs, Light .......................... .287, 441
Camera ................................ .396
Camera,
Rear ......................... .396, 398
Camper ................................ .147
Capacities, Fuel ........................... .563
Caps, Filler Oil (Engine) ........................ .494, 500
Radiator (Coolant Pressure) .................516
Carbon Monoxide Warning ................285, 562
Cargo Light ...............................73
Car Washes .............................. .548
Cellular Phone ........................... .646
Center High Mounted Stop Light ...............448
Center Seat Storage Compartment ...............117
12
INDEX 681
Page 686 of 698
Engine Oil Viscosity........................ .499
Engine Oil Viscosity Chart ....................499
Enhanced Accident Response Feature .........260, 484
Entry System, Illuminated .....................76
Ethanol ................................. .560
Exhaust Gas Cautions ....................285, 562
Exhaust System ........................ .285, 511
Exterior Lighting ............................68
Exterior Lights ......................... .68, 287
Filters Air Cleaner ............................ .501
Air Conditioning ..................... .95, 504
Engine Oil ......................... .501, 564
Engine Oil Disposal ...................... .500
Flashers Turn Signals ..................... .73, 192, 287
Flash-To-Pass ..............................71
Flat Tire Stowage .......................... .470
Fluid, Brake ............................. .566
Fluid Capacities ........................... .563
Fluid Leaks .............................. .288
Fluid Level Checks Brake ................................ .519
Fluids And Lubricants ...................... .564Fog Lights
............................ .72, 446
Fold-Flat Seats .............................43
Forward Collision Warning ....................221
Four-Way Hazard Flasher .....................435
Four Wheel Drive ......................... .313
Freeing A Stuck Vehicle ..................... .480
Front Axle (Differential) ..................... .521
Fuel ................................... .558
Adding .............................. .404
Additives ............................. .559
Clean Air ............................. .559
Ethanol .............................. .560
Gasoline .............................. .558
Light ................................ .186
Materials
Added........................ .559
Methanol ............................. .560
Octane Rating ....................558, 559, 564
Requirements ....................... .558, 563
Tank Capacity .......................... .563
Fuses .................................. .449
Garage Door Opener (HomeLink) ...............109
Gasoline, Clean Air ........................ .559
Gasoline, Reformulated ..................... .559
General Information ........................ .231
684 INDEX
